Arduino Electronic Dice
Arduino Electronic Dice roller
Sometimes when we play games in our house and require a dice, that either we can't find any dice or someone always tries to cheat. I saw a number of electronic dice in various guises so I decided to create my own electronic dice. This instructable will show you how to create an electronic dice out of an Arduino.
link：https://www.instructables.com/id/Arduino-Dice-1/.
I changed the delay time so the number could show longer.
Materials
Connect the Jumpers to Arduino
Pin 2 to button 2, button 2 to GND
Pin 4 to a resistor, resistor to top left LED cathode, anode to GND
Pin 5 to a resistor, resistor to the top right LED cathode, anode to GND
Pin 6 to a resistor, resistor to middle left LED cathode, anode to GND
Pin 7 to a resistor, resistor to the middle right LED cathode, anode to GND
Pin 8 to a resistor, resistor to the bottom left LED cathode, anode to GND
Pin 9 to a resistor, resistor to the bottom right LED cathode, anode to GND
Pin 10 to a resistor, resistor to center LED cathode, anode to GND
Pin 11 to button 1, button 1 to GND

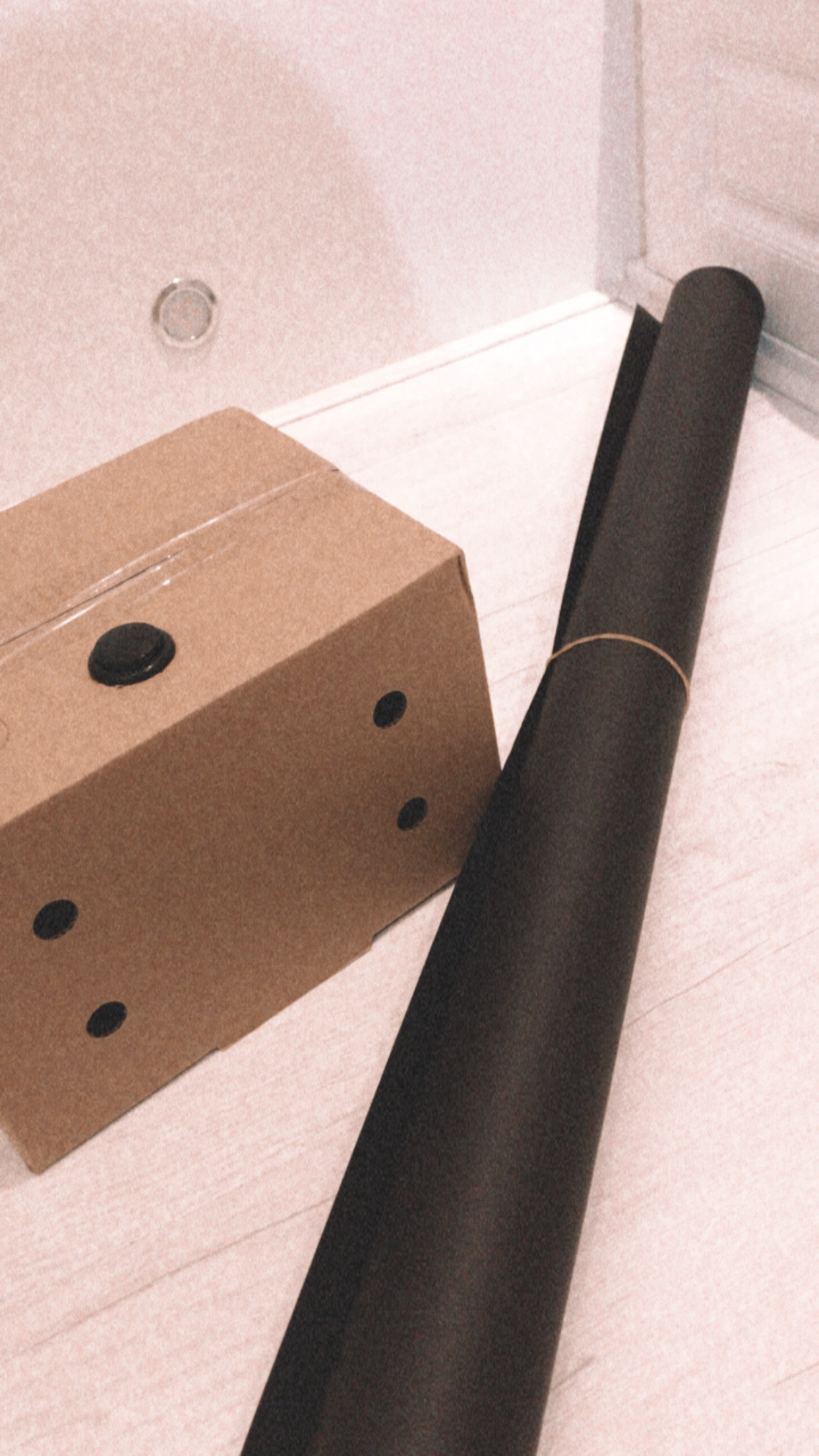

Making the Additional Decorations
Circuits
Code
Final Product
