Arduino EMF Detector

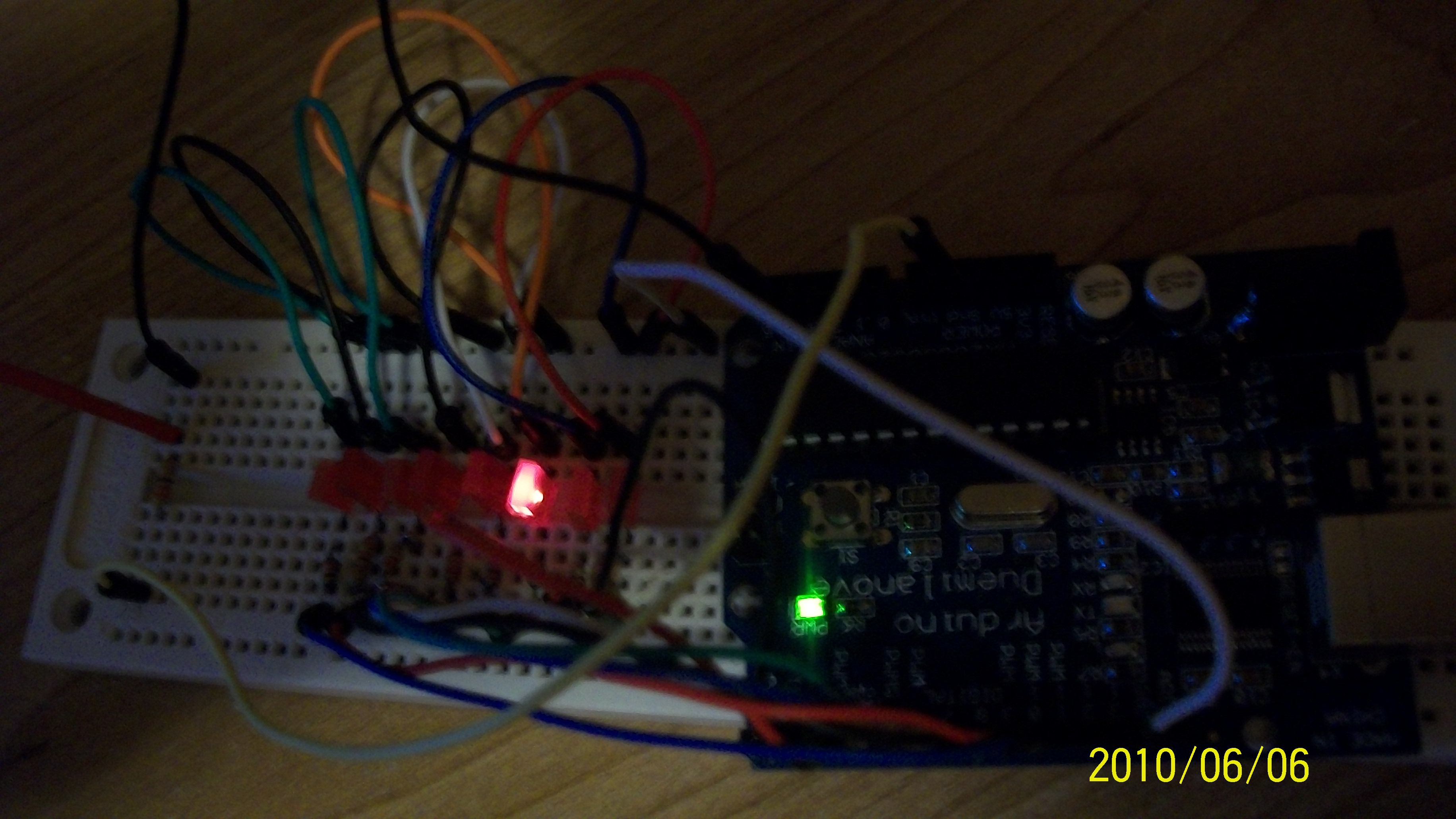

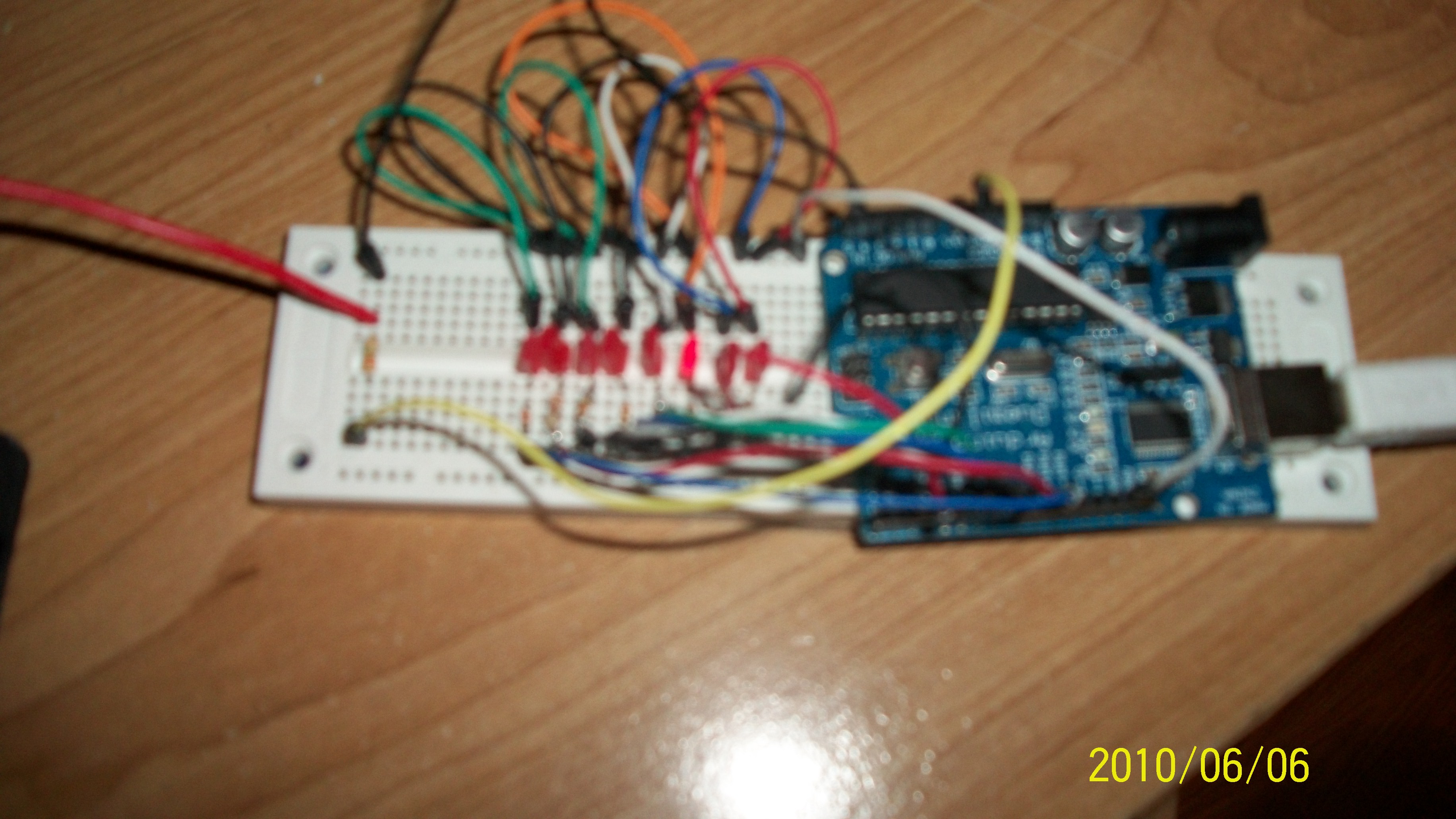

Here's a small, quick project you can do with an arduino, the EMF Detector!

All you need for this project is

1. 10- 330 ohm resistors
2. 10- LED's
3. 1-3.3m resistor
4. 1-Solid core wire (this will serve as the probe)
5. breadboard, wires, battery & connector for arduino to make it portable

I can't tell you much more at this point. I left the circut diagram so you can figure the rest out. I will be making a permanent PCB for this EMF detector. I will upload picture's of the board layout in a few days when I get it done. Any questions leave them, I am usually quick to respond. Happy ghost hunting y'all!

This code is available at http://code.google.com/p/makezine/downloads/detail?name=EMF_detector_bargraph.zip&can=2&q=
  I did not write this code so I do no want to take credit for it I just built the prototype to my liking.

Here is the finished custom pcb for the arduino EMF detector.

I changed the code and went from digital pins 2-6-8-10-12- gnd the on the analog side pins 5 and gnd.

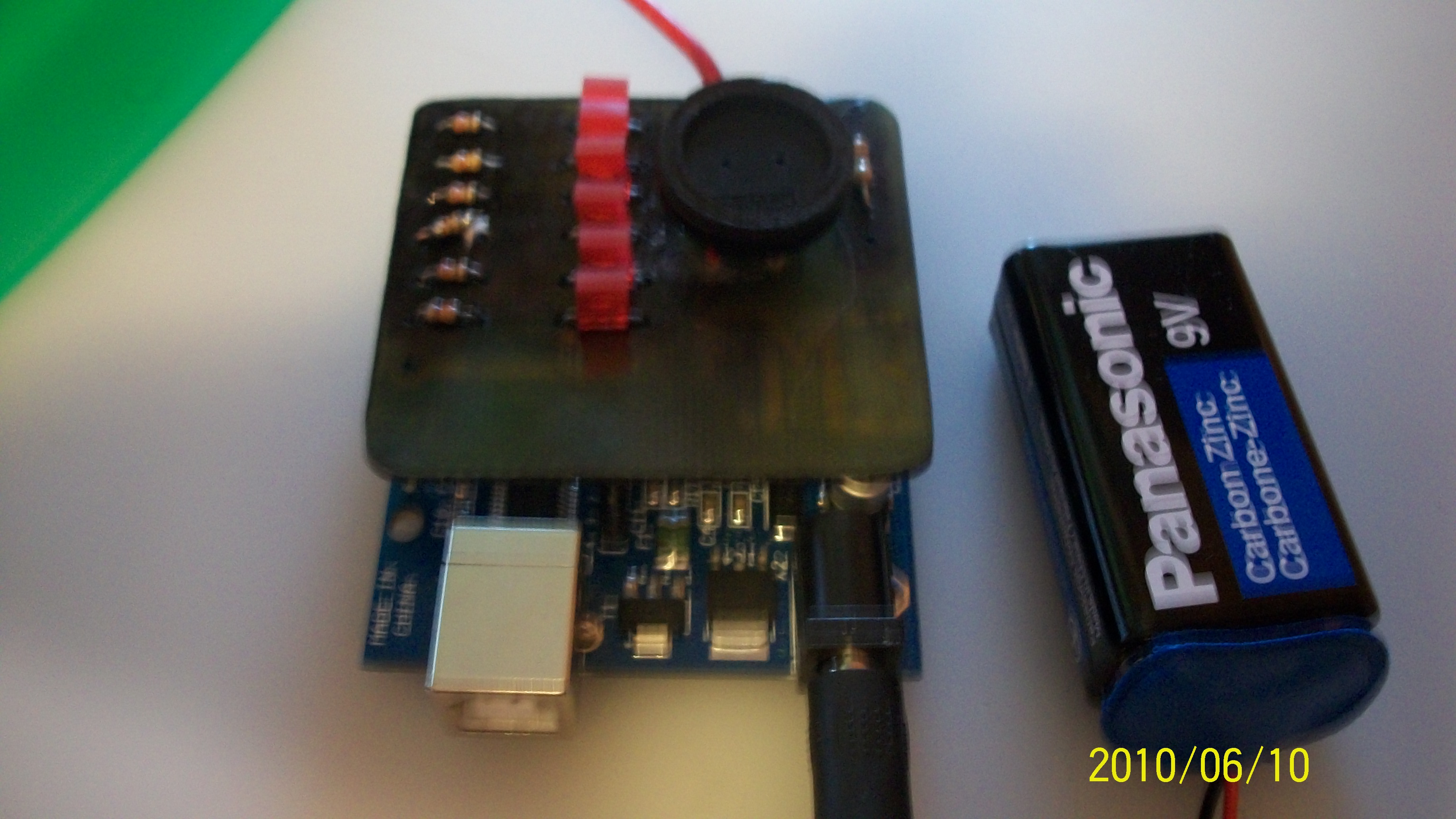

The finished EMF made portable. Hooked up to a 9v battery

Portable EMF
