Arduino Counter Using TM1637 LED Display & Obstacle Avoidance Sensor

In this tutorial we will learn how to make a simple digit counter using LED Display TM1637 and obstacle avoidance sensor and Visuino.

Watch the video.

• Arduino UNO (or any other Arduino)
• Jumper wires
• Obstacle avoidance sensor
• LED Display TM1637
• Visuino program: Download Visuino

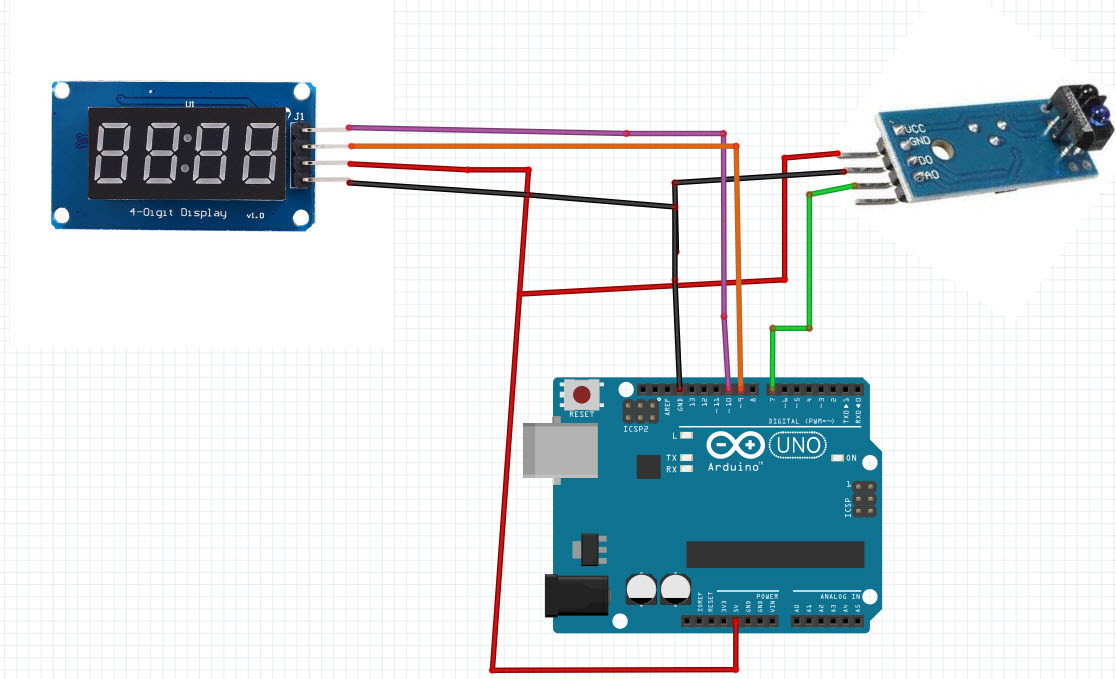

• Connect LED Display pin[CLK] to Arduino digital pin[10]
• Connect LED Display pin[DI0] to Arduino digital pin[9]
• Connect LED Display pin[GND] to Arduino pin[GND]
• Connect LED Display pin[VCC] to Arduino pin[5V]
• Connect obstacle avoidance sensor pin[VCC] to Arduino pin[5V]
• Connect obstacle avoidance sensor pin[GND] to Arduino pin[GND]
• Connect obstacle avoidance sensor pin[D0] to Arduino digital pin[7]

To start programming the Arduino, you will need to have the Arduino IDE installed from here: https://www.arduino.cc/.

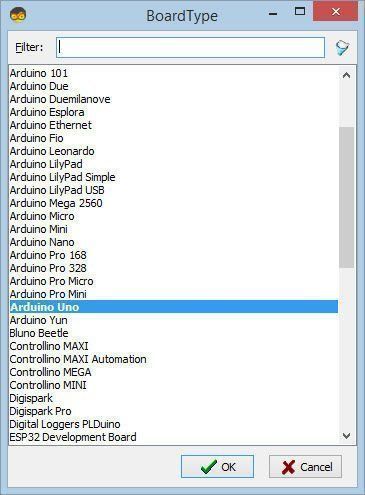

Please be aware that there are some critical bugs in Arduino IDE 1.6.6. Make sure that you install 1.6.7 or higher, otherwise this Instructable will not work! If you have not done follow the steps in this Instructable to setup the Arduino IDE to program Arduino UNO! The Visuino: https://www.visuino.eu also needs to be installed. Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

• Add "TM1637 7 Segment Display 4 Digits Module + 2 Vertical Points (CATALEX)" component
• Add "Counter" component
• Add "Infrared(IR) Obstacle Avoidance Sensor" component

• Select "Counter1" component and in the properties window set "Max>Value" to 9999
• Select "Counter1" component and in the properties window set "Min>Value" to 0
• Double click on "Display1" component and in the "Digits" window drag "Integer Display 7 Segments" to the left side
• On the left side of the "Digits" window select "Integer Display 7 Segments1" and in the properties window set "Count Digits" to 4
• Close the "Digits" window
• Connect Arduino digital pin[7] to "ObstacleAvoidance1" pin[In]

• Connect "ObstacleAvoidance1" pin[Out] to "Counter1" pin[In]

• Connect "Counter1" pin[Out] to "Display1">"Integer Display 7 Segments1" pin[In]
• Connect "Display1" pin[Clock] to Arduino board digital pin[10]
• Connect "Display1" pin[Data] to Arduino board digital pin[9]

In Visuino, Press F9 or click on the button shown on Picture 1 to generate the Arduino code, and open the Arduino IDE

In the Arduino IDE, click on the Upload button, to compile and upload the code (Picture 2)

If you power the Arduino UNO module, the LED display should start counting numbers when obstacle avoidance sensor detects an obstacle, once it reaches 9999 it will restart to 0 and count again.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this Instructable, you can download it here and open it in Visuino: https://www.visuino.eu
