Arduino Controlled LEGO RC Tank and Transmitter

Here are photos of the chassis that I constructed. It doesn't have to be the exact same as this but there does need to be a gear on each track side on the back. And don't make the same mistake as me and ensure that each axle is independent as the tracks are responsible for the steering!

The motors that I got off eBay were double sided so I had to sand down one side in order to fit them in the chassis.
In order to 'Legoise' the motors I needed to heat up a Lego rod connector and slide it onto the motor shaft. The motor shaft is shaped so I didn't have to worry about it slipping but did super glue it to avoid it falling off.

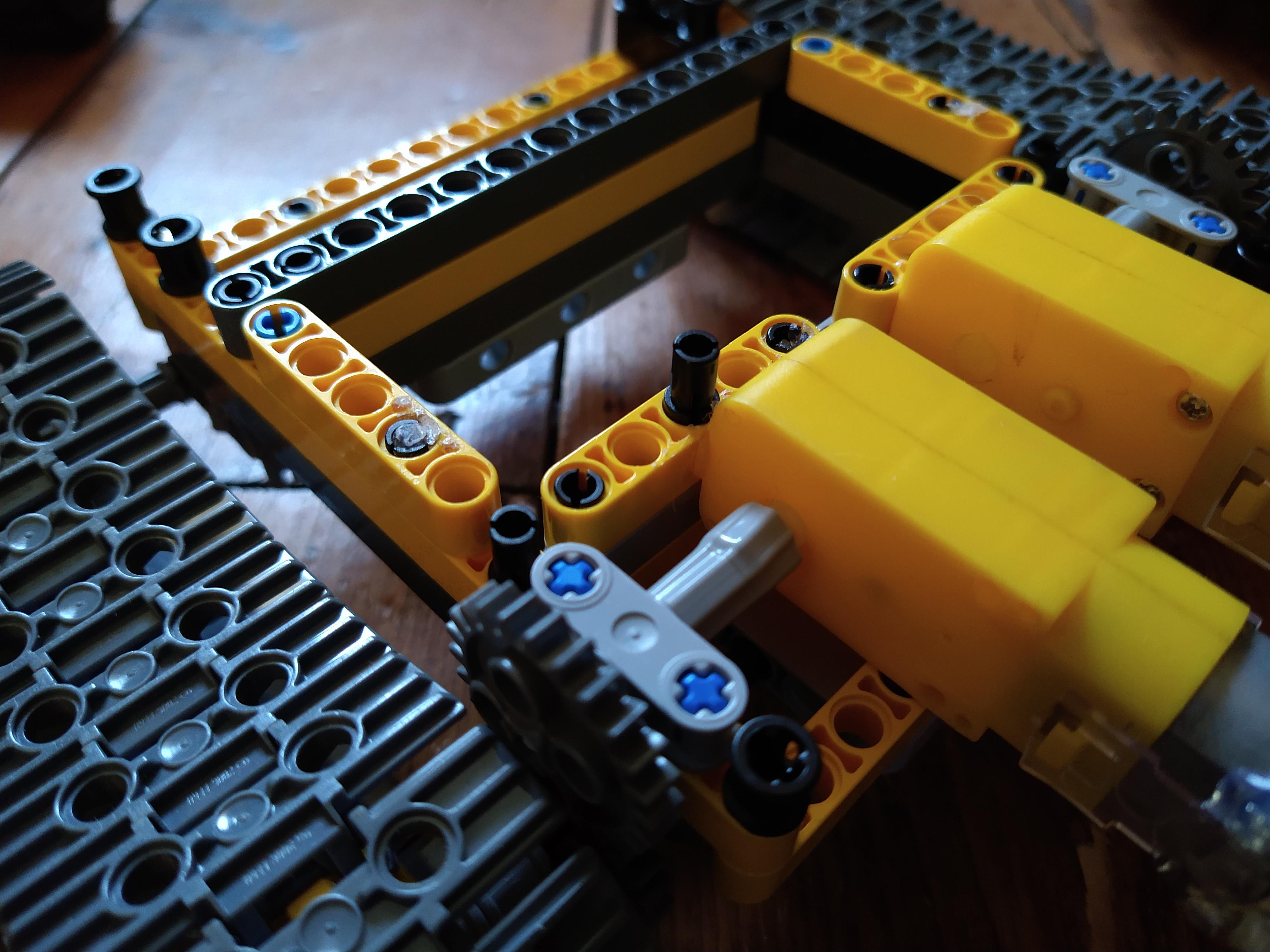

To attach the motors onto the Lego I hot glued the motor casing onto a beam piece as can be seen in the photo. This has proven to be a secure fixing so far. Finally attach a gear onto the motor shaft so that it meshes with the gear on the tracks.

I originally used AAs to power the tank and Arduino but found that they drained pretty fast! I realised that my power bank was 5v which turned out to be enough to power the motors. I did however use a separate pack of AAs to power the Arduino as I found when the motors were under load the current they drew was causing the Arduino to reset despite wiring the motors directly to the power supply.

In order to hold the power bank I assembled a Lego frame to fit on top of the chassis and has a detachable beam as a door to hold it in.

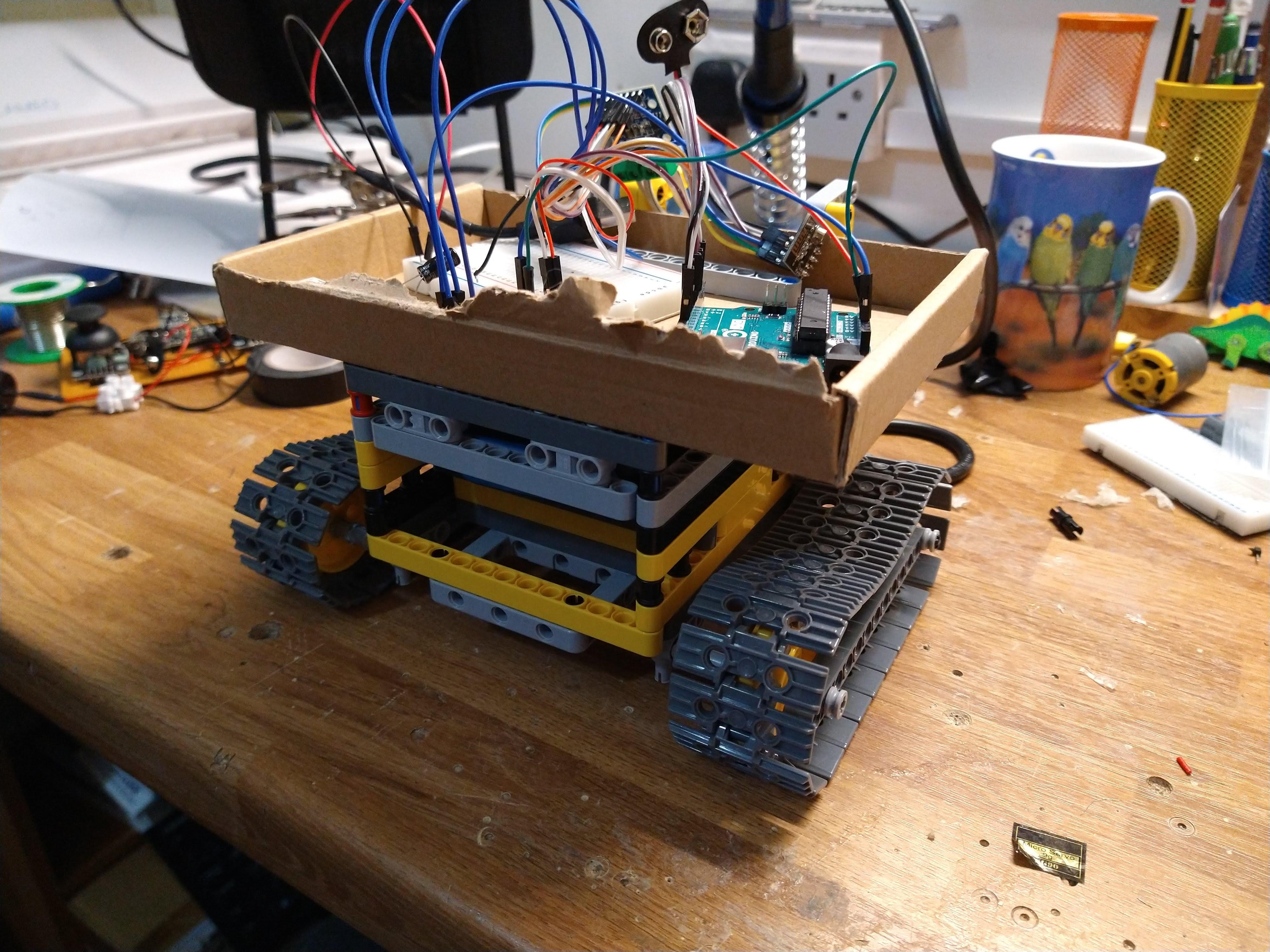

This photo shows a box that I attached to the top of the tank to hold the Arduino and components, I will eventually build a more permanent solution to this but as it is still an 'ongoing' project, I decided to keep the Arduino easily accessible.

Here is the receiver code for the Arduino and a link to download the required library from here.

//coded by jackofalltrails
//Remote control tank

// Include libraries
#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

// Setup pins (use 9 and 10 for uno or nano)
RF24 radio(9, 10);
const byte address[6] = "00001";

unsigned long lastReceiveTime = 0;
unsigned long currentTime = 0;

// Set a structure to hold all the data
struct Data_Package {
  byte leftstickx;
  byte leftsticky;
  byte leftstickbutton;
  byte rightstickx;
  byte rightsticky;
  byte rightstickbutton;
};

Data_Package data;

const int lefta = 5;
const int leftb = 6;
const int righta = 3;
const int rightb = 7;
int speedleft = 0;
int speedright = 0;

void setup()
{
  radio.begin();
  radio.openReadingPipe(0, address);
  radio.setAutoAck(false);
  radio.setDataRate(RF24_250KBPS);
  radio.setPALevel(RF24_PA_LOW);
  radio.startListening(); //  Set the module as receiver
  resetData();

  // TODO you setup code
  pinMode(lefta, OUTPUT);
  pinMode(leftb, OUTPUT);
  pinMode(righta, OUTPUT);
  pinMode(rightb, OUTPUT);
}

void loop()
{
  if (radio.available()) {
    radio.read(&data, sizeof(Data_Package)); // Reads the data and stores it in the defined structure
    lastReceiveTime = millis();
  }
  currentTime = millis();
  if ( currentTime - lastReceiveTime > 1000 ) { // If the time is more than 1 second then the signal has been lost
    resetData(); // If connection is lost, reset the data to avoid the tank driving off!
  }
  int lefttrackcontrol = data.leftsticky;
  int righttrackcontrol = data.rightsticky;

  if (lefttrackcontrol > 137){
    speedleft = map(lefttrackcontrol, 0, 127, 10, 255);
    analogWrite(lefta, speedleft);
    analogWrite(leftb, 0);
  }
  else if ((lefttrackcontrol >= 117) and (lefttrackcontrol <= 137)){
    analogWrite(lefta, 0);
    analogWrite(leftb, 0);
  }
  else if (lefttrackcontrol < 117){
    speedleft = map(lefttrackcontrol, 0, 127, 255, 10);
    analogWrite(lefta, 0);
    analogWrite(leftb, speedleft);
  }

  if (righttrackcontrol > 137){
    speedright = map(righttrackcontrol, 0, 127, 10, 255);
    analogWrite(righta, 0);
    analogWrite(rightb, speedright);
  }
  else if ((righttrackcontrol >= 117) and (righttrackcontrol <= 137)){
    analogWrite(righta, 0);
    analogWrite(rightb, 0);
  }
  else if (righttrackcontrol < 117){
    speedright = map(righttrackcontrol, 0, 127, 255, 10);
    analogWrite(righta, speedright);
    analogWrite(rightb, 0);
  }
}
void resetData() {
  // Reset the values when there is no radio connection to avoid the tank wandering off into the distance!
  data.leftstickx = 127;
  data.leftsticky = 127;
  data.rightstickx = 127;
  data.rightsticky = 127;
  data.leftstickbutton = 1;
  data.rightstickbutton = 1;
}

It starts off by including the libraries as in all Arduino codes.

It then sets up the radio connection using pins 9 and 10 which are the ones to use on Arduino Uno and Nano boards. A data packet is then set up to hold all the variables to be received from the transmitter.

The variables for outputs are then set and the radio connection is started.

The code then seeks to find a receiver to gain data from and if it cant find it then it links to the resetData() loop to reset all the inputs to neutral to avoid the tank continuing to drive when connection is lost!

Lines 62 to 93 controls the movement of the tank. Firstly each track variable is set to the input from the stick data received from the transmitter. Then it determines if the lefttrackcontrol (which is the data from the leftsticky) is bigger than 137 and if so then it maps the speed of the left track to half of the stick input as it is going to be moving from middle to top to go forward. It maps this to 10 - 255 which is the range in which the motor controller works off (by starting at 10 it removes the buzzing from the motors). It then writes this to the outputs connected to the motor controller.

Lines 70 - 72 ensure that when the stick is in the middle then the tank doesn't move. I had to do some trial and error on the numbers 117 and 137 to ensure that there was some room for the tolerances on the pots on the sticks.

It then repeats this for driving the track backwards and for the right track.

Connect the wires as shown in the diagram above.

It may look complicated and confusing but it is relatively simple to construct. The 10uf capacitor is connected across the 3v3 and ground pin on the NRF24L01 to keep the voltage more stable and therefore the receiving of the radio. Ensure that this capacitor is the correct way around as they ARE directional.

The motors are wired as the left one is b and the right is a. The polarity of the motors is often unknown so just wire them in as shown and then they can be swapped around if needed. The only thing that will happen if they are around the wrong way is forward will be backwards and vice versa.

Assemble the remote transmitter circuit as can be seen in the diagram above. Use a 10uf capacitor again across the 3v3 and ground to ensure a stable connection. Please note that the wiring of the sticks varies depending on the model but will be the very similar for different models.

I first assembled the circuit on a breadboard, checked it worked, and then soldered it onto a copper clad board to make it secure and permanent. In order to mount the sticks to the copper board so that they were flat against it, I had to first solder a pin header to the copper clad and then solder the stick pins to that (this can be seen in the image above). A switch can be added onto the live of the battery to enable the controller to be turned off.

Here is the code that I wrote for the transmitter:

// Include libraries
#include <SPI.h>
#include <nRF24L01.h>
#include <RF24.h>

// Set the button input pins
const int leftbuttonpin = 7;
const int rightbuttonpin = 8;

// Set the radio communication pins (use 9 and 10 for Uno or Nano)
RF24 radio(9,10);
const byte address[6] = "00001";


// Set a structure to hold the data
struct Data_Package {
  byte leftstickx;
  byte leftsticky;
  byte leftstickbutton;
  byte rightstickx;
  byte rightsticky;
  byte rightstickbutton;
};

Data_Package data;

void setup() {
  // Start radio
  radio.begin();
  radio.openWritingPipe(address);
  radio.setAutoAck(false);
  radio.setDataRate(RF24_250KBPS);
  radio.setPALevel(RF24_PA_LOW);

  pinMode(leftbuttonpin, INPUT_PULLUP);
  pinMode(rightbuttonpin, INPUT_PULLUP);

  // Set values to neutral (sticks go from 0 to 255 so the middle is 127)
  data.leftstickx = 127;
  data.leftsticky = 127;
  data.rightstickx = 127;
  data.rightsticky = 127;
  data.leftstickbutton = 0;
  data.rightstickbutton = 0;
}

void loop() {
  // Reads the inputs
  data.leftstickx = map(analogRead(A0), 0, 1023, 0, 255);
  data.leftsticky = map(analogRead(A1), 0, 1023, 0, 255);
  data.rightstickx = map(analogRead(A2), 0, 1023, 0, 255);
  data.rightsticky = map(analogRead(A3), 0, 1023, 0, 255);
  data.leftstickbutton = digitalRead(leftbuttonpin);
  data.rightstickbutton = digitalRead(rightbuttonpin);

  // Sends the pachage to the receiver
  radio.write(&data, sizeof(Data_Package));
}

I designed this so that the receiver can be removed and swapped to different vehicles that I might make in the future. Therefore this code takes a physical input (sticks) and outputs it, sending it to the receiver.

Firstly the libraries are being defined again.

Then the variables are set, and the data package to send is built.

The radio is then started and the two buttons on the sticks are set to inputs.

The variables are then set to neutral in order to start from neutral.

The code then loops repeatedly, reading the analog inputs, mapping them to match the output, and then finally sending the data as a package to the receiver.

Now all that's left to do is power on the tank's Arduino, plug in the power bank and then turn on the remote and take 'er for a spin!

Hope you enjoyed this Instructable and would love to see your Lego mechatronics!
