Arduino Board Game - Minesweeping

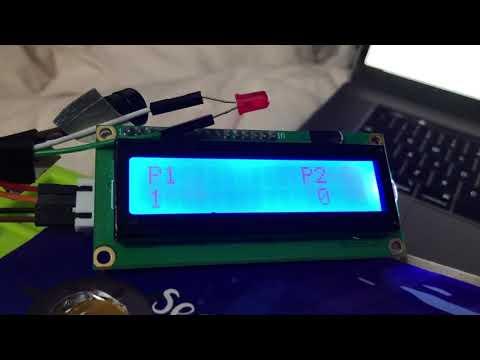

Board game - Minesweeping Demo

An Arduino based board game with easy steps.

Supplies


Aluminium foil

LCD Screen

buzzer

LED

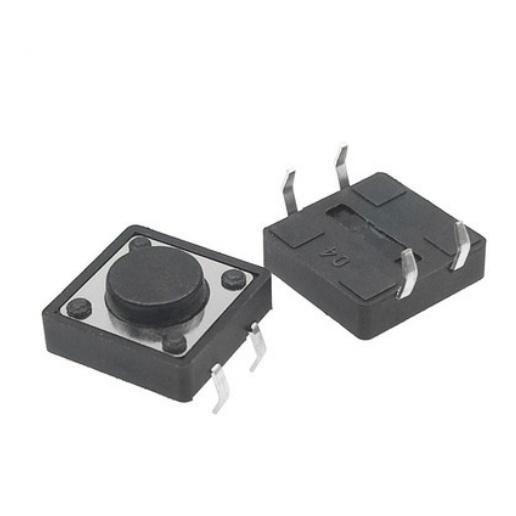

Buttons x2

Tweezers (made of metal)

Breadboard

Some jumpers wires

Wiring


const int startPin = 2; // tweezer

const int buzzer = 4; //buzzer

int ledPin = 13; // red led

int start, end_;

int homeScore; // player1

int visitorScore; // player2

const int buttonHomePin = 6; // green button

const int buttonVisitorPin = 7; // blue button


You can connect the components by my code.

You should connect one jumpers wire to GND for and a long one to digital pin 2.




Handcraft


For the board design, it actually can be everything with some holes on it.


I use a three layers design here:

Top : the final interface design of your game

Middle : a thick cardboard with holes on it

Bottom : a cardboard coated with a aluminium foil with jumper wire connected with pin 2

(remember to the aluminium foil should be in one piece to make sure it can connect with electricity.)


I use glue and aluminium foil tape to stick on the cardboard and stick it with the jumper wire which connected to the ground.

Then I connect the tweezer to the jumper wire which connected to pin 2.

If the tweezer touch the aluminium foil, the circuit will be complete and the Arduino board will read a LOW.


if (start == LOW ){

digitalWrite(buzzer, HIGH);

digitalWrite(LED_BUILTIN, HIGH);

Serial.println("buzzer on, led on");

delay(300);

digitalWrite(buzzer, LOW);

digitalWrite(LED_BUILTIN, LOW); }

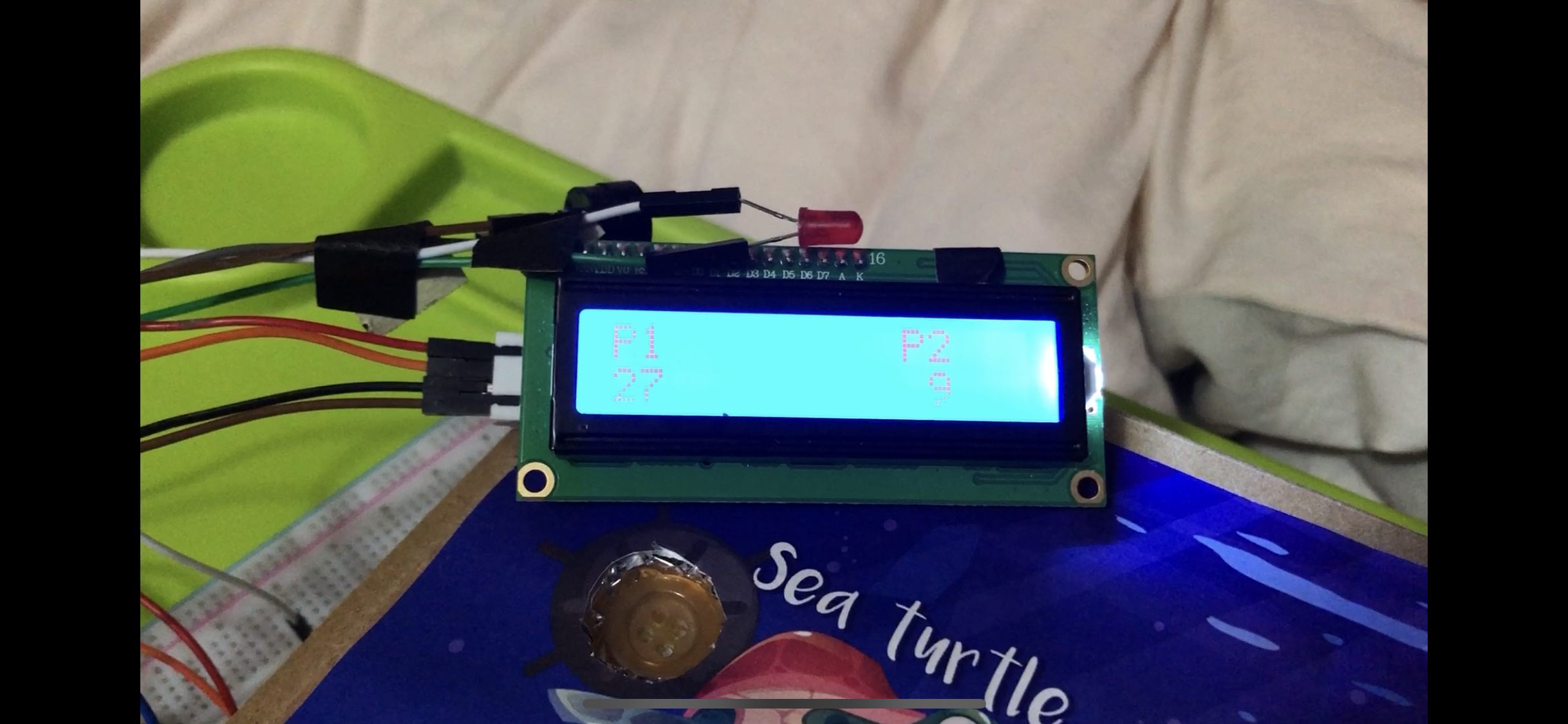

The LCD Monitor


The lcd monitor will be our scoreboard and it did't count mark automatically. Which means player should press the buttons in order to keep score.


P1 = green button

P2 = blue button


When user press the green button, the lcd will add 1 on the score of P1.

There are many tutorial that teach you how to use an lcd monitor and you should install a zip file of the library of LiquidCrystal.h which will work well on the 16x2 lcd display.




Final Look


It is the final look of my game and I have find some buttons that can be put on the holes.

It is a really simple game that every can try to do at home.

Welcome to leave comments and I will reply as soon as possible!

Have Fun! :D
