Arduino Bluetooth Car

In this project We are going to learn how to build an Arduino Car Controlled by Labview from USB or Bluetooth. The components and materials are commom for makers and you will not have problem to find them.

In this project We are going to learn how to build an Arduino Car Controlled by Labview from USB or Bluetooth. The components and materials are commom for makers and you will not have problem to find them.

MAIN FEAUTURES

• Arduino Compatible ( You can used Model Uno, Mega, Due, Nano or others)
• Drivers in a board shield with borners ready to connect and work.
• HMI control with Labview.
• Power supply from 6 - 12 Volts
• Powerful control screen fast connection by USB
• Shield board with H brigde L293D
• Common components, very easy to find in our local electronic store.

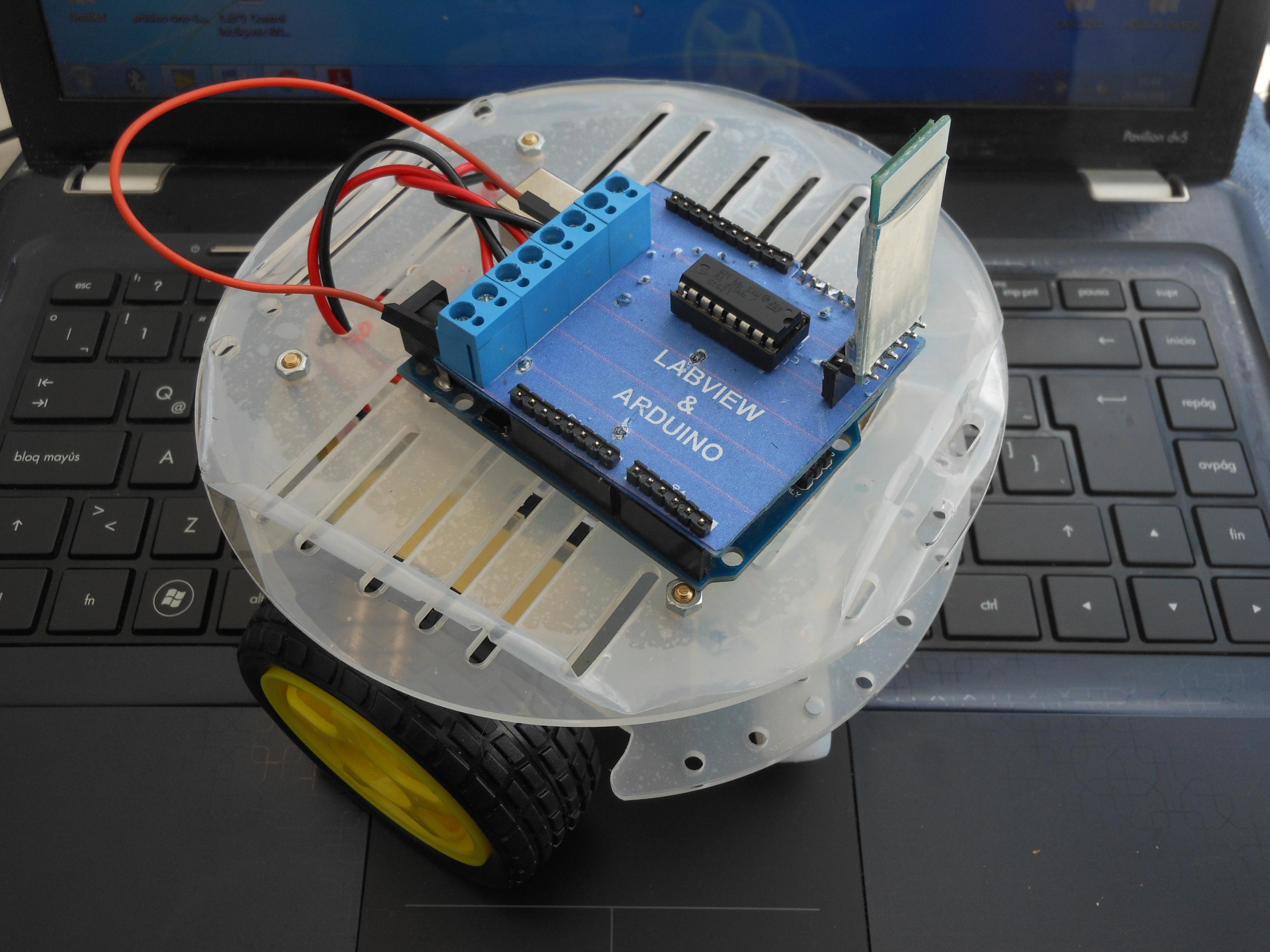

CAR KIT REVIEW

The following tutorial is for this model of car that you can see below, with 2 DC motors, this model is small and practical, kind remind you that 2 DC motors need a separate power source, also you should consider that in your projects; for example if we use the car with 4 motors, our power supply will have to be of a hight capacity.

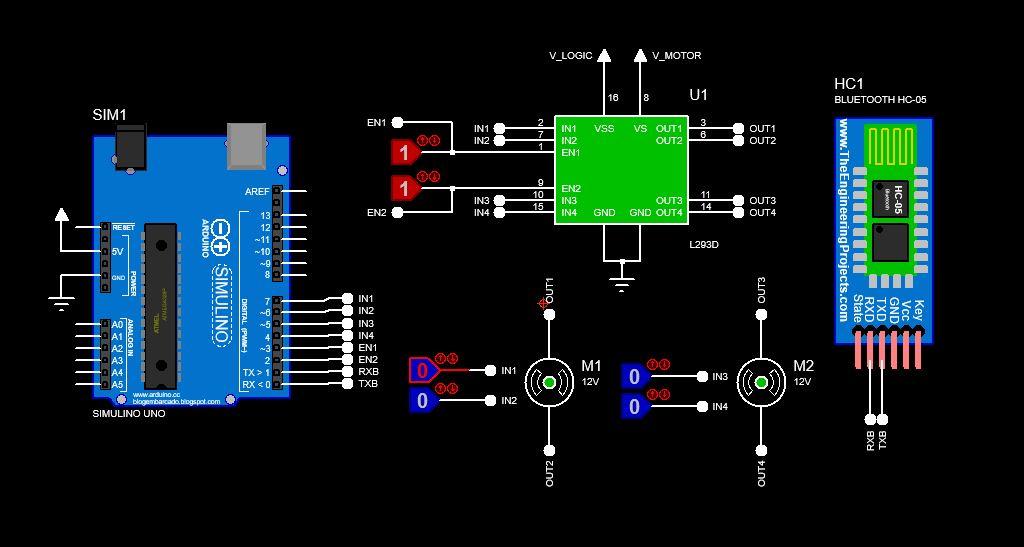

SCHEMATIC DIAGRAM

The schematic diagram is very simple and flexible. First at all We use an Arduino Uno Board, but you can use another one with the same pinout like Arduino Mega, Due, Leonardo or others.

The schematic of the shield is attached in this tutorial, Basically we have to consider that We are working with DC motor which are the two wheels. I order to control the DC motors rotation We need an extra drive in this case the L293D which is very popular and well know. So I am leaving the connections that you should follow.

► You can get the schematic : HERE

PCB LAYOUT

Before We continue with the PCB layout, it is important to indicate that You can use any software for PCB Desing, believe me there are many options, even if you use the best software it will not mean that you are the best pcb desinger, so in this case We are going to use Proteus highly recommended if you want to enter in the pcb desing world like a professional. So after We finished and check our schematic circuit We need to switch from schematic to PCB layout. We can see the PCB with the Ground Plane, this helps for noise filter on the pcb.

Here after we finish the pcb layout We can get the Gerber files, there are two kind of gerber files we have to pay attention to it, the first GerberX2 and the other Gerber RS274X, most of the manufacturer use the second one Gerber RS274X, in some software we can get both GerberX2 and Gerber (In the case of Proteus).

Download the Gerber Files: HERE

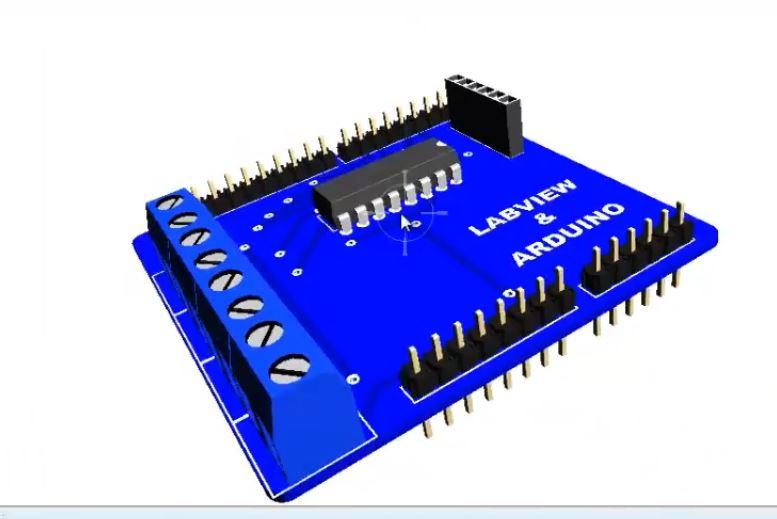

3D MODEL

One of the features of Proteus is the 3D visualization, the 3d visualization is important and it give us the posibility to see and check our PCB and how it would be in real, also it can show us the components distribution and dimensions. Before I did not consider this feature so important at all, but the 3d visualization can show us if our footprint dimensions are ok, if all the components will be places without touching each other by mistake, it does not matter if your components are SMT or PTH (small or big), it is always better to see that every component will fit correctly.

► Also very important to remember, if you are going to add 3d models, be carefull that you add in the Step AP214 format, the others extensions and formats can not work correctly.

PCB MANUFACTURE

Once we finished our development board; it is time to bring it to life. In order to manufacture our board, We are going to use JLCPB Services.In case that you do not have an account yet, check out the bellow link►JLCPCB: https://jlcpcb.com/IAT

Also kind advice you to use JLCPCB services in order to Make and assembly your PCB board.

Currently there is a special offer for new users:

New users can get $30 coupons;

Register : https://jlcpcb.com/PCW

How to Order our PCB in JLCPCB ?Once We are register, and We logged in our account, We are ready to submit an order and receive our board in a very short time. In this case We need to update first the gerber files, which contains all the necesary information to build the pcb, You can get the gerber files in the link bellow.

Upload your gerber files

Indicate the features After the upload of our gerber files, We need to indicate the features of the board, in the next picture you can see the options available.

Add your shipping addressThis part is very important, here you should write your currently address, where you would like to receive your pcb prototypes. It is not common but sometimes very rarely, you will need to pay extra feeds, but as I told you, it is very rarely.

Make the payment and finish the orderAfter you indicates this information, We continue with the payment section, These is the section where you can apply your coupons or discount codes. Basically We can complete the paymente by two general ways, Paypal or Credit card.

Receive your PCB Days later, 7 days or few more, according to your location and custom broker process, You will receive your pcb prototypes.

Why JCLPCB?

JLCPCB has been at the fore front of the PCB industry. With over 14-year continuous innovation and improvement based on customers' need, we have been growing fast, and becoming a leading global PCB manufacturer, who provides the rapid production of high-reliability and cost-effective PCBs and creates the best customer experience in the industry.In case that you do not have an account yet, check out the bellow link►JLCPCB: https://jlcpcb.com/IAT

• Most Efficient, Economic, Innovative PCB Solutions
• Higher Quality
• Lower Cost
• Faster Delivery

JLCPCB provides a rapid production of high-reliability and cost-effective PCBs and create the best customer experience in the indrustry.

Building the Bluetooth Car Board

In this post you will find the components necesary to build the pinguino Board and also the components are very easy to get. Common components that we regulary use for electronics projects.

You can get the BOM :HERE
