Arduino Based Wireless (RF) Weather Station Network

In this DIY guide I will show you how to make your own wireless weather station!

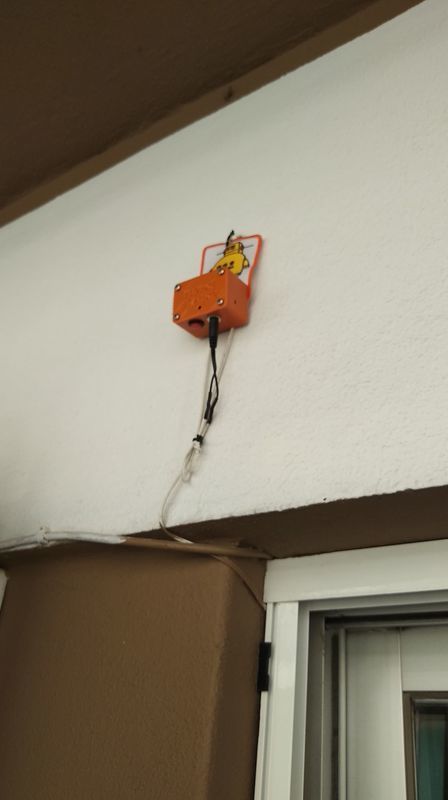

My communication protocol will allow you to have up to 10 sensor stations in your wireless network, but you can change and extend it up to 254 stations! The RF technology and the module that we used will allow you to have a long range distance between your sensors and master station that will have in your room. You can power on your sensor stations with 5V battery (or even with 3.7V) or a solar panel system!

Every "Sensor Station" can have a:

Photocell / photoresistor Light sensor
DHT-22/DHT11 Temperature/Humidity Sensor
DS12B20 Waterproof Temp Sensor

In this project I decided to make my own PCB that is based on Arduino UNO microcontroller - Atmega328p.

Bellow you will find the electronic schematic with PCB layout so you can easily produce it!

Let's get started!

~Projects can be found here:

https://www.ardumotive.com/arduino-wireless-weathe...

Video presentation:

What You Will Need - Hardware Part List

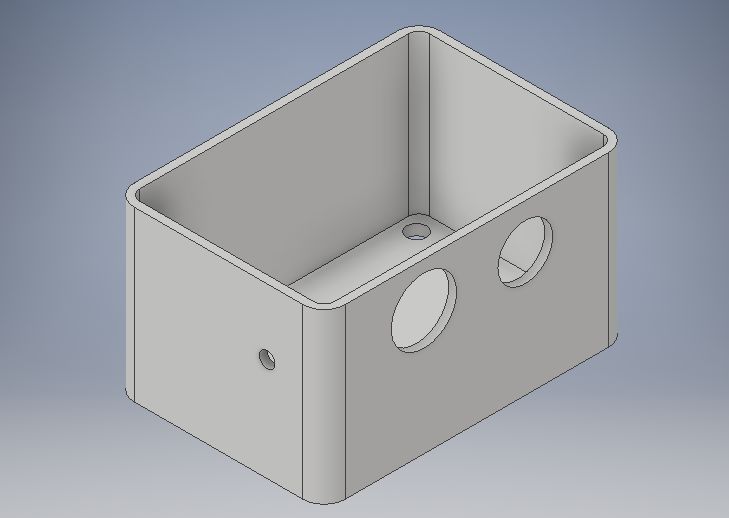

For Master Station you will need:

Our custom PCB circuit *
Atmega328 (with Arduino UNO bootloader)
28 dip socket
16 MHz crystal oscillator
2x22 pF capacitors
1x100nF ceramic capacitor
1x10uF Electrolytic Capacitor
1x10K resistor
Screw terminal 2P 2.54mm
2xPin Header
1x5 Female 2.54mm

----> Or use an Arduino board with breadboard

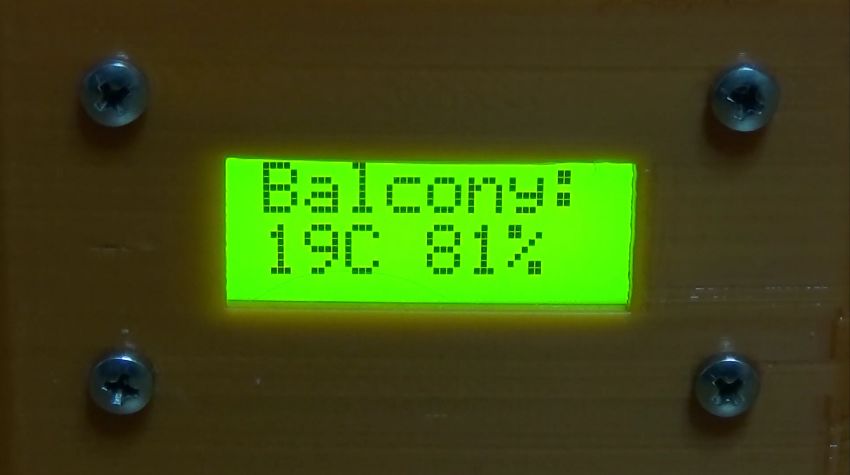

Basic 8x2 Character LCD - Black on Green 5V
Wireless Serial Transceiver Module HC12
Trimmer 20kOhm
DHT-22 sensor (or any other DHT family sensor)
Push Button Latching - 12.5mm
DC Power
JackOn/Off SW (lcd back light)

~Power by 5V power adapter or USB powerbank~

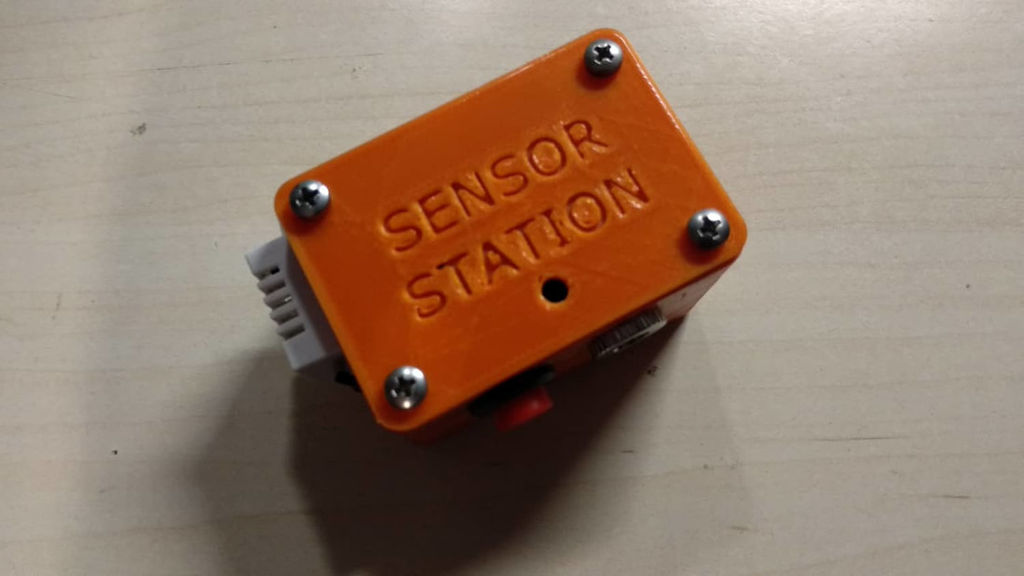

For every Slave - Sensor Station you will need:

Our custom PCB circuit *
Atmega328 (with Arduino UNO bootloader)
28 dip socket
16 MHz crystal oscillator
2x22 pF capacitors
1x100nF ceramic capacitor
1x10uF Electrolytic Capacitor
1x10K resistor
Screw terminal 2P 2.54mm
2xPin Header
1x5 Female 2.54mm

----> Or use an Arduino board with breadboard

Wireless Serial Transceiver Module HC12

One of the following sensors:

DHT-22 sensor (or any other DHT)
DS18B20 (Waterproof) and 1x4.7K Resistor
Photocell and 1x 10K Resistor

~Power by 5V power adapter or USB powerbank or battery pack~

*You will also need a TTL to USB module or an Arduino UNO board for the programming procedure.

The Circuit - Electronic and PCB Schematic

Find the electronic and pcb schematic at link below:

Master Station:

https://easyeda.com/mi.vasilakis/Wireless-Weather-...

Slave/Sensor Station:

https://easyeda.com/mi.vasilakis/slave

You can make any changes you want!

Arduino Connection Pins

--> For Master Station

LCD

RS pin to Arduino Pin 3
EN pin to Arduino Pin 4
D4 pin to Arduino Pin 5
D5 pin to Arduino Pin 6
D6 pin to Arduino Pin 7
D7 pin to Arduino Pin 11

DHT Sensor

Data pin to Arduino Pin 2

HC-12

TX pin to Arduino Pin 8
RX pin to Arduino Pin 9

--> For Slave/Sensor Station

DHT Sensor

Data pin to Arduino Pin 8

DS18B20 Sensor

Data pin to Arduino Pin 2

Photocell

to Arduino A0

The Code

How to program our PCBs:

Connect your circuit with TTL to USB module with 5 cables to the programming header. The pins RX and TX must be cross-connected.

NOTE: If you are using the Arduino UNO board make sure to remove the ATmega328 IC from it first and connect the headers RX to RX and TX to TX pins of the board. The RS pin must be connected to Arduino UNO reset pin.

-------------CONFIGURATION-----------------

Master

/***CONFIGURATION ****/
const long interval = 5000; // ms

const int slaves = 1; //Number of slaves (max 16) (go to line 95 and complete the if statement for every sensor) /*********************/

Slave

/***CONFIGURATION ****/
const long interval = 5000; // ms

String ADDR = "0"; //Device address from 0 to f #define SENSOR_TYPE 1 // Type of sensor in slave unit. Can be 1 for DHT, 2 for DS18B20 or 3 for PHOTOCELL

/*********************/

Download the code from here and open it with Arduino IDE. Inside you will also find the libraries for this project.
