Architectural Gingerbread

by Lord of The Things in Workshop > Home Improvement

6374 Views, 68 Favorites, 0 Comments

Architectural Gingerbread

GingerBread1 001.JPG
GingerBread1 002.JPG
GingerBread1 006.JPG
GingerBread1 005.JPG
GingerBread1 003.JPG
GingerBread1 004.JPG
GingerBread1 007.JPG
GingerBread1 008.JPG
GingerBread1 010.JPG
GingerBread1 011.JPG
GingerBread1 012.JPG
Ginger Gin Gin 003.JPG
Ginger Gin Gin 002.JPG
Ginger Gin Gin 001.JPG
Rocks 131.JPG
Rocks 130.JPG
Rocks 129.JPG
Rocks 128.JPG
Rocks 127.JPG

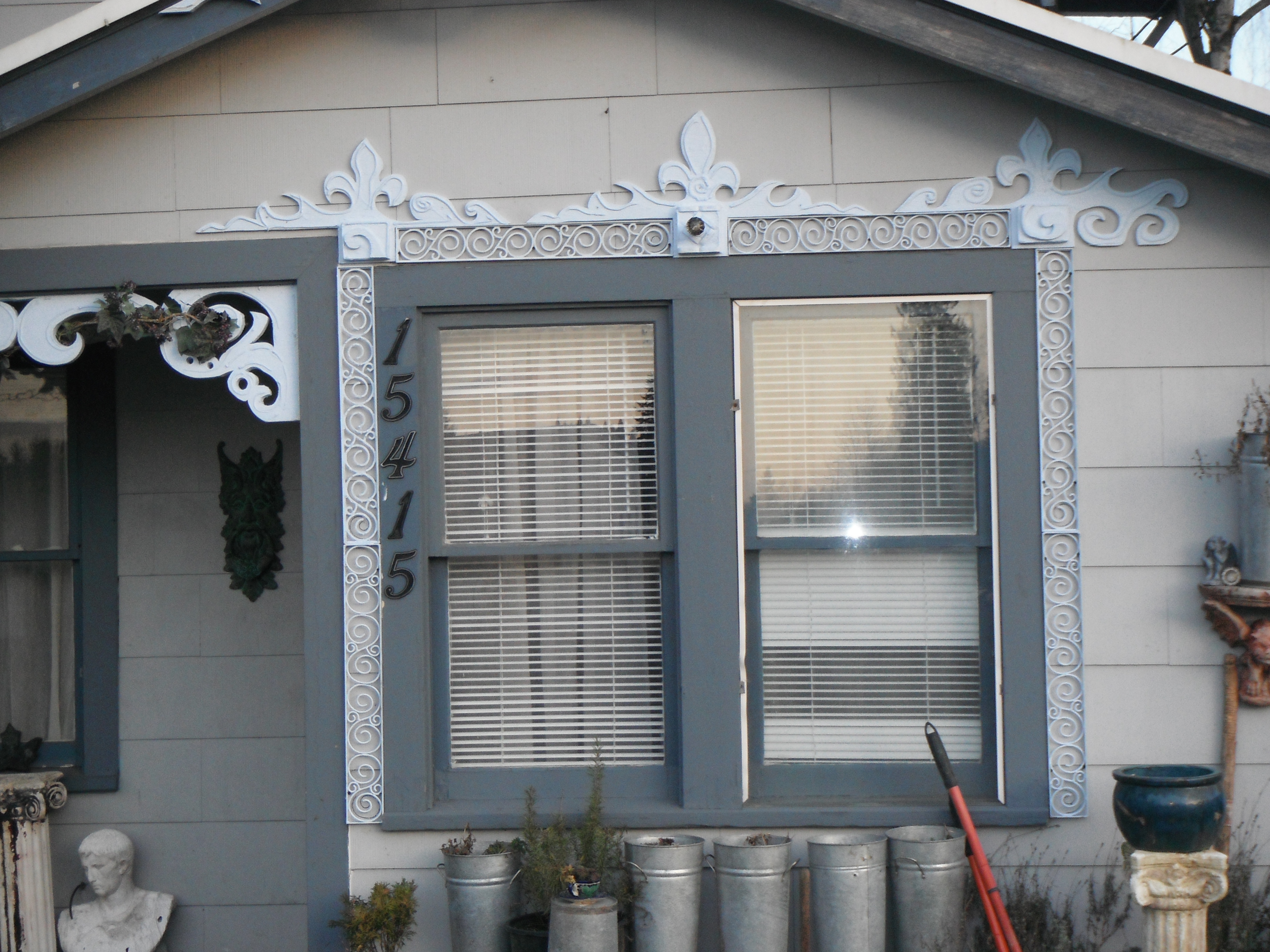

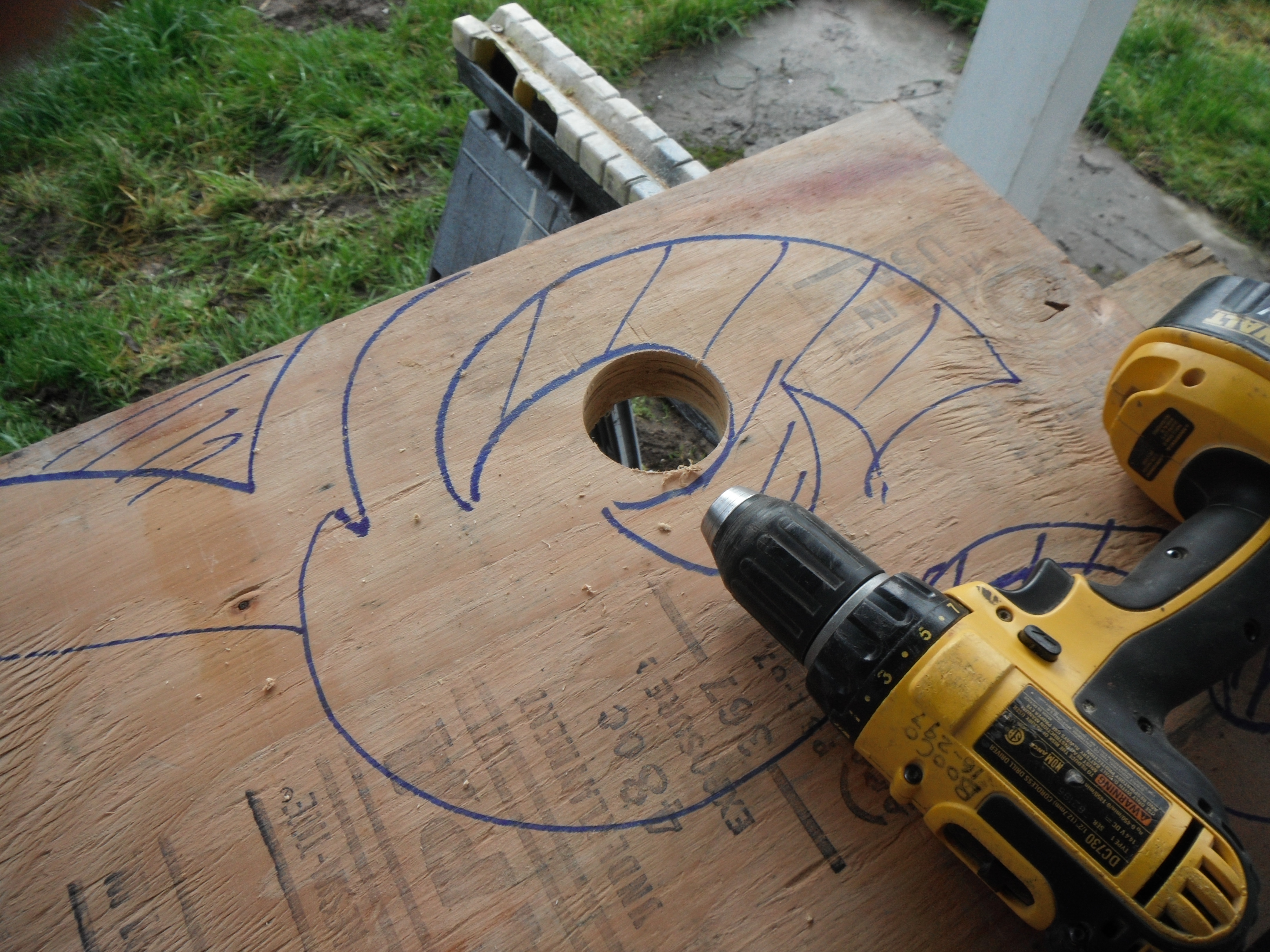

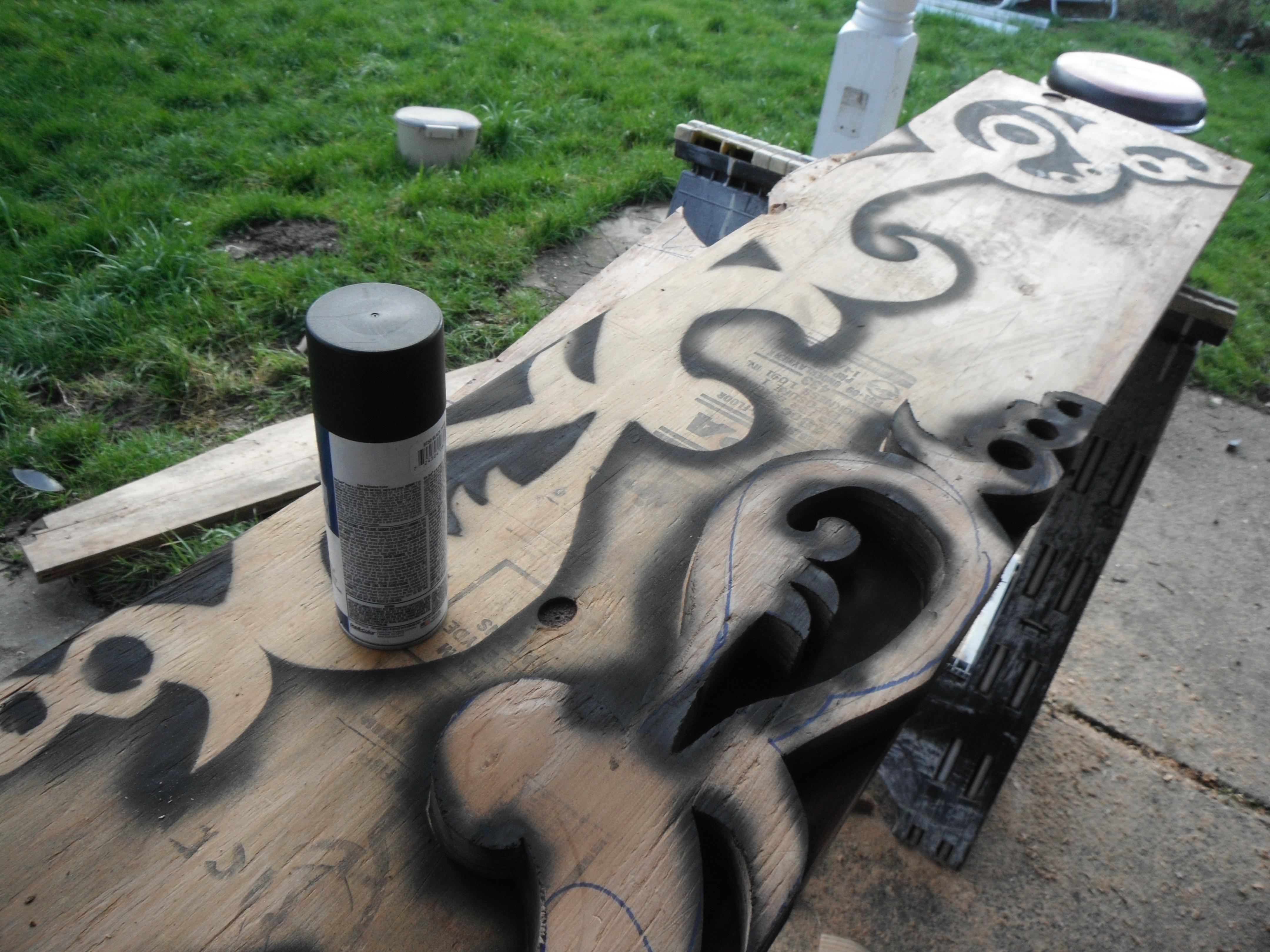

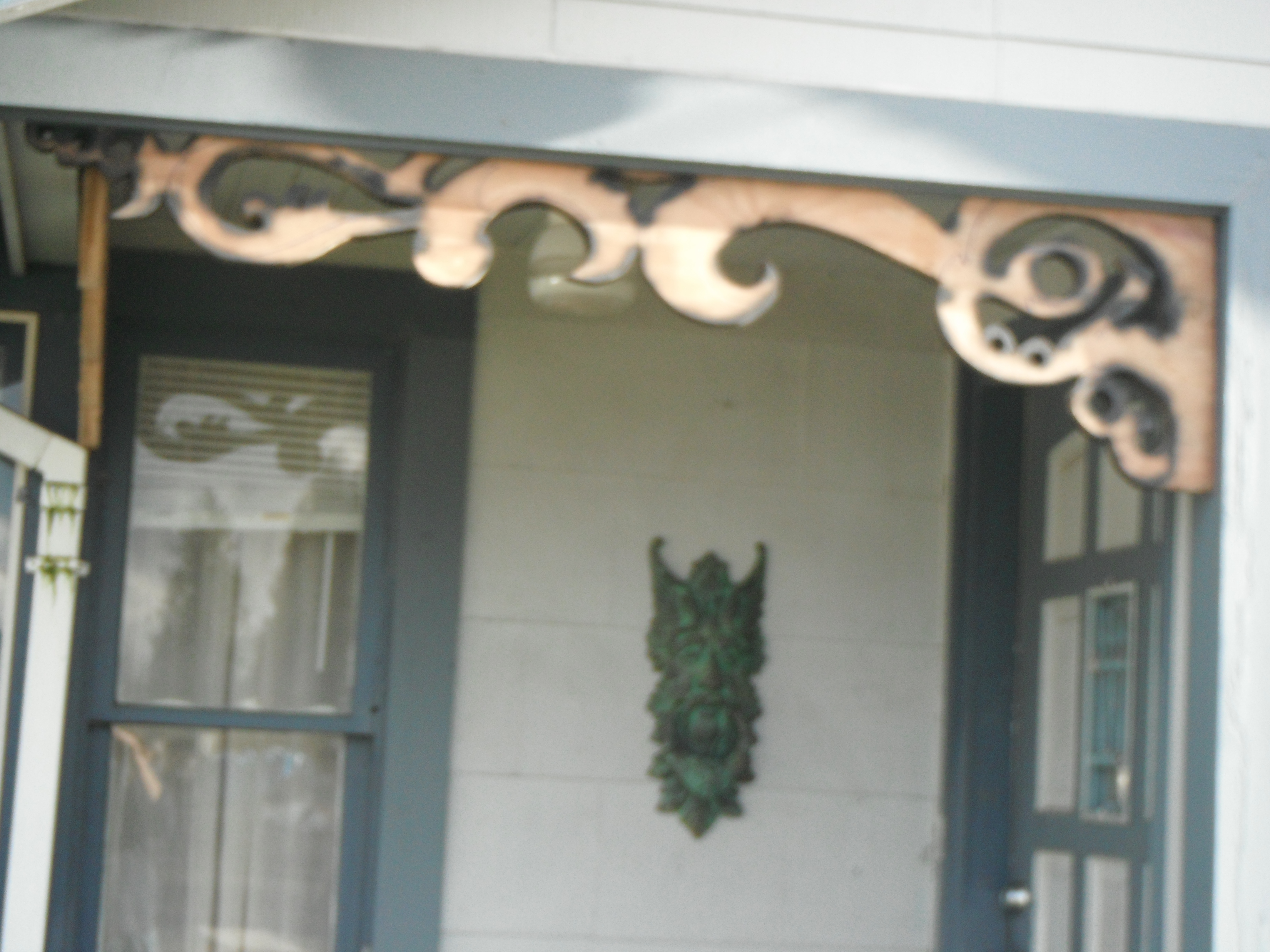

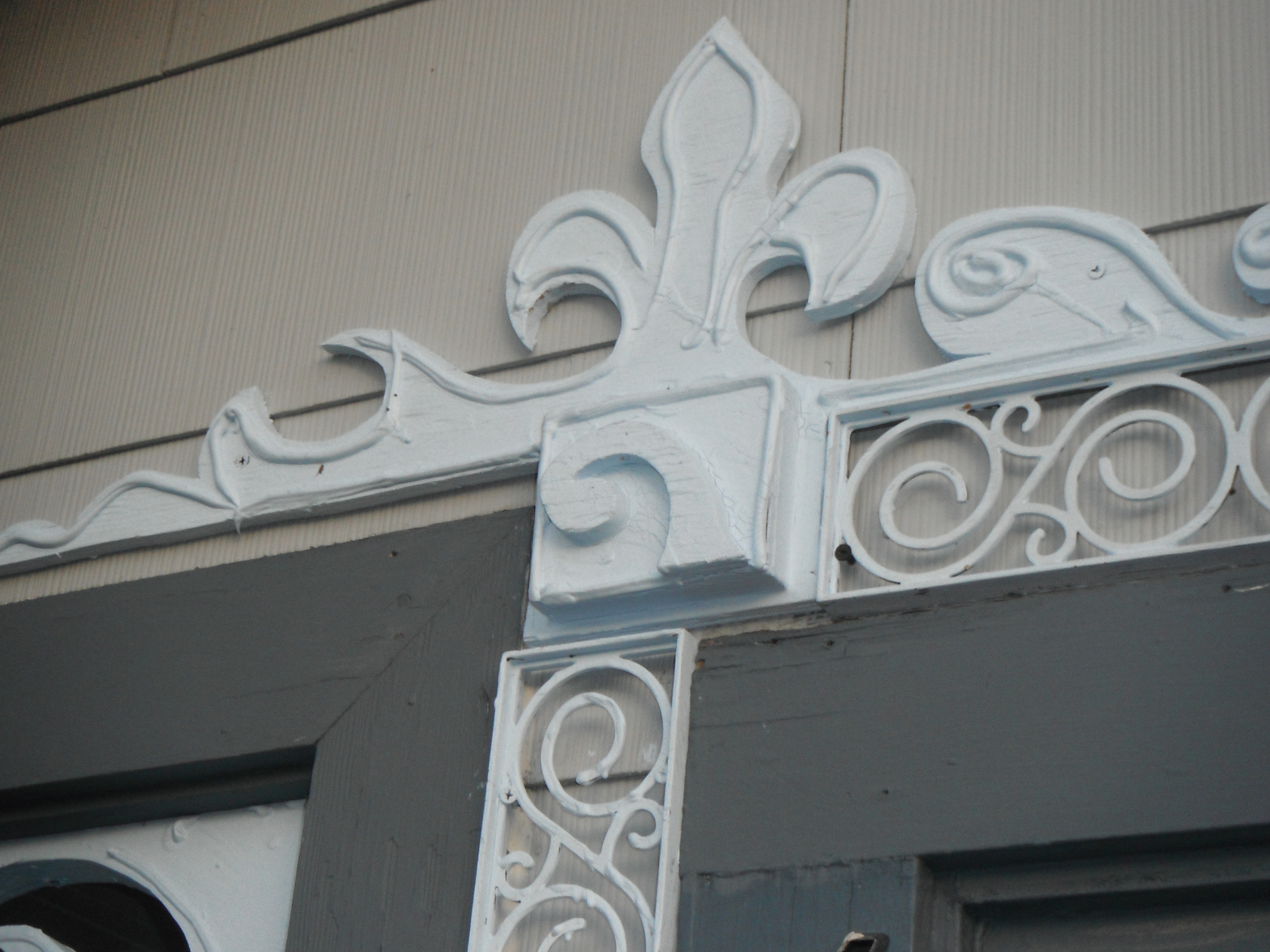

First I googled some pics of Architectural Gingerbread so I could get a rough idea of what I want.  With a felt pen I drew out my design on some extra thick scrap plywood.  I then drilled some holes to make it easier to cut with a jig/saber saw. To make sure my patterns were correctly repeated and reversed,  I just placed the first cut piece on the next section of plywood and then used spray-paint to capture/transfer the shape. I then filled the holes you will find in the edges of cut plywood with painter's calk. and used the calk to add textured designs on the face of the scrolls. After a few days to dry the calk I painted them with some salvaged exterior house paint as a primer. (this time blue). We will be painting the whole house once I decide I'm finished pimpin' it up....
