Hello Makers.
I was inspired by the Archimedean spiral to make this lamp. First, I tried to design on paper with make segment design. Then I cut paper and stick all parts with paper tape to ensure the design is feasible or not.
I use Fusion360 to accurately design and fabrication of design with an accurate angle.
Gather all supplies to start making lamps.
Supplies
![Screenshot 2022-07-16 152653.png](/proxy/?url=https://content.instructables.com/FRZ/UY6Z/L5MH4R58/FRZUY6ZL5MH4R58.png&filename=Screenshot 2022-07-16 152653.png)
![Screenshot 2022-07-16 152642.png](/proxy/?url=https://content.instructables.com/FR6/B3L6/L5MH4R57/FR6B3L6L5MH4R57.png&filename=Screenshot 2022-07-16 152642.png)
![Screenshot 2022-07-16 152630.png](/proxy/?url=https://content.instructables.com/F2M/OFBC/L5MH4R3Z/F2MOFBCL5MH4R3Z.png&filename=Screenshot 2022-07-16 152630.png)
![Screenshot 2022-07-16 152601.png](/proxy/?url=https://content.instructables.com/F89/VT5C/L5MH4R2M/F89VT5CL5MH4R2M.png&filename=Screenshot 2022-07-16 152601.png)
![Screenshot 2022-07-16 152613.png](/proxy/?url=https://content.instructables.com/FHW/EG4Z/L5MH4R2N/FHWEG4ZL5MH4R2N.png&filename=Screenshot 2022-07-16 152613.png)
1> 6 color 2 mm Acrylic sheet ( Yellow,Violet,orange,green,blue,red)
2> Fevi-quick adhesive
3> Glue gun
4> Paper tape
5> Laser cutting machine access
6> Laptop or computer for design

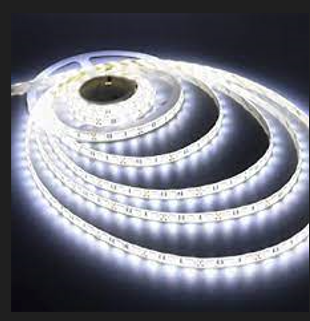

7> White Led Strip & 12 v adaptor
Make Paper Prototype
![20220716_140449.jpg](/proxy/?url=https://content.instructables.com/FR0/OIEQ/L5MH4RRD/FR0OIEQL5MH4RRD.jpg&filename=20220716_140449.jpg)
![20220716_140420.jpg](/proxy/?url=https://content.instructables.com/FH7/YQHX/L5MH4RRC/FH7YQHXL5MH4RRC.jpg&filename=20220716_140420.jpg)
- First, i start to draw lamp designs from archimedean spirals.
- I want to make this lamp from different colors of acrylic.
- The different parts had different lengths & widths and become smaller to bigger from the center to the outer region.

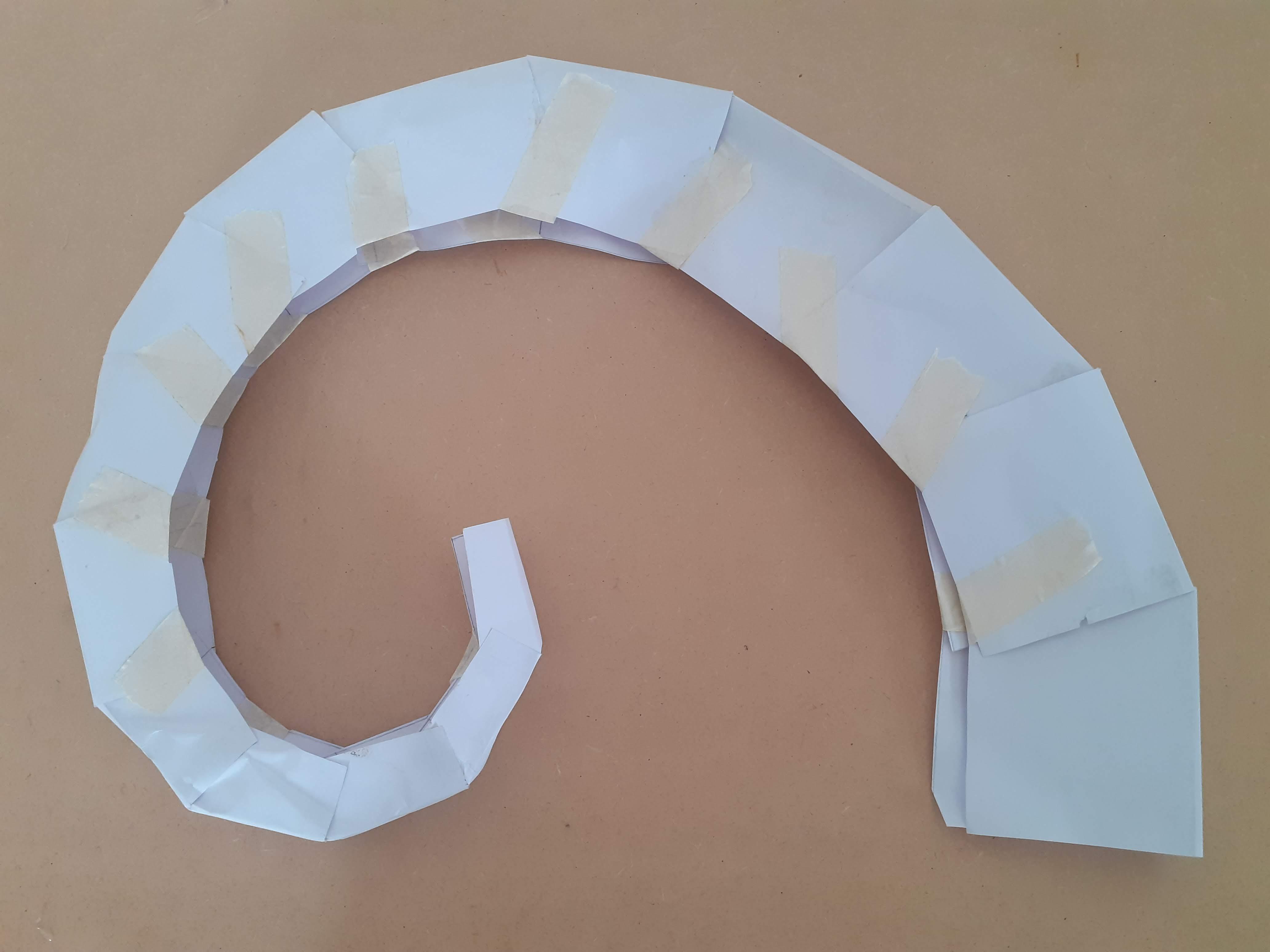

- After designing in 2D, I start to make it in 3D using paper.
- I cut paper pieces in approximate dimensions and join them with paper tape.
- With approximation, the dimension model design looks well.
- After making a paper prototype it is ensured that the design is feasible to make.
- Then choose the material for my lamp.
- I choose 6 different types of acrylic with a thickness of 2mm which is better for laser cutting and easily joinable with adhesive.
- For very accurate fabrication I use to design lamps in CAD software.
3D Design in Fusion360
![Screenshot 2022-07-16 151702.png](/proxy/?url=https://content.instructables.com/F10/Y95J/L5MH4Q9P/F10Y95JL5MH4Q9P.png&filename=Screenshot 2022-07-16 151702.png)
![Screenshot 2022-07-16 151737.png](/proxy/?url=https://content.instructables.com/FFD/CSR9/L5MH4QB1/FFDCSR9L5MH4QB1.png&filename=Screenshot 2022-07-16 151737.png)
![Screenshot 2022-07-16 151929.png](/proxy/?url=https://content.instructables.com/FYL/V1IU/L5MH4QB7/FYLV1IUL5MH4QB7.png&filename=Screenshot 2022-07-16 151929.png)
![Screenshot 2022-07-16 151948.png](/proxy/?url=https://content.instructables.com/FYI/UCSO/L5MH4QB8/FYIUCSOL5MH4QB8.png&filename=Screenshot 2022-07-16 151948.png)
![Screenshot 2022-07-16 151758.png](/proxy/?url=https://content.instructables.com/FYC/WJNC/L5MH4QB2/FYCWJNCL5MH4QB2.png&filename=Screenshot 2022-07-16 151758.png)
![Screenshot 2022-07-16 151602.png](/proxy/?url=https://content.instructables.com/FLZ/LXCP/L5MH4Q66/FLZLXCPL5MH4Q66.png&filename=Screenshot 2022-07-16 151602.png)
![Screenshot 2022-07-16 151541.png](/proxy/?url=https://content.instructables.com/F1G/GZLB/L5MH4Q65/F1GGZLBL5MH4Q65.png&filename=Screenshot 2022-07-16 151541.png)

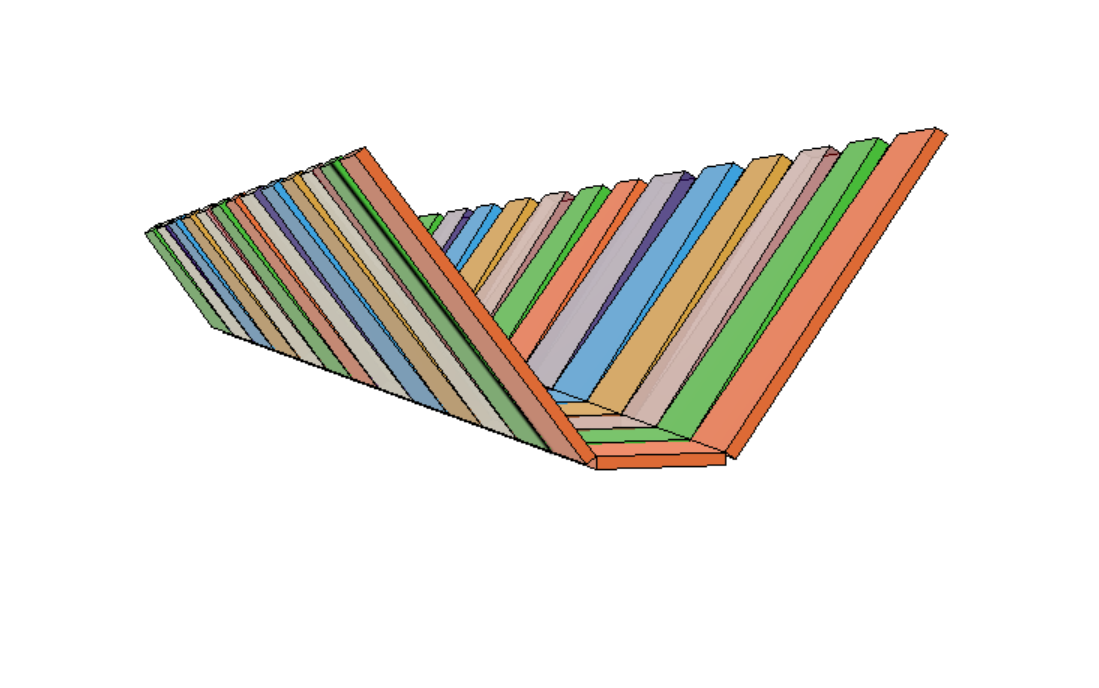

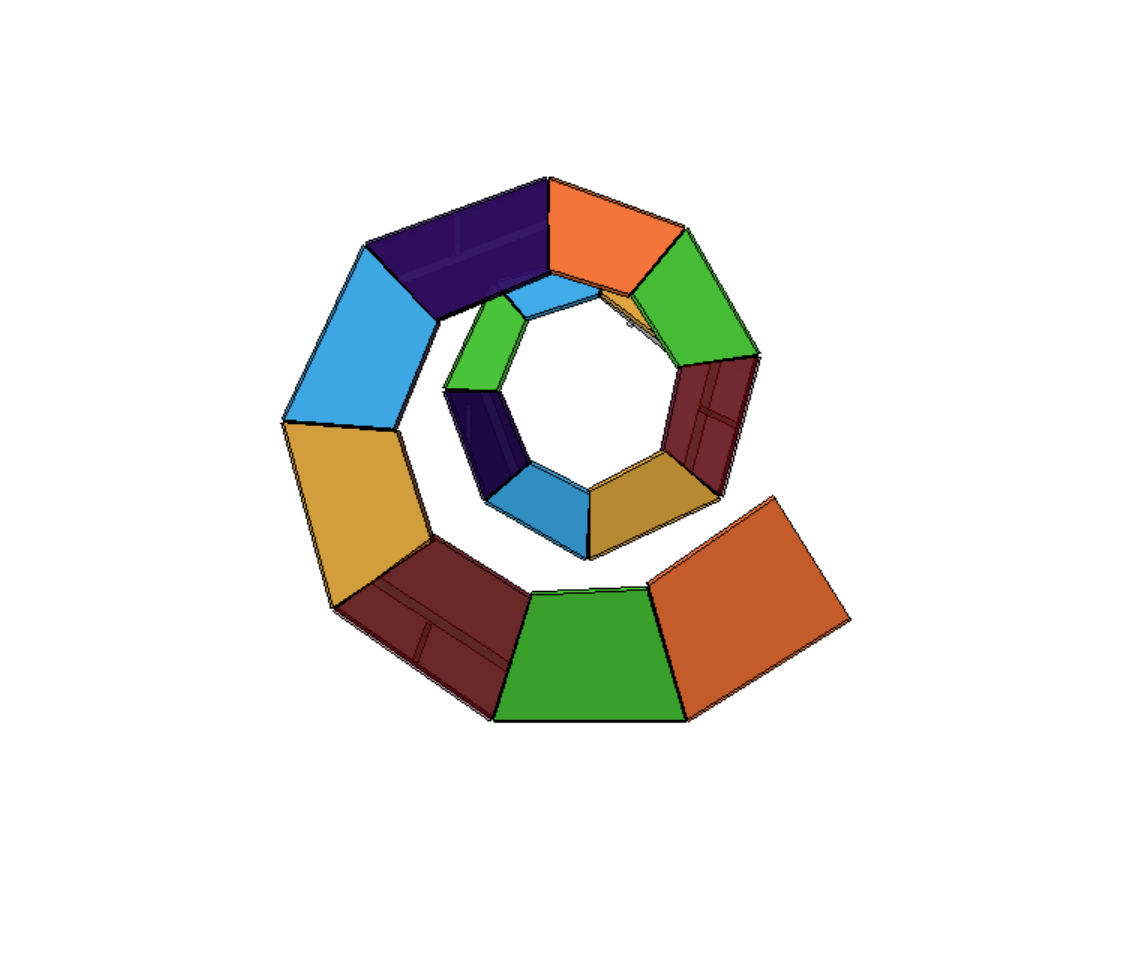

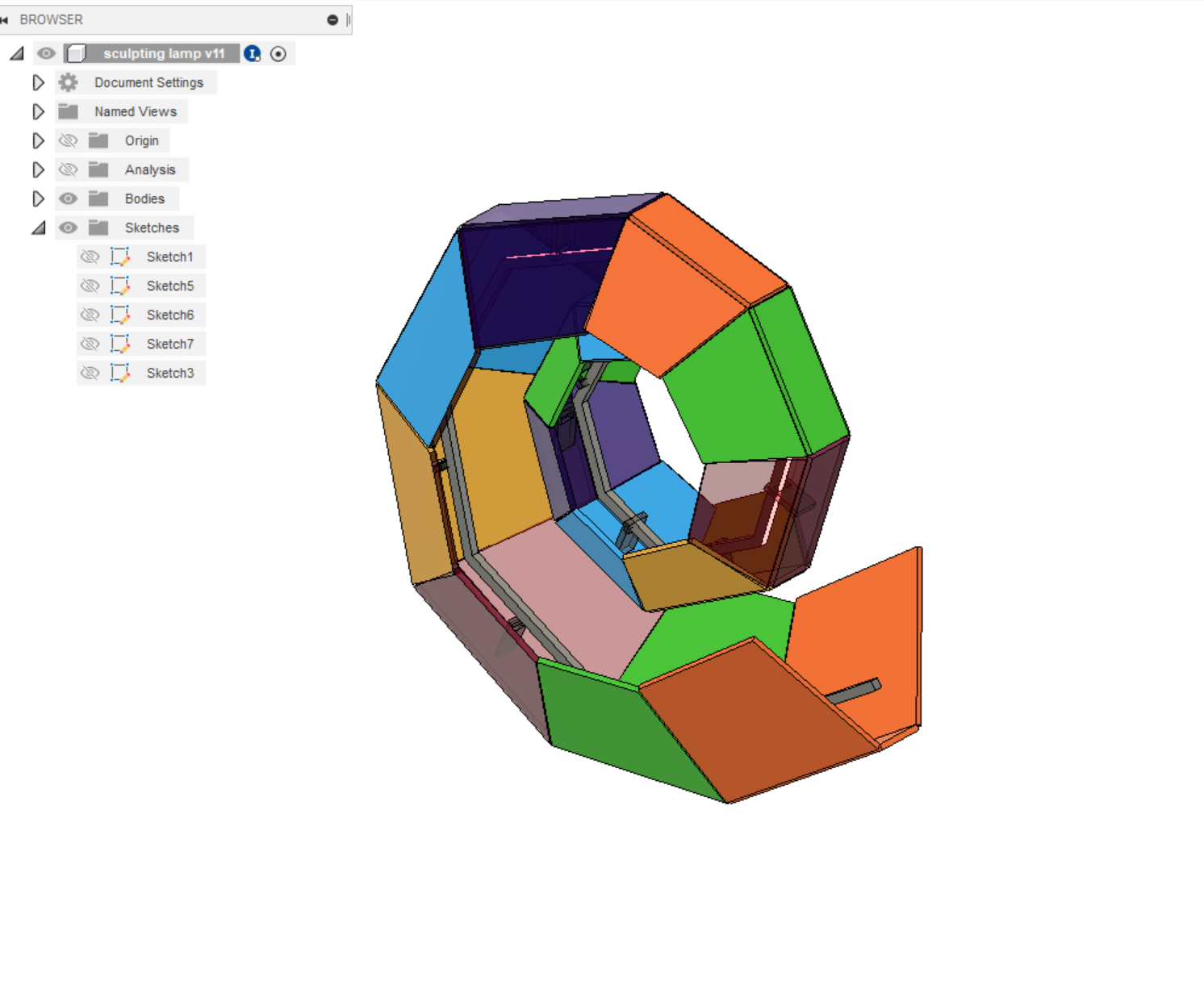

- I use fusion360 for 3D design.
- First, I start to draw all pieces in 2d sketch.
- Then I extrude all pieces in 2mm thickness.
- Apply Color to all pieces as per the color available in my acrylic sheets.
- I arrange 3 same-color parts at 125 degrees to make my design.
- Similarly, place other parts. Now I have 15 different small assemblies of the same color.
- Now I arrange them in decreasing angles to make an internal archimedean spiral design.
- I started from 148 degrees on the outer part and decrease to 125 degrees while going inside.

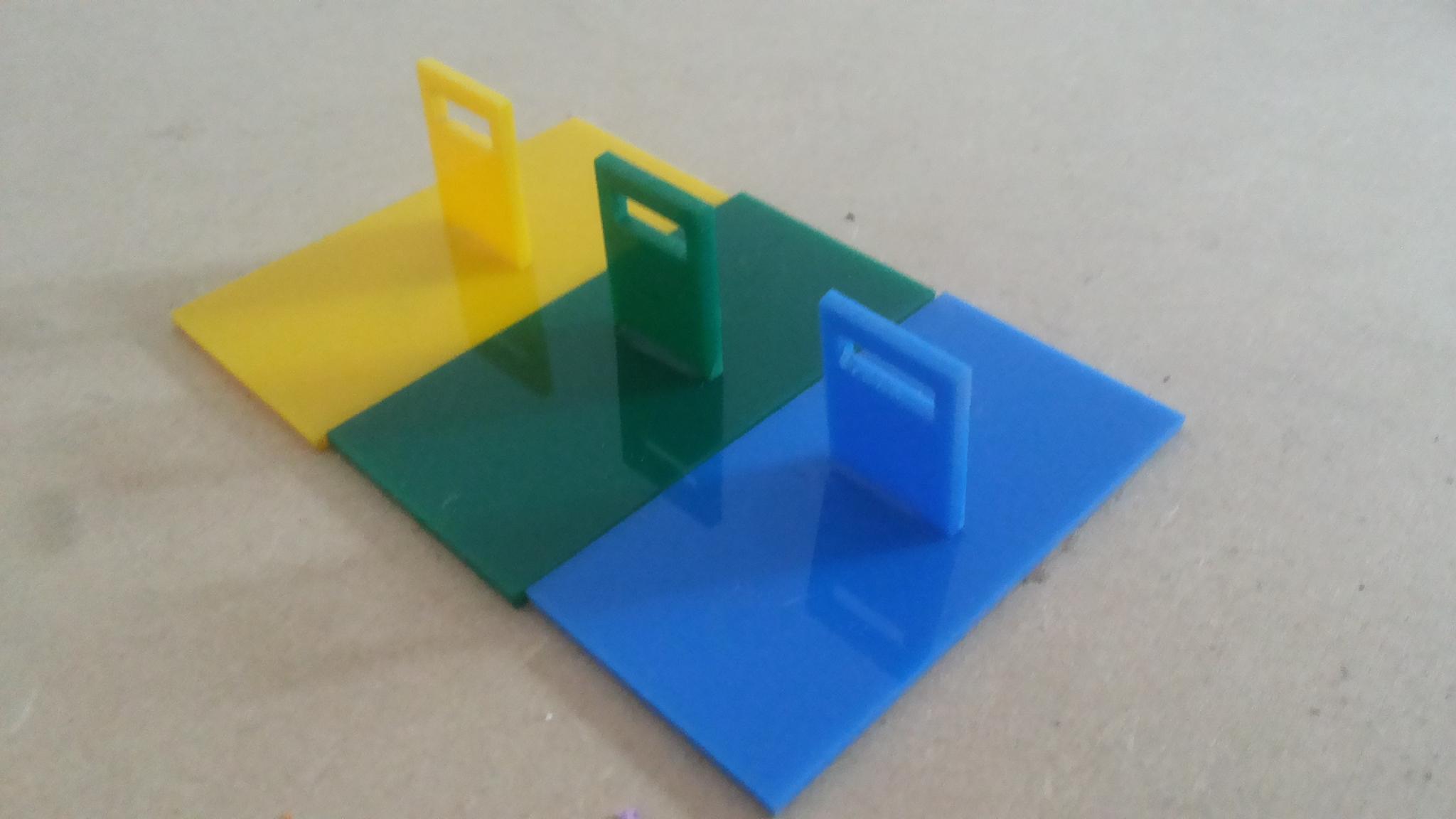

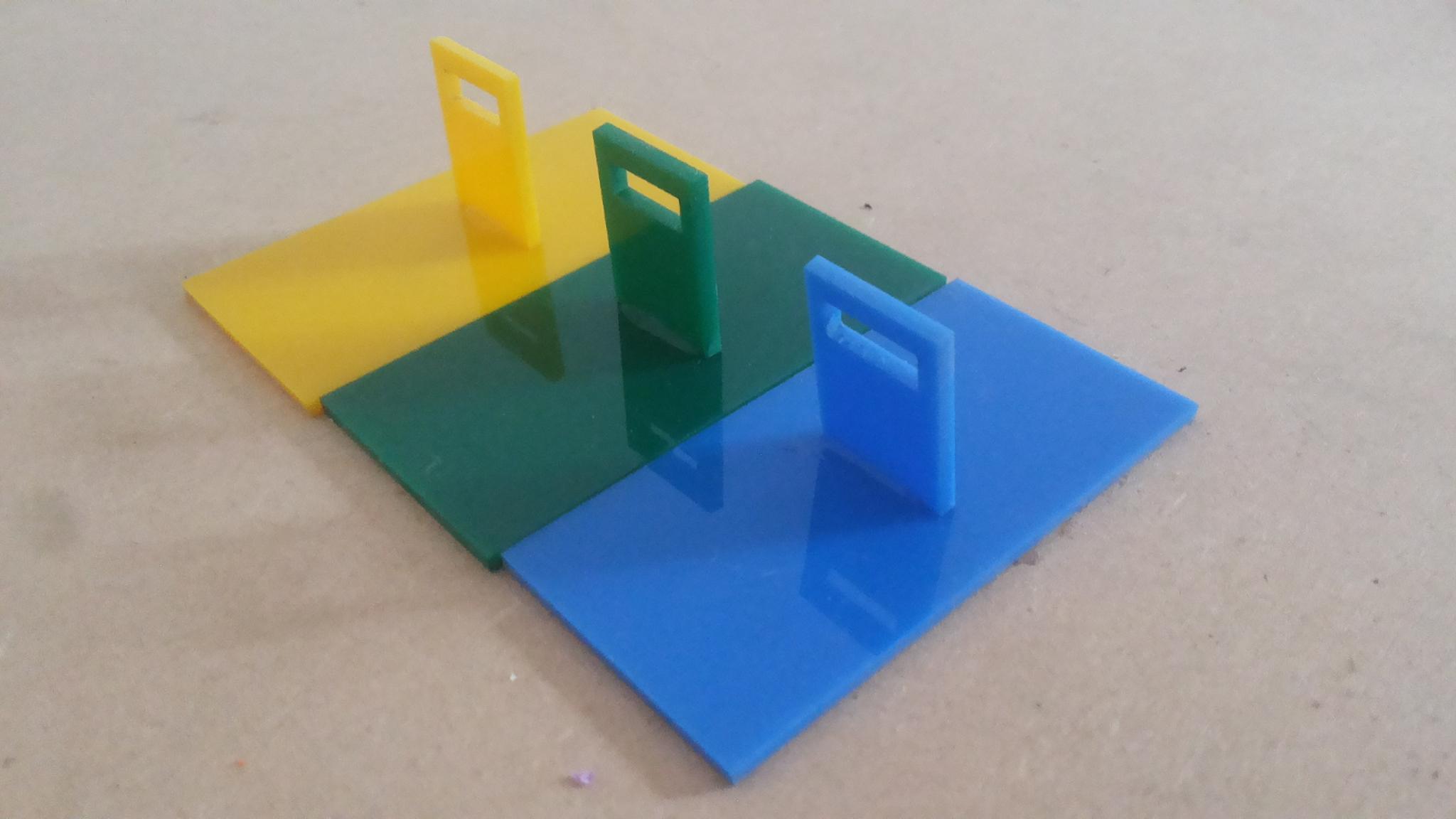

- I want to place a light strip inside, so, I designed supports from 2mm acrylic to support the LED strip inside the lamp.
- Place them in the center of each flat part of the lamp.
- To make the rigid connection of the side parts with the center part, I design a port to connect it from the inside to make the lamp rigid and stable on the table. This part is made using 3d printing.
Preparation for Laser Cutting
- For making this lamp I use different colors of Acrylic.
- That’s why we separate designs for different colors of acrylic for laser cutting.
- I export separately.DXF file for laser cutting as per color code of acrylic.
- Here I attach .DXF file for cutting.
Laser Cutting
![20220421_071556.jpg](/proxy/?url=https://content.instructables.com/FE2/28LK/L5MH4PZ7/FE228LKL5MH4PZ7.jpg&filename=20220421_071556.jpg)
![20220421_071251.jpg](/proxy/?url=https://content.instructables.com/FKD/FJ23/L5MH4PZ8/FKDFJ23L5MH4PZ8.jpg&filename=20220421_071251.jpg)
![20220421_071253.jpg](/proxy/?url=https://content.instructables.com/FQU/7N6Y/L5MH4PZ9/FQU7N6YL5MH4PZ9.jpg&filename=20220421_071253.jpg)
![20220421_071536.jpg](/proxy/?url=https://content.instructables.com/F7Y/XBUO/L5MH4PZA/F7YXBUOL5MH4PZA.jpg&filename=20220421_071536.jpg)
- For laser cutting, we have 6 color acrylic sheets. we arrange all designs as per the color of acrylic.
- We upload one-by-one designs in the machine and cut acrylic as per design.
- After all laser cutting, we have all 2D parts.
- We cut a total of 45 parts for the lamp and 15 LED supports.
3d Print Part
![20220421_071415.jpg](/proxy/?url=https://content.instructables.com/FPK/3E0V/L5MH4PBW/FPK3E0VL5MH4PBW.jpg&filename=20220421_071415.jpg)
- To connect side parts to the center part, I design supports which is 3d printed and join 3 acrylic part at the correct angle.
- I attach reference .stl for 3d print.
- Also, attach the Internal support part which is useful to connect the side and center parts connection.
- print "Internal support part " 20 pieces.
Test Assembly.
![20220421_143359.jpg](/proxy/?url=https://content.instructables.com/FE3/9X2J/L5MH4LP9/FE39X2JL5MH4LP9.jpg&filename=20220421_143359.jpg)
![20220421_143404.jpg](/proxy/?url=https://content.instructables.com/FXU/S7ON/L5MH4LPA/FXUS7ONL5MH4LPA.jpg&filename=20220421_143404.jpg)
![20220421_143414.jpg](/proxy/?url=https://content.instructables.com/F0D/TLWC/L5MH4LPD/F0DTLWCL5MH4LPD.jpg&filename=20220421_143414.jpg)
![20220421_143418.jpg](/proxy/?url=https://content.instructables.com/F4T/RP7A/L5MH4LPE/F4TRP7AL5MH4LPE.jpg&filename=20220421_143418.jpg)

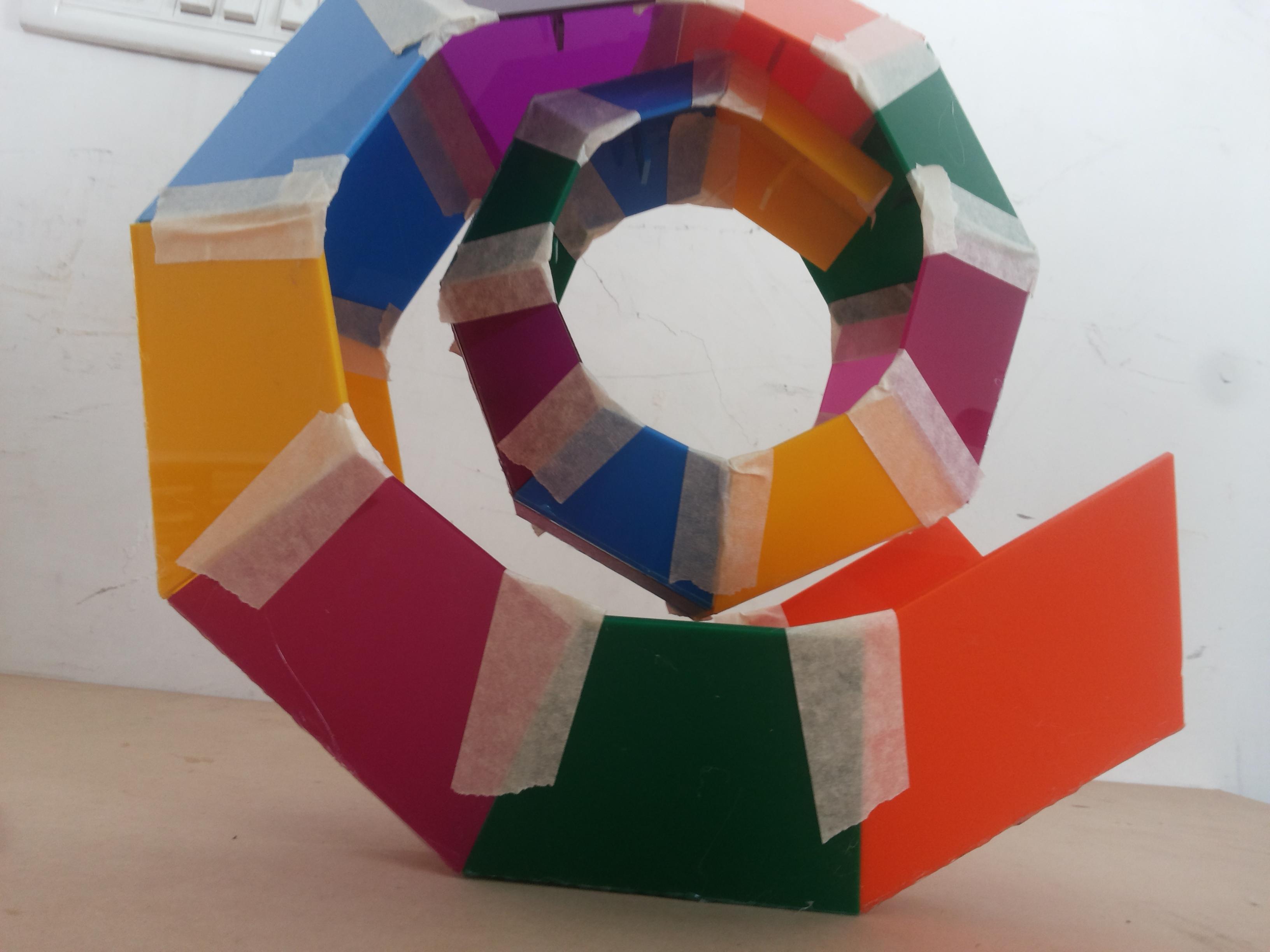

- After laser cutting, I assemble the part with paper tape to ensure the cut angle is as per design.
- it looks good and the joining angles are perfect as per design.
Proceed Final Assembly
![20120105_012232.jpg](/proxy/?url=https://content.instructables.com/FF8/RS7J/L5MH4SBD/FF8RS7JL5MH4SBD.jpg&filename=20120105_012232.jpg)
![20220421_091648.jpg](/proxy/?url=https://content.instructables.com/FHT/L93D/L5MH4SDU/FHTL93DL5MH4SDU.jpg&filename=20220421_091648.jpg)
![20120105_012338.jpg](/proxy/?url=https://content.instructables.com/F5A/0U9Y/L5MH4SA3/F5A0U9YL5MH4SA3.jpg&filename=20120105_012338.jpg)
![20120105_031105.jpg](/proxy/?url=https://content.instructables.com/FBL/5447/L5MH4SBE/FBL5447L5MH4SBE.jpg&filename=20120105_031105.jpg)
![20120105_051606.jpg](/proxy/?url=https://content.instructables.com/F0V/23A5/L5MH4SDT/F0V23A5L5MH4SDT.jpg&filename=20120105_051606.jpg)
- Now we move to the final assembly.
- For actual assembly, we use Gluegun and Fevistick adhesives.
- For the outermost part, I use Feviquick for making strong bonds between parts.
- For internal support, I use a Glue gun to stick parts inside.
- Use a few quick-to-joint parts on 125 degrees using 3d printed support.
- Then I stick LED strip supports in the center of the center part with a glue gun.

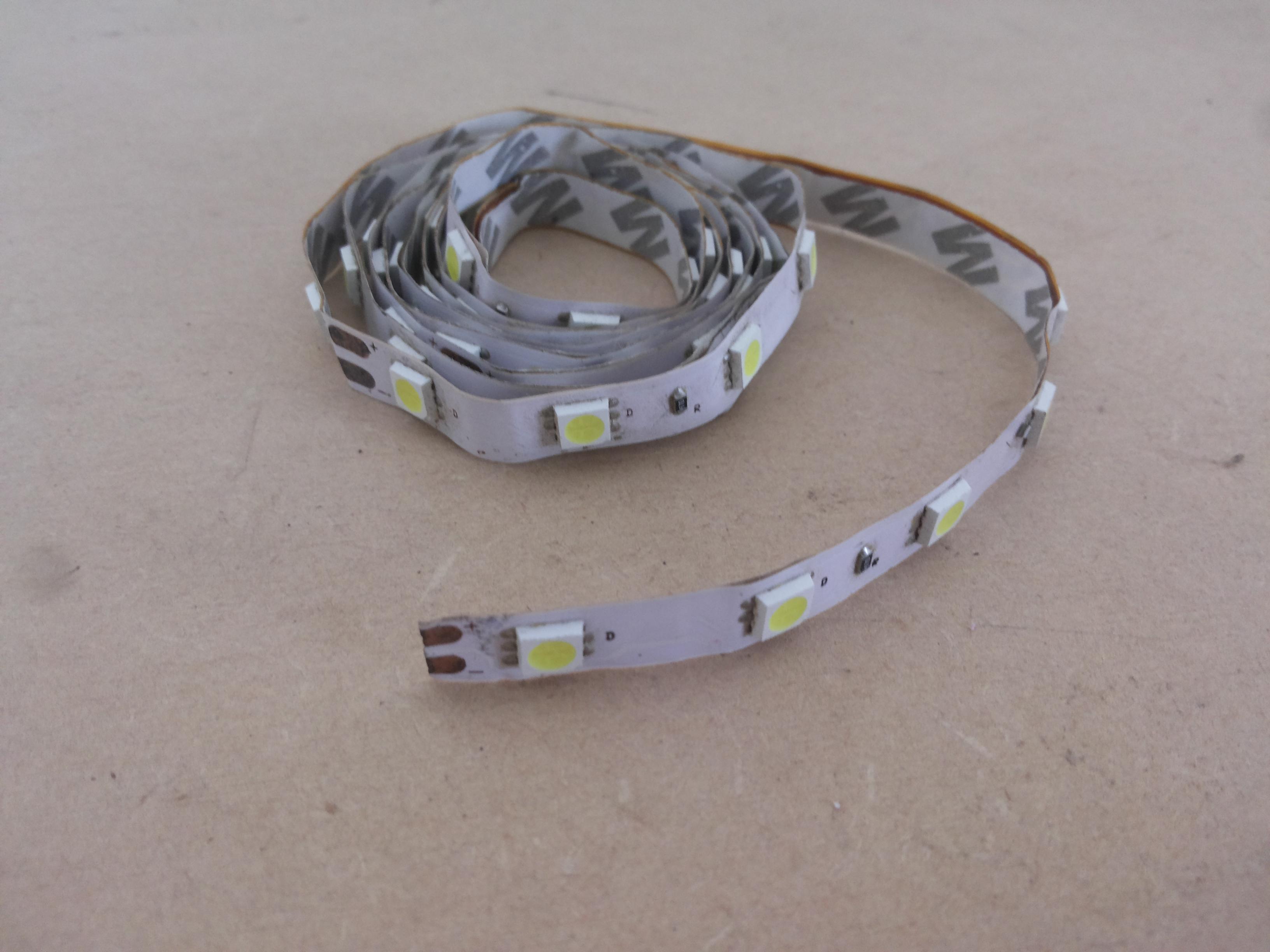

- Place LED strip inside LED support.
- Then stick all 15 parts at an angle to make an archimedean shape.
- checkout the next steps for a detailed procedure.
Sperate All Part As Per Design Color and Size
![20120105_012228.jpg](/proxy/?url=https://content.instructables.com/FZM/537M/L5MH4PDK/FZM537ML5MH4PDK.jpg&filename=20120105_012228.jpg)
![20120105_012221.jpg](/proxy/?url=https://content.instructables.com/F7I/I408/L5MH4PDL/F7II408L5MH4PDL.jpg&filename=20120105_012221.jpg)
![20220421_091648.jpg](/proxy/?url=https://content.instructables.com/FTK/UMSR/L5MH4MBG/FTKUMSRL5MH4MBG.jpg&filename=20220421_091648.jpg)
![20220421_091655.jpg](/proxy/?url=https://content.instructables.com/FJA/FU39/L5MH4MBH/FJAFU39L5MH4MBH.jpg&filename=20220421_091655.jpg)
![20220421_091700.jpg](/proxy/?url=https://content.instructables.com/FCZ/Z5BW/L5MH4MBI/FCZZ5BWL5MH4MBI.jpg&filename=20220421_091700.jpg)
![20220421_073833.jpg](/proxy/?url=https://content.instructables.com/FQS/8KLK/L5MH4MBJ/FQS8KLKL5MH4MBJ.jpg&filename=20220421_073833.jpg)
![20220421_073856.jpg](/proxy/?url=https://content.instructables.com/FZ8/3NT7/L5MH4MBK/FZ83NT7L5MH4MBK.jpg&filename=20220421_073856.jpg)
![20220421_073904.jpg](/proxy/?url=https://content.instructables.com/FKD/ONBK/L5MH4MBL/FKDONBKL5MH4MBL.jpg&filename=20220421_073904.jpg)

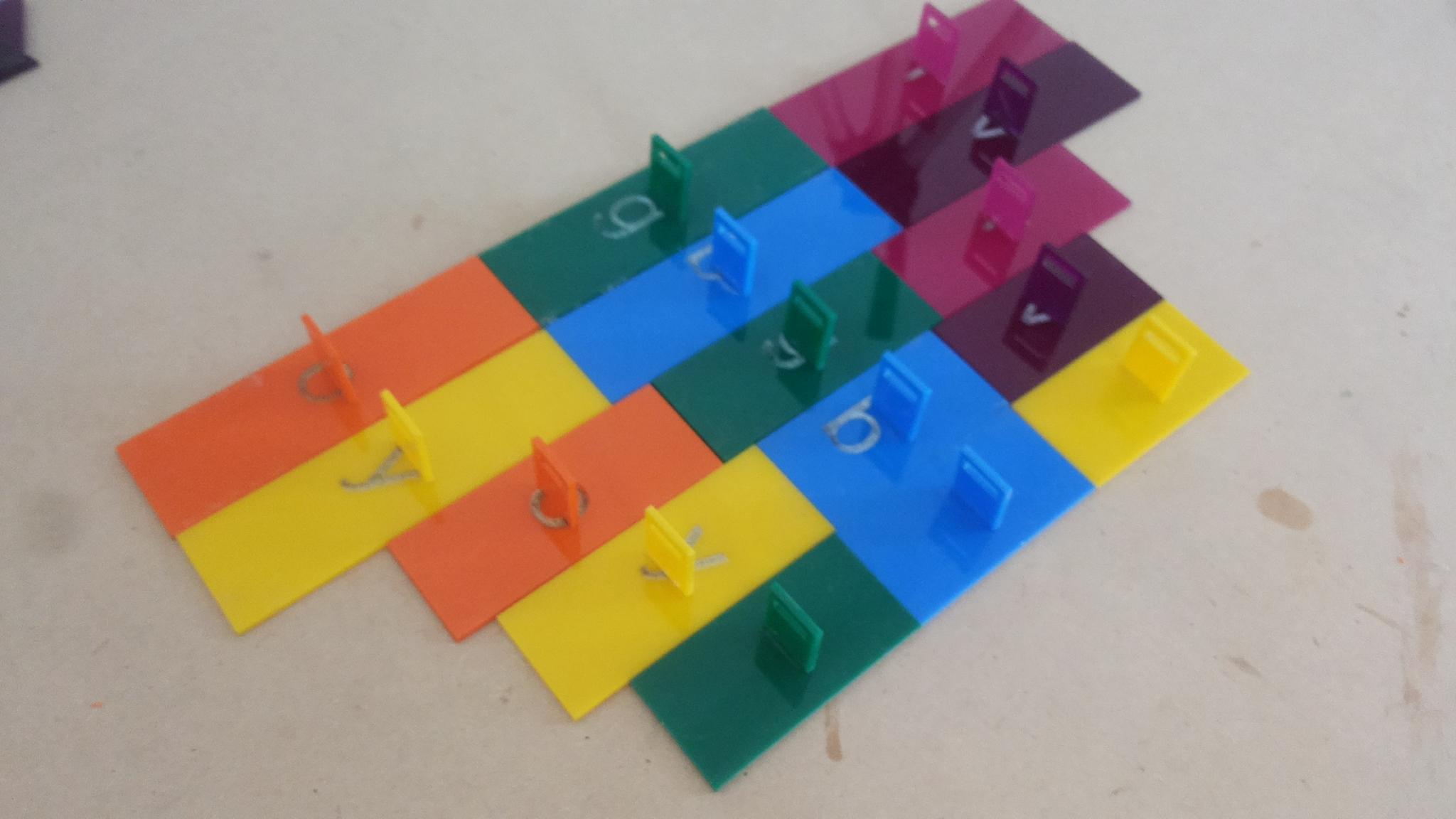

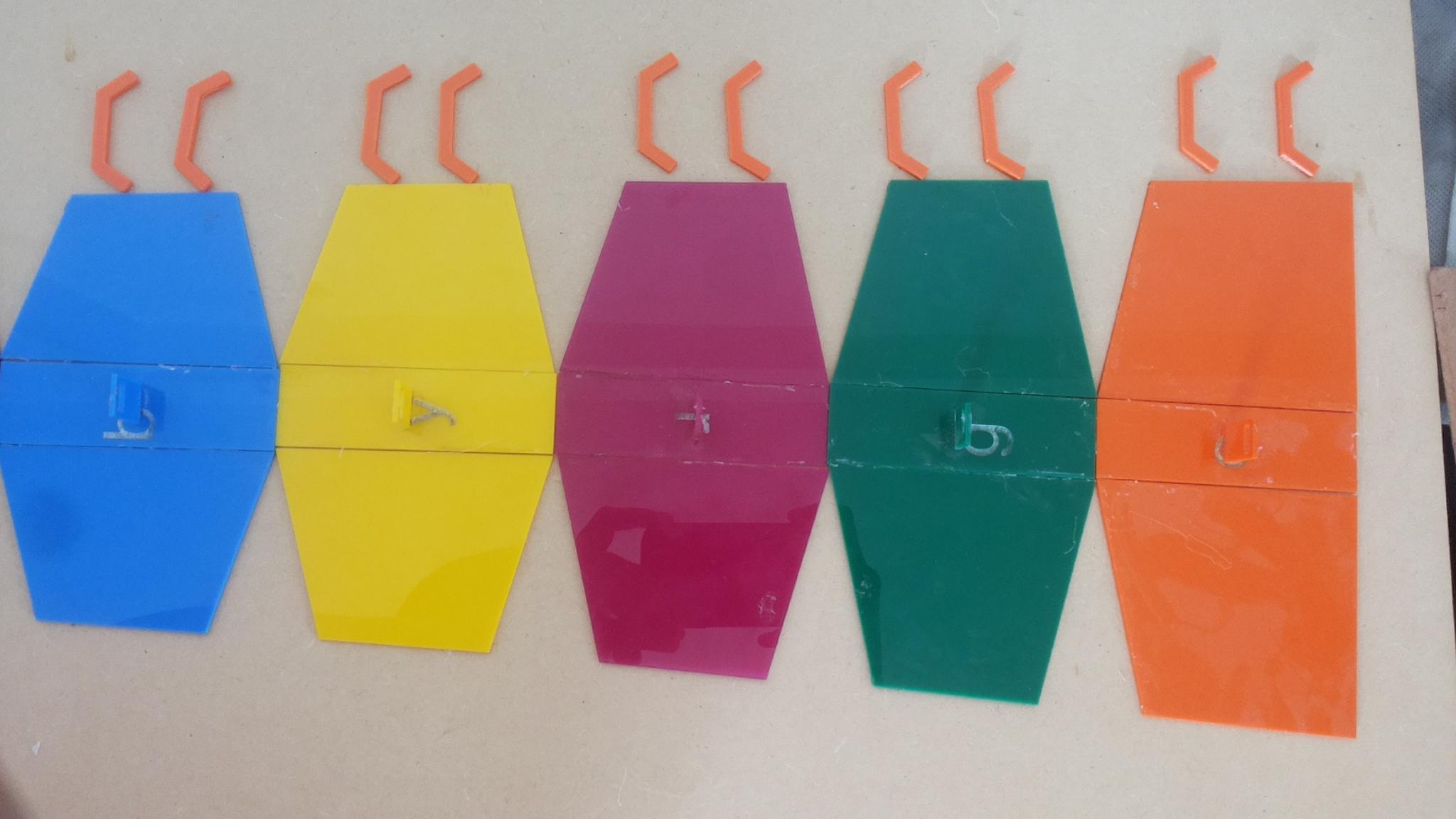

- we separated all parts as per the design to connect with glue.
- Sperate & place All Part As Per Design, Color, And Size.
- with this separation, it's easy for us to join the part one by one.
- Also, place 3d printed parts side by side for smooth assembly process.
Connect Side and Center Part
![Screenshot 2022-07-16 145425.png](/proxy/?url=https://content.instructables.com/FOP/EO95/L5MH4N9Q/FOPEO95L5MH4N9Q.png&filename=Screenshot 2022-07-16 145425.png)
![20220421_071420.jpg](/proxy/?url=https://content.instructables.com/F9A/ZDH8/L5MH4NSX/F9AZDH8L5MH4NSX.jpg&filename=20220421_071420.jpg)
![20220421_091934.jpg](/proxy/?url=https://content.instructables.com/F52/7ZUT/L5MH4NXU/F527ZUTL5MH4NXU.jpg&filename=20220421_091934.jpg)
![20120105_014210.jpg](/proxy/?url=https://content.instructables.com/F29/9NT5/L5MH4M6D/F299NT5L5MH4M6D.jpg&filename=20120105_014210.jpg)
![20120105_012754.jpg](/proxy/?url=https://content.instructables.com/FZQ/C9M2/L5MH4M6A/FZQC9M2L5MH4M6A.jpg&filename=20120105_012754.jpg)
![20120105_013030.jpg](/proxy/?url=https://content.instructables.com/FGW/UU33/L5MH4M6B/FGWUU33L5MH4M6B.jpg&filename=20120105_013030.jpg)
![20120105_030414.jpg](/proxy/?url=https://content.instructables.com/FR9/O4BQ/L5MH4M68/FR9O4BQL5MH4M68.jpg&filename=20120105_030414.jpg)
![20120105_013408.jpg](/proxy/?url=https://content.instructables.com/FX7/FGWG/L5MH4M6C/FX7FGWGL5MH4M6C.jpg&filename=20120105_013408.jpg)
![20120105_014615.jpg](/proxy/?url=https://content.instructables.com/FI5/TR4R/L5MH4M6E/FI5TR4RL5MH4M6E.jpg&filename=20120105_014615.jpg)
![20120105_015131.jpg](/proxy/?url=https://content.instructables.com/FAZ/K1BR/L5MH4M6F/FAZK1BRL5MH4M6F.jpg&filename=20120105_015131.jpg)
![20120105_022234.jpg](/proxy/?url=https://content.instructables.com/FEZ/N4OZ/L5MH4M6G/FEZN4OZL5MH4M6G.jpg&filename=20120105_022234.jpg)
![20120105_025418.jpg](/proxy/?url=https://content.instructables.com/FQB/YZVN/L5MH4M6H/FQBYZVNL5MH4M6H.jpg&filename=20120105_025418.jpg)

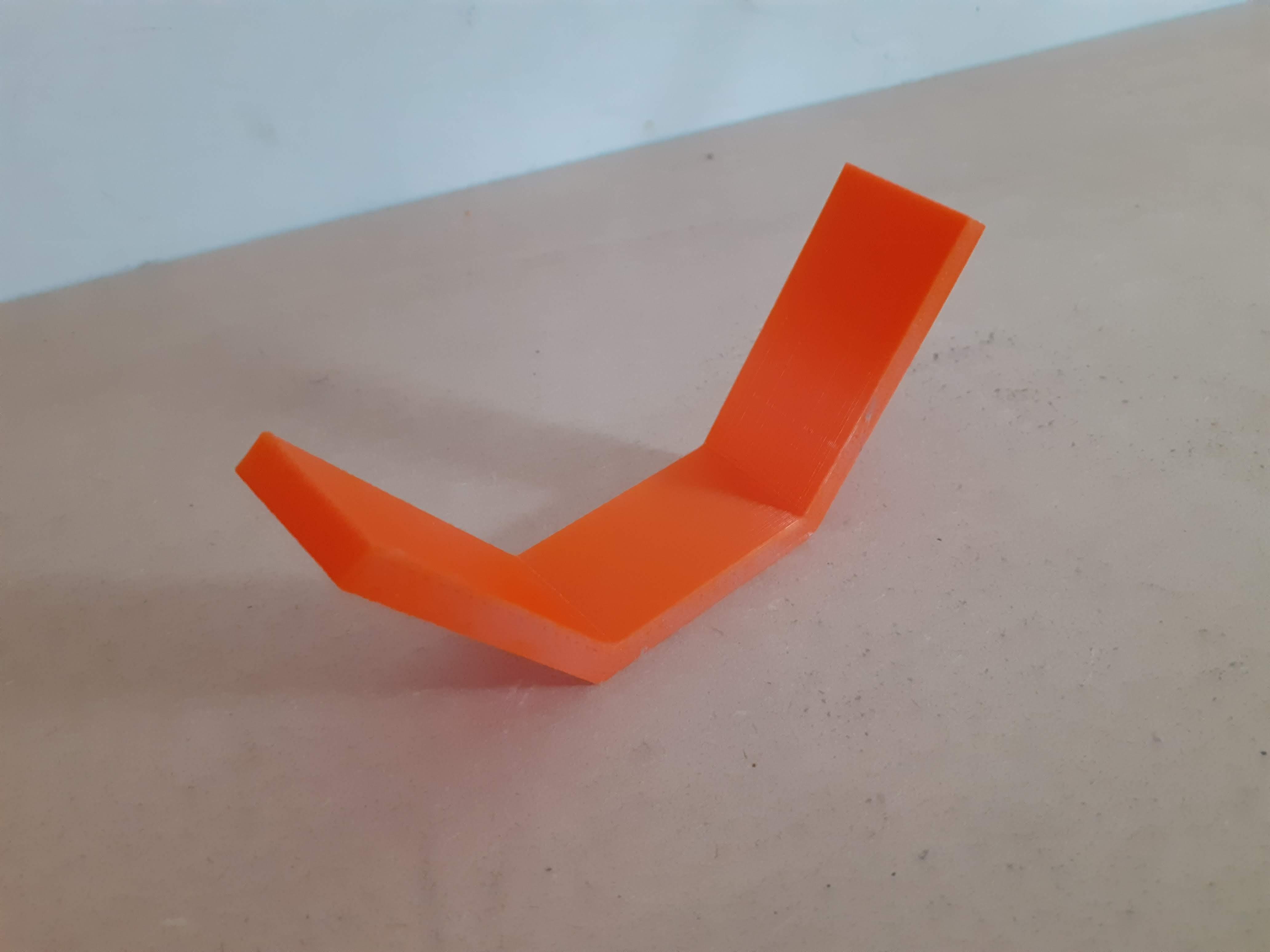

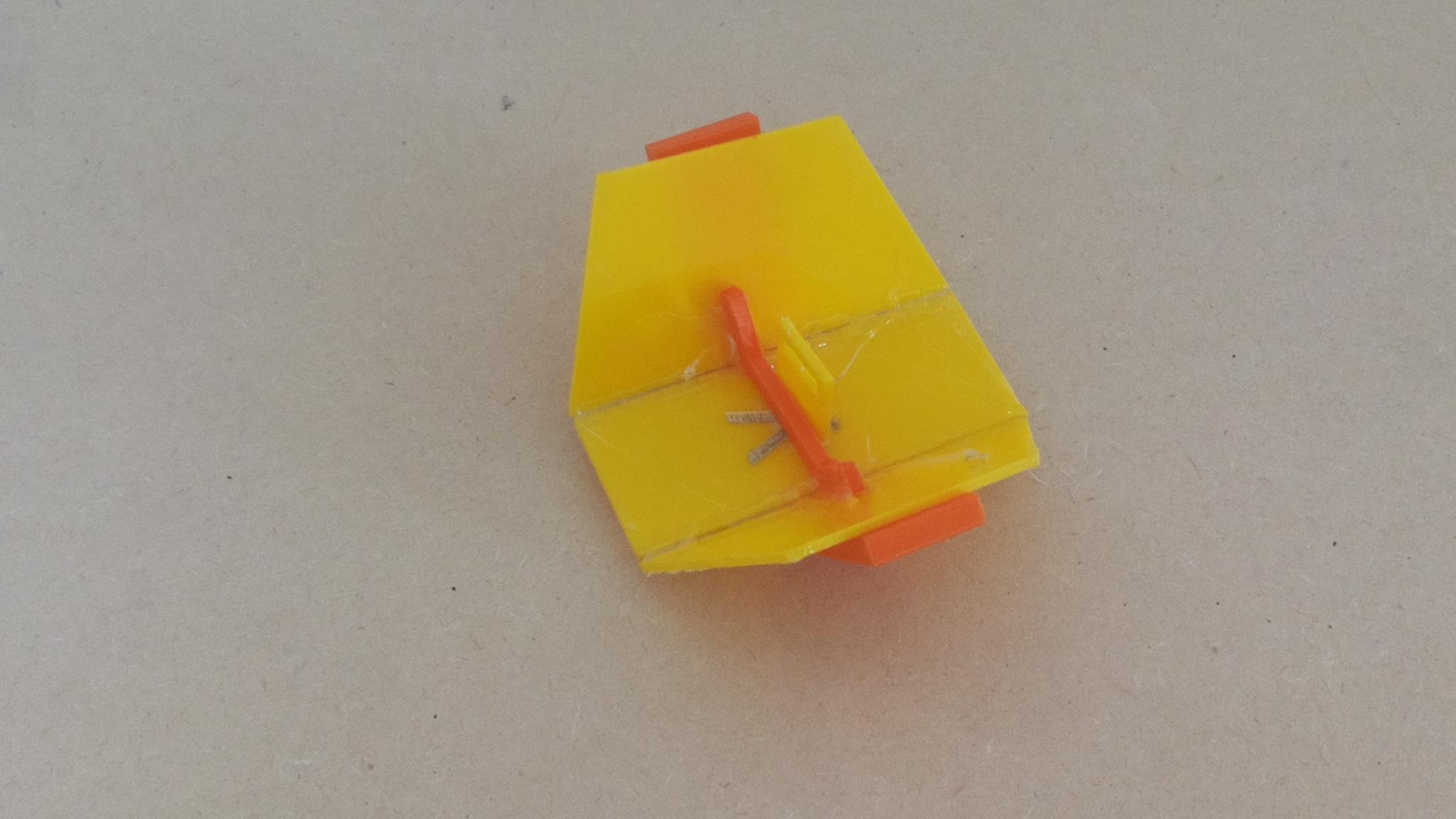

- first, I glued the side and center part with a 3d printed connector.
- after gluing 15 different p[art as per design we are ready to connect led support inside that part.
- For accurate gluing, I design an outer support part for placing and gluing part on it at an accurate angle.
Sequencing and LED Connection
![20220421_145607.jpg](/proxy/?url=https://content.instructables.com/F0M/I1BC/L5MH4O8N/F0MI1BCL5MH4O8N.jpg&filename=20220421_145607.jpg)
![20220421_145714.jpg](/proxy/?url=https://content.instructables.com/FCW/SNXB/L5MH4O8O/FCWSNXBL5MH4O8O.jpg&filename=20220421_145714.jpg)
![20220421_150003.jpg](/proxy/?url=https://content.instructables.com/FZ8/TSAU/L5MH4OFT/FZ8TSAUL5MH4OFT.jpg&filename=20220421_150003.jpg)
![20220713_182832.jpg](/proxy/?url=https://content.instructables.com/FSY/Y17N/L5MH4P5O/FSYY17NL5MH4P5O.jpg&filename=20220713_182832.jpg)
![20220421_151242.jpg](/proxy/?url=https://content.instructables.com/FBZ/7X1Q/L5MH4OFU/FBZ7X1QL5MH4OFU.jpg&filename=20220421_151242.jpg)
![20220421_160501.jpg](/proxy/?url=https://content.instructables.com/FF9/IOEX/L5MH4OFS/FF9IOEXL5MH4OFS.jpg&filename=20220421_160501.jpg)
![20220421_151259.jpg](/proxy/?url=https://content.instructables.com/FBV/AZ7A/L5MH4OFV/FBVAZ7AL5MH4OFV.jpg&filename=20220421_151259.jpg)

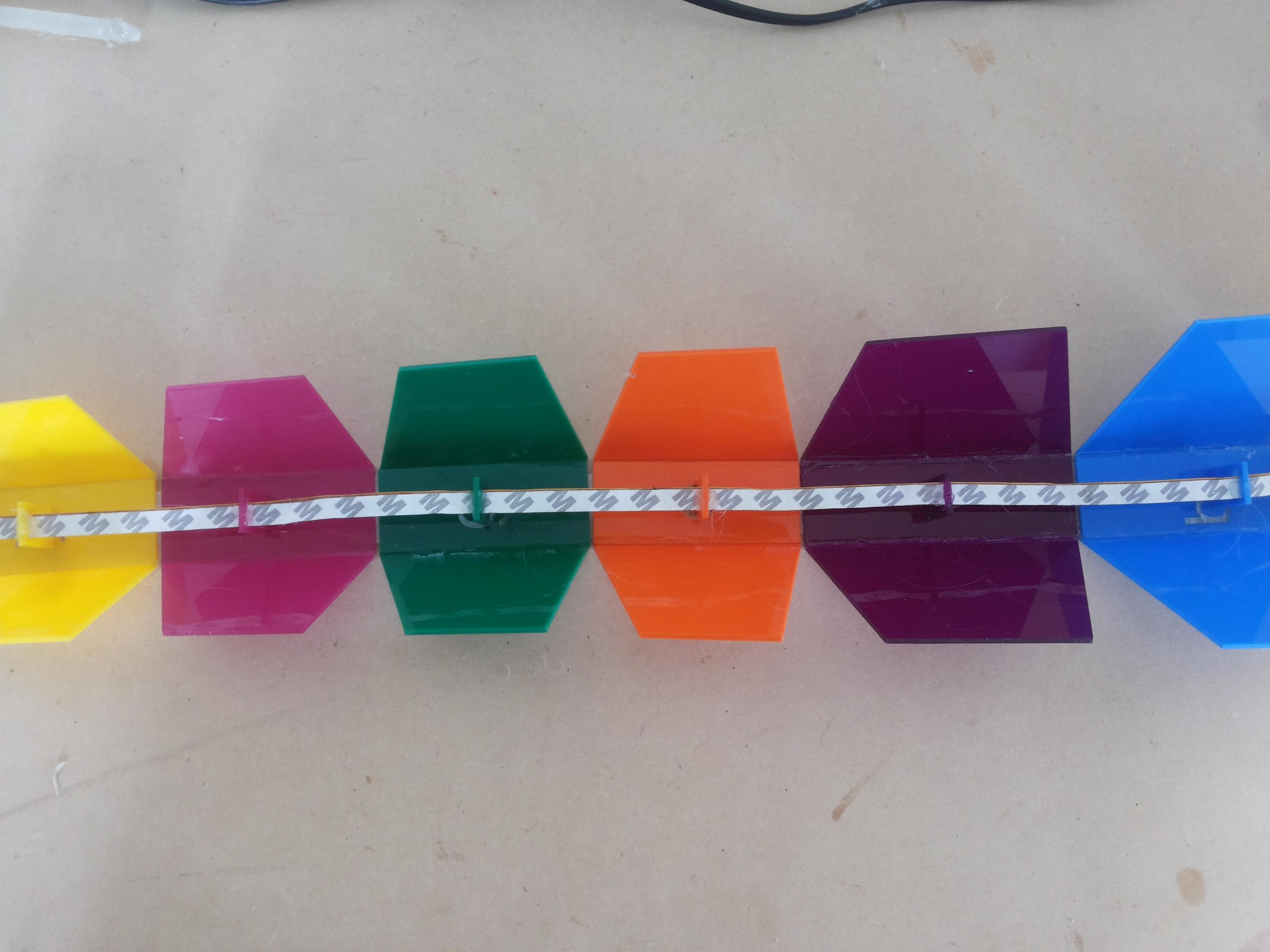

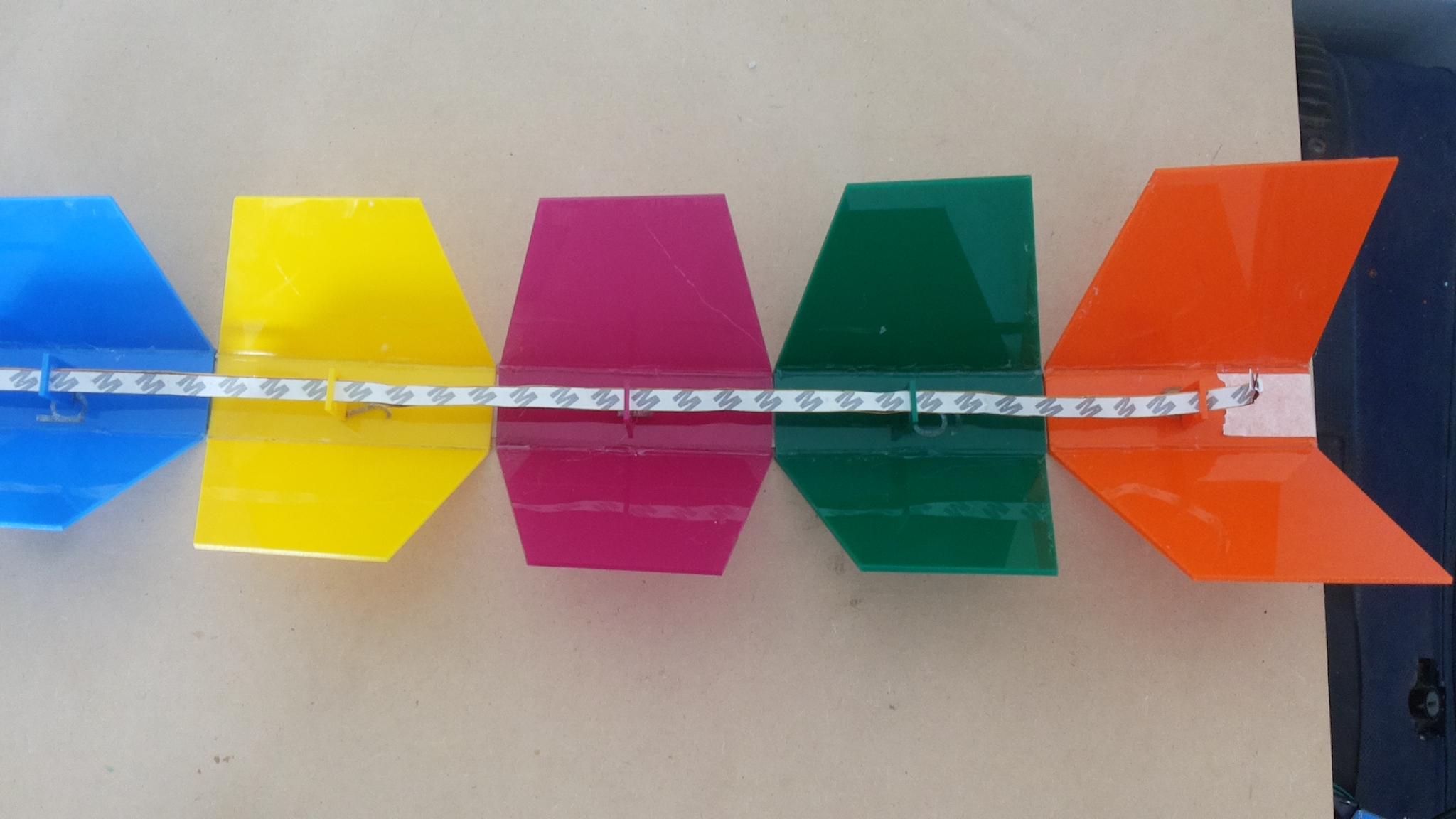

- For joint 3 same color part, I place all 15 parts in increasing size sequence to attach LED strip inside them.
Assemble All Part
![GIF @.gif](/proxy/?url=https://content.instructables.com/FMJ/KQ8E/L5MH4VZ9/FMJKQ8EL5MH4VZ9.gif&filename=GIF @.gif)
![20120105_063832.jpg](/proxy/?url=https://content.instructables.com/F8I/US19/L5MH4YM7/F8IUS19L5MH4YM7.jpg&filename=20120105_063832.jpg)
![20120105_063820.jpg](/proxy/?url=https://content.instructables.com/FQ4/ULZ1/L5MH4YKX/FQ4ULZ1L5MH4YKX.jpg&filename=20120105_063820.jpg)
![20120105_063848.jpg](/proxy/?url=https://content.instructables.com/FUD/FMBA/L5MH4YNF/FUDFMBAL5MH4YNF.jpg&filename=20120105_063848.jpg)

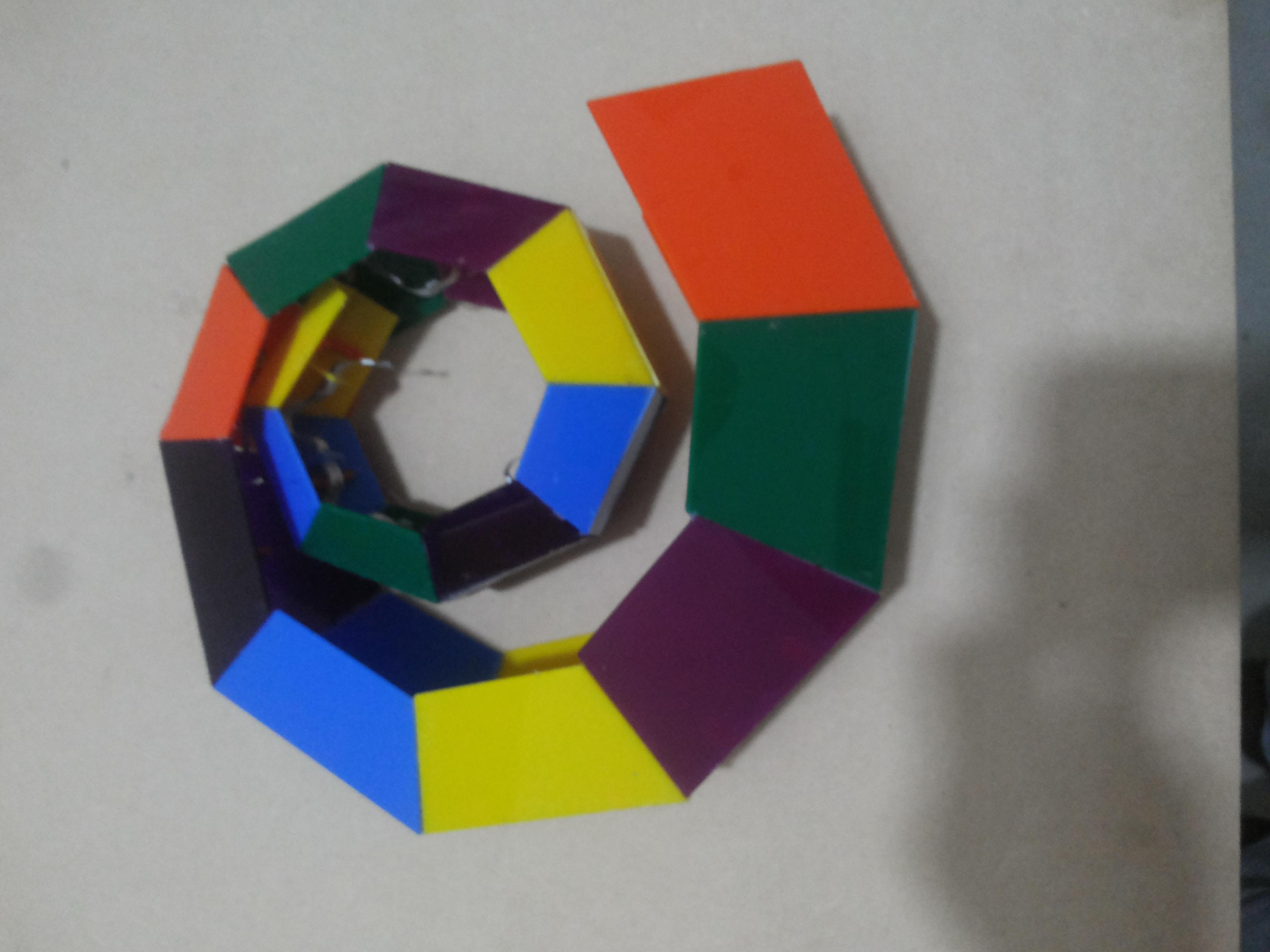

For final assembly, we attach all 15 parts together in the shape of a Spiral.
To attach all parts I use a glue gun to join them.
after 55 minutes of assembly time, I join them together and we have our spiral shape lamp ready to test.
Testing
![20220713_205835.jpg](/proxy/?url=https://content.instructables.com/FIS/1915/L5MH4L3V/FIS1915L5MH4L3V.jpg&filename=20220713_205835.jpg)
![20220713_205802.jpg](/proxy/?url=https://content.instructables.com/F1L/VZVX/L5MH4L1R/F1LVZVXL5MH4L1R.jpg&filename=20220713_205802.jpg)
![20220713_205453.jpg](/proxy/?url=https://content.instructables.com/FRQ/MFWP/L5MH4L5Z/FRQMFWPL5MH4L5Z.jpg&filename=20220713_205453.jpg)
![20220713_205626.jpg](/proxy/?url=https://content.instructables.com/FS1/AKCH/L5MH4L1Q/FS1AKCHL5MH4L1Q.jpg&filename=20220713_205626.jpg)

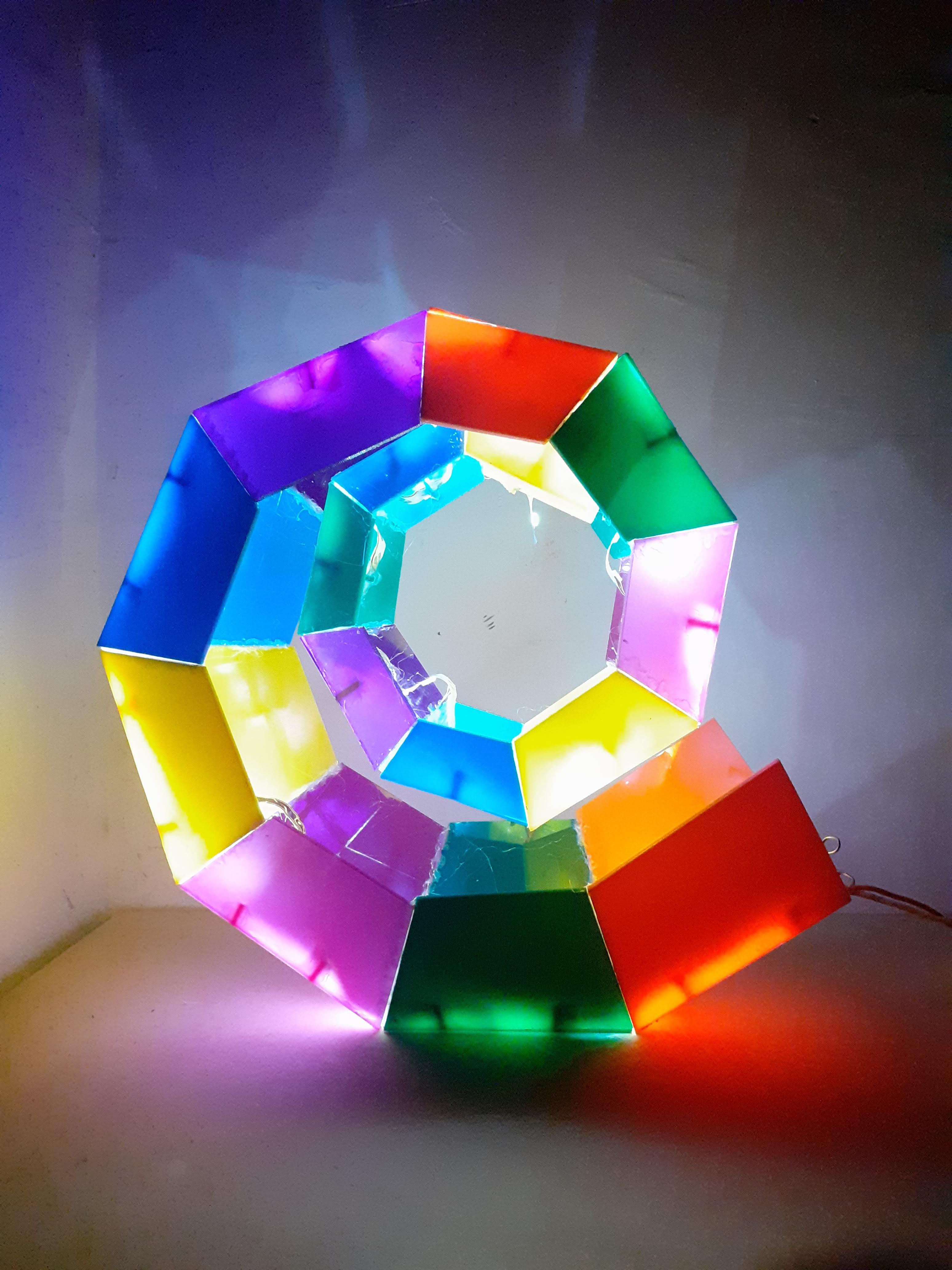

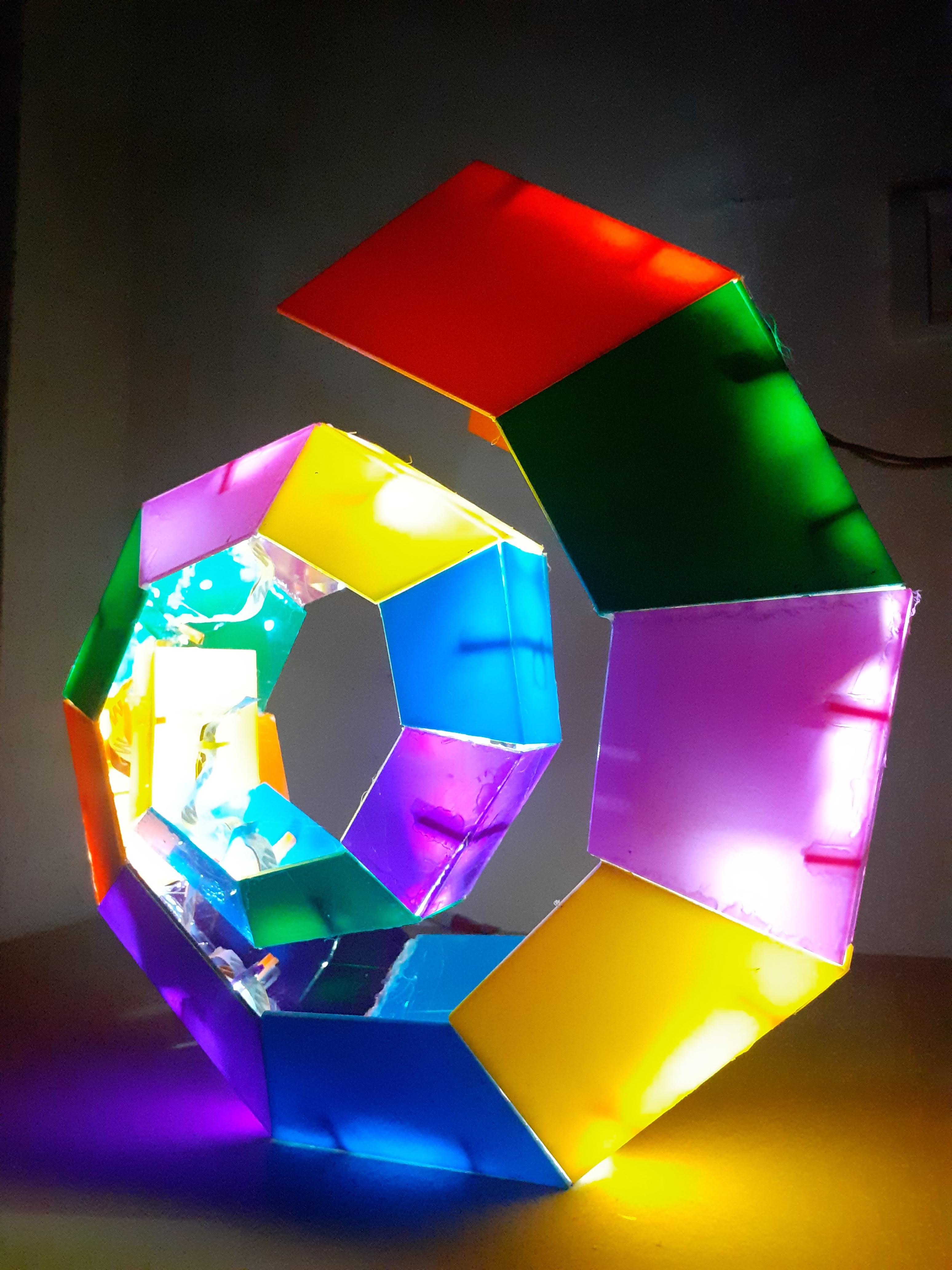

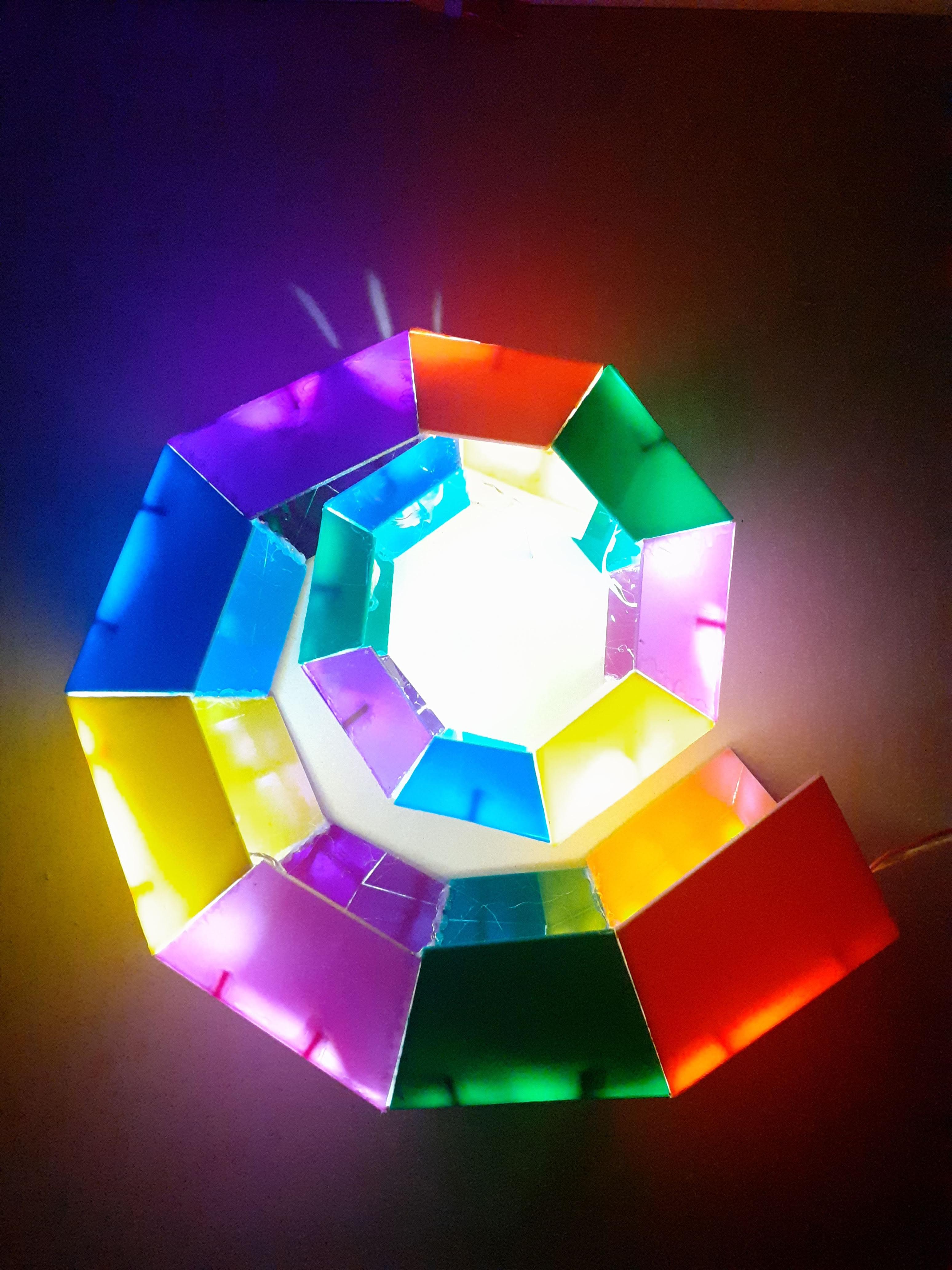

- After assembling all parts, now we are ready for testing.
- Plug LED adopter in the switchboard and turn the switch on.
- It glows.
- You have an Archimedean Spiral lamp on your table.
- You can orient the lamp in any direction, it is seen as beautiful in any orientation.
