Arcade Stick Custom Build Simple DIY

Youtube: https://youtu.be/2pLCPgZHGIM

This instructable will show how to make a custom arcade stick with off the shelf parts. It won't require any power tools or woodworking knowledge.

Here are the items you'll need:

Case/control panel
USB encoder
8x 30mm buttons
1x joystick

The key to this simple DIY is the premade arcade enclosure. You can pick one up for about $20. This particular enclosure has a thick acrylic panel which is nice.

Arcade case & acrylic panel
http://bit.ly/axarcadecase1
http://bit.ly/axarcadecase2

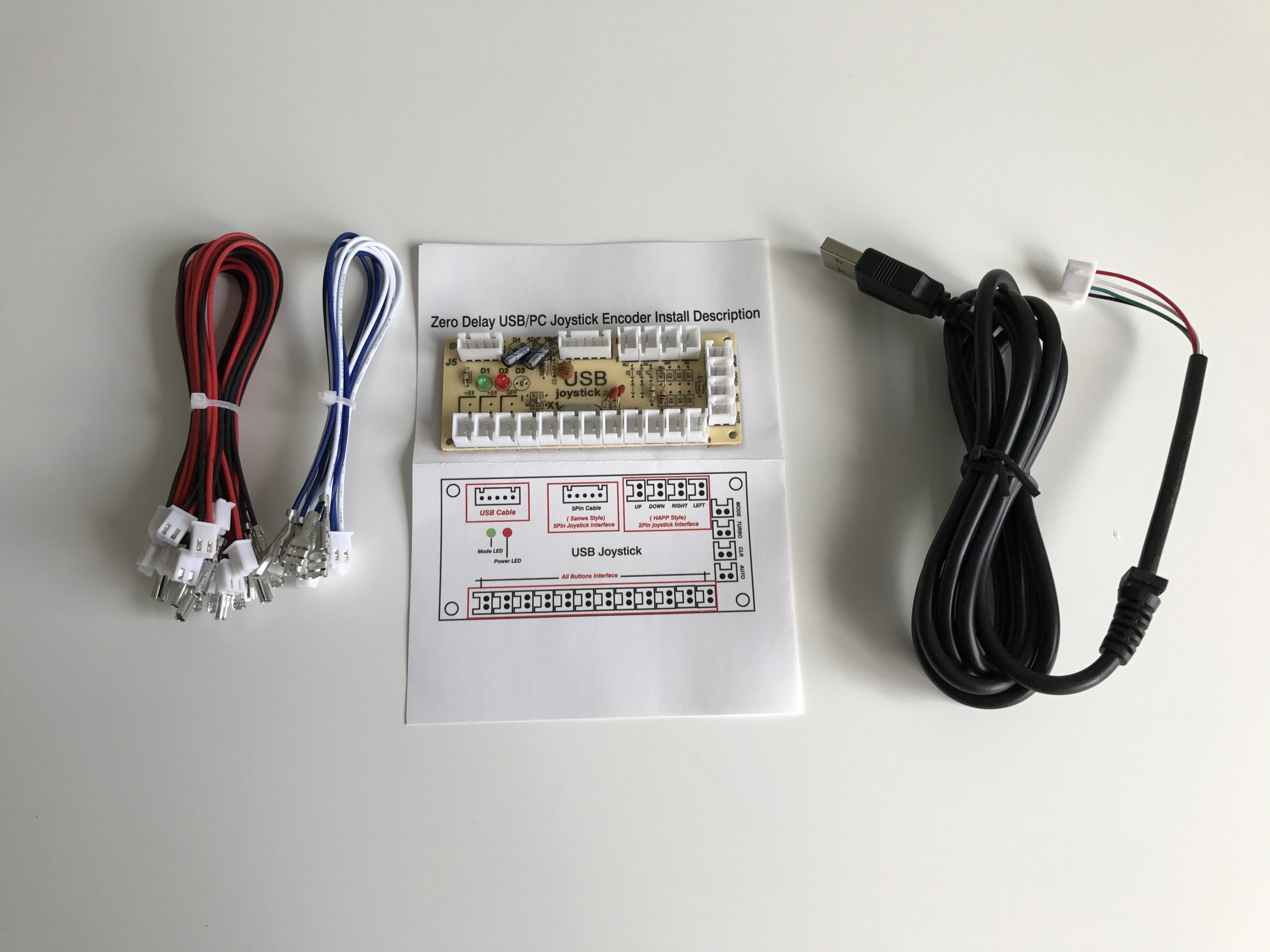

A USB encoder is also needed to interface with your PC/Raspberry Pi/video game console. This encoder is a zero delay encoder and doesn't require any soldering. It's modular and plugs to your buttons with the included wire quick disconnects.

Arcade USB encoder only
http://bit.ly/bg0usbencoder
http://amzn.to/2sz5JDy

You'll need (8) 30mm push buttons and a joystick. If quality matters then stick to Sanwa buttons and joystick but it'll bump up the costs. You can buy a kit with USB encoder, buttons, joysticks, and wiring for about $20.

Arcade USB encoder/buttons/joystick kits
http://bit.ly/bgarcadekit
http://bit.ly/bgarcadekit1
http://bit.ly/bgarcadekit2
http://amzn.to/2t8H4mA

12 Piece Original Sanwa OBSF-30 30mm Push Buttons
http://amzn.to/2r4nydz

SANWA JLF joystick
http://amzn.to/2sz3QXE

This step is optional and will add some complexity to this build. If you want to add your own artwork, you'll need something to sandwich your artwork. Using plexiglass or lexan will require power tools to drill and cut the holes. Instead you can use an IKEA picture frame (FISKBO) and take the thin clear layer as an alternative.

IKEA Fiskbo Frame 16x20"
http://www.ikea.com/us/en/catalog/products/00300391
