Arc Reactor Pendant
![Arc.jpg](/proxy/?url=https://content.instructables.com/F50/BOQJ/KK5FR8DU/F50BOQJKK5FR8DU.jpg&filename=Arc.jpg)
My wife sells jewelry at local markets. I wanted to create my own item to sell. Diffused glowing LEDs behind a PCB with no solder mask cutouts looks awesome. This project uses 2 PCBs, one for LEDs and circuitry and the other for the top that you see. The bottom PCB has the battery holder, circuitry, and LEDs. The 2 pieces are just hot glued together. I had less then a second to get them aligned together before it cooled too much. I created a 3D printed align tool to glue them correctly.
Downloads
How I Made It
![ArcOff.jpg](/proxy/?url=https://content.instructables.com/FW0/G6MI/KK5FT9WV/FW0G6MIKK5FT9WV.jpg&filename=ArcOff.jpg)
![ArcLayers.jpg](/proxy/?url=https://content.instructables.com/F50/ZWY3/KK5FTD83/F50ZWY3KK5FTD83.jpg&filename=ArcLayers.jpg)

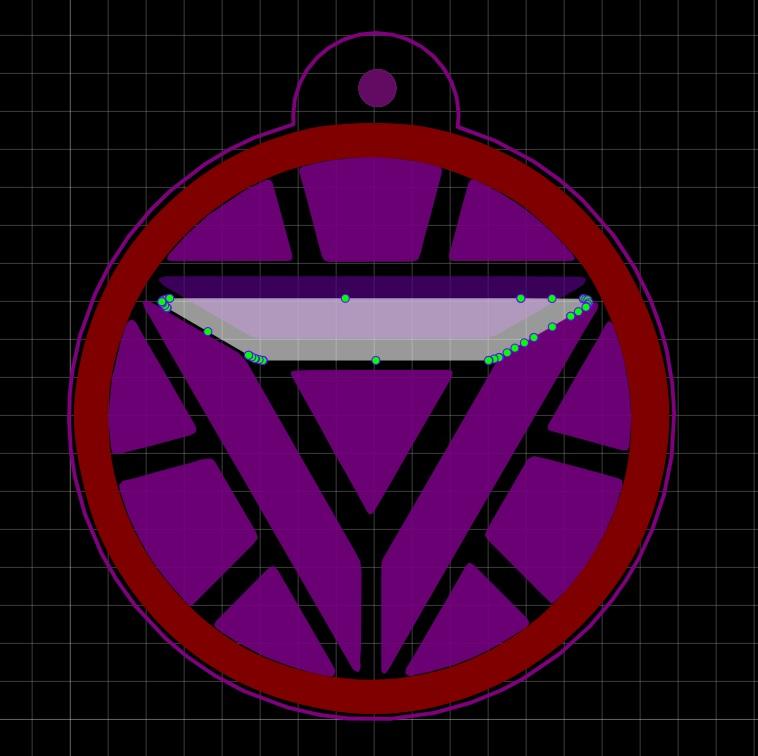

I created the shapes in Inkscape and imported the shapes into EasyEDA as various layers including PCB outline. In EasyEDA I assigned a shape as top solder mask layer, then duplicated as a bottom solder mask layer and aligned them together. In EasyEDA if you do this and also keep the copper layer out of this area it creates a fiberglass only area that is translucent and acts as a LED diffuser.
Get Your Own
It has 20 blue SMD LEDs and 1 100 Ohm resistor. I used PCB assembly service, that allowed me to make many of them. I used blue colored PCBs You can click on the PCBWay link to order the PCBs or DIY You can buy ones I made on Tindie
