Arc Reactor 2.0 (3d Printed)

In this instructables, I will be showing you how to make an arc reactor.
**The arc reactor I created was my own unique build.**
The materials you will need for this instructables are as follows:
-18 3d printed parts (7 different parts with multiples)
-3 RGB LED's
-Multiple wires wires
-An Arduino Uno
-A 9 volt battery
-3d design software
-Access to a 3d printer
-Scissors
-Soldering Iron
-Super glue
-Hot glue
-Multiple lengths of wire of your choice
-Patience

For the designing of the parts, I used the 3d designing software, Autodesk Inventor. The link for it is here: http://www.autodesk.com/products/inventor/overview

I looked at multiple reference photos and designed my parts to the scale that I wanted them to be at.
I then slowly built each part, making sure they were able to interlock. This took a while, but it was worth it. After the 3d designing, I sent them to the 3d printer, where they were printed. Most parts where printed with little infill, to keep it light, portable, and able to be printed quickly.

After the parts successfully printed, I attached the black clips to the clear base. There were 10 total black clips which fit beautifully in the clear base.

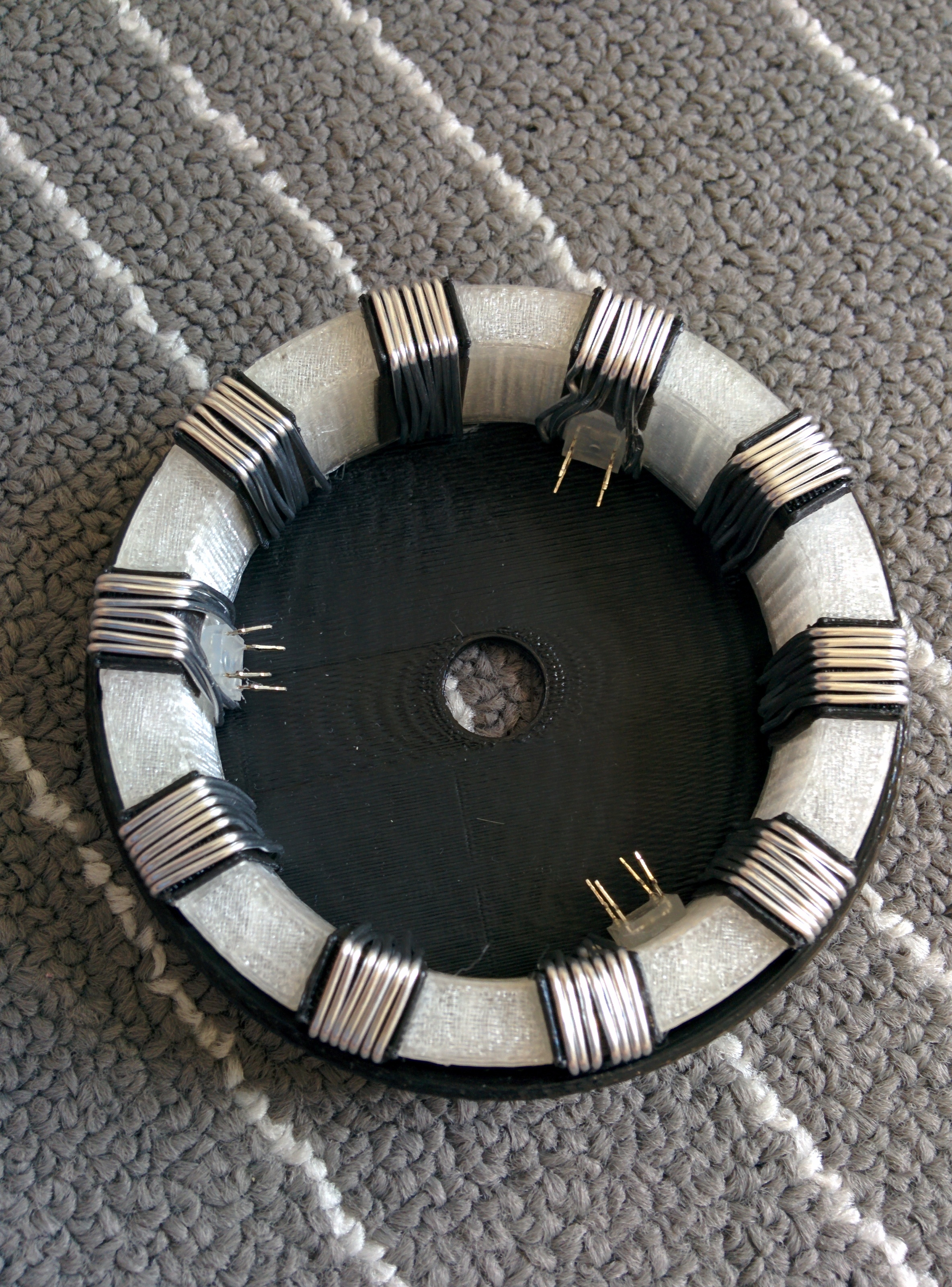

I then fit the 3 RGB LED's equally around the base, making sure to trim the black clips if needed.
After the RGB's were fit, I drilled 2 small holes under the each clip so silver wire could be bent and then wrapped around the clips and then bent again to form a snug fit.
The wrapping took a while, but I managed to wrapped 7 coils around each clip.
After the wrapping of the wire, The clear base fit beautifully into the black base, without any glue to hold it in.

The innards are composed of 4 main parts (6 if you count duplicates). I designed the 3 "step" pieces to connect the black ring, which I did with super glue, making sure to evenly space the pieces exactly 33° from each other. The "step" pieces then attached to the ring with multiple holes in it.
I then super glued the ring parts to the part with multiple holes on it, to form a half inch thick ring.
I then pushed the pieces into the base, where they fit tight.

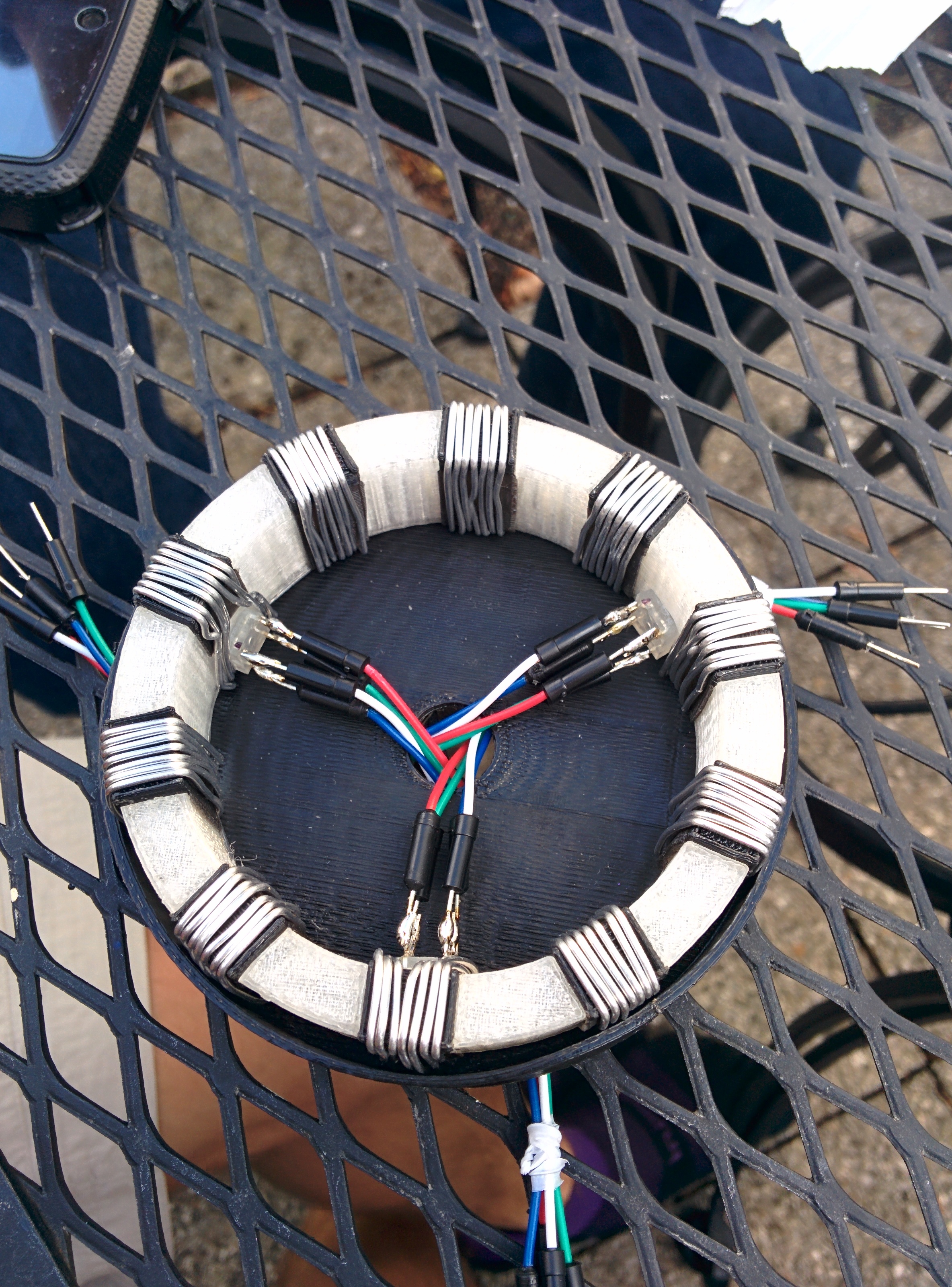

I attached 4 wires to each RGB LED.
-Red to red led
-Green to green led
-Blue to blue led
-White to power
After Soldering all of them together, the wires were fed through the hole that I left at the bottom of the base. The wires were then sectioned off into each LED, with ties to differentiate them.
Then, I placed each of the red, green, blue, and power wires into the bread board wear they then connected to the Arduino Uno.

The code that I used for the Arduino can be found here: https://www.instructables.com/id/RGB-LED-Tutorial-u...

After I realised I didn't need to use the bread board, I soldered:
-All the Red wires together
-All the Green wires together
-All the Blue wires together
-And all the Power wires together.
I then attached a wire to the 3 wires from the 3 LED'S. Basically 3 red wires were soldered to one red wire to reduce the wires being routed, and I did this for the other 2 colors and power. The wire was then fed into certain pins in the Arduino. The power wire however, was fed into the 3.3v pin in the Arduino. I then upload a code which fades each colour of the rainbow.
The Arc reactor starts with blue, but fades to Teal > Green > Yellow > Orange > Red > Pink > Purple and back to Blue.
I then connect the 9v battery to the Arduino, and in a matter of seconds, it lights up!

Thank you for reading this instructable, and I hope you enjoy. I have uploaded the parts onto Thingiverse where you can freely download them. I hope you enjoy them and like my work. http://www.thingiverse.com/thing:956718/#files
