Apple 1988 Mouse USB
![fini.JPG](/proxy/?url=https://content.instructables.com/FHD/BPBA/GF7BBS3M/FHDBPBAGF7BBS3M.jpg&filename=fini.JPG)
Hi ,
This is my third instructable and i hope you love it !
Today i want to re-use an old ( 1988 ) Apple mouse .
This is my third instructable and i hope you love it !
Today i want to re-use an old ( 1988 ) Apple mouse .
Prepare All !
![1.JPG](/proxy/?url=https://content.instructables.com/FE6/NPZF/GF80E0HA/FE6NPZFGF80E0HA.jpg&filename=1.JPG)
![2.JPG](/proxy/?url=https://content.instructables.com/FJ7/SL6V/GF7B3EZW/FJ7SL6VGF7B3EZW.jpg&filename=2.JPG)
![in 1.JPG](/proxy/?url=https://content.instructables.com/FIV/1O56/GF80CWPV/FIV1O56GF80CWPV.jpg&filename=in 1.JPG)
![in1 and out cut.JPG](/proxy/?url=https://content.instructables.com/F63/YG4D/GF80CWPU/F63YG4DGF80CWPU.jpg&filename=in1 and out cut.JPG)
I find the Apple mouse in my "garage" , and i buy for 2.74 usd an optical mouse ( on ebay).

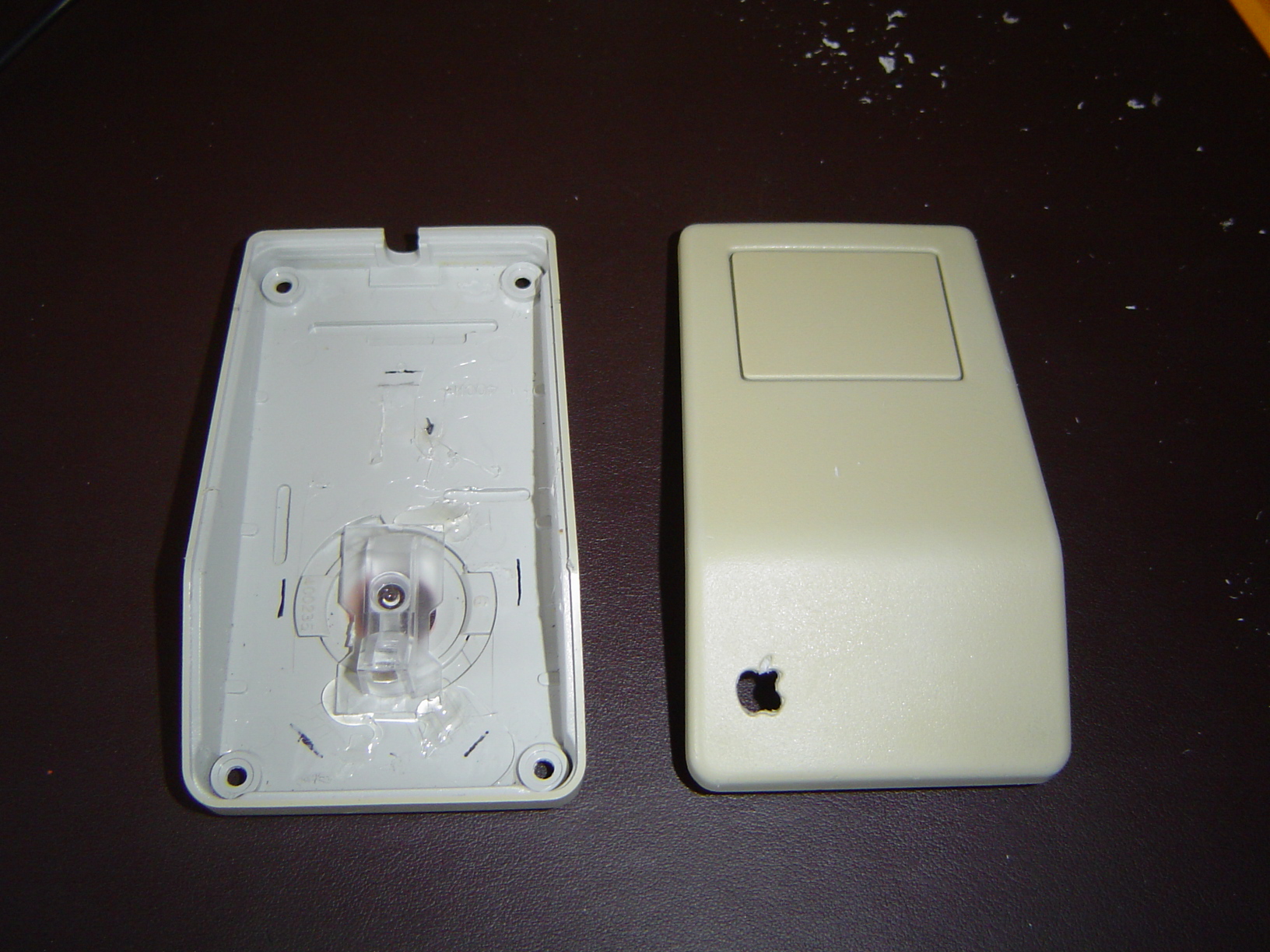

I prepare the Apple mouse by clean the interior with my dremell ,
I make a hole on the Apple logo , and glue the part of the optical device.
I prepare the Apple mouse by clean the interior with my dremell ,
I make a hole on the Apple logo , and glue the part of the optical device.
![elctronic.JPG](/proxy/?url=https://content.instructables.com/F5A/73FF/GF7BBS5H/F5A73FFGF7BBS5H.jpg&filename=elctronic.JPG)
![cache noir.JPG](/proxy/?url=https://content.instructables.com/F8F/AUWZ/GF7B3F0B/F8FAUWZGF7B3F0B.jpg&filename=cache noir.JPG)

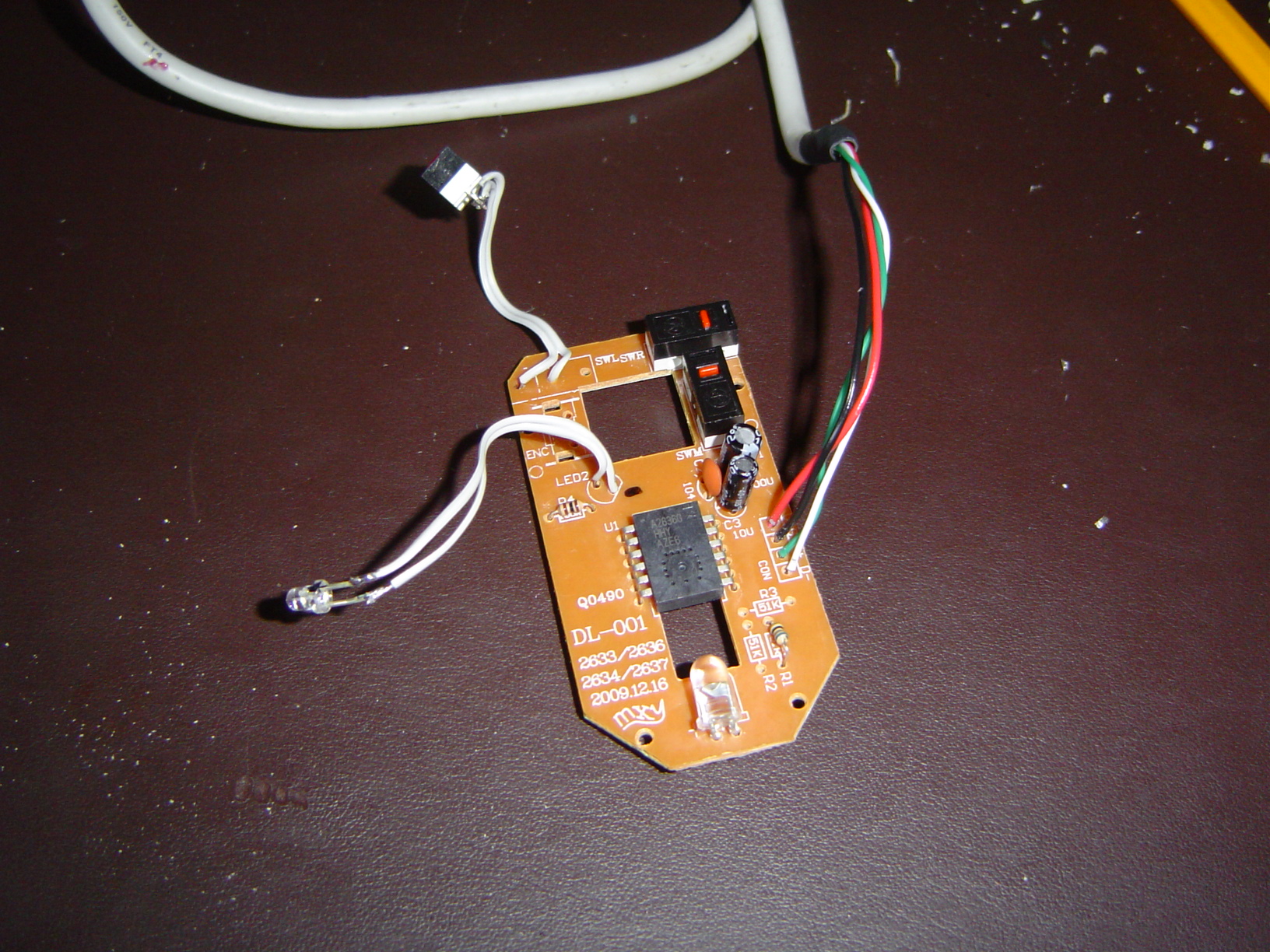

On the electronic of the usb mouse , i'm soldering some cables to put the switch and the blue led outside the circuit board.
I change the cable , because the new cable was black and it's not the same color of the Apple mouse !

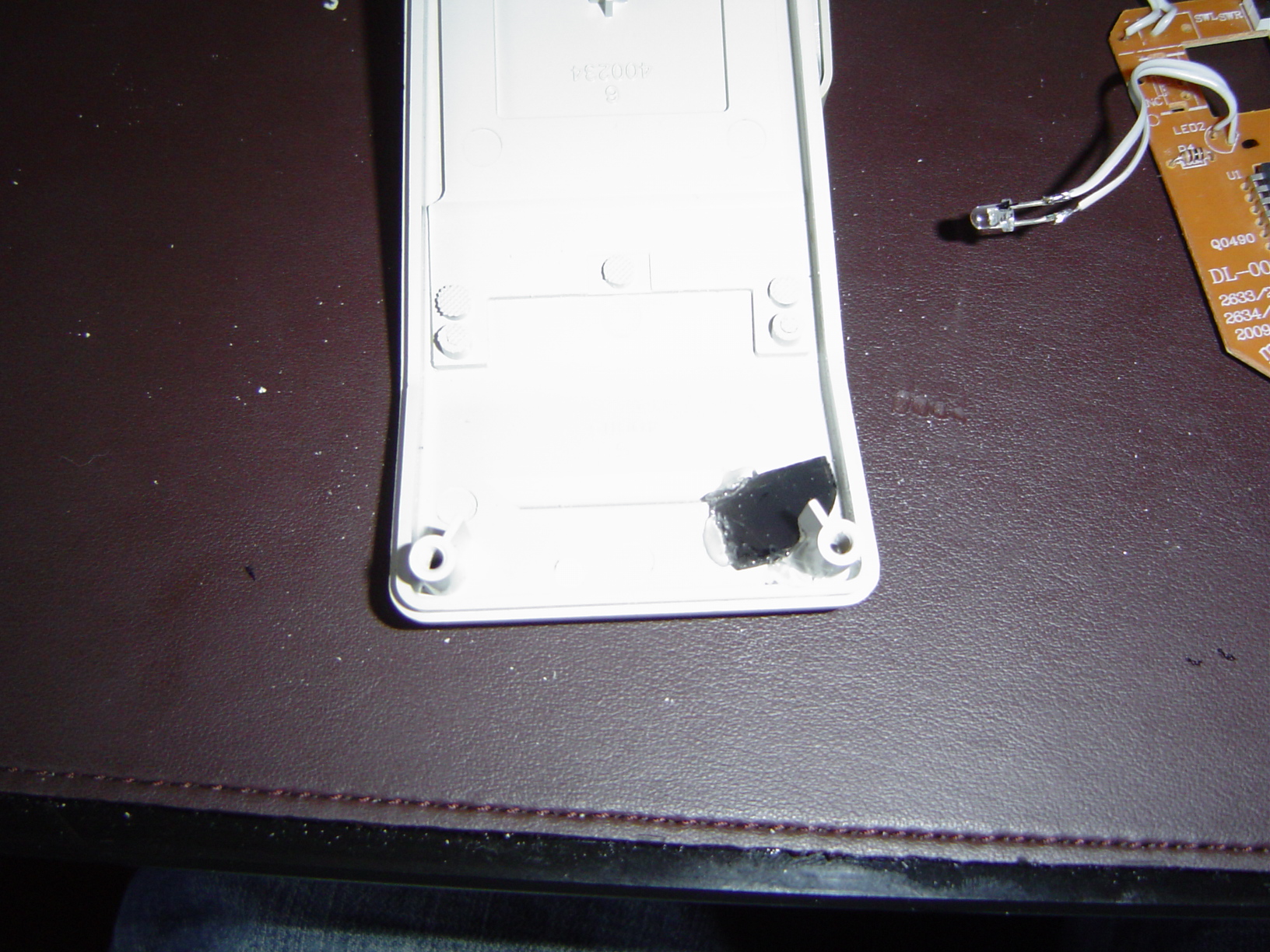

I put a small piece of black plastic on the "Apple" hole.
![ptit bout.JPG](/proxy/?url=https://content.instructables.com/FX8/HY6Y/GF7BBS6E/FX8HY6YGF7BBS6E.jpg&filename=ptit bout.JPG)
![mise en place.JPG](/proxy/?url=https://content.instructables.com/FKR/S5UJ/GF80CWQC/FKRS5UJGF80CWQC.jpg&filename=mise en place.JPG)
![en place.JPG](/proxy/?url=https://content.instructables.com/F8X/DJXY/GF7B3F0I/F8XDJXYGF7B3F0I.jpg&filename=en place.JPG)

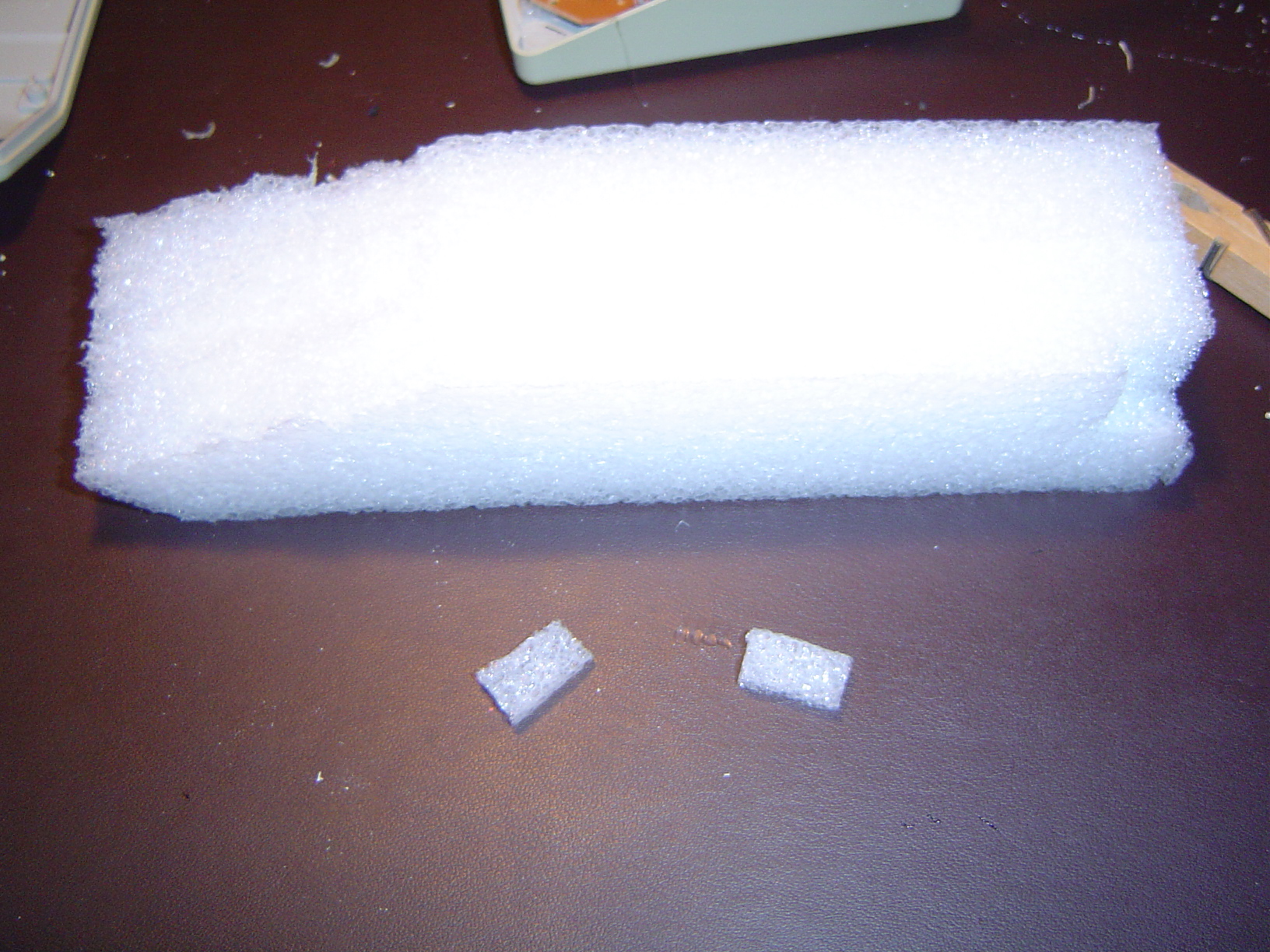

I cut a small piece of this white foam to glue under the circuit board ,

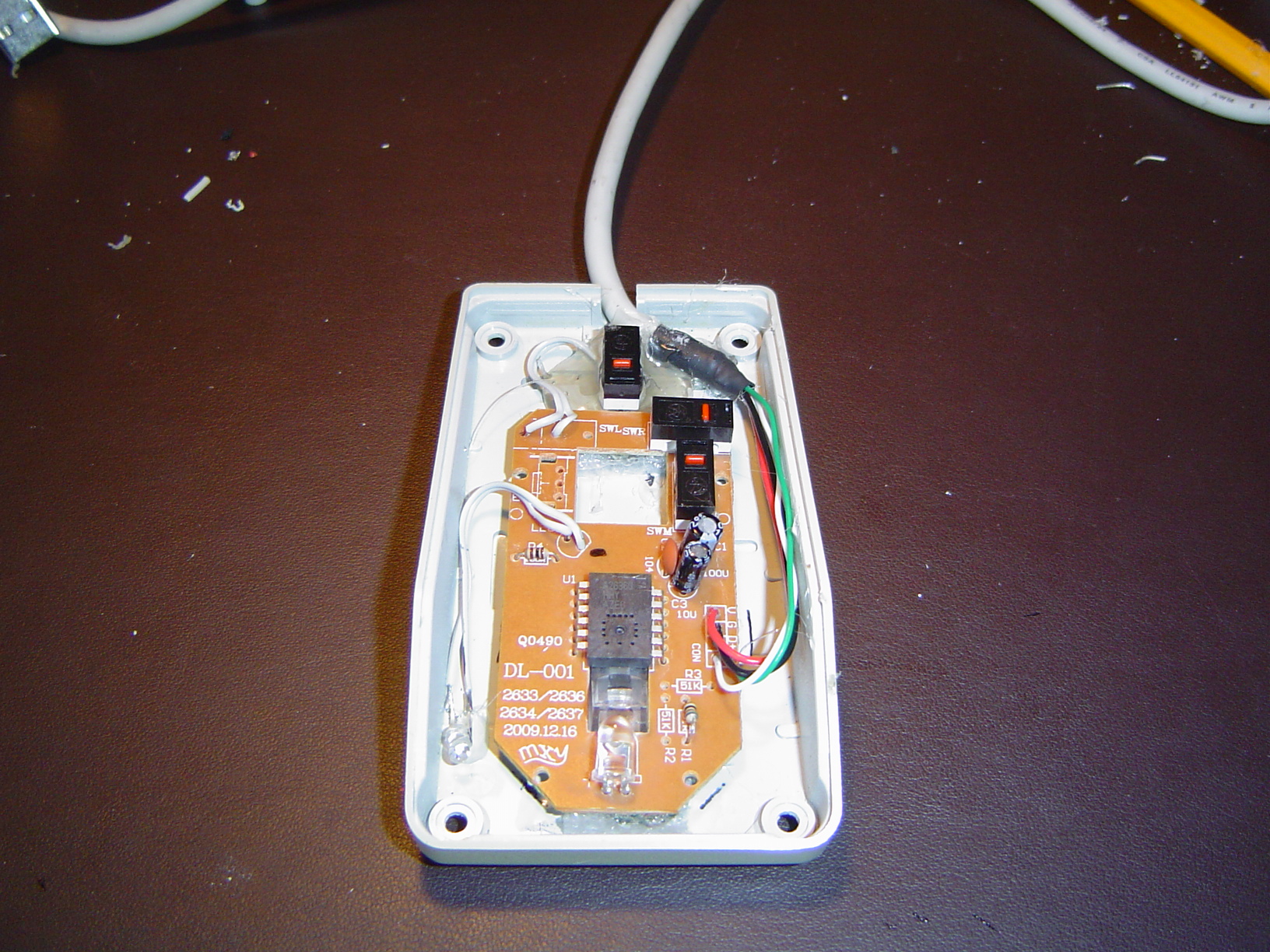

I put all in the Apple mouse , glue all the elements .
Close the box ...
![Apple-1988-Mouse-USB.jpg](/proxy/?url=https://content.instructables.com/F3W/24HO/GF80CX75/F3W24HOGF80CX75.jpg&filename=Apple-1988-Mouse-USB.jpg)

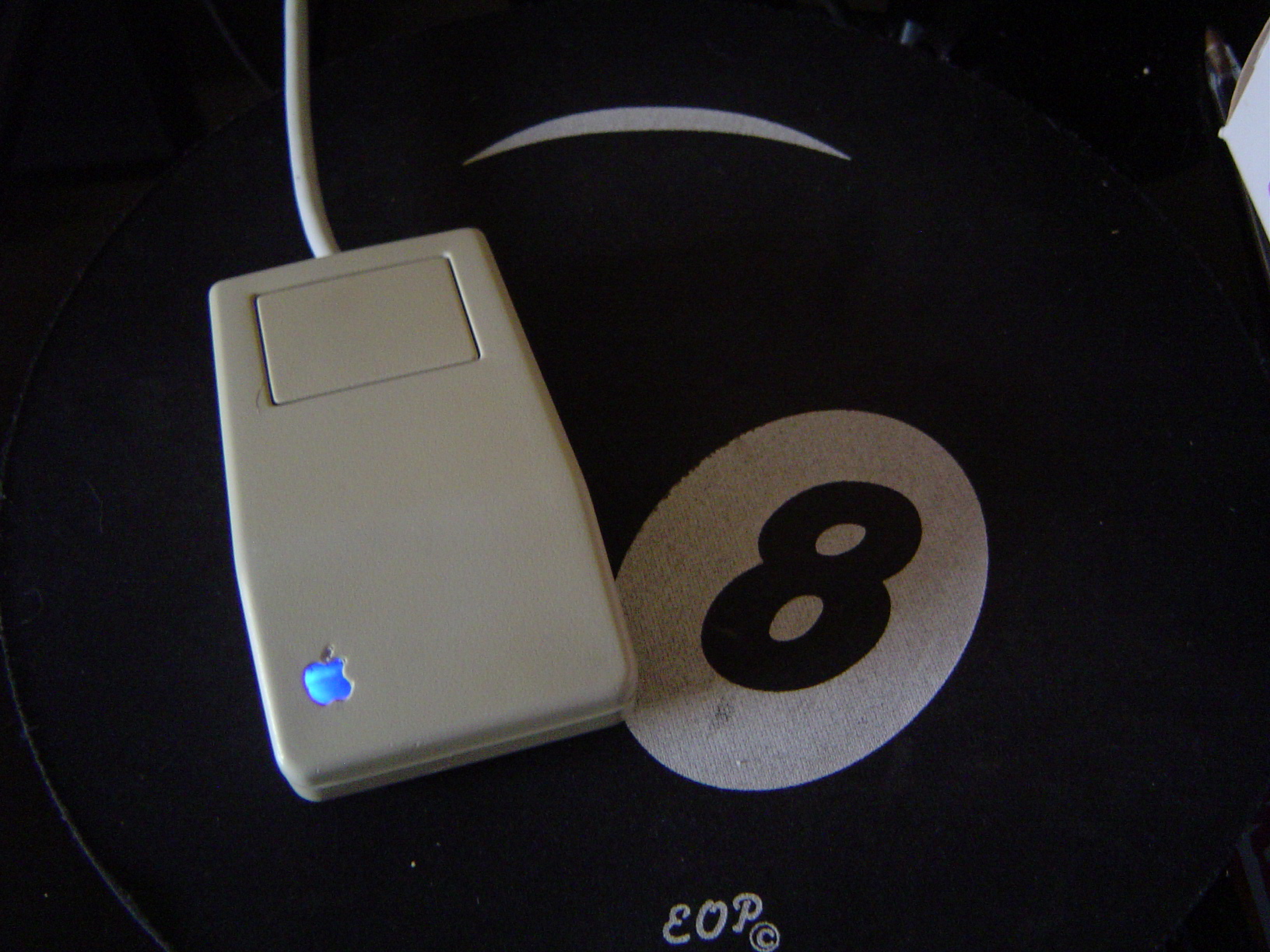

Et voila !!
An new-old Apple Mouse USB !!
This mouse works great , with the same noise when you click ( it's a coincidence) but only the left clic ! (Perhaps it's good for some persons ...)
Thanks for your attention , and see you later for new aventures .
