Anti Collision Robot

by Hari Prasad s in Circuits > Arduino

136 Views, 0 Favorites, 0 Comments

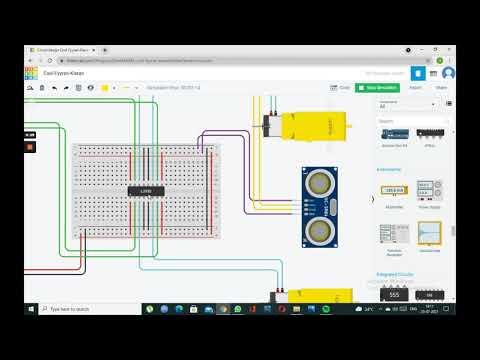

Anti Collision Robot

the robot which moves forward and take right once it approach a obstacle

This is an virtual circuit of Anti collision Robot. this robot will turn right if any obstacle is at a distance less than 10 centimeters or else it move forward without any problem.

Contents Required


The following are required to build this virtual circuit.

  1. Arduino - 1 Nos.

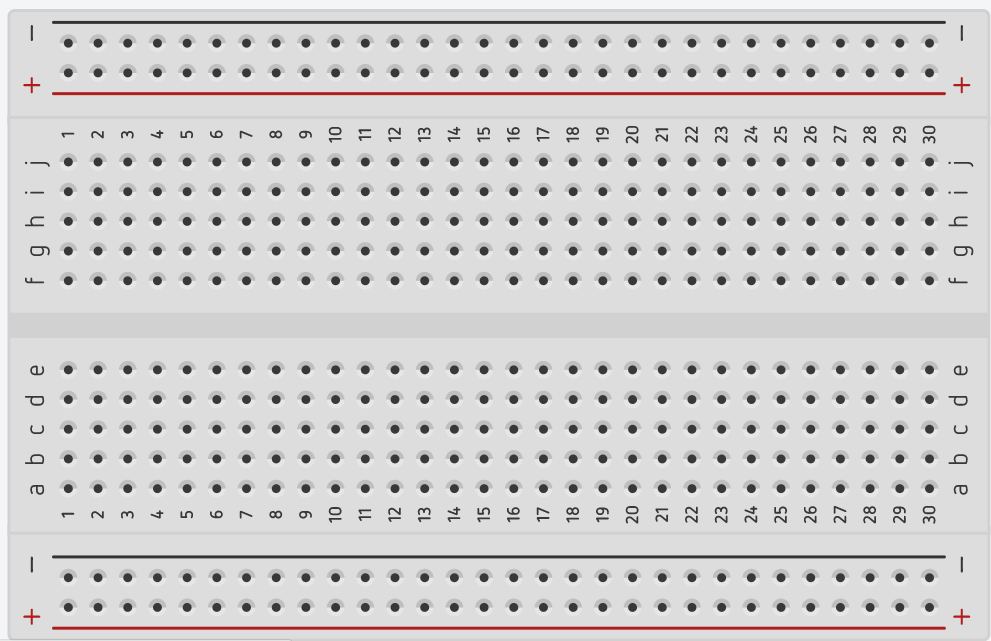

  2. Breadboard - 1 Nos.

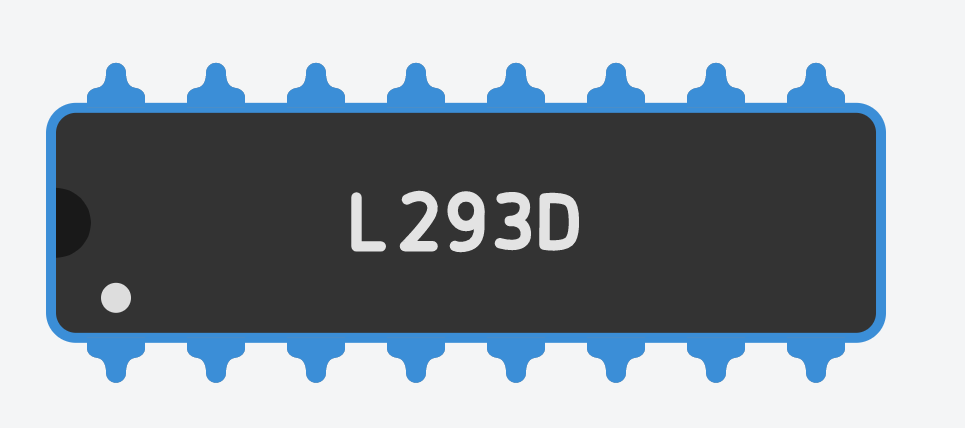

  3. L293D - 1 Nos.
  4. Motor - 2 Nos.

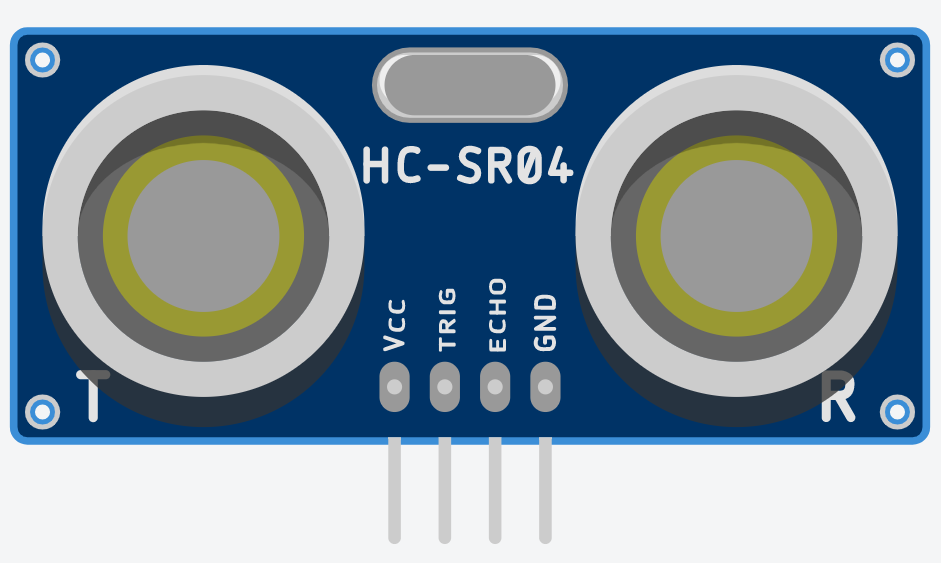

  5. Ultrasonic Distance Sensor - 1 Nos.

Connections

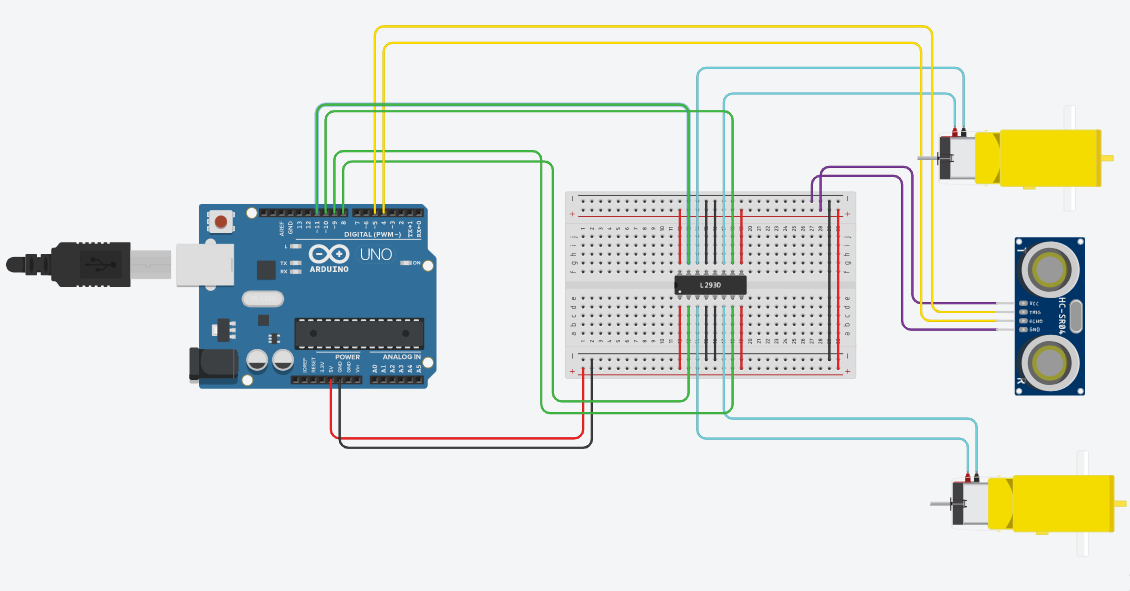

Arrange the Components and establish the connections as shown in the image using the TinkerCAD software.

Code Blocks

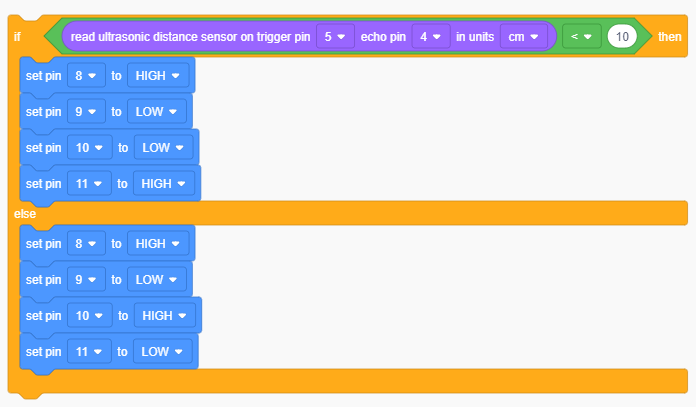

Assemble the code block shown in the image in the code area in the TinkerCad.
