Animated Christmas Package



     My new son in law will be traveling a great distance and spending his first Christmas with us.  To celebrate, I thought I would make one of his packages a little different.  A scrolling message tag will say, "Merry Christmas, Forrest."  A solar powered mini car will race around in circles on top of the package (it is powered by a light above the package).  If you get too close to the package to examine things, a voice will say, "Step away from the package!"

 You will need a solar powered mini-car (thinkgeek.com).  Carefully drill a 1/16 inch hole in the side.

 I cut a 12 inch by 12 inch piece of  1/4 inch plywood to match the top of the package I'm wrapping.

 I cut four 1 1/2 inch by 1 1/2 inch blocks of wood.  I cut them 1/12 inches long (cubes).

 Cut a 3 inch long piece of PVC pipe (1 7/8 inch outside diameter).  This will be used to hold the motion sensor and the speaker (makes the sound much louder).

 Select a place to mount the PVC tube.  It must leave room for the mini-car to operate.

 Drill a 1 7/8 inch diameter hole for the PVC pipe.

 Drill a 7/8 inch hole in the PVC pipe (near an end) for the motion sensor.

 Glue the blocks in the corners of the plywood.

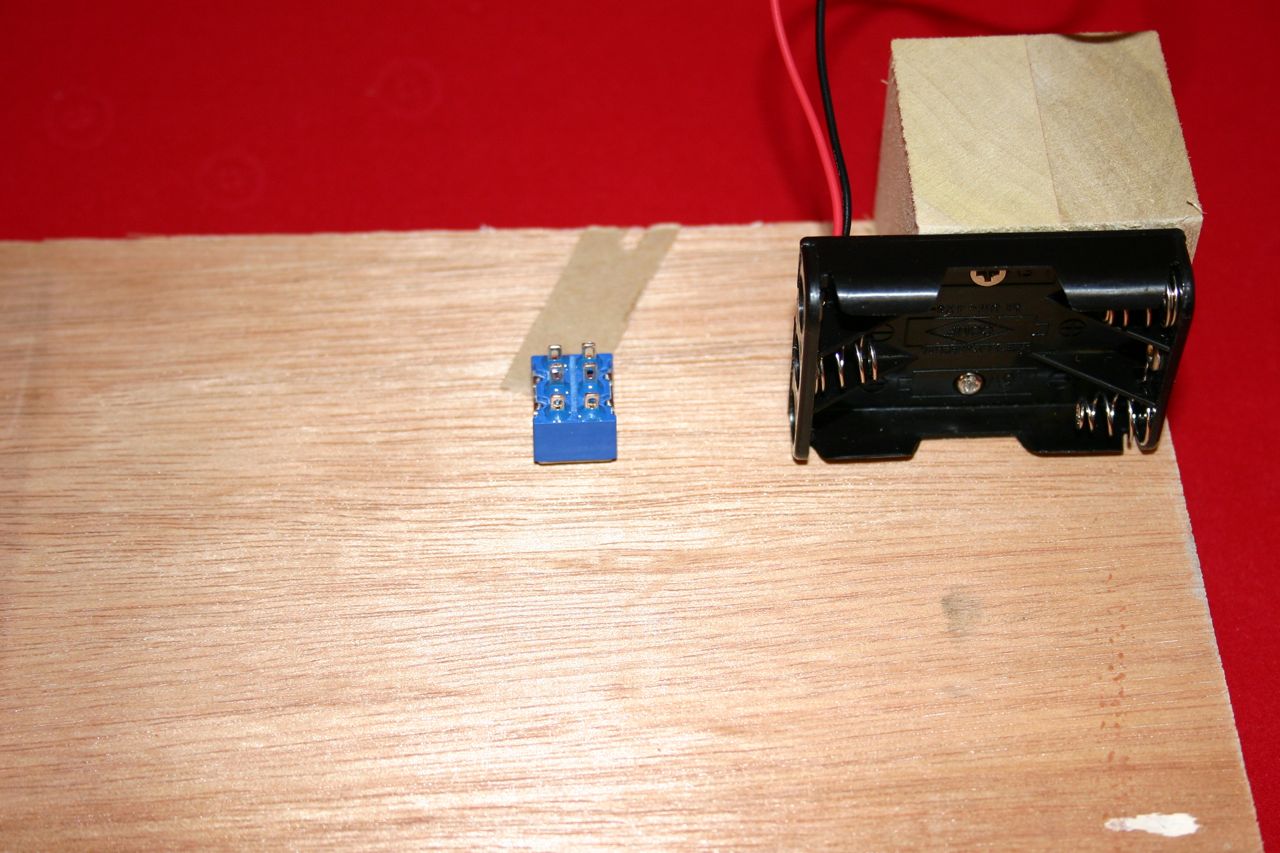

 Fasten (with two small wood screws) the battery holder (3 AAA unit) to one of the corners.

 Drill a hole and mount the on/off toggle switch.

 Drill a 1/4 inch hole behind the PVC tube hole.  This will be used to run wires, so make sure it is on the side that will be least obvious when the package is displayed.

 Drill a 1/16 inch hole for a paperclip.  The paperclip will go through the wood base and the upright portion of the clip will become the "pole" in the center of the circle around which the mini-car operates.

 This is the bottom of the base.  Epoxy the paperclip in place; otherwise, it will probably fall out.

 Fasten a tether to the mini-car.  My tether is about 3 inches long and it is made of #32 magnet wire.

       Be certain that the car's front wheels are turned for the tightest possible circle.  Place a light (I used a 100 watt halogen flood) above the board.  Test the rig to be certain that the car will run continuously.  The height of the light (also power and beam spread) as well as the tether length and material will affect operation.
      At this point, I began to wonder why I didn't obtain an N gauge train with the tightest possible circle and power it with a load of rechargeable batteries.  I guess cost, availability and power drain led me to continue working with the solar car.

 Attach the positive wire (red) from the battery holder to the switch (1 on the schematic).

 Obtain a Parallax motion sensor (from Radio Shack or Parallax.com).  Connect a red wire wrap wire to the positive terminal (tie a small knot in the other end so that you will know it is the positive wire).  Wrap a blue wire around the negative terminal.  Wrap another red wire (no knot on the other end) to the output terminal.
     This is (2) on the schematic.

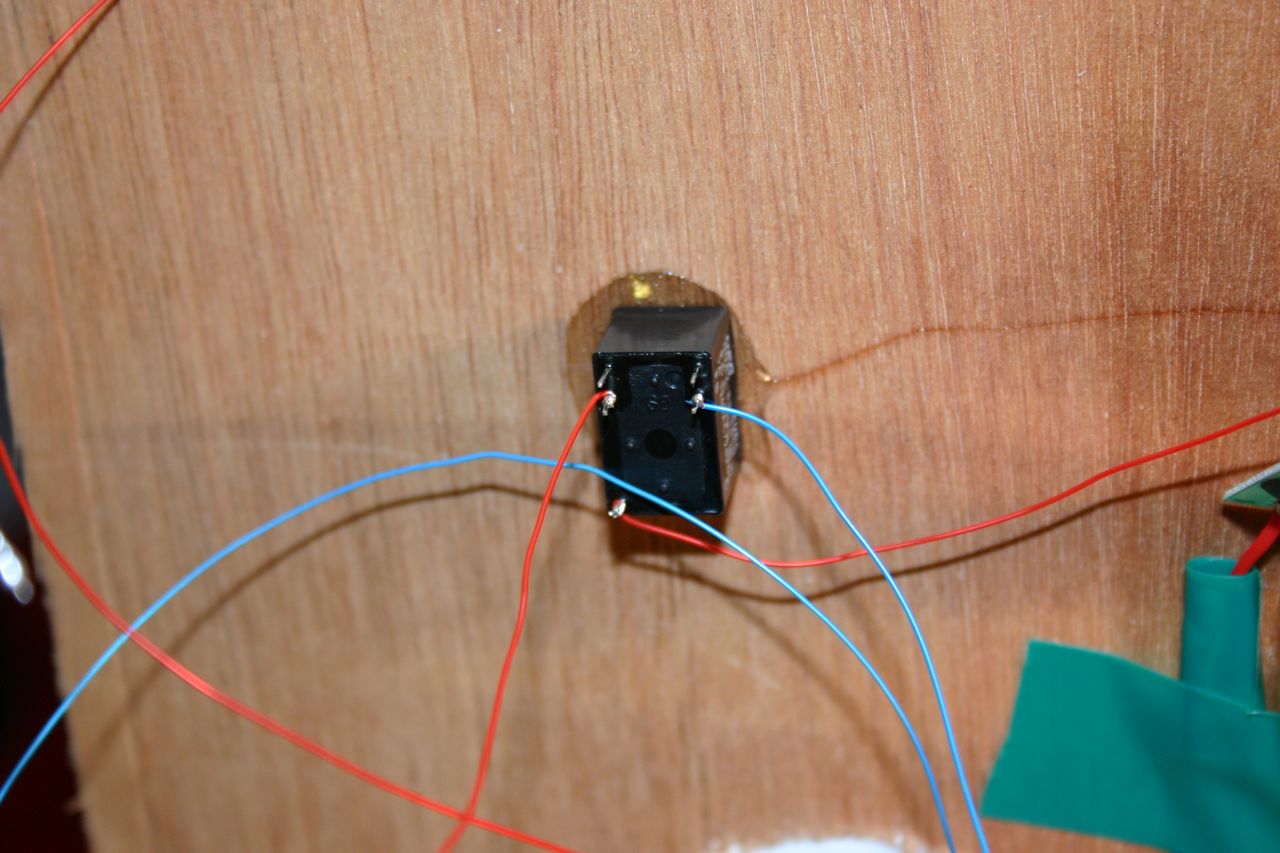

 I stuffed paper towel bits behind the motion sensor until it was held in place (this is just Christmas wrapping).

 First, attach a 9 volt battery to the recording module and record your message "Step away from the package!"  Speak loudly and very close to the microphone--you want all the volume you can get.  When you are content with your message, cut the speaker wires about halfway between the speaker and the module.

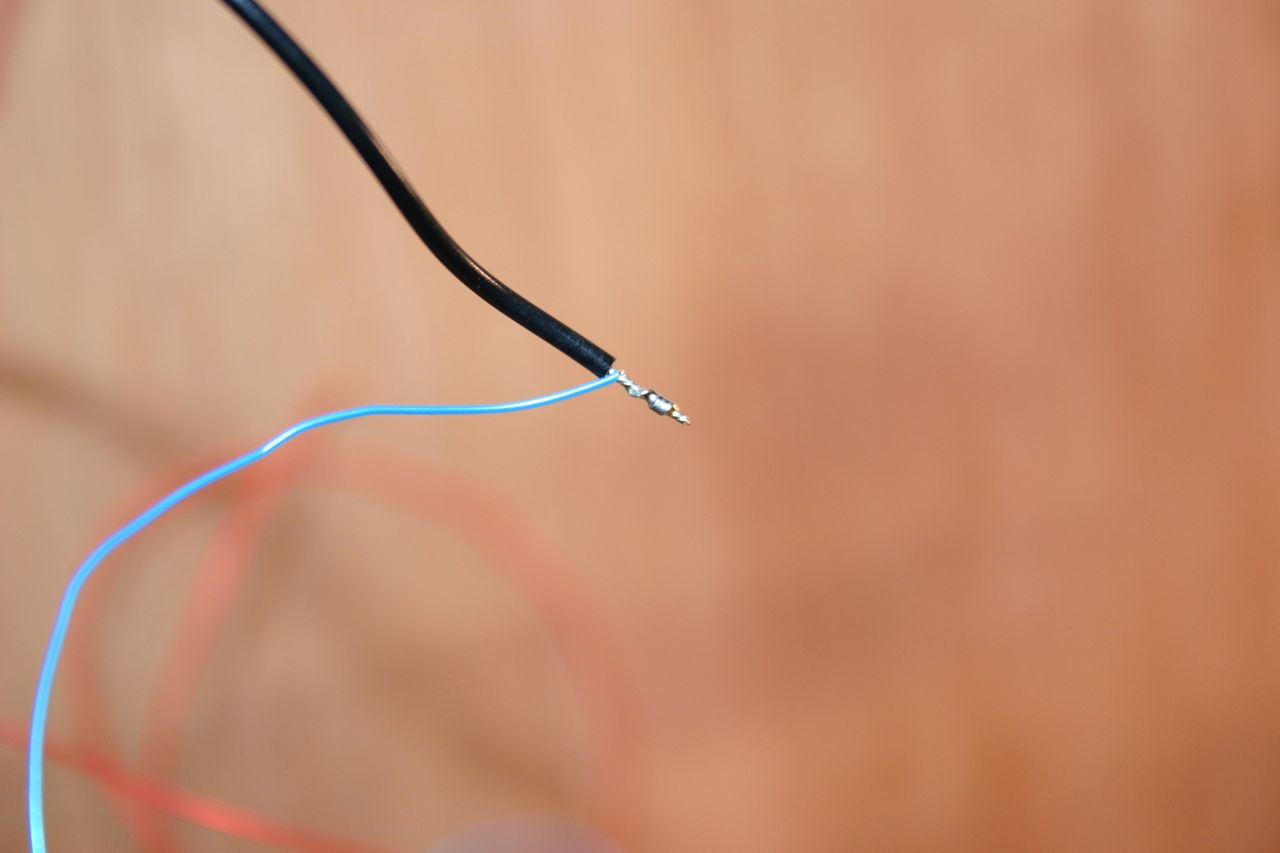

 Add about 8 inches of wire to the speaker wires.

 Cut thin strips of electrical tape and wrap that around the speaker.  This will be used to "force fit" the speaker into the PVC tube.

 Push the speaker into the PVC tube (same end of tube as the motion detector).  It should be a snug fit.

 You should be able to get a snug friction fit of the PVC into the hole in the plywood.  If the PVC is too loose, wrap electrical tape around the pipe until you can obtain a snug fit.



 Note the little loop in the wire wrap wire.  If I failed to identify that wire earlier, I wouldn't know which wire goes to the switch.  (3) on the schematic.

 (4) on schematic

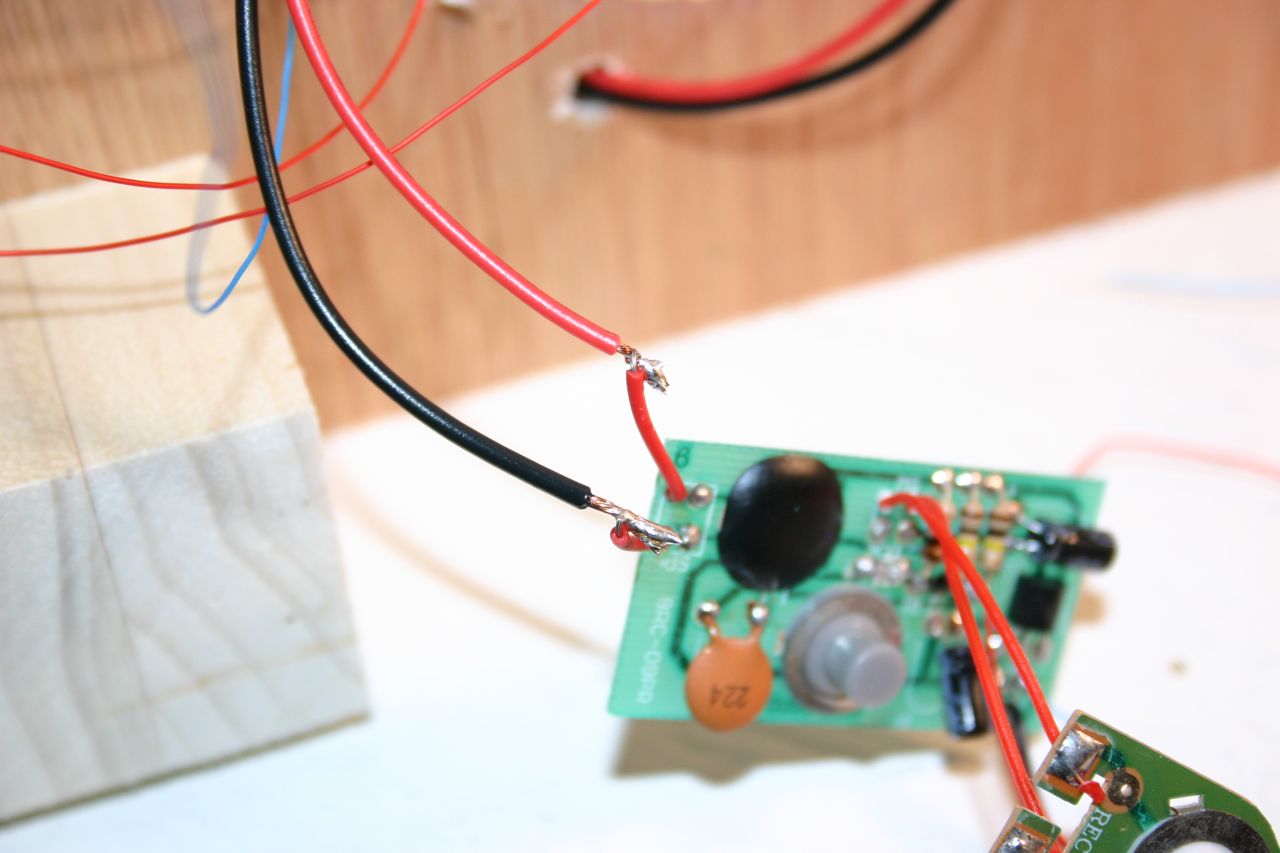

 Radio Shack's record module (#276-1323) has changed over time.  You can remove the "play" switch and find a spot to solder two wires such that touching the wires connects the same spot that the switch connected. The newer modules with more SMT circuitry may require you to actually solder wire wrap wires to the traces under the play button.
 (5) on the schematic

 (6) on the schematic





 (7) on the schematic

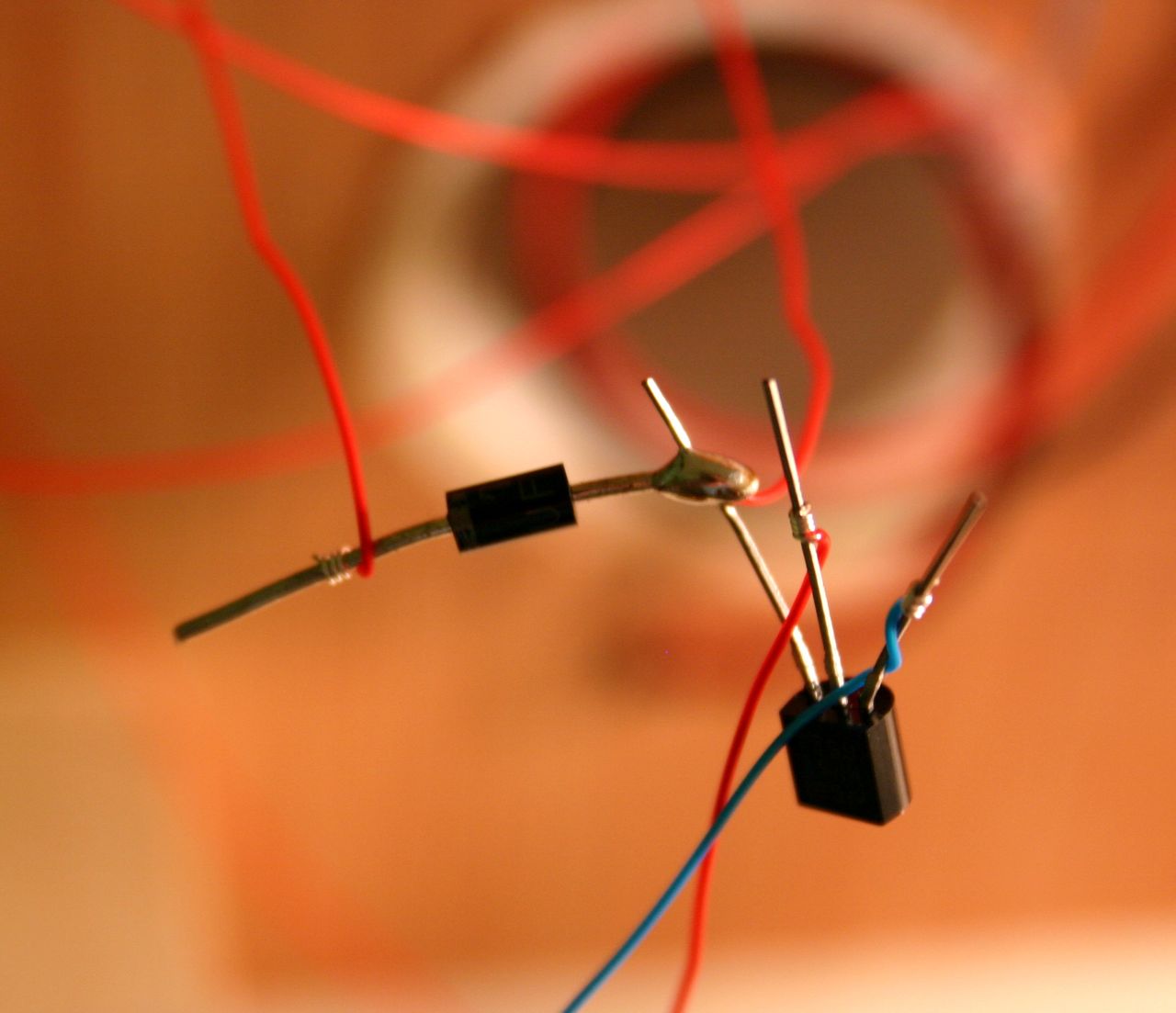

 This is the output from the motion sensor, through a 270 ohm resistor to the base of a NPN transistor.

(8) on the schematic

 (9) on the schematic

 (10) on schematic

 (11) on schematic

 (12) on schematic

 (13) on schematic

 (14) on schematic

 (15) on schematic

 Take a 1/2 inch by 6 inch stainless steel strip and trim the end so that it will fit between the magnets on the scrolling message sign's (thinkgeek.com) magnetic holder.

 Drill a hole and fasten the "billboard support" to the plywood.

 Add a 9 volt battery to the speech module and add 3 AAA's to the motion sensor supply. Using electrical tape, tape down anything that is loose or that looks like it will touch something electrical.

 Turn the board right side up.  Place the scrolling sign on its mounting bracket.  Tether the car to the paperclip "pole."  Turn on the motion detector.  Be certain that everything runs when the light is on.  The car should not run into things or leave the board--it really must run in a rather tight circle.

 This takes a while, as you have to work around the switch, paperclip "pole", PVC pipe, wires and sign mount.

It is very critical to keep a smooth running surface for the car.

      You can set this assembly on top of the wrapped package.  If you are so sure of yourself that you've made no errors and that the batteries will last a long time, tape it to the main package.
     You'll need to adjust the position of your light (I used a 100 watt halogen flood) and the car's tether to get a good running combination.  You may want to shield (tape and wrapping paper work well) part of the motion sensor, or it will be shouting "Stay away . . ." every time anyone gets within 20 feet of the package.
     Have fun!
