Angle Grinder Stand
![5840a8bb8ae43b94da000eba.jpeg](/proxy/?url=https://content.instructables.com/FWC/APFL/IW6PJWGK/FWCAPFLIW6PJWGK.jpg&filename=5840a8bb8ae43b94da000eba.jpeg)
![Angle grinder stand - cutting](/proxy/?url=https://content.instructables.com/FSC/PLHW/J0X5C34K/FSCPLHWJ0X5C34K.jpg&filename=Angle grinder stand - cutting)
![ezgif.com-video-to-gif.gif](/proxy/?url=https://content.instructables.com/FQL/NT3E/IW6PJW2P/FQLNT3EIW6PJW2P.gif&filename=ezgif.com-video-to-gif.gif)
![grider5.jpg](/proxy/?url=https://content.instructables.com/FYW/A2DR/IUSLQHVN/FYWA2DRIUSLQHVN.jpg&filename=grider5.jpg)
![grider6.jpg](/proxy/?url=https://content.instructables.com/FL2/O711/IUSLQHVU/FL2O711IUSLQHVU.jpg&filename=grider6.jpg)
![grider7.jpg](/proxy/?url=https://content.instructables.com/FY4/NDOH/IUSLQHW0/FY4NDOHIUSLQHW0.jpg&filename=grider7.jpg)

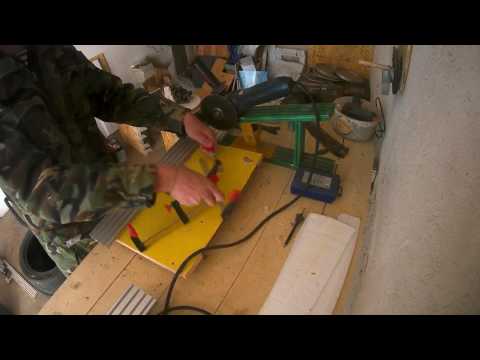

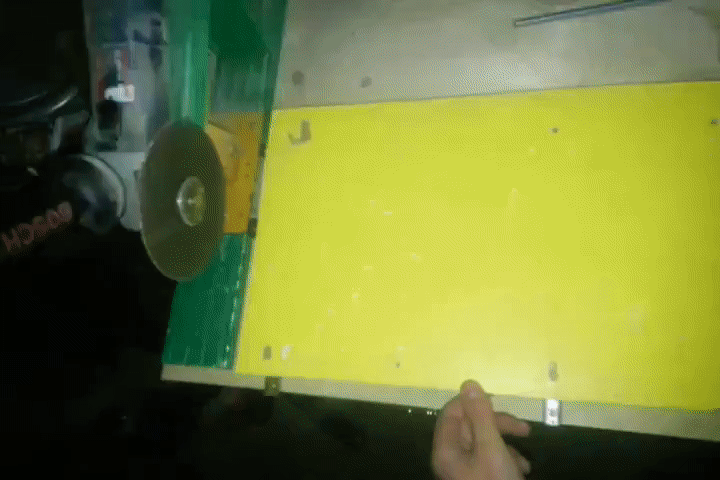

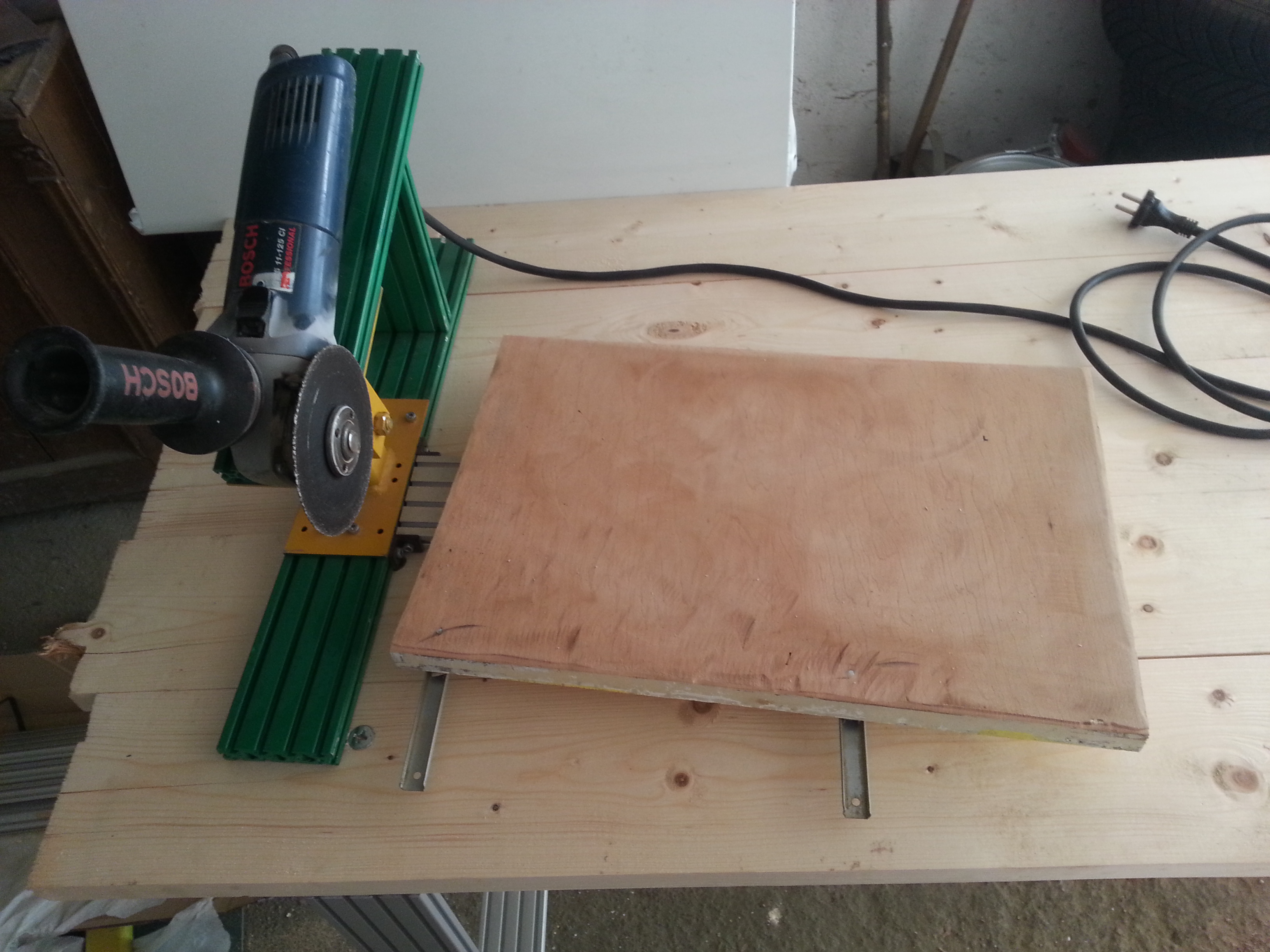

I decide made this angle grinder stand, to be able to cut off straight metal or wood and cut exactly angle, which I want.
It cost me about 20$.
Cutting Material
![24_0161013_163111.jpg](/proxy/?url=https://content.instructables.com/FAI/DZS9/IUSLQH3L/FAIDZS9IUSLQH3L.jpg&filename=24_0161013_163111.jpg)
First cut three pieces of this
First 530mm, second 380mm and third 170mm.

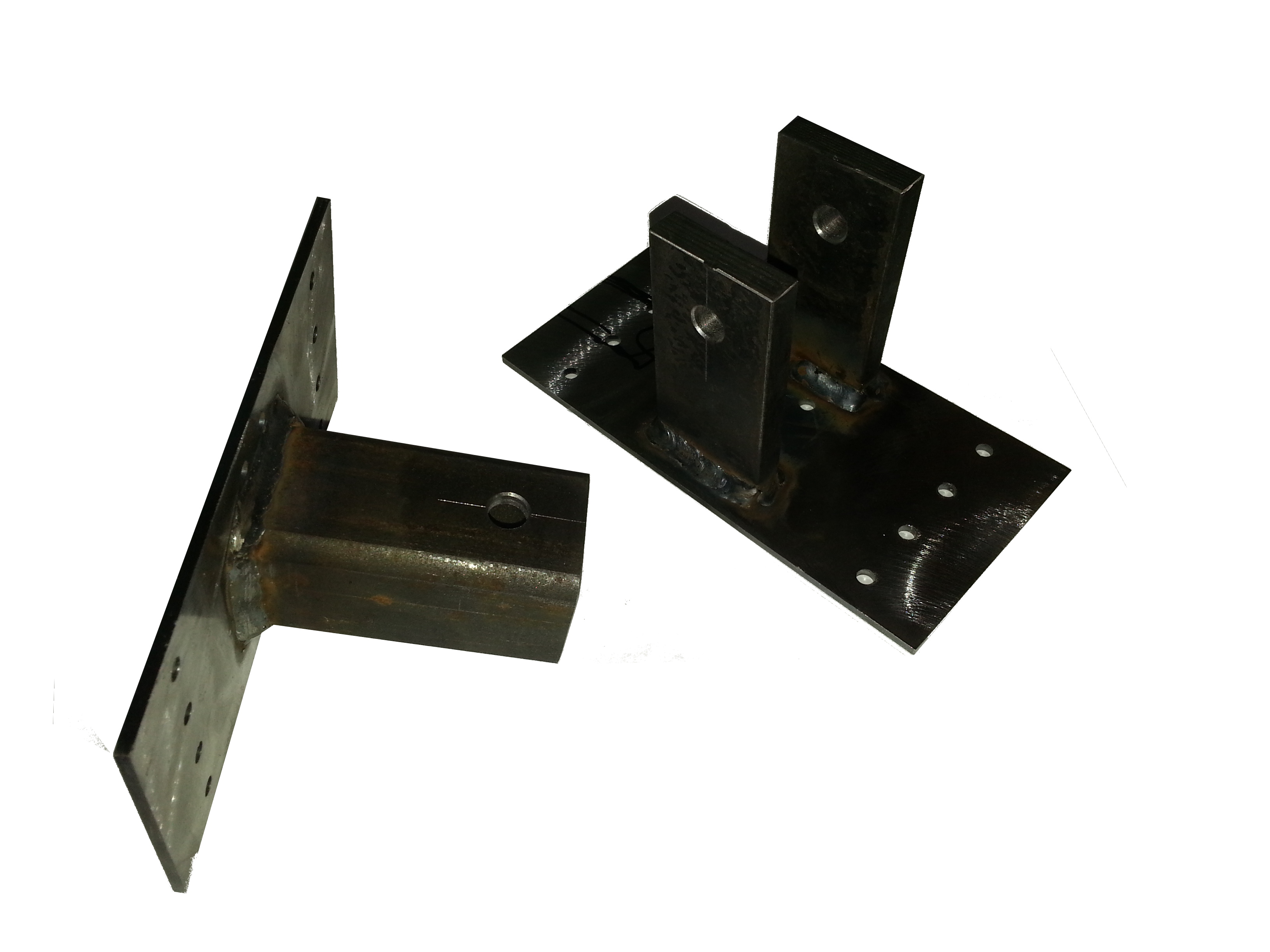

Make Hinge
![2_20161025_141245.jpg](/proxy/?url=https://content.instructables.com/FRM/8T2J/IUSLQH2L/FRM8T2JIUSLQH2L.jpg&filename=2_20161025_141245.jpg)
![1_20161025_141245.jpg](/proxy/?url=https://content.instructables.com/FZF/HXWG/IUSLQH2H/FZFHXWGIUSLQH2H.jpg&filename=1_20161025_141245.jpg)
![3_20161025_141245.jpg](/proxy/?url=https://content.instructables.com/FBM/RYDU/IUSLQH2M/FBMRYDUIUSLQH2M.jpg&filename=3_20161025_141245.jpg)
Next connect this two pieces with screw and nuts.
And hinge is done.

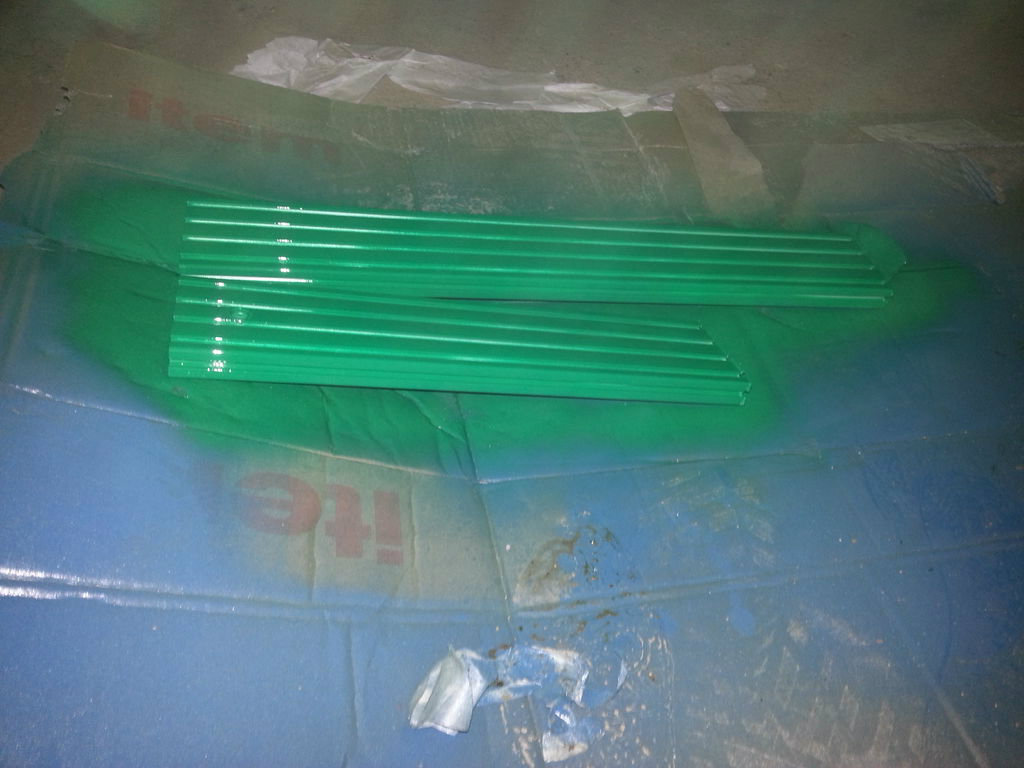

Painting Parts
![5814cf6d45bceb483d0016c4.jpeg](/proxy/?url=https://content.instructables.com/F3W/UV4W/IUSLSCBR/F3WUV4WIUSLSCBR.jpg&filename=5814cf6d45bceb483d0016c4.jpeg)
![20161025_160655.jpg](/proxy/?url=https://content.instructables.com/FHZ/EPNR/IUSLQI0I/FHZEPNRIUSLQI0I.jpg&filename=20161025_160655.jpg)
![20161025_160647.jpg](/proxy/?url=https://content.instructables.com/FRQ/0THN/IUSLRUGH/FRQ0THNIUSLRUGH.jpg&filename=20161025_160647.jpg)
Beware to ventilate enough.
Connecting Stopper.
![20161026_173203.jpg](/proxy/?url=https://content.instructables.com/F5W/VKYX/IUSLQI0N/F5WVKYXIUSLQI0N.jpg&filename=20161026_173203.jpg)
These profiles has hole thought, which are good for making whorl M5.
Attaching Grinder
![P3080870.JPG](/proxy/?url=https://content.instructables.com/FDS/YZAL/IZYGHQ0K/FDSYZALIZYGHQ0K.jpg&filename=P3080870.JPG)
![P3080871.JPG](/proxy/?url=https://content.instructables.com/FO4/C3KD/IZYGHQ1O/FO4C3KDIZYGHQ1O.jpg&filename=P3080871.JPG)
![P3080872.JPG](/proxy/?url=https://content.instructables.com/FLH/JL4A/IZYGHQ2O/FLHJL4AIZYGHQ2O.jpg&filename=P3080872.JPG)
![P3080873.JPG](/proxy/?url=https://content.instructables.com/F89/ZWMO/IZYGHQ3Q/F89ZWMOIZYGHQ3Q.jpg&filename=P3080873.JPG)

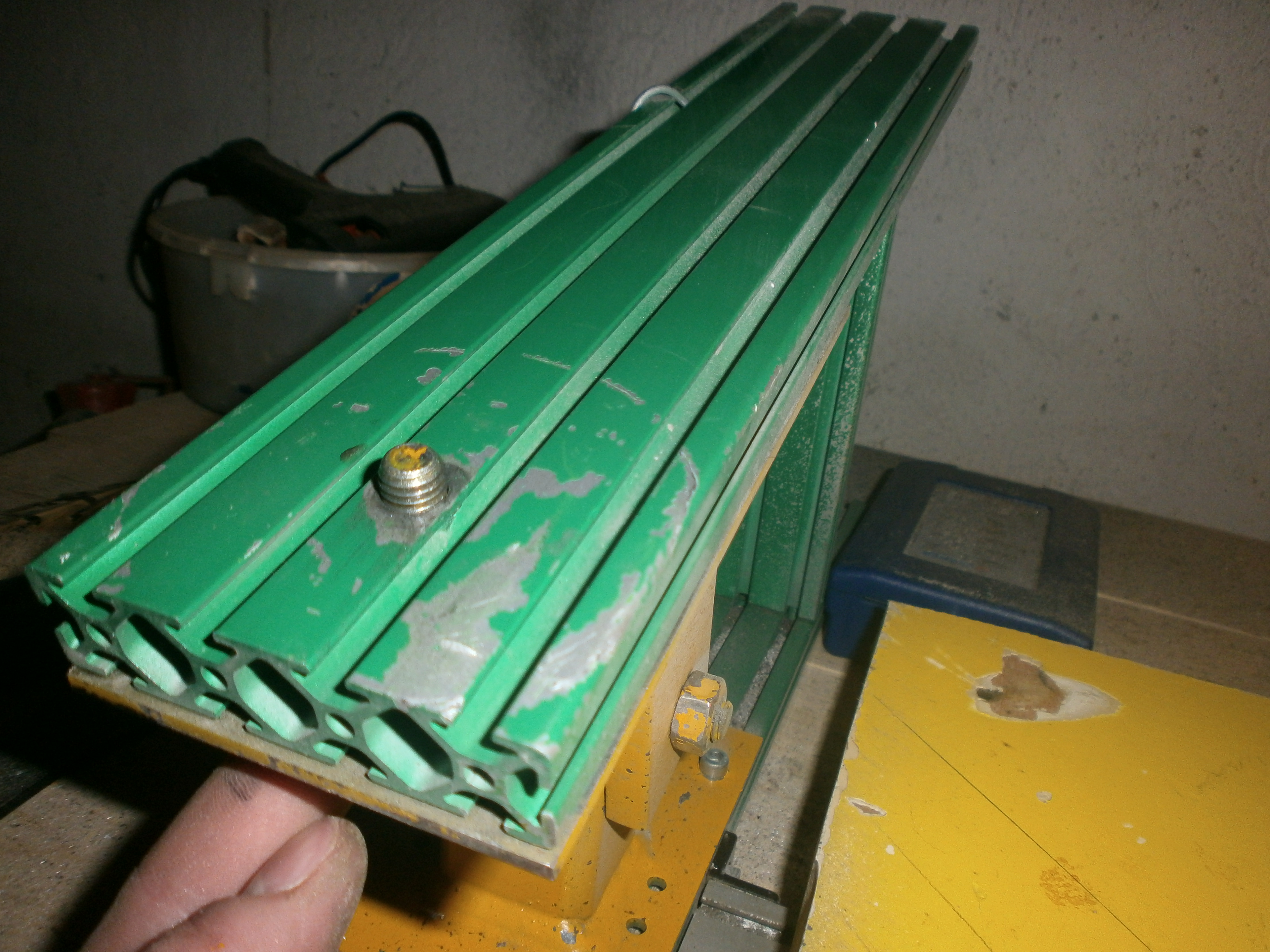

The grinder is attached with bolt M10. The screw passes through upper part of stand and is attached into hole on grinder, which is serving to connect handle.
Add Spring.
![20161026_173516.jpg](/proxy/?url=https://content.instructables.com/FD2/50JP/IUSLQI0P/FD250JPIUSLQI0P.jpg&filename=20161026_173516.jpg)
![20161026_173454.jpg](/proxy/?url=https://content.instructables.com/FHO/SUOM/IUSLQI0O/FHOSUOMIUSLQI0O.jpg&filename=20161026_173454.jpg)
![temp_-1649461597.jpg](/proxy/?url=https://content.instructables.com/FTN/JI0R/IUSLR8Z0/FTNJI0RIUSLR8Z0.jpg&filename=temp_-1649461597.jpg)
The spring hold very vell even without holes or some else holder.
Because of this spring will angle grinder come back to main position.
Shift
![20161029_145100.jpg](/proxy/?url=https://content.instructables.com/FUQ/JCFK/IUSLRSW8/FUQJCFKIUSLRSW8.jpg&filename=20161029_145100.jpg)
![20161029_145500.jpg](/proxy/?url=https://content.instructables.com/FCF/5II5/IUSLRSWJ/FCF5II5IUSLRSWJ.jpg&filename=20161029_145500.jpg)
![20161029_145506.jpg](/proxy/?url=https://content.instructables.com/FZO/YUL1/IUSLRSWZ/FZOYUL1IUSLRSWZ.jpg&filename=20161029_145506.jpg)
To make shift, we must add one more profile, to attach rails to it.
I used these "L" pieces and special nuts to connect it together with grinder stand.
Attaching Rails
![20161029_145856.jpg](/proxy/?url=https://content.instructables.com/F5J/9FBB/IUSLRSX0/F5J9FBBIUSLRSX0.jpg&filename=20161029_145856.jpg)
![20161029_145901.jpg](/proxy/?url=https://content.instructables.com/FDT/CK53/IUSLRSXB/FDTCK53IUSLRSXB.jpg&filename=20161029_145901.jpg)
![20161029_150808.jpg](/proxy/?url=https://content.instructables.com/FQ9/4MII/IUSLRSXO/FQ94MIIIUSLRSXO.jpg&filename=20161029_150808.jpg)
![20161029_150811.jpg](/proxy/?url=https://content.instructables.com/FFC/LRO2/IUSLRSXZ/FFCLRO2IUSLRSXZ.jpg&filename=20161029_150811.jpg)

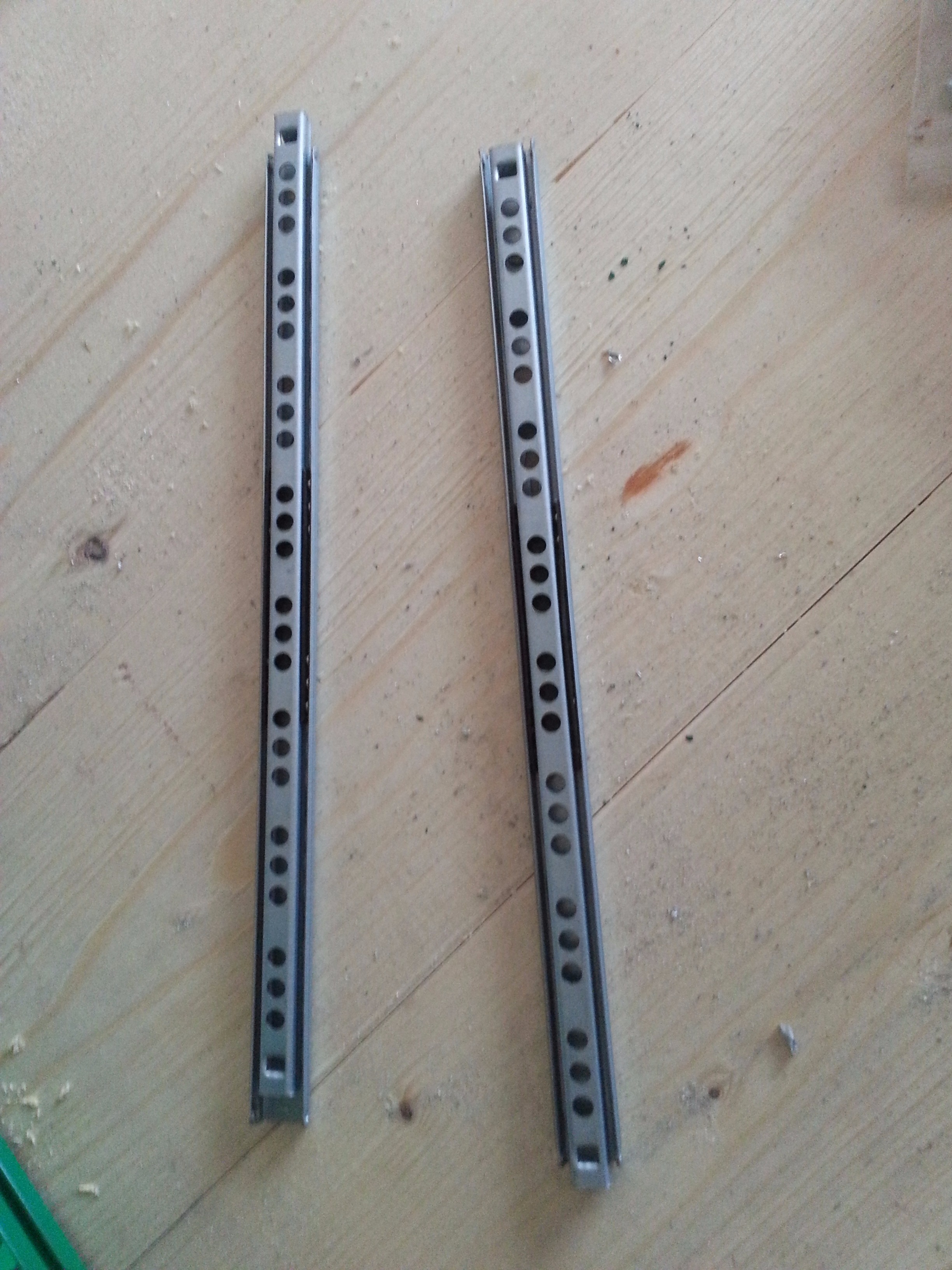

These rails are for drawer and pair cost about 3$ and it works pretty well.

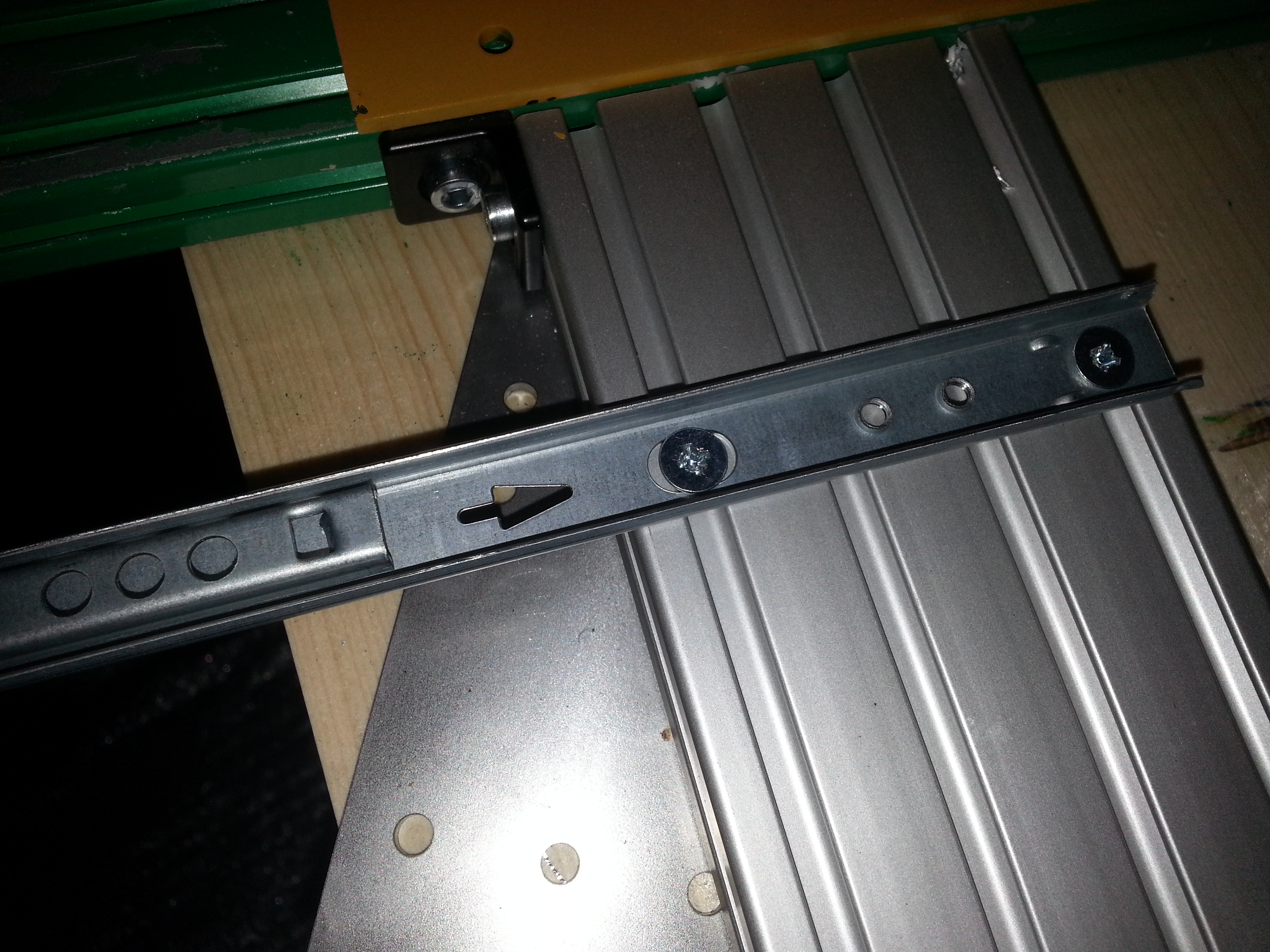

I drill two holes for each rail, into aluminium profile with 4,6mm borer and made M5 whorl. Then I was able to attach rails with profile with little screw M5
Connecting Table
![20161029_153517.jpg](/proxy/?url=https://content.instructables.com/FJH/FHLF/IUSLRSYC/FJHFHLFIUSLRSYC.jpg&filename=20161029_153517.jpg)
![20161029_160752.jpg](/proxy/?url=https://content.instructables.com/FZN/SQ6E/IUSLRSYP/FZNSQ6EIUSLRSYP.jpg&filename=20161029_160752.jpg)
![20161029_160759.jpg](/proxy/?url=https://content.instructables.com/FGT/066O/IUSLRSZA/FGT066OIUSLRSZA.jpg&filename=20161029_160759.jpg)
I connected this piece of wood with two screws. They were little bit long, as you can see on the photo so I cut them off and it's fine
