Angel Eye Using Torch Light
![DSCN3301.JPG](/proxy/?url=https://content.instructables.com/F9U/GBT8/HPFZYBUK/F9UGBT8HPFZYBUK.jpg&filename=DSCN3301.JPG)
![DSCN3298.JPG](/proxy/?url=https://content.instructables.com/F65/8GYJ/HPFZYBUD/F658GYJHPFZYBUD.jpg&filename=DSCN3298.JPG)
Buying traditional angel eye costs more. So I tried to make this of my own and I succeeded. This costs less than we expect.
Parts Needed
![DSCN3238.jpg](/proxy/?url=https://content.instructables.com/F57/CX2S/HPFZYC5Y/F57CX2SHPFZYC5Y.jpg&filename=DSCN3238.jpg)
1 X Old torch light
1 X 1watt white Led
1 X 7805 regulator IC
1 X 10 ohms resistor
1 X 1watt white Led
1 X 7805 regulator IC
1 X 10 ohms resistor
Tools Needed
1)Soldering Iron
2)Black spray can
3)Screw driver
4)current tape
2)Black spray can
3)Screw driver
4)current tape
Disassembling the Torch
![DSCN3243.JPG](/proxy/?url=https://content.instructables.com/FIV/XQXW/HPFZYCRW/FIVXQXWHPFZYCRW.jpg&filename=DSCN3243.JPG)
![DSCN3244.JPG](/proxy/?url=https://content.instructables.com/F9N/VC21/HPFZYCQE/F9NVC21HPFZYCQE.jpg&filename=DSCN3244.JPG)
![DSCN3245.JPG](/proxy/?url=https://content.instructables.com/FKT/084Z/HPFZYCN7/FKT084ZHPFZYCN7.jpg&filename=DSCN3245.JPG)
![DSCN3246.JPG](/proxy/?url=https://content.instructables.com/FB6/VHSR/HPFZYCJT/FB6VHSRHPFZYCJT.jpg&filename=DSCN3246.JPG)
![DSCN3247.JPG](/proxy/?url=https://content.instructables.com/FTW/FO63/HPFZYCHB/FTWFO63HPFZYCHB.jpg&filename=DSCN3247.JPG)
![DSCN3248.JPG](/proxy/?url=https://content.instructables.com/FT7/4AV4/HPFZYCFY/FT74AV4HPFZYCFY.jpg&filename=DSCN3248.JPG)
![DSCN3249.JPG](/proxy/?url=https://content.instructables.com/FCW/SLQN/HPFZYCE4/FCWSLQNHPFZYCE4.jpg&filename=DSCN3249.JPG)
![DSCN3250.JPG](/proxy/?url=https://content.instructables.com/F46/9QAF/HPFZYCC6/F469QAFHPFZYCC6.jpg&filename=DSCN3250.JPG)
![DSCN3251.JPG](/proxy/?url=https://content.instructables.com/FGY/MI7L/HPFZYCC0/FGYMI7LHPFZYCC0.jpg&filename=DSCN3251.JPG)

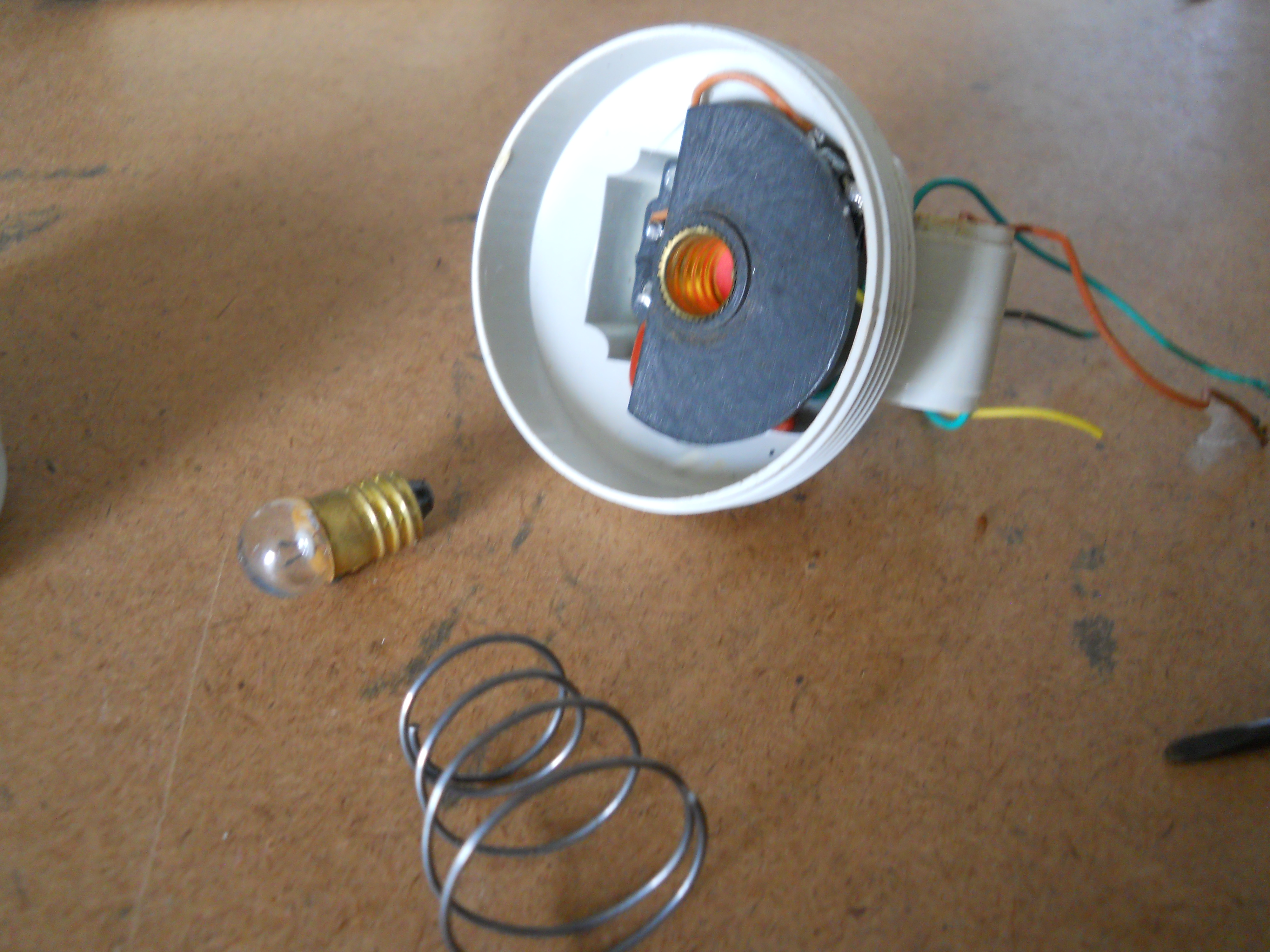

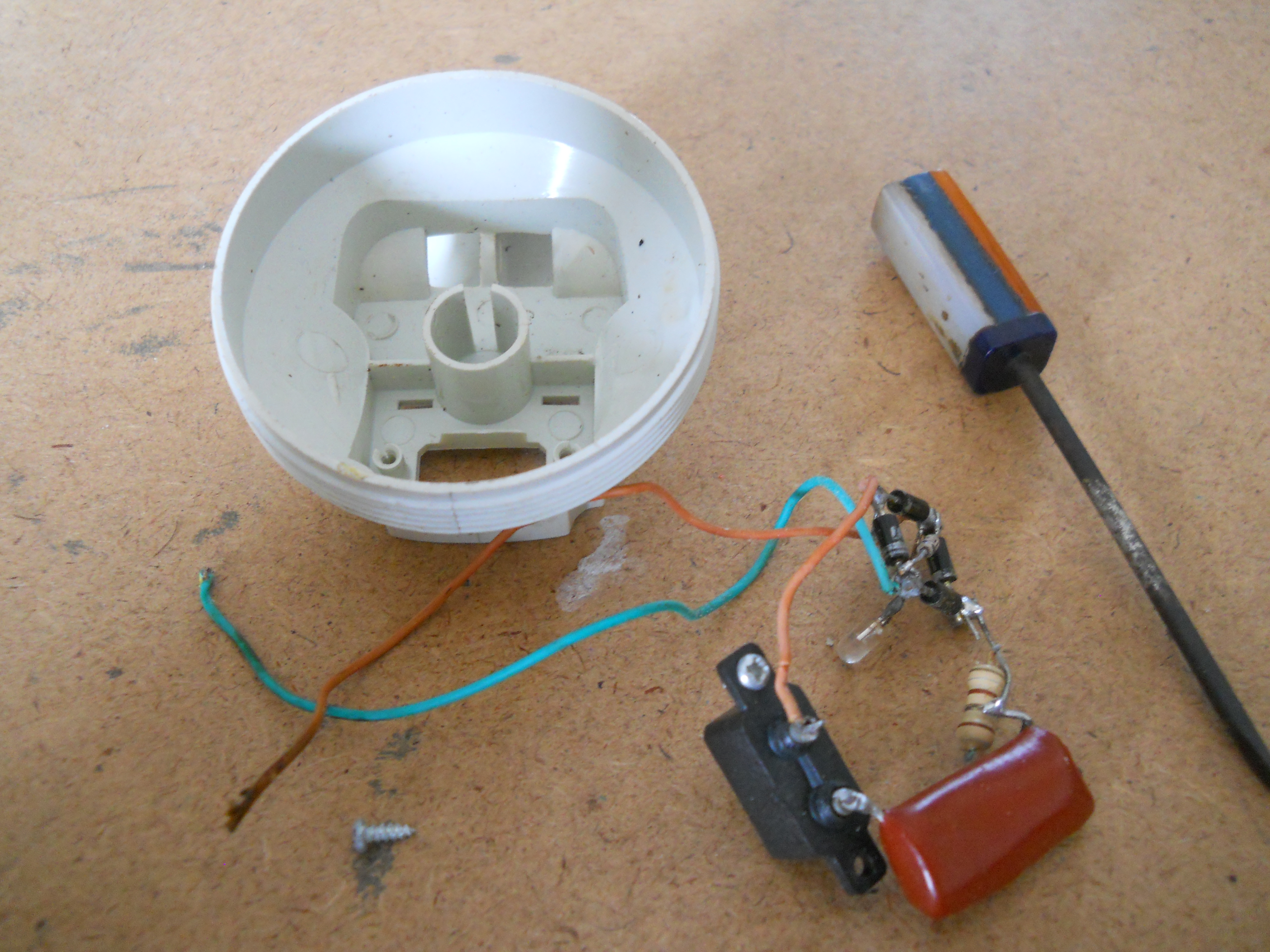

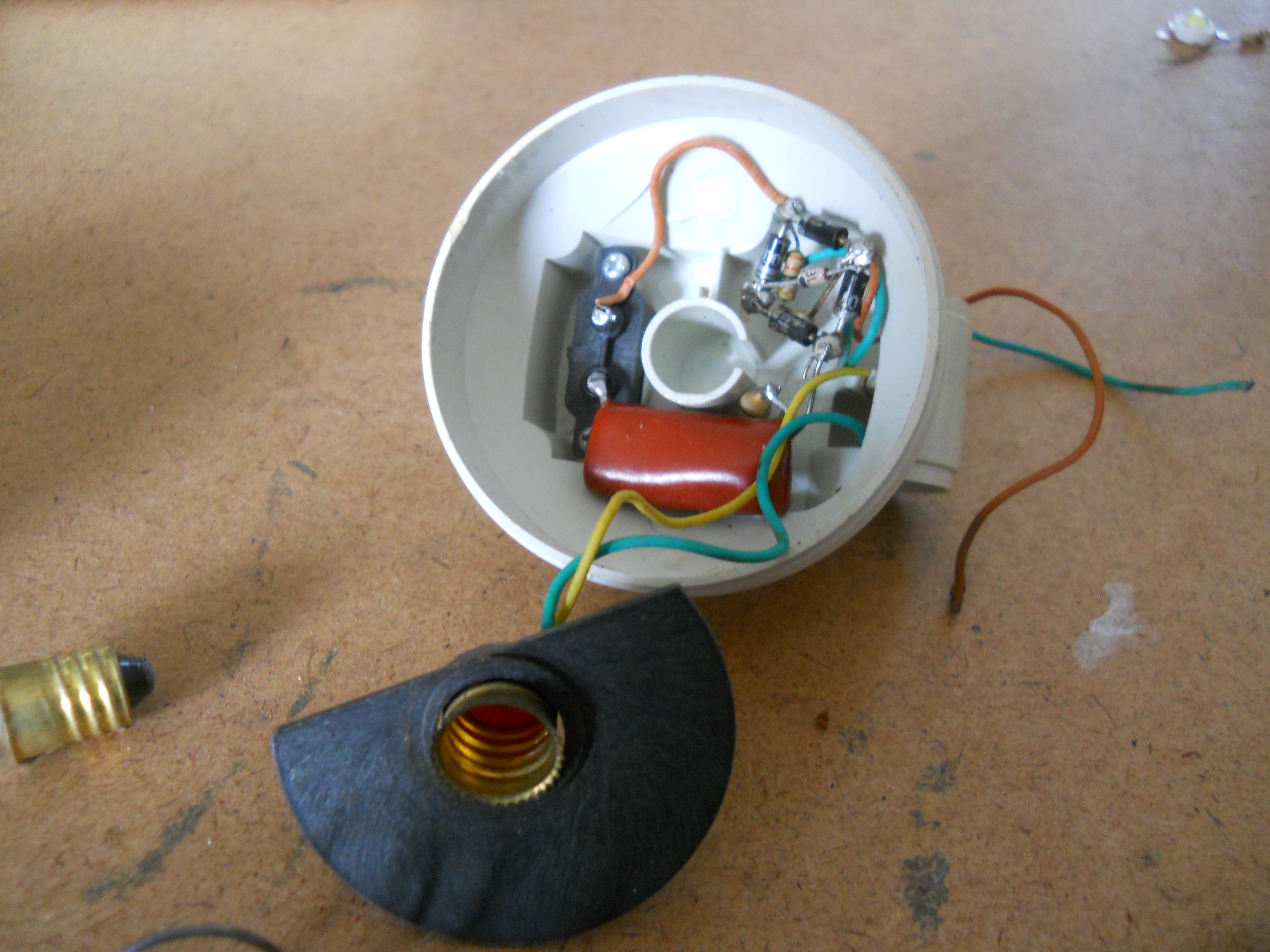

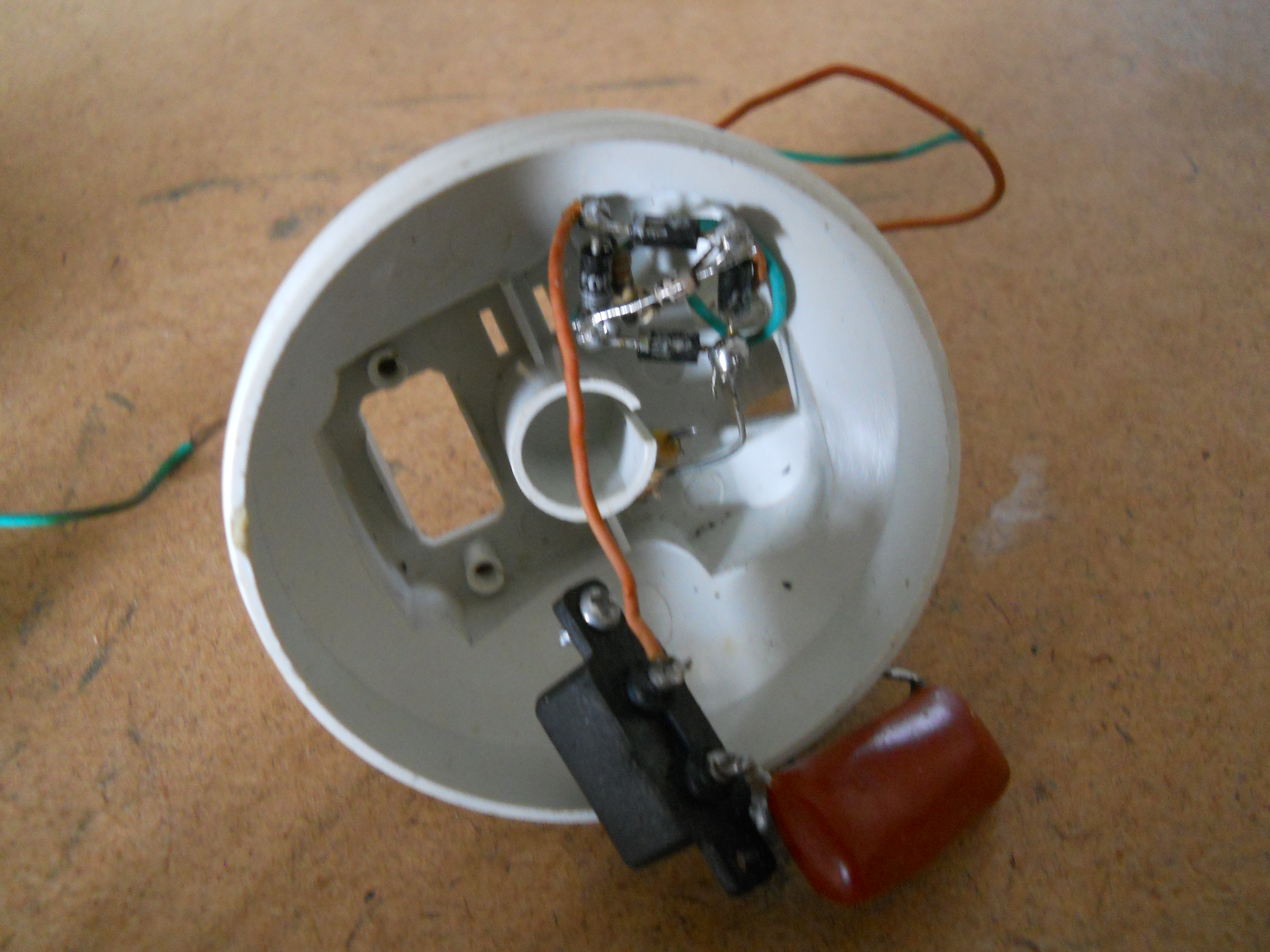

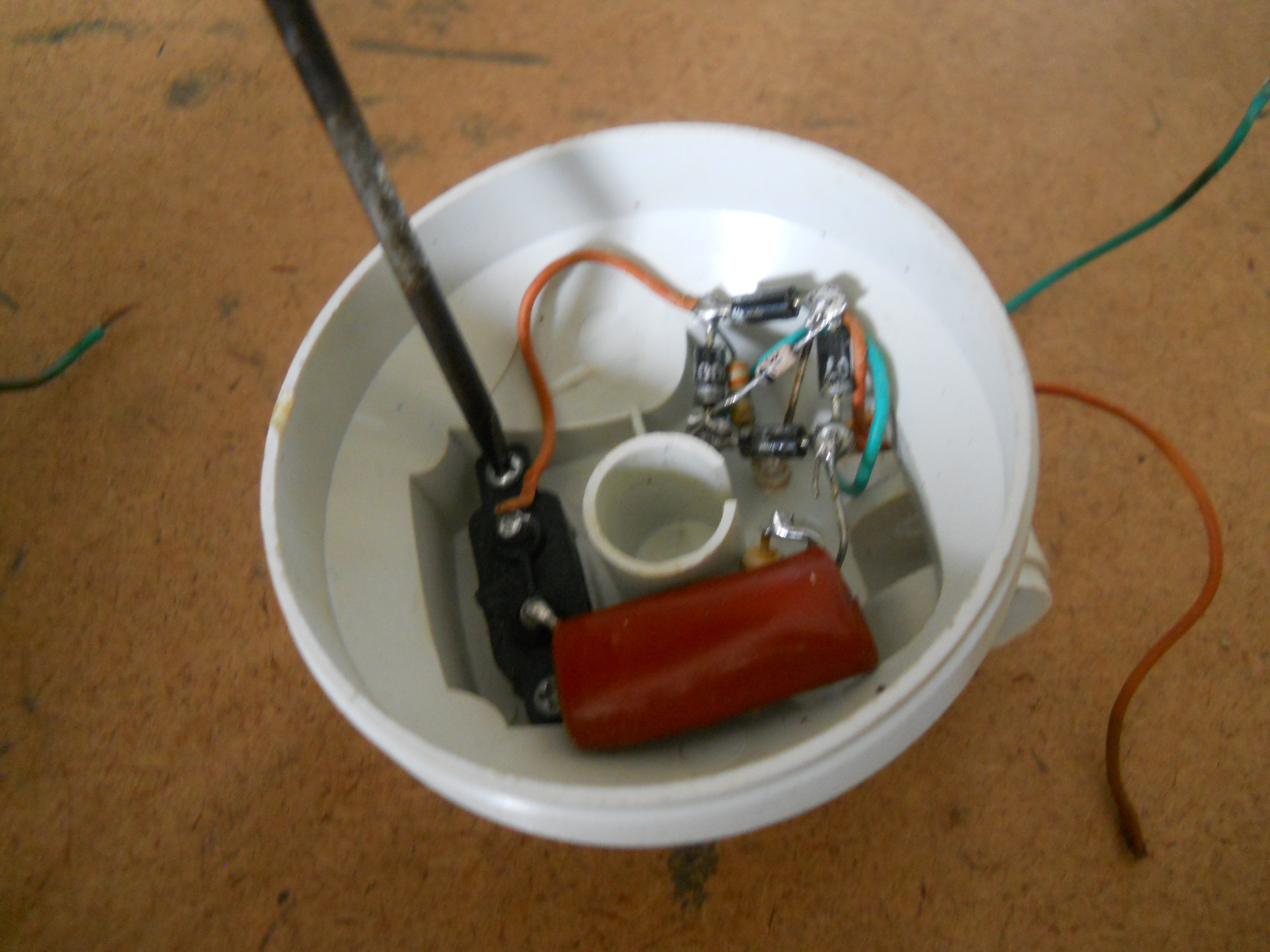

Disassemble the torch as shown in the pictures.
Painting the Glass
![DSCN3252.JPG](/proxy/?url=https://content.instructables.com/FEP/KESM/HPFZYD3G/FEPKESMHPFZYD3G.jpg&filename=DSCN3252.JPG)
![DSCN3253.JPG](/proxy/?url=https://content.instructables.com/FQ6/7EE0/HPFZYDHT/FQ67EE0HPFZYDHT.jpg&filename=DSCN3253.JPG)

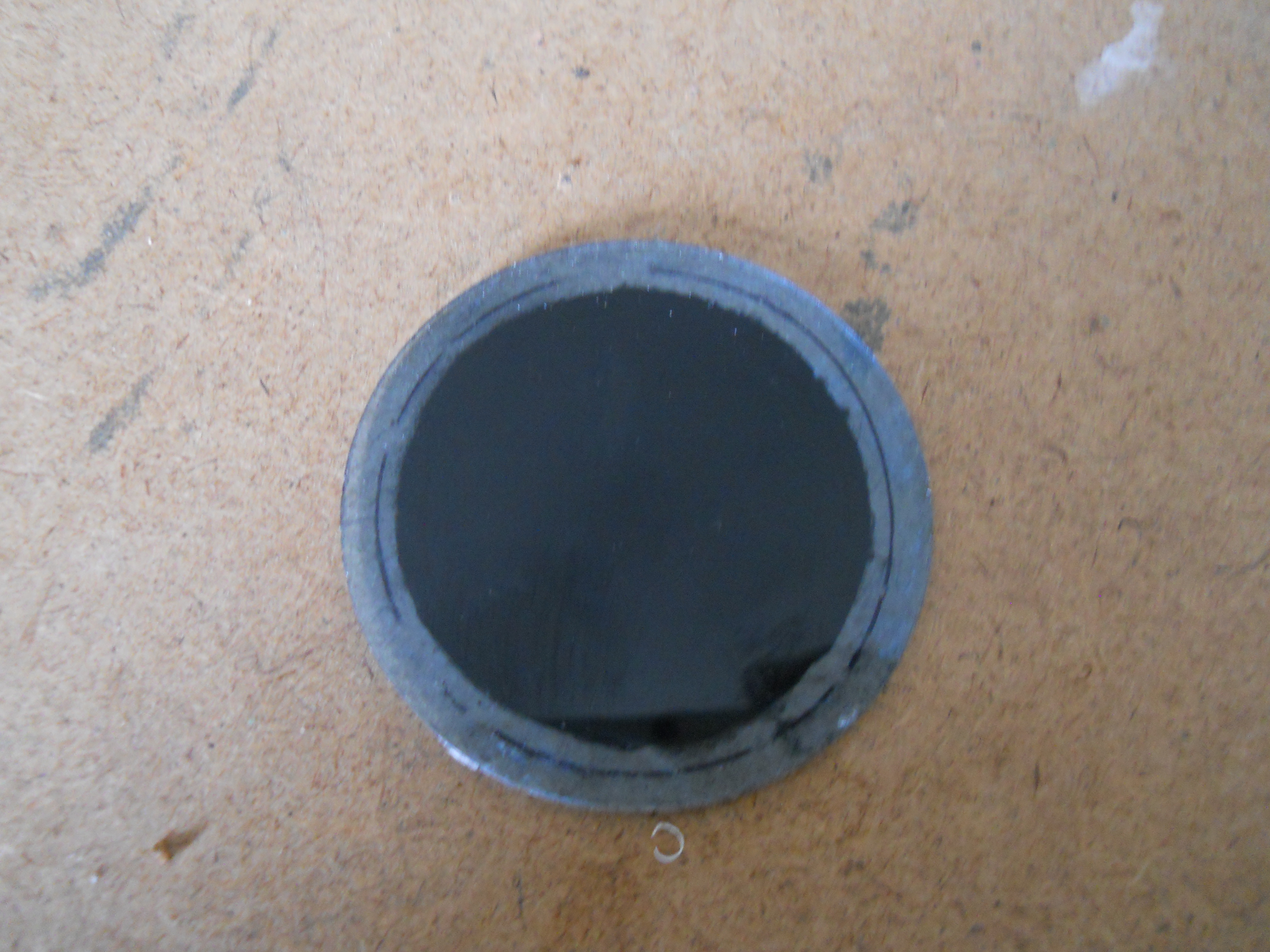

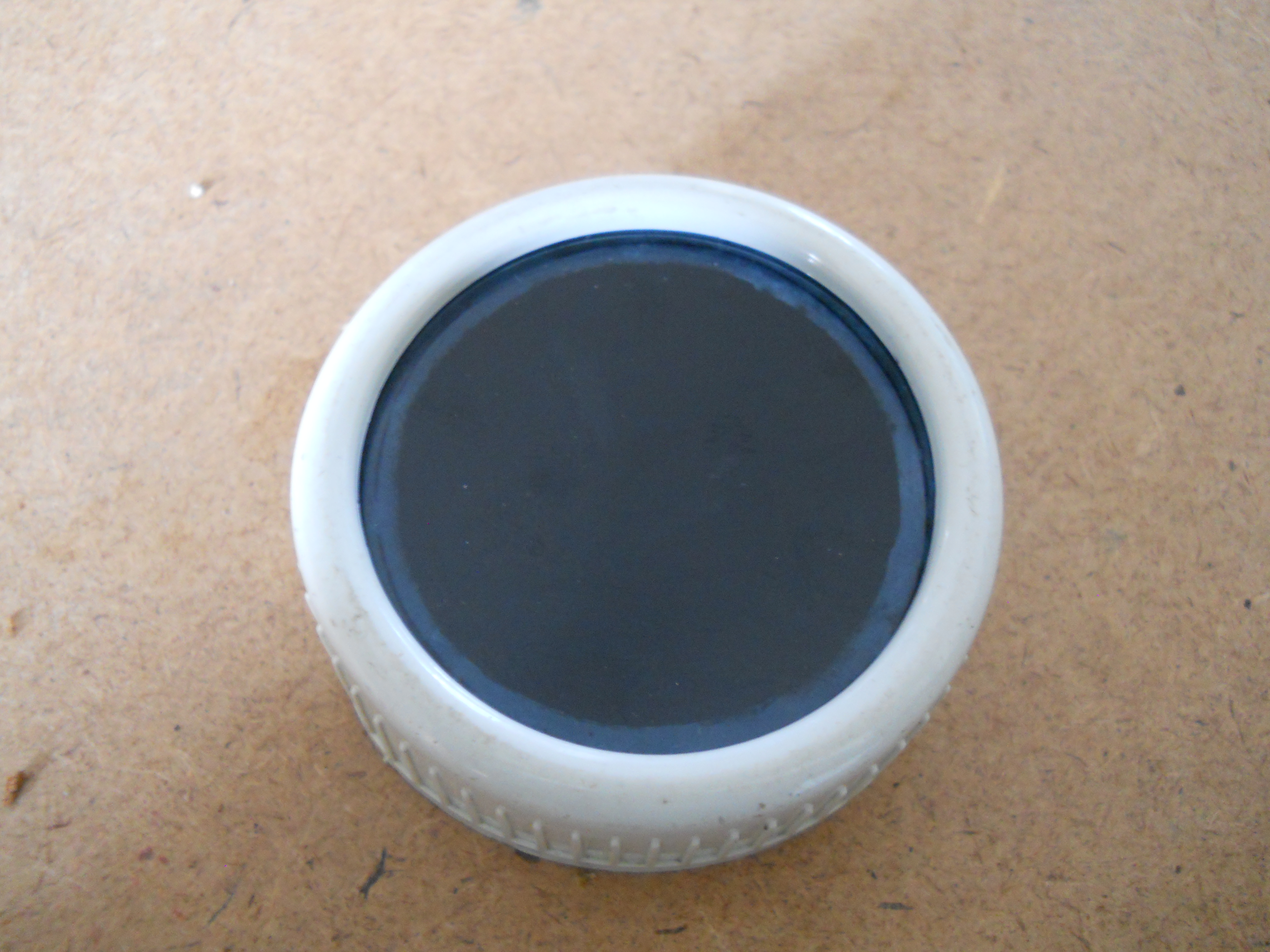

Make a circle at middle of the glass and paint it with black colour.
Painting the Body
![DSCN3256.JPG](/proxy/?url=https://content.instructables.com/F1T/52E0/HPFZYD73/F1T52E0HPFZYD73.jpg&filename=DSCN3256.JPG)
![DSCN3257.JPG](/proxy/?url=https://content.instructables.com/FWF/4943/HPFZYD7Y/FWF4943HPFZYD7Y.jpg&filename=DSCN3257.JPG)
![DSCN3266.JPG](/proxy/?url=https://content.instructables.com/FVD/EEYM/HPFZYD86/FVDEEYMHPFZYD86.jpg&filename=DSCN3266.JPG)

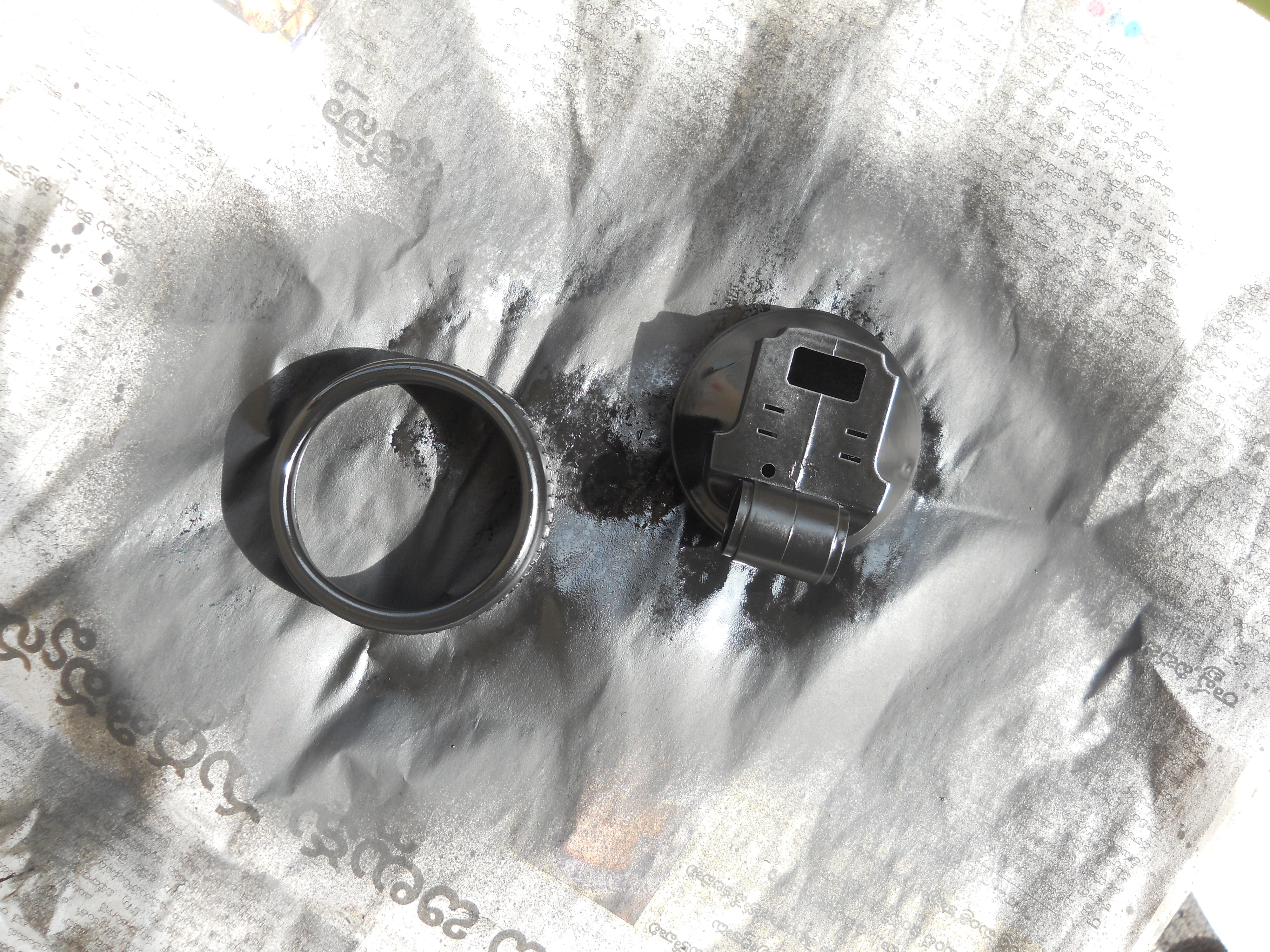

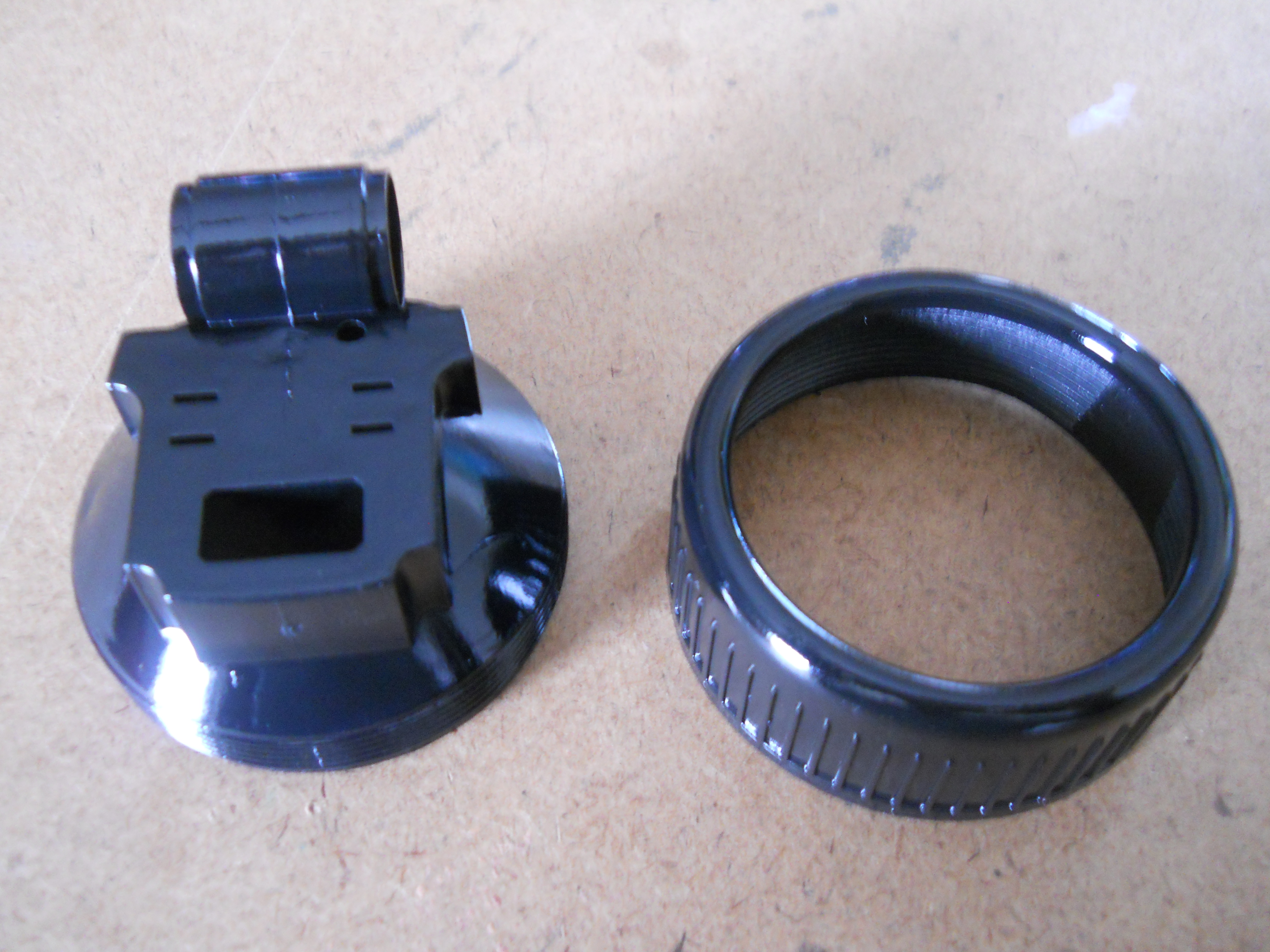

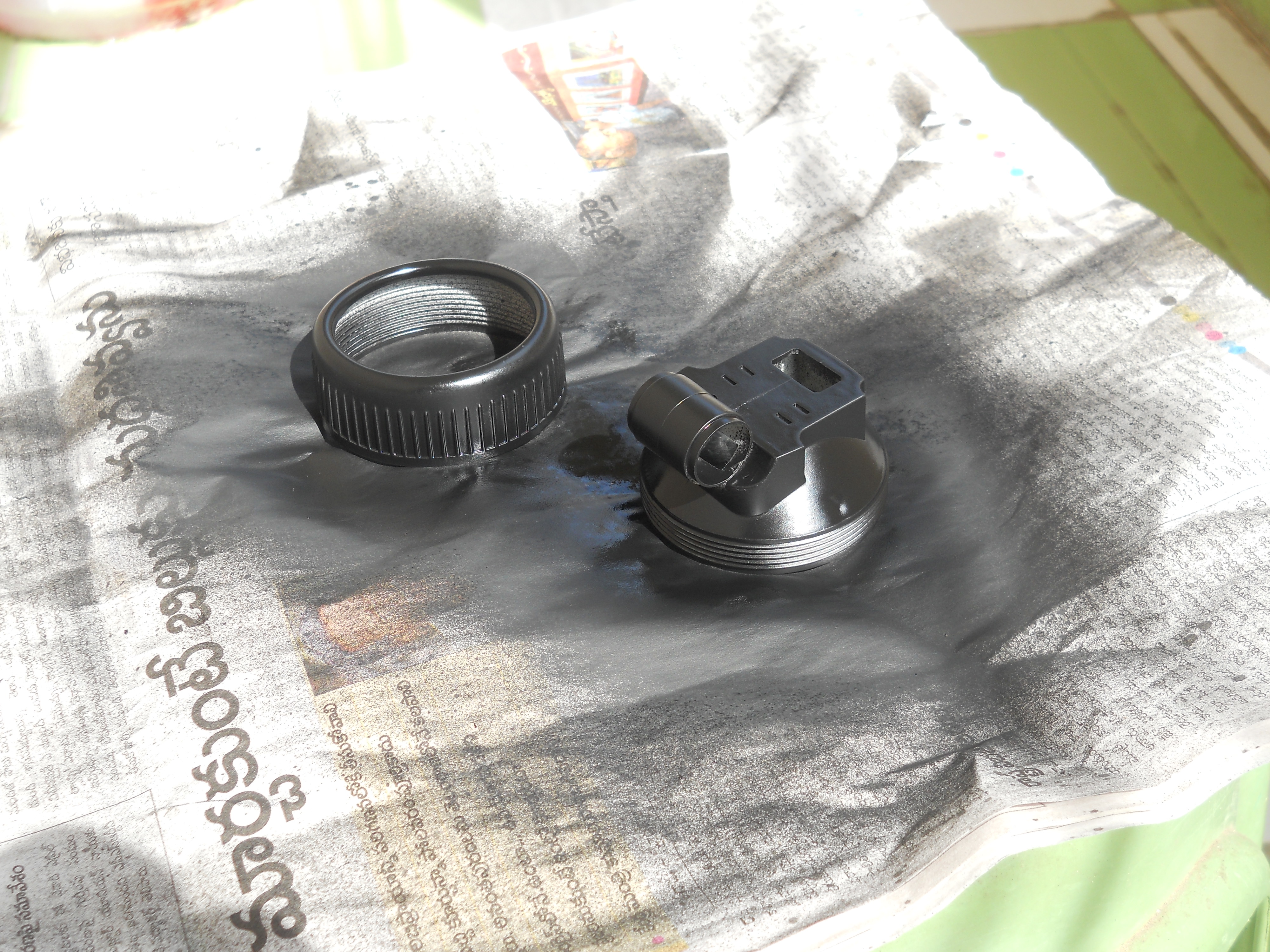

I used spray can to paint the body. After the paint is dried I used clear coat so that it shines.
Heatsink to Led
![DSCN3258.JPG](/proxy/?url=https://content.instructables.com/FBL/IM6J/HPFZYD8U/FBLIM6JHPFZYD8U.jpg&filename=DSCN3258.JPG)
I don't have a heat-sink so I decided to make my own with a small aluminium sheet and combined with heatsink paste and finally glued with fewikwik.
Mounting LED to the Reflector
![DSCN3262.JPG](/proxy/?url=https://content.instructables.com/FKE/11GT/HPFZYDAR/FKE11GTHPFZYDAR.jpg&filename=DSCN3262.JPG)
![DSCN3265.JPG](/proxy/?url=https://content.instructables.com/FSQ/OZCE/HPFZYDAV/FSQOZCEHPFZYDAV.jpg&filename=DSCN3265.JPG)

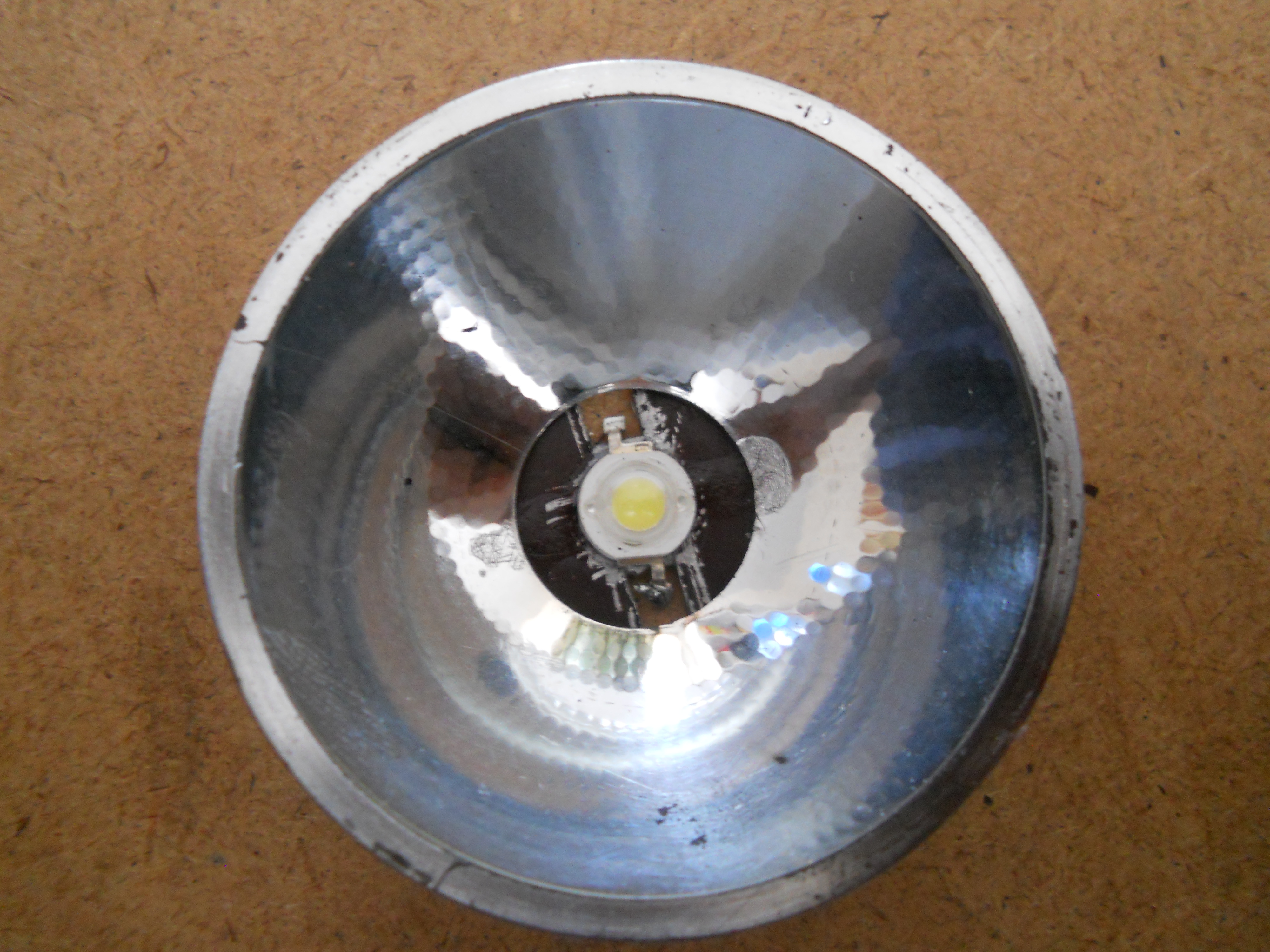

Mount the led to the reflector and glue it.
The Circuit
![DSCN3254.JPG](/proxy/?url=https://content.instructables.com/F1T/EFFL/HPFZYDD1/F1TEFFLHPFZYDD1.jpg&filename=DSCN3254.JPG)

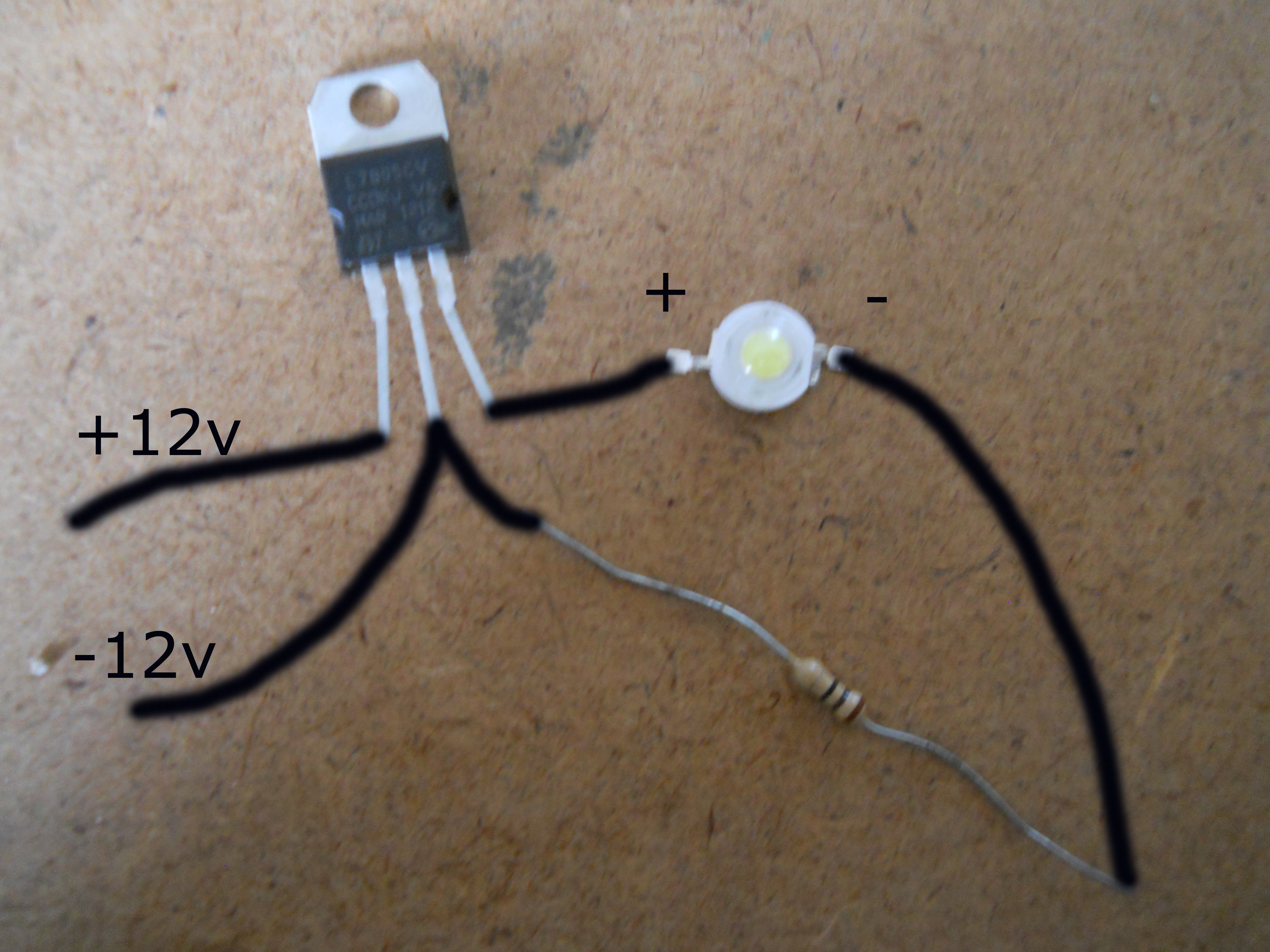

Solder the circuit as shown in the diagram.
Mounting the Circuit
![DSCN3270.JPG](/proxy/?url=https://content.instructables.com/FU8/FP6T/HPFZYDDE/FU8FP6THPFZYDDE.jpg&filename=DSCN3270.JPG)
![DSCN3271.JPG](/proxy/?url=https://content.instructables.com/F38/M719/HPFZYDDM/F38M719HPFZYDDM.jpg&filename=DSCN3271.JPG)

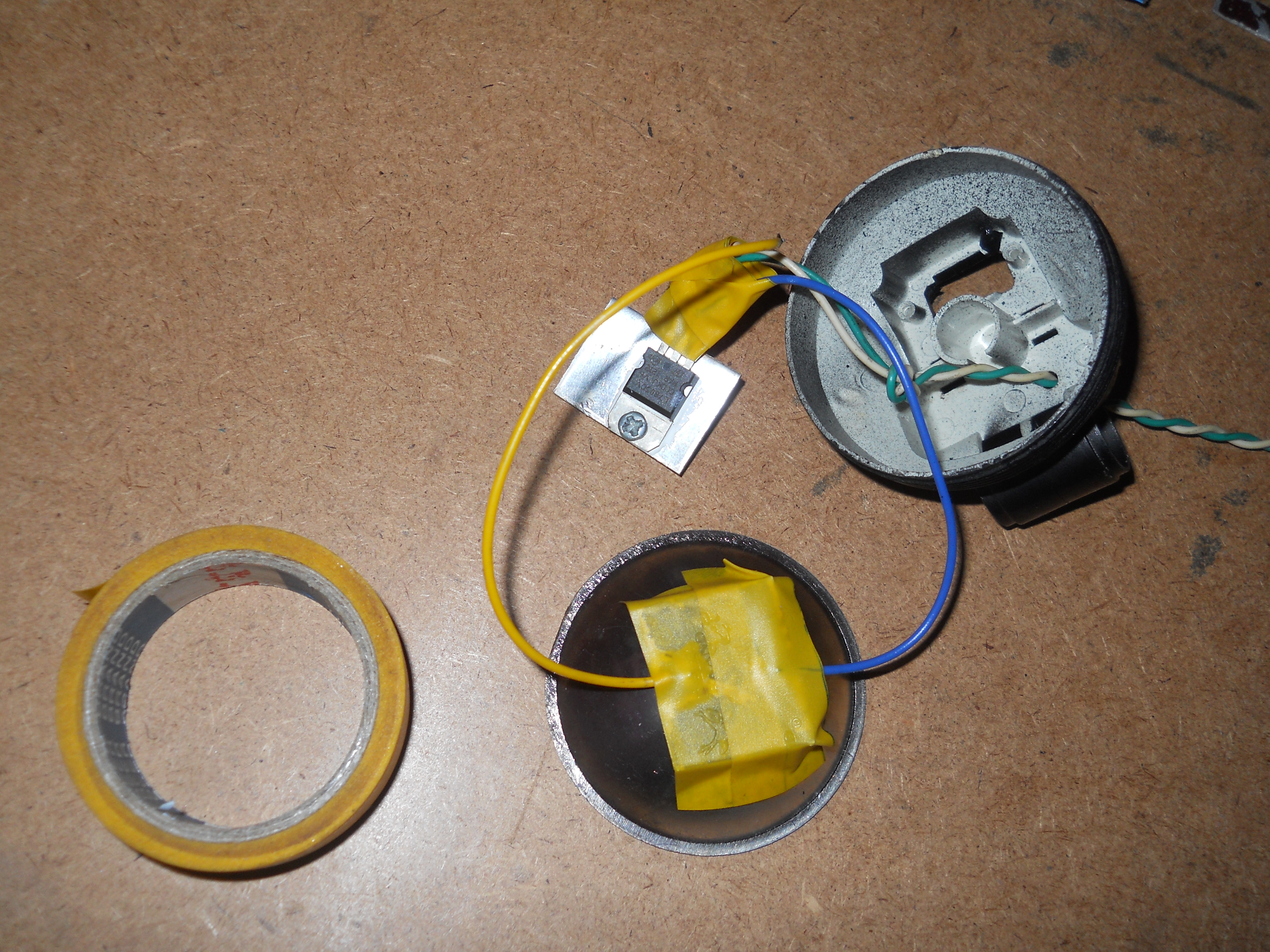

Mount the circuit and apply current tape to avoid short circuit.
Assembling the Torch
![DSCN3284.JPG](/proxy/?url=https://content.instructables.com/F61/ESUB/HPFZYDFK/F61ESUBHPFZYDFK.jpg&filename=DSCN3284.JPG)
After assembling the torch it looks great.
Testing the Light..
![DSCN3298.JPG](/proxy/?url=https://content.instructables.com/FOI/4XY3/HPFZYDFZ/FOI4XY3HPFZYDFZ.jpg&filename=DSCN3298.JPG)
Connect the wires to 12v battery and test it.
Final Product
![DSCN3301.JPG](/proxy/?url=https://content.instructables.com/FG0/71S9/HPFZYDG4/FG071S9HPFZYDG4.jpg&filename=DSCN3301.JPG)

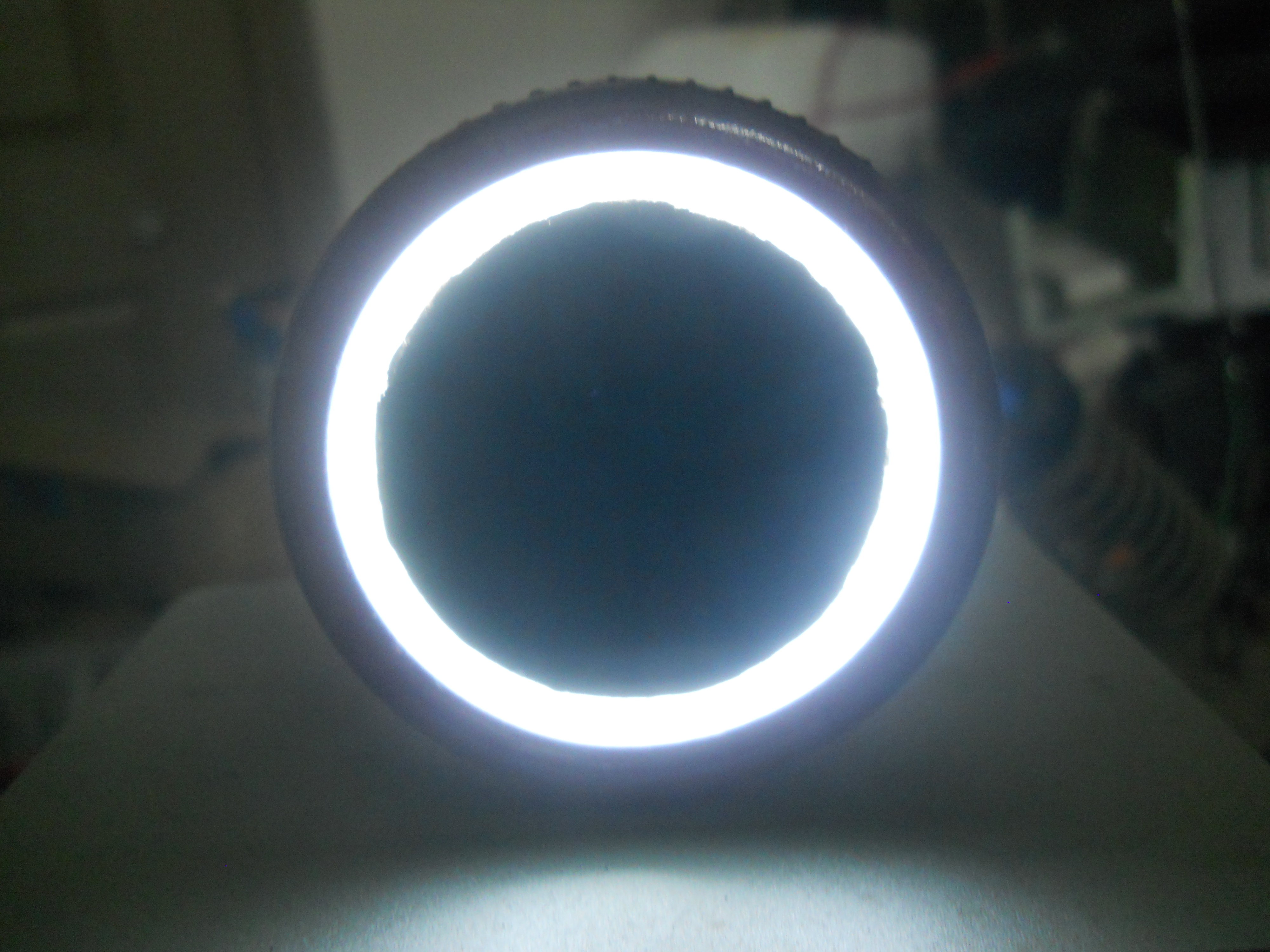

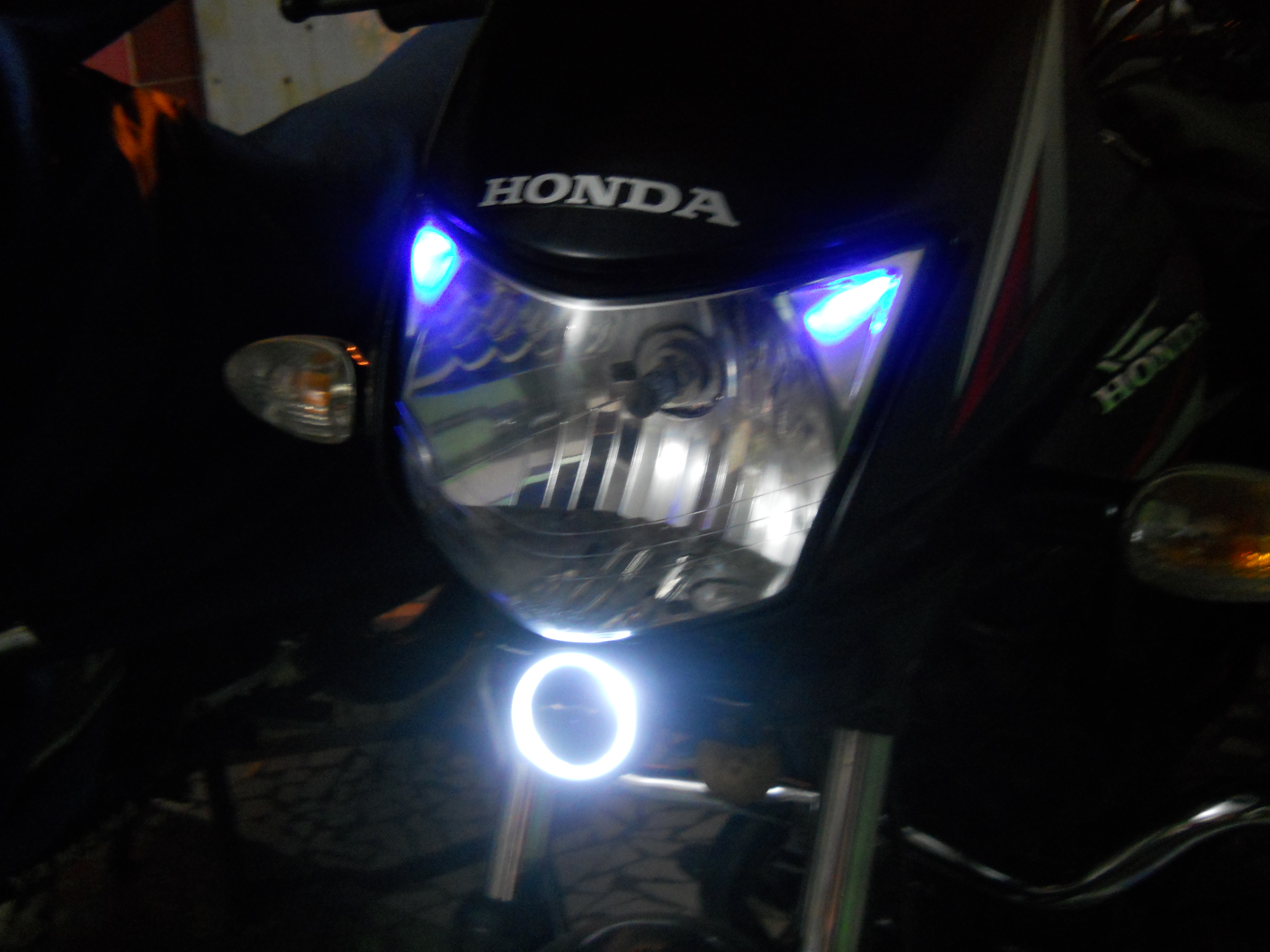

After fitting to my bike it looks great...
