Analog Interface (Linkit ONE)

Linkit ONE

potentiometer

transistor

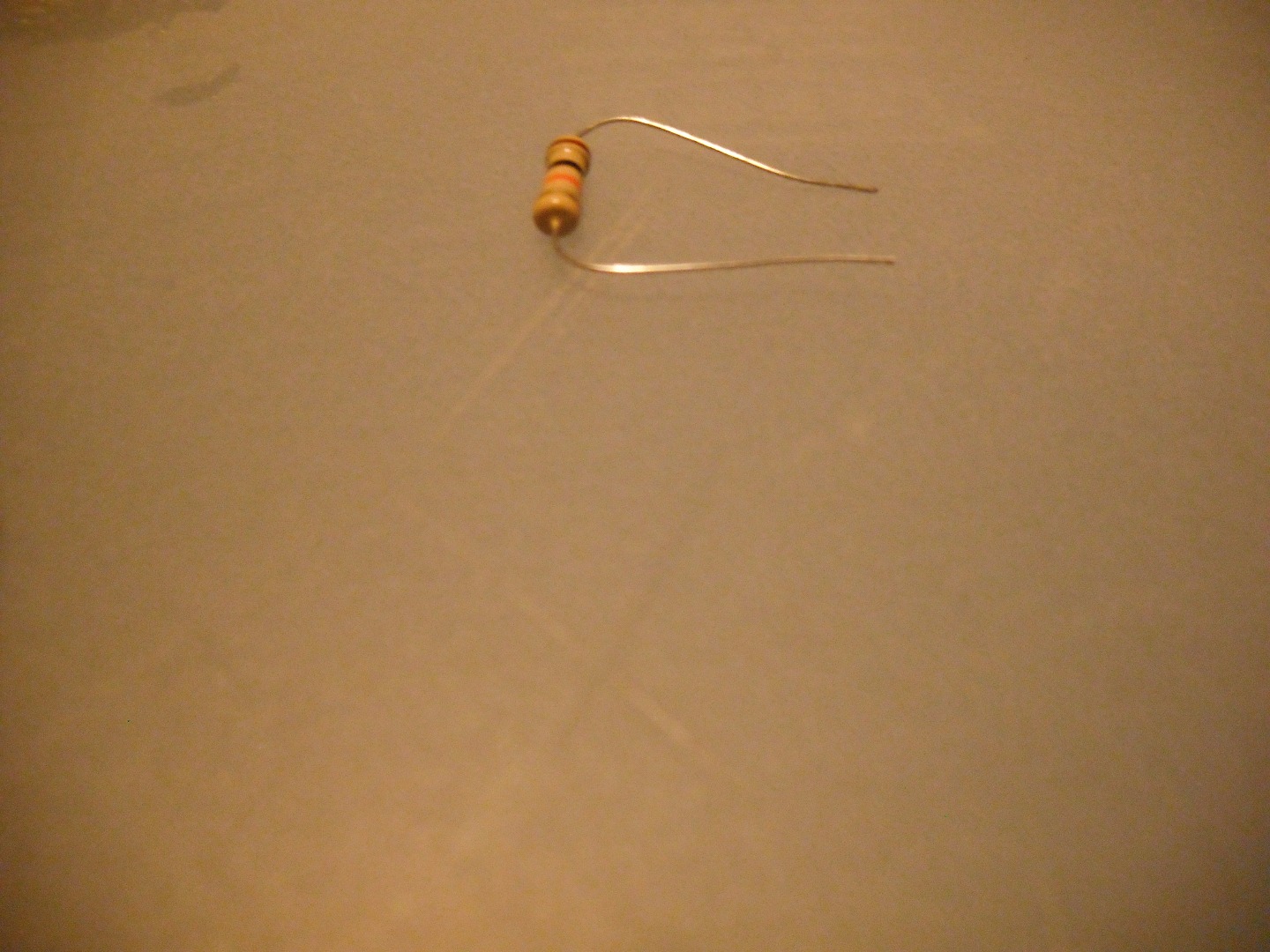

resistor

led of any color

linkit one

wires

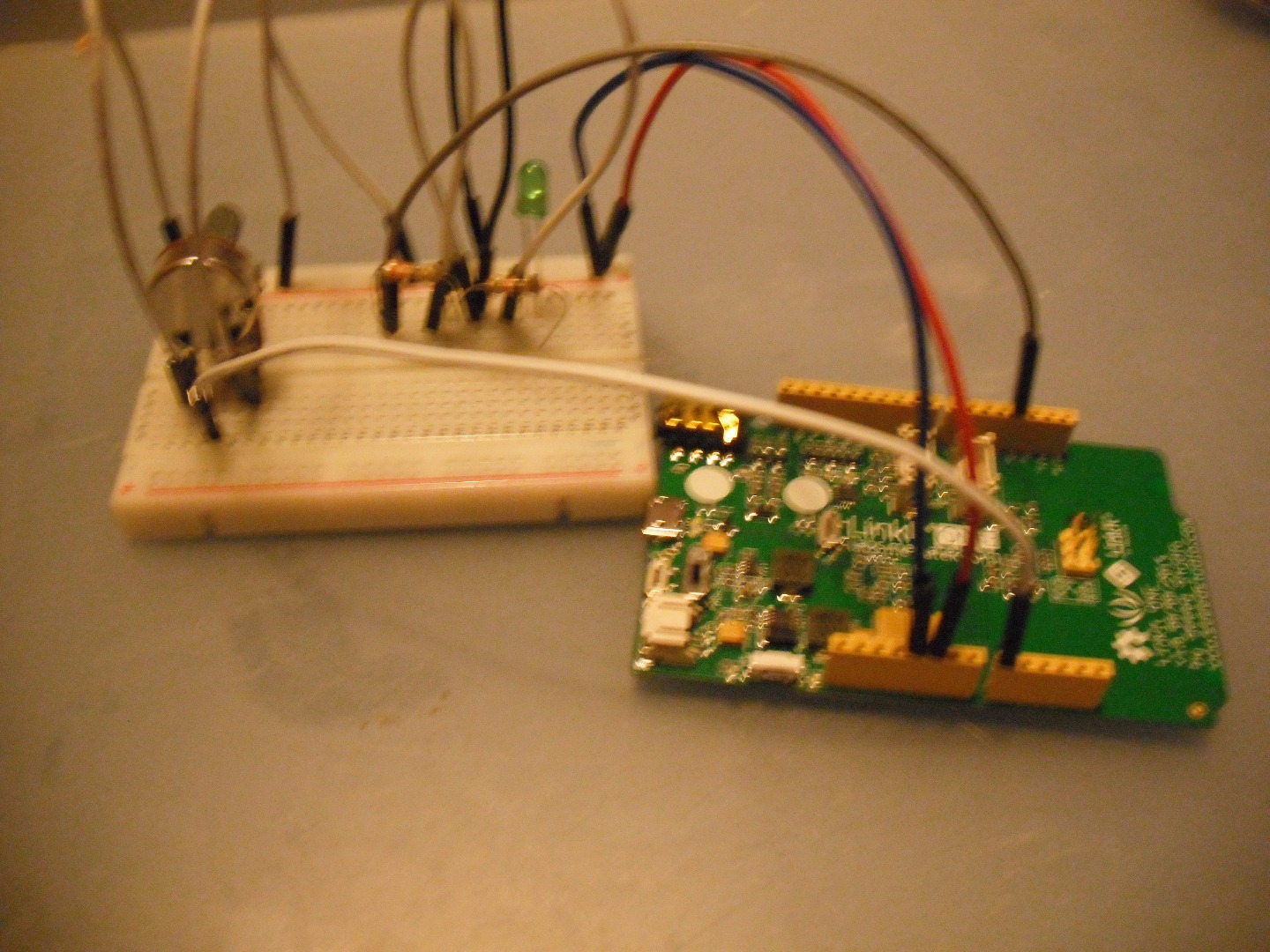

Follow the picture to connect the board. If you have questions about any connections leave a comment

This code needs to be run through the arduino program software.

This is the program

const int led = 3;
const int pot = A0; void setup() { // nothing to initialize } void loop() { int val = analogRead(pot); // get value from potentiometer val = map(val, 0, 1023, 0, 255); // make the value to 0~255 analogWrite(led, val); // set the pwm of led delay(10); }

Here is a link to download the software Link

plug in the linkit one and upload the code. After that you are finished. Congratulations
