An LED Clock Without a Micro-controller

by drtonis in Circuits > Clocks

1350 Views, 6 Favorites, 0 Comments

An LED Clock Without a Micro-controller


As it seems, I like to make different clocks. I have built and designed numerous electronic and mechanical clocks and this one is another one. My first electronics clock required several iterations and I learned a lot.

The presented design is improvement of the older design – it is smaller and cheaper to build than the previous versions. Additionally, I have documented the process much better this time.

The clock is electronic, without any microcontroller. The time is generated from a 32.768 kHz crystal and by counting the crystal oscillations the time could be shown. The numbers are constructed with LEDs in a seven-segment display formation.

In the following the BOM is introduced, thereafter the design is introduced and eventually the assembly process is shown.

Downloads

T-Clock-11_Analog.pdf

BOM

Everything through hole components (I got everything from Aliexpress)

  • 74HC393N - 8 pcs
  • 74HC32N - 3 pcs
  • 74HC08N - 3 pcs
  • 74LS47N - 6 pcs
  • NE555N - 1 pcs
  • 8-bit switch - 3 pcs
  • 6mm button - 2 pcs
  • Resistor 10k - 9 pcs
  • Resistor 1M - 5 pcs
  • Resistor 1k - 1 pcs
  • Resistor 560Ω - 52 pcs (follow the comments in the end, I used 560Ω)
  • Capacitor 100n - 15 pcs
  • Capacitor 16p - 1 pcs
  • Capacitor 8p - 1 pcs
  • 32.768kHz crystal - 1 pcs
  • Led - 128 pcs (you can use any color you like, 3 or 5mm LEDs, I used 5mm)
  • M3 screws (>5mm) and nuts - 4 pcs
  • 3 PCBs

I would strongly recommend using IC sockets instead of directly soldering the components

Design Explanation General

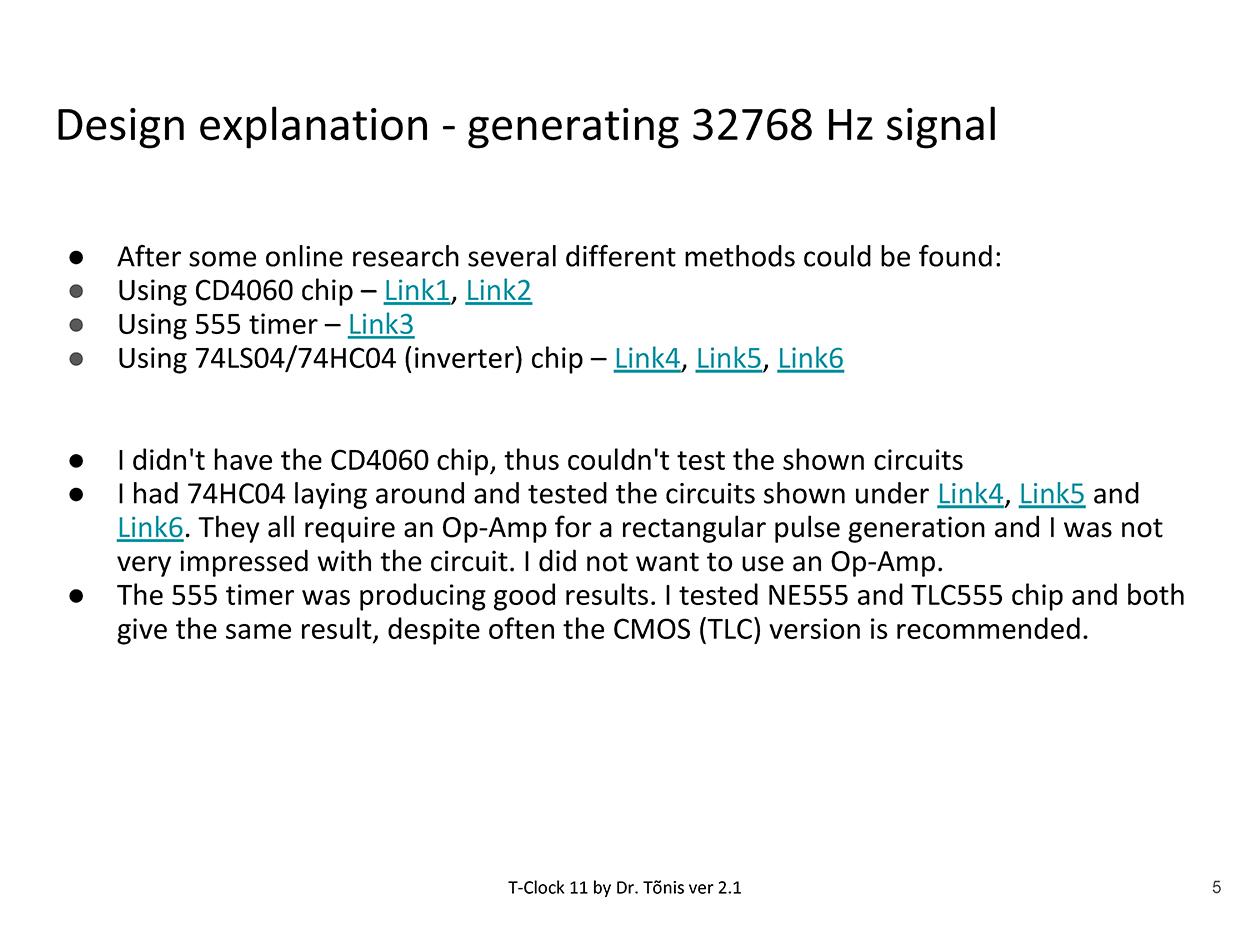

Design Explanation - 32.768Hz Signal

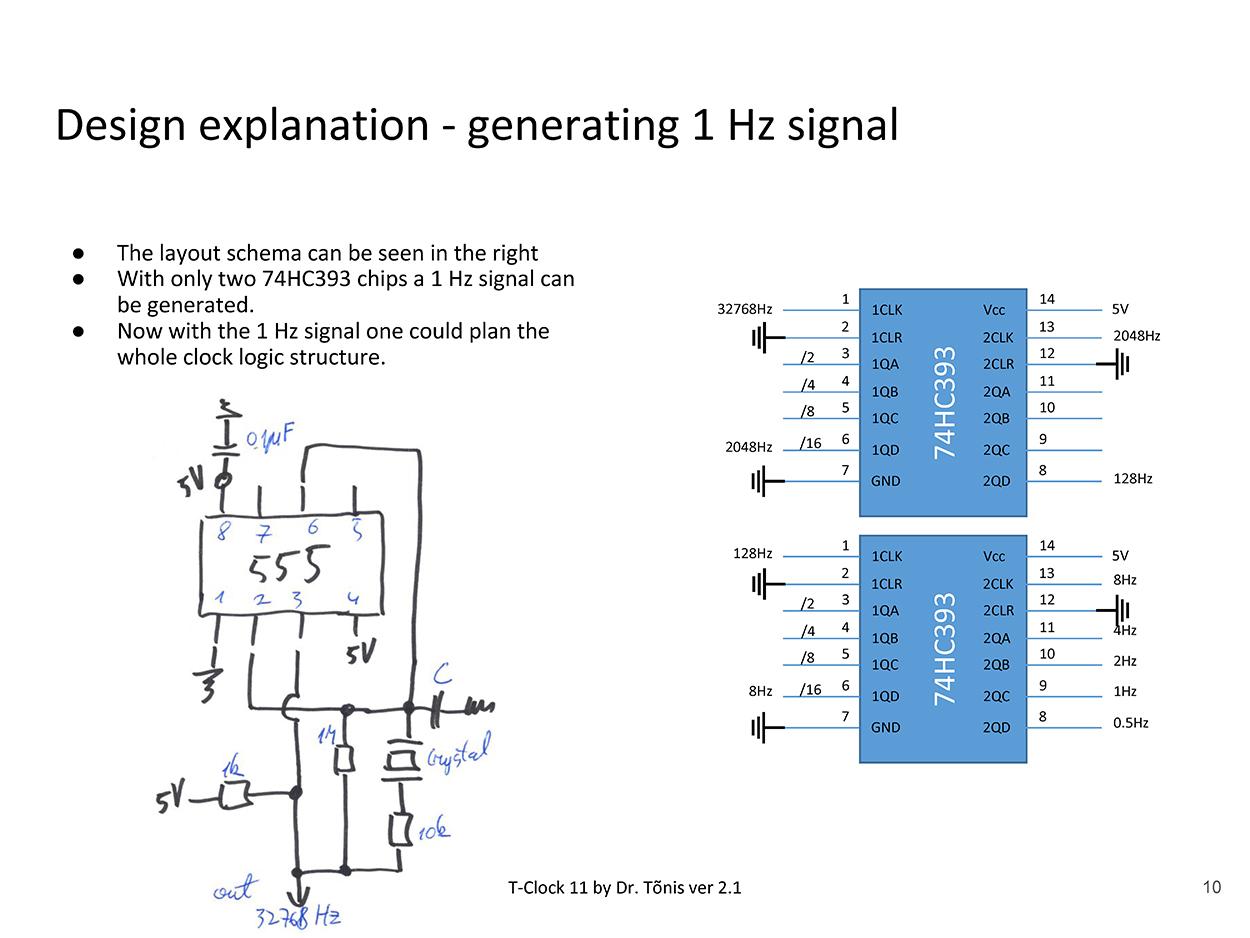

Design Explanation - 1 Hz Signal

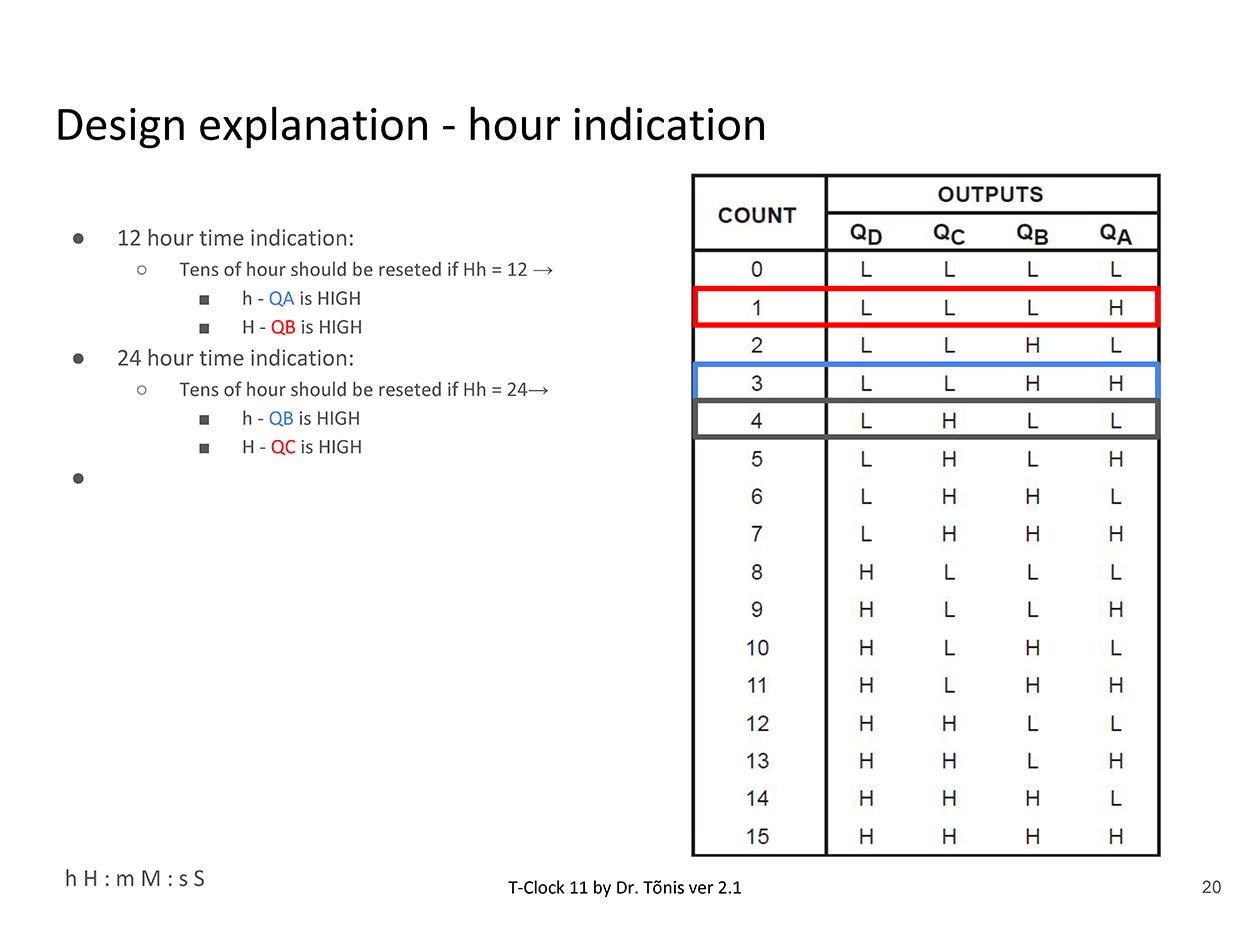

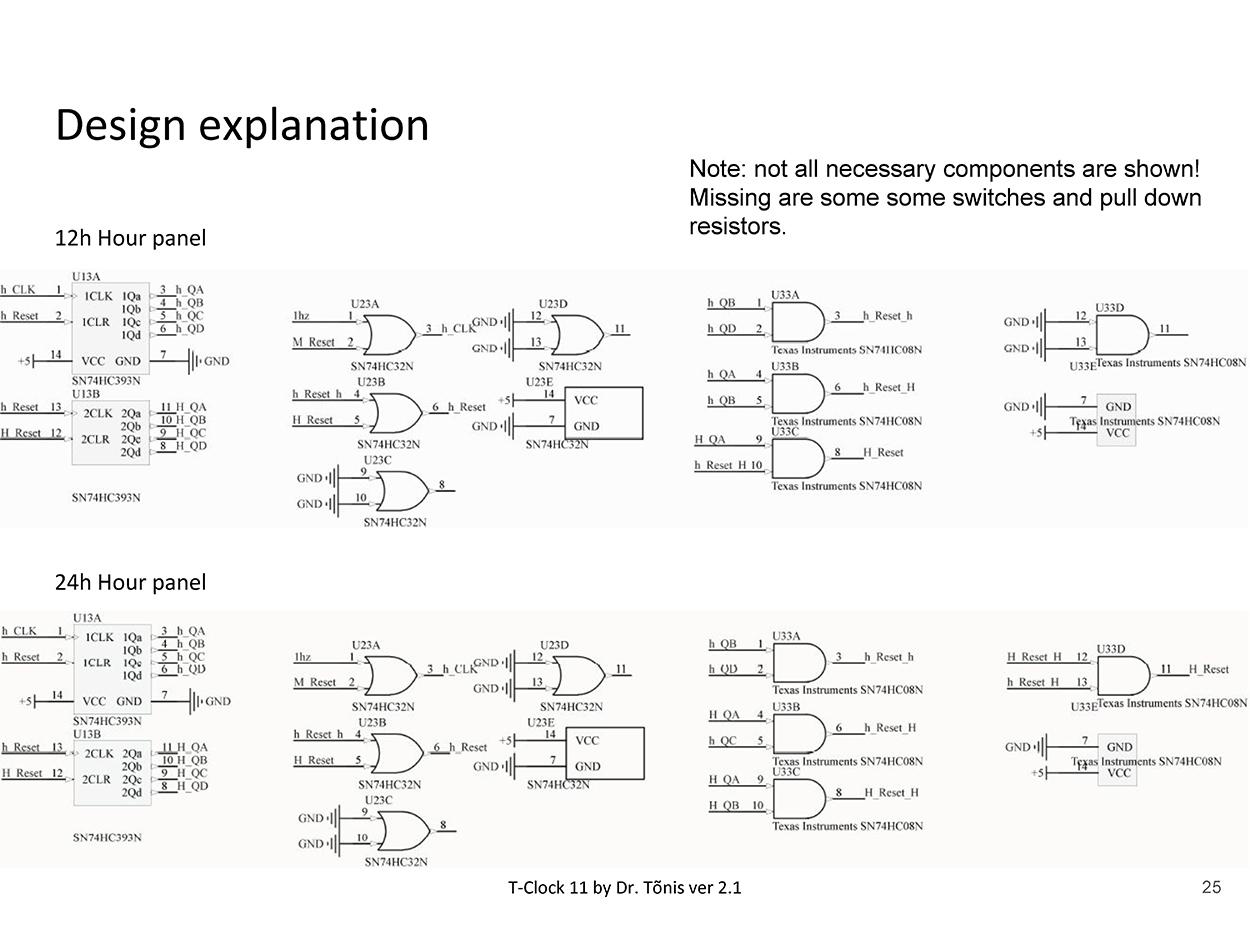

Design Explanation - Clock Logic

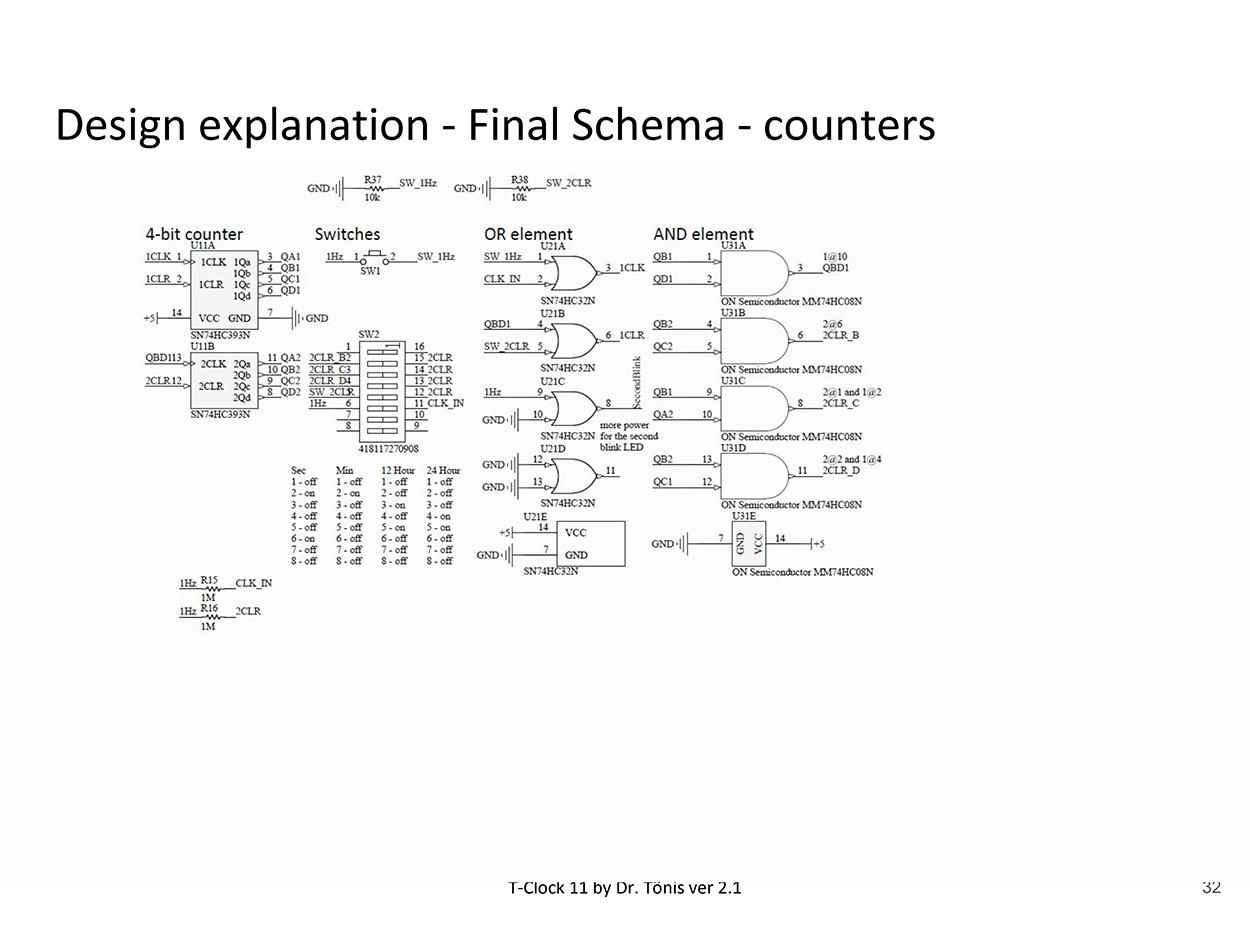

Design Explanation - Logic Schema

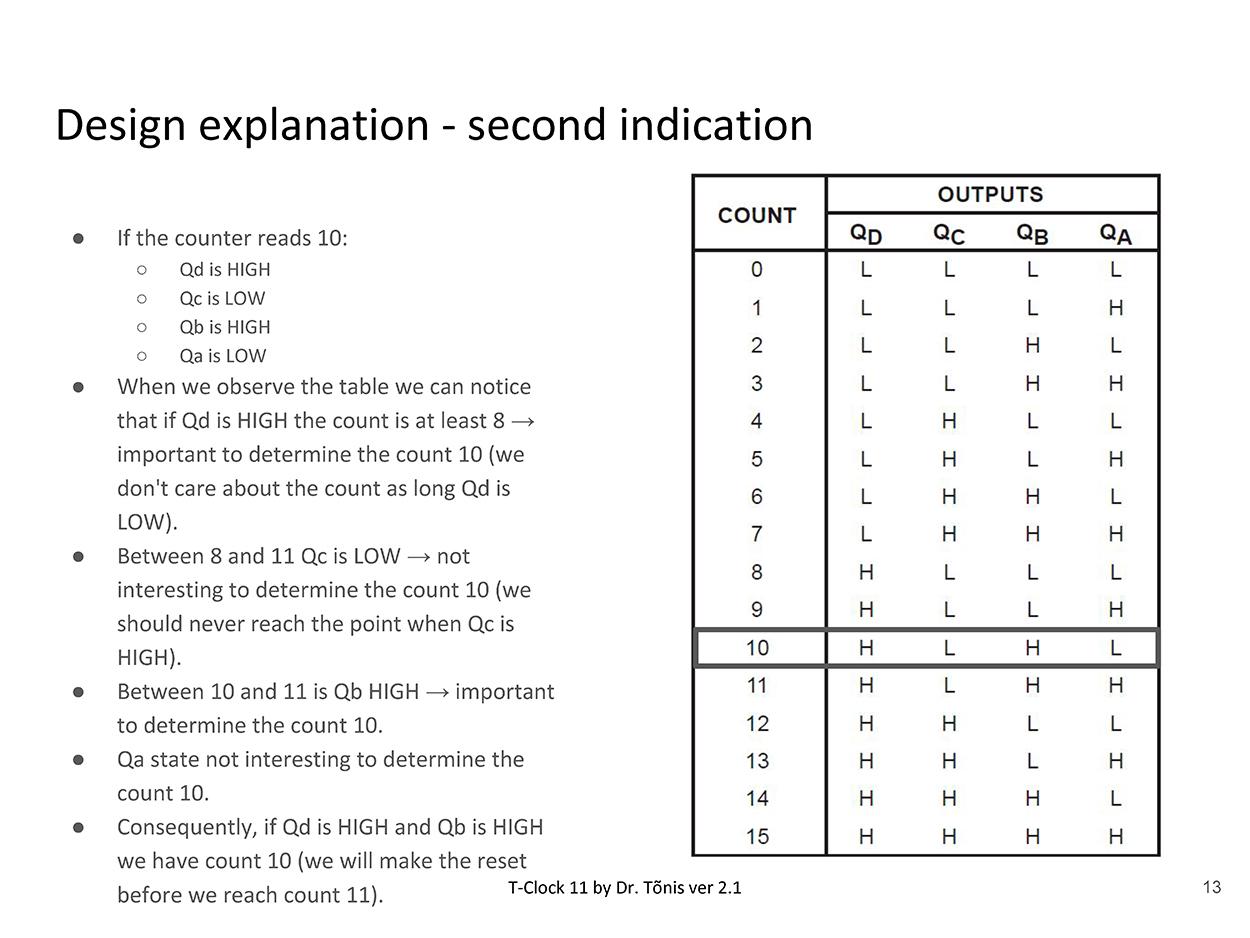

Design Explanation - 7 Segment


Design Explanation - Voltage and Power

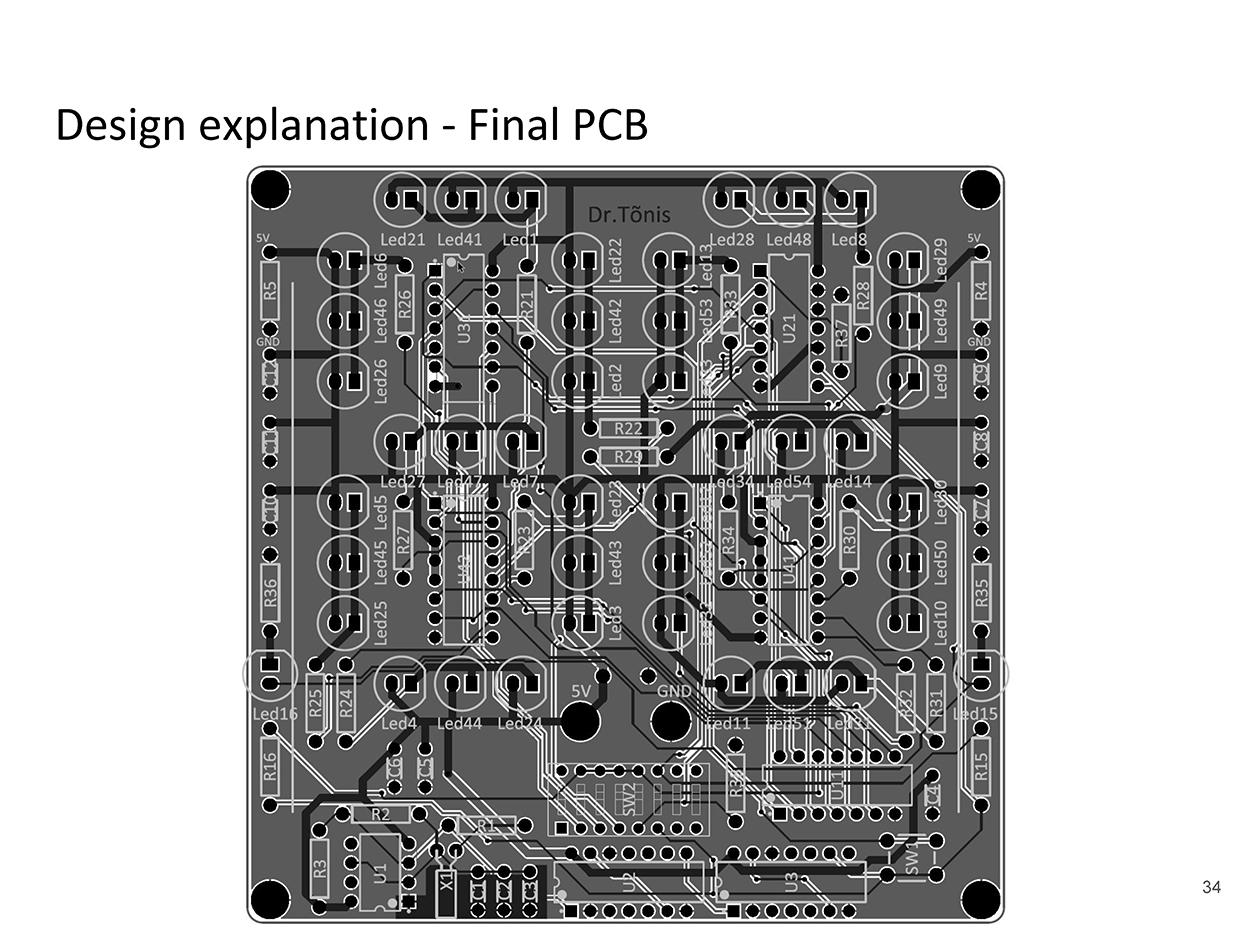

Design Explanation - PCB


How to Solder


Ready Clock


Conclusion

I hope this instructable was helpful and interesting to read.

Maybe it can inspire other people to use counters or build their own clock.
