Ammo Can BOOM Box

by Medic55 in Circuits > Speakers

20256 Views, 449 Favorites, 0 Comments

Ammo Can BOOM Box

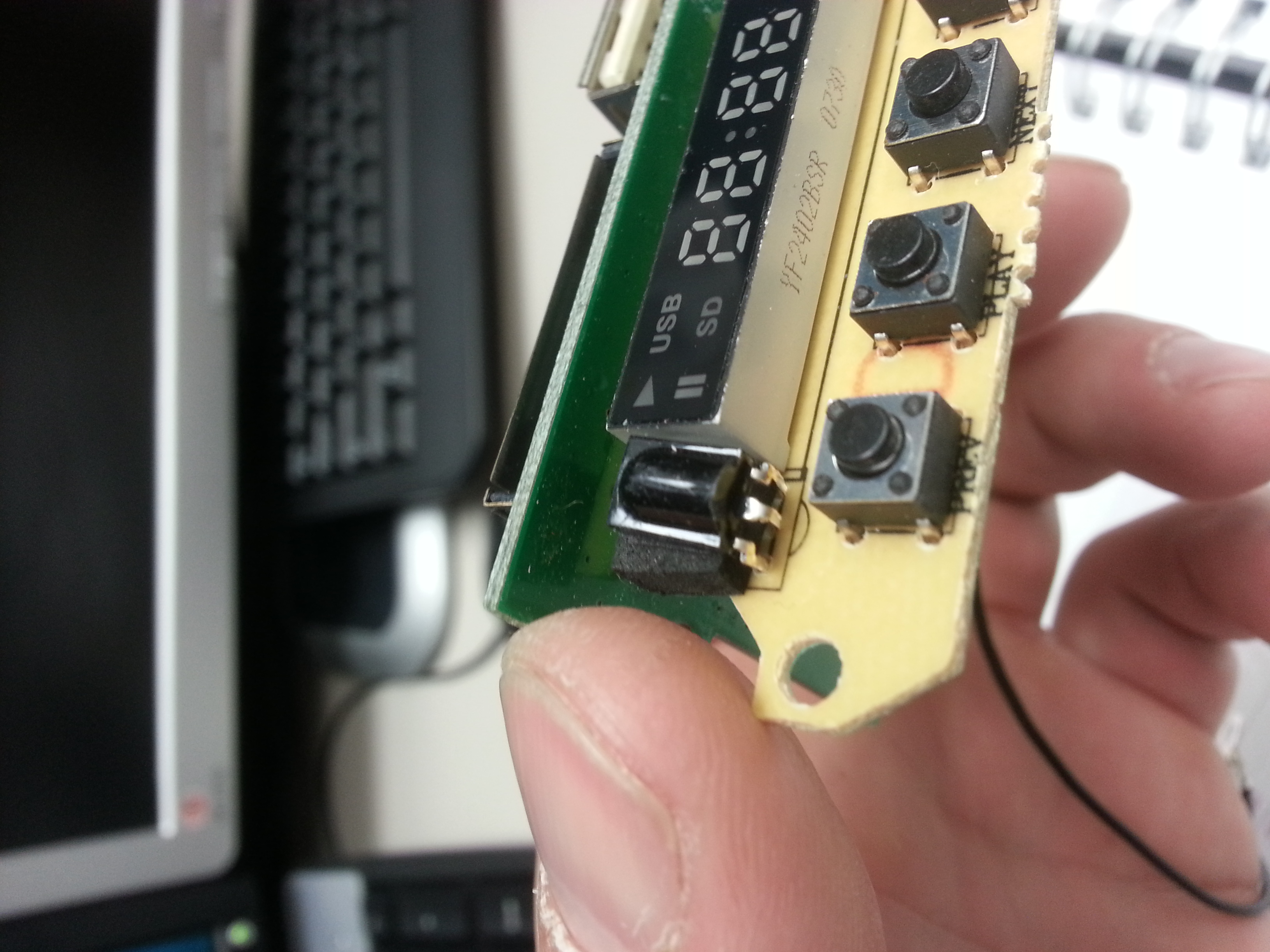

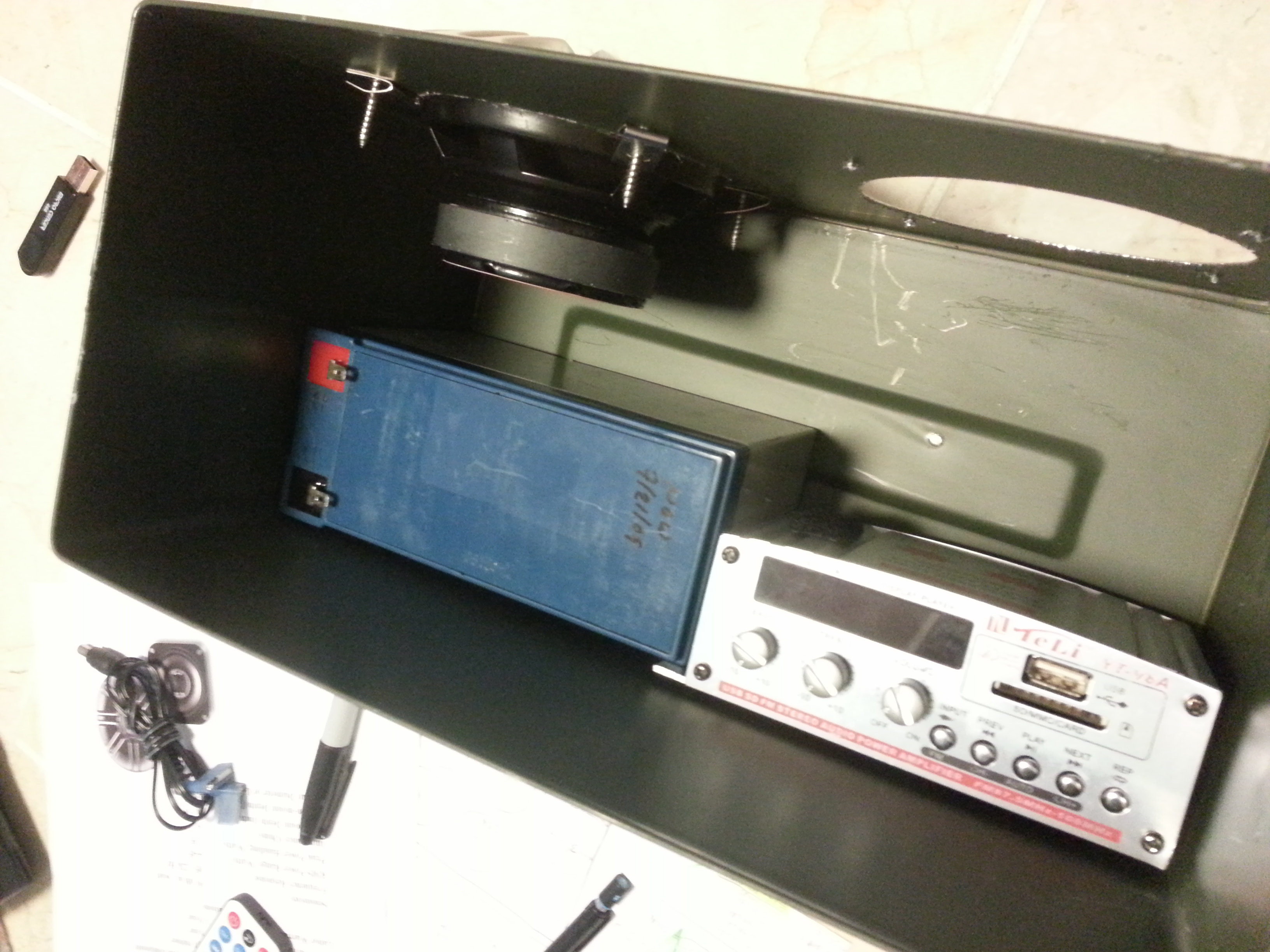

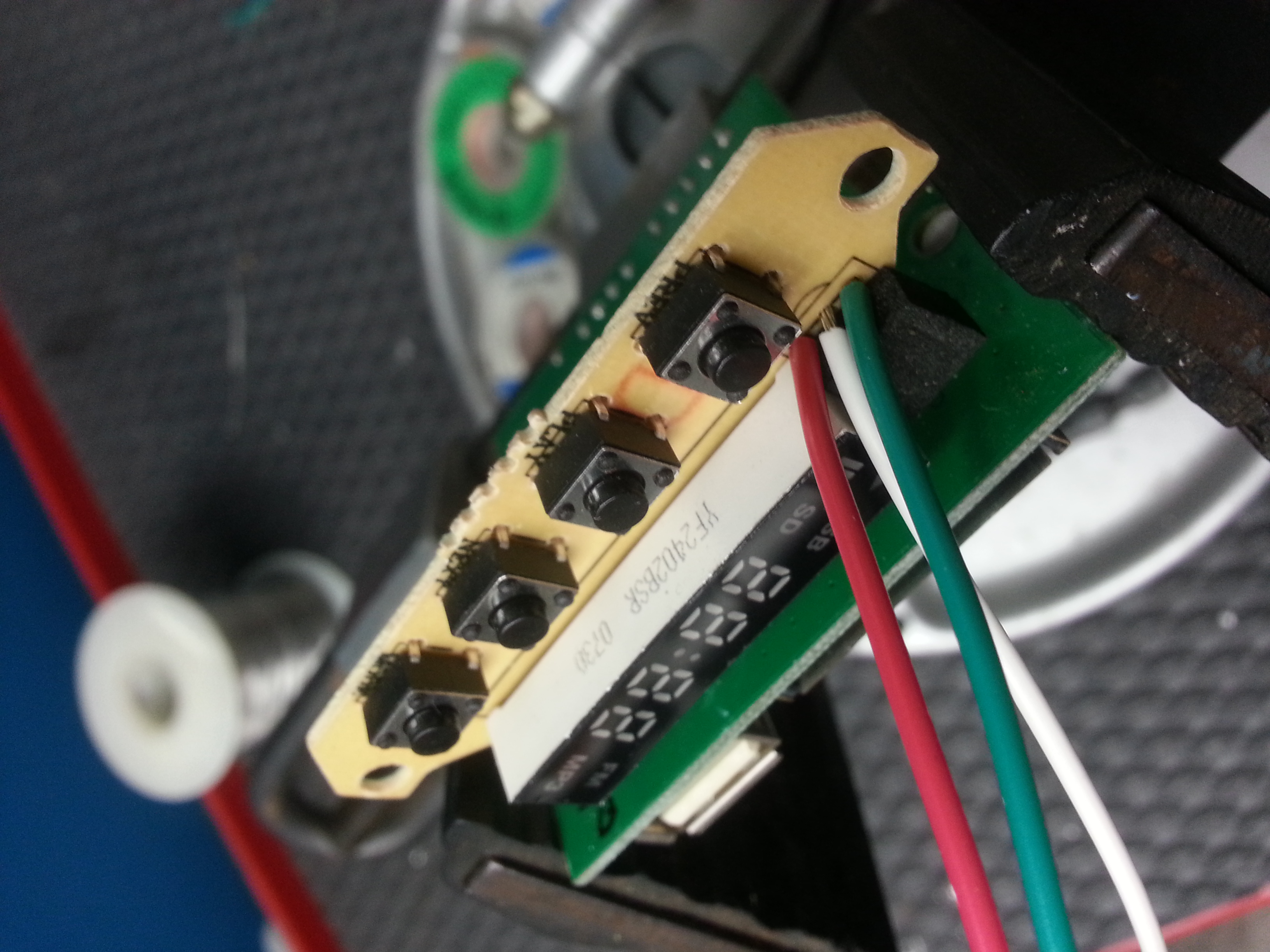

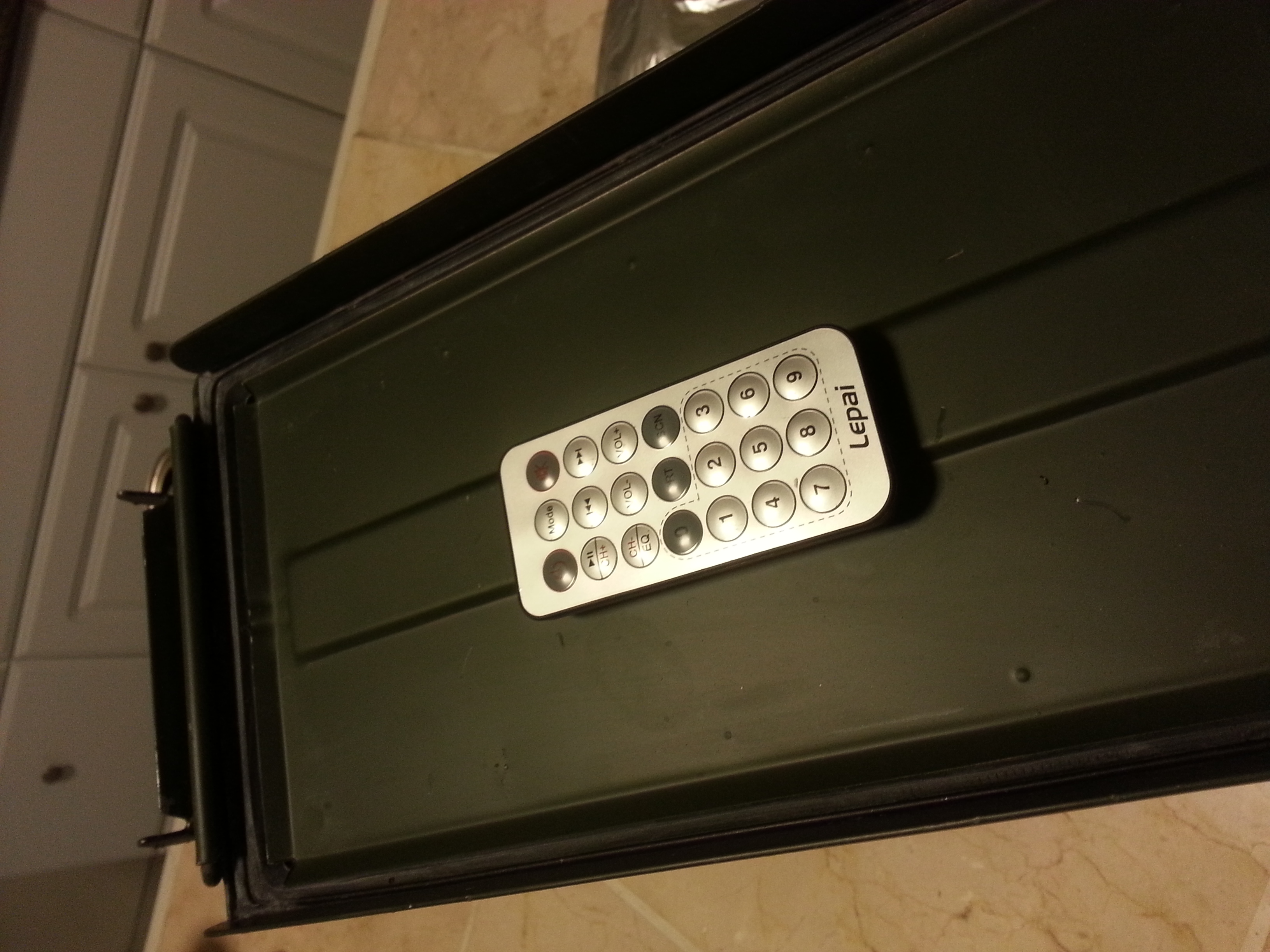

This was my first attempt at building this speaker BOOM box and it turned out great.  Bellow is the list of parts I used. I also re wired the IR sensor the outside the box so I can use the remote without opening the box. I rewired the FM antenna to the outside also. Every hole I drilled was sealed with 5200 Marine Sealant including two big speaker holes.

I plan to spray paint the speaker covers flat black.

The sound is just amazing, I am very happy with the speaker selection and do recommended to anyone for just about any application.



         - .50 Caliber Ammo Box   $20.00

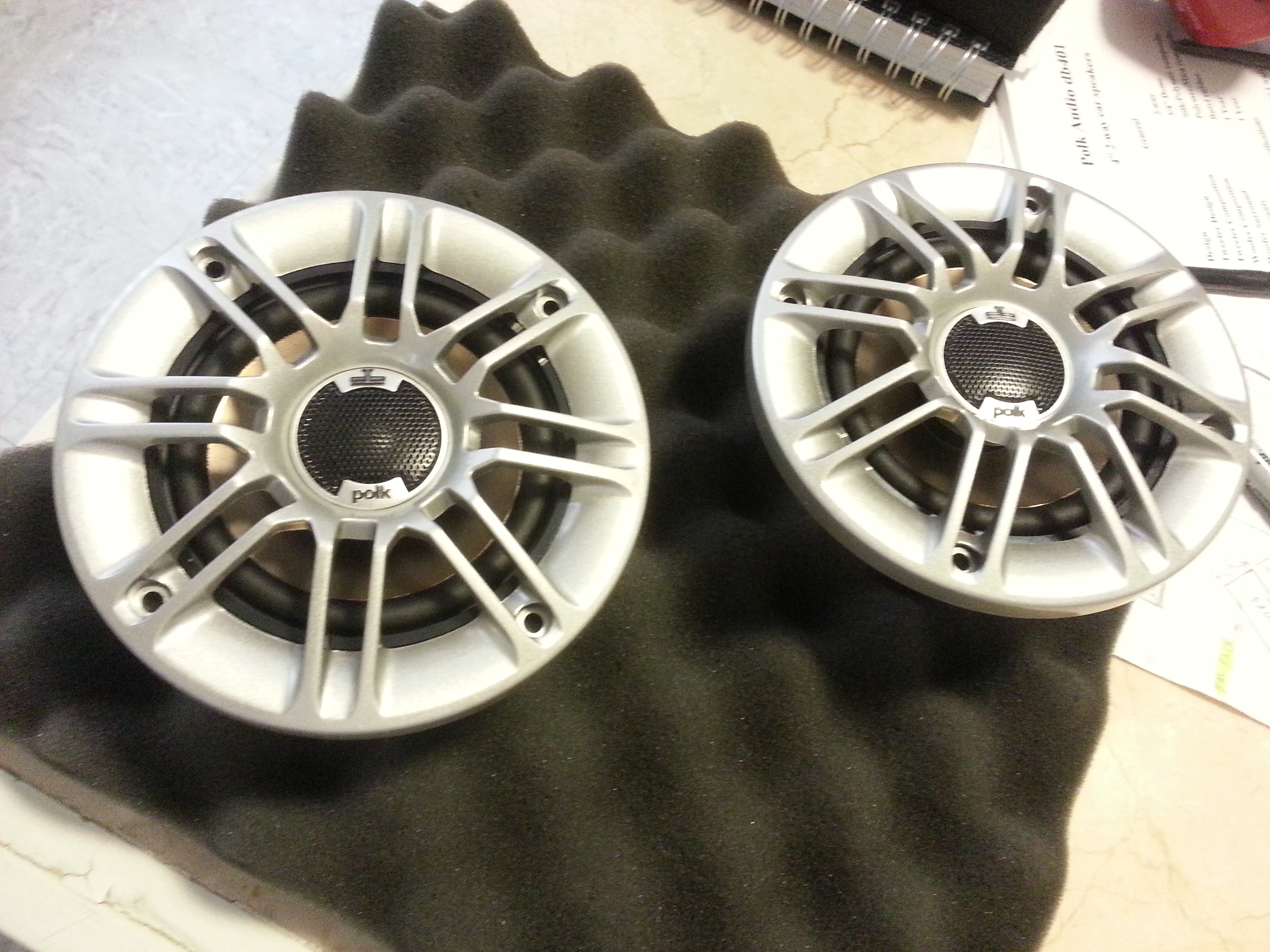

·        - Polk Audio db401 4’’ 2 way waterproof speakers $60.00

·        - Lepai LP-A68 Digital 2 x 15W Amplifier USB/MP3/SD/FM $25.00

·        - Power Sonic PS-1272 F1 (12 Volts 7.2Amp. Hr.) Battery  $25.00

         - NOCO Genius G750 6V/12V 750mA Amp Smart Battery Charger and Maintainer  $30.00

        -
SanDisk Cruzer Blade USB 32GB Flash Drive (SDCZ50-032G-A11) $30.00

·        - Polyester Fiberfill Stuffing (polyfill)  $10.00

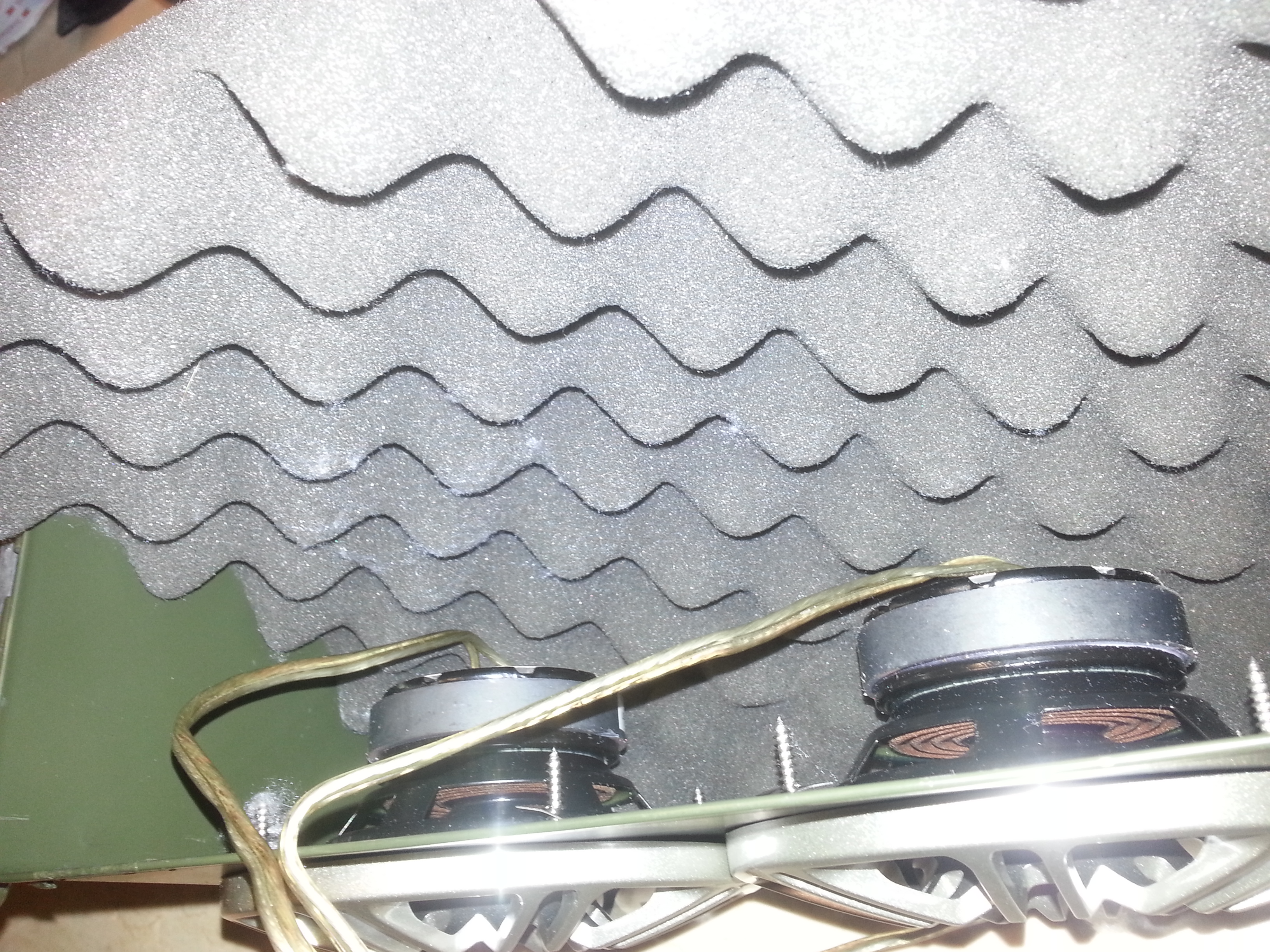

·        - Polyurethane Acoustical $10.00

·        - 3M 5200 Marine Sealant $10.00

·        - Velcro $5.00
