Ammo Box Speakers Enclosures

Hi guys,

I wanted to build speakers cabinet for my girlfriend. I like the design of this speaker so I tried to make something similar. I decided to use cal 50 amo boxes because they are cheap, waterproof and have good volume to build cabinet.

In order to do this, I used the folowing suff :

• 2 cal 50 ammo box, you can find it on Amazon or in a local Army Surplus store.
• 2 JVC speakers reclaimed from old cabinet

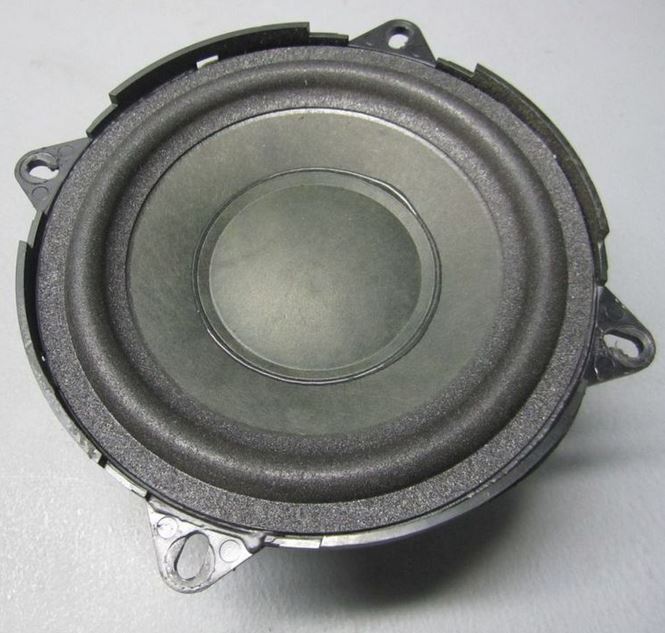

• 2 Blaupunkt speaker reclaimed from a car audio
• you can find this kind of speakers everywhere on internet
• Acoustic foam, you can find it on Amazon or in a local DIY store
• Terminal speaker block, you can find it on Amazon
• Linen fabric, you can find i on Aliexpress
• Glue Neopren contact, you can find in a local DIY store
• Surgu
• Steel tube
• Wire, screws

The tools I used :

• Drill,
• Drill + hole saw
• Jigsaw
• screwdriver
• soldering iron
• clamp

First of all, I drew boxes on autocad in order to identify some drilling to be realized.

I did a boxe's diagram because it allowed me to check the bulk represented by the speakers. Then I did 4 different holes of diameters for each box :

• 2 for speakers (which depend on the diameter of speakers used)
• 1 for the terminal speaker block
• 1 for the steel tube used for the bass reflex system

In order to make these holes,I used a jigsaw for the biggest speakers holes and drill + hole saw for the others holes.

I don't have a lot of pictures for this step sorry ...

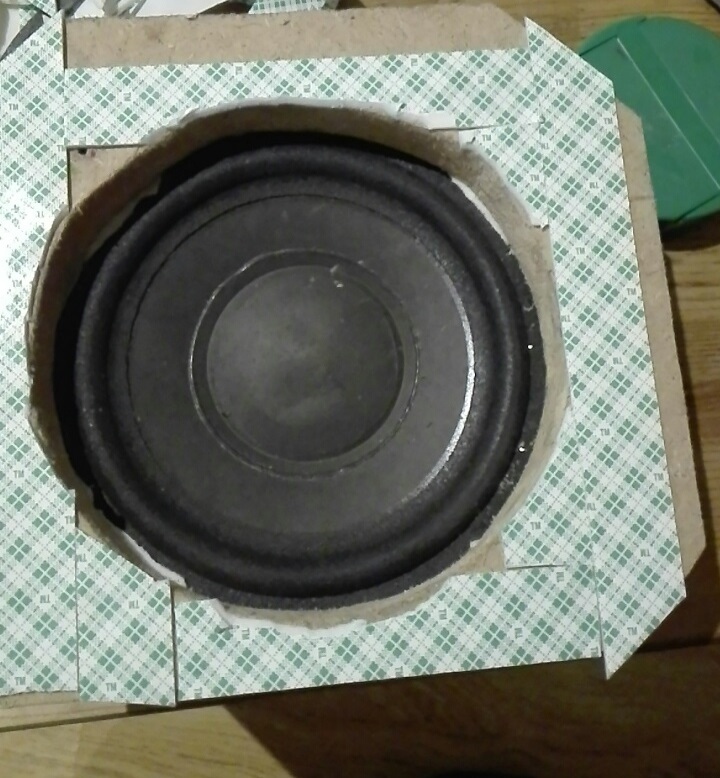

To mount big speakers, I did wood struts on which I stuck 3 coats of double-sided.

I used theses struts to mount speaker inside the box. I added screws for sturdiness.

To mount smaller speakers, I only stuck 1 or 2 coats.

Afterwards I stuck pieces of acoustic foam on all sides inside the box except those were fixed on the speakers.

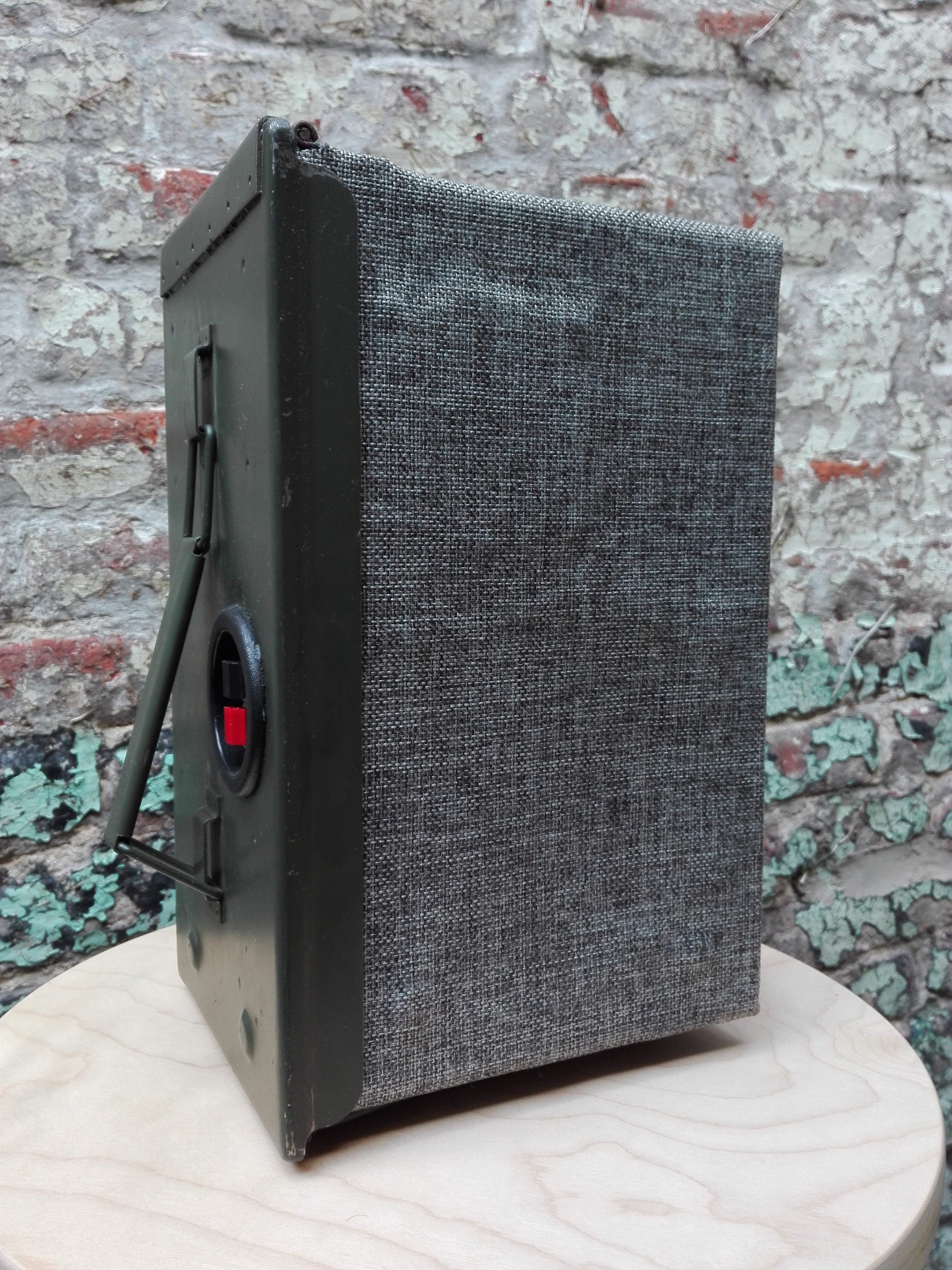

To mount the bass reflex tube and terminal I used Sugru and clamps.

I took advantage of this step to solder acoustic wire on speaker.

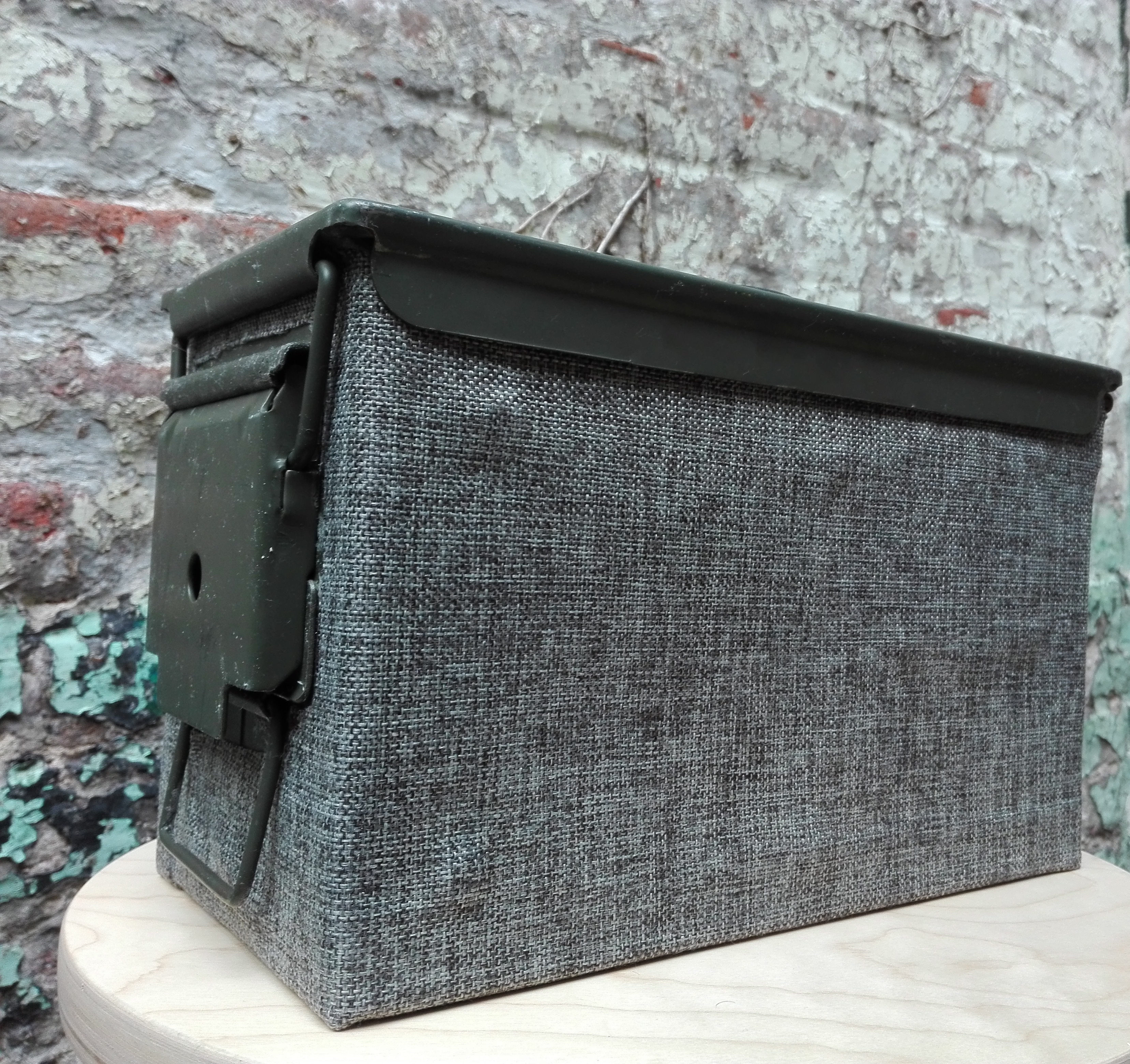

The speakers are now finished and functional, there's only a little of decoration to be made.

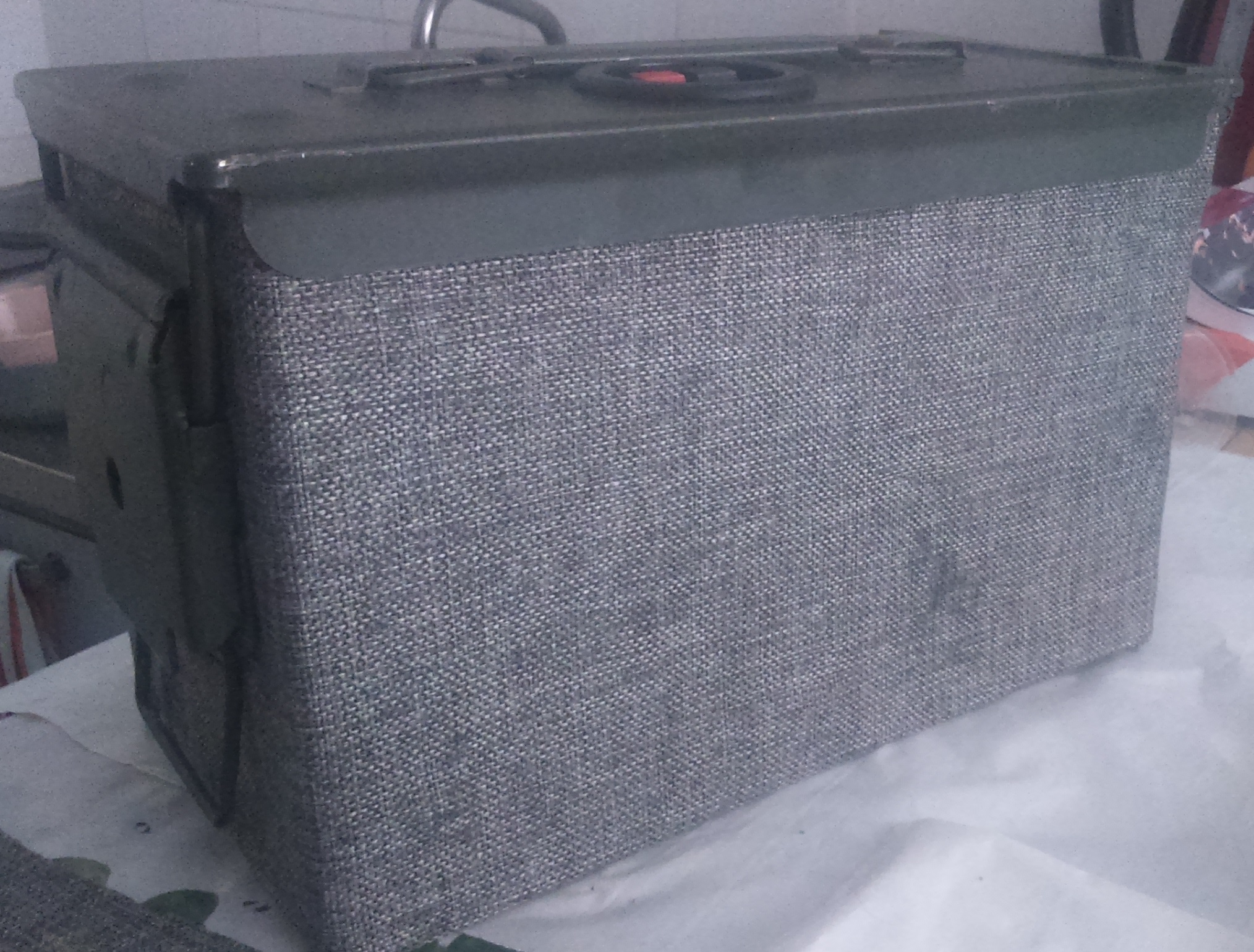

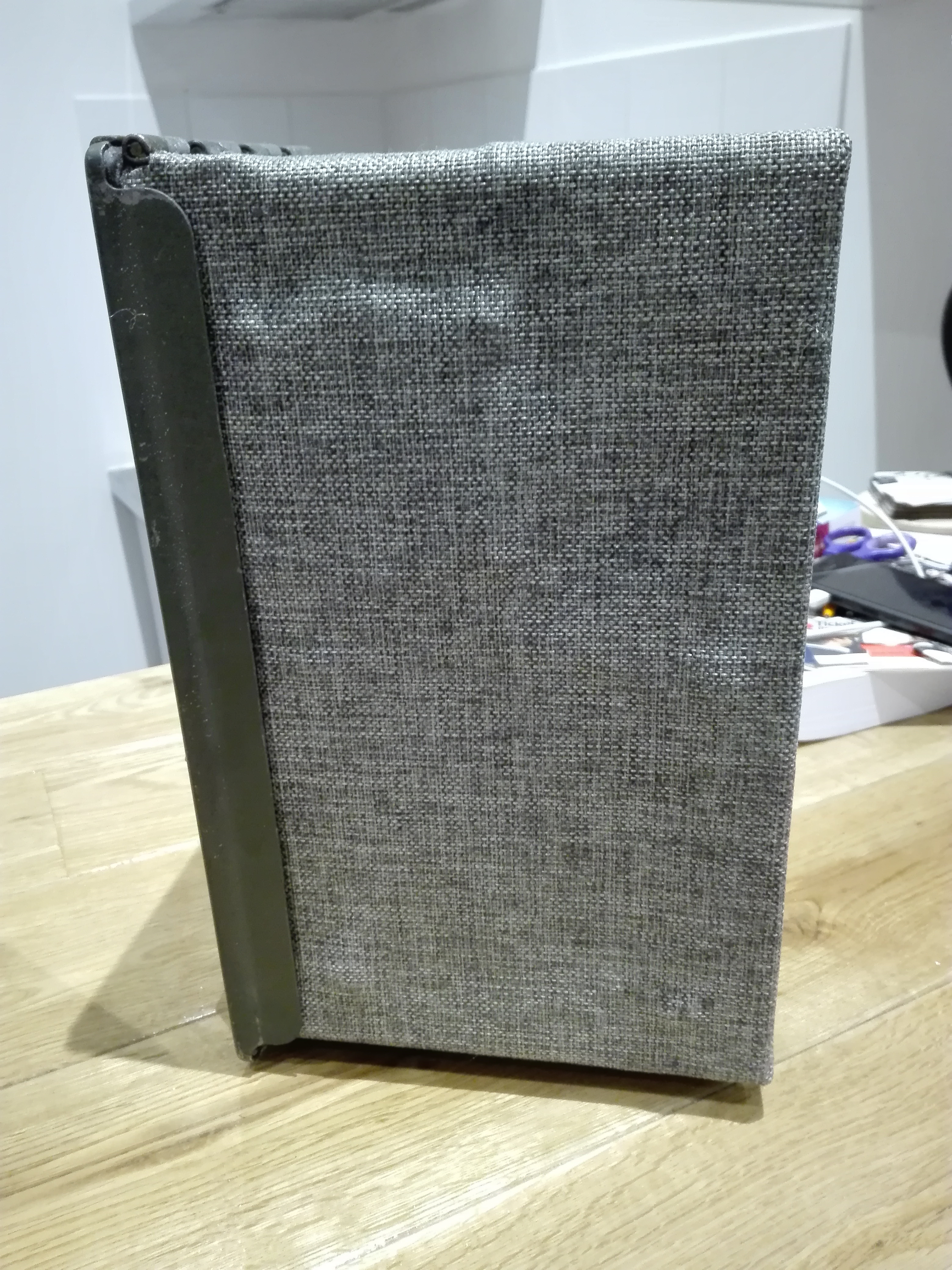

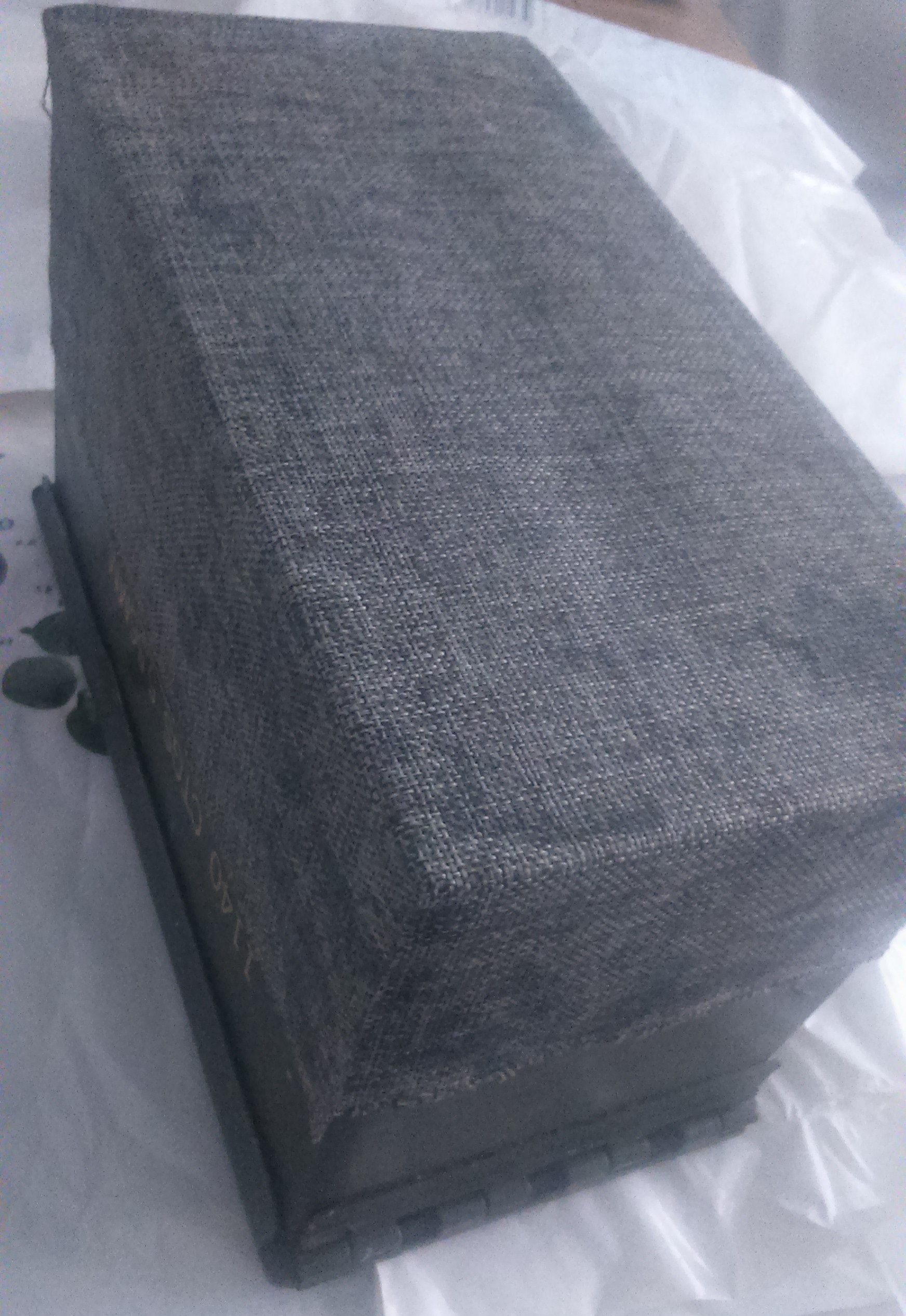

I glued linen fabric with neoprene spray

Thank you very much for reading, my English is not perfect but I'm doing my best ;)

I hope I gave you some ideas ! If you like this intructable and have any suggestions, questions or tips please let me know and vote for it !
