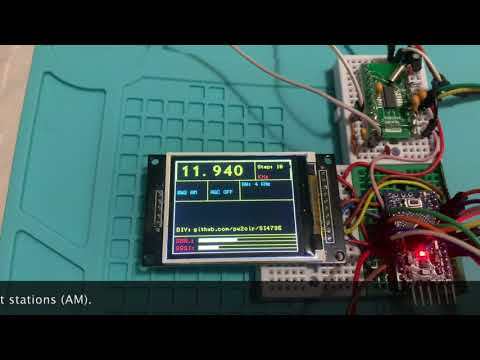

All Band Receiver With SI4732 / SI4735 (FM / RDS, AM and SSB) With Arduino

It is a all band receiver project. It uses the Si4734 Arduino Library.

This library has more than 20 examples.

You can listen to FM with RDS, local AM (MW) station, SW and amateur radio stations (SSB).

All documentation here.

This is an Arduino library for the SI47XX, BROADCAST AM/FM/SW RADIO
RECEIVER IC family from Silicon Labs. This Library has more than 20 examples showing how to build a receiver FM, AM and SSB (LW, MW and SW).

This library was built based on “Si47XX PROGRAMMING GUIDE; AN332 ”. It also can be used on all members of the SI473X family respecting, of course, the features available for each IC version. These functionalities can be seen in the comparison matrix shown in table 1 (Product Family Function); pages 2 and 3 of the programming guide.

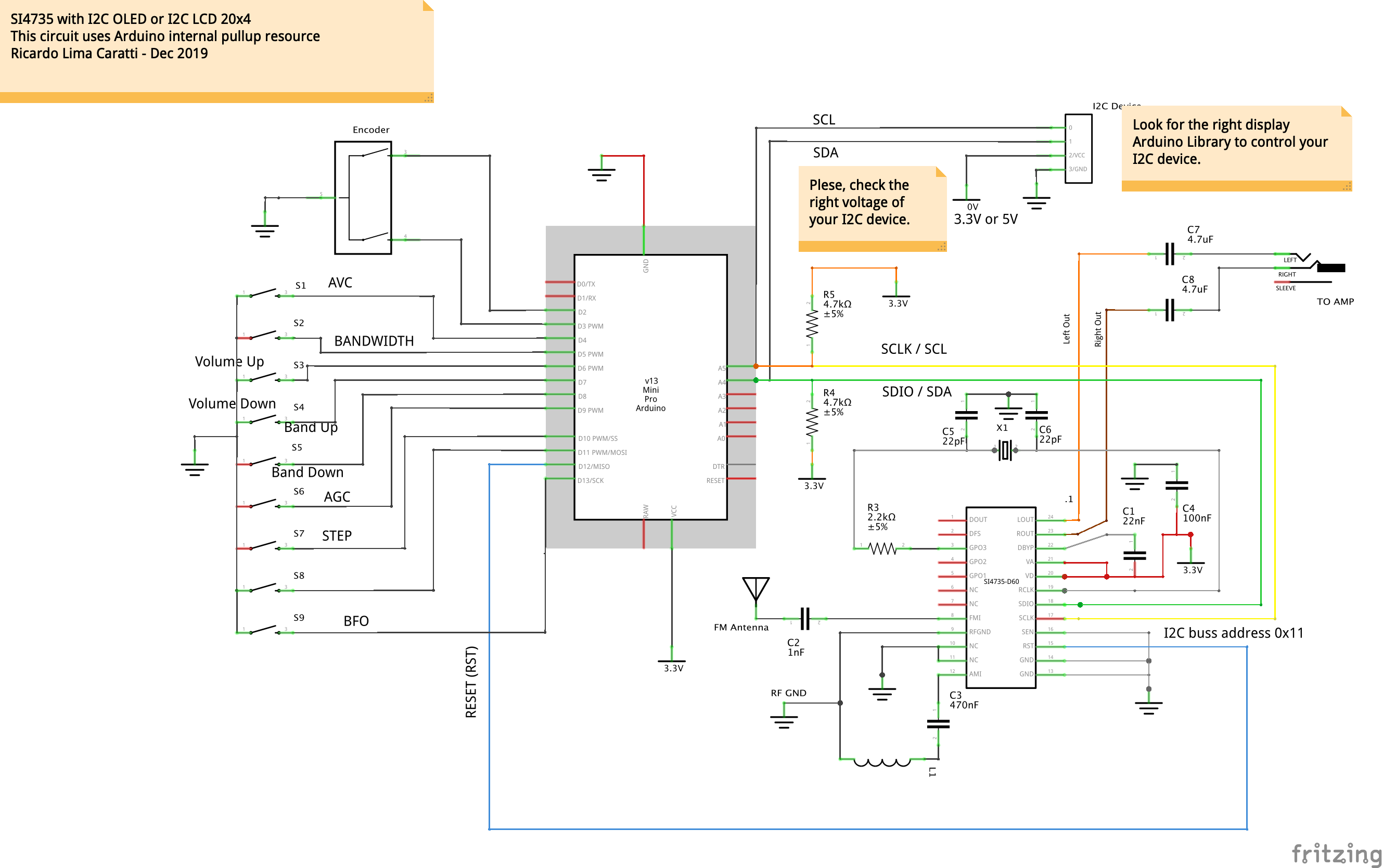

All documentation, schematic and examples can be found on

Si4735 Arduino Library

See

https://github.com/pu2clr/SI4735#schematic
