AirsoftTracker

The tracker is a device that collects the users location and send it to your phone throught bluetooth. The data that is send is formatted as a string. This data is then collected by the connected smartphone and send to the database using azure functions.
In this document we will go over the steps to setup a database, azure functions and an android project.
Necessities
- 3D printer
- Arduino Uno
- hc05 module
- locatie module
- Breadboard for testing/setup
- Azure account
- Xamarin
- Blob storage account
- Microsoft SQL server management studi
Everything Arduino



Recreate the arduino setup as in the second picture.
Upload the code to your arduino
Test Bluetooth

Using an android app that views bluetooth serial data, you should get something like this.
Setup Database


- Create your database in azure functions
- Connect to your database through SQL server
- copy SQL in a new query
Download Local Function App and Sync to Github



- Download my function app

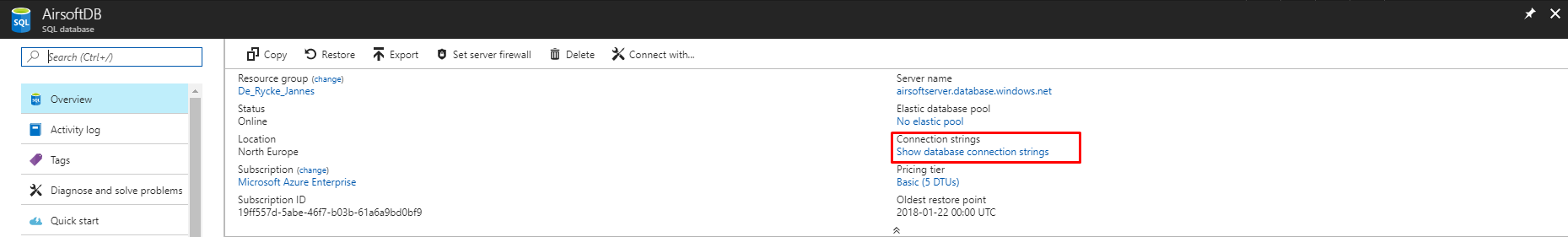

- Copy your database connection string and paste it in the function app in the local.settings.json file
- create a new private github repository
- sync the function app to the github repository using git add .
- open cmd in the project folder
- use git add .
- use git commit -m "added project"
- use git push
Azure Functions

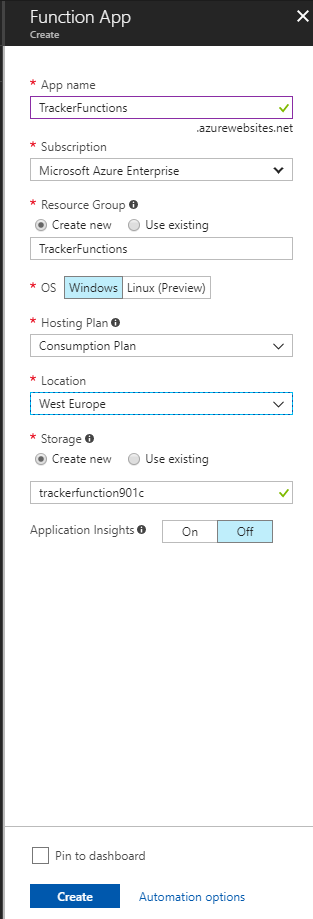

- Create a new azure function (pick a location that is closest to yours)
- Platform features --> Deployment options
- Pick github and select your repository
- sync
Android Project

- Download the android project
- Open the android project
- Open the model folder
- Open the AirsoftManager.cs file
- change every string url to your matching azure function URL
- Save the project
