Air-Lift Irrigation Using Solar Panel

The principle of the air-lift irrigation

The solar panel supply the power to the air pump. Then, the pump injects compressed air at the intersection. The compressed air mixes with the water causing the air-water mixture to be less dense than the rest of the water around it and therefore is displaced upwards through the discharge pipe by the surrounding liquid of higher density.

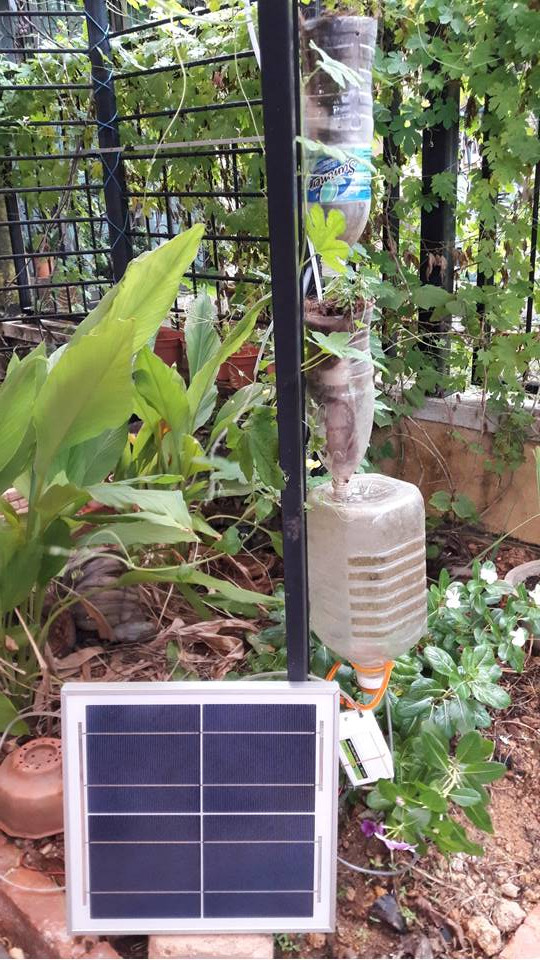

This is an instructable of using a solar panel to air-lift water for the vertical garden.

The reason I did this was to lessen the electrical bill.

References:

http://www.icid.org/res_irri_lift.html

https://en.wikipedia.org/wiki/Airlift_pump

http://www.fao.org/docrep/010/ah810e/ah810e00.htm

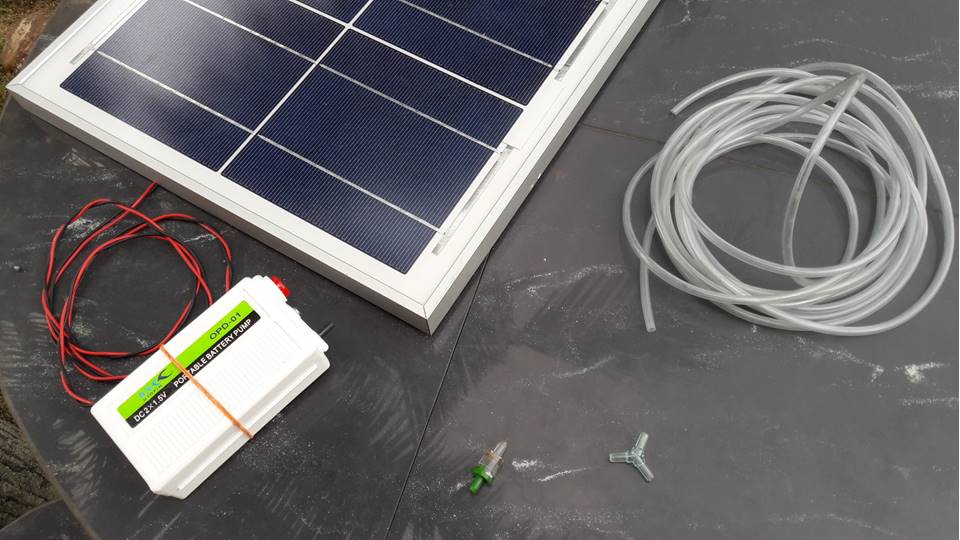

Most of the items you can buy from an aquarium shop.

1. 2.40v solar panel (you can get it at Amazon.com)
2. 2 meter electric cable

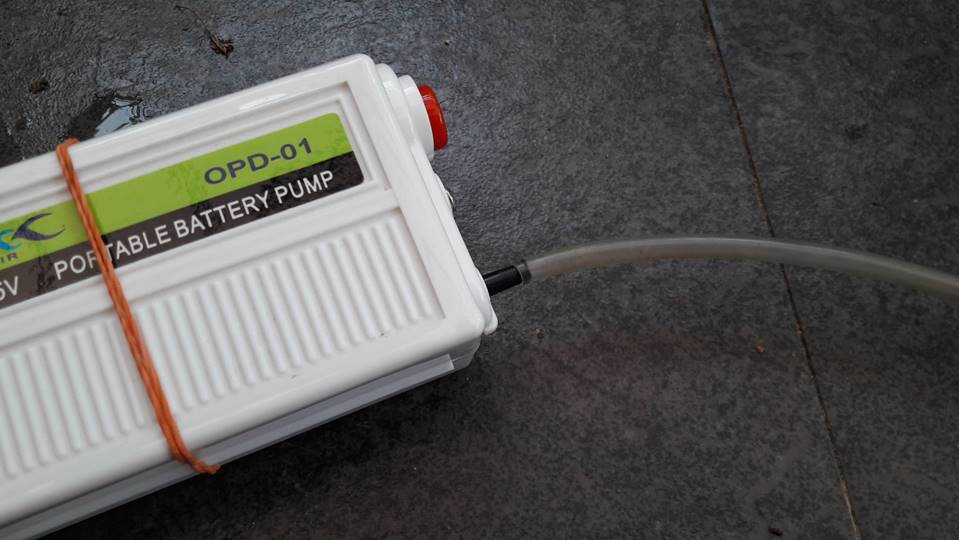

3. Battery powered air pump
4. Aquarium air tube
5. Air valve
6. 3-way air connector

Tool

1. Scissor

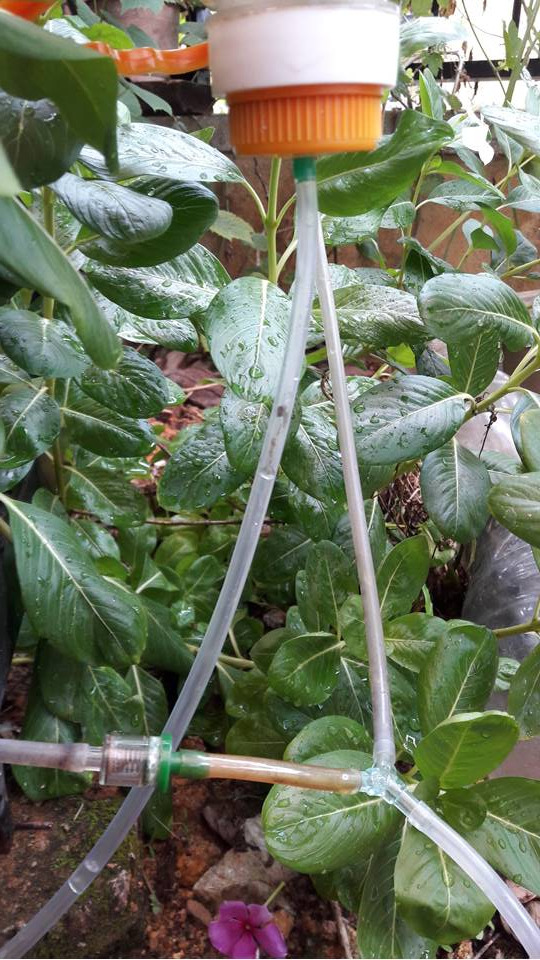

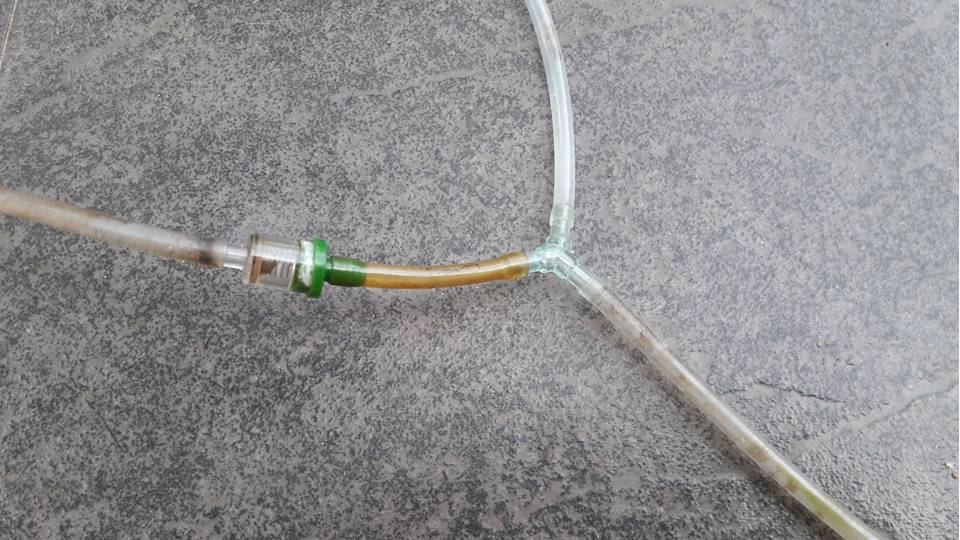

1. Firstly, I connect the air tube with the 3-way connector.
2. One the air tube, I connect it with the air valve (make sure to connect correctly)

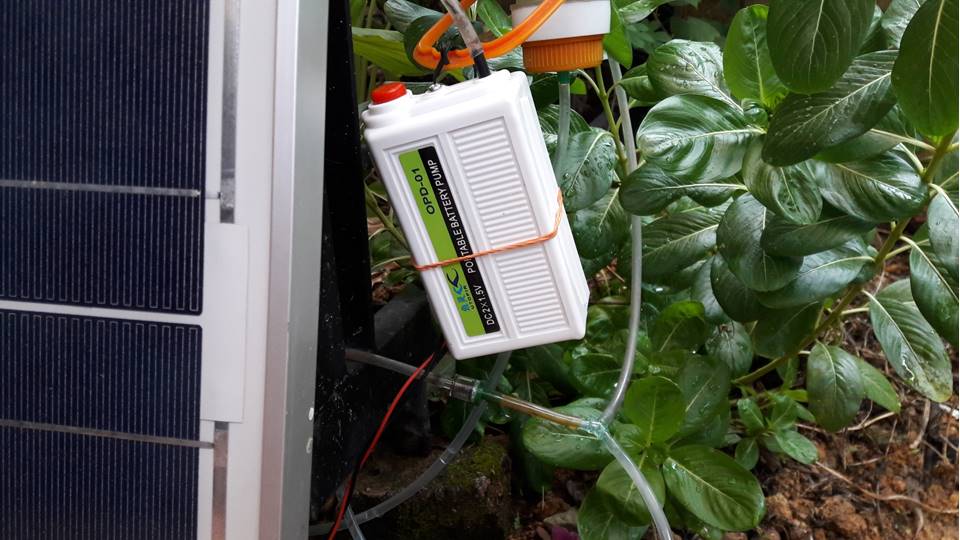

3. The same tube, I connect it with the air pump.

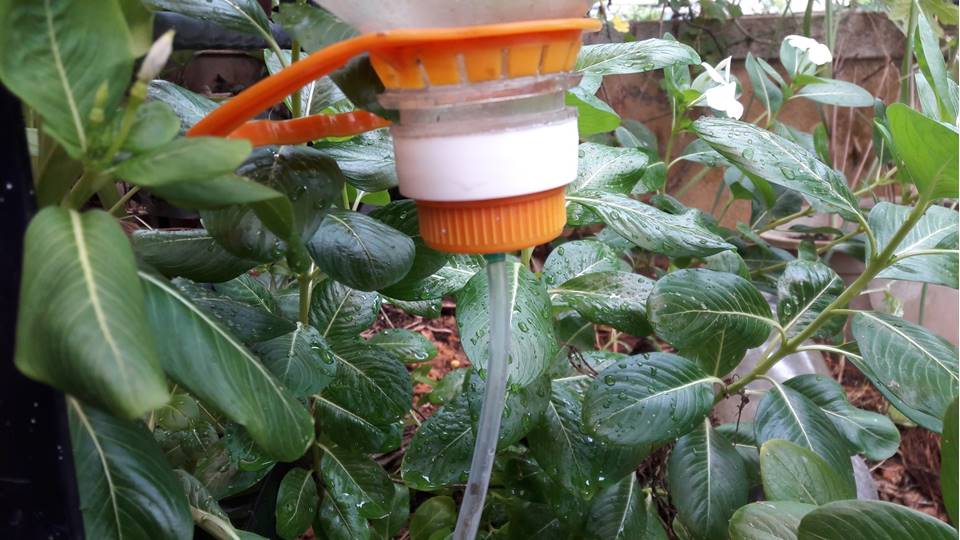

4. The next tube, I connect it with the water reservoir.

1. When the sunlight is sufficient, I switch on the air pump.
2. The water from the reservoir flow to the 3-way connector. Because there is a air valve installed, the water is prohibit to flow into the air pump.
3. The generated air then push the water up (air-lift) to the top planter.

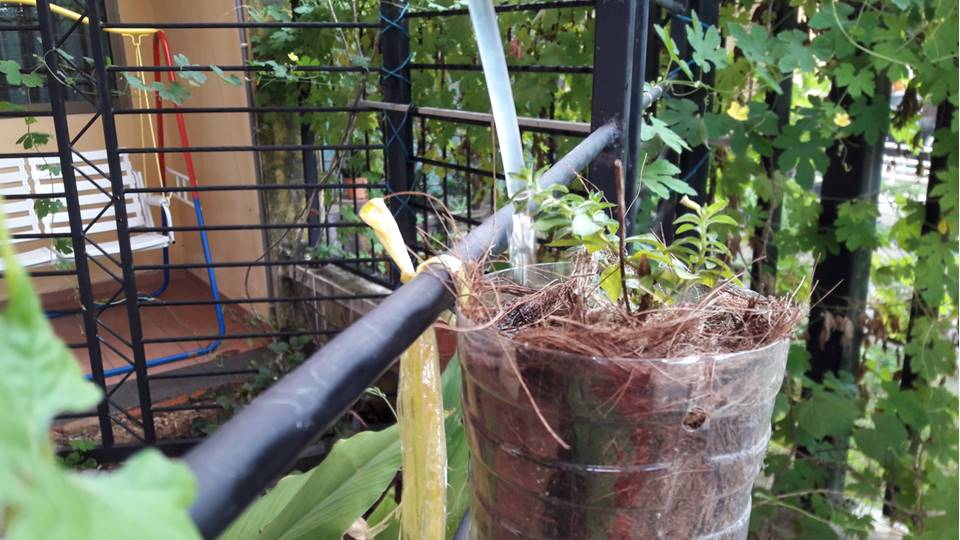

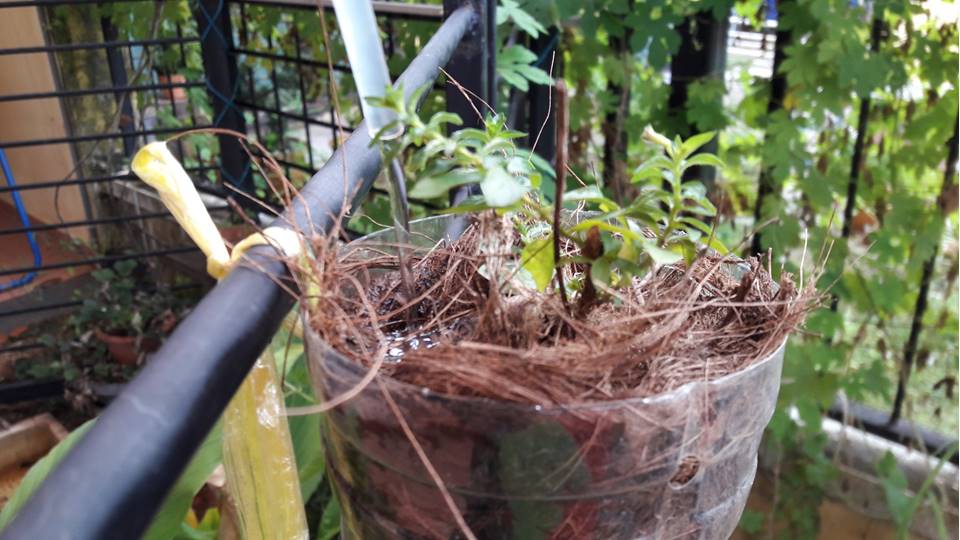

1. The water flow nicely at the top planter.
2. Soon, the water will flow back into the reservoir.
3. The cycle continue.

This is how I arrange air-lift irrigation for the vertical garden using solar panel.

HAPPY MAKING!
