Air Conditioning Assistant
While an AC is nice to have on during a hot summer, we always kick ourselves when we forget to turn it off when leaving the house, This Arduino project will help solve this problem once in for all, and you will never have to worry about forgetting to turn off your AC when leaving your house.
Supplies
Supplies:
1 Arduino Board(I'm using Leonardo)
1 Breadboard
1 LED Lightbulb(I'm using the red color)
2 Precision Resistors
1 R
1 Photoresistor
1 Thermistor
Around 10-15 Lines
1 Tissue Box
1 Roll of Tape
1 Roll of Colored Tape
1 Piece of Paper
1 Pair od Scissors
Creating a Photoresistor Circuit

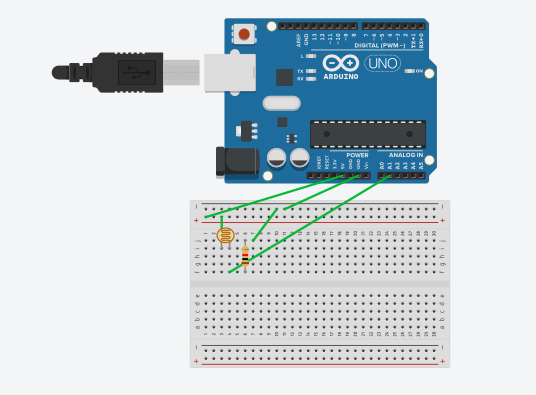

Above is a diagram for creating a Photoresistor Circuit
Creating an LED Circuit
Above is a diagram of a LED circuit
Creating a Thermistor Circuit
Above is a diagram of a thermistor circuit(Note: I am using a photoresistor as substitute since the software doesn't provide thermistor in their diagram)
Complete Circuit

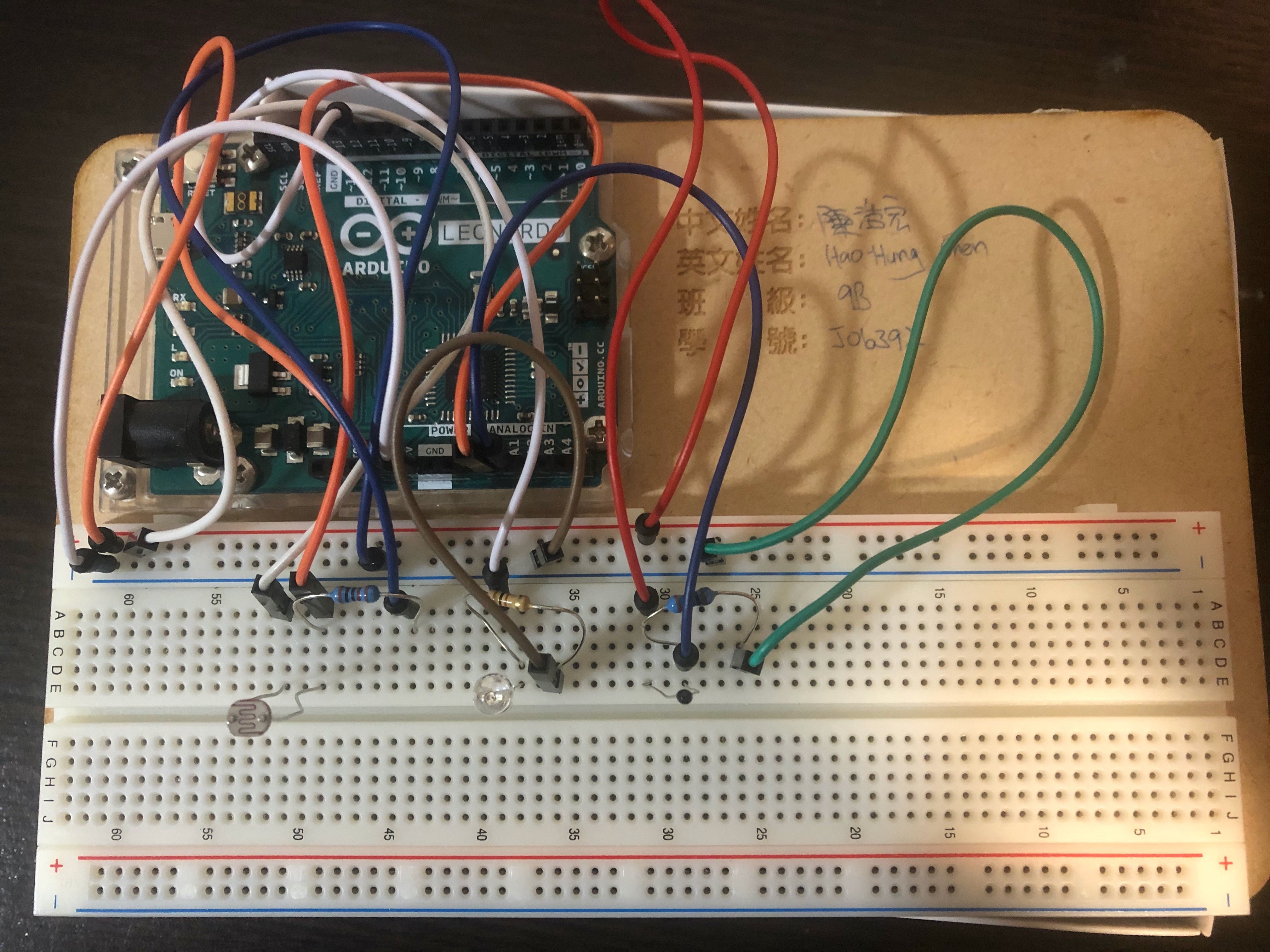

Your final circuit should look like the two pictures above
Upload the Code
Upload this code in the link below to your board
Decoration
After you uploaded your code, put your board into a tissue box, and poke holes for the photoresists, LED, thermistor, and the USB Cable, wrap the tissue box with a sheet of paper, and decorate with colorful tape and seal with regular tape. It should look something like the picture above.
YOU DID IT
Congrats, hopefully you will never forget to turn off your AC!
