Air Conditioner Blower Cleaning.
by Mjtrinihobby in Workshop > Home Improvement
5445 Views, 3 Favorites, 0 Comments
Air Conditioner Blower Cleaning.

This instructable shows how to clean the blower unit in half hour or less. To reach the blower I used a step ladder but depending on your height you may need something taller.
Cleaning the Air Filters.


Flipping the cover to access the washable filters. I cleaned mine with soap water and a cleaning pad.
Gaining Access.


I removed the flap and air vanes to gain access to the impeller.
Cleaning the Impeller.



This is the most time consuming task. Using a half inch paint brush I thoroughly cleaned the fins of the impeller. One hand to steady the impeller and the other to brush. Lots of caked up dirt came out. It's a good idea to wear a head mounted flashlight and a respirator.

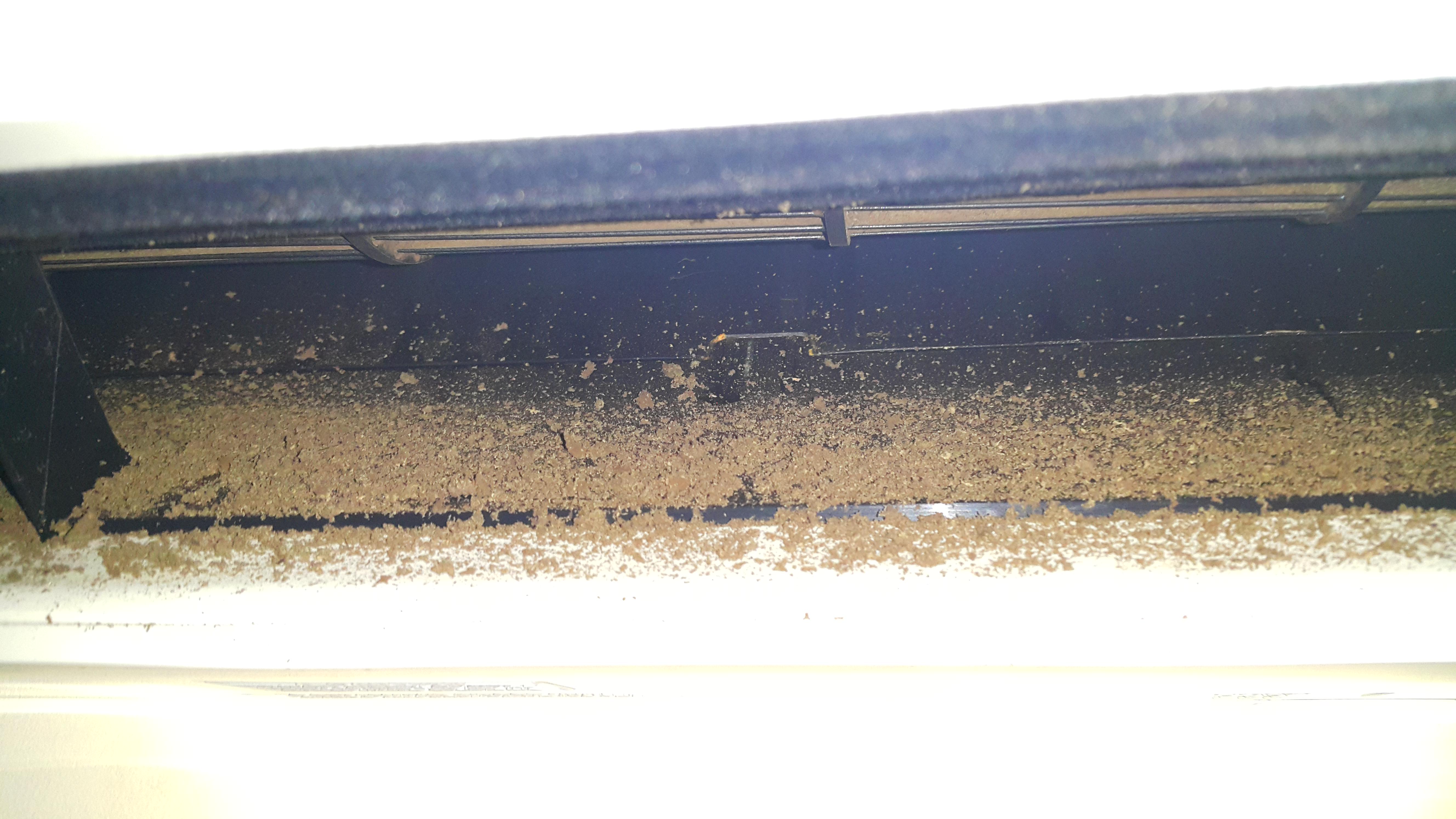

Cleaning Up Debris.

I used a damp rag to wipe out the fallen debris. After washing the rag I wiped the entire surface of the impeller.
Completion!

I turned on the unit and more debris spewed out. I used a vacuum cleaner on the carpet to clean out the ejected stuff. Now the airflow is back to OEM spec and the room cools a bit better than before.
