Electric Screwdriver Hack

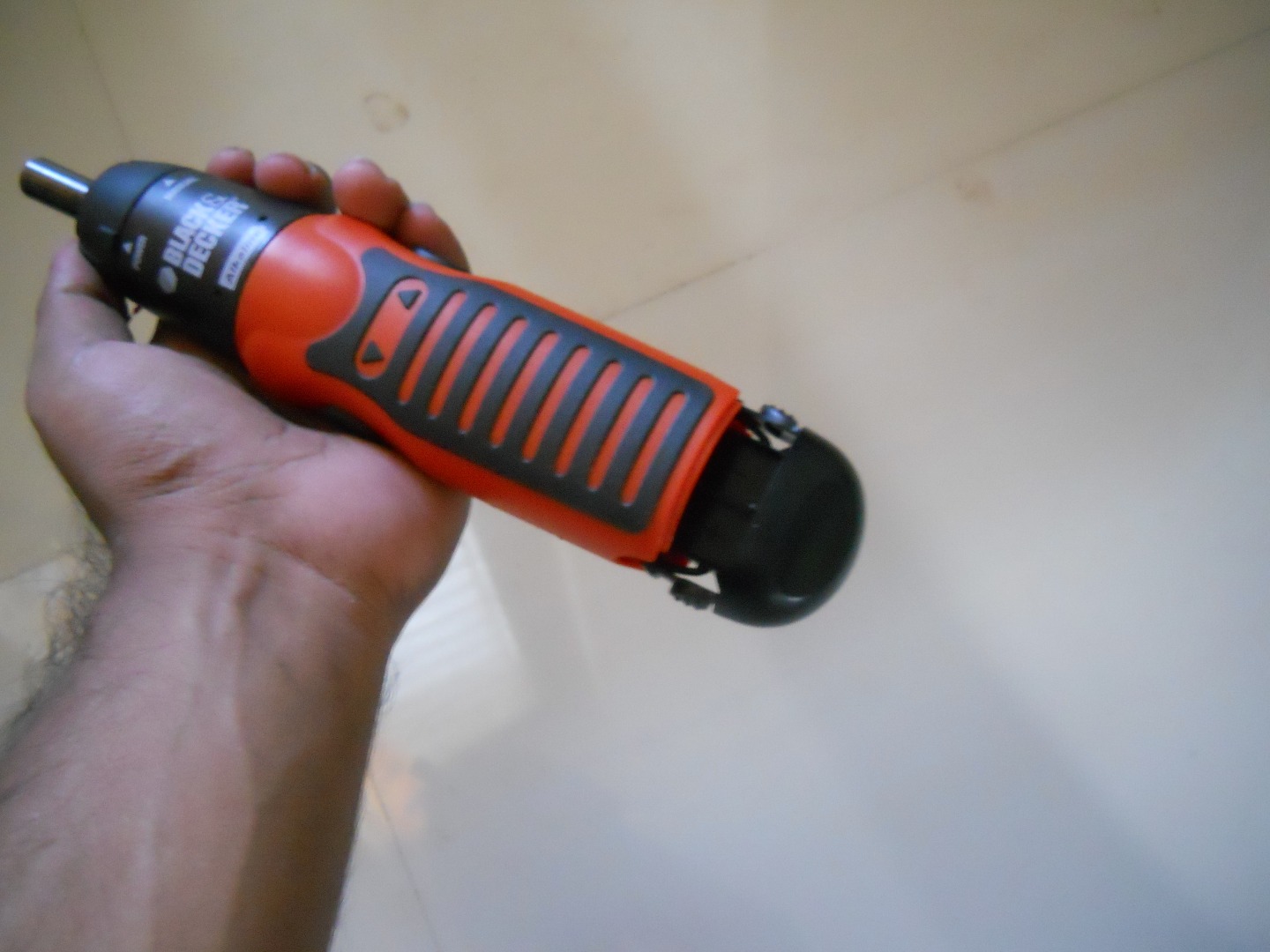

Original screwdriver runs with 4*1.5v non rechargeable cells. I modified the battery system with 5 rechargeable cells, So that we can get 6v to run the screwdriver perfectly. I also found difficulty in handling the screwdriver without handle. I thought to add handle at low cost and for easy handling. It costs half of the original rechargeable screwdriver (with handle).

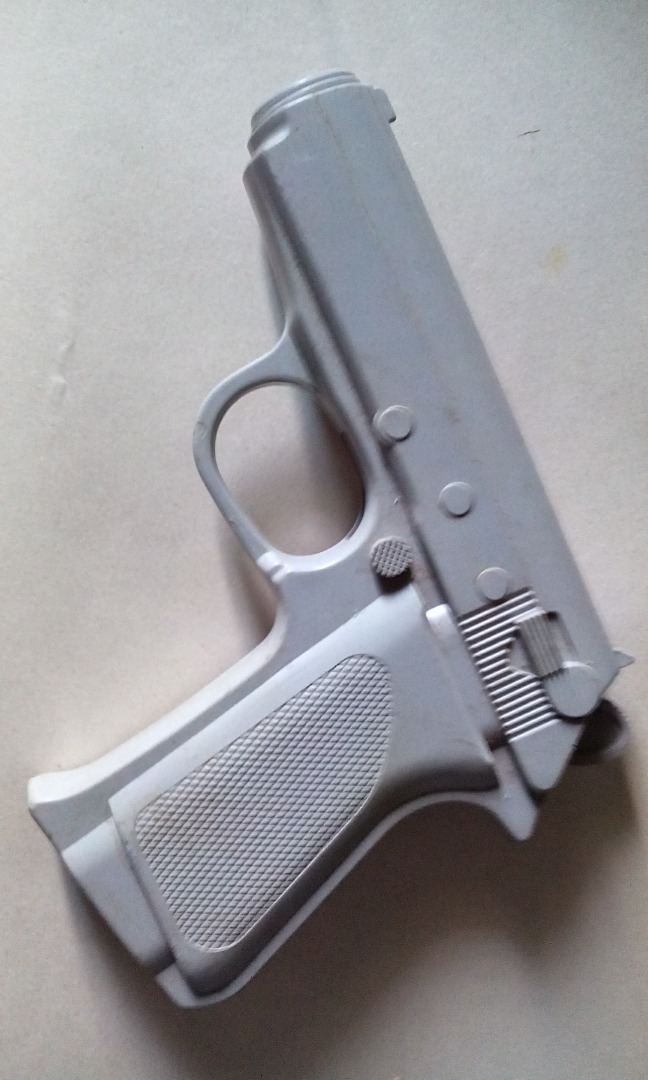

This is my prototype made with plastic toy gun. This also worked well but not as strong as I desired.

Parts needed:

• Electric screwdriver
• Push to ON switch
• Slide switch (forward / reverse)
• 2 * Nut and bolt
• PCB clad

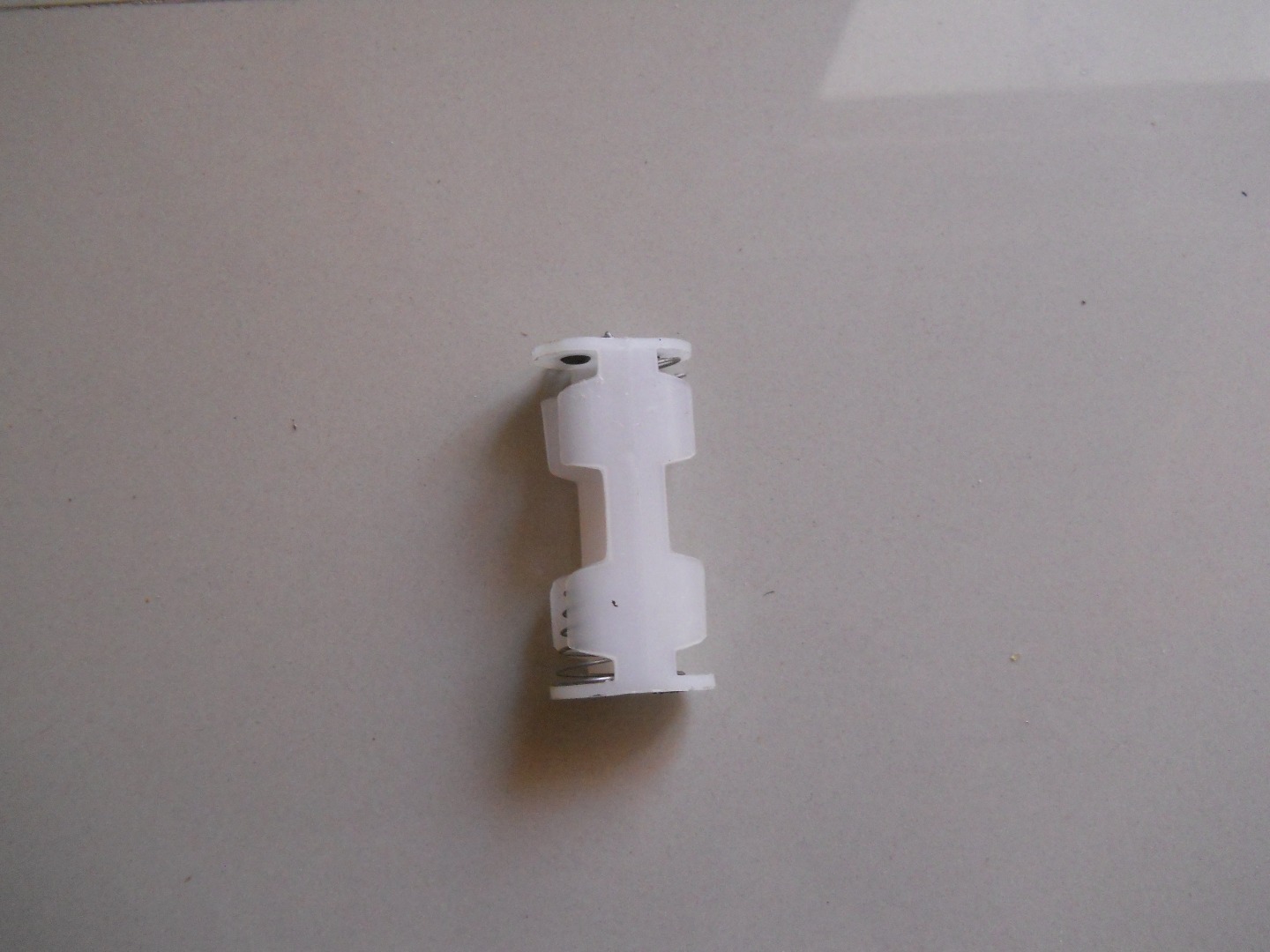

• Battery holder (Cut the spring)
• 6 mm MDF
• 4 mm MDF
• Wood glue

Tools needed:

• Jigsaw
• Drill machine
• Soldering iron
• Screwdriver

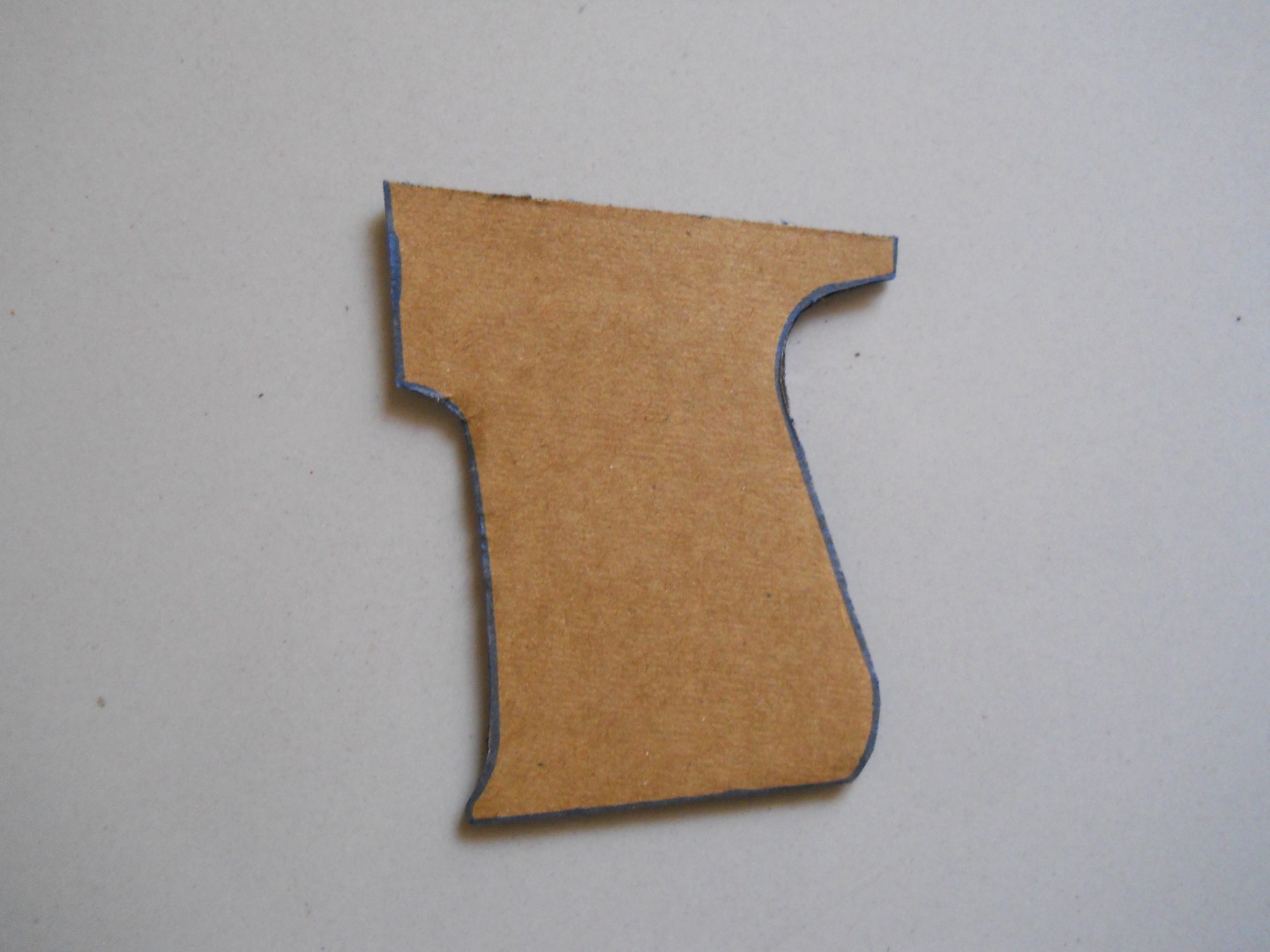

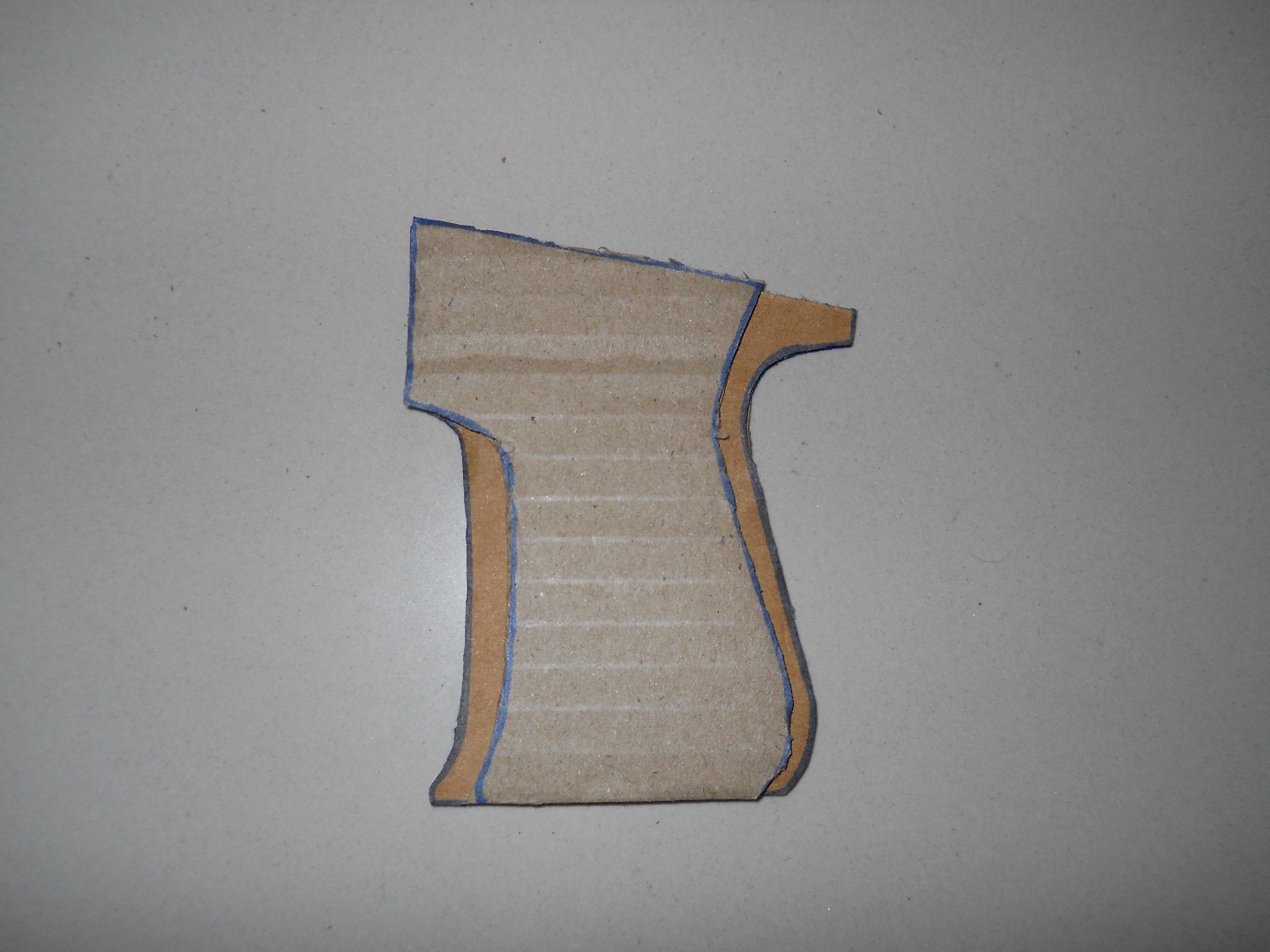

• Cut 3 pieces of template 1 from 6mm MDF.
• Cut 2 pieces of template 2 from 4mm MDF.
• Glue 6mm MDF's.

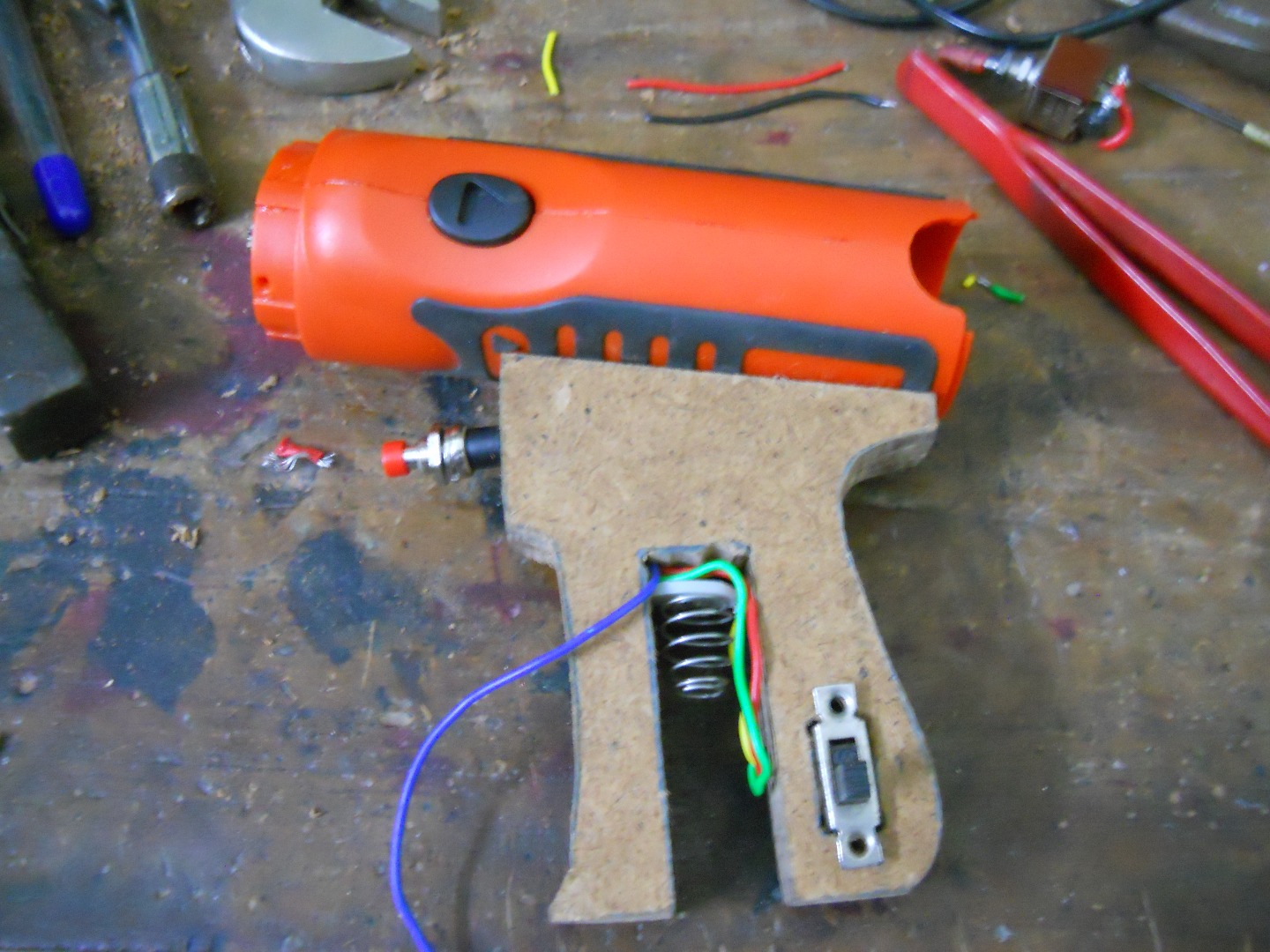

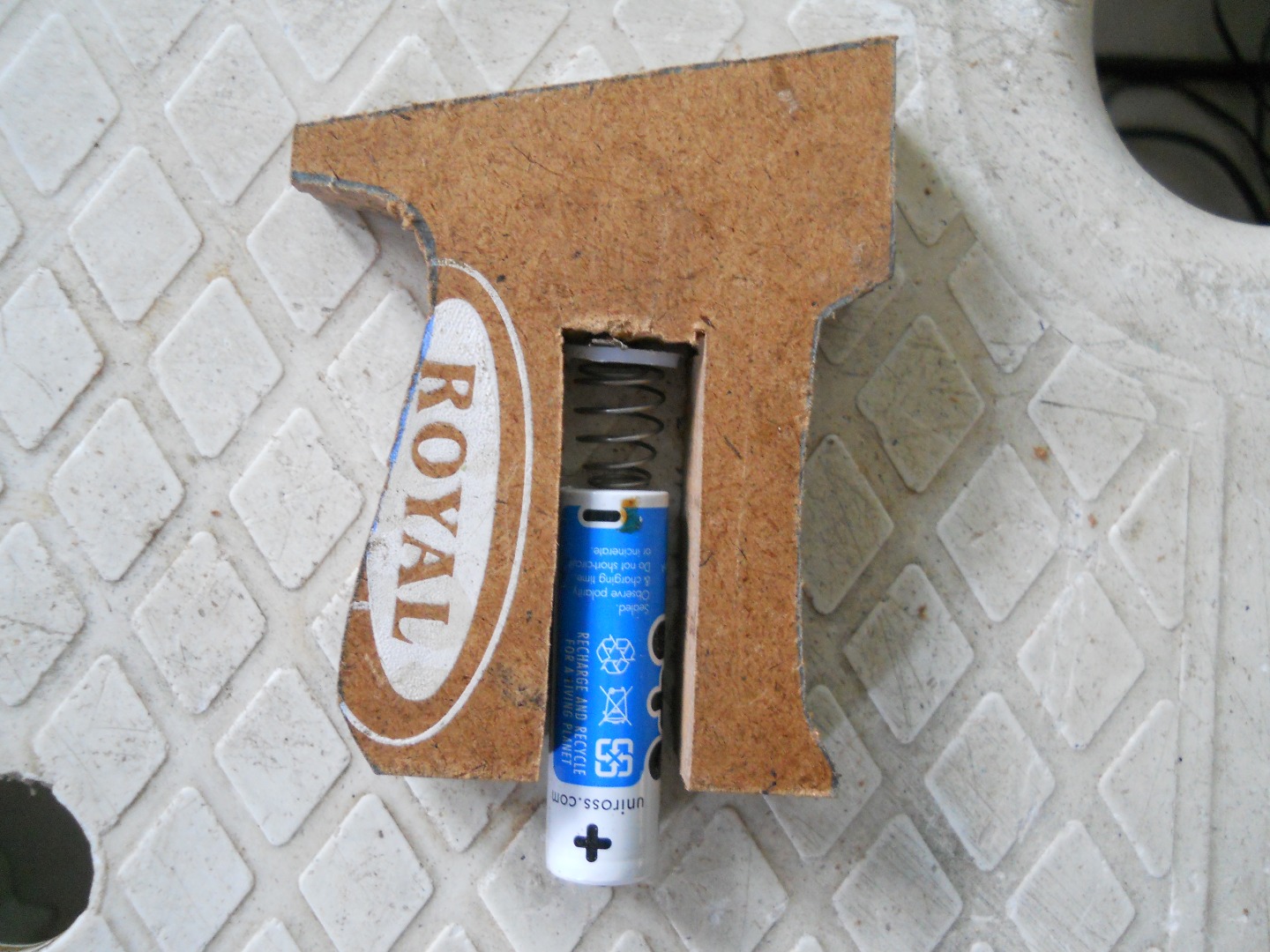

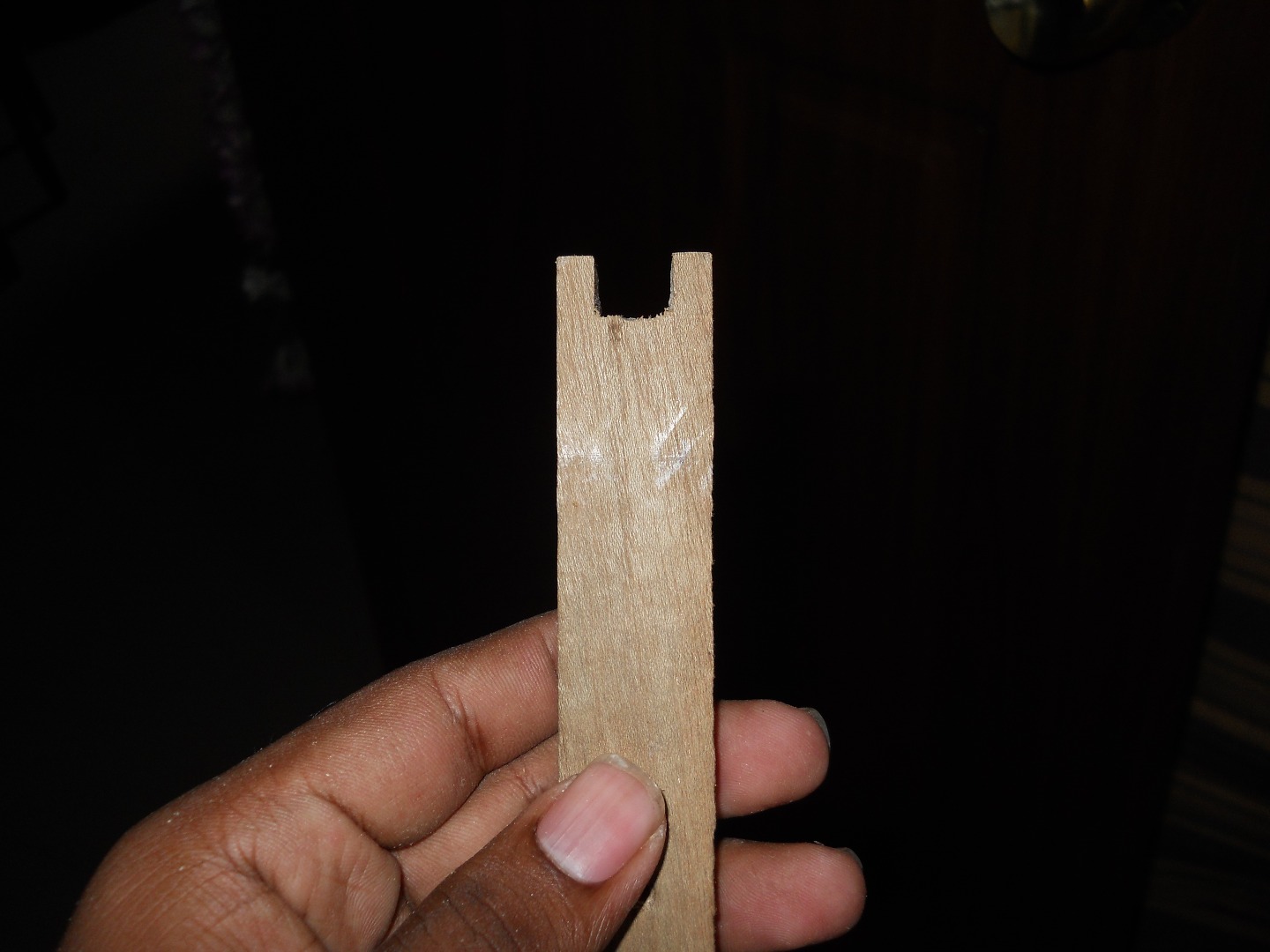

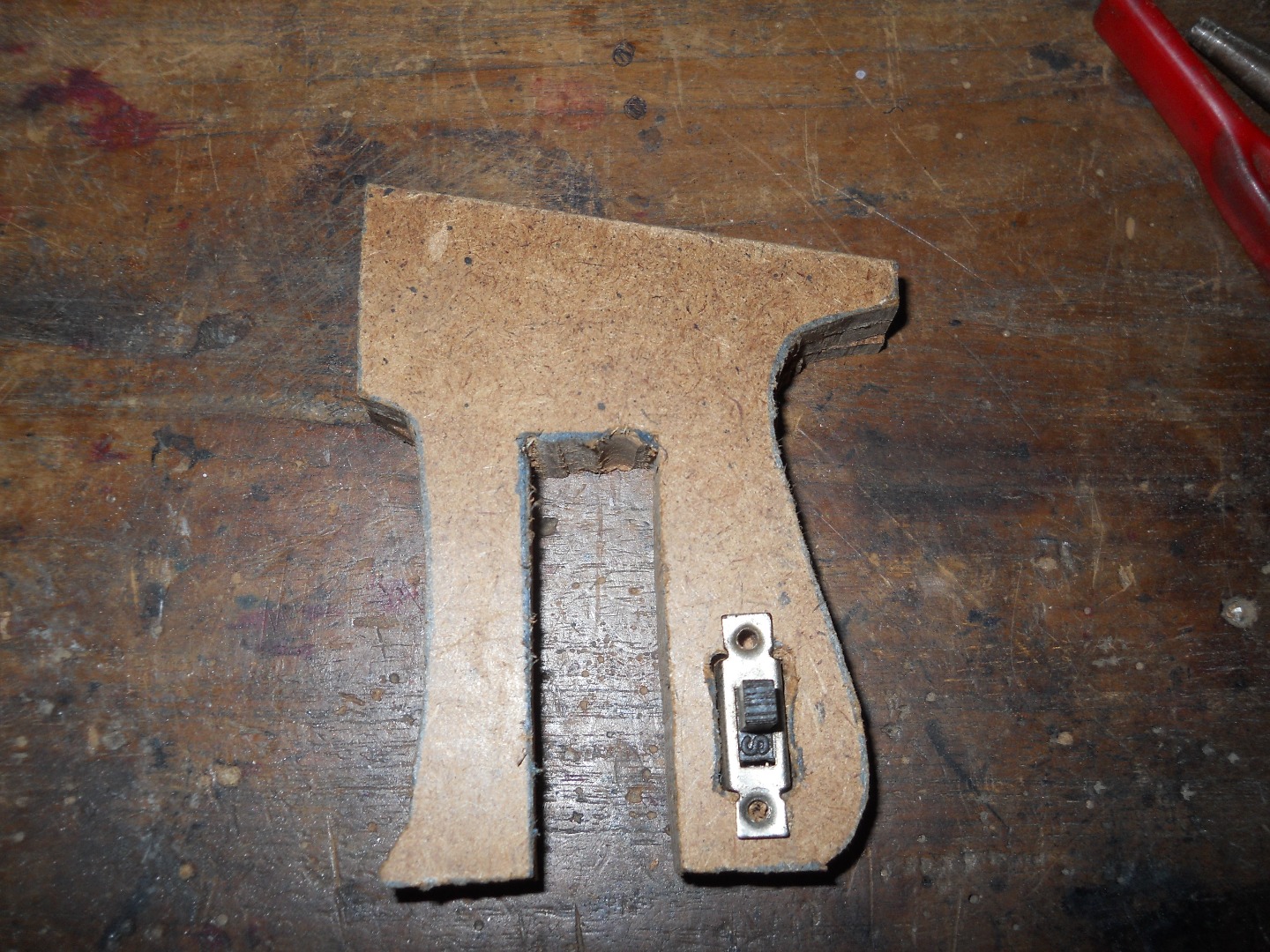

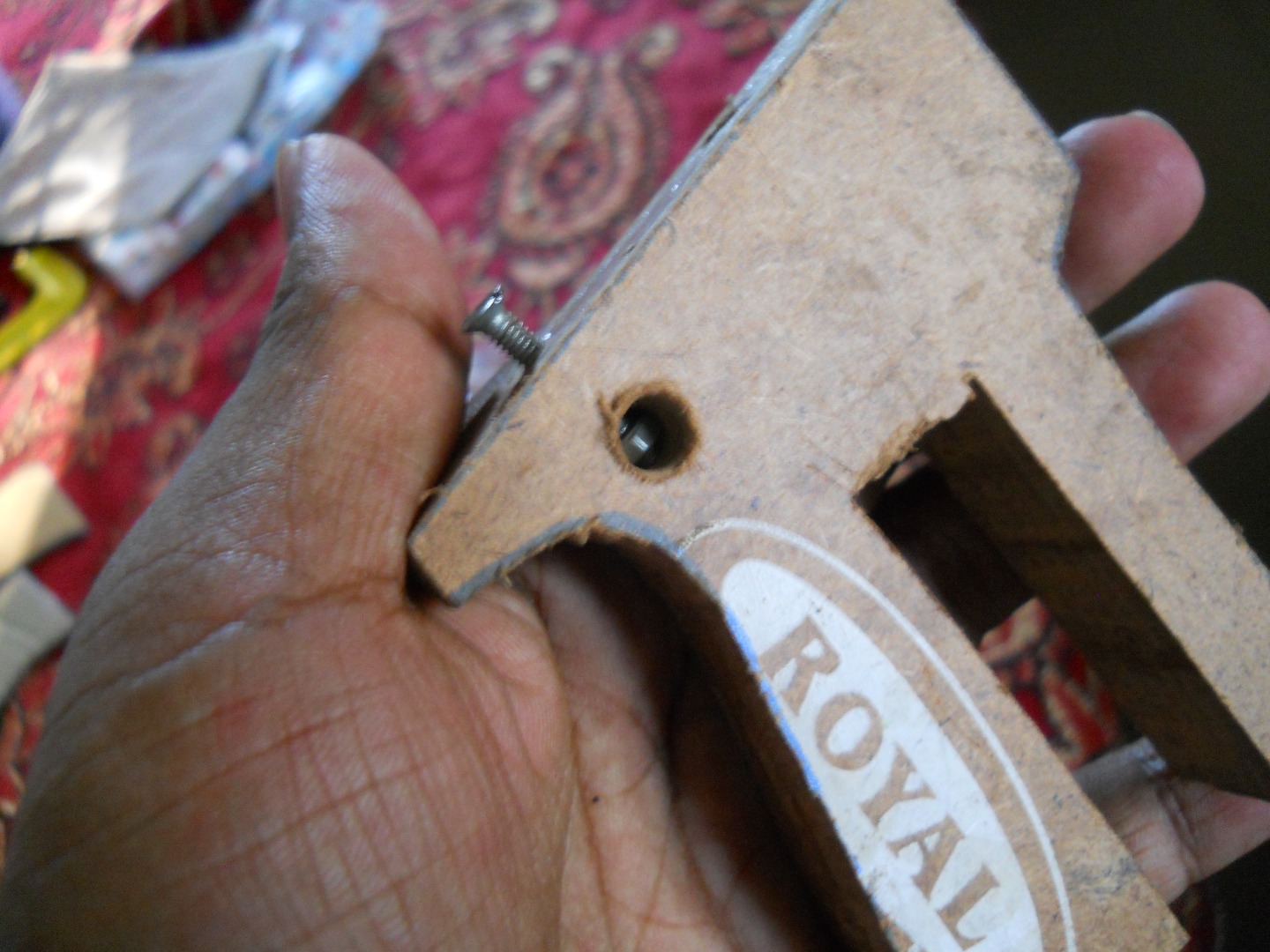

Cut grooves as shown in picture so that the battery, switches to be fitted.

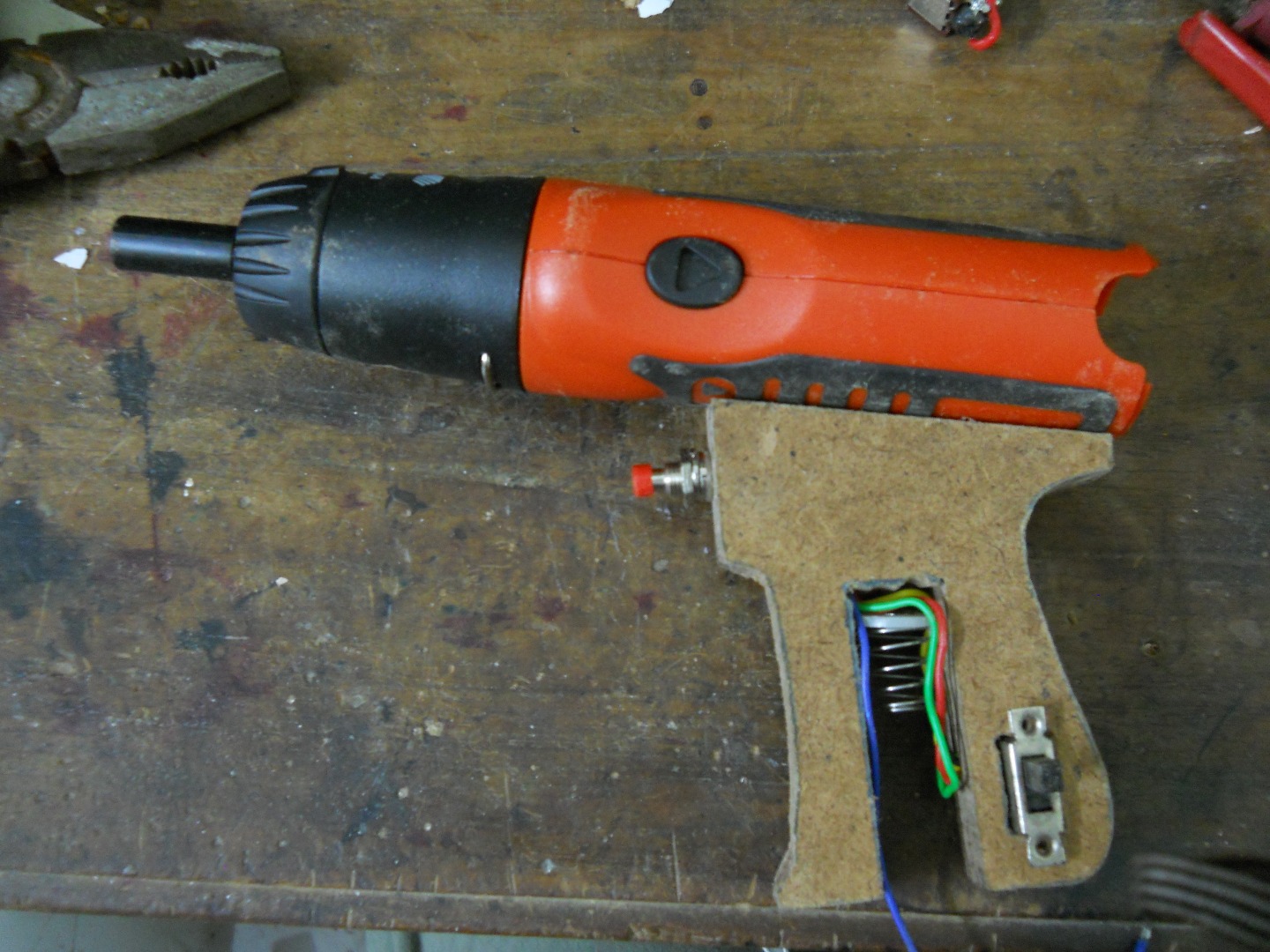

Drill holes as shown in pictures

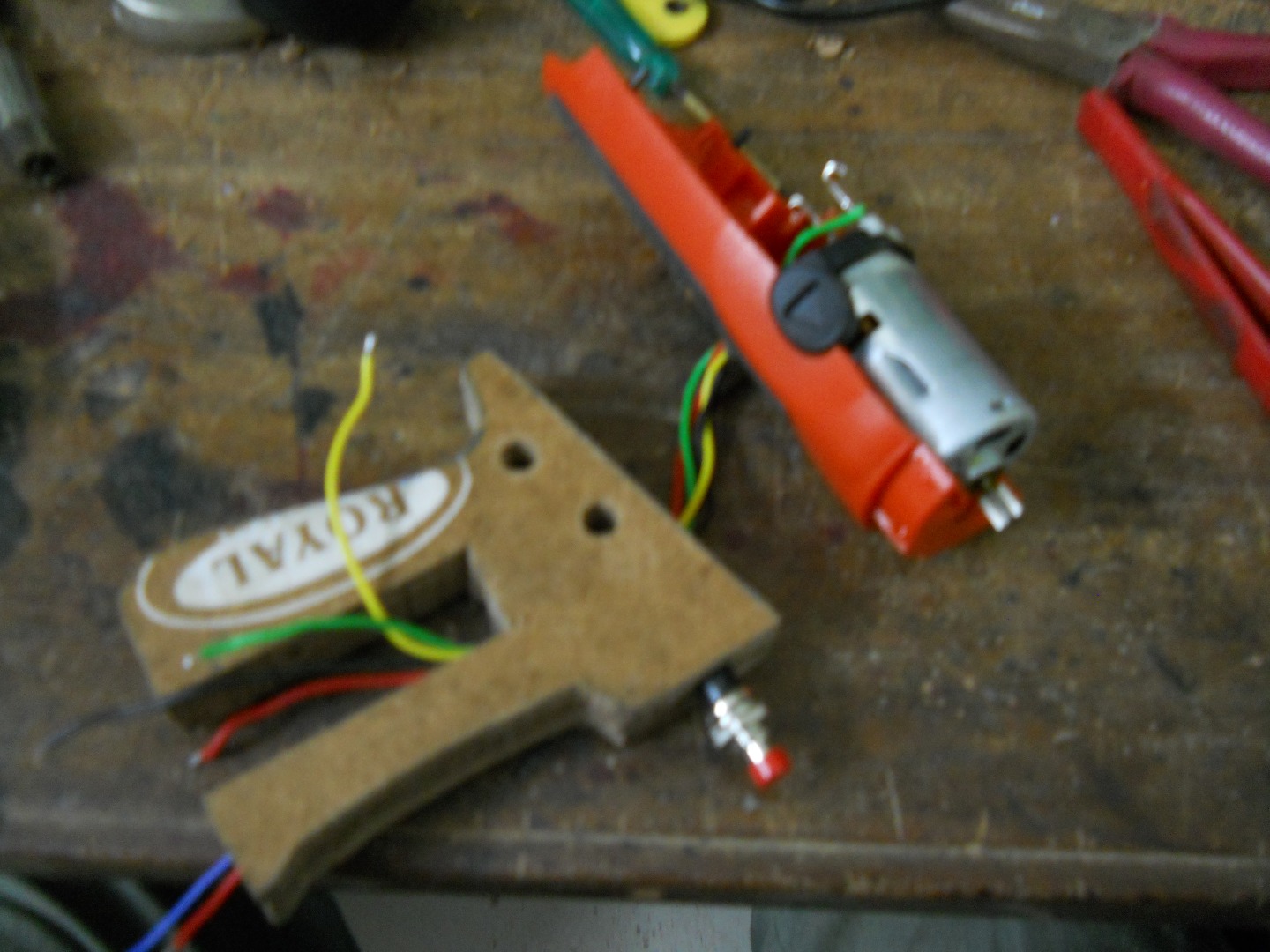

Disassemble the screwdriver as shown in pictures.

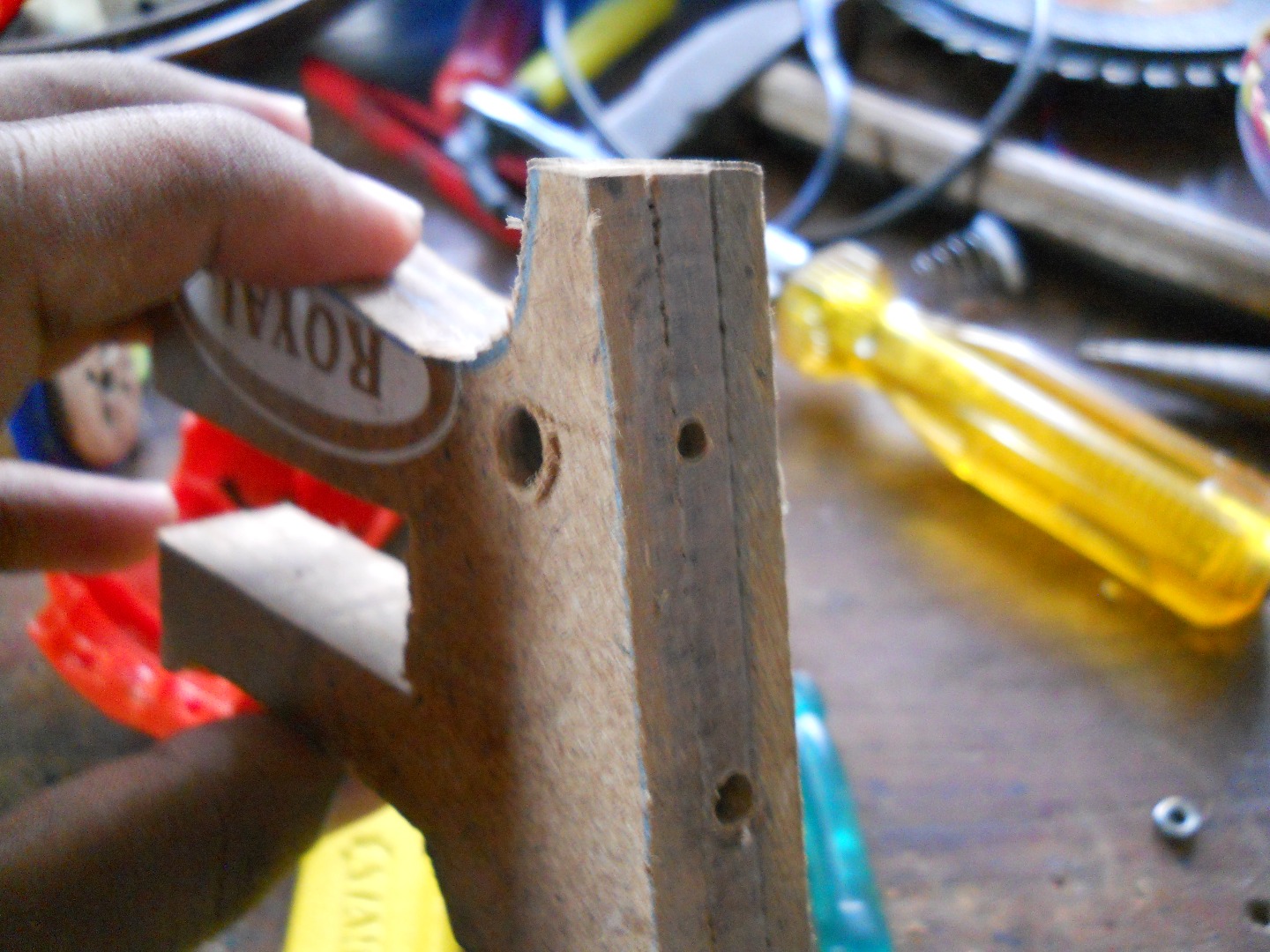

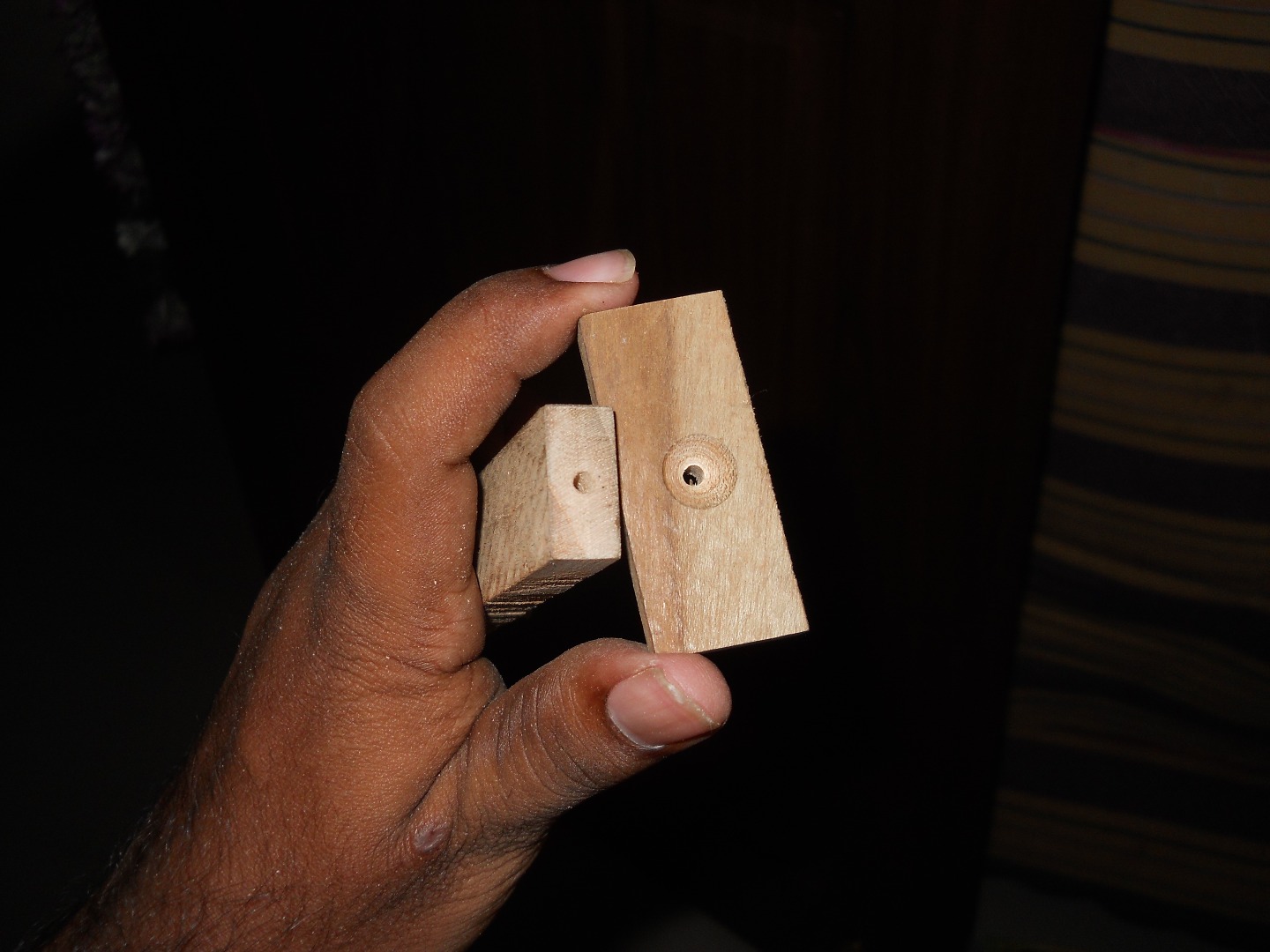

Drill the holes as shown in the pictures.

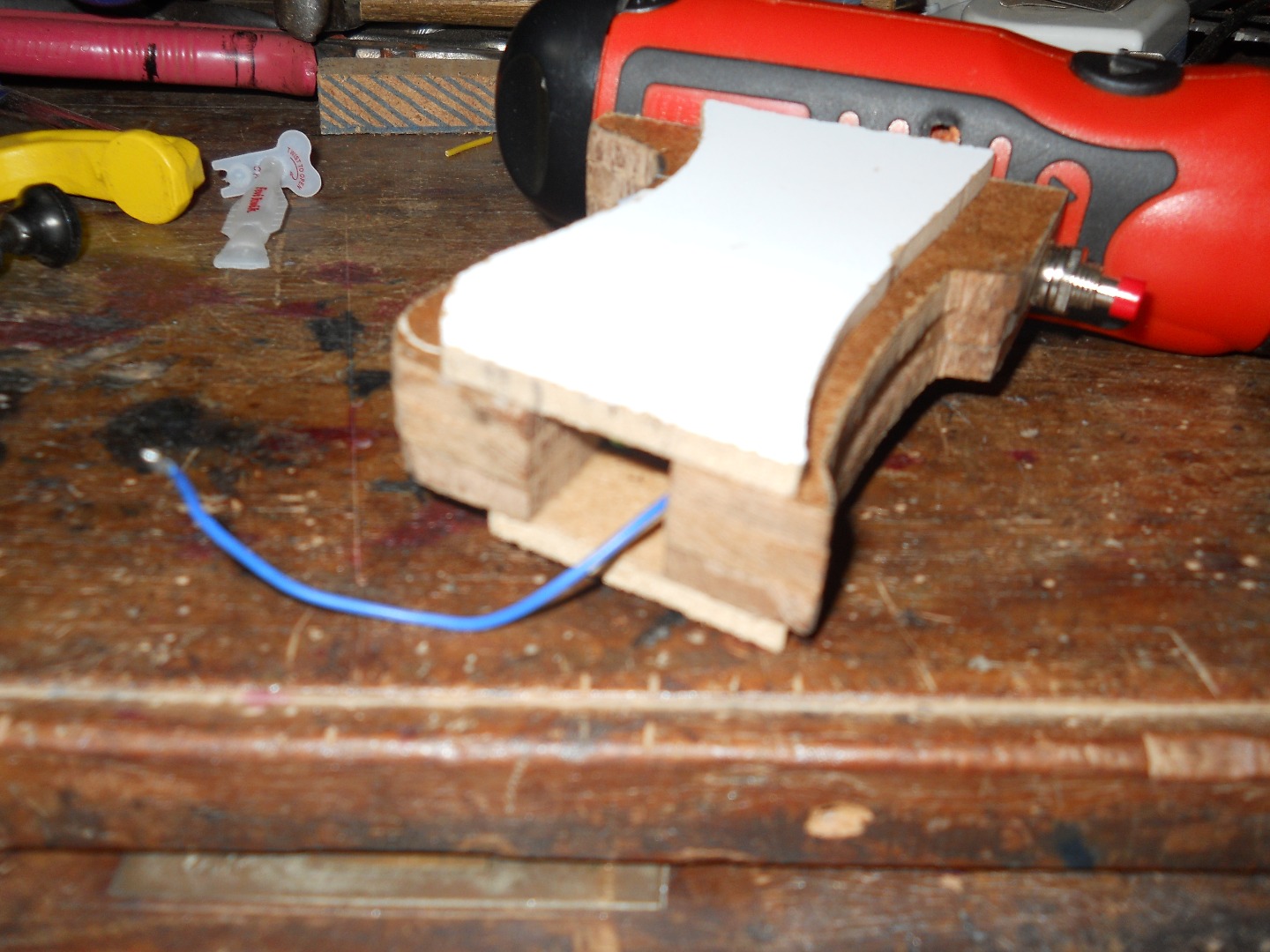

Cut 2 wood pieces for making stand as shown.

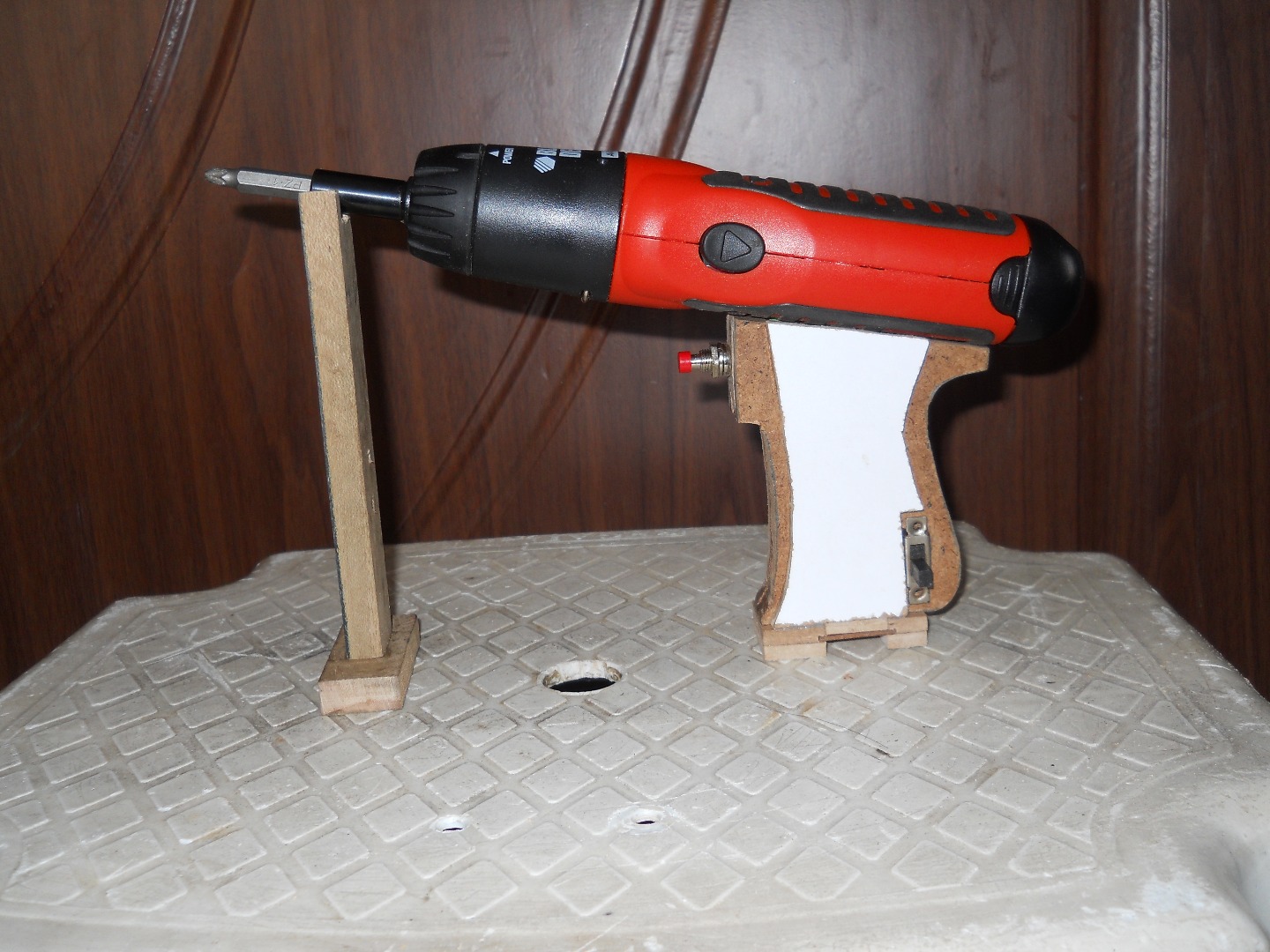

I filled the gaps by mixing wood dust and glue. Finally paint it.
