Adding Led's to NES Controller.
![DSC04909.JPG](/proxy/?url=https://content.instructables.com/FZ7/V407/IQRJ9RIO/FZ7V407IQRJ9RIO.jpg&filename=DSC04909.JPG)
This is a really easy mod that basically just requires these things.
100 OHM resistor (radio shack)
Soldering iron & small solder wire
Hot glue gun
Drill & drill bit the size of your led
Small philips screwdriver
Rubbing alcohol, q-tips, and tissue paper to clean the controller inside & out
2 led's (whichever color you want) that can be picked up at radioshack
And last but not least Safety glasses
Disassembling, Cleaning, & Installing Led's in Controller
![DSC04903.JPG](/proxy/?url=https://content.instructables.com/FD8/1DGZ/IQRJ9RMM/FD81DGZIQRJ9RMM.jpg&filename=DSC04903.JPG)
![DSC04904.JPG](/proxy/?url=https://content.instructables.com/FCD/7AUH/IQRJ9RRY/FCD7AUHIQRJ9RRY.jpg&filename=DSC04904.JPG)
![DSC04905.JPG](/proxy/?url=https://content.instructables.com/FPD/ESBM/IQRJ9RVV/FPDESBMIQRJ9RVV.jpg&filename=DSC04905.JPG)

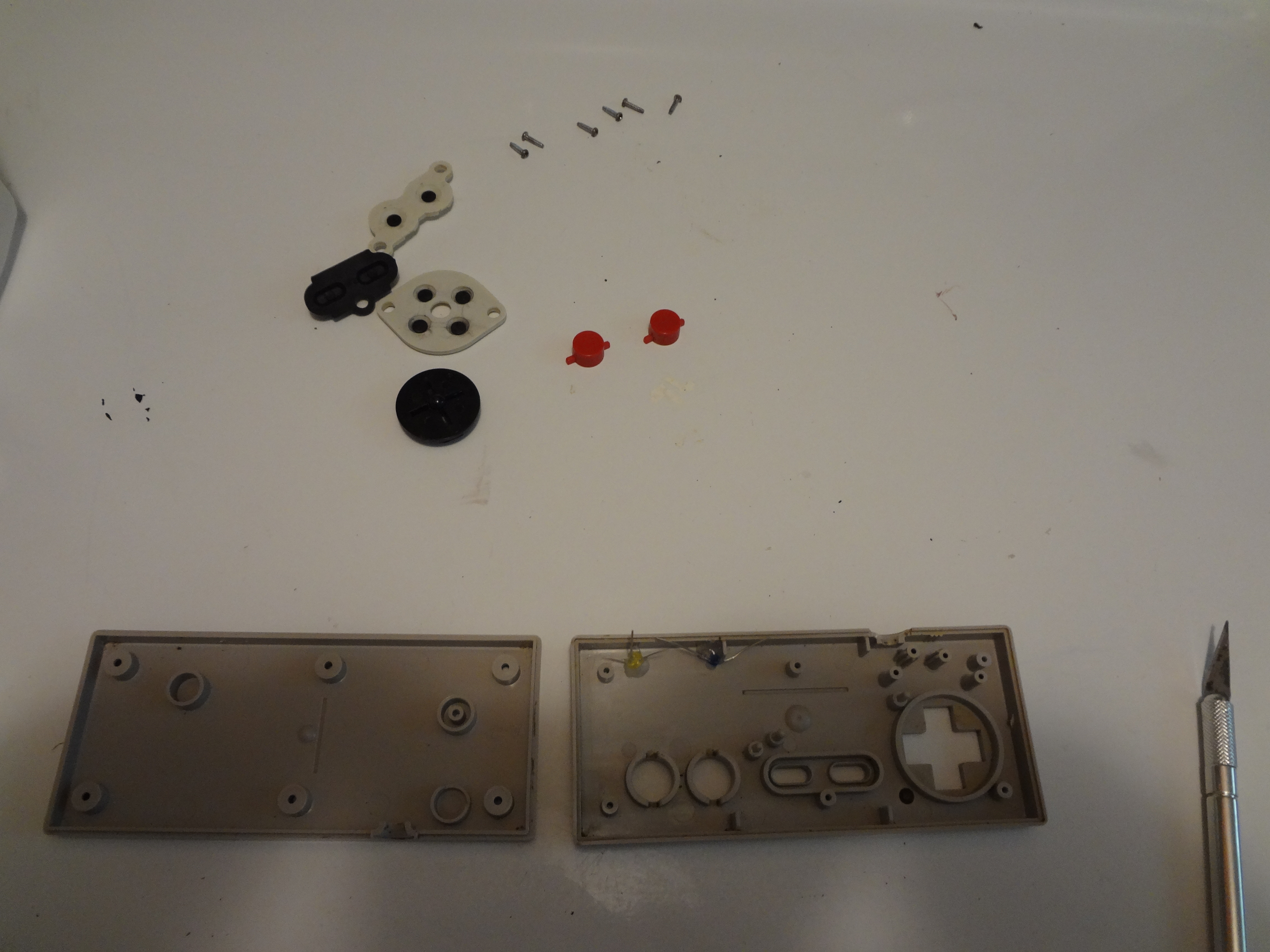

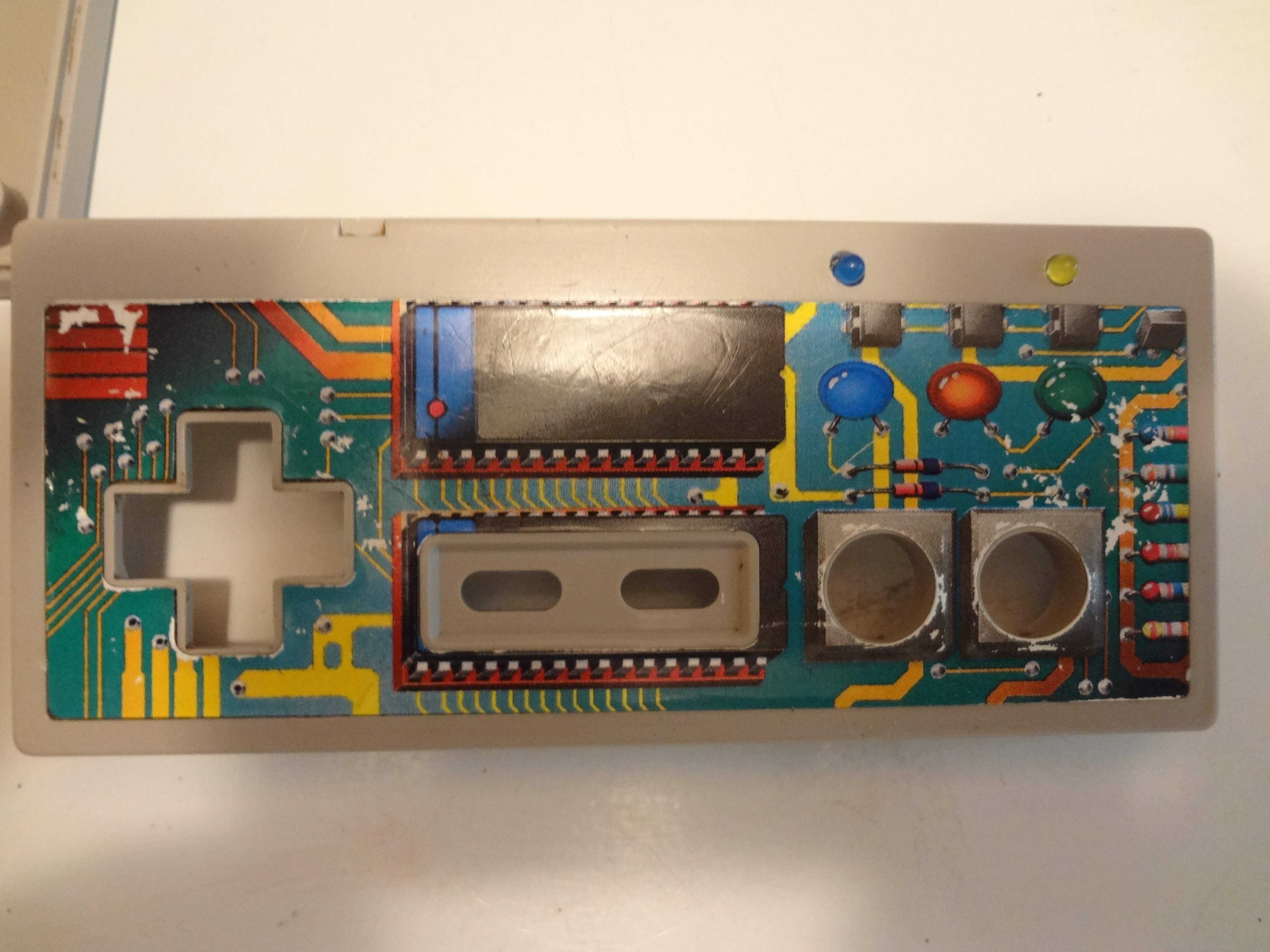

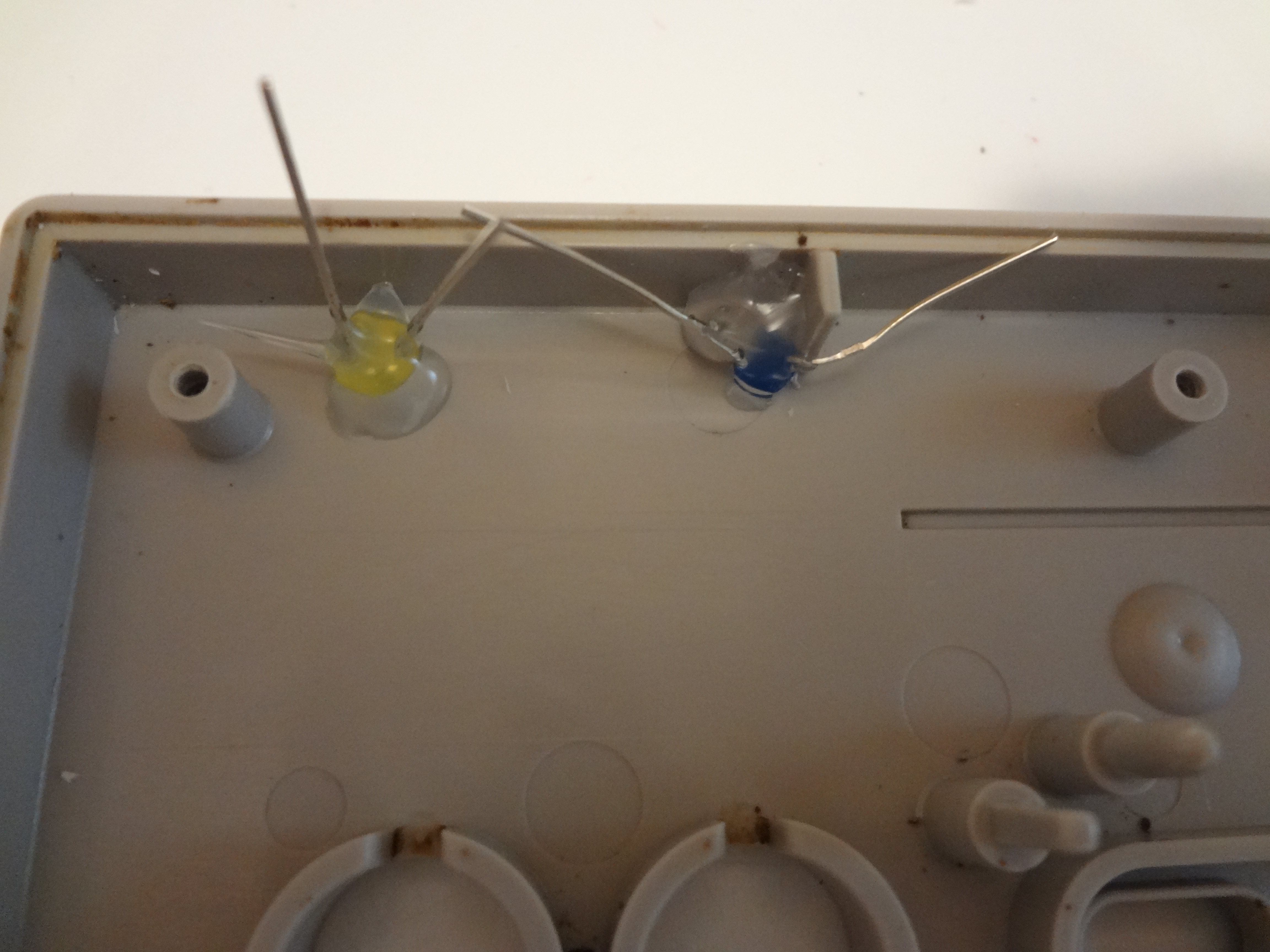

I took the controller apart removing 6 small philips head screws & cleaned all the pieces using rubbing alcohol, q-tips, and tissue. I then figured out where I wanted my led's & drilled the 2 holes placing them in & hot gluing them in place so I could solder it all without everything moving around.
Soldering in 100 Ohm Resistor & Led's in Series.
![DSC04906.JPG](/proxy/?url=https://content.instructables.com/FF2/C17F/IQRJ9S1J/FF2C17FIQRJ9S1J.jpg&filename=DSC04906.JPG)
![DSC04907.JPG](/proxy/?url=https://content.instructables.com/FFR/4DSI/IQRJ9S4J/FFR4DSIIQRJ9S4J.jpg&filename=DSC04907.JPG)
![DSC04908.JPG](/proxy/?url=https://content.instructables.com/FOH/RFJJ/IQRJ9S8K/FOHRFJJIQRJ9S8K.jpg&filename=DSC04908.JPG)

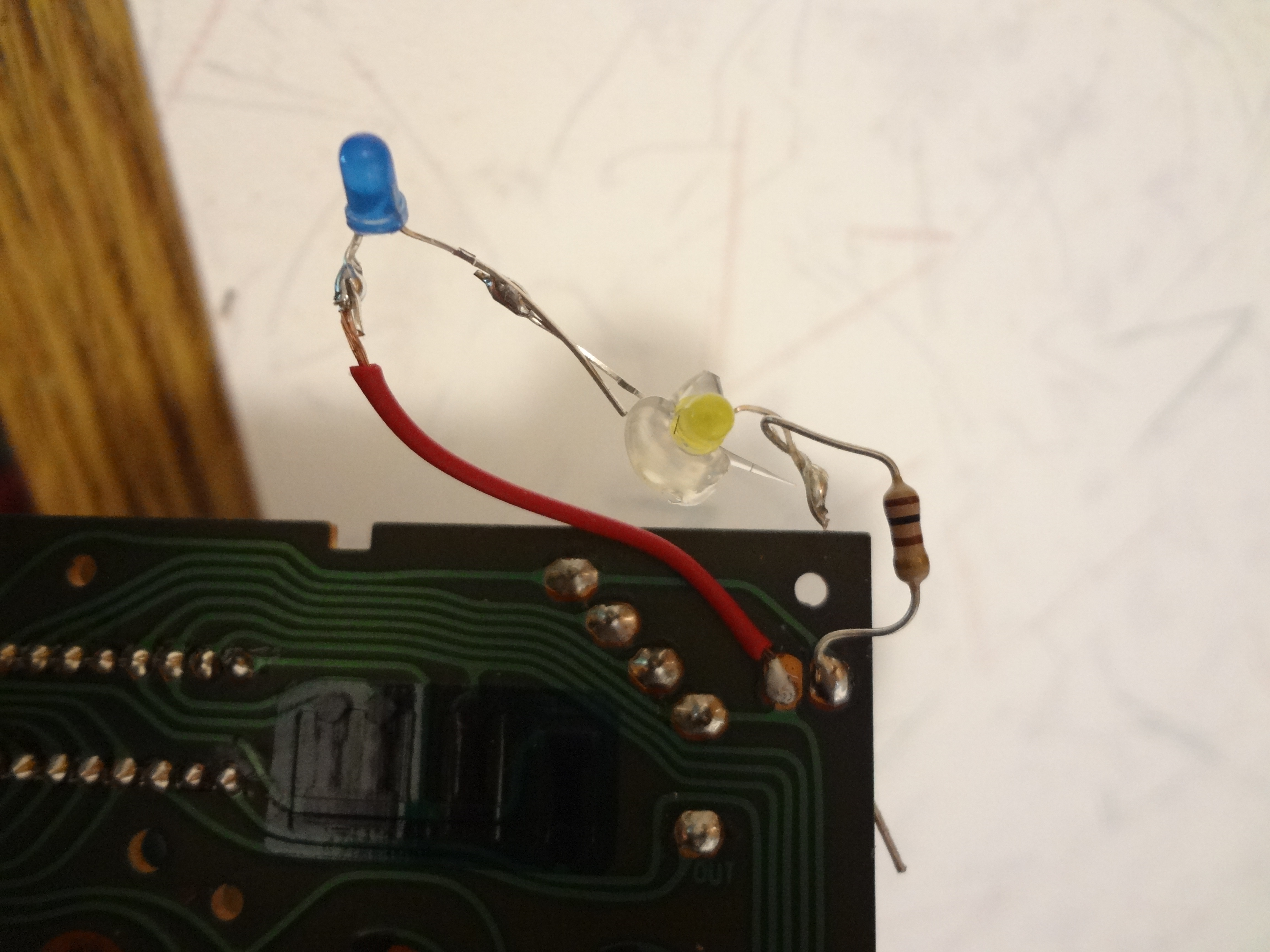

Now I reinstalled buttons & rubber connectors for buttons. I soldered my 100 ohm resistor into the spot on the upper right corner of the controller board which conveniently enough has a hole & copper trace for both 5V+ and a ground. The 5V is on the outermost (far right) side of controller and the ground on the left right beside it. Once 100 ohm resistor soldered in I then soldered the + leg of 1st led (longest leg) to the other end of the resistor & then the negative leg to the + leg of my 2nd resistor. I then soldered a small wire to the negative leg of 2nd resistor so it could reach the ground beside my 5V power feed & soldered it in place. I then hot glued over the leds so there's no chance they can move. Now I put the back cover back in place with the 6 screws.
Looks Much More Exciting.
![DSC04910.JPG](/proxy/?url=https://content.instructables.com/FRX/0XK0/IQRJ9SDP/FRX0XK0IQRJ9SDP.jpg&filename=DSC04910.JPG)

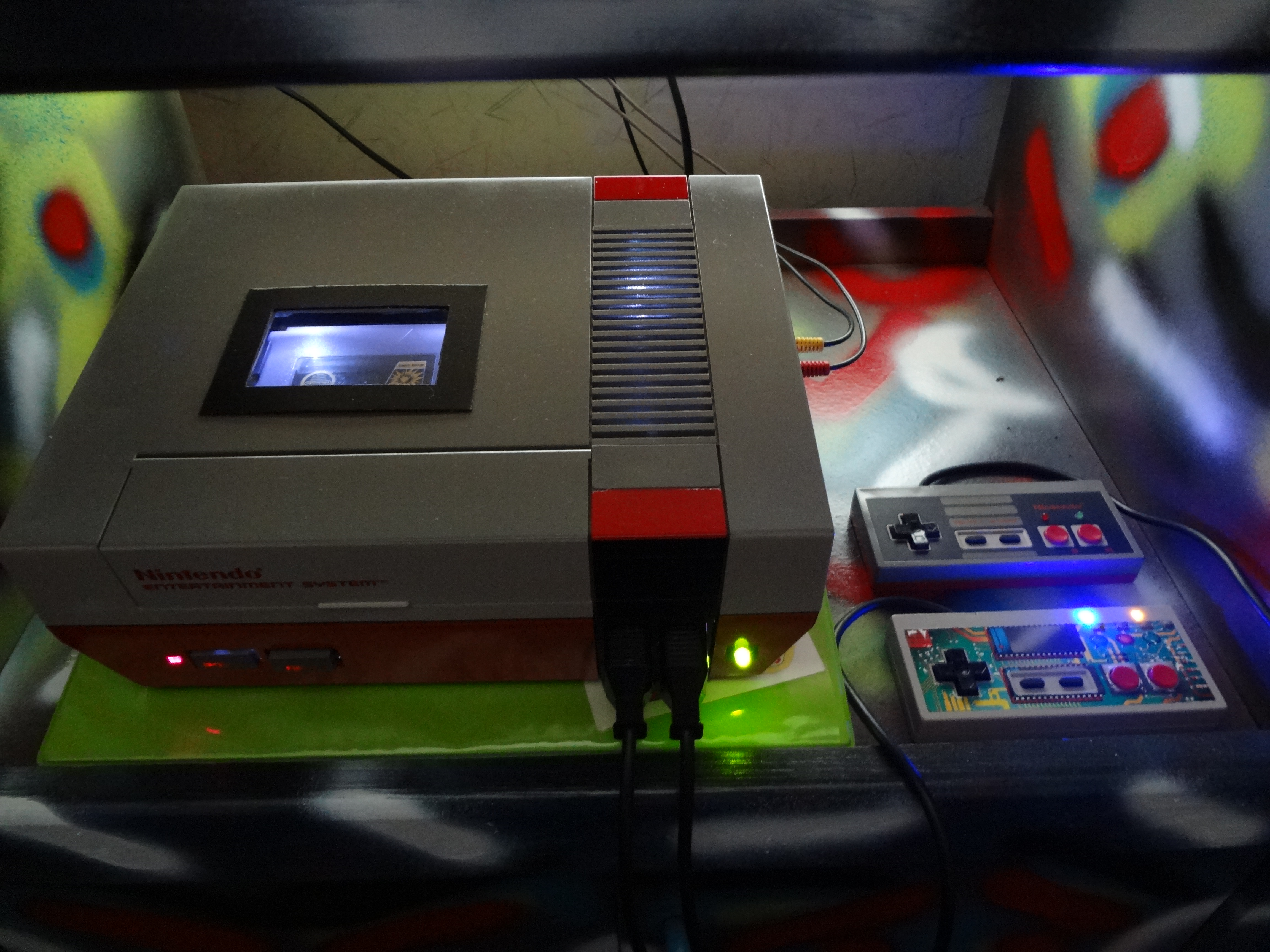

I already had Red, White, & Green led's in my nes console & player 1 controller so I wanted to add a couple of colors to a player 2 controller so I chose blue and yellow led's. Now I can leave the player 2 controller plugged in & it's sort of like Christmas each time I turn my NES on.
