Add an External Speaker to Improve Sound Quality

by Richard Langner in Circuits > Electronics

612 Views, 1 Favorites, 0 Comments

Add an External Speaker to Improve Sound Quality


The sound quality from this nice little clock radio was awful!

Everything else about the radio is great, ease of use, phone charging, display, etc.

The cure is to use an external speaker, and the bigger the better.

Watch the Video to See How Easy It Is to Fit a Socket

Adding an external speaker to a low cost clock radio, improving sound quality.

The sound is far better than the original speaker, even using a small ham radio extension speaker designed for voice.

​Remove the Four Screws From the Back


Disconnect the 5v USB micro power lead first.

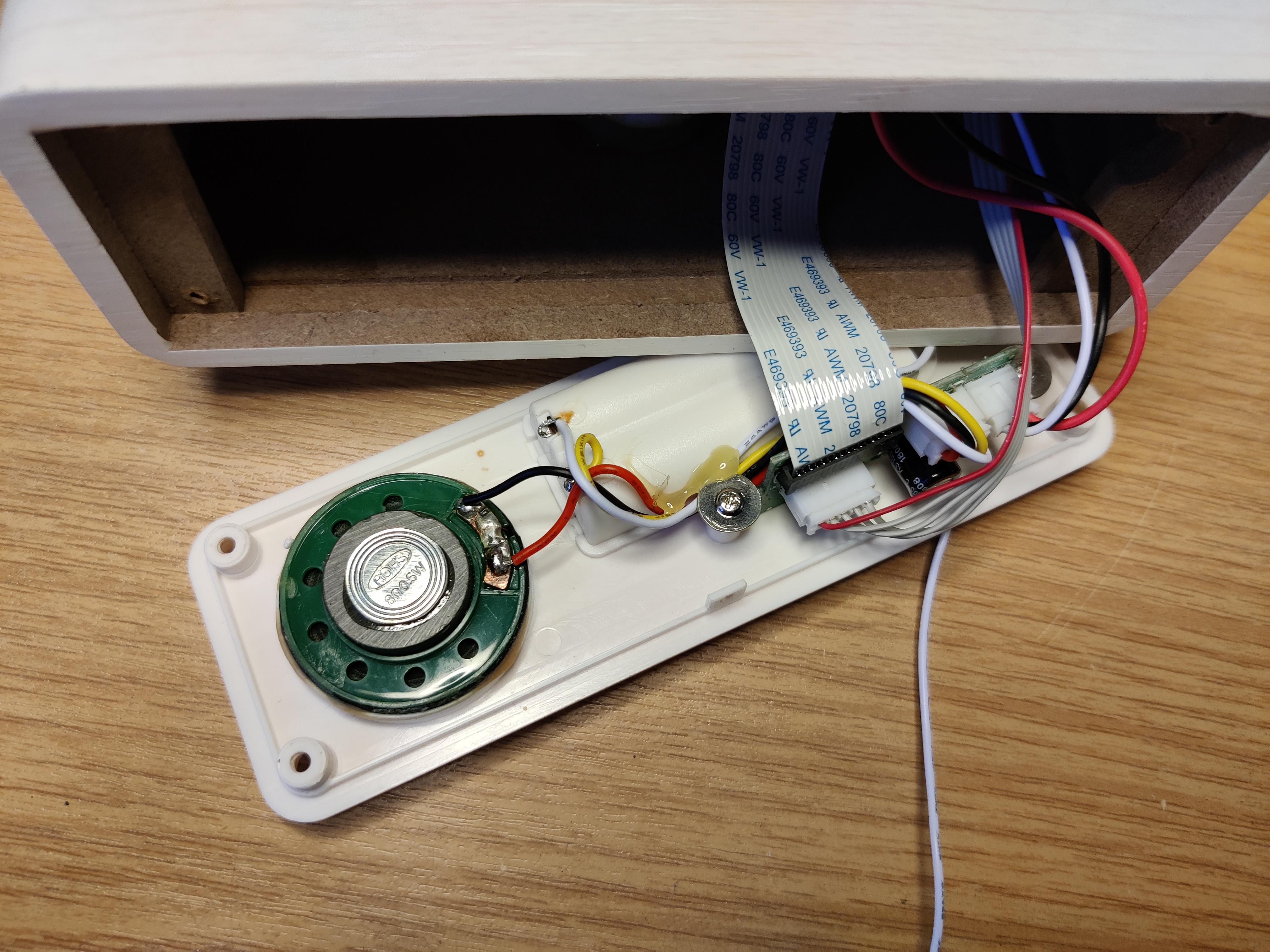

​Expose the Speaker


Decide the best place for the socket.

Drill a Hole for the Headphone Socket


Use a 6mm drill bit.

Fit Headphone Socket and Connect Wires


Wire such that the internal speaker is disconnected when the external one is plugged in.

Re-assemble and enjoy the much-improved quality!

Note that the sound quality in the video does not reflect the vast improvement, as videoing was done on a mobile phone.
