Add Bluetooth to Makita Worksite Radio

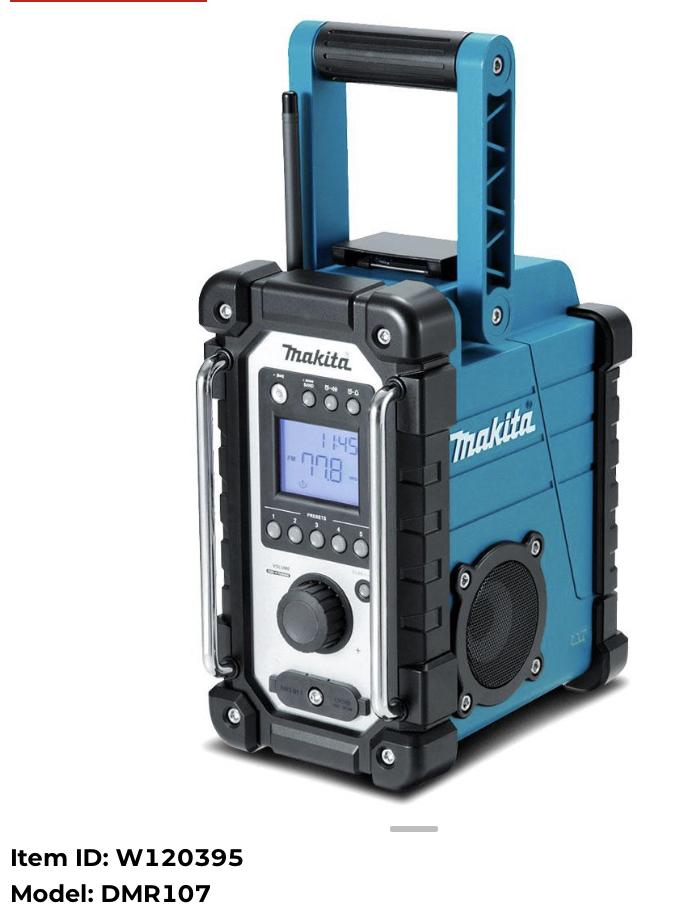

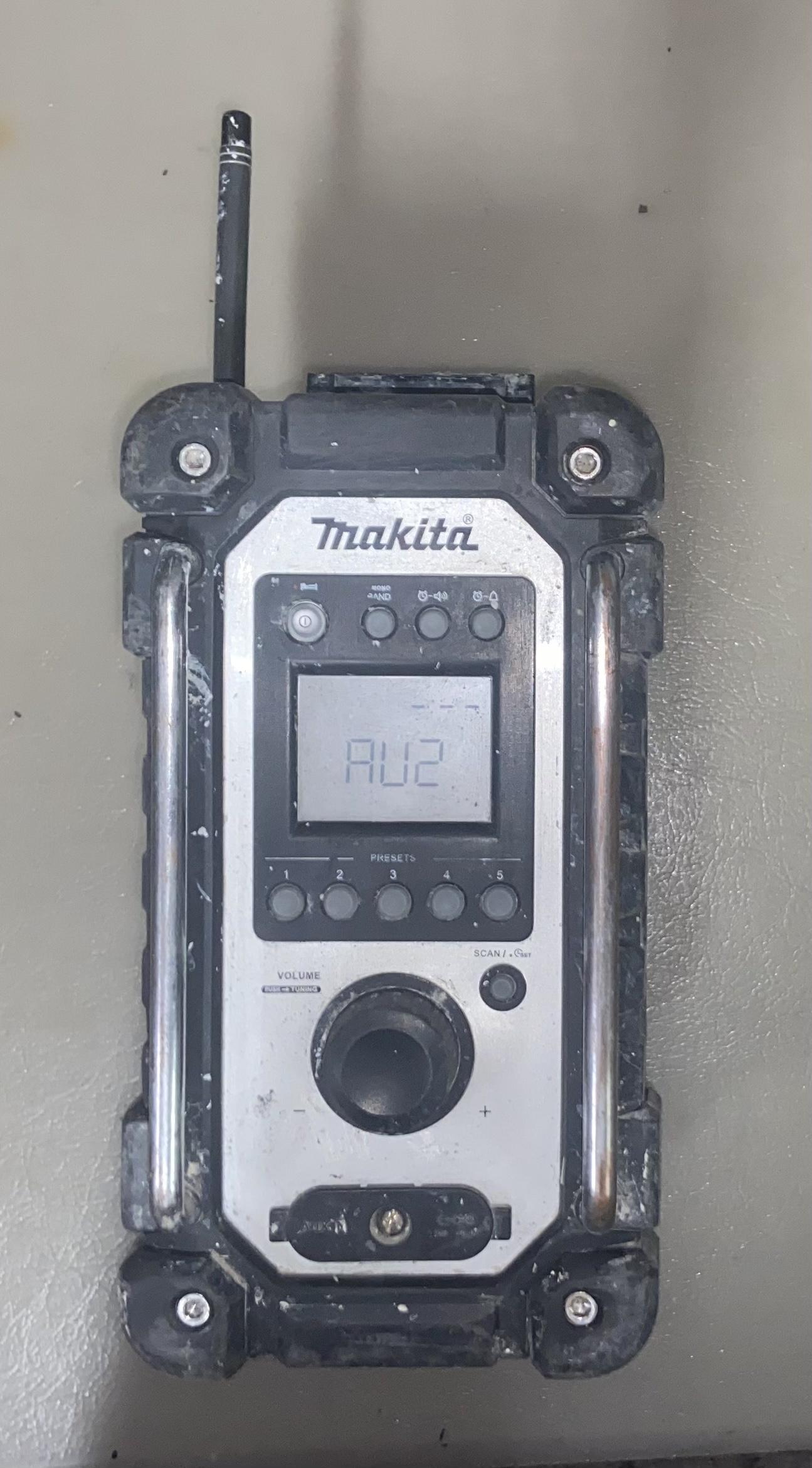

Picked up a free Makita DMR107 which still sounds pretty good but only has radio/aux functions
Added Bluetooth for extra versatility

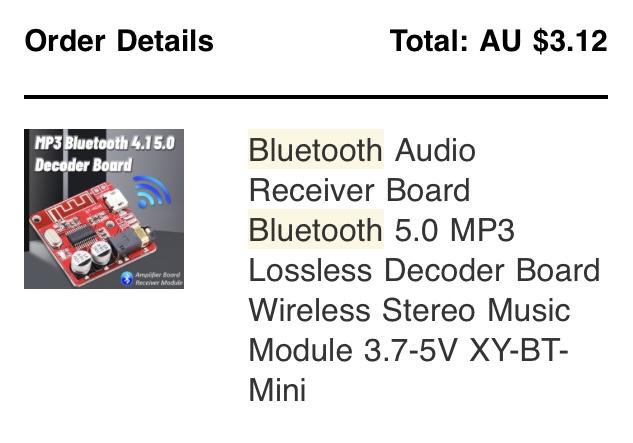

Removed AUX2 board and wired up audio wires to BT board purchased for <$4

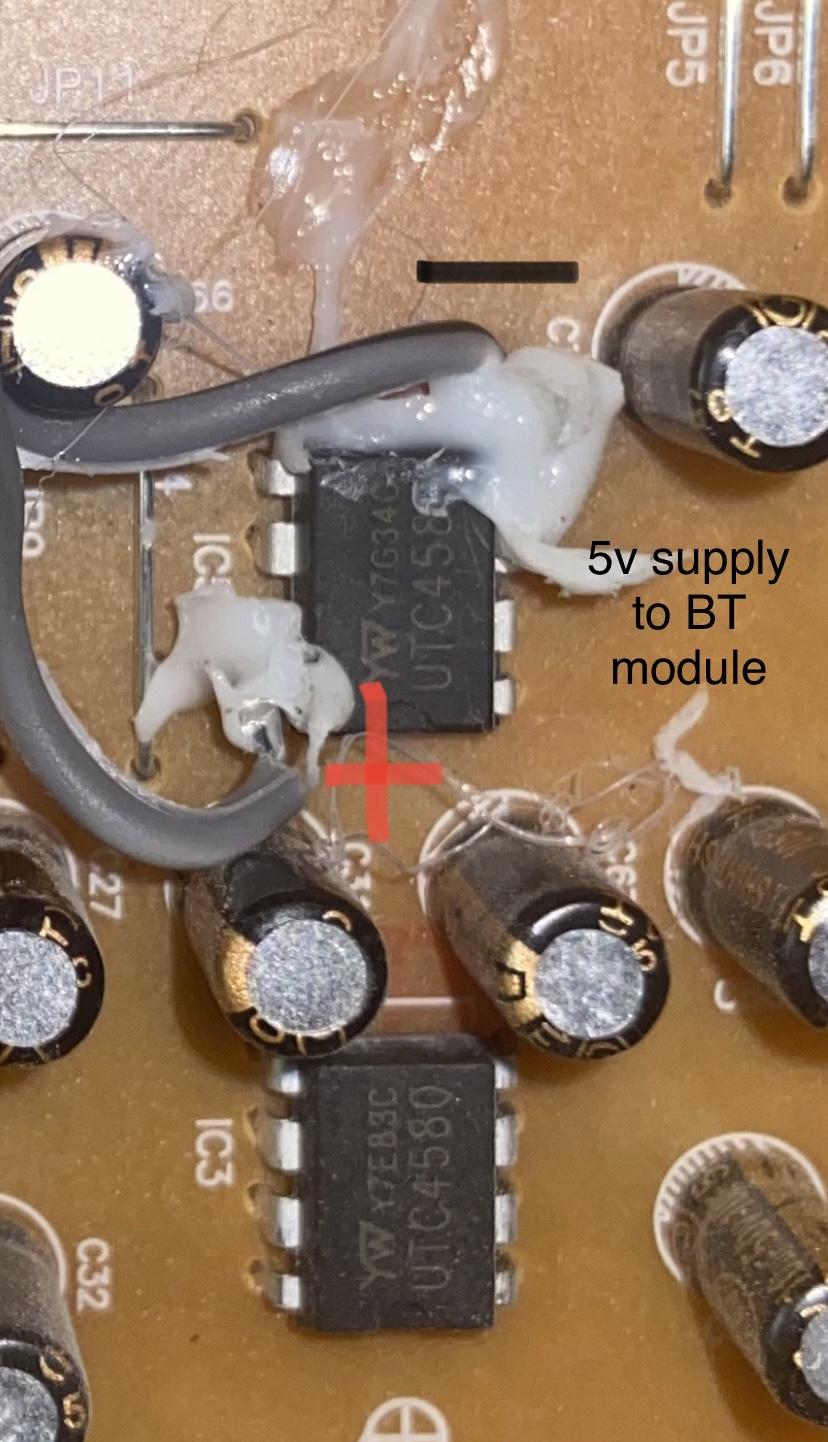

5v power was picked up from one of the 2 ICs onboard

Solder 2 wires from ICs
Pin 4 = gnd
Pin 8 = 5v

..To bluetooth module power in

I cut wires to AUX2 and soldered these to BT module audio in
Cut the red wire to allow AUX2 to be selected
Hot glued module to inside of top of case to get best BT reception

Unit has been working great with no pops/clicks etc
