Adaptive Lego Lideo Game Controller

Lego Controller

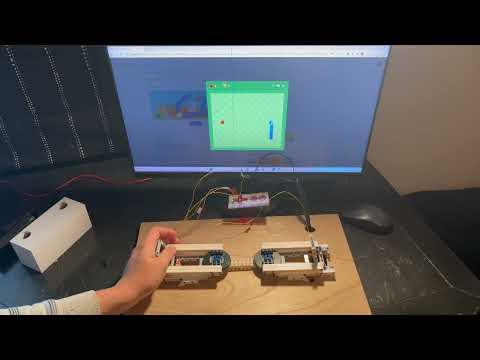

Demo

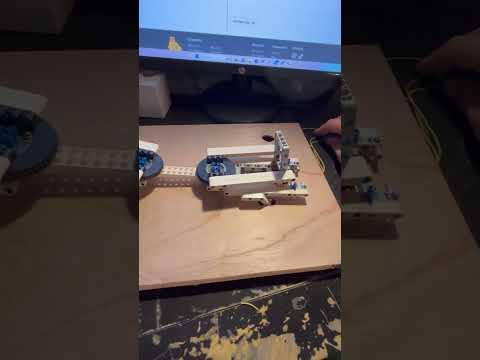

Hello everybody, this is the instructable for my Lego technic adaptive controller that I have made. It is super simple to make and when finished has up to four completely customizable buttons, I tried to design a controller that could be used with minimal movement and still have good outputs. The first video is an explanation of how the controller works, and the second video is a demo of the controller.

Supplies

Supplies

1. Makey Makey STEM Kit

https://www.amazon.com/JoyLabz-MMCE-Makey-Invention-Everyone/dp/B008SFLEPE?th=1

2. Electrical Wire

https://www.amazon.com/THUN-CT-Electrical-65-62ft-Tinned-Stranded/dp/B09WQQC8ZC/ref=sr_1_2_sspa?keywords=thin%2Bcoated%2Bwire&qid=1700114879&sr=8-2-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&th=1

3. Lego Technic Parts

https://www.amazon.com/Technical-Parts-Beams-Connectors-Bricks/dp/B0B4NDJRKZ/ref=sr_1_6?crid=3CZLAWPDUOSWF&keywords=lego%2Btechnic%2Bparts&qid=1700115020&sprefix=lego%2Bte%2Caps%2C159&sr=8-6&th=1

4. Copper Foil Tape

https://www.amazon.com/Conductive-Shielding-Deterrent-Soldering-Grounding/dp/B09C5ZDBVL/ref=sr_1_2_sspa?crid=250NU66FUTE3I&keywords=copper%2Btape&qid=1700115166&sprefix=coper%2Btape%2Caps%2C147&sr=8-2-spons&sp_csd=d2lkZ2V0TmFtZT1zcF9hdGY&th=1

5. Thin Plywood Sheets

https://www.amazon.com/Pack-Basswood-Plywood-Sheets-Crafts/dp/B0B5MQTHXD/ref=sr_1_7?crid=3A07E8O41R2G0&keywords=thin%2Bplywood%2Bsheets%2Bfor%2Bcrafts&qid=1700115236&sprefix=thin%2Bplywod%2Caps%2C148&sr=8-7&th=1

6. Duct Tape

https://www.amazon.com/GRAY-RHINO-Waterproof-Tearable-Packaging/dp/B0C2H9176R/ref=sr_1_4?crid=1KAWCP0SRWS48&keywords=duct%2Btape&qid=1700115310&sprefix=du%2Caps%2C169&sr=8-4&th=1

If you want to test your makey makey controller try this fun piano game.

https://apps.makeymakey.com/piano/

If you want to 3D print a box to hide your wires use this!

https://a360.co/40mz4yg

Here are some instructions on how to remap your Makey Makey

https://makeymakey.com/pages/remap

The Legos

How to Build it!!!
lil dude.jpeg

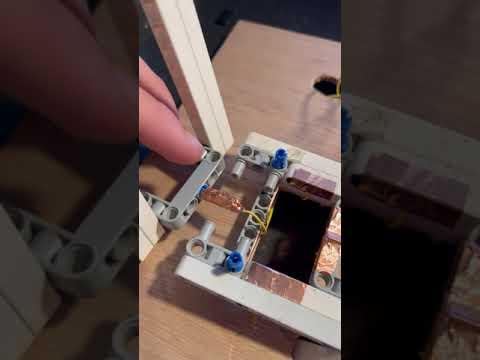

 Above is a video showing how to assemble the Lego pieces. The gold wrap that is around some of the pieces is the copper tape used to make it conductive.

The Wires

IMG 4106
IMG 4107
lil dude.jpeg

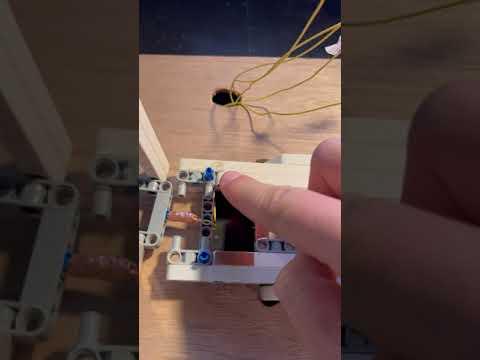

These videos are going to show you how to wire up your controller and make sure that the conductive parts are working properly.

Make sure not to use too much copper tape because it has messed up the conductive pieces in the past.

The Board

IMG 4110
lil dude.jpeg

 This video is going to show you how to make the board that you were going to be mounting the entire controller on to. I used hot glue to make the feet on the bottom but you can use any rubber or plastic you like.

Put It All Together

IMG 4114
IMG 4115
lil dude.jpeg

Once you have both the controller, and the board made, put them both together, and you have a working controller!!!
