Active Solar Panel(tiny PC_part 2)
![tiny_PC.png](/proxy/?url=https://content.instructables.com/F8Z/60I5/JFUAF5M2/F8Z60I5JFUAF5M2.png&filename=tiny_PC.png)
1) easy.
2) simple.
3) homemade.
4) portable.
5) without battery.
In outer space.
both space-station and satellite things will not carry anything that no need.
i am wondering about that how to disconnect the usb cable
from notebook and run it standalone out.
as if shall i attached the standalone computer under my solar panel,
therefore i should disconnect the batteries and disconnect the USB cable then,
but still send the voltage value back ! but how ?
Old PCs
![arduino_BASIC3.png](/proxy/?url=https://content.instructables.com/FZP/MQB3/JG74YDDH/FZPMQB3JG74YDDH.png&filename=arduino_BASIC3.png)
The monitor in 1970 mostly like 50 x 50 x 70 cm,
and the Apple ][ is mostly like 10 x 50 x 85 cm.
so, i gotta shrink it into 0.5 x 2.5 x 4.2 cm.
ie, i could use that arduino which just is "nano" then !
How to Make It Stand Alone?
![DSC_0863.JPG](/proxy/?url=https://content.instructables.com/FG5/XX6M/JF8J1EO6/FG5XX6MJF8J1EO6.jpg&filename=DSC_0863.JPG)
![DSC_0845.JPG](/proxy/?url=https://content.instructables.com/FJB/O6CO/JF8J0DE7/FJBO6COJF8J0DE7.jpg&filename=DSC_0845.JPG)
how to run it without USB cable?
means : how to make the arduino_tiny PC portable?
ie, how to make the arduino_tiny PC standalone without battery and monitor?
Use a Mini TV Instead
![DSC_0840.JPG](/proxy/?url=https://content.instructables.com/F91/7EEH/JF8IQJME/F917EEHJF8IQJME.jpg&filename=DSC_0840.JPG)
![DSC_0854.JPG](/proxy/?url=https://content.instructables.com/FVR/S5W8/JF8IQVJ4/FVRS5W8JF8IQVJ4.jpg&filename=DSC_0854.JPG)
![DSC_0856.JPG](/proxy/?url=https://content.instructables.com/FYD/COPK/JF8ITGP7/FYDCOPKJF8ITGP7.jpg&filename=DSC_0856.JPG)
![DSC_0859.JPG](/proxy/?url=https://content.instructables.com/FEE/ESPP/JF8IU52K/FEEESPPJF8IU52K.jpg&filename=DSC_0859.JPG)
1) take the batteries away , beside the solar panel.
2) connecting the RCA cable.
but how?
Materials
![R3_nano2.png](/proxy/?url=https://content.instructables.com/FE4/EI42/JFCT10XI/FE4EI42JFCT10XI.png&filename=R3_nano2.png)
![DSC_0713.JPG](/proxy/?url=https://content.instructables.com/FMA/6SYN/JFIIR72A/FMA6SYNJFIIR72A.jpg&filename=DSC_0713.JPG)
![DSC_0913.JPG](/proxy/?url=https://content.instructables.com/F1U/8SXR/JG2J08RA/F1U8SXRJG2J08RA.jpg&filename=DSC_0913.JPG)
1) arduino nano x 1(for every panel)
2) RCA cable x 1(for every panel)
3) mini monitor x 1
4) solar panel x 1
5) 1K Ohm x 1
6) 470 Ohm x 1
7) 2.2K Ohm x 3(for every panel)
Circuits
![DSC_0724.JPG](/proxy/?url=https://content.instructables.com/FEI/RDIE/JFX0C1M1/FEIRDIEJFX0C1M1.jpg&filename=DSC_0724.JPG)

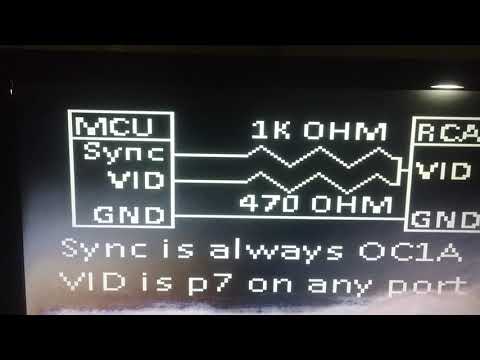

but how to connect pin(s) to RCA to TV?
pretty easy :
1) CONNECT PIN9 == 1K == RCA
2) CONNECT PIN7 == 470 == RCA
3) CONNECT A WIRE GND ==== RCA_GND
4) CONNECT A1 A WIRE ==== TO SOLAR PANEL(2.2K)
5) CONNECT A WIRE GND ==== TO SOLAR PANEL GND
6) CONNECT A WIRE VIN ==== TO SOLAR PANEL V+
Test Run
![DSC_0839.JPG](/proxy/?url=https://content.instructables.com/FZI/INDO/JF8IQLVV/FZIINDOJF8IQLVV.jpg&filename=DSC_0839.JPG)
![DSC_0859.JPG](/proxy/?url=https://content.instructables.com/FEE/ESPP/JF8IU52K/FEEESPPJF8IU52K.jpg&filename=DSC_0859.JPG)
![DSC_0851.JPG](/proxy/?url=https://content.instructables.com/F5X/4CA1/JF8IQJJ8/F5X4CA1JF8IQJJ8.jpg&filename=DSC_0851.JPG)

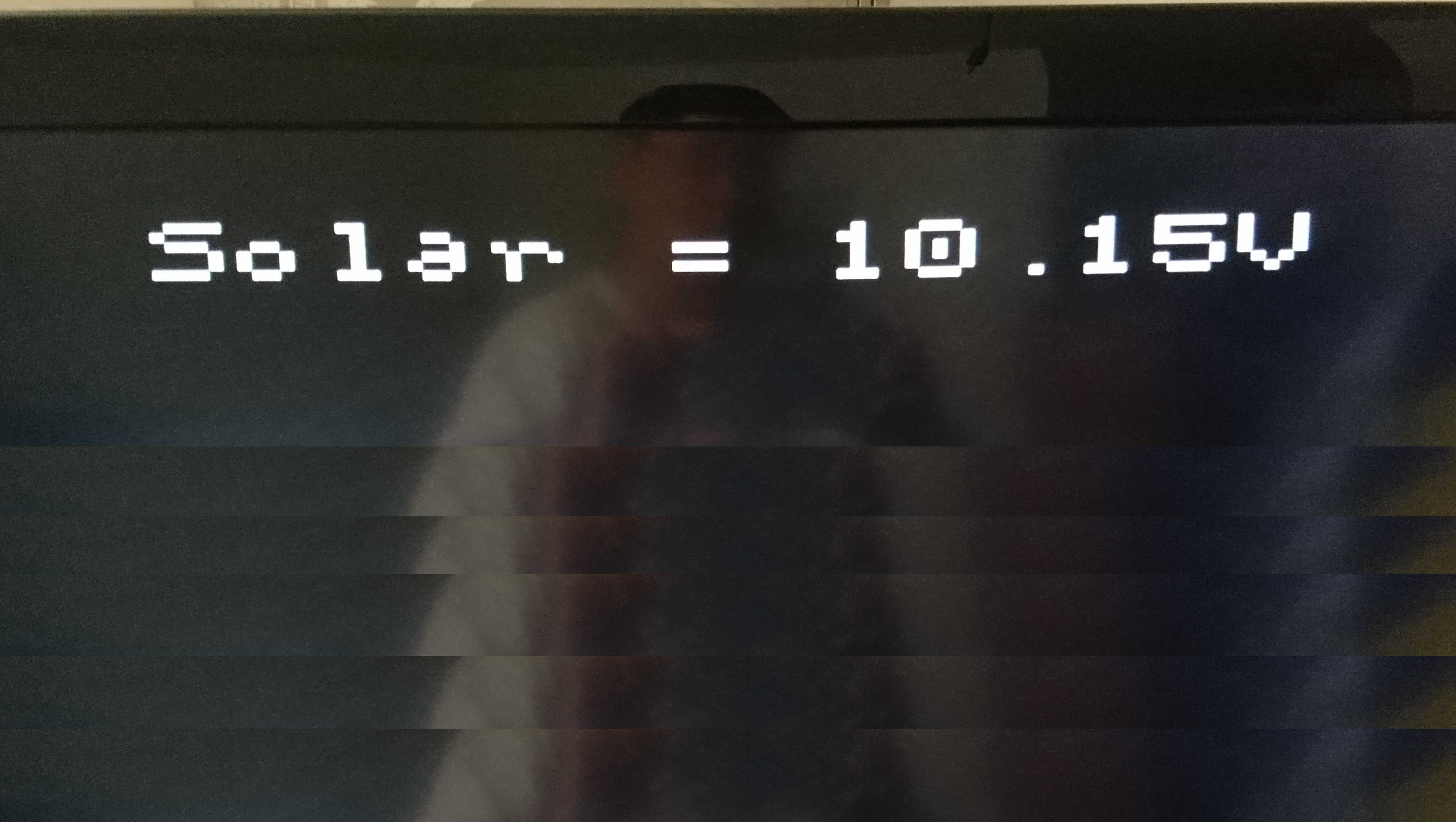

take the huge monitor away !
and take the huge Notebook away !
i remove the BASIC from nano for gainning memory
and use TVout library !
Downloads
Finished and Further
![Shrink an apple 20 times](/proxy/?url=https://content.instructables.com/F4E/UIBD/JFCSY5DY/F4EUIBDJFCSY5DY.jpg&filename=Shrink an apple 20 times)
![DSC_0895.JPG](/proxy/?url=https://content.instructables.com/F85/925Q/JFX0GHSA/F85925QJFX0GHSA.jpg&filename=DSC_0895.JPG)
Setup a patch panel inside the space-station,
in order to shoot solar panel to usable at once.
if show up the power good then connect- it !
PHOTO : i try to connect 12V solar panel indoor.
but 12V fry the nano , so that i use 2.2K * 3 to devide by 3 !
made the every solar panels are active and smart !!
Code
![DSC_0896.JPG](/proxy/?url=https://content.instructables.com/F1K/Q9ZN/JFUAFWHJ/F1KQ9ZNJFUAFWHJ.jpg&filename=DSC_0896.JPG)
![Active solar panel](/proxy/?url=https://content.instructables.com/FO1/21VC/JFX0MMQ5/FO121VCJFX0MMQ5.jpg&filename=Active solar panel)
Here is the code in C.
coz i remove the BASIC already.
for remove the Notebook in deed,
and i include the tvout lib !
HAVE FUN !!
