Acrylic Rod Lamp With Bubble, Fun Music Visualization Series of Small Projects.
by ysonic in Workshop > Lighting
871 Views, 16 Favorites, 0 Comments
Acrylic Rod Lamp With Bubble, Fun Music Visualization Series of Small Projects.
![201605jbiji8qainfi4bl7.gif](/proxy/?url=https://content.instructables.com/FTC/OSYW/L6ARK1U7/FTCOSYWL6ARK1U7.gif&filename=201605jbiji8qainfi4bl7.gif)
![113717sm3jtm4u3hkpt34p.gif](/proxy/?url=https://content.instructables.com/F29/Z43J/L6ARK1WQ/F29Z43JL6ARK1WQ.gif&filename=113717sm3jtm4u3hkpt34p.gif)
![113018gan51a7755r8itb5.gif](/proxy/?url=https://content.instructables.com/FSL/8GAX/L6ARK1WR/FSL8GAXL6ARK1WR.gif&filename=113018gan51a7755r8itb5.gif)
![202602c6wx6v5wcgxfsm6c.gif](/proxy/?url=https://content.instructables.com/FI2/2I67/L6ARK1WS/FI22I67L6ARK1WS.gif&filename=202602c6wx6v5wcgxfsm6c.gif)
Hi, this is first post of my works, I'm very glad and appreciate the sites. Although the finished work couldn't be prefects, I still try my best to do it. Please give me more encouragement, I will give your more exciting work. Thanks, everybody!

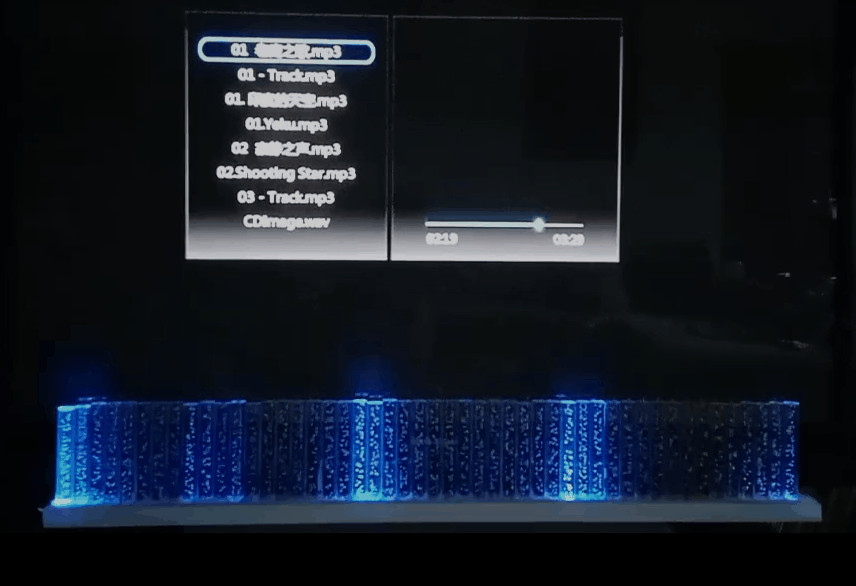

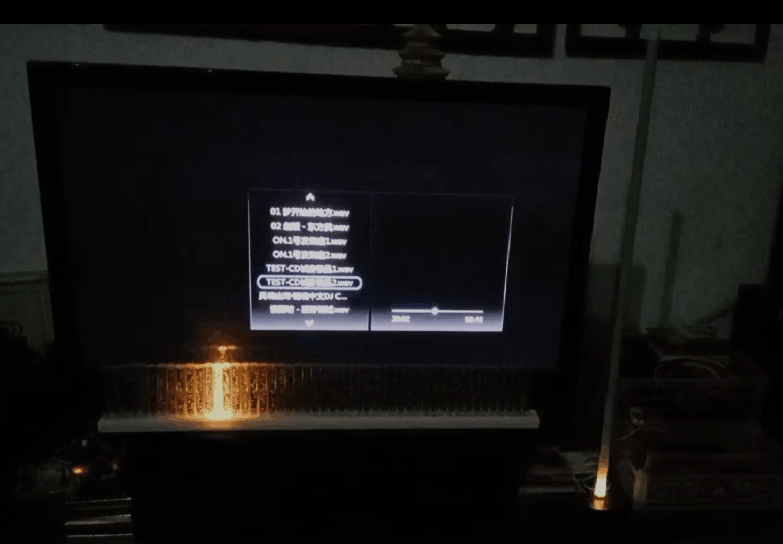

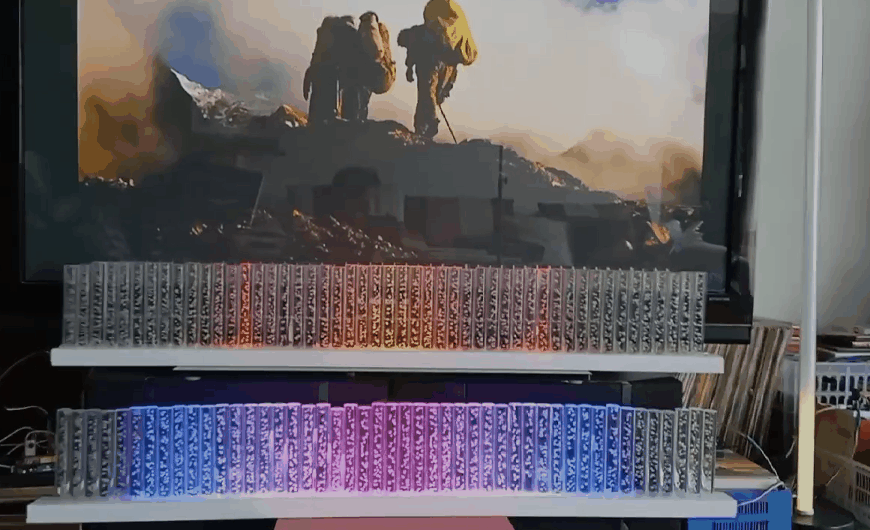

Music visualizer is composed of four development boards, 111 acrylic rods, and 259 WS2812B lamp beads
Supplies
![052144j8rg91vyy97r2vgz.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FU0/RQJB/L6ARK2UC/FU0RQJBL6ARK2UC.jpg&filename=052144j8rg91vyy97r2vgz.jpg.thumb.jpg)
![051017anbkw3cbhhw66wrd.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FW0/P1HA/L6ARK2VQ/FW0P1HAL6ARK2VQ.jpg&filename=051017anbkw3cbhhw66wrd.jpg.thumb.jpg)
Main material:
- Acrylic rod & trunking box
- module MAX9814
- WS2812B lamp beads. Thanks for leadsintec support it.
![173151evo0f0op9zq95ouq.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FZC/CA73/L6ARK1ZS/FZCCA73L6ARK1ZS.jpg&filename=173151evo0f0op9zq95ouq.jpg.thumb.jpg)
![173533q281eg49ye34dmm4.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FQO/O04I/L6ARK1ZT/FQOO04IL6ARK1ZT.jpg&filename=173533q281eg49ye34dmm4.jpg.thumb.jpg)
![173955ys5i8uxt7t87z735.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/F01/MJS6/L6ARK1ZU/F01MJS6L6ARK1ZU.jpg&filename=173955ys5i8uxt7t87z735.jpg.thumb.jpg)
Project materials ready: Acrylic rod and trunking box with removable cover
![175103epg0v0b3ucuxhqz0.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FOZ/N4Y7/L6ARK200/FOZN4Y7L6ARK200.jpg&filename=175103epg0v0b3ucuxhqz0.jpg.thumb.jpg)
![211006z8bd3s72usgg3uaj.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FCJ/QIT0/L6ARK1ZY/FCJQIT0L6ARK1ZY.jpg&filename=211006z8bd3s72usgg3uaj.jpg.thumb.jpg)
![210727dlezee1m4e7fmpmz.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FCH/XR58/L6ARK1ZX/FCHXR58L6ARK1ZX.jpg&filename=210727dlezee1m4e7fmpmz.jpg.thumb.jpg)
![210440vhdmx7hrz9o4gqxs.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FVM/W9QA/L6ARK1ZW/FVMW9QAL6ARK1ZW.jpg&filename=210440vhdmx7hrz9o4gqxs.jpg.thumb.jpg)
![211229ddal2i2cd9aezqa9.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/F8R/55VY/L6ARK201/F8R55VYL6ARK201.jpg&filename=211229ddal2i2cd9aezqa9.jpg.thumb.jpg)
Processing material
![052144j8rg91vyy97r2vgz.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/F1O/JCMU/L6ARK1ZR/F1OJCMUL6ARK1ZR.jpg&filename=052144j8rg91vyy97r2vgz.jpg.thumb.jpg)
![051017anbkw3cbhhw66wrd.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FKY/O843/L6ARK1ZP/FKYO843L6ARK1ZP.jpg&filename=051017anbkw3cbhhw66wrd.jpg.thumb.jpg)
![051457mr972cr5pj5c95s9.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FA7/Q41E/L6ARK1ZQ/FA7Q41EL6ARK1ZQ.jpg&filename=051457mr972cr5pj5c95s9.jpg.thumb.jpg)
Prepare sound module MAX9814 and lantern WS2812B.
The MAX9814 is a low-cost, high-performance microphone amplifier with automatic gain control (AGC) and low-noise microphone bias. The device features a low-noise front-end amplifier, variable gain amplifier (VGA), output amplifier, microphone bias voltage generator, and AGC control circuitry.
● Automatic Gain Control (AGC)
●3 gain settings (40dB, 50dB, 60dB)
●Programmable operating time
● Programmable action and release time ratio
●The power supply voltage range is 2.7V~5.5V
●Low THD: 0.04% (typ.)
●Low power shutdown mode
●Built-in 2V low noise microphone bias
lantern WS2812B.
Its main features:
Intelligent reverse connection protection, power reverse connection will not damage the IC.
The IC control circuit shares a power supply with the LED point light source.
The control circuit and the RGB chip are integrated in a 5050 package component to form a complete external control pixel.
Built-in signal shaping circuit, any pixel receives the signal after waveform shaping and then outputs it to ensure that the line waveform distortion will not accumulate.
Built-in power-on reset and power-down reset circuits.
The three primary colors of each pixel point can realize 256-level brightness display, complete the full true color display of 16777216 colors, and the scanning frequency is not less than 400Hz/s.
Serial cascade interface, can complete data reception and decoding through one signal line.
When the transmission distance of any two-point transmission does not exceed 5 meters, there is no need to add any circuit.
When the refresh rate is 30 frames/second, the number of cascades is not less than 1024 points.The data transmission speed can reach 800Kbps.
The color of the light is highly consistent and cost-effective.
Main application areas:
LED full-color light-emitting character light string, LED full-color module, LED full-color flexible light strip and hard light strip, LED guardrail tube.
LED point light source, LED pixel screen, LED special-shaped screen, various electronic products, electrical equipment marquee.
![093056pagirgxa7j7q1iai.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/F77/43YW/L6ARK2GH/F7743YWL6ARK2GH.jpg&filename=093056pagirgxa7j7q1iai.jpg.thumb.jpg)
![093440kr3owb595ry94480.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FAK/H279/L6ARK2GI/FAKH279L6ARK2GI.jpg&filename=093440kr3owb595ry94480.jpg.thumb.jpg)
![123753aync0nq40zze4wwq.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FFI/M04D/L6ARK2GJ/FFIM04DL6ARK2GJ.jpg&filename=123753aync0nq40zze4wwq.jpg.thumb.jpg)
![094032wemfknw8yf44fwn2.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FY9/DR9B/L6ARK2HZ/FY9DR9BL6ARK2HZ.jpg&filename=094032wemfknw8yf44fwn2.jpg.thumb.jpg)
![094109z3y35p6y6z44ghcn.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/F7D/P5DU/L6ARK2I0/F7DP5DUL6ARK2I0.jpg&filename=094109z3y35p6y6z44ghcn.jpg.thumb.jpg)
install and fixed
![180234mhpoot3eo3ptp23z.jpg.thumb.jpg](/proxy/?url=https://content.instructables.com/FM1/P18G/L6ARK2KU/FM1P18GL6ARK2KU.jpg&filename=180234mhpoot3eo3ptp23z.jpg.thumb.jpg)
Software Programs and Testing
Downloads
![201605jbiji8qainfi4bl7.gif](/proxy/?url=https://content.instructables.com/FFF/34XB/L6ARK2PW/FFF34XBL6ARK2PW.gif&filename=201605jbiji8qainfi4bl7.gif)
It's ok
