Acrylic Motor Reducer
![IMG_20160205_125908.jpg](/proxy/?url=https://content.instructables.com/F5Z/3WXW/ILY0O5CM/F5Z3WXWILY0O5CM.jpg&filename=IMG_20160205_125908.jpg)
![IMG_20160206_155103.jpg](/proxy/?url=https://content.instructables.com/FSE/O0BJ/ILY0O5DO/FSEO0BJILY0O5DO.jpg&filename=IMG_20160206_155103.jpg)
![IMG_20160128_141520.jpg](/proxy/?url=https://content.instructables.com/FCN/RZPP/ILY0O5C5/FCNRZPPILY0O5C5.jpg&filename=IMG_20160128_141520.jpg)
![IMG_20160128_141543.jpg](/proxy/?url=https://content.instructables.com/FRZ/CQR9/ILY0O5CA/FRZCQR9ILY0O5CA.jpg&filename=IMG_20160128_141543.jpg)
![IMG_20160204_185922.jpg](/proxy/?url=https://content.instructables.com/FKB/NA6D/ILY0O5CF/FKBNA6DILY0O5CF.jpg&filename=IMG_20160204_185922.jpg)
![IMG_20160206_142331.jpg](/proxy/?url=https://content.instructables.com/FLL/YJLO/ILY0O5CO/FLLYJLOILY0O5CO.jpg&filename=IMG_20160206_142331.jpg)
![IMG_20160205_114519.jpg](/proxy/?url=https://content.instructables.com/FVY/QA5A/ILY0O5CH/FVYQA5AILY0O5CH.jpg&filename=IMG_20160205_114519.jpg)

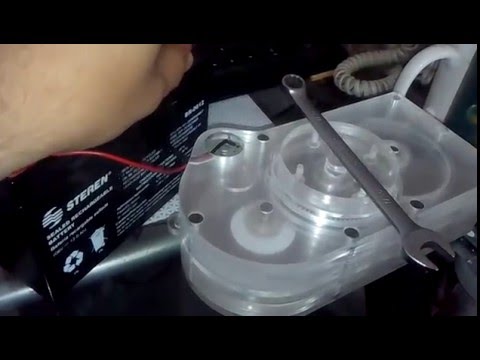

![Prueba de funcionamiento](/proxy/?url=https://content.instructables.com/FOI/HOJ9/ILY0ORO2/FOIHOJ9ILY0ORO2.jpg&filename=Prueba de funcionamiento)
![VID 20160208 105053](/proxy/?url=https://content.instructables.com/FMS/EYDX/ILY0ORQB/FMSEYDXILY0ORQB.jpg&filename=VID 20160208 105053)
![VID 20160208 104848](/proxy/?url=https://content.instructables.com/FRJ/QF2F/ILY0ORRZ/FRJQF2FILY0ORRZ.jpg&filename=VID 20160208 104848)
Hi.
first Again sorry about the language if you think i can use another word for a better explanation let me know.

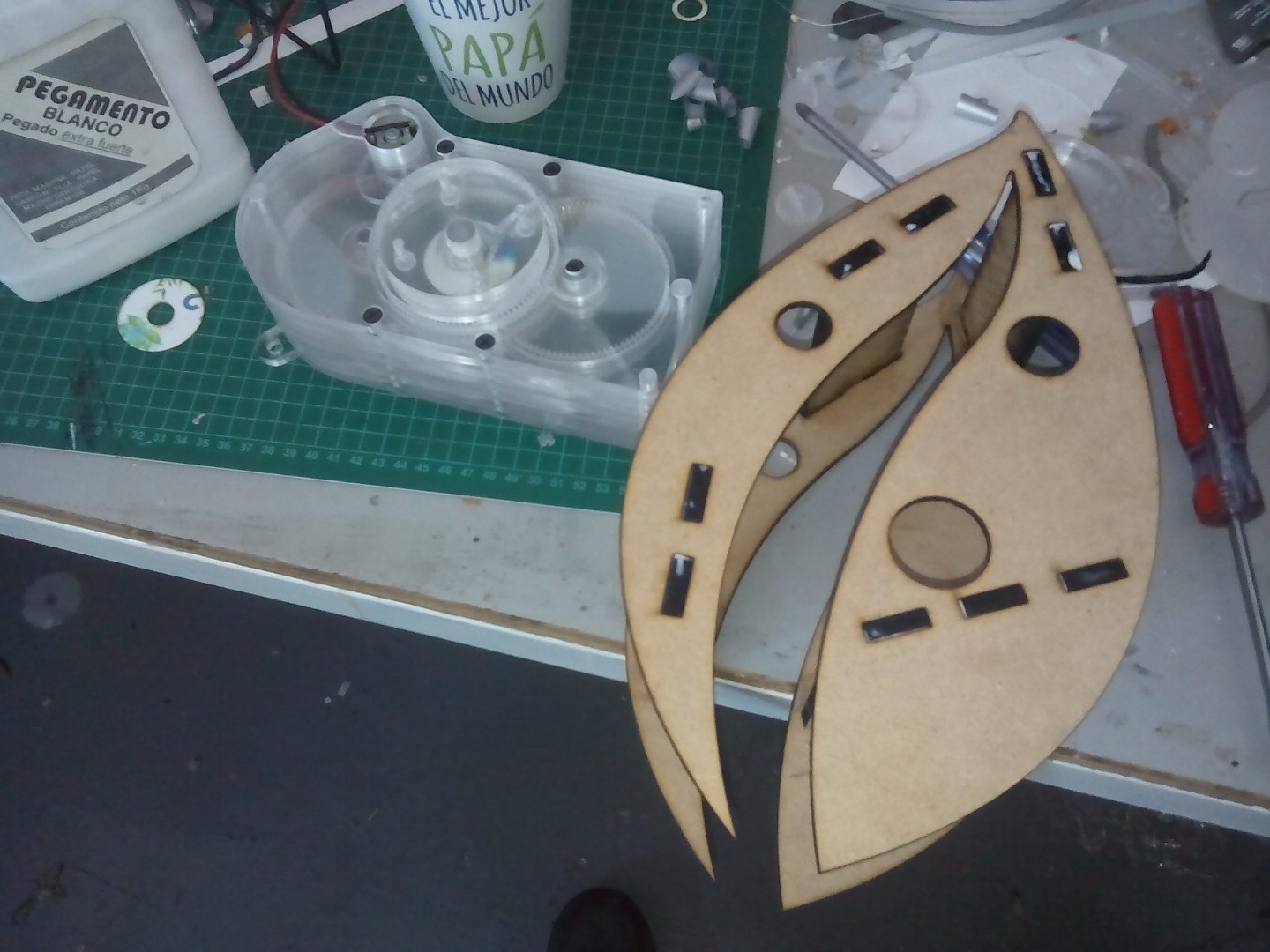

In my work i need to make a lot of diferent things, this motor reducer would be used for a 1.2 Mts rotatory logo using battery for day night work for 3 entire days and upside a fountain it can´t be conected or have any visible cable, my boss laughed wen i proposed using an old cd rom drive motor for a low electric consume, well she now belive in the power of a little motor.
i only test whit 14 Kg and the motor reducer don´t send signs or sound of problems
the motor 5.9VDC 0.12/0.25A 6900 Rpm to 1.8 Rpm

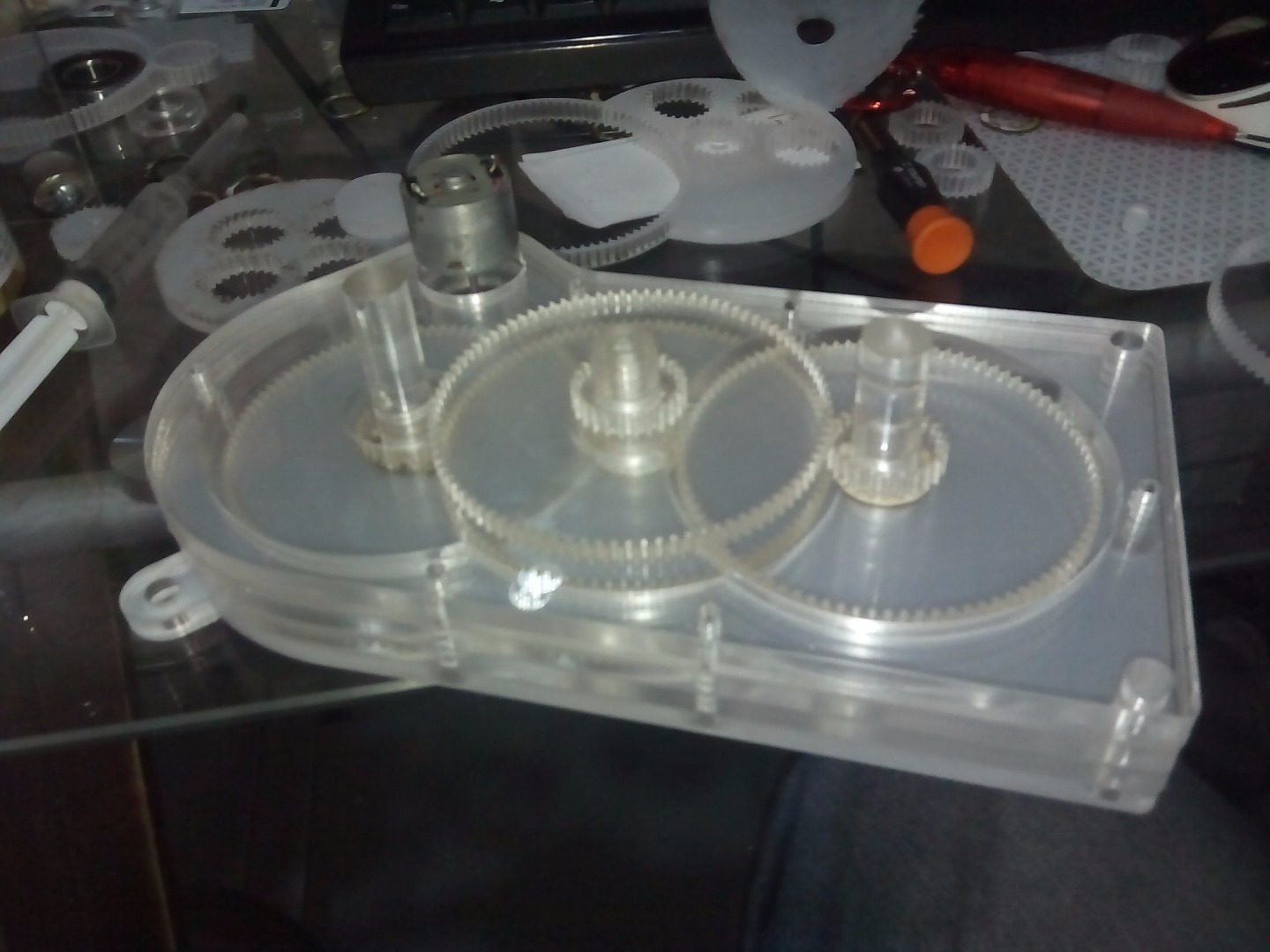

it use 6 gear with 91 teeth and 6 gear whit 25 teeth
it was made whit 6 and 3 mm in acrylic with a total weight of 1.2 Kg
all the parts with glue like the union of the 2 gears was made with AD-CRYL EXTRA from plastiglas (just a acrylic solvent) and i use a 12mm acrylic cylinder bar for the axis. and for polish NOVUS 2

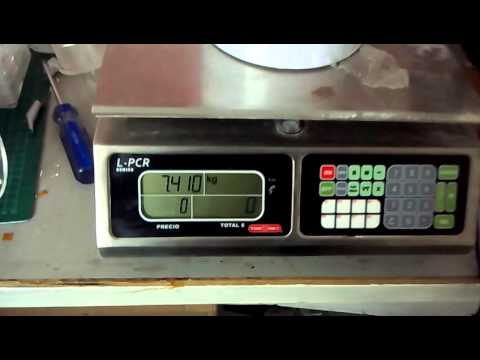

unfortunately few days ago the hotel said all the rotatory logo needs to be 7kg maximum, and this motor reducer would be used inside a big box like base and all the components exceed the 7 kg, so i re design all for a planetary gear, wen finished i share the design
i forgot this: in the cdr fileblack is for 6mm and green for 3 mm
but if some one can use this feel free to use
