Portable Battery Connect 150w V1

This battery was invented in order to solve a big problem power outages. So I decided to invent a 150w battery 100% repairable all over the world.New improvement as well as new accessory arrives.There will also be other batteries with more autonomy.It is a 3S8P battery ( 3 batteries in series and 8 in parallel). It was made with recovery cells so it does that 150w but it could do much more.There will be no plans to manufacture the battery because I will make other improved model in order to commercialize it. But I give you the plans for this accessory as well as the detailed steps for manufacturing. This battery includes a connected BMS to track input and output current, battery level, charge and discharge.

The battery design and techniques used will remain confidential.

Tool:

For the reference of the tools used I have them not badly any brand of ferrons tool case.

Soldering iron

Clamp plate

Clipping

Turn to

3 mm tap

3D printing: DUPLICATOR 12 / 230

glue gun

super glue+

Component:

connector xt60

connector 12V 5.5x2.1mm : https://fr.aliexpress.com/item/1005002886850760.html?spm=a2g0o.order_list.order_list_main.68.23ff1802LJN33Q&gatewayAdapt=glo2fra

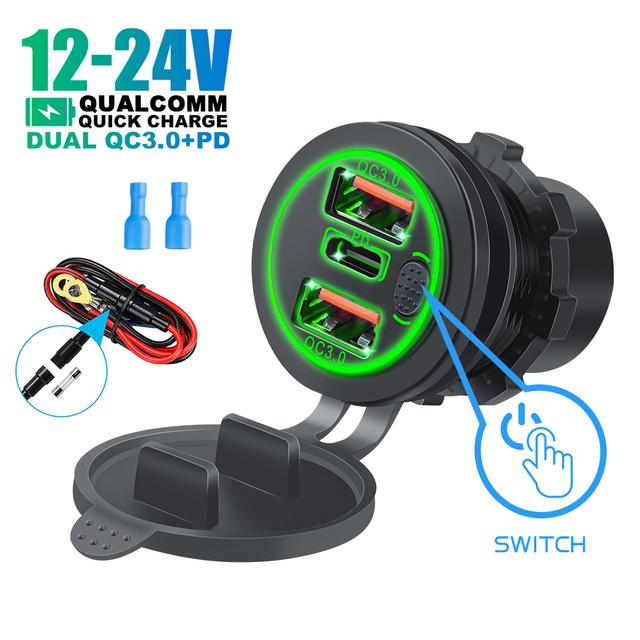

12V/24V Triple USB-C Car Charger Sockets USB: https://fr.aliexpress.com/item/1005004534719269.html?spm=a2g0o.order_list.order_list_main.88.23ff1802LJN33Q&gatewayAdapt=glo2fra

button used : https://fr.aliexpress.com/item/32968811940.html?spm=a2g0o.order_list.order_list_main.108.23ff1802LJN33Q&gatewayAdapt=glo2fra

Cigarette lighter plug : https://www.amazon.fr/dp/B07TN79RT5?psc=1&ref=ppx_yo2ov_dt_b_product_details

3D printing parameter:

Rafts: no

Supports: yes

Infill: 45%

Step 1: Remove media from 3D printing

Step 2: Tap all holes with a 3 mm tap

Step 3: Glue the connectors you need ( xt60, and the 2 5.5 x 2.1 mm Jack connectors).

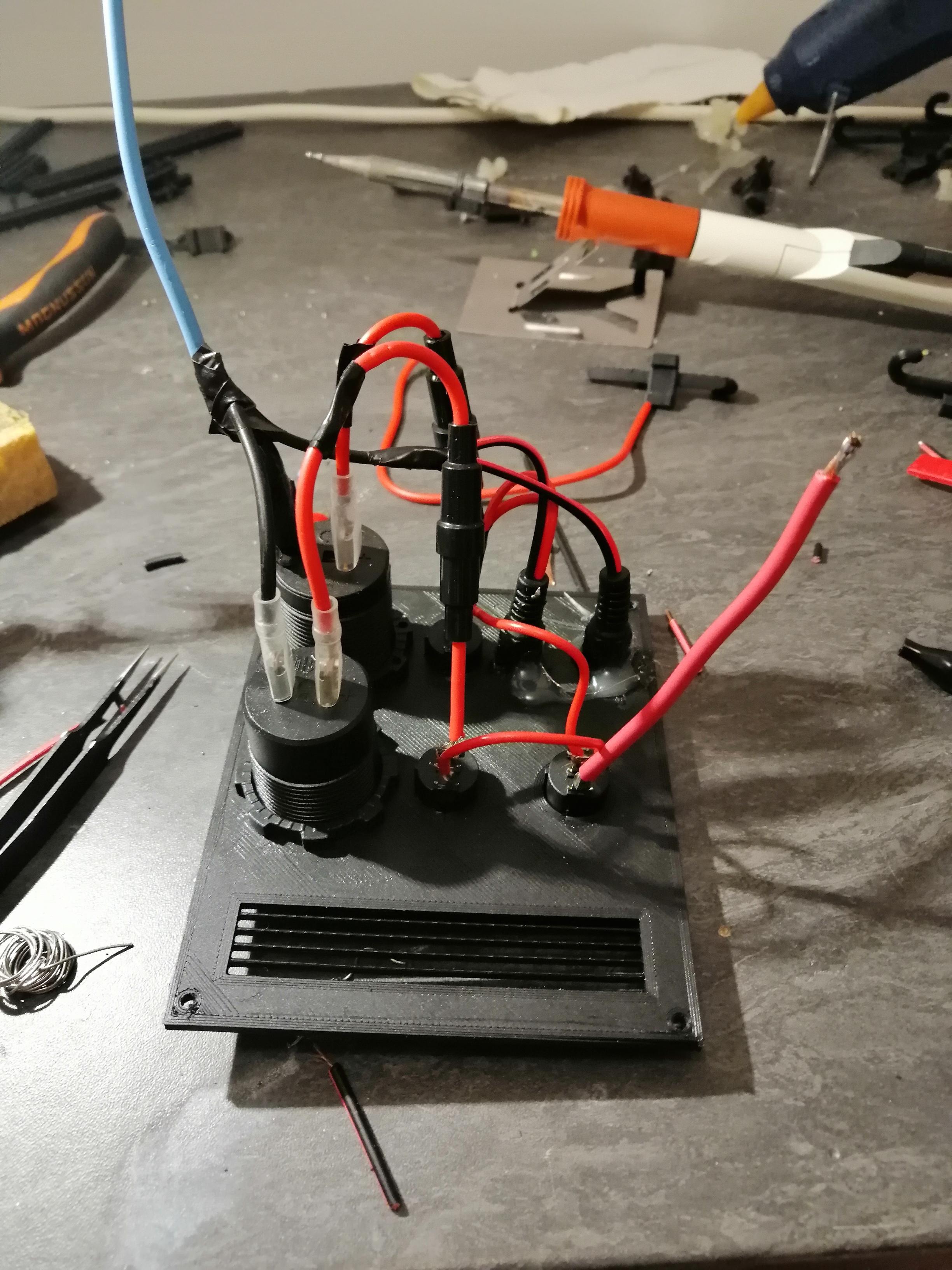

Step 4: Weld all components according to the above diagram.

Step 5: Aim at the front and top cover with 8 3/6 mm screws (measurement was done on the screw head)

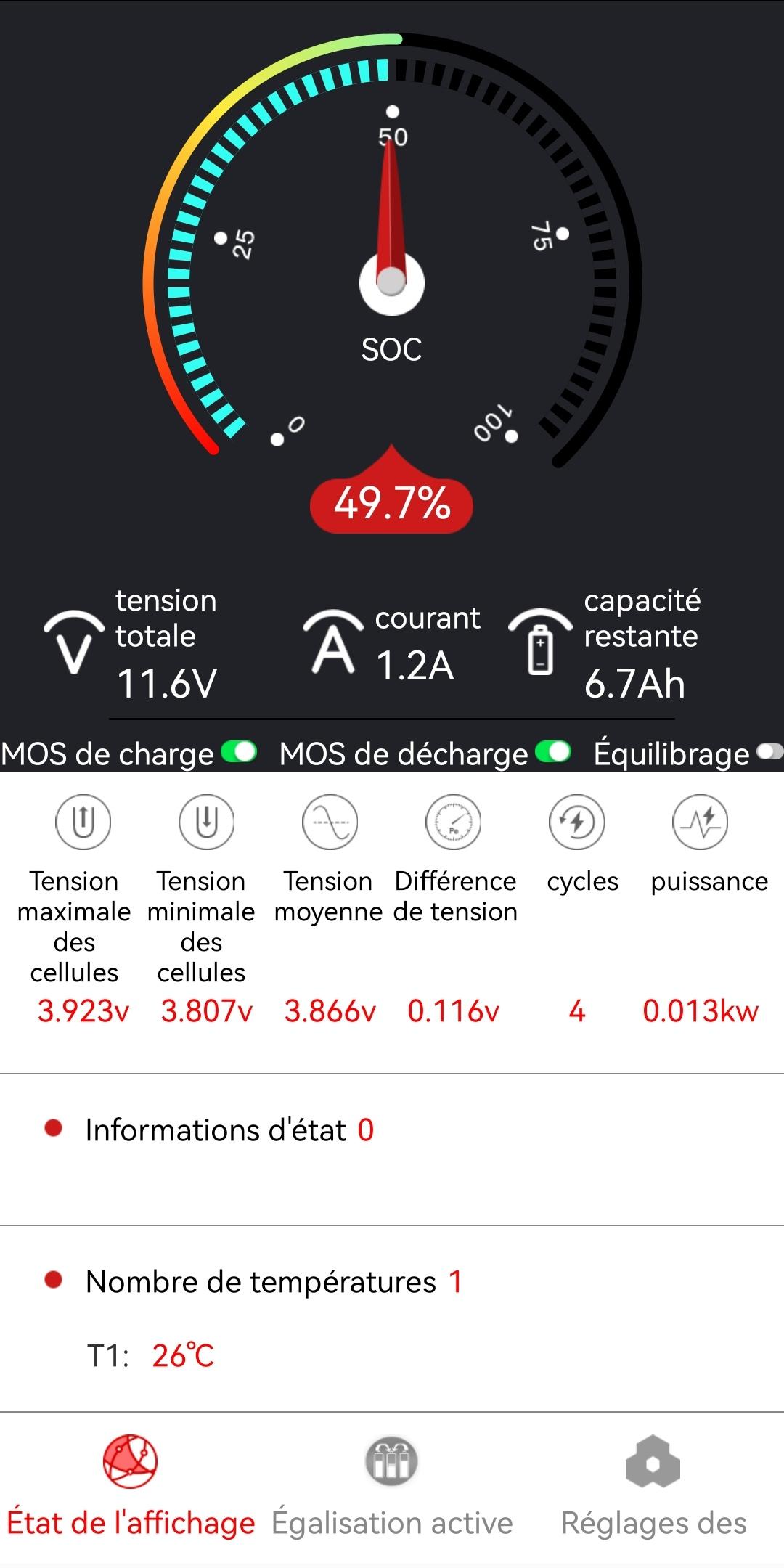

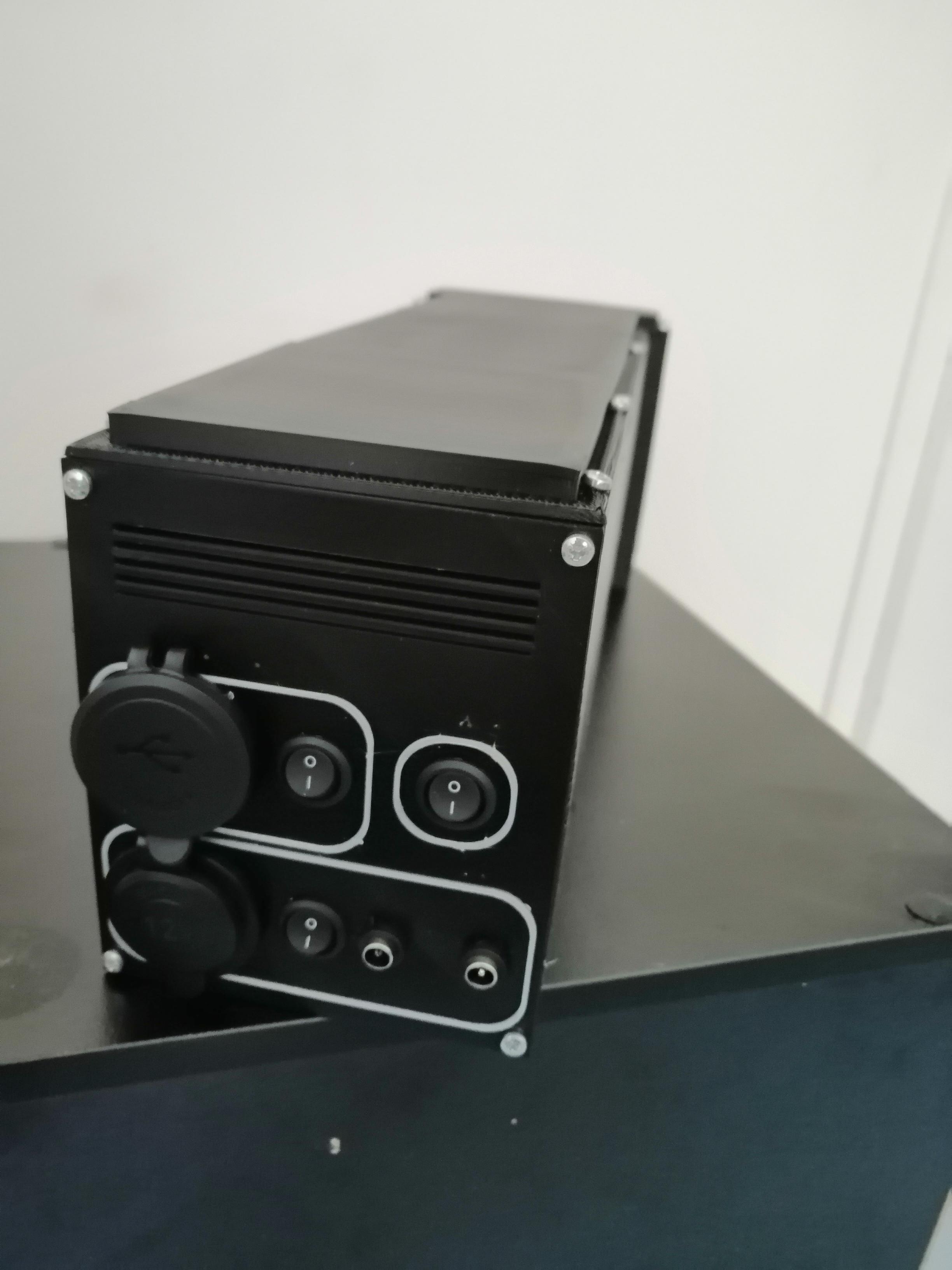

The battery made 150w in 3S8Ps with 18650 recovery cells.The BMS is connected in order to monitor the consumption and the load level live.
