Accelerator Pedal Position Sensor

APPS (Acceleration pedal position sensor) is a PCB created as part of the electrical car

assembled by PUT Motorsport - a Formula Student team from Poznań University of

Technology.

APPS is a part required by the competition rules. Its main purpose is to analyze signals

coming from two potentiometers mounted along the acceleration pedal and to decide

whether the measurements are plausible or not. An implausibility of the signals is defined as

deviation of more than ten percentage points pedal travel between any of the used sensors.

By design the APPS signals must have different, non-intersecting transfer functions. Thus

we chose to use two potentiometers with linear transfer functions offset by a voltage divider.

Main features included on the board are:

• pedal position readout
• sensor power delivery
• plausibility checks
• CAN bus interface
• pinout interface compatible with other PCBs
• shutdown circuit relay

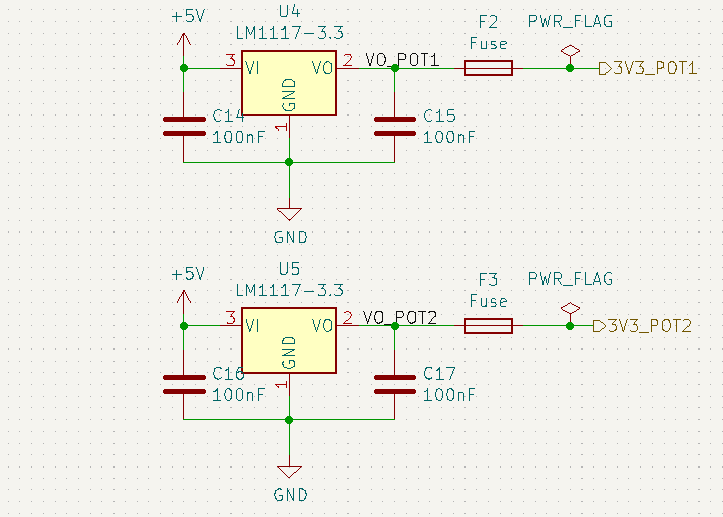

Each of APPSs potentiometers has to have a separate power source

Each signal from the potentiometers is passed through a low pass filter designed to cutoff

frequencies above 338 Hz. After the signal has been filtered it is led to an ADC of STM32.

Our car uses CAN bus for device communication. APPS sends current pedal position over

the bus as well as diagnostic information regarding any errors that occurred during its

operation.

APPS is a part of the front-box - a PCB stack that’s located at the front of the car which we

already covered in this article - thus it has to follow a certain pinout that allows for easy

debugging and connection with other boards that’s space efficient and easy to disassemble.

Manufacturing

PCBs designed by our team are manufactured by JLCPCB - a hardware production

company that specializes in batch PCB production. You can create PCBs with up to six

layers, and order a batch size that fits your needs. Batch production is beneficial since

during PCB assembly, many things could go wrong and the board could get damaged, that’s

where excess copies come in handy. If unlike us you don’t enjoy assembling PCBs, JLCPCB

has got you covered as PCB assembly is also a part of their offer!

To order a PCB of your design, simply go to jlcpcb.com and click the “Instant quote” button.

You will be forwarded to the order editor where you’ll find plenty of options to customize your

batch of PCB to fully meet your needs. Firstly you’ll need to upload your gerber files archived

into .zip or .rar format. The preview as well as the summary view will change accordingly to options you have

chosen. Some of the options (like dimensions or layer number) will be pulled from the gerber

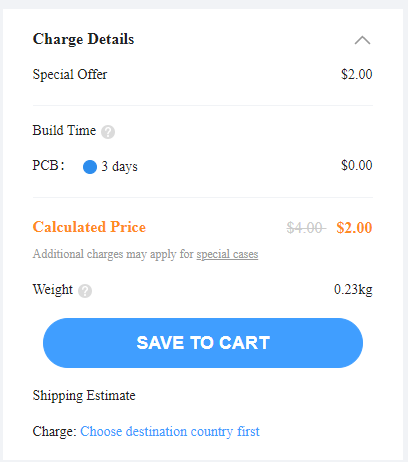

files you have uploaded. After you’ve customized the board, you can proceed to the checkout located at the right side

of the editor. Each and every board we’ve received from JLCPCB is of highest quality and we’ve always

enjoyed working with them!
