ATLS3300 Nino Project2


Nino Zhang

ATLS 3300-001

Project 2

Step 1: Intro

This project is for the class ATLS 3300-001

Material:

Breadboard *1

Wire *4

LED *2

coper tape *3

Paper strip *2

Arduino Uno *1

Step 2: Schematic

未命名作品 2.jpg

Step 3:


Connect the Arduino 3.3v and ground to the breadboard. And put 2 wires to the outer layer.

Step 4:

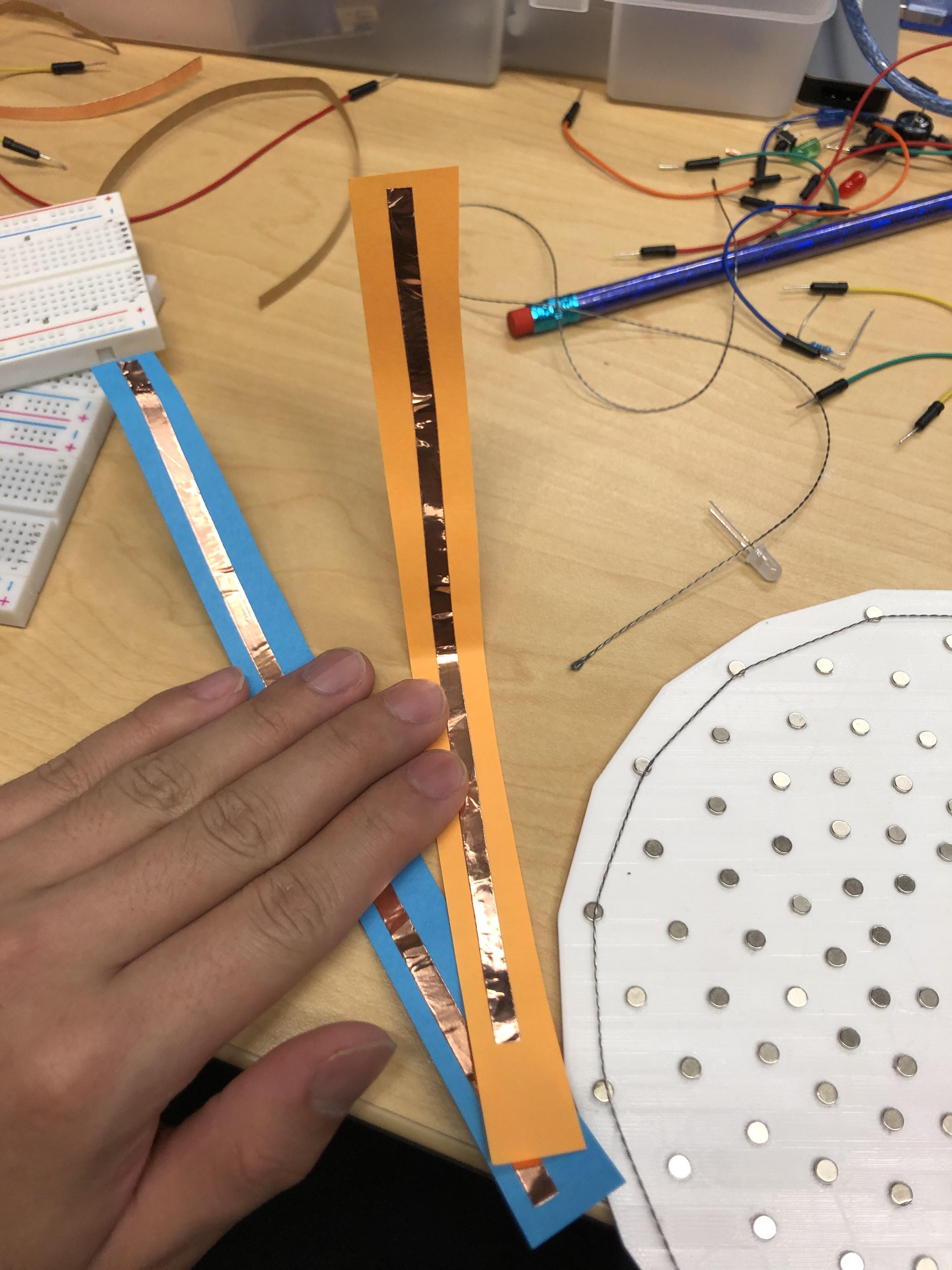

Paste the super to the paper strip.

Step 5:


Put another 2 wire to the inner part.

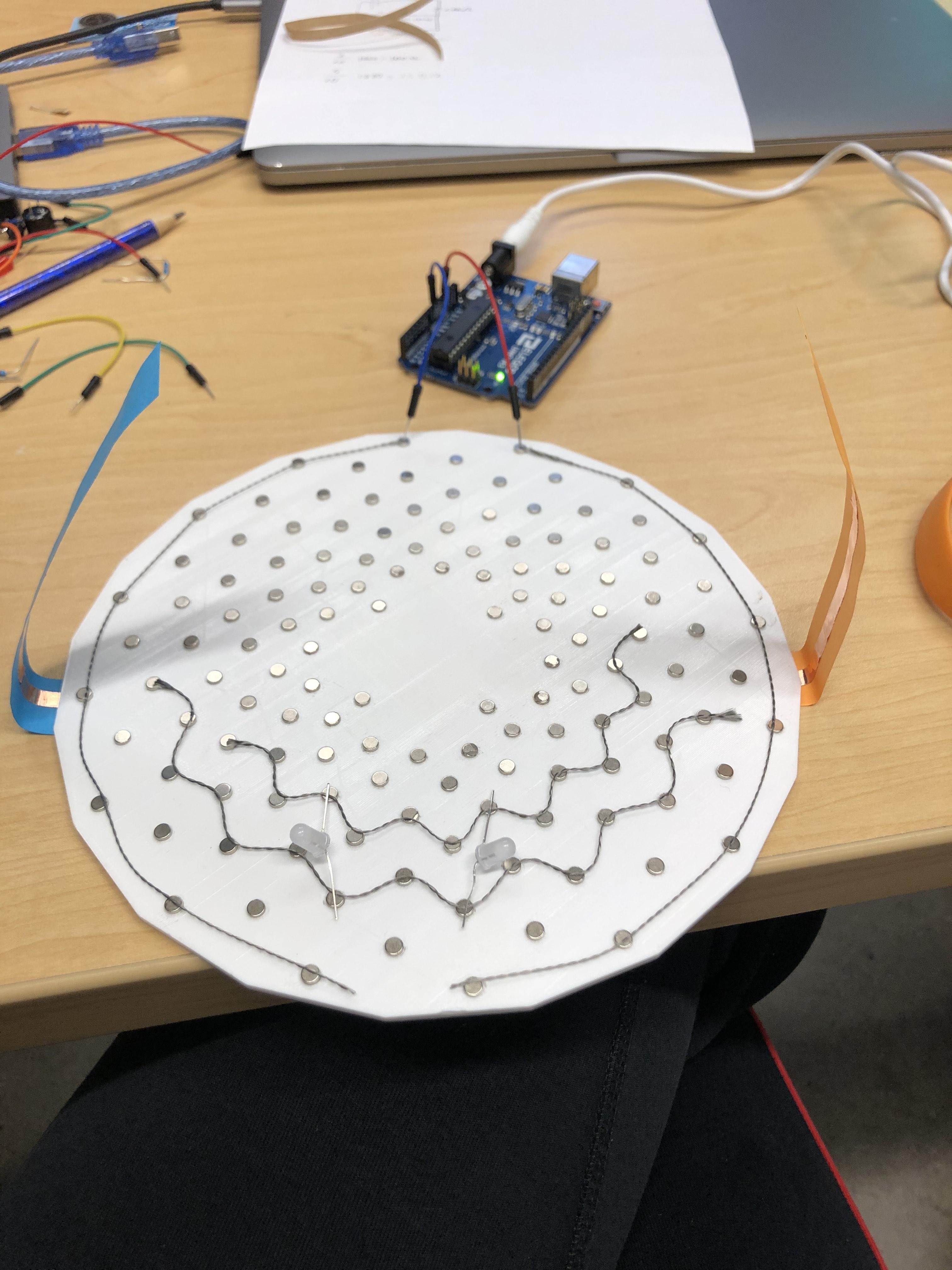

Connect two LEDs with the method shown in the picture.

Fode the paper strip and put half of each under the breadboard.

Step 6:


Finishing it by connecting two paper strips using a copper wire or any other method.

Two light bulbs should light up together if we push down the four connecting points together.
