ATLS3300-2021-NINO-P3

CU boulder

ATLS 3300 - 001

2021

Nino

This project is for the class ATLS 3300 - 001 at CU Boulder.

Wire * many

breadboard * 1

Resistor * 2

potentiometer * 1

button * 1

Arduino * 1

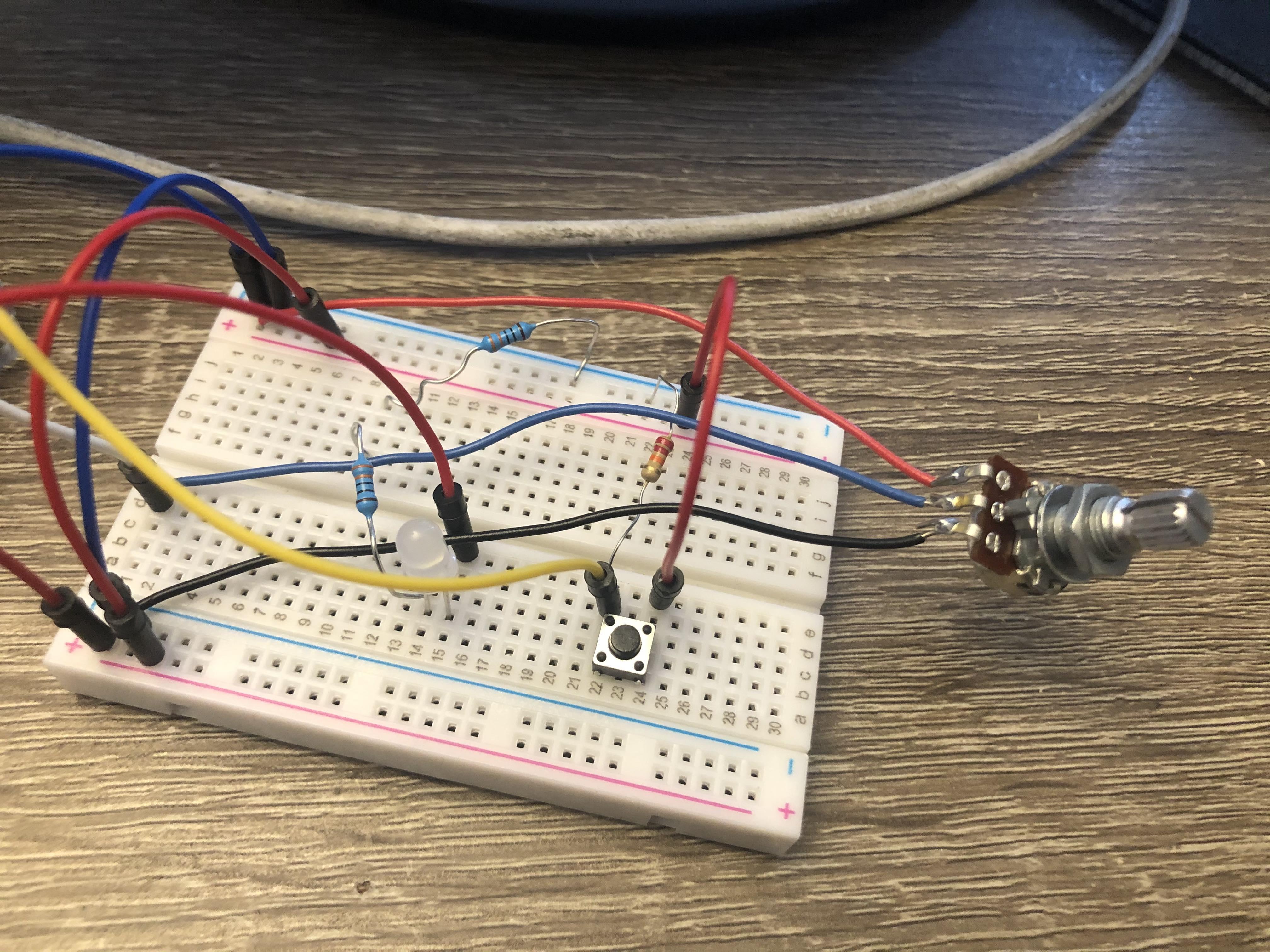

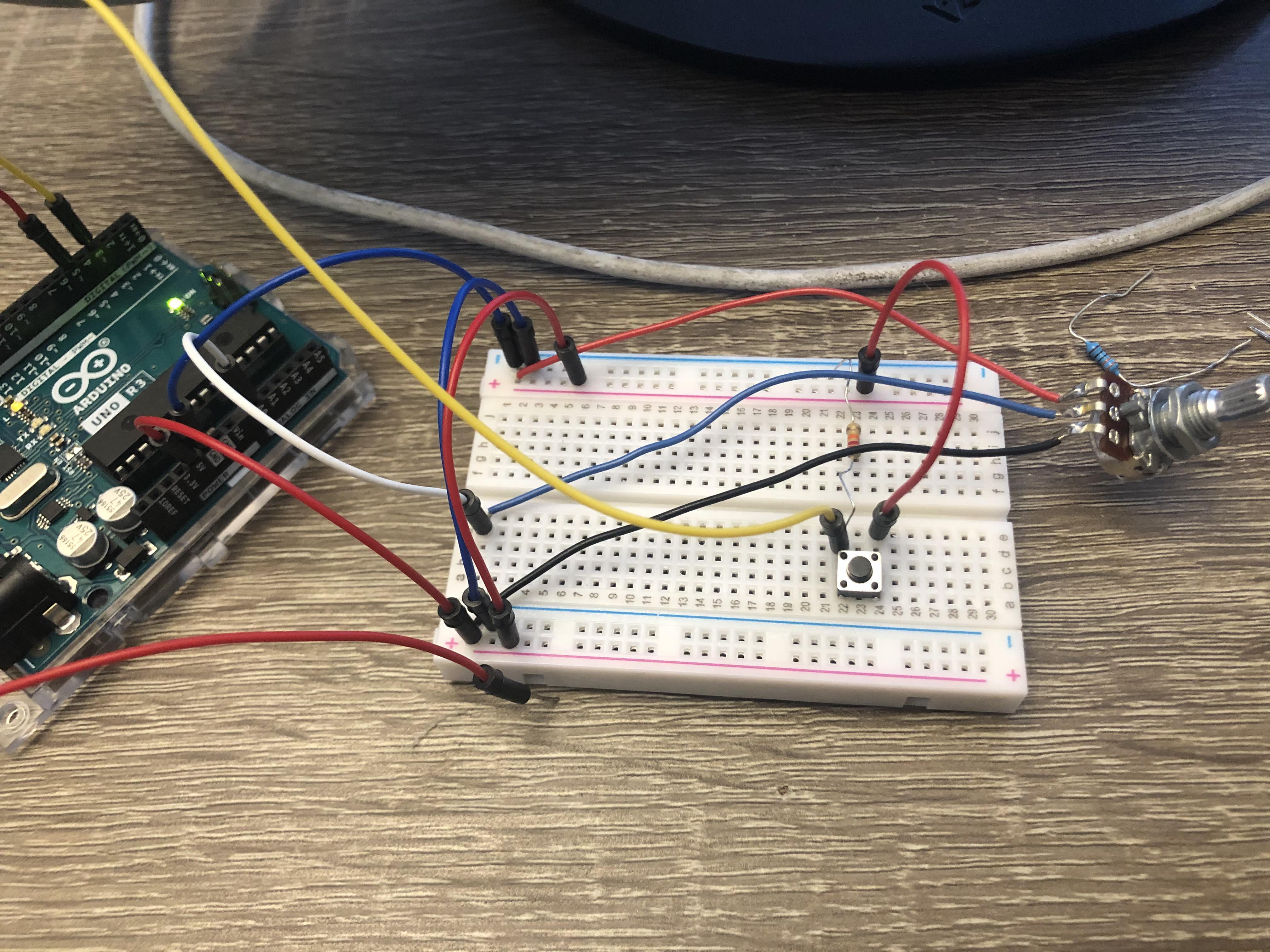

connect the potentiometer with the power, ground, and analog input on the Arduino.

The power supply should be the highest voltage output on your Arduino which is 5V.

Connect button with power with the button, and ground it with a resistor.
Connect a digital input on Arduino to the button.

Connect the LED with a PWM output on the board and ground it with a resistor.

(My resistor's resistance is too low so I'm using two resistors here.)

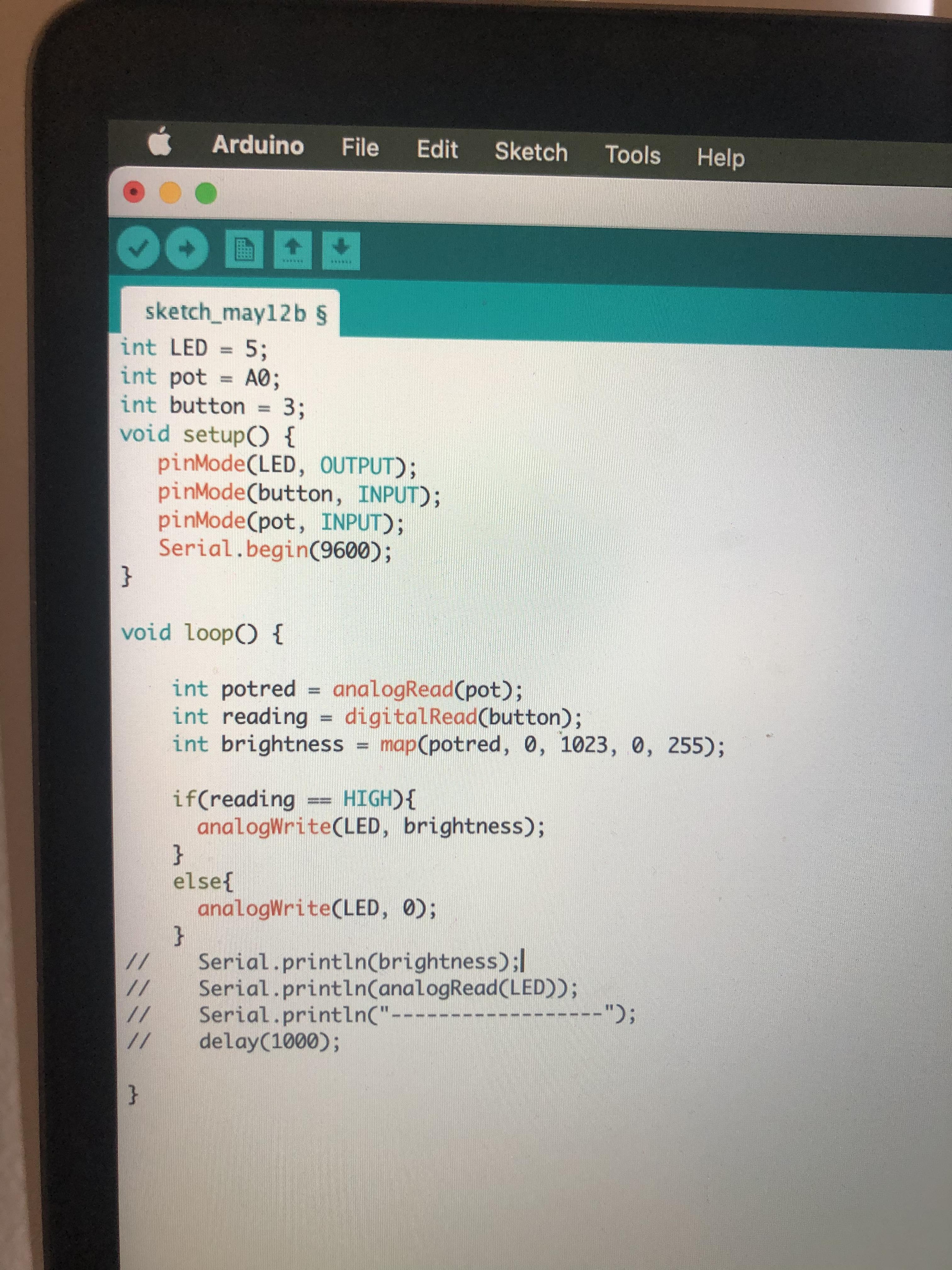

If the code is running correctly, you should able to control the LED with a button and potentiometer.

The button should able to control On and Off, and the potentiometer should able to control the brightness.
