ARDUINO LED LIGHT MUSIC REACTIVE

Hello, if you love led lights with music this is a great instructable for you.

Very easy.

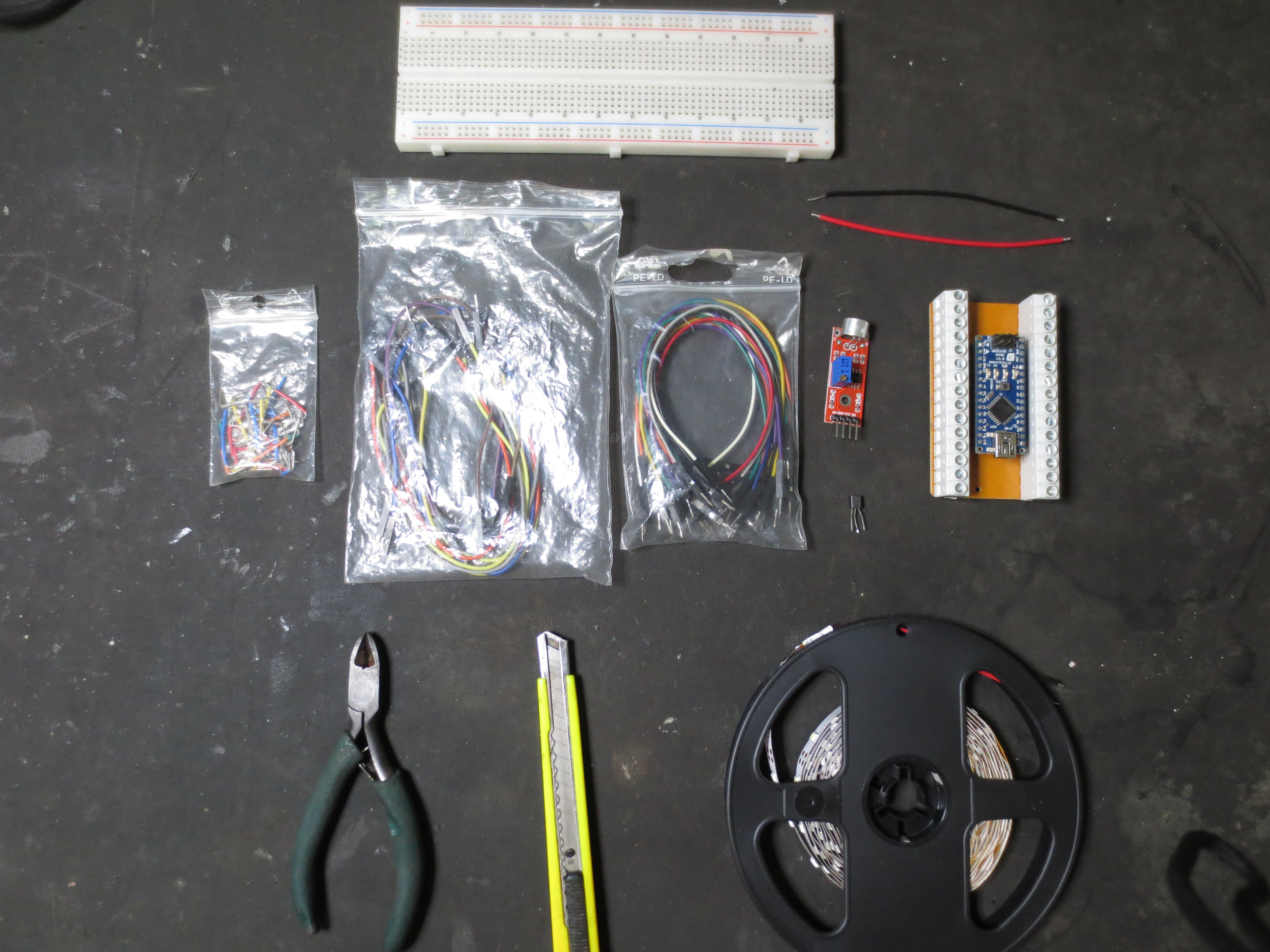

Led Strip - https://bit.ly/2NLYWR6

Breadboard - https://bit.ly/2MwAw9F

Jumpers - https://bit.ly/2MxQEHV

Arduino Nano - https://bit.ly/2p6fCoC

Microphone Sensor - https://bit.ly/2QwA52f

Transistor BC 547/557 - https://bit.ly/2CZyHml

9V Power Supply - https://bit.ly/2NJA8cJ

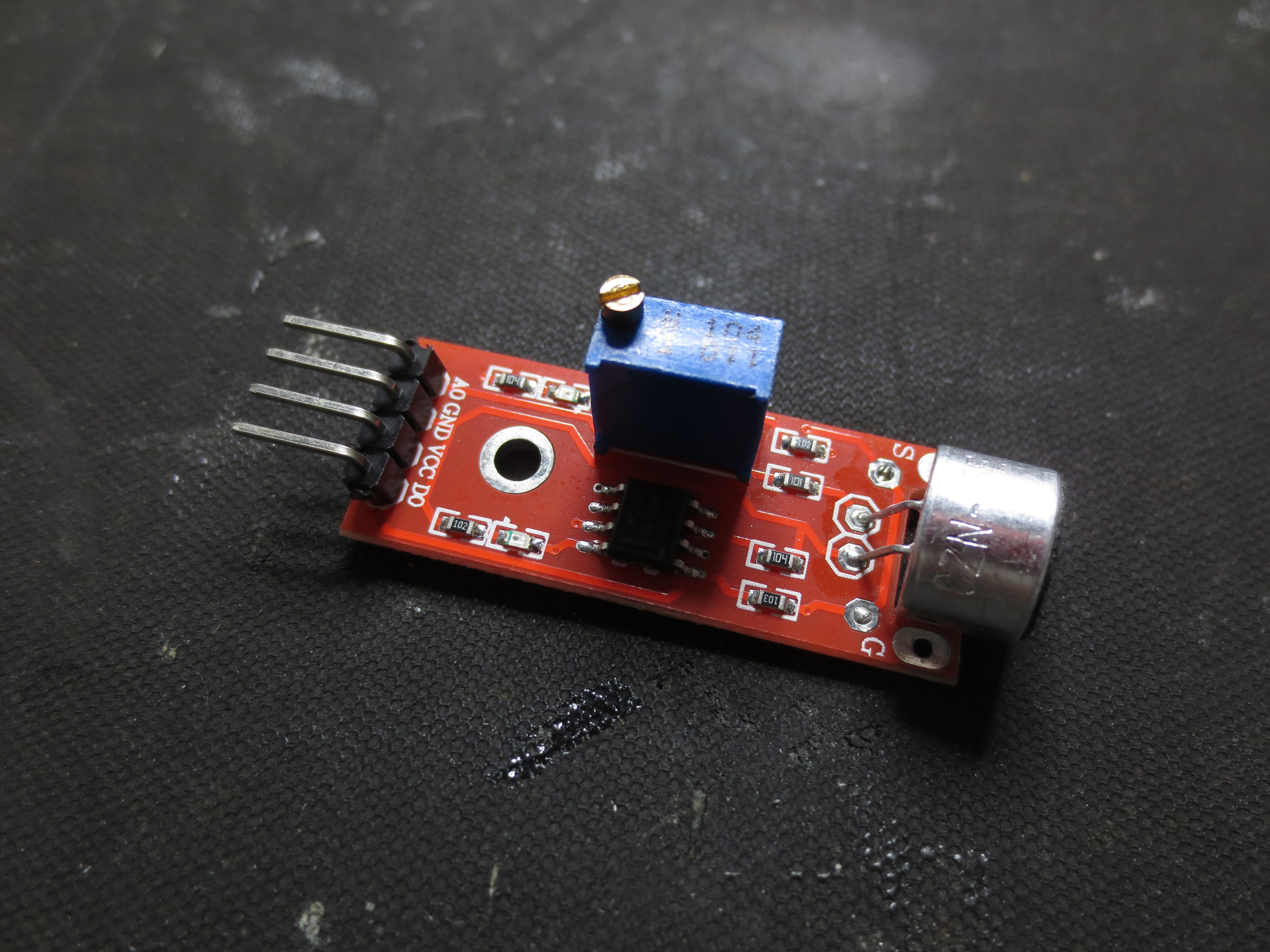

This is a cheap module, not the best but work fine.

A0: Analog pin

VCC: 3-24V( I use 5V, enought and secure)

GND: Ground

D0: Digital Output

Analog Output goes from 0 to 1023

Two leds on board, power and sensor.

Led Sensor: When the microphone capture sounds this LED light.

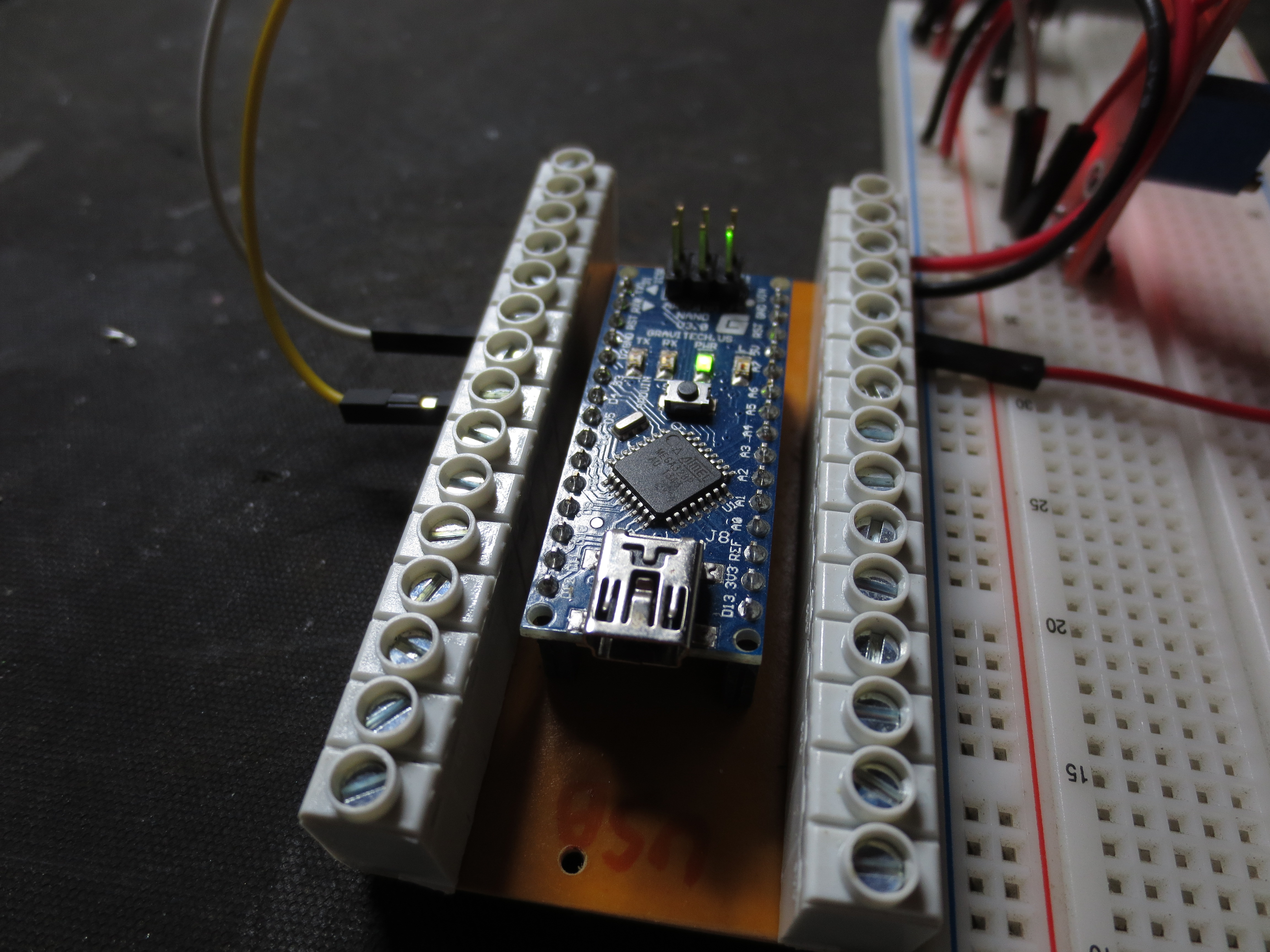

Arduino Nano its a small and powerfull board.

0 to 12V(recommended input voltage)

Friendly board, easy to use.

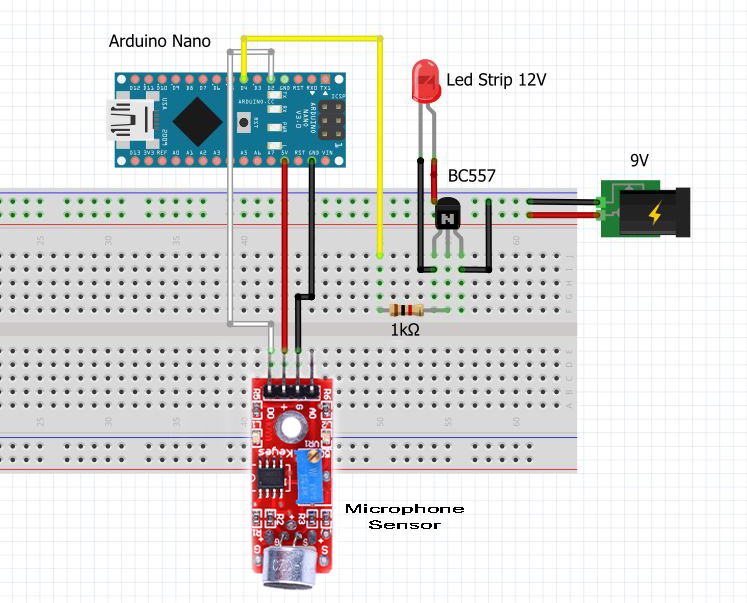

Arduino is a perfect board to do this simple project by yourself.

It can handle the load of the LED strip but I recommend use always a transistor because you can burn the board.
