APC UPS RS 1000 USB Conversion
by SelfSufficientDan in Circuits > USB
14447 Views, 13 Favorites, 0 Comments
APC UPS RS 1000 USB Conversion

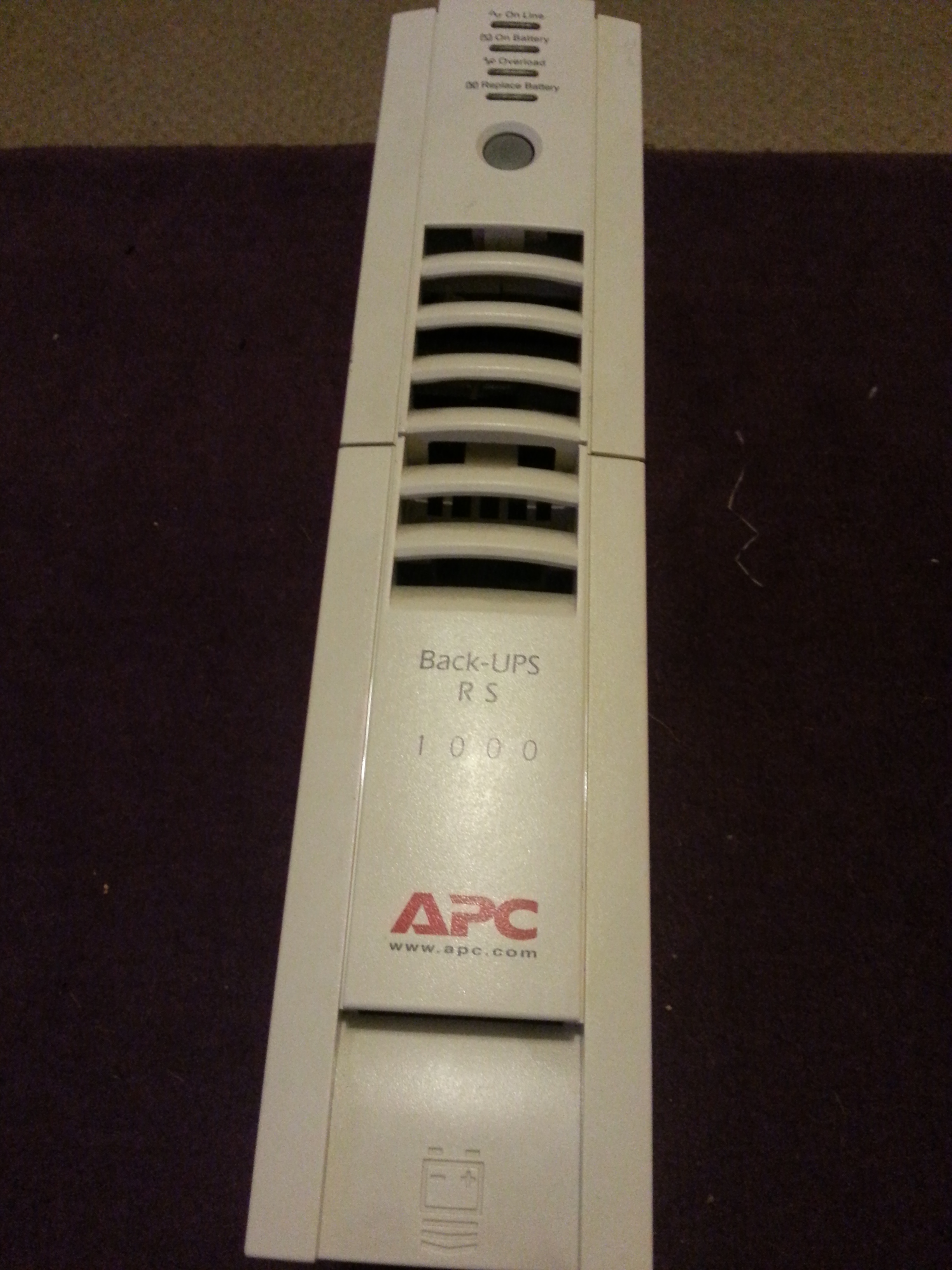

![2013-01-25 19.03.51.jpg](/proxy/?url=https://content.instructables.com/FHF/LWZA/HCB8T3N1/FHFLWZAHCB8T3N1.jpg&filename=2013-01-25 19.03.51.jpg)
Hi all,
I have just been given an Uninteruptable Power Supply. Great! One drawback, no cables!
It needed:
1 x USB to RJ50 cable
RJ50 cables look like normal ethernet RJ45 cables but have 10 pins not 8.
At least 1 kettle lead with a male connection one end and a female connection the other.
I looked at making a cable, but i would need an RJ50 plug. That wouldn't do! I will replace the socket instead.
I have just been given an Uninteruptable Power Supply. Great! One drawback, no cables!
It needed:
1 x USB to RJ50 cable
RJ50 cables look like normal ethernet RJ45 cables but have 10 pins not 8.
At least 1 kettle lead with a male connection one end and a female connection the other.
I looked at making a cable, but i would need an RJ50 plug. That wouldn't do! I will replace the socket instead.
Popping It Open
![2013-01-25 19.20.51.jpg](/proxy/?url=https://content.instructables.com/FQR/R1DD/HCB86CSD/FQRR1DDHCB86CSD.jpg&filename=2013-01-25 19.20.51.jpg)
I popped it open to see if adding/replacing the data port was a viable option.
Removing the Rear Facia
![2013-01-25 19.21.04.jpg](/proxy/?url=https://content.instructables.com/F5N/WT82/HCB8QLQF/F5NWT82HCB8QLQF.jpg&filename=2013-01-25 19.21.04.jpg)

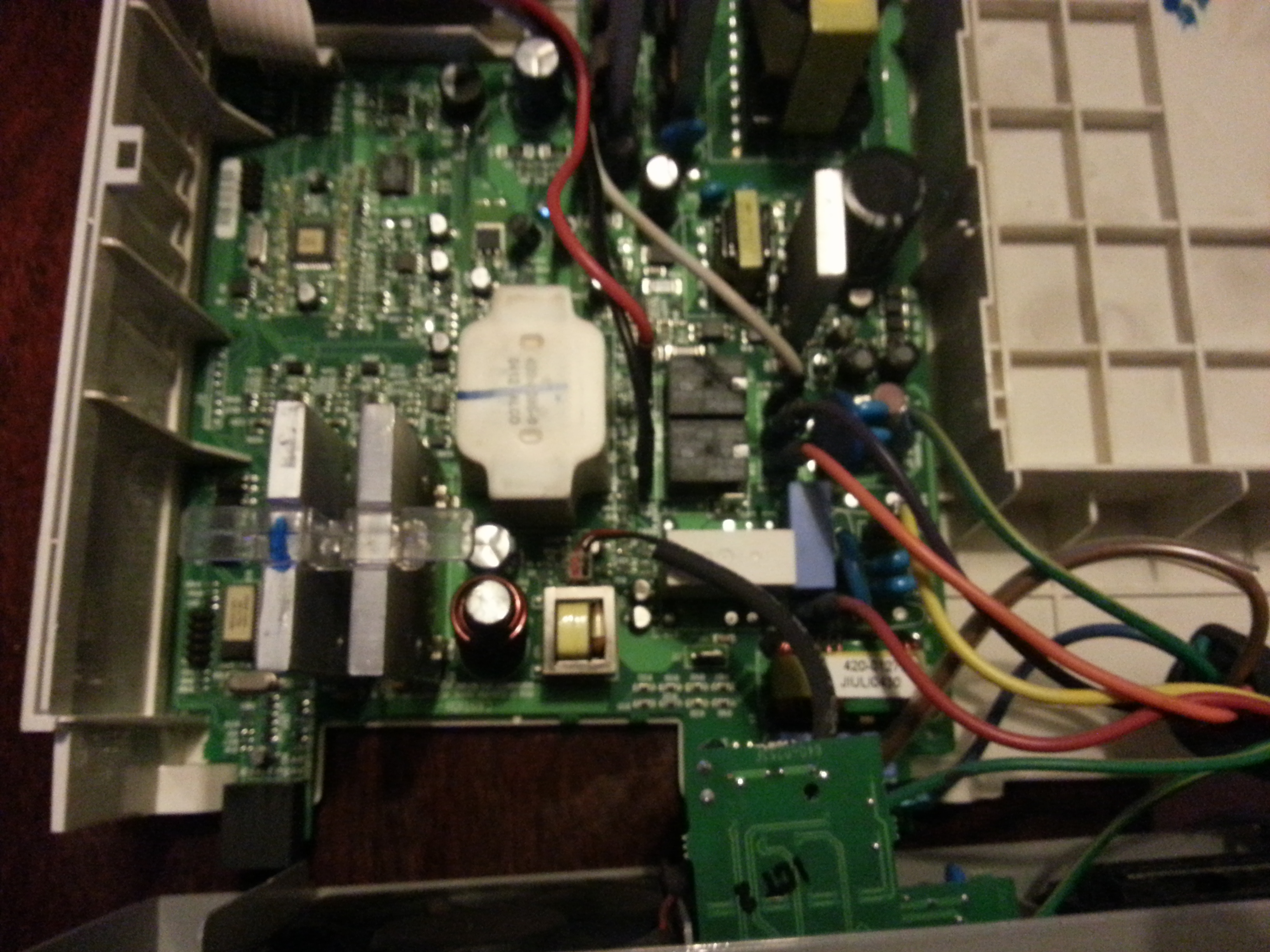

Cable Layout
![2013-01-25 19.22.25.jpg](/proxy/?url=https://content.instructables.com/FI5/343X/HCB86CSE/FI5343XHCB86CSE.jpg&filename=2013-01-25 19.22.25.jpg)
No Idea What This Port Is For, But Thr RJ50 Socket at the Bottom in Black
![2013-01-25 19.26.44.jpg](/proxy/?url=https://content.instructables.com/FLS/1768/HCB8T3QA/FLS1768HCB8T3QA.jpg&filename=2013-01-25 19.26.44.jpg)

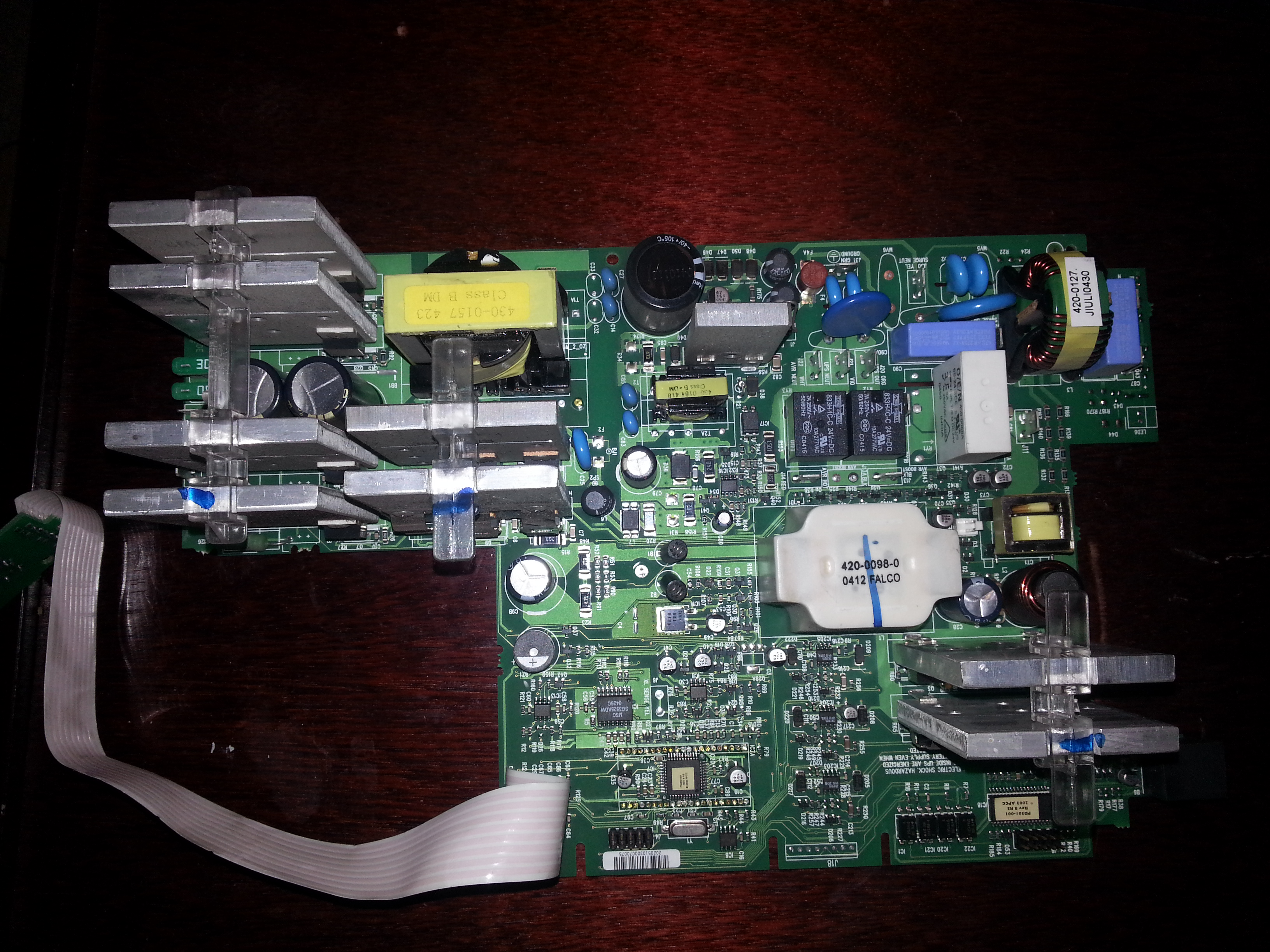

The Board Completely Removed
![2013-01-25 19.32.45.jpg](/proxy/?url=https://content.instructables.com/F9G/5QJM/HCB86CSF/F9G5QJMHCB86CSF.jpg&filename=2013-01-25 19.32.45.jpg)

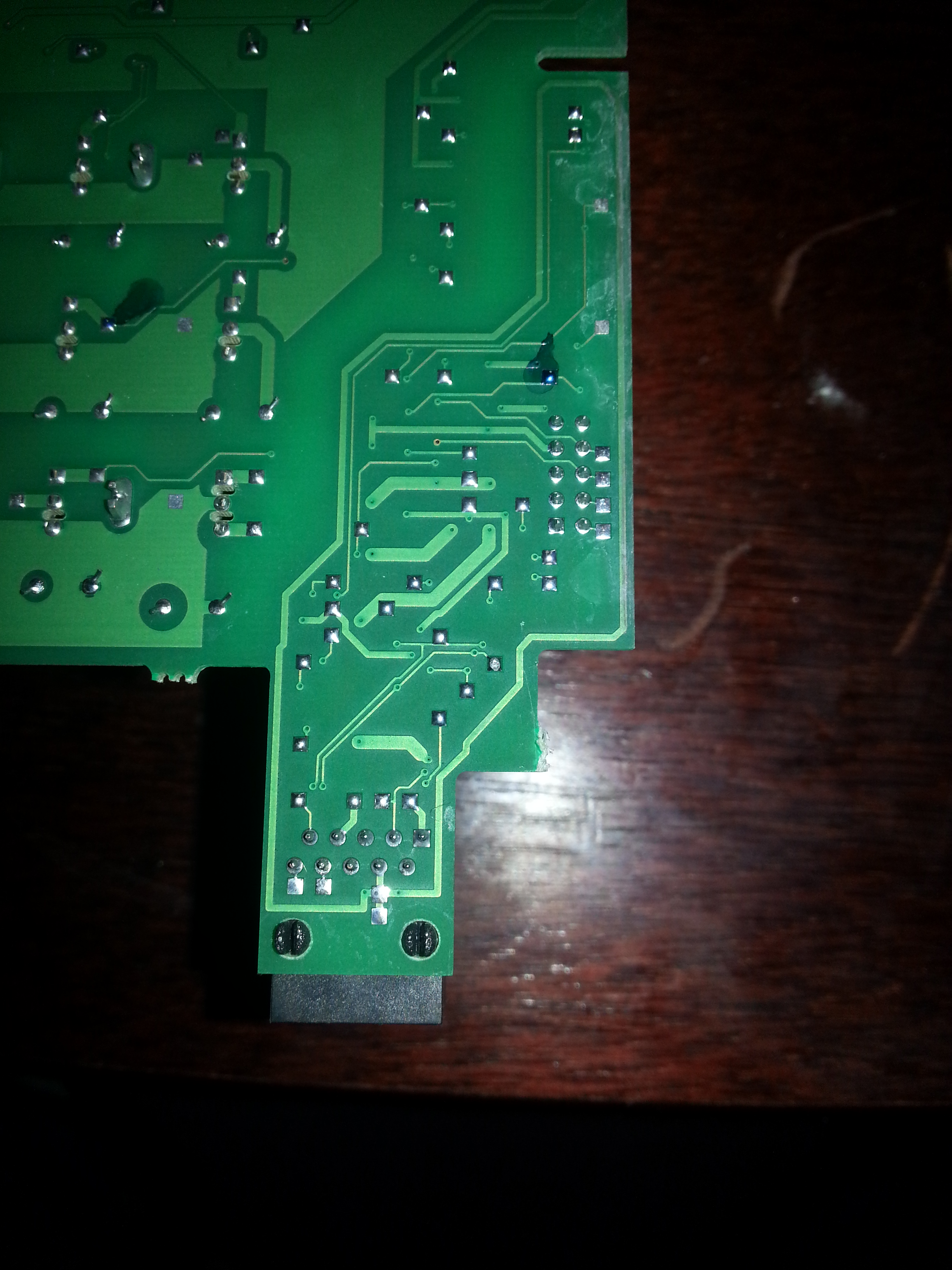

Underside of Board Where the Socket Is Soldered In
![2013-01-25 19.33.16.jpg](/proxy/?url=https://content.instructables.com/FZQ/XTEO/HCB8KNLR/FZQXTEOHCB8KNLR.jpg&filename=2013-01-25 19.33.16.jpg)
Pinout
SOCKET END
2 4 6 8 10
1 3 5 7 9
BOARD END
SOCKET END
2 4 6 8 10
1 3 5 7 9
BOARD END
APC Pin | USB Pin | Description |
---|---|---|
1 | 1 | USB +5V (red wire) |
4 | shield | chassis ground |
7 | 4 | USB GND (black wire) |
9 | 2 | USB Data- (white wire) |
10 | 3 | USB Data+ (green wire) |

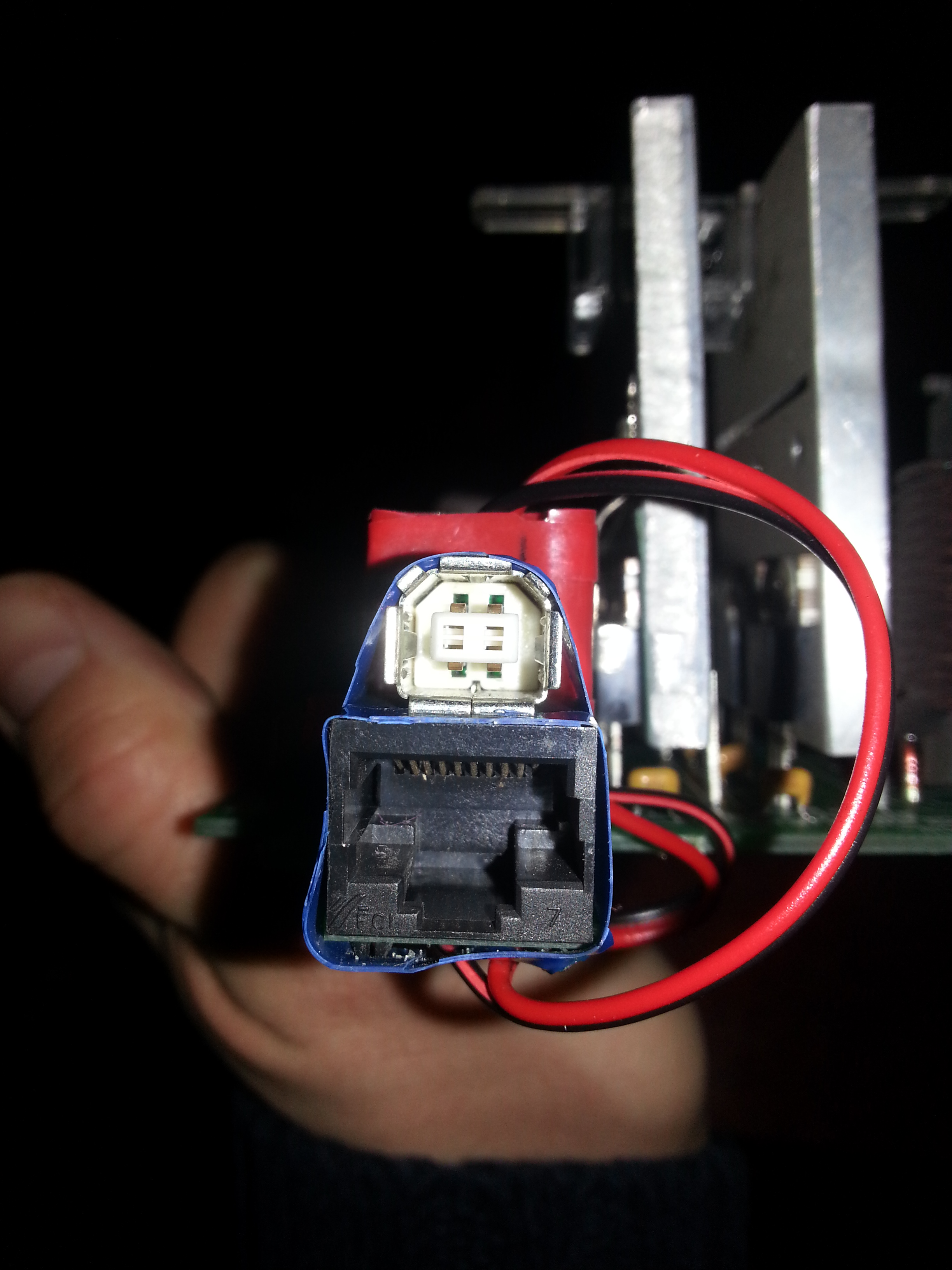

Adding the Printer USB Socket
![2013-01-25 21.22.02.jpg](/proxy/?url=https://content.instructables.com/FU3/Z3AX/HCB8KNLW/FU3Z3AXHCB8KNLW.jpg&filename=2013-01-25 21.22.02.jpg)
http://image.pinout.net/pinout_USB_files/connector_pinout.php?image=usb_typeB_receptacle.gif&pinout=%20printer%20cable
2 1
3 4
1= +5v (Red)
2= D- (White)
3= D+ (Green)
4= GND (Black)
2 1
3 4
1= +5v (Red)
2= D- (White)
3= D+ (Green)
4= GND (Black)

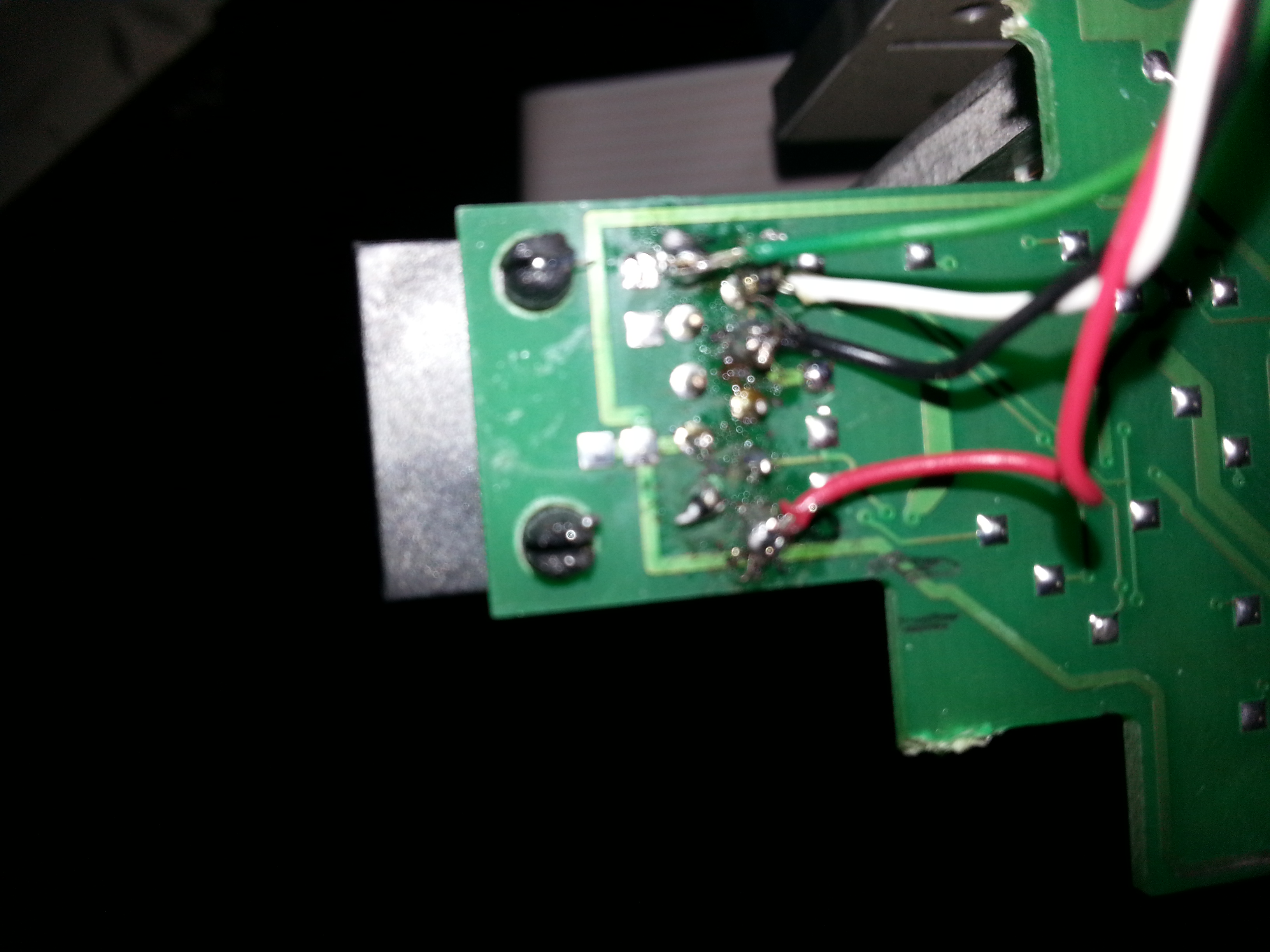

Soldered Wiring
![2013-01-26 14.57.50.jpg](/proxy/?url=https://content.instructables.com/F0N/M0KE/HCB8CRGK/F0NM0KEHCB8CRGK.jpg&filename=2013-01-26 14.57.50.jpg)
APC Pin | USB Pin | Description |
---|---|---|
1 | 1 | USB +5V (red wire) |
4 | shield | chassis ground |
7 | 4 | USB GND (black wire) |
9 | 2 | USB Data- (white wire) |
10 | 3 | USB Data+ (green wire) |

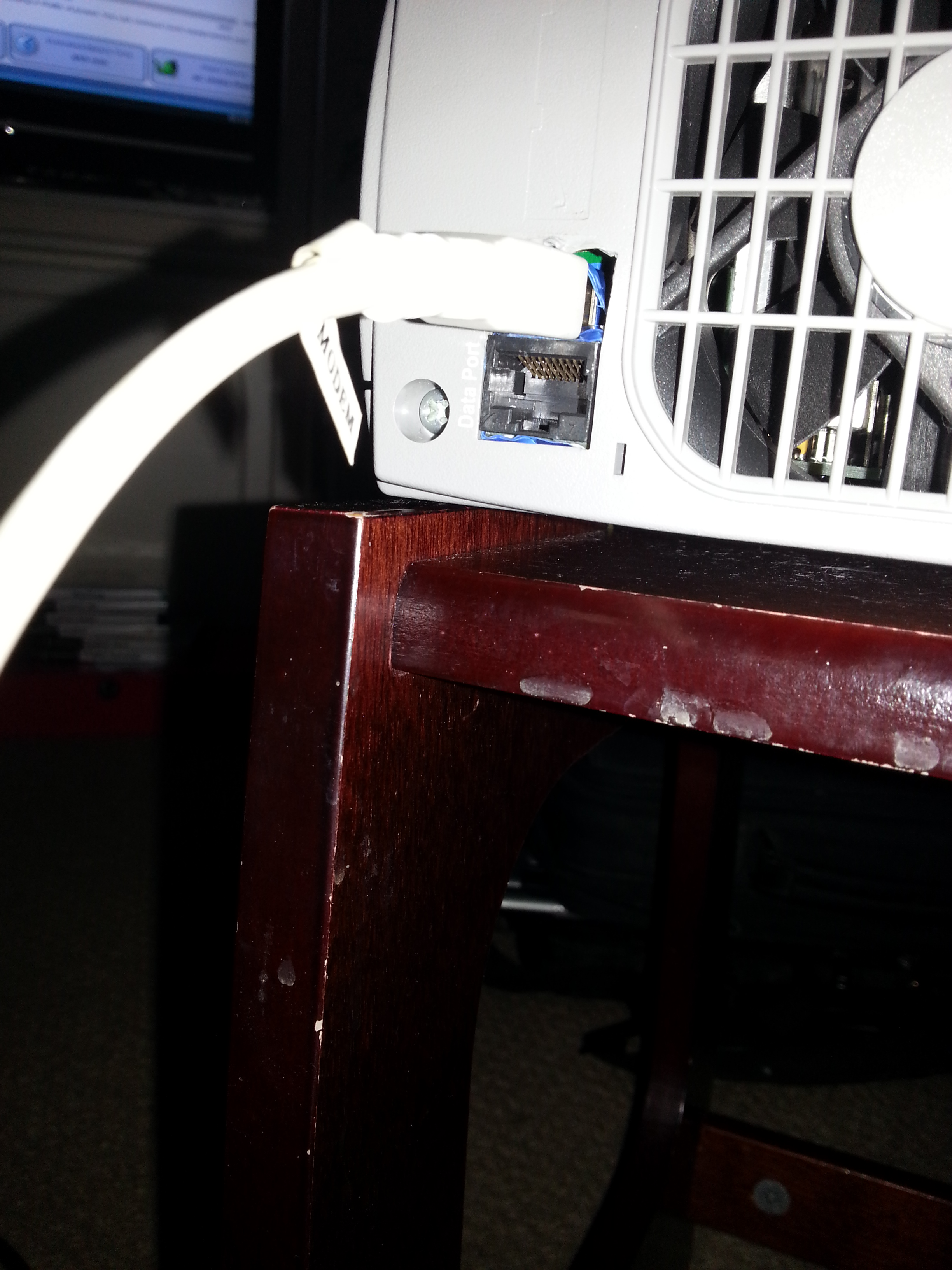

Trimmed Case for Socket Access
![2013-01-26 16.06.35.jpg](/proxy/?url=https://content.instructables.com/FES/IMB7/HCB8TST1/FESIMB7HCB8TST1.jpg&filename=2013-01-26 16.06.35.jpg)
