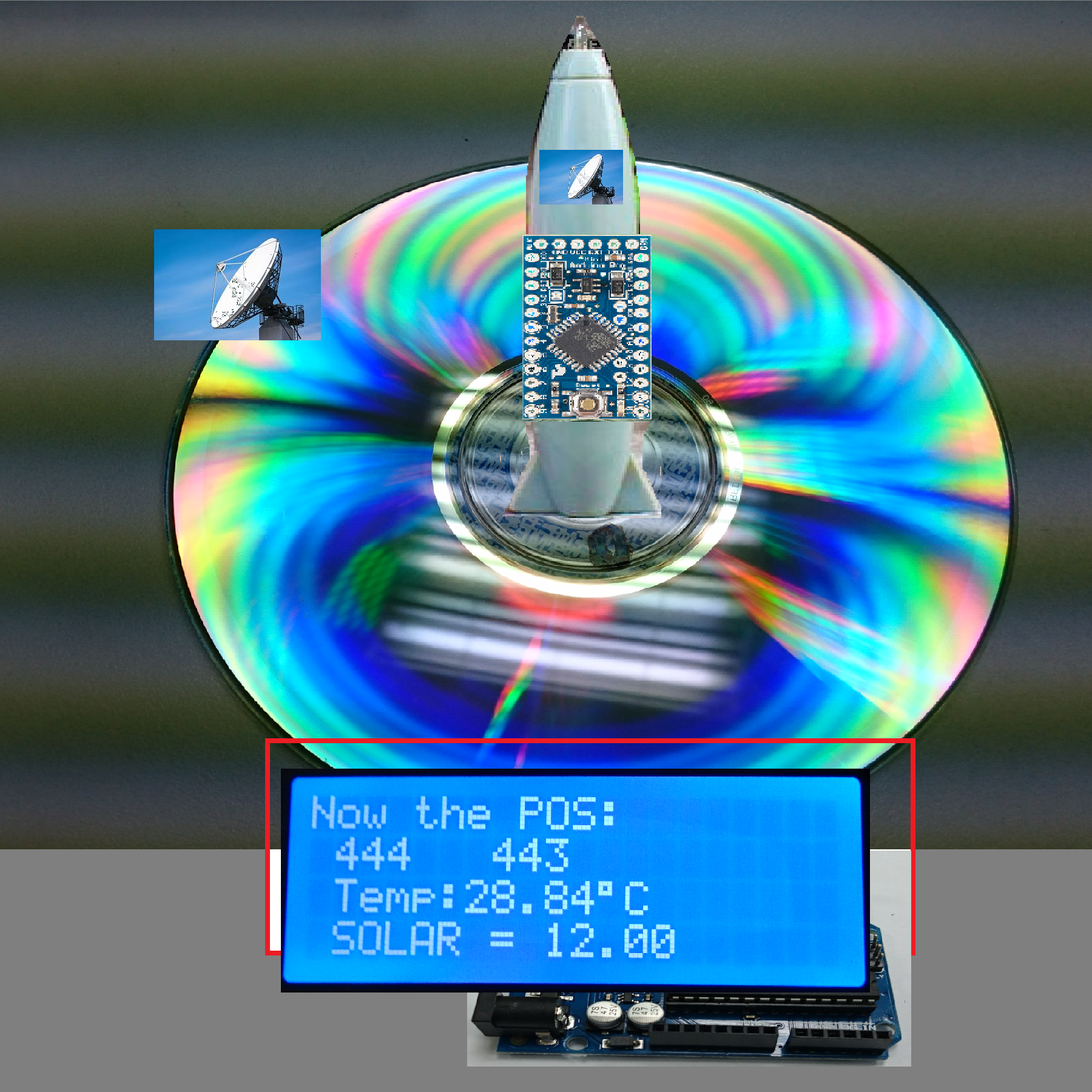

ANTI MISSILE ROBOT

The very first time i think at what a robot does.

that use a water rocket to be an anti missile blocking and raining the earth.

and there is another anti missile robot on boarded the flying water rocket

controlling water rocket(part_3) too !

and ...

the water rockets will not fighting each other because of the rockets

don't burn any fuel and they don't emitting light !

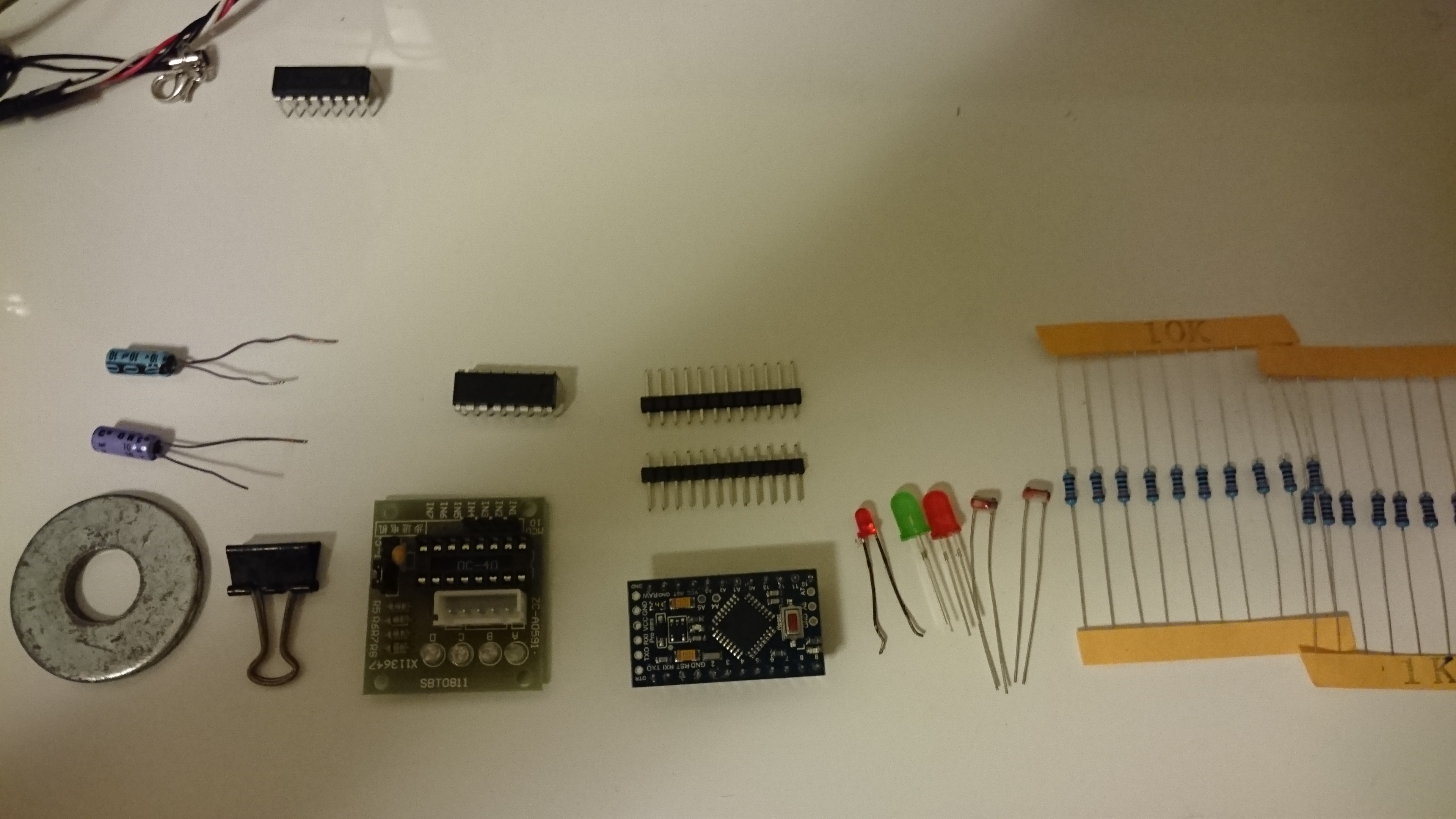

it's every part and elements

connecting the heart of robot to it's every part

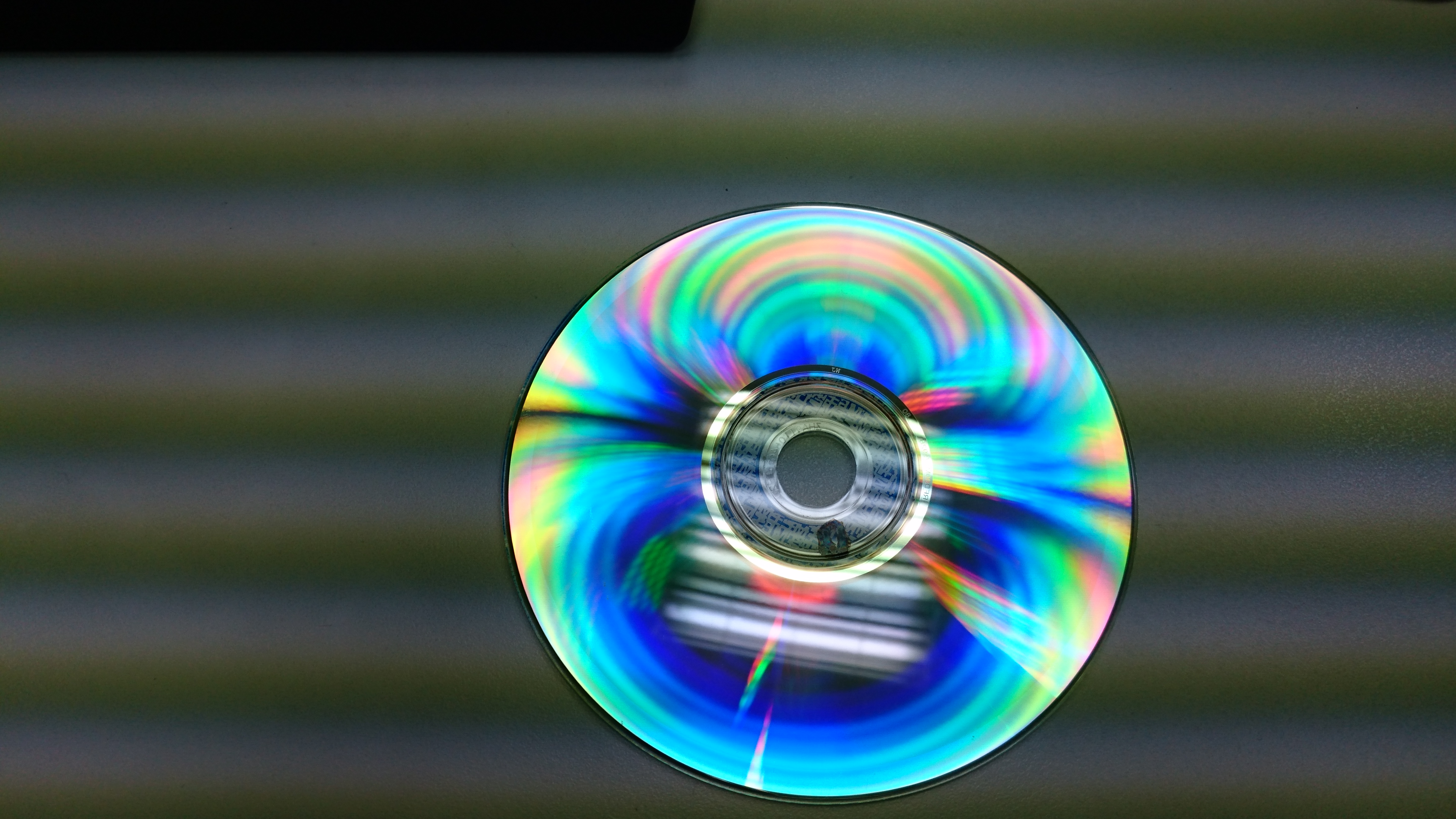

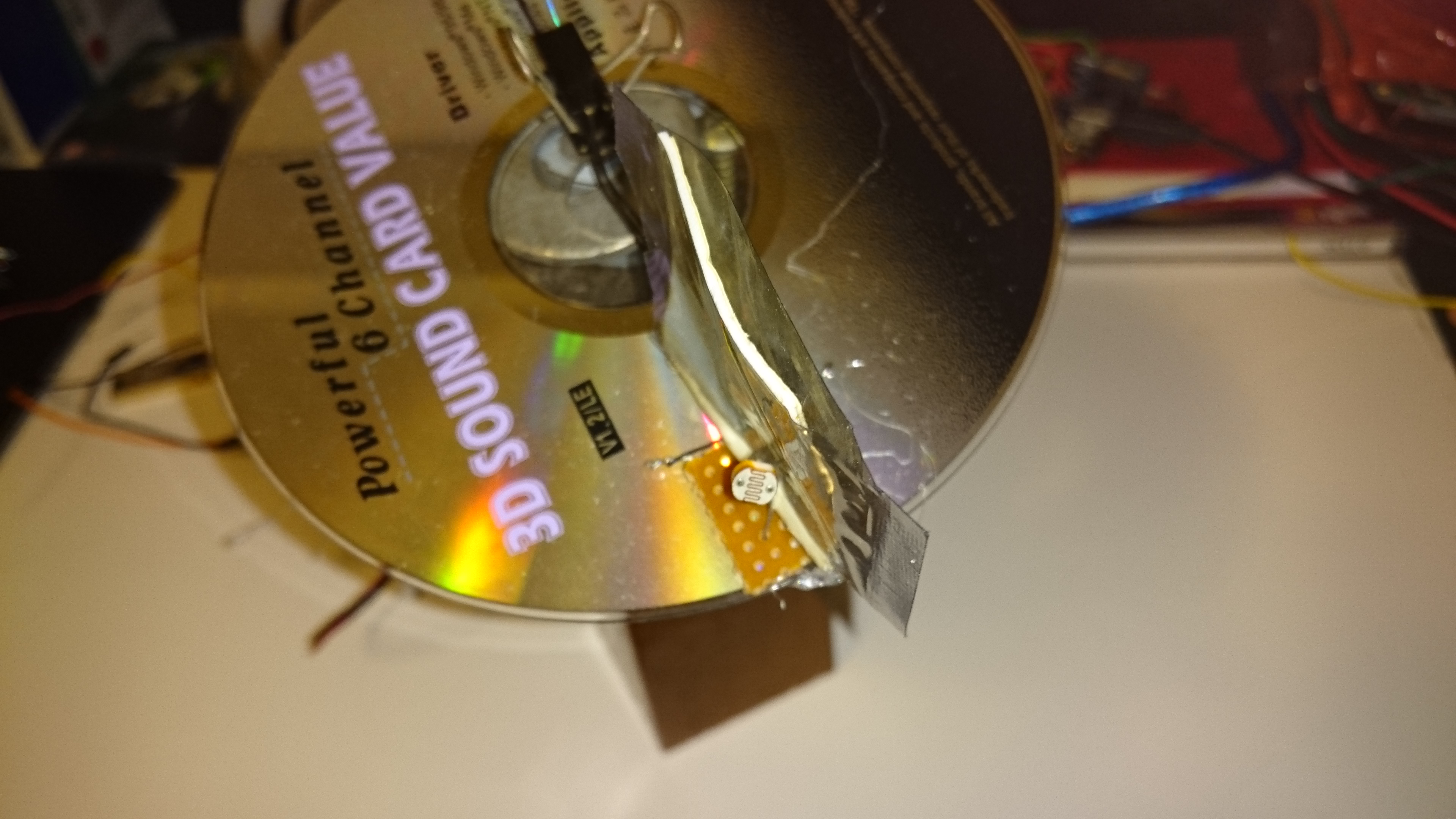

use an old (wasted) CD, a paper clipper, a washer, a hand drill.
and the PCB read the signal for next move.

the platform read POS_v (+5 == LDR == 10K == GND ) from 10K OHM

and read POS_h (+5 == LDR == 10K == GND ) from 10K OHM

so that 10K connecting to UNO PIN A2,A3

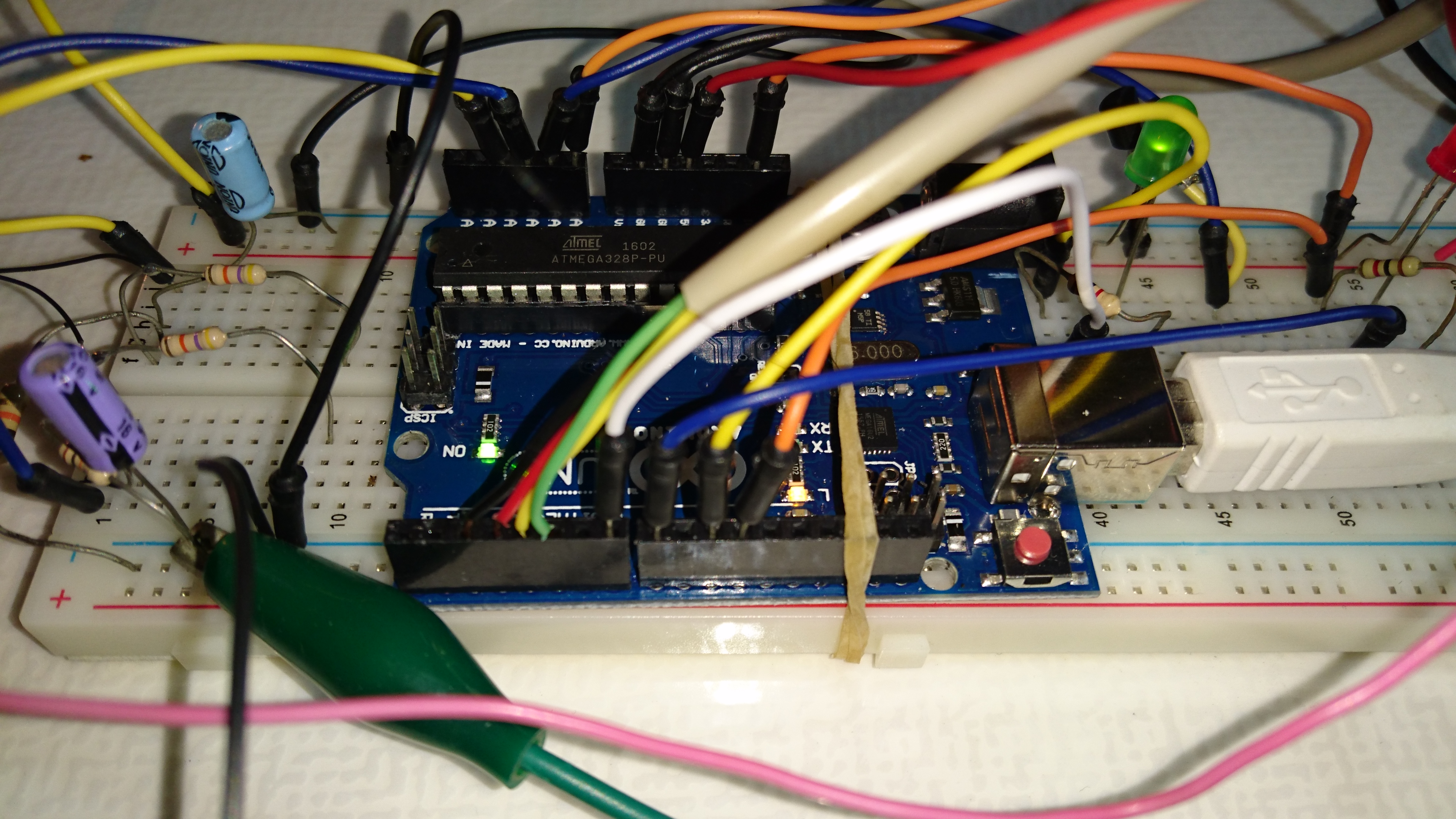

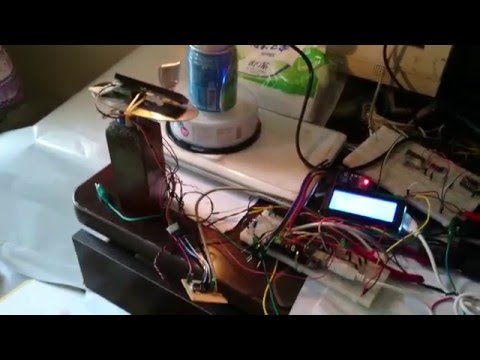

the water rocket launcher robot with UNO.
the water rocket controlling robot with mini.

the most complex part it's here !

there are three state(s) and 2 speed(s) :

1)Target is right side upon luncher ==> do the turnning forward with slow.

1')Target is right side upon and near luncher ==> do the turnning forward with fast.then delay 20ms.

2)Target is left side upon luncher ==> do the turnning reverse with slow.

2')Target is left side upon and near luncher ==> do the turnning reverse with fast. then delay 20ms.

3)Target is just right upon luncher ==> do the turnning nothing with delay 0.5 secound.

if there is reading POS_v and POS_h different then do the turning routine else delay 50ms.

4) POS_v > POS_h +3 do the forward routine.

5) POS_h > POS_v +3 do the reverse routine.

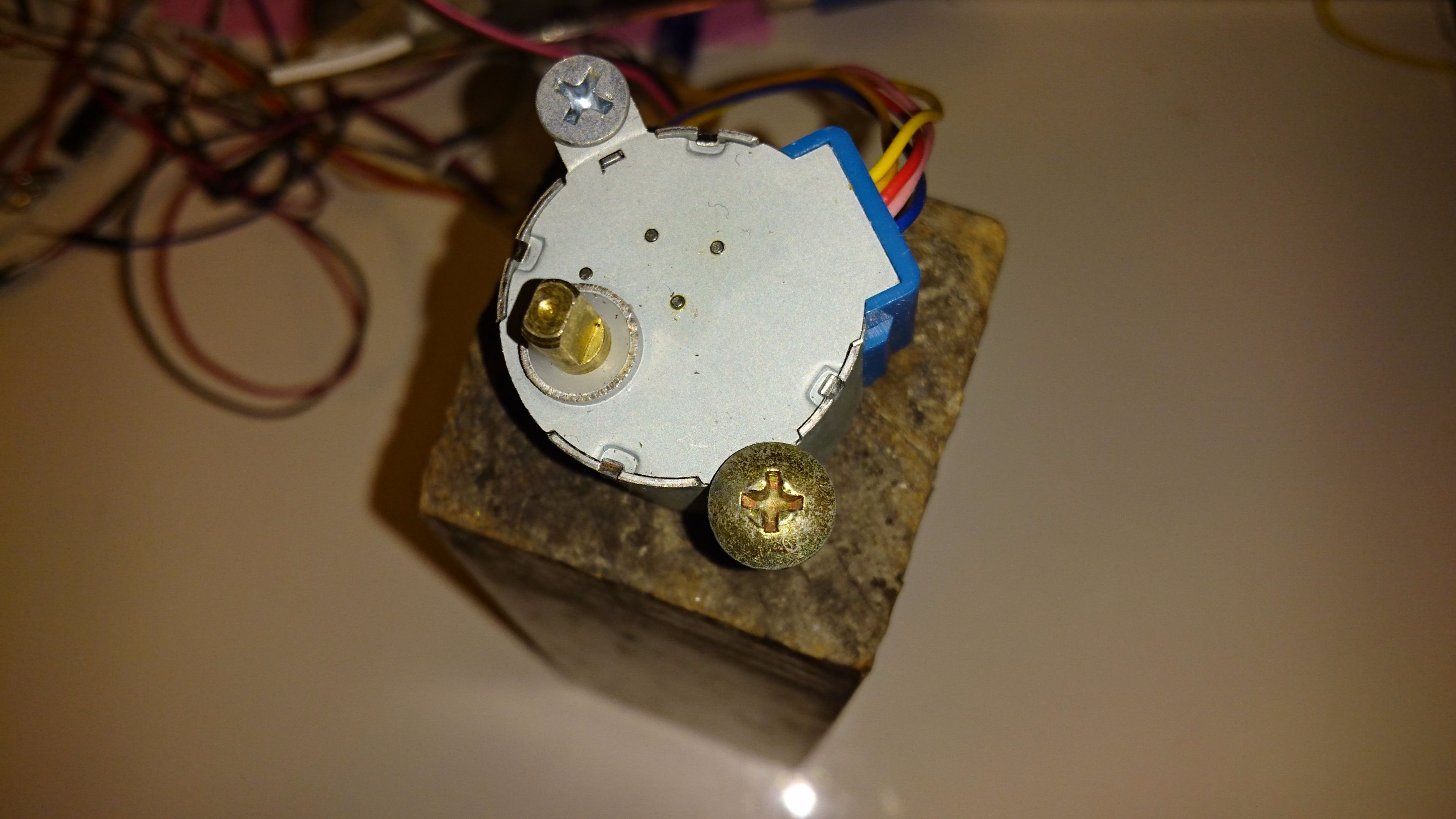

else STOP.: shut the stepper motor down and then delay 0.5second.

beside these read the sensors and delays.
