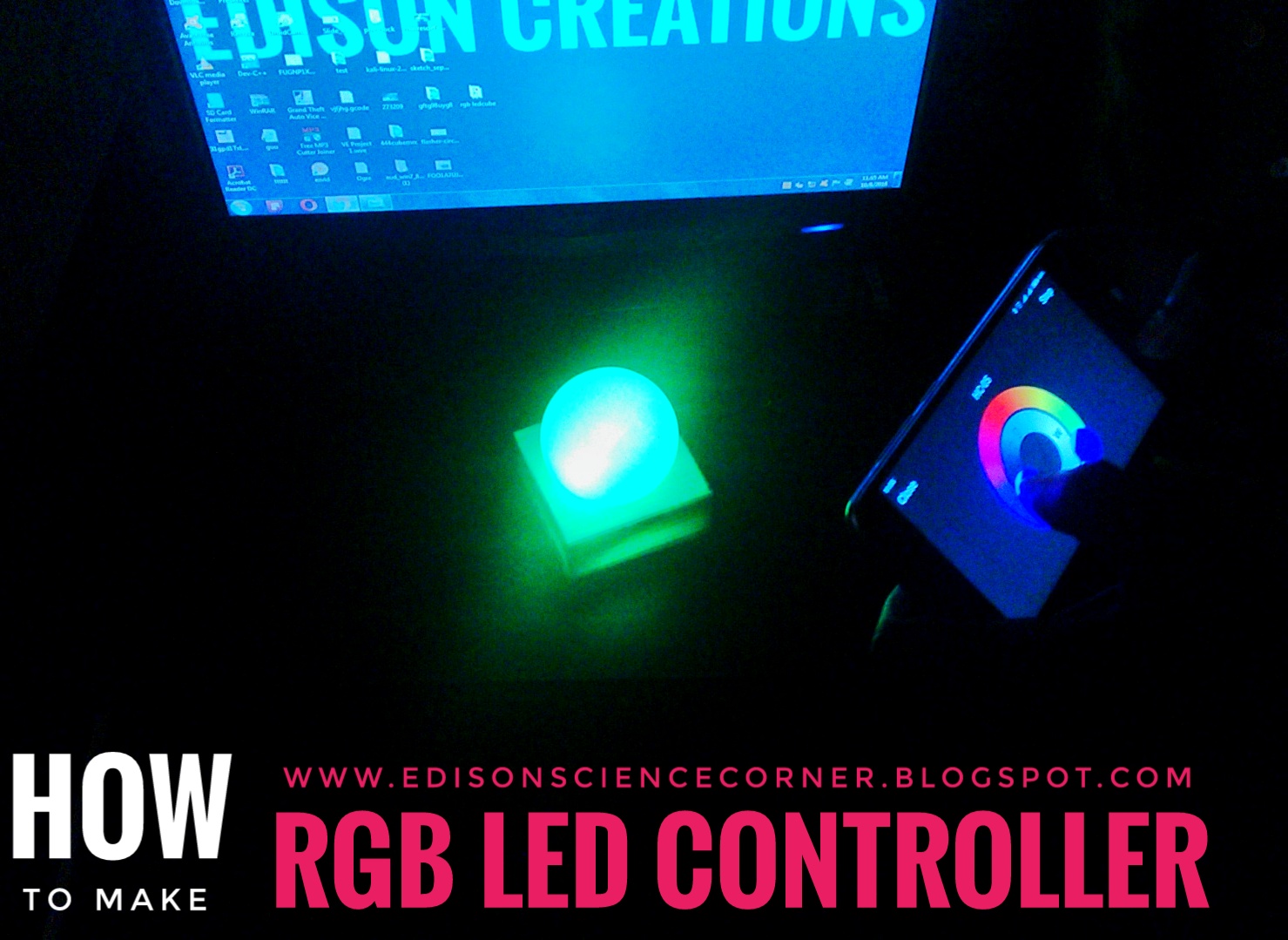

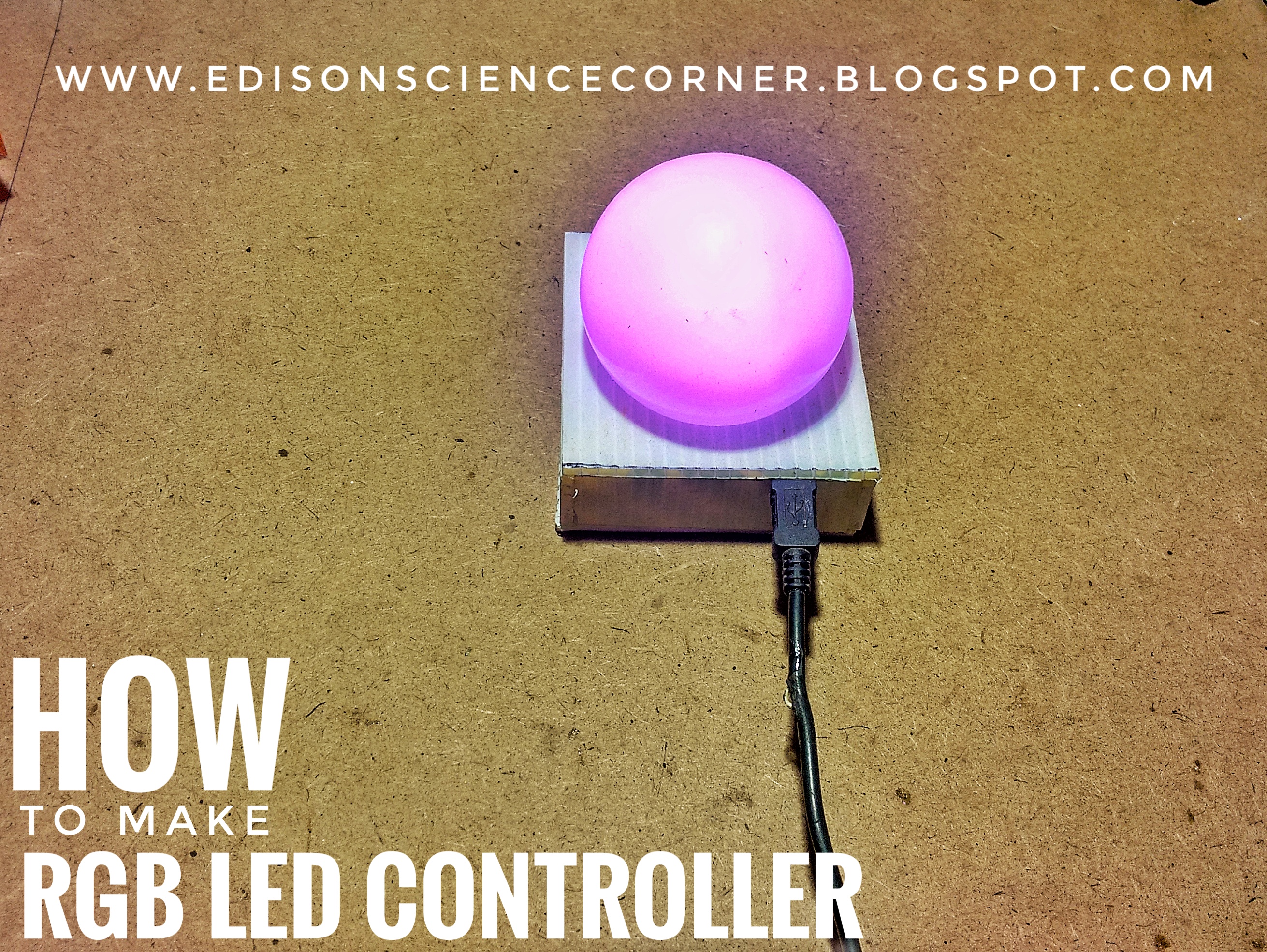

ANDROID APPLICATION CONTROLLED SIMPLE RGB LED DESKTOP LAMP

by EDISON SCIENCE CORNER in Circuits > Arduino

842 Views, 5 Favorites, 0 Comments

ANDROID APPLICATION CONTROLLED SIMPLE RGB LED DESKTOP LAMP

how to controll rgb led with android smart phone (remotexy)

so in this tutorial i will show you how to controll rgb led with android smartphone. RGB leds work on the basic concept of combination of the basic colors of any shade, that is, red, green and blue. All the colors have these elementary color components in them. Thus, we can make any color we want using a RGB LEDso i am going to controll the colours with my android smarphone .

Things Needed


1.ARDUINO NANO

2.HC 05 BLUETOOTH MODULE

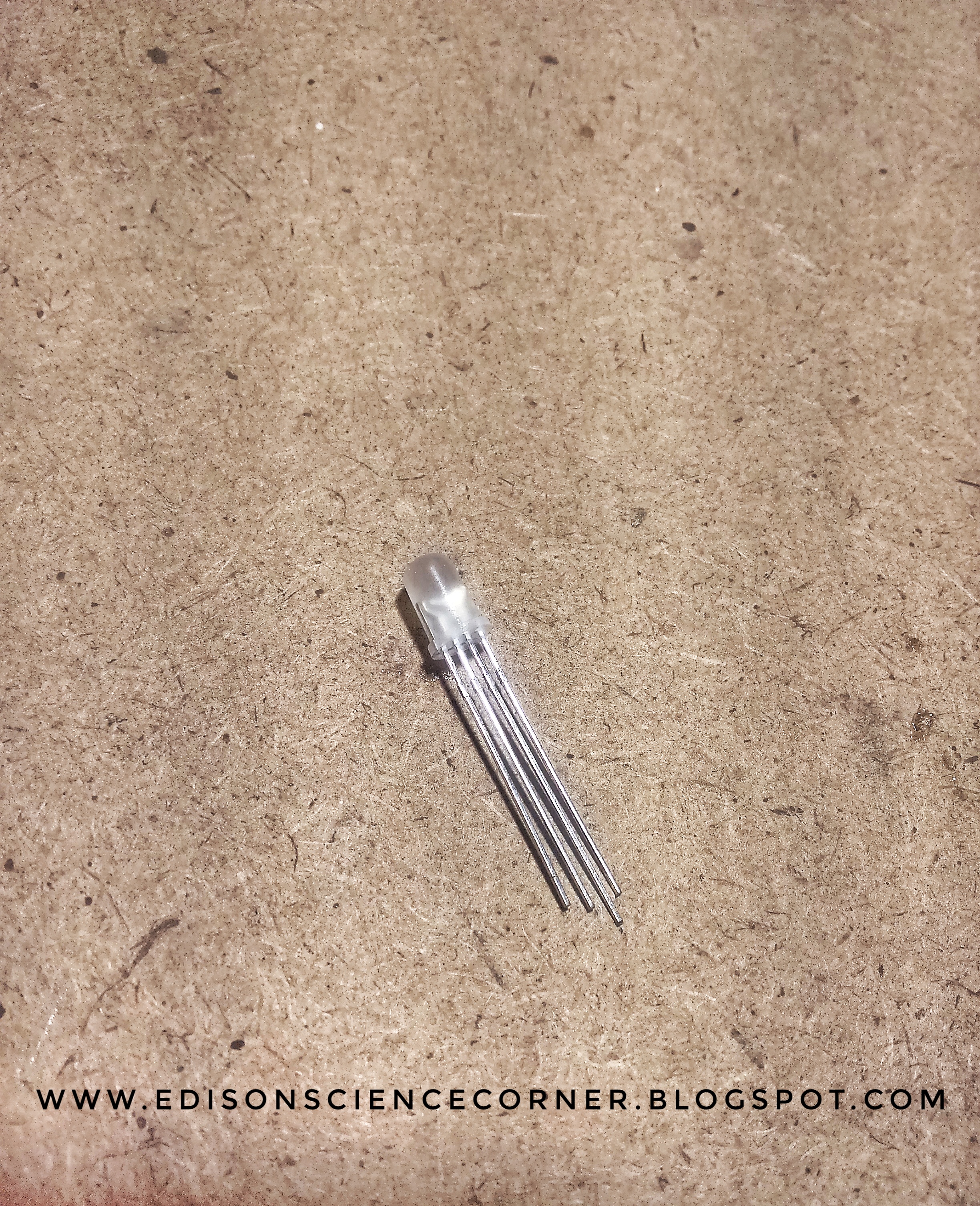

3.COMMON CATHODE RGB LED

4.COMMON PCB

5.FEMALE HEADER PINS

BREADBOARD TESTING


it is better to test everything before soldering

connect red to pin 8
green to pin 9

blue to pin10

common cathode to gnd

connect vcc of bluetooth module to 5v

connect gnd to gnd

tx to pin 2

rx to pin 3

Soldering


solder everything on a common pcb

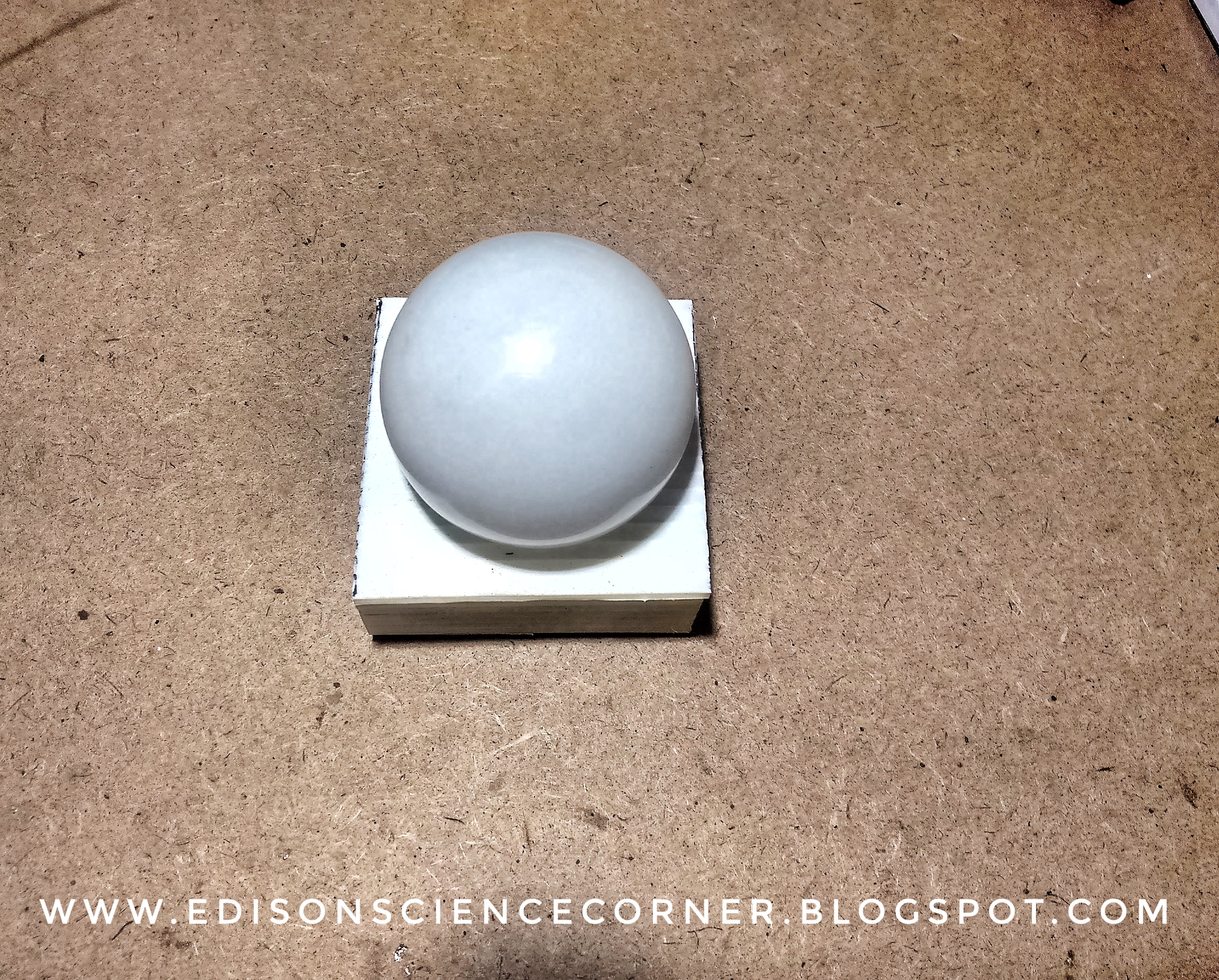

Case Making


for this i am using foam sheet

watch VIDEO for details

Thanks Happy Making

DOWNLOAD REMOTEXY FROM PLAYSTORE
