AI Chatbot
![AI ShakespeareBot](/proxy/?url=https://content.instructables.com/FOP/ZLBV/LOFRPV4H/FOPZLBVLOFRPV4H.jpg&filename=AI ShakespeareBot)
![AI Nursebot](/proxy/?url=https://content.instructables.com/FOA/IU72/LOFRPWHV/FOAIU72LOFRPWHV.jpg&filename=AI Nursebot)
I created an AI chatbot that you can actually talk with!
I have created three modes: William Shakespeare, Blackbeard the Pirate, and Nurse.
A Microphone is used to capture your audio questions or requests.
OpenAI (ChatGPT) is utilized to created the response.
Supplies
![speakbot Pic.jpg](/proxy/?url=https://content.instructables.com/F9Z/XNH3/LOFRPY93/F9ZXNH3LOFRPY93.jpg&filename=speakbot Pic.jpg)
Raspberry Pi 4B
7" Touchscreen Display
Microphone
Bluetooth Speaker
3D Printed Case for touchscreen/Raspberry Pi

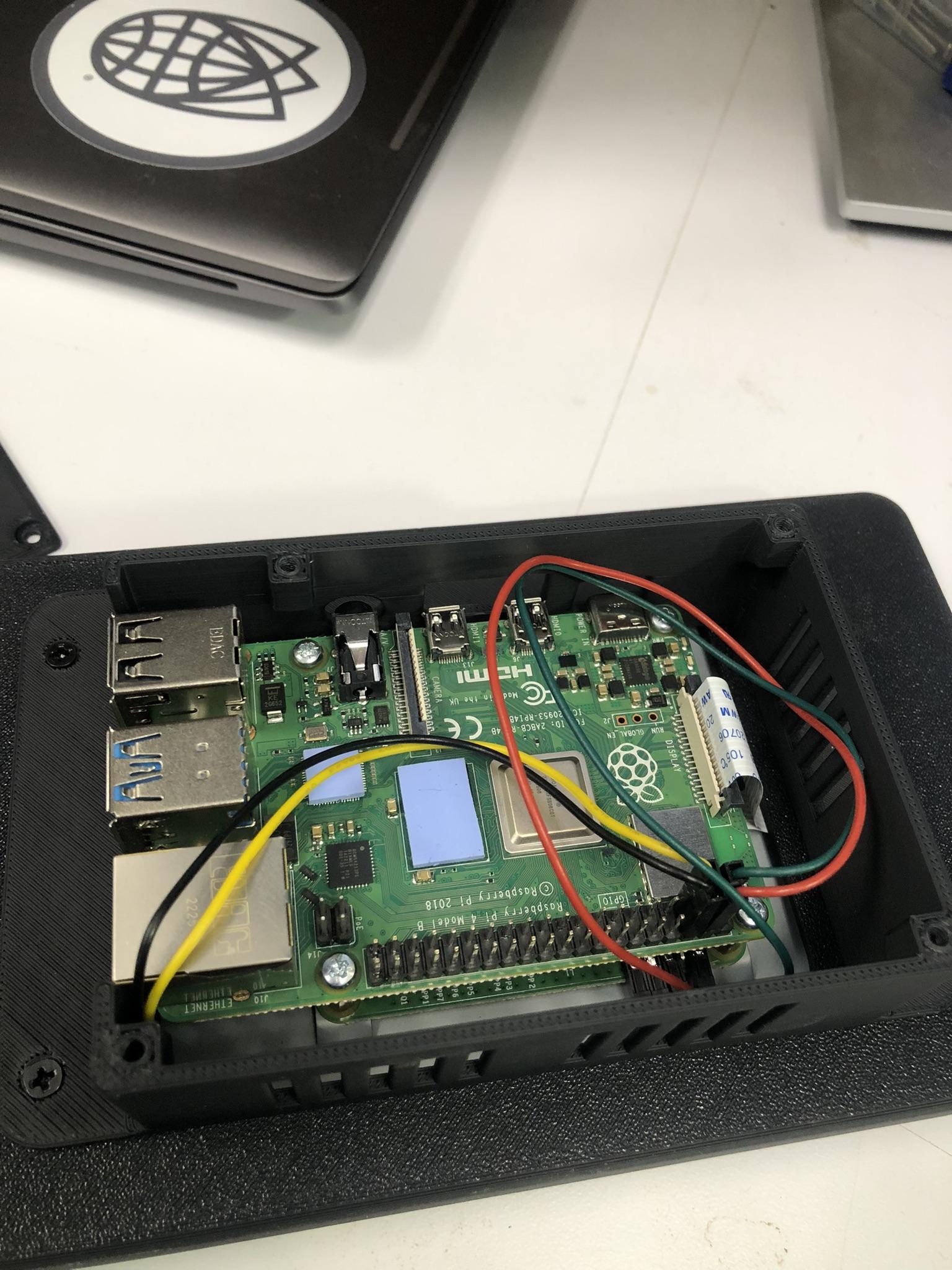

Attach Case & Electronics
![IMG_2220.JPEG](/proxy/?url=https://content.instructables.com/FS0/KEDZ/LPGX61UG/FS0KEDZLPGX61UG.jpg&filename=IMG_2220.JPEG)
![IMG_2221.JPEG](/proxy/?url=https://content.instructables.com/FVH/P198/LPGX61UH/FVHP198LPGX61UH.jpg&filename=IMG_2221.JPEG)
Attach the 3D printed case to the Raspberry Pi. Hooked-up the touchscreen wires to the pi. Attached the backplate to keep the electronics protected.
Python Libraries & Variables
First we must download the necessary libraries. I tried multiple different audio and speech libraries, but I found that espeak gave the most customizability for the different voices I wanted to create.
import speech_recognition as sr
import openai
import pyttsx3
import tkinter as tk
from threading import *
from espeak import espeak
import os
import pyaudio
import time
Next I initialize some key variables.
openai.api_key: I set my OpenAI key, which I have omitted here. You can attain your own key for free by creating an account with OpenAI (the company that make ChatGPT)
engine & recognizer are the functions that allow text-to-speech and speech-to-text respectively.
The rest of the variables identify key characteristics about the audio qualities. I set the default to 'William Shakespeare' but this will change with user inputs.
# Set your OpenAI API key
openai.api_key = "Your OPEN AI KEY HERE"
# Initialize the text-to-speech engine
engine = pyttsx3.init()
# Initialize the recognizer
recognizer = sr.Recognizer()
character = "William Shakespeare"
VoiceInfo = 'espeak -ven+m2 -s150 -p750 "'
user_input = "I am an AI Robot"
bot_reply = "My Response"
talkcheck = False
Functions
I defined multiple functions including:
AskRobot: Prompts the robot to listen via the microphone. Sends the user inputs to chatGPT and stores chatGPT's response.
def AskRobot():
global user_input
global bot_reply
global talkcheck
with sr.Microphone() as source:
recognizer.adjust_for_ambient_noise(source)
audio = recognizer.listen(source, timeout=10)
#print("Testing")
try:
user_input = recognizer.recognize_google(audio)
except sr.UnknownValueError:
user_input = ""
except sr.RequestError as e:
user_input = ""
# Send user input to ChatGPT
response = openai.Completion.create(
model="text-davinci-002",
prompt=("Let's rollplay. You are" + character +
"Answer all questions as they would. My question is " + user_input),
max_tokens=100 # Adjust the response length as needed
)
bot_reply = response.choices[0].text
if user_input.lower() == "exit":
bot_reply = "Thank you and have a good day"
#print("You said exit")
#print("Bot:", bot_reply)
# Use the text-to-speech engine to play the response
talkcheck = True
bot_reply=bot_reply.replace('"','')
os.system(VoiceInfo+bot_reply+'"')
button["text"] = "Ask the AI a question"
# Clean up the engine
engine.stop()
Listening: Updates the GUI so that it displays that is waiting for the user to ask a question
def Listening():
button["text"] = "Listening... Ask Me a Question"
Display Text: Updates the GUI with the user request and chatGPT's response
def DisplayText():
global user_input
global bot_reply
global talkcheck
while not talkcheck:
time.sleep(0.1)
print("Testing got here")
labeluser["text"] = "I Heard you say: " + user_input
labelbot["text"] = "AI Response: " + bot_reply
talkcheck = False
Buttonpress: controls the flow of which functions should be run when the user clicks the 'ask a question' button
def buttonpress():
t1=Thread(target=AskRobot).start()
t2=Thread(target=Listening).start()
t3=Thread(target=DisplayText).start()
shakespear_button, Blackbear_button, currie_button: Update the name, personality, and voice characteristics of the chatbot. Note that originally I was planning to utilize Marie Currie, but her profile changed to a generic nurse for medical applications.
def Shakespeare_Button():
global character
global VoiceInfo
character = "William Shakespeare"
VoiceInfo = 'espeak -ven+m2 -s150 -p750 "'
button_Shakespeare["bg"] = "green"
button_Blackbeard["bg"] = "gray"
button_Curie["bg"] = "gray"
def Blackbeard_Button():
global character
global VoiceInfo
character = "Blackbeard the Pirate"
VoiceInfo = 'espeak -ven+m2 -s100 -p10 "'
button_Shakespeare["bg"] = "gray"
button_Blackbeard["bg"] = "green"
button_Curie["bg"] = "gray"
def Curie_Button():
global character
global VoiceInfo
character = "Medical Nurse Assistant"
VoiceInfo = 'espeak -ven+f5 -s125 -p75 "'
button_Shakespeare["bg"] = "gray"
button_Blackbeard["bg"] = "gray"
button_Curie["bg"] = "green"
GUI
I utilized Tkinter to create the GUI. First I adjust the screensize and textbox length to fit my 7" touchscreen.
screensize = "800x500"
mylength = 500
root = tk.Tk()
root.title("AI Chatbot")
root.geometry(screensize)
Next I create all the buttons and labels
labelchoices = tk.Label(root, text="Choose a Personality:", font=("Helvetica", 12), wraplength=mylength)
labelchoices.place(relx=0, rely=.05, anchor="nw")
button_Shakespeare = tk.Button(root, text="William Shakespeare", command=Shakespeare_Button)
button_Shakespeare.place(relx=.05, rely=.15, anchor="nw")
button_Blackbeard = tk.Button(root, text="Blackbeard the Pirate", command=Blackbeard_Button)
button_Blackbeard.place(relx=.05, rely=.25, anchor="nw")
button_Curie = tk.Button(root, text="Nurse", command=Curie_Button)
button_Curie.place(relx=.05, rely=.35, anchor="nw")
labelPress= tk.Label(root, text="Press here to ask a question: ", font=("Helvetica", 12), wraplength=mylength)
labelPress.place(relx=.0, rely=.5, anchor="nw")
button = tk.Button(root, text="Ask the AI a question", command=buttonpress)
button.place(relx=.05, rely=.6, anchor="nw")
labeluser = tk.Label(root, text="Welcome to AI Chatbot", font=("Helvetica", 12), wraplength=mylength)
labeluser.place(relx=.35, rely=.05, anchor="nw")
labelbot = tk.Label(root, text="Push the button to ask a question", font=("Helvetica", 12), wraplength=mylength)
labelbot.place(relx=.35, rely=.15, anchor="nw")
button_Shakespeare["bg"] = "gray"
button_Blackbeard["bg"] = "gray"
button_Curie["bg"] = "gray"
root.mainloop()
Full Python Code
![aipic.jpg](/proxy/?url=https://content.instructables.com/F4W/4ERV/LOFRPWE8/F4W4ERVLOFRPWE8.jpg&filename=aipic.jpg)
import speech_recognition as sr
import openai
import pyttsx3
import tkinter as tk
from threading import *
from espeak import espeak
import os
import pyaudio
import time
# Set your OpenAI API key
openai.api_key = "Your OPEN AI KEY HERE"
# Initialize the text-to-speech engine
engine = pyttsx3.init()
# Initialize the recognizer
recognizer = sr.Recognizer()
character = "William Shakespeare"
VoiceInfo = 'espeak -ven+m2 -s150 -p750 "'
user_input = "I am an AI Robot"
bot_reply = "My Response"
talkcheck = False
def AskRobot():
global user_input
global bot_reply
global talkcheck
with sr.Microphone() as source:
recognizer.adjust_for_ambient_noise(source)
audio = recognizer.listen(source, timeout=10)
#print("Testing")
try:
user_input = recognizer.recognize_google(audio)
except sr.UnknownValueError:
user_input = ""
except sr.RequestError as e:
user_input = ""
# Send user input to ChatGPT
response = openai.Completion.create(
model="text-davinci-002",
prompt=("Let's rollplay. You are" + character +
"Answer all questions as they would. My question is " + user_input),
max_tokens=100 # Adjust the response length as needed
)
bot_reply = response.choices[0].text
if user_input.lower() == "exit":
bot_reply = "Thank you and have a good day"
#print("You said exit")
#print("Bot:", bot_reply)
# Use the text-to-speech engine to play the response
talkcheck = True
bot_reply=bot_reply.replace('"','')
os.system(VoiceInfo+bot_reply+'"')
button["text"] = "Ask the AI a question"
# Clean up the engine
engine.stop()
def Listening():
button["text"] = "Listening... Ask Me a Question"
def DisplayText():
global user_input
global bot_reply
global talkcheck
while not talkcheck:
time.sleep(0.1)
print("Testing got here")
labeluser["text"] = "I Heard you say: " + user_input
labelbot["text"] = "AI Response: " + bot_reply
talkcheck = False
def buttonpress():
t1=Thread(target=AskRobot).start()
t2=Thread(target=Listening).start()
t3=Thread(target=DisplayText).start()
def Shakespeare_Button():
global character
global VoiceInfo
character = "William Shakespeare"
VoiceInfo = 'espeak -ven+m2 -s150 -p750 "'
button_Shakespeare["bg"] = "green"
button_Blackbeard["bg"] = "gray"
button_Curie["bg"] = "gray"
def Blackbeard_Button():
global character
global VoiceInfo
character = "Blackbeard the Pirate"
VoiceInfo = 'espeak -ven+m2 -s100 -p10 "'
button_Shakespeare["bg"] = "gray"
button_Blackbeard["bg"] = "green"
button_Curie["bg"] = "gray"
def Curie_Button():
global character
global VoiceInfo
character = "Medical Nurse Assistant"
VoiceInfo = 'espeak -ven+f5 -s125 -p75 "'
button_Shakespeare["bg"] = "gray"
button_Blackbeard["bg"] = "gray"
button_Curie["bg"] = "green"
screensize = "800x500"
mylength = 500
root = tk.Tk()
root.title("AI Chatbot")
root.geometry(screensize)
labelchoices = tk.Label(root, text="Choose a Personality:", font=("Helvetica", 12), wraplength=mylength)
labelchoices.place(relx=0, rely=.05, anchor="nw")
button_Shakespeare = tk.Button(root, text="William Shakespeare", command=Shakespeare_Button)
button_Shakespeare.place(relx=.05, rely=.15, anchor="nw")
button_Blackbeard = tk.Button(root, text="Blackbeard the Pirate", command=Blackbeard_Button)
button_Blackbeard.place(relx=.05, rely=.25, anchor="nw")
button_Curie = tk.Button(root, text="Nurse", command=Curie_Button)
button_Curie.place(relx=.05, rely=.35, anchor="nw")
labelPress= tk.Label(root, text="Press here to ask a question: ", font=("Helvetica", 12), wraplength=mylength)
labelPress.place(relx=.0, rely=.5, anchor="nw")
button = tk.Button(root, text="Ask the AI a question", command=buttonpress)
button.place(relx=.05, rely=.6, anchor="nw")
labeluser = tk.Label(root, text="Welcome to AI Chatbot", font=("Helvetica", 12), wraplength=mylength)
labeluser.place(relx=.35, rely=.05, anchor="nw")
labelbot = tk.Label(root, text="Push the button to ask a question", font=("Helvetica", 12), wraplength=mylength)
labelbot.place(relx=.35, rely=.15, anchor="nw")
button_Shakespeare["bg"] = "gray"
button_Blackbeard["bg"] = "gray"
button_Curie["bg"] = "gray"
root.mainloop()

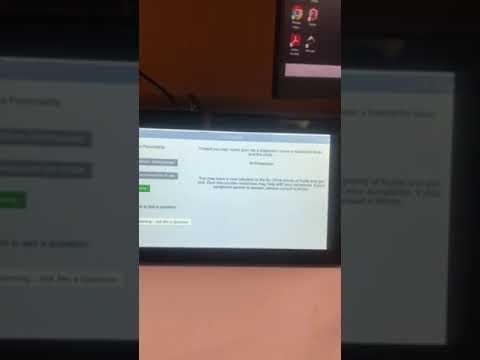

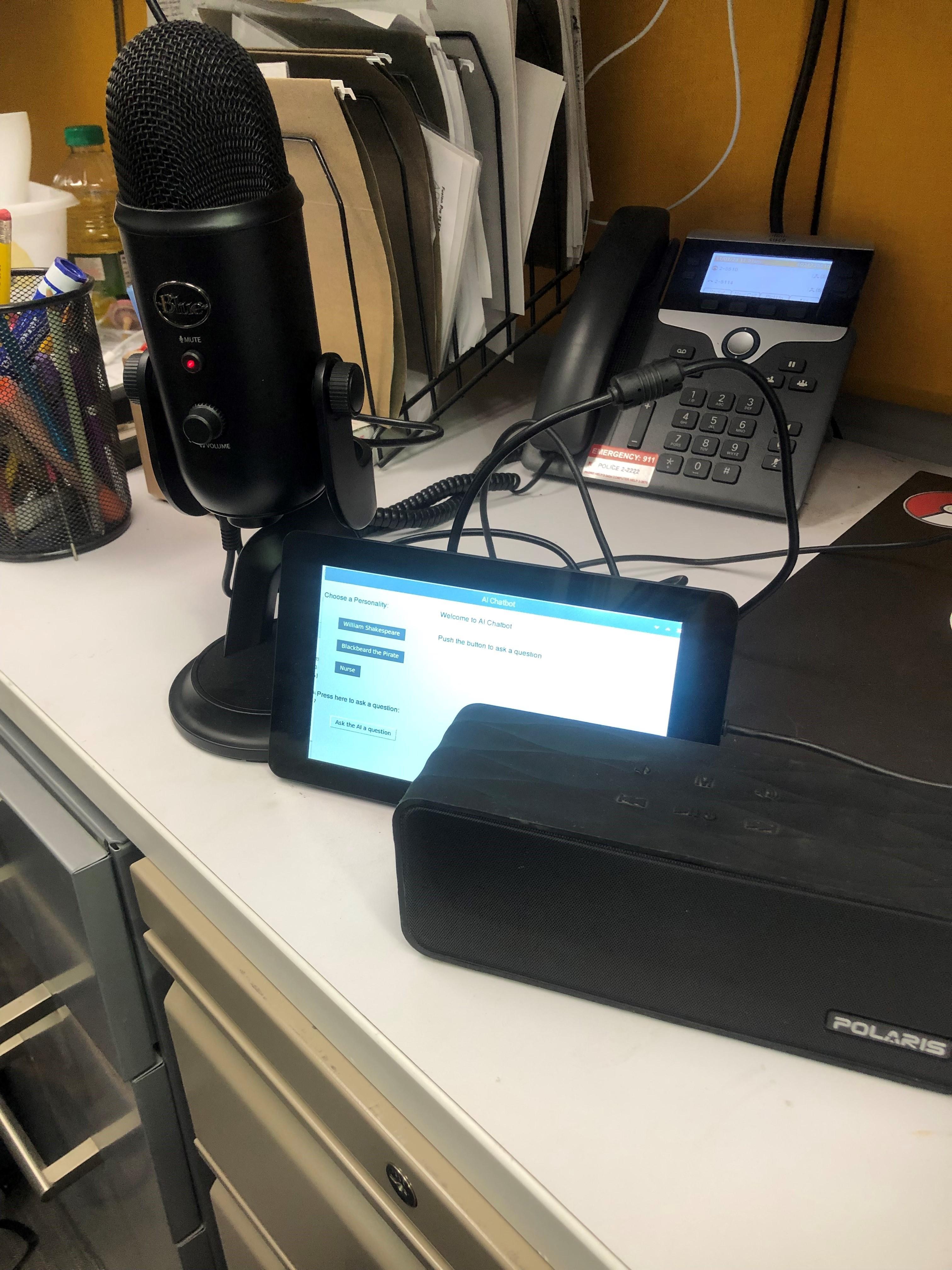

Testing the Chatbot
![F9ZXNH3LOFRPY93.jpg](/proxy/?url=https://content.instructables.com/FOU/FMPE/LPGX61V8/FOUFMPELPGX61V8.jpg&filename=F9ZXNH3LOFRPY93.jpg)
Finally, I test the chatbot's William Shakespeare and Nurse modes. I utilized a USB-microphone and bluetooth speaker that I had laying around. Wee the videos at the top for the initial tests.
