ACCESSING ARIAG25 FROM ANYWHERE IN THE WORLD

ACME SYSTEMS

We design and manufacture in Italy Linux embedded boards since 2005. Our main business is to create hi-quality CPU Linux modules designed for the professional market with long term availability, high reliability, low power, low EMI at right cost.

WEAVED

The Weaved fabric for the Internet of Things for Everyone provides secure, private connections to devices across the internet and from mobile devices.

I will explain how you can access your ARIAG25 from anywhere in the world in minutes, using HTTP service.

Problem

Normally, when you use the ARIAG25 as web server, tests are done using the LAN network. When you want to test from the WAN, you normally have to config your router (NAT/DMZ) to accept outside access. If you are familiar with your router, this is not a problem, but imagine dozens of other routers models where you need to know each one or need to know the NET access rights? Maybe it will be headache for you.

The solution

To solve these need, here some steps:

Enter in developer.weaved.com, register and enter you login and password.

Connect your PC to the ARIAG25 (SSH session or serial port)

Login

type your root login/password (root/ariag25)

Download the weaved application

wget https://dl.dropboxusercontent.com/u/83554849/acme_weaved.tar

Uncompress it to /root

tar -xvf acme_weaved.tar

Enter in the directory

cd acme-weaved

Install it

./install

(be shure that your PC is connected to developer.weaved.com now (logged) and that you are in the same NET of ARIAG25)

Step by step

Debian GNU/Linux comes with ABSOLUTELY NO WARRANTY, to the extent permitted by applicable law. debarm:~# wget https://dl.dropboxusercontent.com/u/83554849/acme...

--2015-08-24 15:29:25-- https://dl.dropboxusercontent.com/u/83554849/acme...
Resolving dl.dropboxusercontent.com... 184.72.249.238, 184.73.231.99, 23.21.210.59, ...

Connecting to dl.dropboxusercontent.com|184.72.249.238|:443... connected.
HTTP request sent, awaiting response... 200 OK

Length: 194560 (190K) [application/x-tar] Saving to: `acme_weaved.tar'

100%[======================================>] 194,560 361K/s in 0.5s

2015-08-24 15:29:26 (361 KB/s) - `acme_weaved.tar' saved [194560/194560]

debarm:~# tar -xvf acme_weaved.tar
acme_weaved/
acme_weaved/weavedWEB
acme_weaved/weaved/
acme_weaved/weaved/web.linux.conf
acme_weaved/weaved/tcp.linux.conf

acme_weaved/weaved/ssh.linux.conf

acme_weaved/weavedConnectd

acme_weaved/install

debarm:~# cd acme_weaved

debarm:~/acme_weaved# ./install
Usage: /etc/init.d/weavedWEB {start|stop|restart}
Start Weaved service web.linux.conf [OK]
installed and started
debarm:~/acme_weaved#

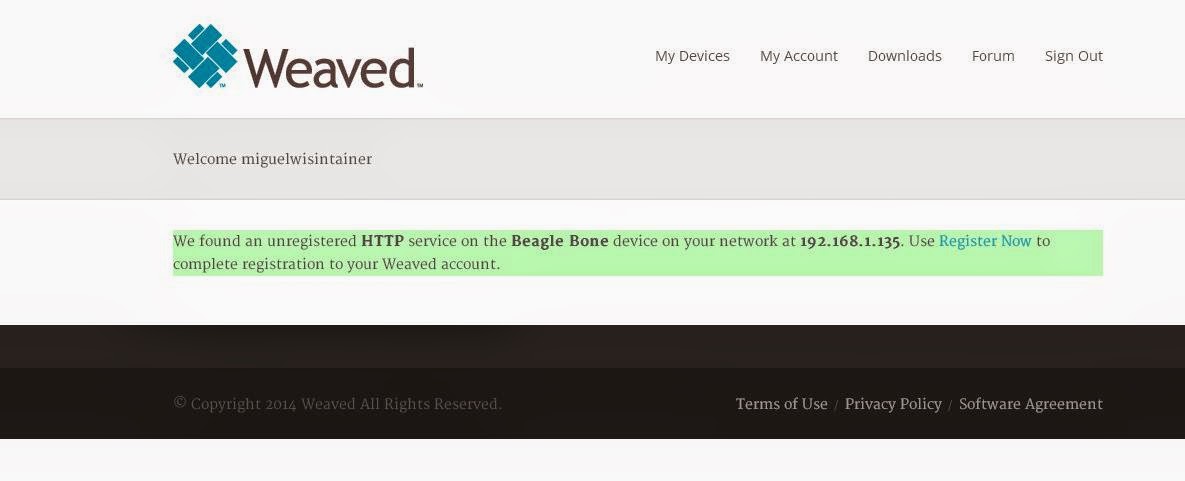

In developer.weaved.com webpage you will be adviced that there is a new device waiting to register in your weaved account, enable it (confirm the register), give a name (for example ARIAG25_HTTP) to the device and you will see it the current list of devices.

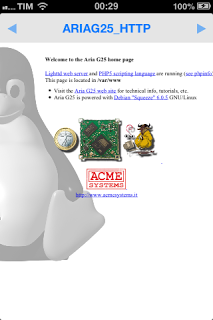

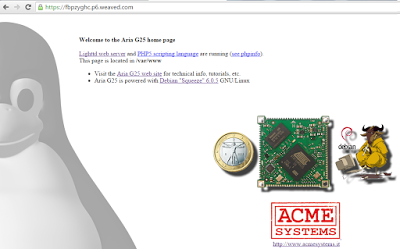

Click on ARIAG25_HTTP and the weaved will connect to ARIAG25 webserver and shows the main webpage. You can access the ARIAG25 from anywhere now!

You should download the weaved on app store or use the web browser.

https://itunes.apple.com/us/app/weaved/id937372469?mt=8

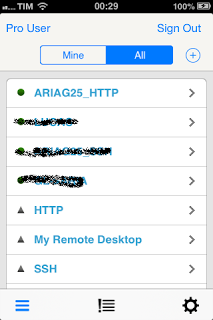

Click on ARIAG25_HTTP device

If you don't have the ARIAG25, but want to make a test, please, register now in the developer.weaved.com and send us you weaved ID that we will share my ARIAG25 for you to do tests.

Other weaved services for ARIAG25

We have tested WEBCAM and SSH access to ARIAG25 successfully too.

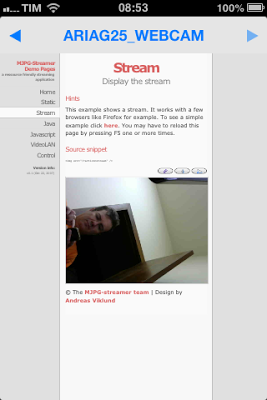

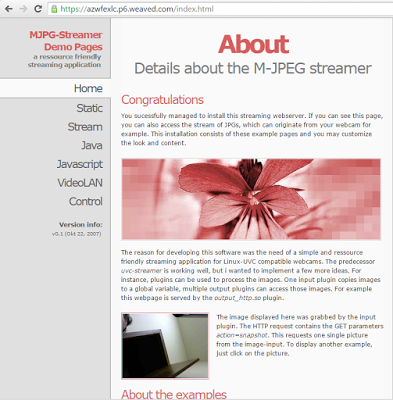

webcam

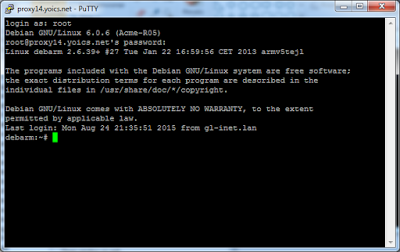

ssh

app

If you have some questions about , don´t hesite to take a message for us.

Thank you!
