A3 Wood Sketch Folder
I made for a school project, a based on open source wooden a3 sketch folder. Wich i'm going to share online in a open source database (this site) so people who like it are able to use it.
My inspirations comes from a open source: http://fablab.waag.org/project/sketch-folder
The maker of this is: Ale Iadarola
The first thing I wanted to personalize was the format, so i made it from A4 paper format to a3 paper format. the second thing I wanted to personalize was the wooden bend pattern.
The laser cutter I used: Universal laser systems, VLS6.60.
Material I used: MDF 3mm thick.
My inspirations comes from a open source: http://fablab.waag.org/project/sketch-folder
The maker of this is: Ale Iadarola
The first thing I wanted to personalize was the format, so i made it from A4 paper format to a3 paper format. the second thing I wanted to personalize was the wooden bend pattern.
The laser cutter I used: Universal laser systems, VLS6.60.
Material I used: MDF 3mm thick.
Format Change
First of all i changed the format from the sketch map from a4 format to a3 format.
Different Pattern Samples
I made different test patterns and checked wich one bend the best. After the test I made my discision wich pattern i u would use.

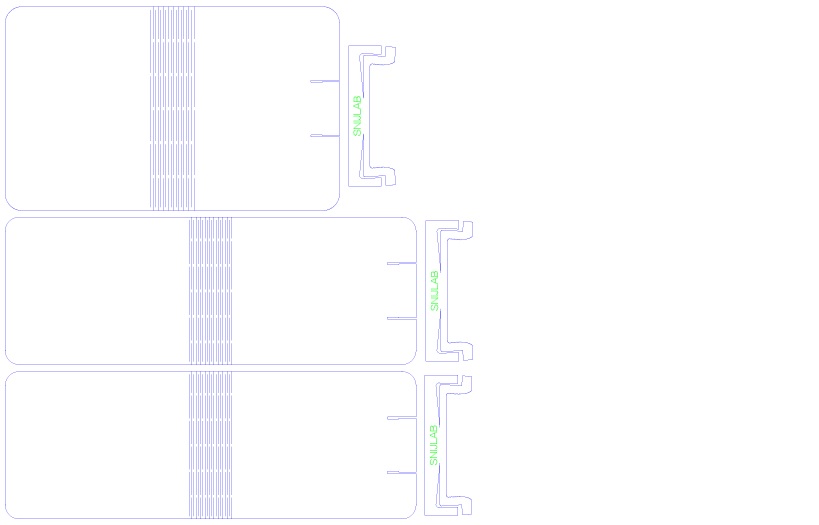

Laser Cut File
After the format change and the pattern test I made my drawing in illustrator. wich i will upload here.

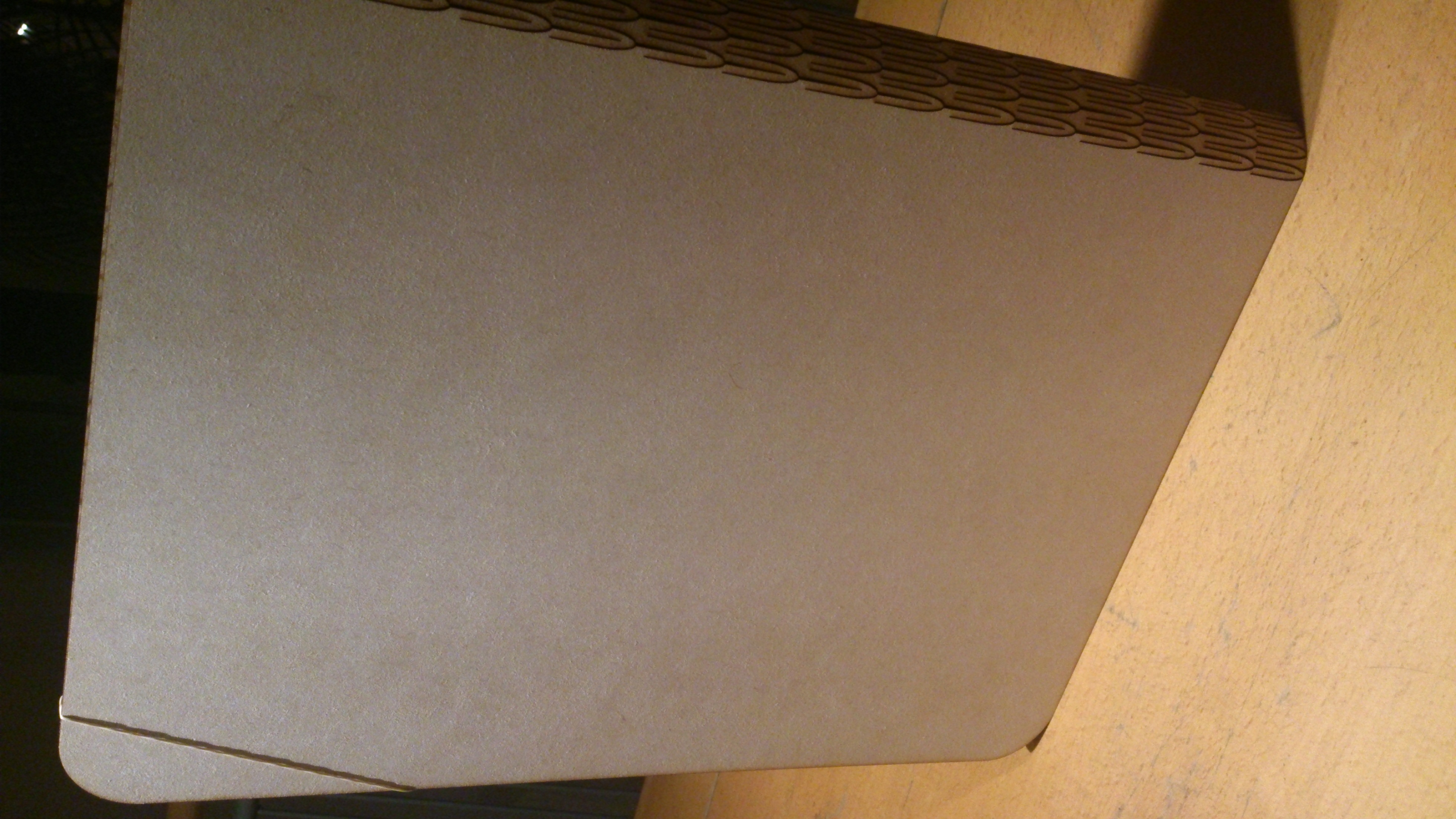

The Result
I uploaded the file in the laser cut progame, after 10 minutes it was done, and i was happy with the result.
