A Quick and Easy Edge Lit Sign

by Djandco in Circuits > LEDs

2301 Views, 14 Favorites, 0 Comments

A Quick and Easy Edge Lit Sign

2011-12-04 23.45.36.jpg
2011-12-04 23.45.17.jpg
2011-12-04 23.45.56.jpg
2011-12-04 23.46.39.jpg
2011-12-04 23.46.20.jpg
2011-12-02 19.38.18.jpg
2011-12-02 19.38.26.jpg
2011-12-02 19.38.37.jpg
2011-12-02 19.38.48.jpg
2011-12-02 19.43.01.jpg
2011-12-04 23.44.54.jpg
2011-12-05 12.36.32.jpg
2011-12-05 12.36.46.jpg

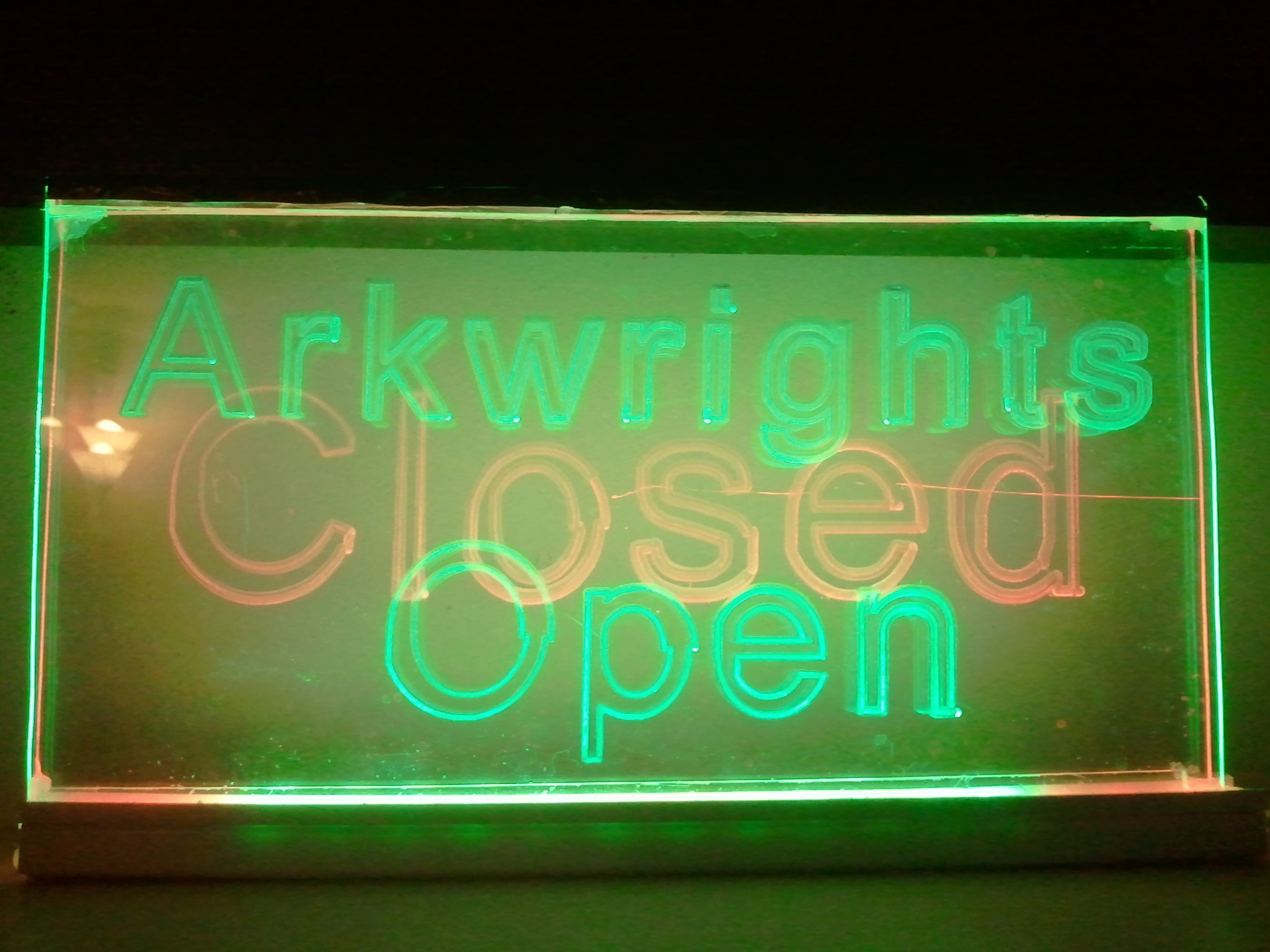

This was made from two bits of Perspex that I used my CNC to engrave Open and Closed into then used a string of LED's to edge light them. A short length of 25x15 trunking and hot glue holds it all in place.

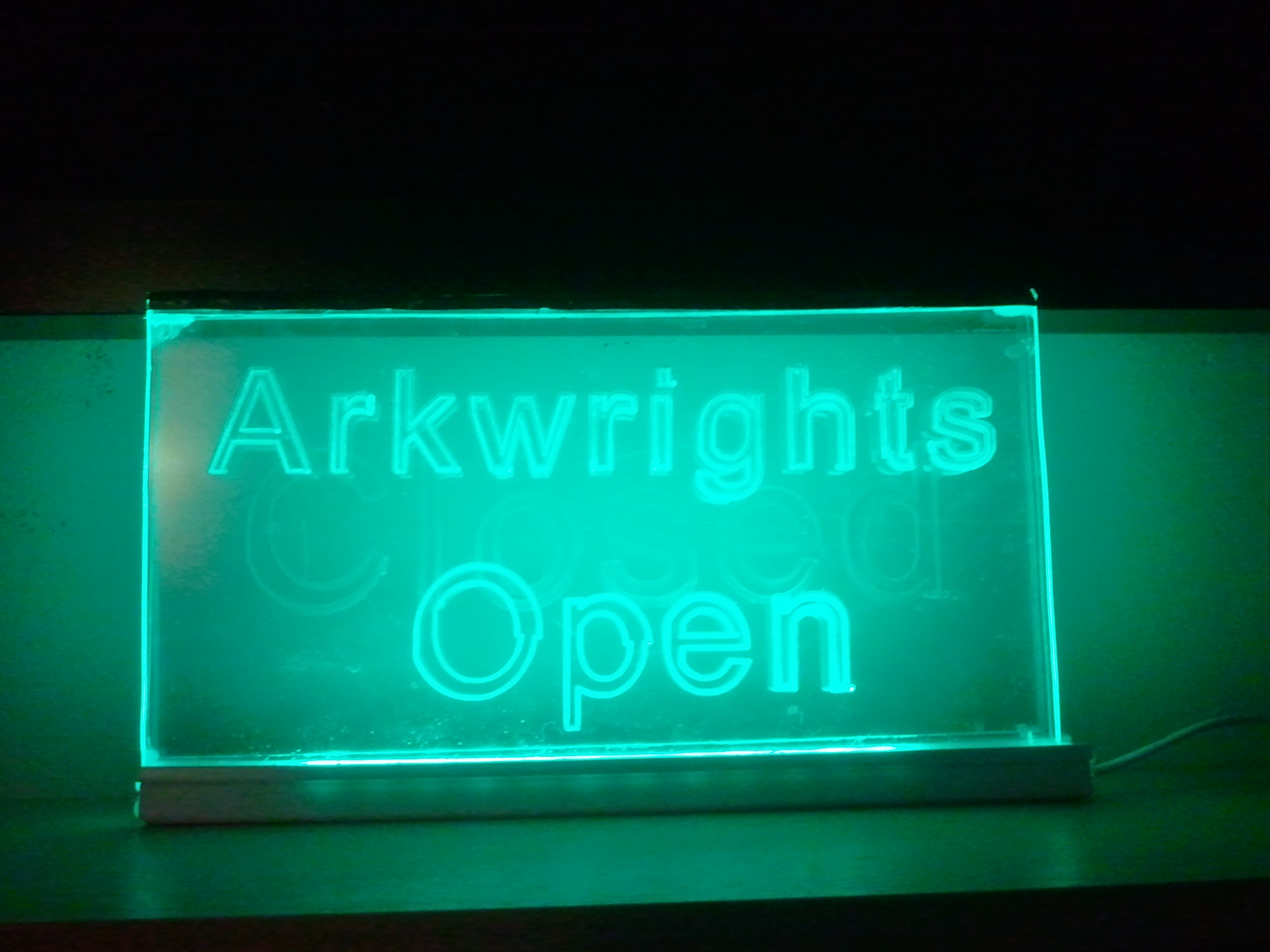

A simple three position switch selects Open, Closed and off.

I did say it was simple :-)
