I always loved marble runs and I could spend hours watching them, in real life and on YouTube. I just can't get enough of this mesmerizing sound of glass marbles interacting with wood. Some years ago, I had access to a well-equipped wood shop, and I decided to build my own. Due to time constraints, I chose to make it a small one, and focus mostly on the marble lift which is the main attraction. The tracks are rather simple. Due to limited space, I built it into a frame, so it can be hung on a wall. The small size sets a natural limit for the scope of the project.

In addition to some very basic woodworking skills, it also requires some minimal skills with electronics and Arduino programming.

Supplies

Materials

  • a 3/4" thick board of pine wood, 1ft x 8ft
  • two wooden dowels, 1/2" diameter (or 3/8" ???)
  • glass marbles
  • a few feet of fishing cord
  • 3 small eye hooks and a few small screws
  • Arduino pro mini (or Arduino Nano)
  • Futaba S3003 servo (or a cheap clone)
  • a micro switch

Tools

  • table saw
  • miter saw
  • band strap clamp ratchet
  • drill
  • wood glue
  • soldering iron
  • Arduino programming IDE
  • guitar and blues harp (not directly relevant for the marble run, but helpful for creating the accompanying music for the YouTube video...)

Main Idea / Sketch

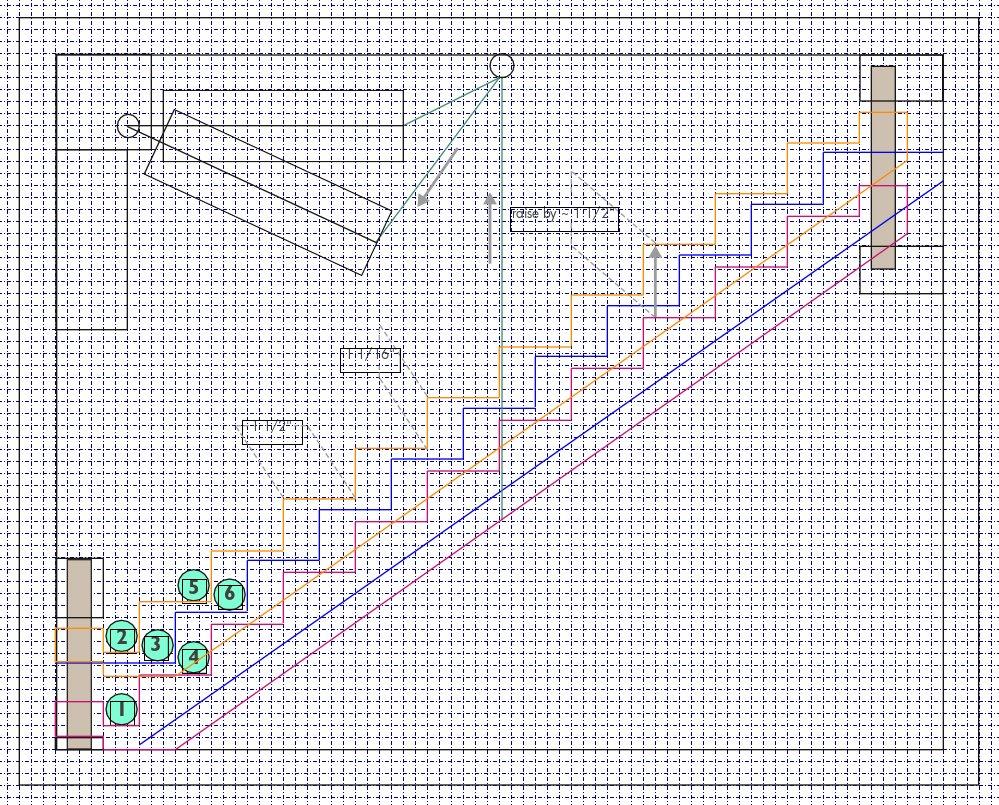

The marble run is built into a frame of size 16"(h) x 20"(w) with a depth of 3". The marble lift is made of two stair-shaped pieces. A static piece (the blue one in the sketch) and a moving piece which slides up and down on two wooden dowels (red indicates its lower position and orange its upper position), operated by a servo. The stairs of both pieces are slightly tilted to the right. Furthermore the stairs of the static piece (which is sitting in the back) are tilted toward the front, and the stairs of the moving piece (which is sitting in the front) are tilted towards the back.

When the moving piece is lowered, the next marble enters (1). When the moving piece is raised (2), the marble rolls backwards onto the solid piece and then to the right (3). When moving piece is lowered again, the marble rolls onto it, and then to the right (4). Then, everything repeats. So, in every cycle in which the front piece is lowered and then raised, all marbles walk up one step.

I did not plan the whole project in advance. I just started with the frame and the above plans for the marble lift, and improvised each further step. That's why I do not have a perfect drawing with the final measures. While each square in the sketch corresponds to 1/4", please note that these are only approximate sizes.

The Frame

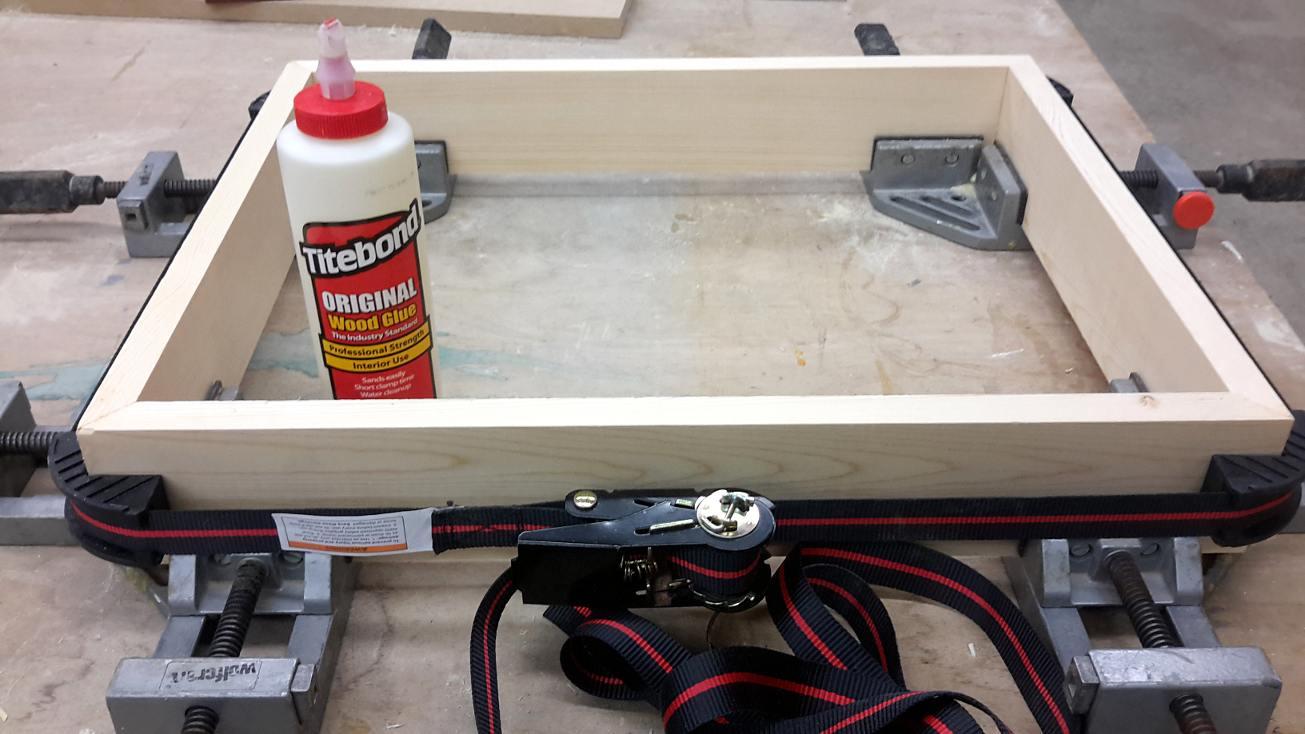

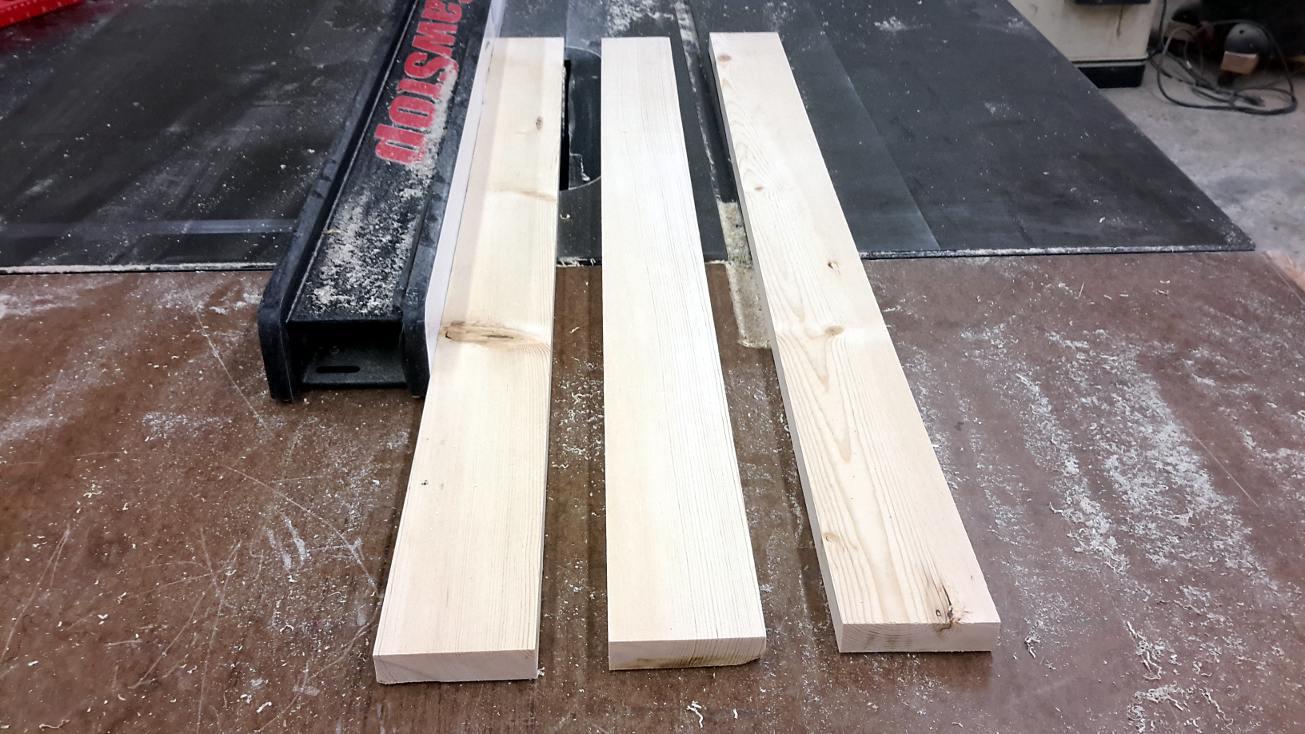

I thought that a depth of 3" of the frame would give me enough space for one layer of tracks, and the lift. With the table saw, I cut 3" wide pieces. Then, with a miter saw, I cut those to a length of 16" and 20" at an angle of 45 degrees. Using four "corner-tools" and a band strap clamp ratchet, I glued the frame.

Marbles and Track Size

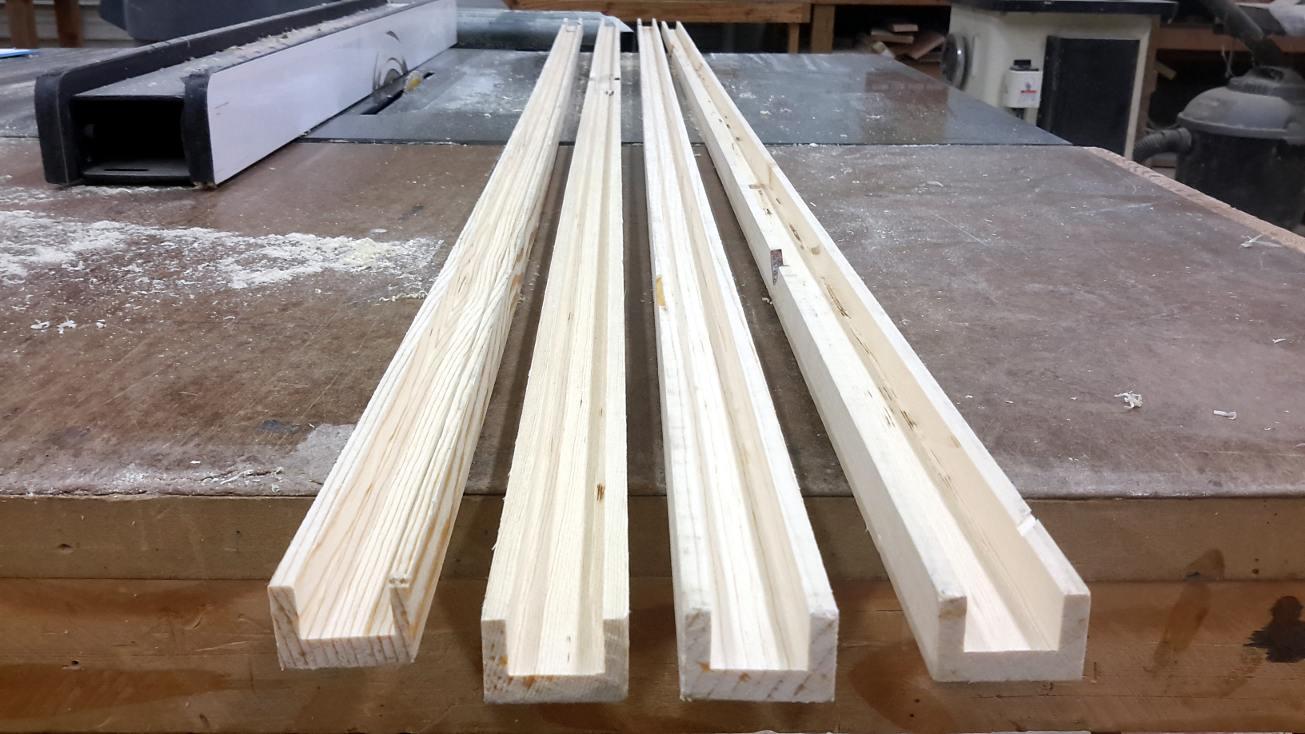

I had a number of glass marble lying around with slightly different diameters, around 17mm (or 11/16"), so I had to be careful that the individual elements of the track worked for a range of different sizes and weights of the marbles. With a marble size of close to 3/4", I decided to make the track 7/8" wide with 1/8" wood on either side, adding to a total width of 1 1/8". With the table saw, I cut four 6-foot long pieces with a width of 1 1/8" for the tracks (the height is given by the thickness of the 3/4" board). I also used the table saw to "hollow out" the tracks, with a depth of 1/2" - this lets the marble stick out a little.

Then I played around to determine what would be a good slope. A marble run is most fun, if the marbles run as slow as possible - but, of course, they should never stop. From my attempts, I figured out that a slope of around 2.5 degrees would be best. So, I used the miter saw to cut the tracks at an angle of approx. 2.7 degrees into pieces with a length of 19" (which is slightly longer then their final length).

Laying the tracks on top of the frame gave a first impression of how the marble run would look like.

The Marble Lift

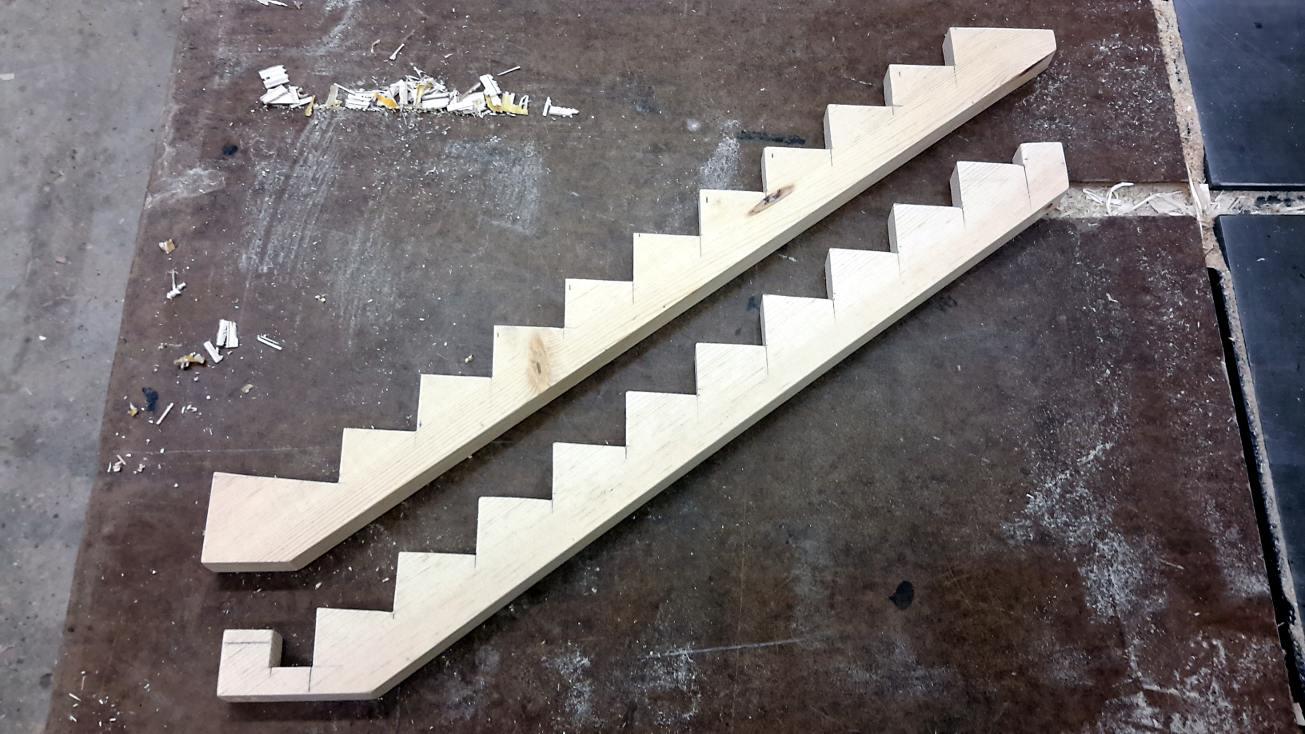

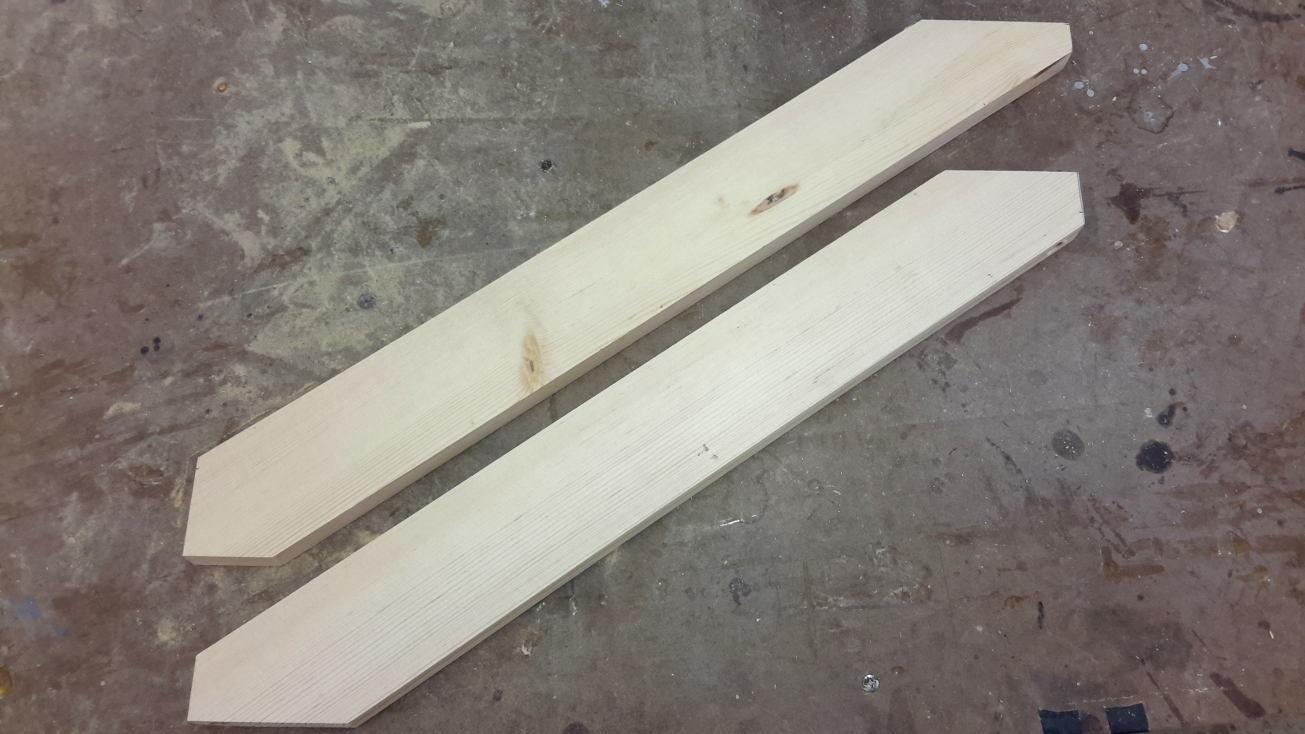

The lift consists of two pieces of "stairs" which are positioned diagonally in the frame. The back piece is glued to the frame, and the front piece is able to move up and down. Each step has a length of 1 1/2", which is a little more than twice the diameter of the marbles. The front piece is angled to the back, and the back piece is angled to the front side by 5 degrees. All steps are also angled to the right.

The marbles enter the front piece in the lower left corner. When the front piece is lifted, the marble rolls onto the higher step on the back piece, and there it rolls to the right. When the front piece is lowered, the marble rolls back onto the front piece (to the next higher step) and from there it rolls to the right. This continues until the marble has reached the highest step on the back piece, from where it will enter the track. With eleven steps, the lift can carry eleven marbles at a time, providing continuous action of the marble track.

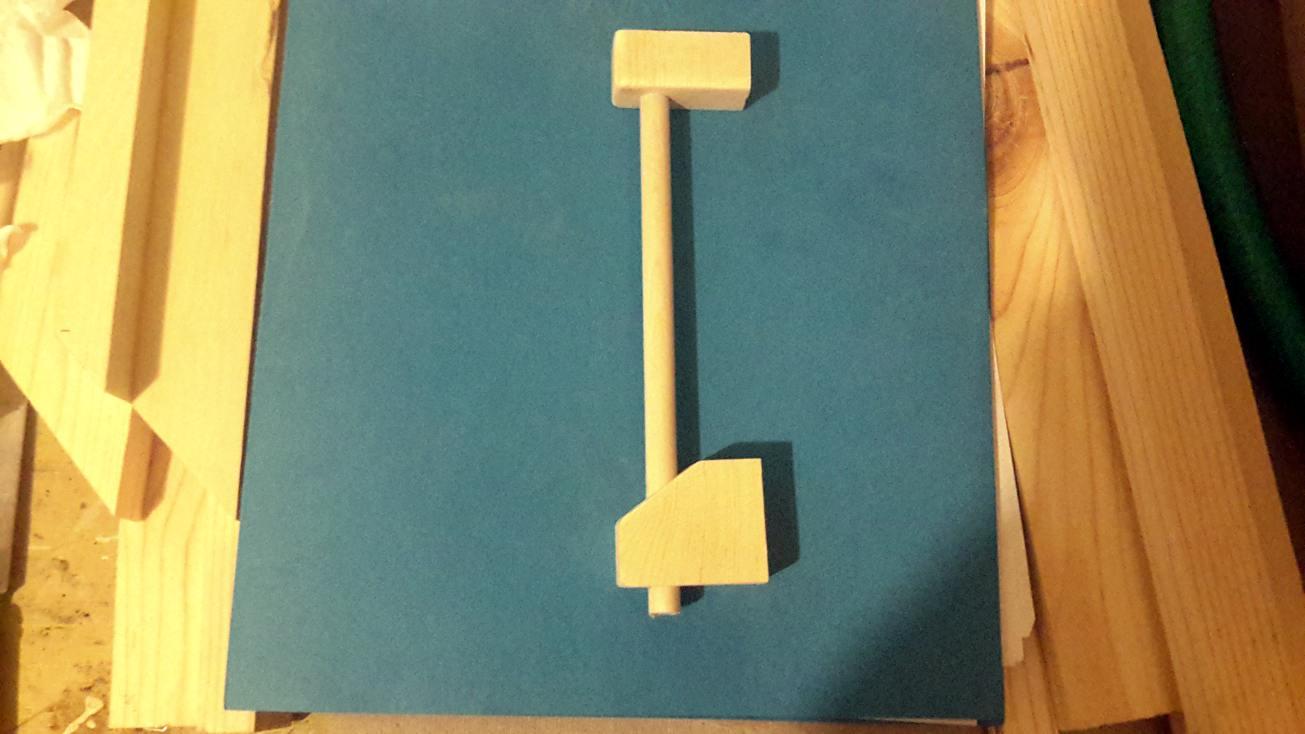

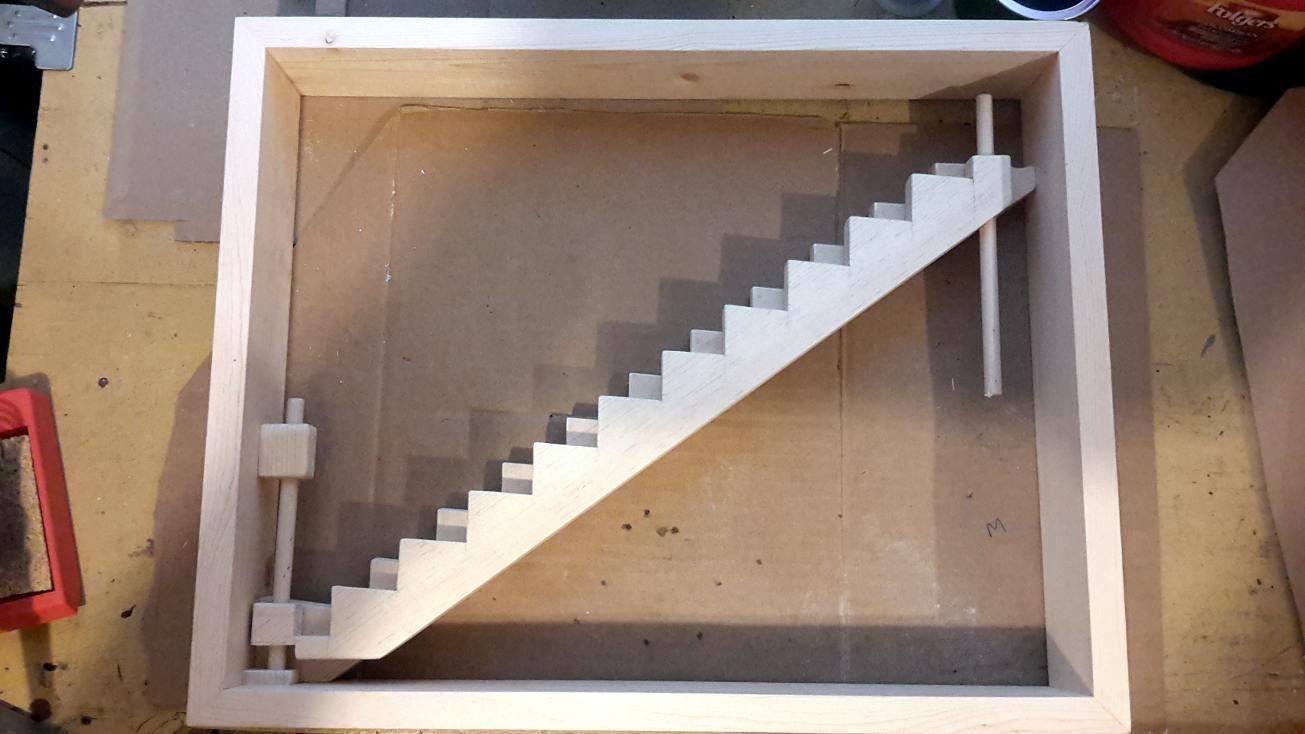

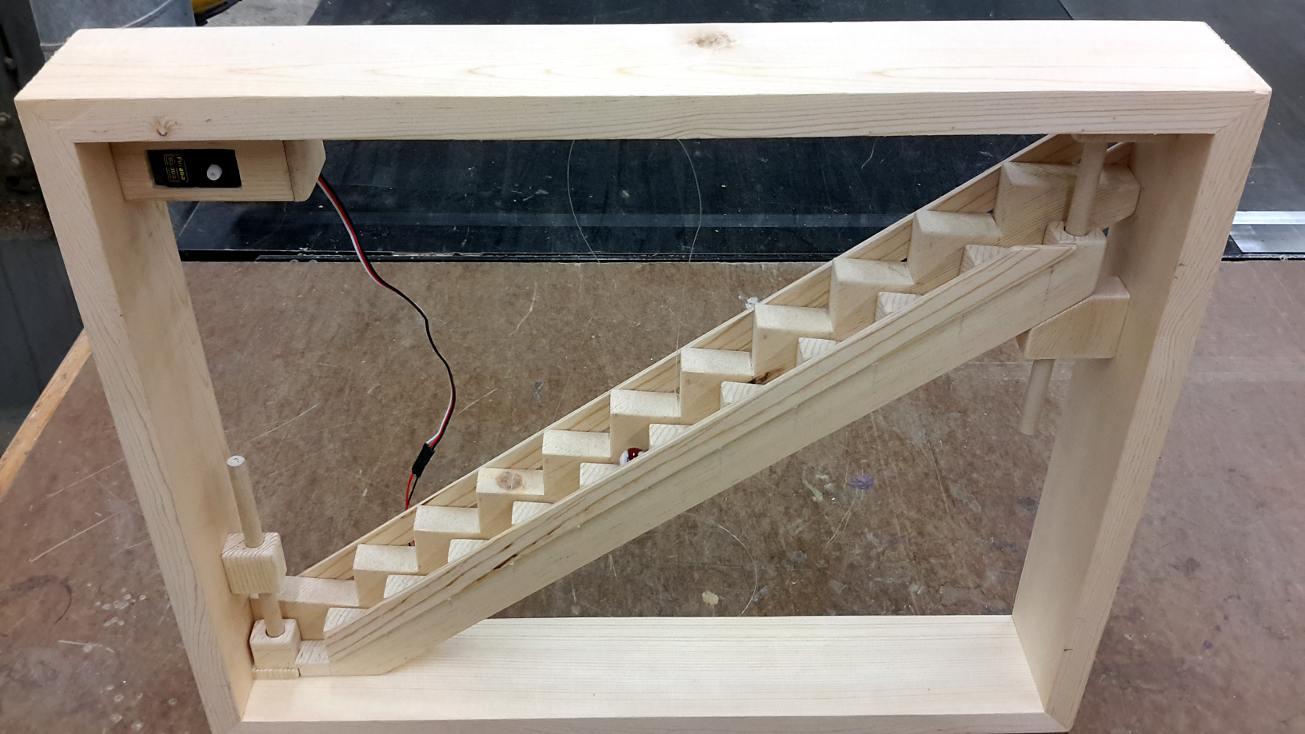

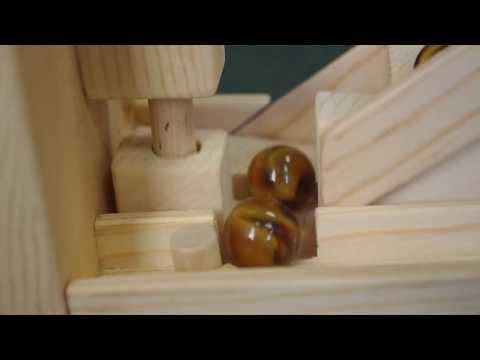

First, the back piece for the marble lift was then glued into the frame (the easy part). The assembly of the movable front piece required more focus on small details. Two slip fit holes were drilled vertically through the left and right edges of the front piece. These holes fit the dowels on which the front piece slides up and down. To hold the dowel on the left side, press fit holes were drilled through two smaller pieces of wood. One piece was glued into the left corner on the bottom, such that the spacing between the front and the back piece of the lift is approximately 1mm (a little less than 1/16") by putting some cardboard spacers between the front and the back pieces. While gluing this piece, the other piece was stuck on the top of the dowel, to ensure that the front piece is angled correctly.

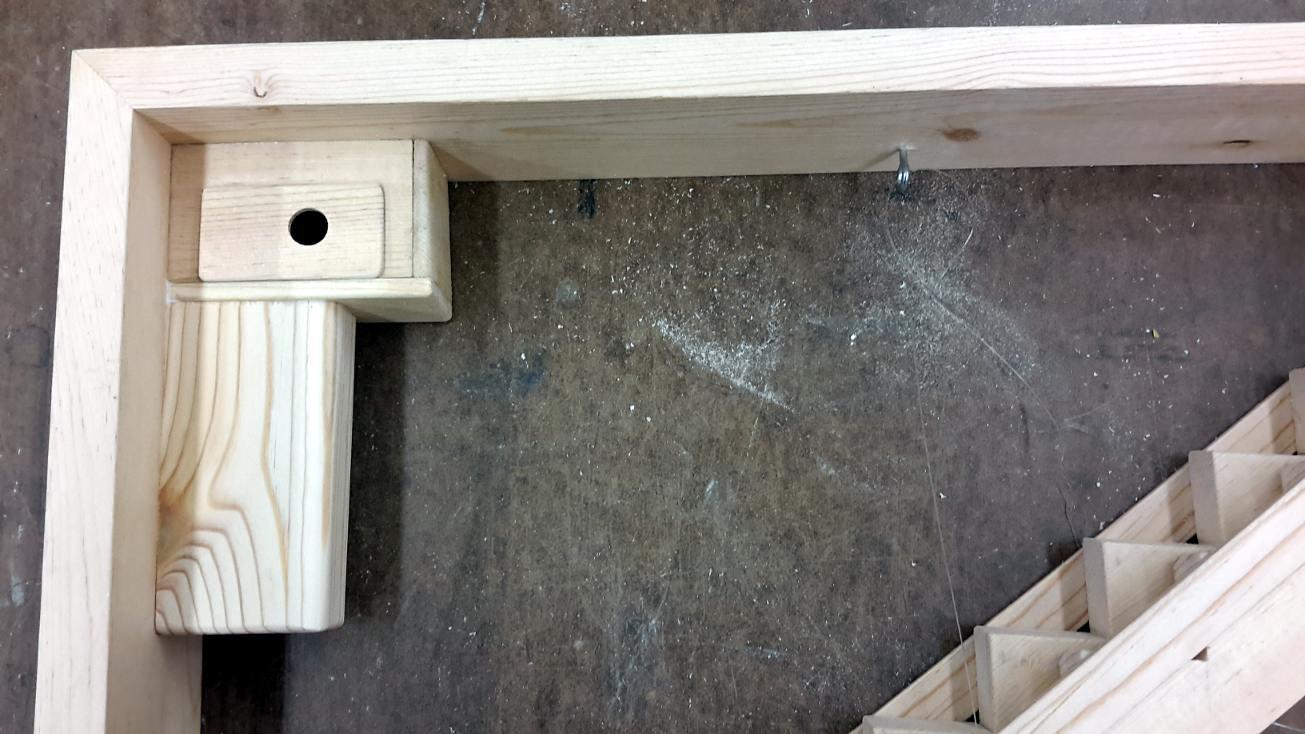

After the mounts for the lift on the left were finished, the corresponding pieces for the right side were made. A hole was drilled through a larger piece of wood to hold the dowel. Then this piece was cut into two, and the top left corner of the lower piece was cut at an angle, so that it fit the shape of the front stairs.

Both pieces were then glued into the top right corner of the frame. A piece of fishing line was used to lift the front stairs. The fishing line was knotted to a small screw at the bottom of the front stairs. From there is goes through an eye hook at the top of the frame. By pulling and releasing the fishing line, the front stairs can now be lifted up and down.

The Lift Mechanism


Before I go into any details, let me mention this: I'm an Arduino fan, and nothing is easier for me than to set up an Arduino with a servo motor. If you really don't want to get into this, you can also achieve the following with a (slow) motor. However, you would have to come up with an idea how to switch it's direction of rotation every few seconds, and I can't help you with that...

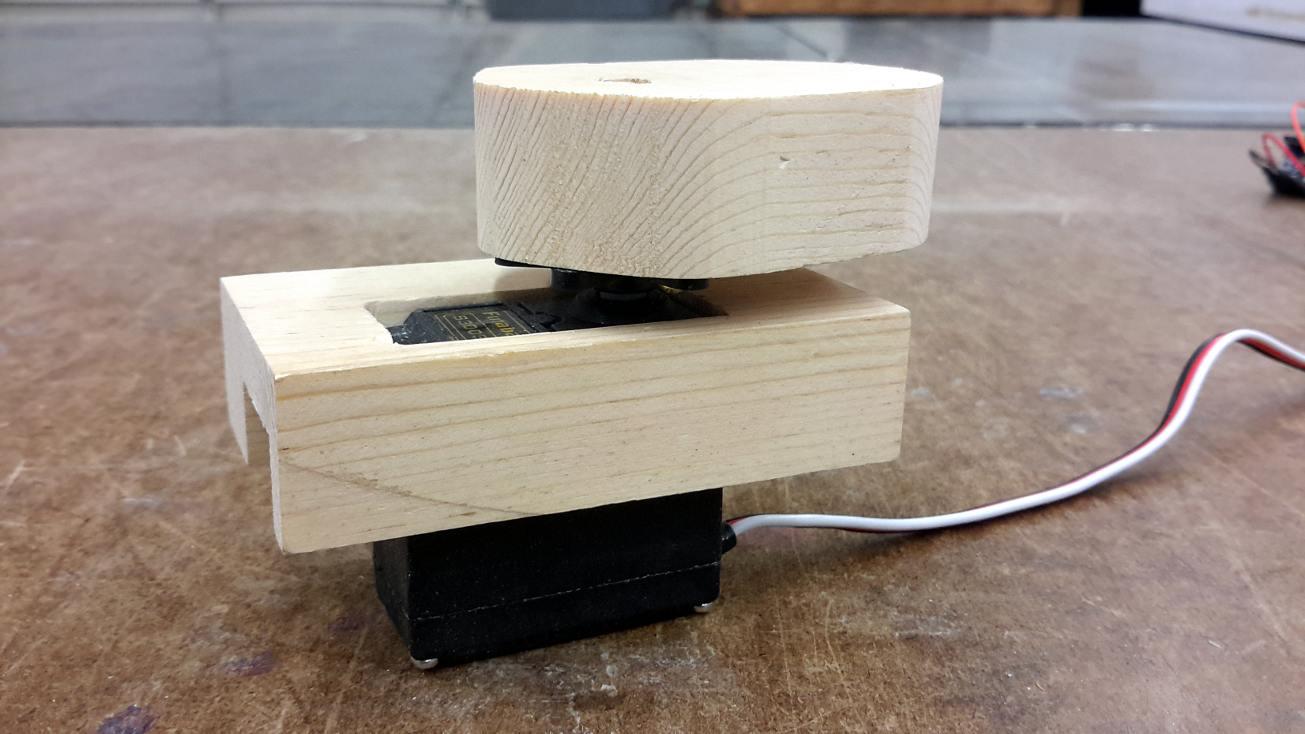

The front stairs are operated by a servo which is pulling the fishing line. The servo is held by a slot in a piece of wood. A 3-inch piece with rounded corners was used for the servo arm. An eye hook (not visible in the images) was screwed into the the arm from the back side.

For testing purposes, the servo holder was attached to the frame with a C-clamp, and the fishing cord from the front stairs was fed through the eye hook at the top and attached to the eye hook in the servo arm. The servo was connected to an Arduino (pro mini) which sweeps slowly through all angles from 10 to 170 degrees. With this set up I was able to test if the servo is strong enough to lift the front stairs up. And - yes, it worked!

The servo holder was then glued into the top left corner of the frame. A thin plate was glued to the right side of the servo holder to cover the opening.

With the table saw, two thin (approx. 1mm) pieces were cut from the board. These were glued to the front of the front stairs, and behind the back stairs, to prevent the marbles from falling off the stairs.

The servo was connected to a Arduino Pro Mini microcontroller. The power is supplied by a 5V USB charger for phones/tablets. The power connector (for the micro USB plug from the charger) and the Arduino are mounted below the servo. For this purpose a cover was built to hide the electronics.

Adding the Tracks

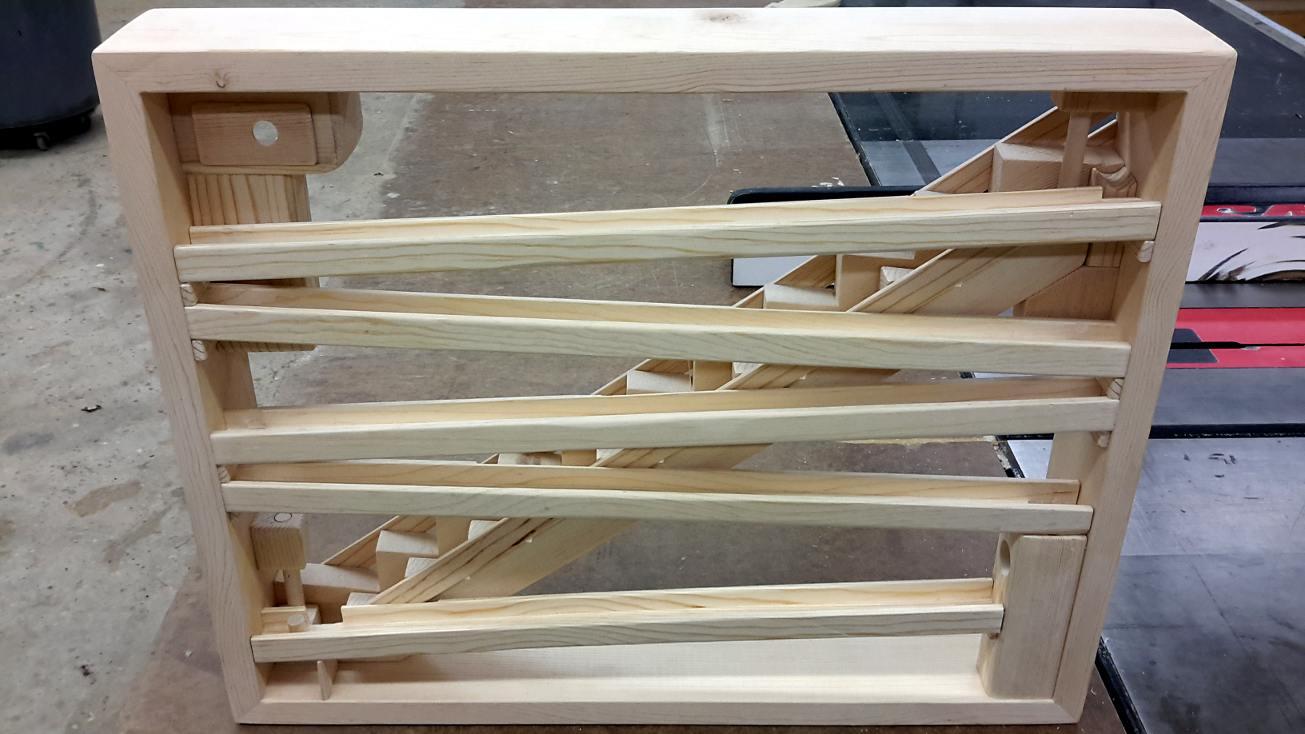

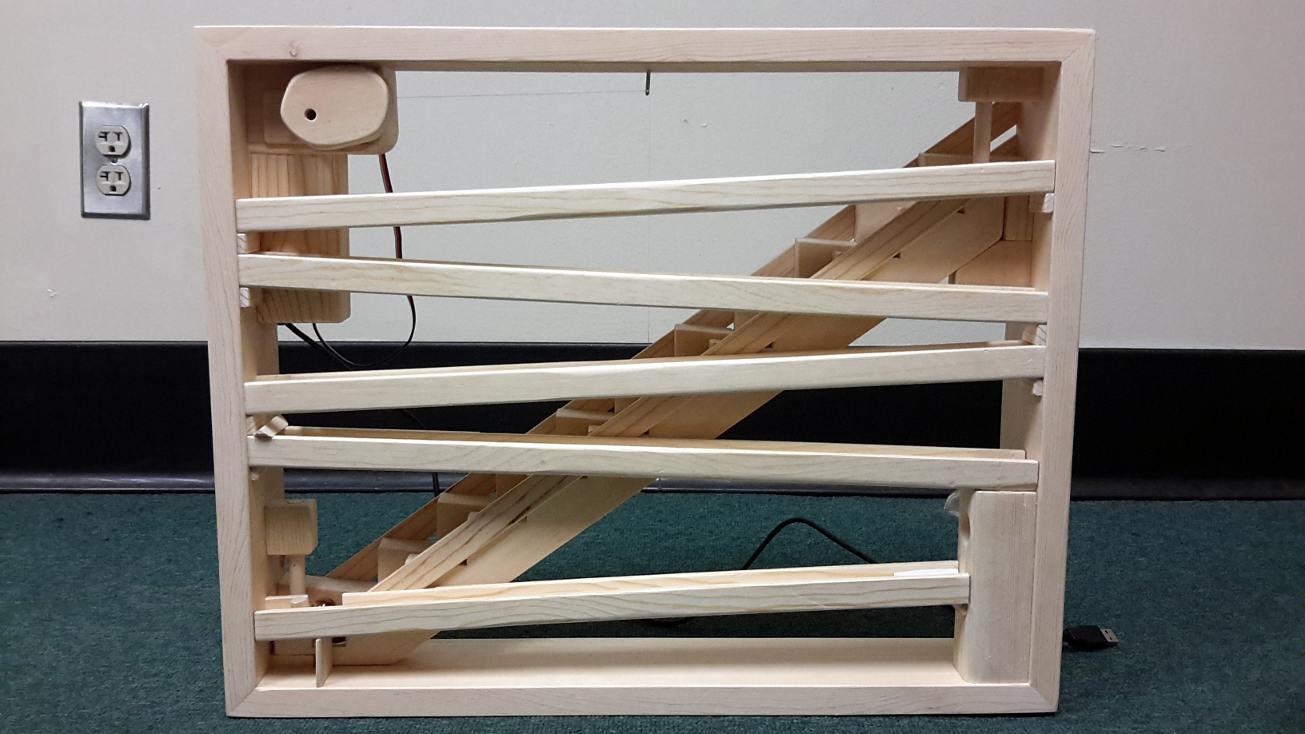

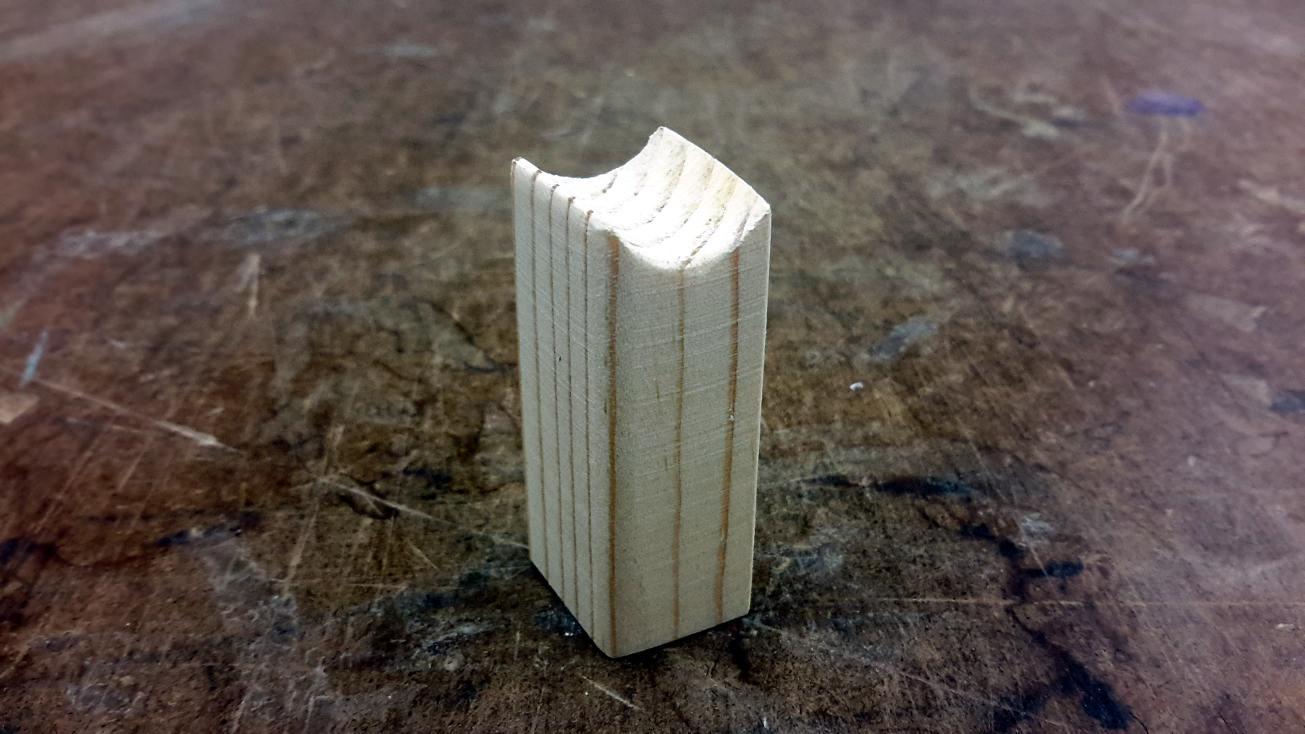

At this point, the only missing pieces were the marble tracks. The tracks (which were cut before) were sanded, so they have a smooth inner surface for the marbles to roll, and slightly rounded corners. For the lower right corner of the marble run, a block was drilled such that the marble enters from the top and leaves to the side. The tracks were then added, starting from the bottom. The bottom track requires an exit from where the marbles enter the lift. From there, the tracks were added one-by-one. An additional piece was required for the top right corner, to guide the marbles from the exit of the lift to the top track. With this in place, the last track was prepared, and added, which finalized the woodwork. Here are two different views on the result.

Installing the Servo

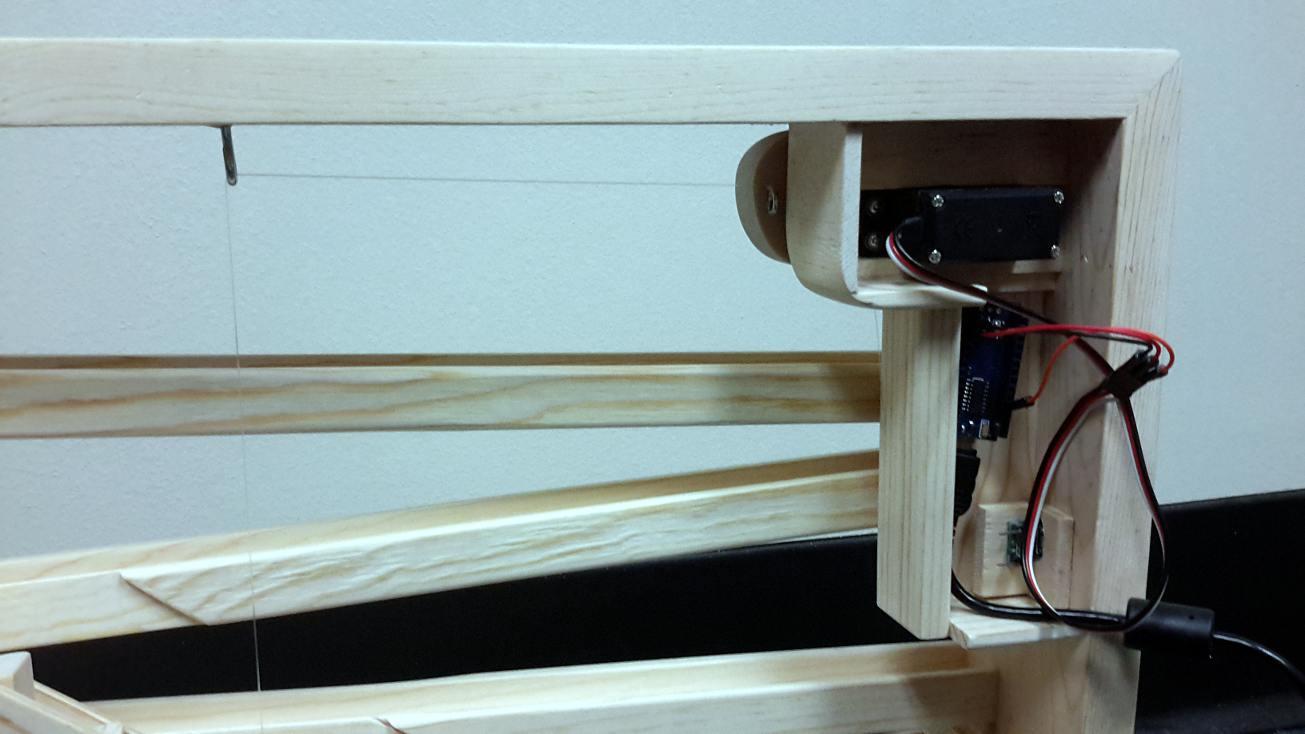

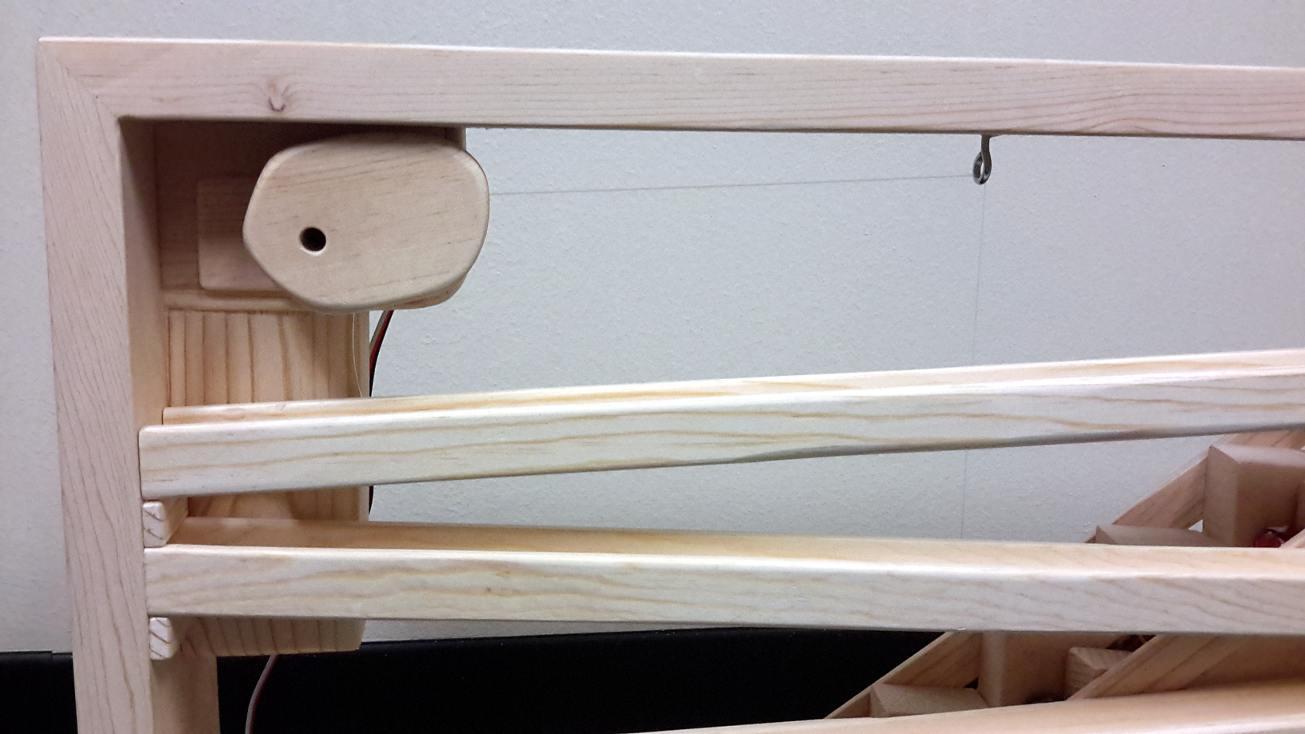

Here are the Futaba S3003 servo (actually, a cheap Chinese clone, which is, however good enough for this project), the wooden arm, and the Arduino Pro Mini. The servo was mounted behind the wooden cover in the top left corner and connected to the Arduino. The servo arm was mounted to the front of the servo. These are the views on the back side and the front side of the Marble Run. And here is a detailed view on the marbles sitting on the lift.

The Futaba S3003 servo is operated by an Arduino Pro Mini (5V, ATmega168 version). This is very small and it can easily be “hidden” in the upper left corner, below the servo. For the power supply, a USB charger is used which delivers up to 2A at 5.3V, and the voltage is connected to the “5V” pin of the Arduino. This is essential for the operation. Chargers with 5V or a lesser max. current did not work since the high servo current spikes used to reset the Arduino.

The full beauty of the Wooden Marble Run is shown in the video at the top of this page, including all details, while operating at a fixed speed. In particular, I love the clicking sounds of the glass marbles on wood.

Afterthought: Adding a Microswitch


After some time, it turned out that the choice of the fishing cord for the marble lift was not the best idea. For a few weeks, the marble run was working rather well. Then the fishing cord started to stretch. Initially, I got away with adjusting the angular range for the servo. But at some point it could not be fixed in software. Then the beautiful marble run was hanging for a few months in it’s non-operational state...

When I had a little time to check this, I figured out it could be rather easily fixed. Obviously, it wasn’t a good idea to operate the stretching fishing cord by a servo at a fixed angle. A better approach was to provide the Arduino with the information when the marble lift has reached the top position. For this purpose, I added a micro switch.

It was mounted in the top right corner, and closes its contact whenever the lift reaches the top position. The two wires were hidden behind a piece of wood that runs along the upper edge of the marble run.

The Arduino code was modified, so that the servo is raising the lift only up to the point when the switch is closed. Now the marble run worked again!

Lesson learned: flexible fishing cord is not the best idea for a marble lift. It may be better, instead of pulling the stairs from the top, to push them from below (without any flexible cord). This will be reflected in the concepts for my next marble run...

Arduino Connections and Code

Giving a beginner's tutorial for Arduino programming is beyond the scope of this tutorial. But this project requires only very little Arduino skills that can easily be found on the web.

To control the servo and read the micro switch, a small Arduino Pro Mini is used. This is programmed from a computer using an FTDI adapter. Alternatively one could use an Arduino Nano which is only slightly larger, but can directly be connected to a computer. The micro switch is connected between GND and Arduino pin 10 - and the servo is connected to +5V, GND, and Arduino pin 9. The timing at which the servo is operating the stairs is randomized. It operates for some time at a certain speed, makes a short pause, and starts again at another speed. The randomly varied speed makes it less predictable, and keeps it interesting.
