A Simple CoreXY

"CoreXY provides a fundamental building block of many computerized fabrication tools - cartesian motion - in a simple and adaptable format."

It is fast, simple and flexible. You can see more details here.

Recently, I have made my own one refer to the design from this website. Thanks for the great work of the designer of the platform.

It is just a structure now. And I will add the Timing pulley, Timing Belt and the electronic modules to drive it soon.

Now let's see how the structure is built.

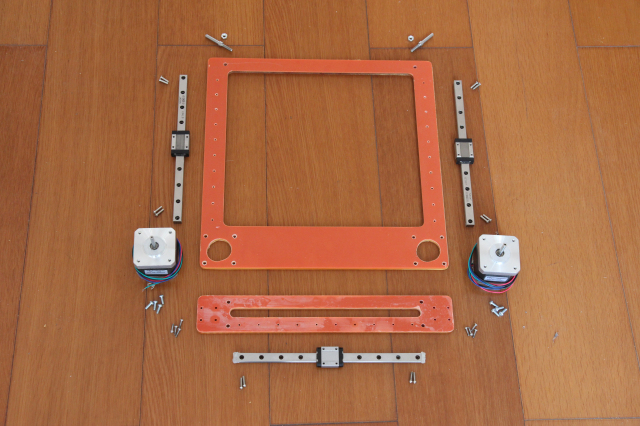

Here are all the materials that I used.

Cut the frame by a piece of Bakelite.

Install 2 Linear Guideways on the frame to Build Y-Axis

Install a Linear Guideway on the bracket to Build X-Axis

Add X-Axis on the frame.

Install stepper motors on the frame.
