A Remote LED Light With Durian UNO ESP8266 IoT Starter Kit and Blynk
by Rhinarium in Workshop > Home Improvement
412 Views, 4 Favorites, 0 Comments
A Remote LED Light With Durian UNO ESP8266 IoT Starter Kit and Blynk
![1iPRjEdK1676611021.jpg](/proxy/?url=https://content.instructables.com/FLZ/6T7H/LMOWCK4W/FLZ6T7HLMOWCK4W.jpg&filename=1iPRjEdK1676611021.jpg)
This is a step by step tutorial on how to make a Remote LED Light With ESP32 and Blynk
Supplies
![119525085-e464a300-bd86-11eb-84dc-a4f3de0f7ec9.png](/proxy/?url=https://content.instructables.com/F3E/Q510/LMJ6L4AQ/F3EQ510LMJ6L4AQ.png&filename=119525085-e464a300-bd86-11eb-84dc-a4f3de0f7ec9.png)
![1iPRjEdK1676611021.jpg](/proxy/?url=https://content.instructables.com/F2Y/ULUD/LMJ6L4D9/F2YULUDLMJ6L4D9.jpg&filename=1iPRjEdK1676611021.jpg)

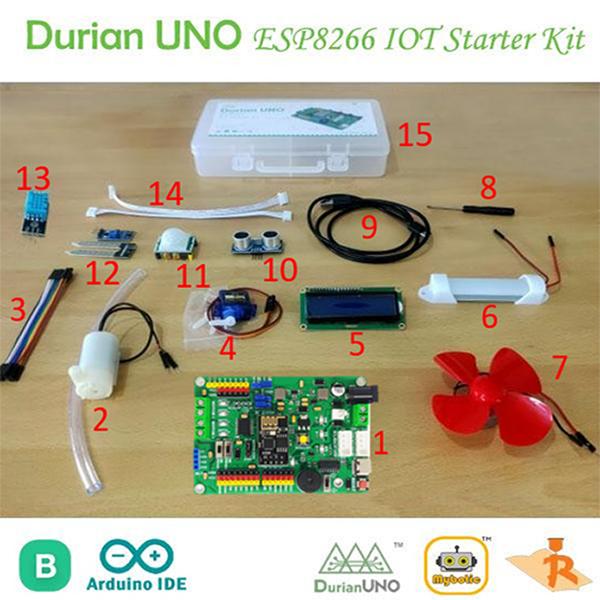

- Durian UNO ESP8266 IoT Starter Kit

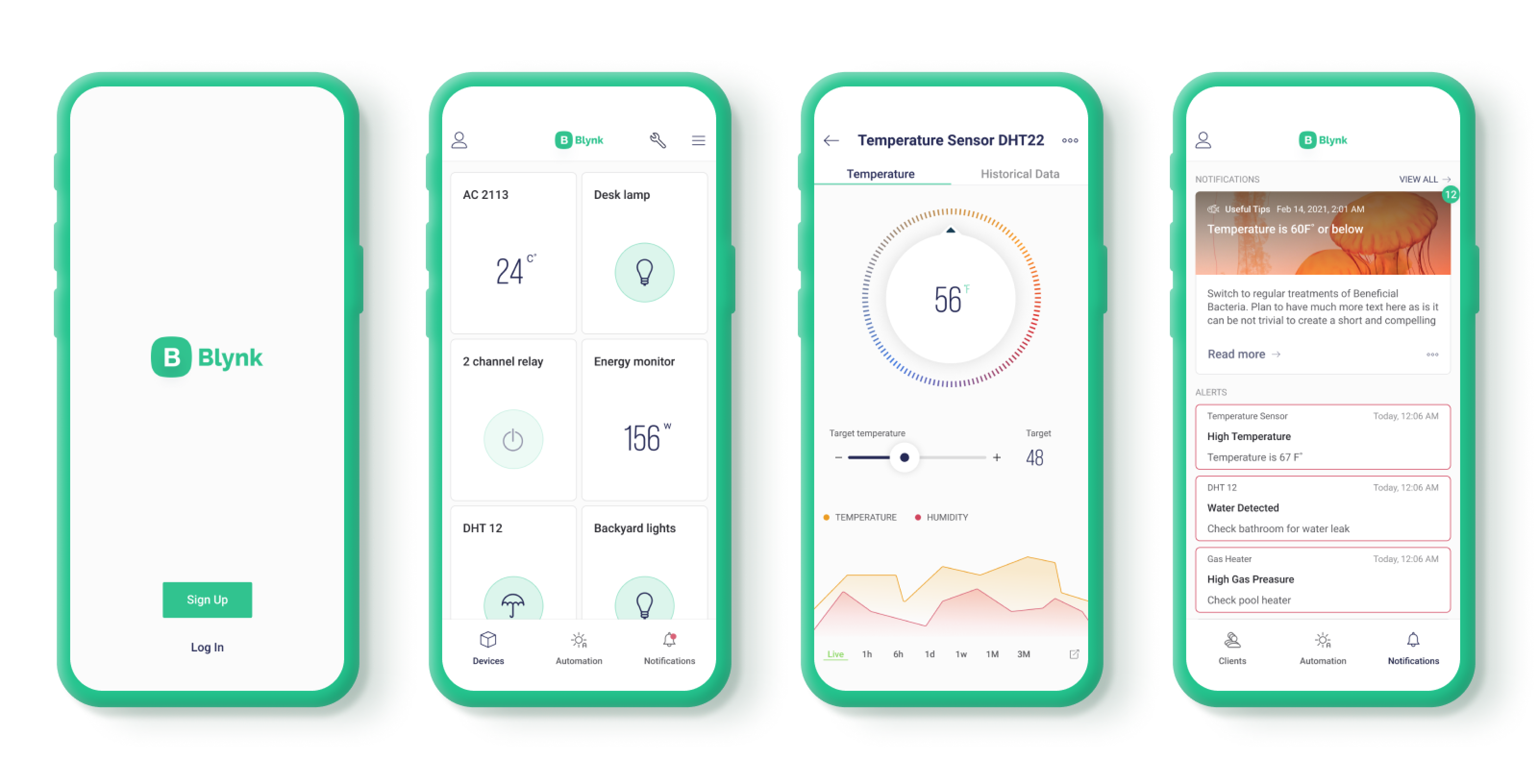

- Blynk app installed on your phone
- Arduino IDE installed on your PC / laptop
Connect the LED Light and the Fan to the Board
![IMG_5651.jpg](/proxy/?url=https://content.instructables.com/FGF/IPJL/LM4W7LHQ/FGFIPJLLM4W7LHQ.jpg&filename=IMG_5651.jpg)
Connect the led light and the fan to the board, make sure to check the colour of the wire.
(Unscrew the screws with a screwdriver before connecting the wires and make sure to tighten the screws after connecting all the wires)
Download / Setting Up Arduino IDE and the Code
![Screenshot 2023-09-05 at 12.10.50 PM.png](/proxy/?url=https://content.instructables.com/F3X/613N/LM4W7VLR/F3X613NLM4W7VLR.png&filename=Screenshot 2023-09-05 at 12.10.50 PM.png)
- Download Arduino IDE from this offical website
- Download the code from this website
- Unzip the file, select DurianUno_Module_5_Smart_Home
- Copy the code to the arduino IDE
- On the arduino IDE, go to [Sketch] → [Include Library] → [Manage Libraries...]
- Search 'mybotic' and download the newest version
- Connect the board to your laptop with a type c usb cable.
- Next, go to [Tools] → [Board:] → [Arduino AVR Boards] → [Arduino Uno]
- Then, Go to [Tools] → [Port] →select the port you want to use
Good job, now you have set up all the things for Arduino IDE :)
Setting Up Blynk on Your PC
![Screenshot 2023-09-05 at 12.22.03 PM.png](/proxy/?url=https://content.instructables.com/FR6/XUGD/LM4W7VUH/FR6XUGDLM4W7VUH.png&filename=Screenshot 2023-09-05 at 12.22.03 PM.png)
![Screenshot 2023-09-05 at 12.25.09 PM.png](/proxy/?url=https://content.instructables.com/FNF/V3PA/LM4W7VZH/FNFV3PALM4W7VZH.png&filename=Screenshot 2023-09-05 at 12.25.09 PM.png)
![Screenshot 2023-09-05 at 12.28.59 PM.png](/proxy/?url=https://content.instructables.com/FG6/LDQD/LM4W7W4I/FG6LDQDLM4W7W4I.png&filename=Screenshot 2023-09-05 at 12.28.59 PM.png)
![Screenshot 2023-09-15 at 10.44.57 AM.png](/proxy/?url=https://content.instructables.com/FQQ/LCD0/LMJ6L40X/FQQLCD0LMJ6L40X.png&filename=Screenshot 2023-09-15 at 10.44.57 AM.png)
![Screenshot 2023-09-15 at 10.44.50 AM.png](/proxy/?url=https://content.instructables.com/F05/S91I/LMJ6L40Y/F05S91ILMJ6L40Y.png&filename=Screenshot 2023-09-15 at 10.44.50 AM.png)
![Screenshot 2023-09-15 at 10.44.46 AM.png](/proxy/?url=https://content.instructables.com/F4Y/0H0D/LMJ6L410/F4Y0H0DLMJ6L410.png&filename=Screenshot 2023-09-15 at 10.44.46 AM.png)
![Screenshot 2023-09-15 at 10.44.42 AM.png](/proxy/?url=https://content.instructables.com/F3X/P7VP/LMJ6L411/F3XP7VPLMJ6L411.png&filename=Screenshot 2023-09-15 at 10.44.42 AM.png)
![Screenshot 2023-09-05 at 12.33.45 PM.png](/proxy/?url=https://content.instructables.com/FIZ/U0Z0/LM4W7WR2/FIZU0Z0LM4W7WR2.png&filename=Screenshot 2023-09-05 at 12.33.45 PM.png)
![Screenshot 2023-09-05 at 12.36.54 PM.png](/proxy/?url=https://content.instructables.com/F7C/UMA7/LM4W7YKM/F7CUMA7LM4W7YKM.png&filename=Screenshot 2023-09-05 at 12.36.54 PM.png)
![Screenshot 2023-09-05 at 12.35.50 PM.png](/proxy/?url=https://content.instructables.com/FZ0/P617/LM4W7X90/FZ0P617LM4W7X90.png&filename=Screenshot 2023-09-05 at 12.35.50 PM.png)
![Screenshot 2023-09-05 at 12.34.47 PM.png](/proxy/?url=https://content.instructables.com/FMJ/L5U2/LM4W7WVR/FMJL5U2LM4W7WVR.png&filename=Screenshot 2023-09-05 at 12.34.47 PM.png)
- Create an account at http://blynk.cloud
- Go to the main menu, click + New Template
- Enter the details for the template
- Now, create 4 virtual datastreams using the data on pic 3 - 7, MAKE SURE YOU ENTERED THE EXACT DATA!!! (The colour doesnt matter)
- Now go to the main menu and click the magnifier on the left. Click add device . Then, click the Template and select Module 5.
- You should now have auth token, template id and template name, copy those.
- Go back to the arduino code, replace the placeholder code with your own auth tokens.
- Scroll down a bit, find the code where requires you to enter your wifi credentials. Delete the placeholder code and enter your own.
- Upload your code.
Setting Up Blynk on Your Phone
![IMG_5731.PNG](/proxy/?url=https://content.instructables.com/FZ1/S2NU/LM96I3Z5/FZ1S2NULM96I3Z5.png&filename=IMG_5731.PNG)
![IMG_5732.PNG](/proxy/?url=https://content.instructables.com/FOG/WCE1/LM96I3Z6/FOGWCE1LM96I3Z6.png&filename=IMG_5732.PNG)
![IMG_5733.PNG](/proxy/?url=https://content.instructables.com/FY6/4H3H/LM96I3Z7/FY64H3HLM96I3Z7.png&filename=IMG_5733.PNG)
![IMG_5734.PNG](/proxy/?url=https://content.instructables.com/F71/BUXI/LM96I3Z8/F71BUXILM96I3Z8.png&filename=IMG_5734.PNG)
![Screenshot 2023-09-12 at 12.07.00 PM.png](/proxy/?url=https://content.instructables.com/FFV/NK2N/LMEWAZ22/FFVNK2NLMEWAZ22.png&filename=Screenshot 2023-09-12 at 12.07.00 PM.png)
![Screenshot 2023-09-12 at 12.06.48 PM.png](/proxy/?url=https://content.instructables.com/FB6/M3X2/LMEWAZ20/FB6M3X2LMEWAZ20.png&filename=Screenshot 2023-09-12 at 12.06.48 PM.png)
![Screenshot 2023-09-12 at 12.06.54 PM.png](/proxy/?url=https://content.instructables.com/FIC/EIDB/LMEWAZ21/FICEIDBLMEWAZ21.png&filename=Screenshot 2023-09-12 at 12.06.54 PM.png)
![Screenshot 2023-09-12 at 12.07.05 PM.png](/proxy/?url=https://content.instructables.com/F2T/X8AK/LMEWAZ23/F2TX8AKLMEWAZ23.png&filename=Screenshot 2023-09-12 at 12.07.05 PM.png)
![IMG_5735.PNG](/proxy/?url=https://content.instructables.com/FQC/YMJM/LM96I3Z9/FQCYMJMLM96I3Z9.png&filename=IMG_5735.PNG)
- When you open up the blynk app, if you had logged in to your account, you should have your device on the main menu

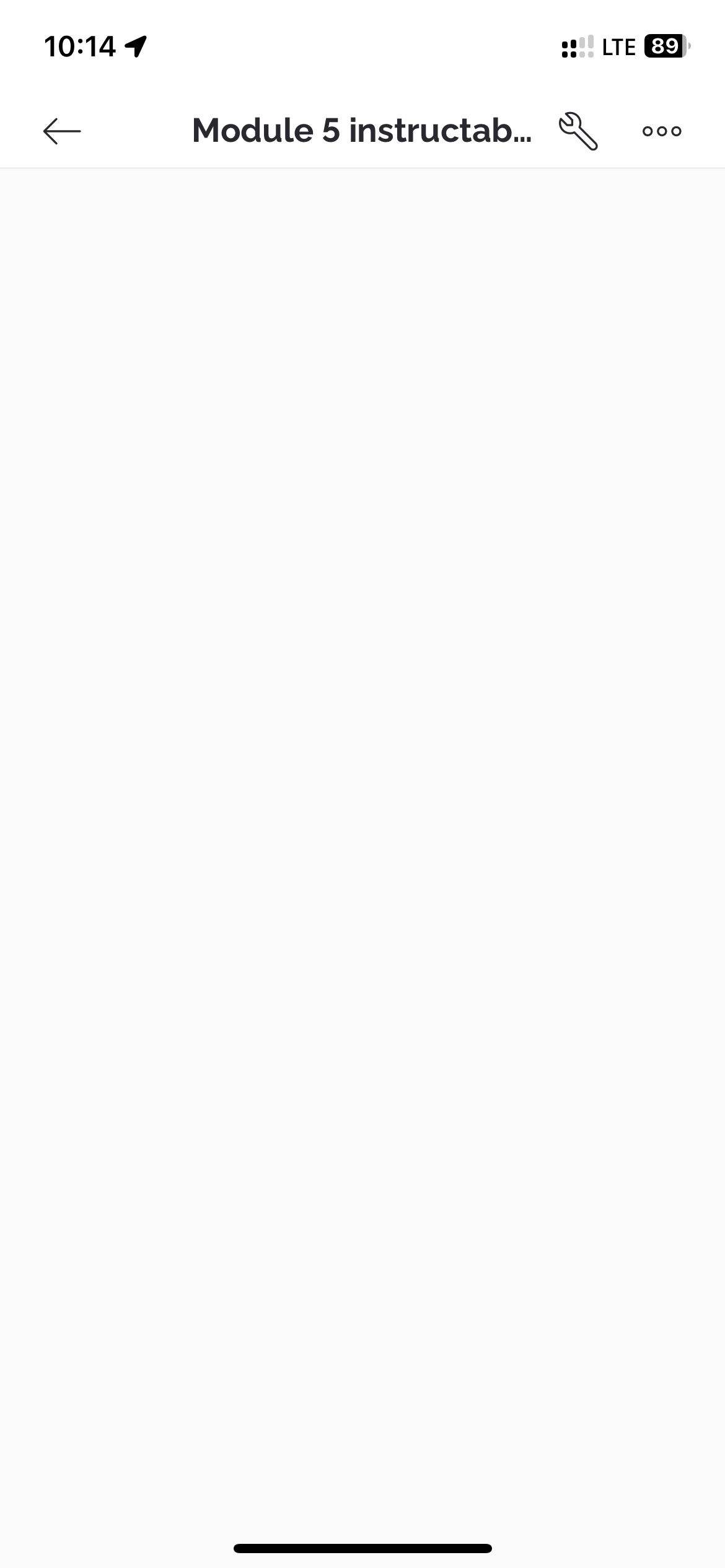

- When you click it, it should be empty, press the wrench at the top right

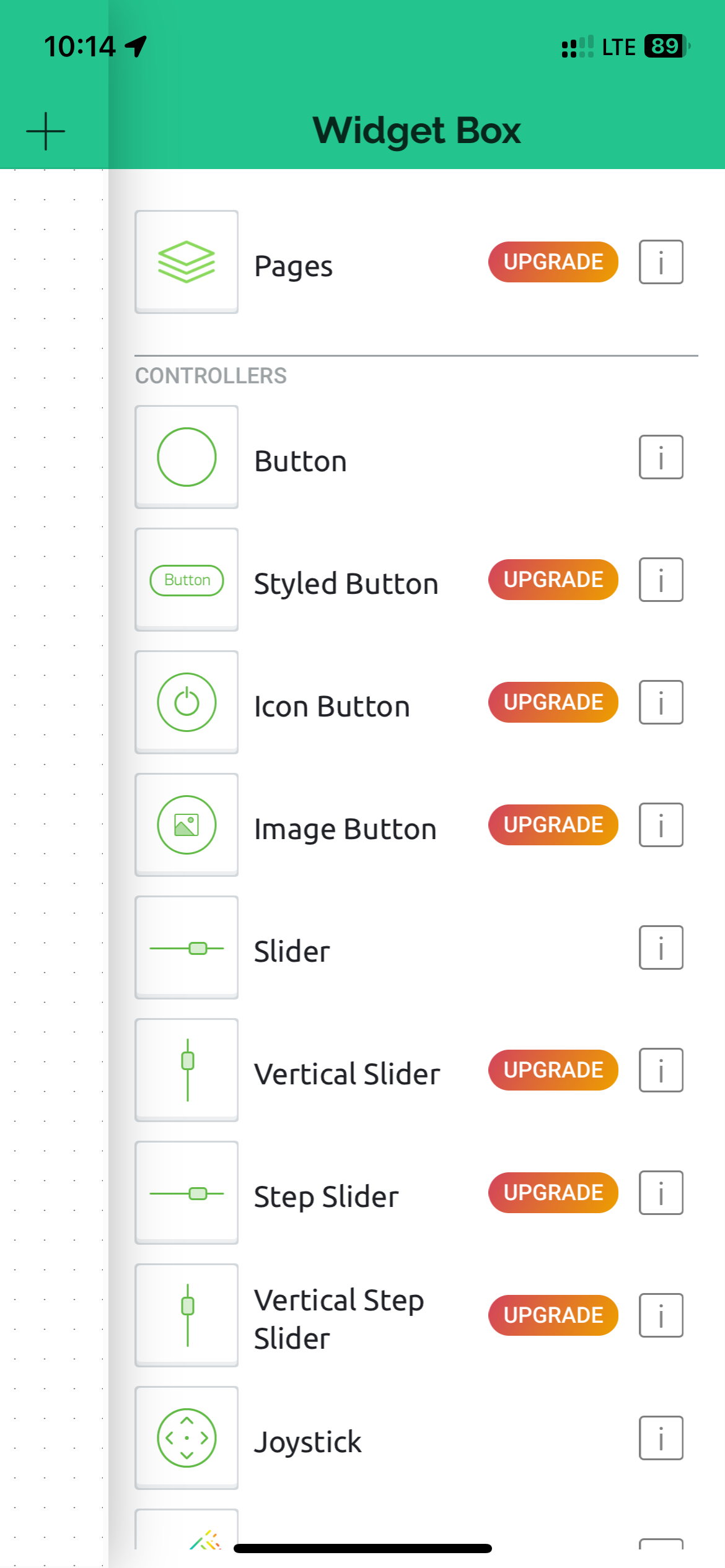

- Add 2 buttons and 2 sliders
- Configure the buttons and slides according to Pic 5 - 8
- Now your screen should looks like pic 9
Finishing the Project
![Screenshot 2023-09-12 at 12.16.42 PM.png](/proxy/?url=https://content.instructables.com/FB5/38YB/LMEWB0GP/FB538YBLMEWB0GP.png&filename=Screenshot 2023-09-12 at 12.16.42 PM.png)
![Screenshot 2023-09-19 at 12.08.09 PM.png](/proxy/?url=https://content.instructables.com/FPH/Q0QM/LMOWCJNL/FPHQ0QMLMOWCJNL.png&filename=Screenshot 2023-09-19 at 12.08.09 PM.png)
![happy.png](/proxy/?url=https://content.instructables.com/FHW/FAKR/LMOWCJW7/FHWFAKRLMOWCJW7.png&filename=happy.png)
- Now go back to arduino, go [Tools] --> [Serial monitor], the serial monitor should looks like pic 1 after you uploaded the code.
- Now open the Blynk app on your phone, try pressing the button, everything should work as intended.
- Good job, u have finished this project!
