A QUICK AND EASY DRAWER
by Kink Jarfold in Workshop > Workbenches
2370 Views, 19 Favorites, 0 Comments
A QUICK AND EASY DRAWER
![IMG_7646.JPG](/proxy/?url=https://content.instructables.com/FY6/LWM7/JJEK4ONA/FY6LWM7JJEK4ONA.jpg&filename=IMG_7646.JPG)
I need drawers for the various work benches I've made. I figured I'd add one to my router table.
![A little shop 1.png](/proxy/?url=https://content.instructables.com/FV6/N4AV/JJEK4OLB/FV6N4AVJJEK4OLB.png&filename=A little shop 1.png)
![A-1 PALLETS AND DUMPSTER.jpg](/proxy/?url=https://content.instructables.com/FJ8/P5AB/JJEK4OLC/FJ8P5ABJJEK4OLC.jpg&filename=A-1 PALLETS AND DUMPSTER.jpg)
![IMG_7611.JPG](/proxy/?url=https://content.instructables.com/FJE/L7D3/JJEK4OLG/FJEL7D3JJEK4OLG.jpg&filename=IMG_7611.JPG)
![IMG_7612.JPG](/proxy/?url=https://content.instructables.com/FN1/VIBT/JJEK4OLJ/FN1VIBTJJEK4OLJ.jpg&filename=IMG_7612.JPG)

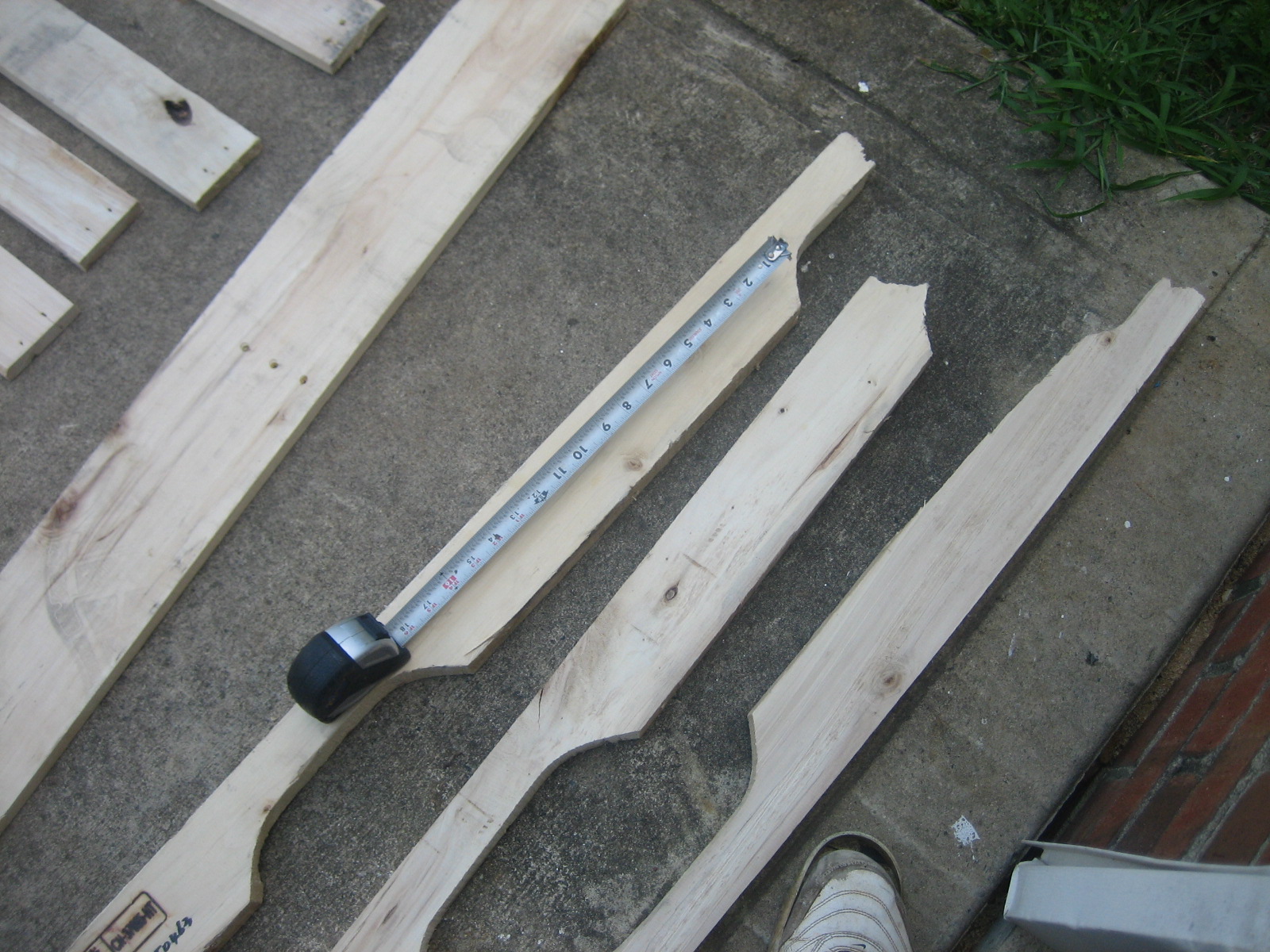

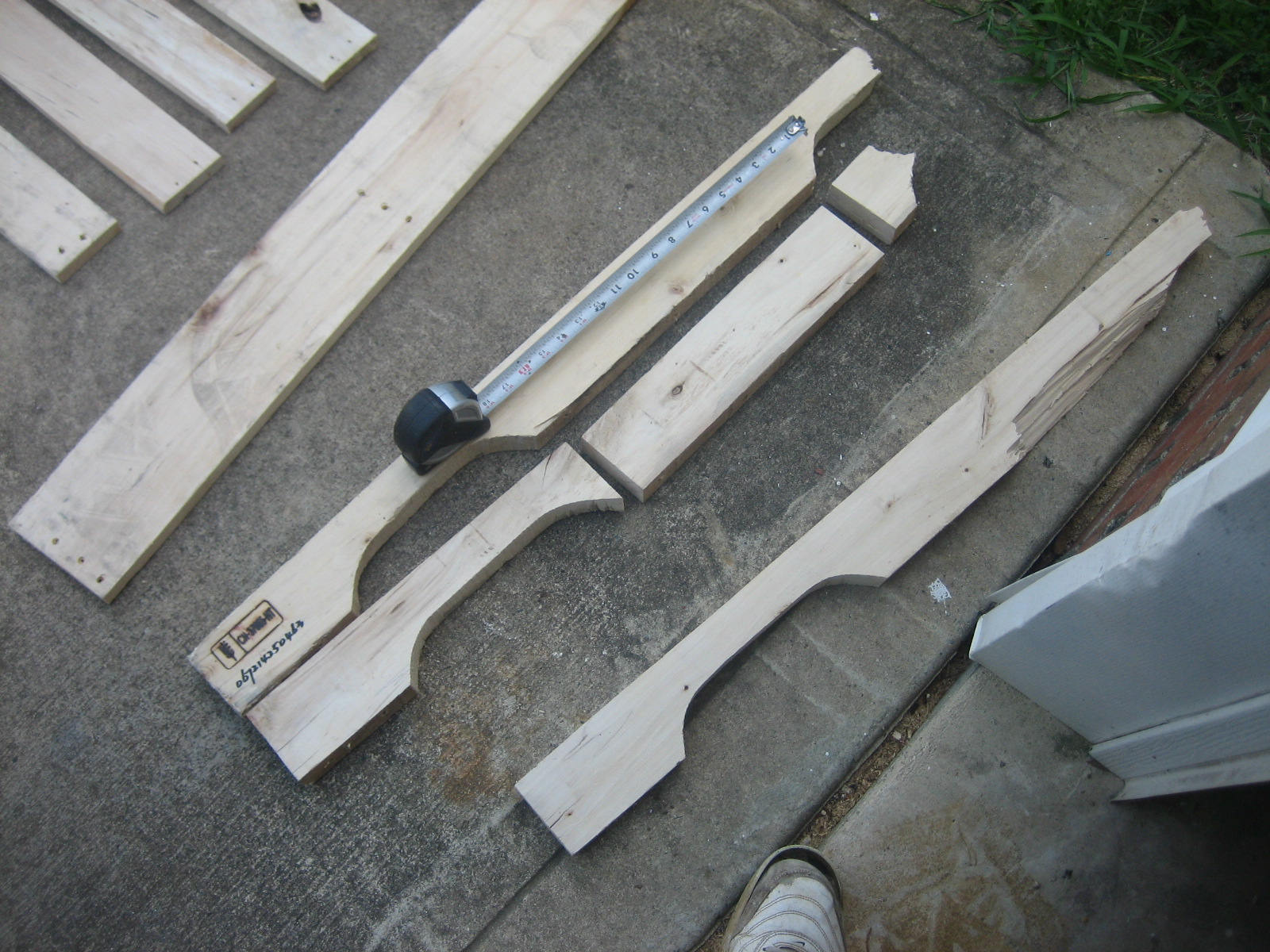

Welcome to my little shop build of a drawer for my router table. I'm an old-timer. What I build is not necessarily pretty, but it is functional. I gathered material for this project by dumpster diving and coming home with a beat-up pallet which I dismantled. I even glued together one of the split boards.
HOW BIG?
![IMG_7613.JPG](/proxy/?url=https://content.instructables.com/FKV/A8UA/JJEK4OLM/FKVA8UAJJEK4OLM.jpg&filename=IMG_7613.JPG)
![IMG_7614.JPG](/proxy/?url=https://content.instructables.com/FS9/J7QF/JJEK4OLO/FS9J7QFJJEK4OLO.jpg&filename=IMG_7614.JPG)
![IMG_7615.JPG](/proxy/?url=https://content.instructables.com/FDM/3AEV/JJEK4OLP/FDM3AEVJJEK4OLP.jpg&filename=IMG_7615.JPG)
![IMG_7616.JPG](/proxy/?url=https://content.instructables.com/FZR/5J1T/JJEK4OLU/FZR5J1TJJEK4OLU.jpg&filename=IMG_7616.JPG)
I measured half the width of the front and the full depth of the area where the drawer would go. Why half the width? I'm going to build a deeper drawer later for the other half to fit my router and other larger items.
THE DRAWER GUIDES
![IMG_7617.JPG](/proxy/?url=https://content.instructables.com/FWU/VXAS/JJEK4OLV/FWUVXASJJEK4OLV.jpg&filename=IMG_7617.JPG)
![IMG_7618.JPG](/proxy/?url=https://content.instructables.com/F0S/3VTZ/JJEK4OLW/F0S3VTZJJEK4OLW.jpg&filename=IMG_7618.JPG)
![IMG_7619.JPG](/proxy/?url=https://content.instructables.com/FCI/9H4W/JJEK4OM1/FCI9H4WJJEK4OM1.jpg&filename=IMG_7619.JPG)
![IMG_7620.JPG](/proxy/?url=https://content.instructables.com/FCK/CWFF/JJEK4OM5/FCKCWFFJJEK4OM5.jpg&filename=IMG_7620.JPG)
Being frugal, I didn't buy drawer guides. I made them. I measured between the fork lift slots and cut pieces to act as drawer guides from front to back of the router table. I trimmed them to the same size.
DRAWER GUIDES
![IMG_7623.JPG](/proxy/?url=https://content.instructables.com/F8W/1UAQ/JJEK4OM8/F8W1UAQJJEK4OM8.jpg&filename=IMG_7623.JPG)
![IMG_7627.JPG](/proxy/?url=https://content.instructables.com/F6K/057G/JJEK4OM9/F6K057GJJEK4OM9.jpg&filename=IMG_7627.JPG)
![IMG_7628.JPG](/proxy/?url=https://content.instructables.com/FR8/ONP5/JJEK4OMA/FR8ONP5JJEK4OMA.jpg&filename=IMG_7628.JPG)

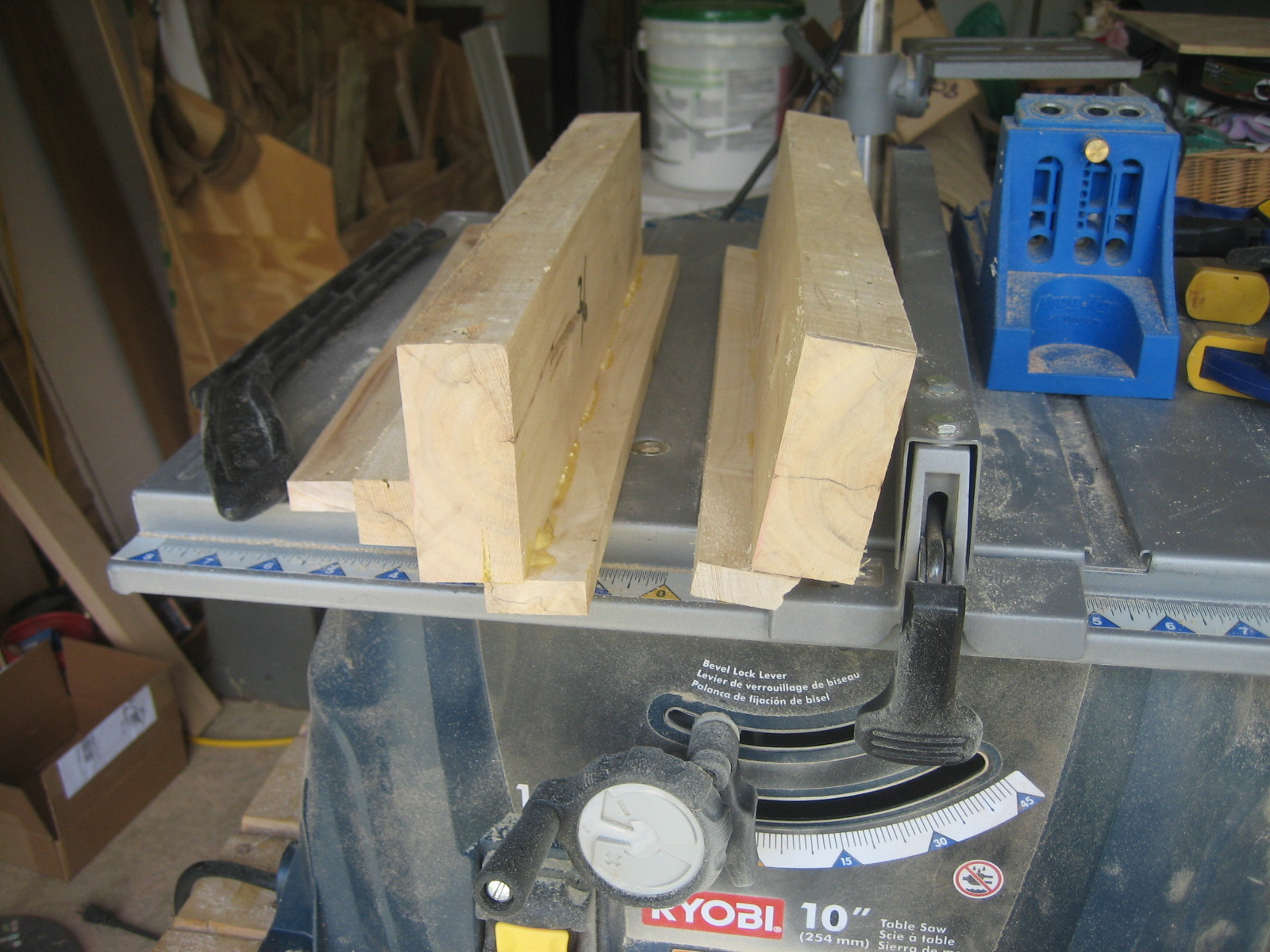

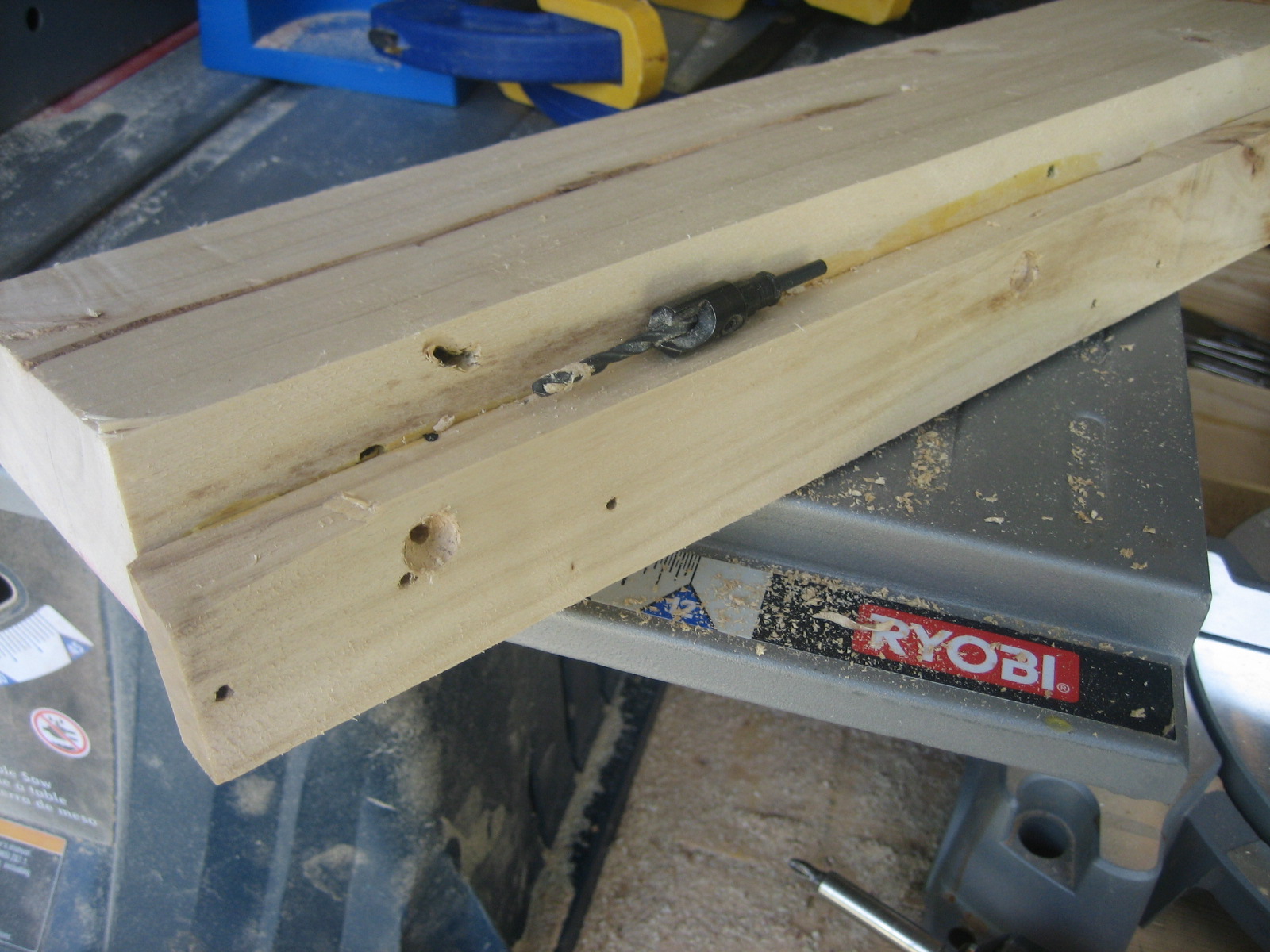

I ripped down some thinner pieces and glued and screwed them to the bottom of each board to create the letter L to act as the guides.
I INSTALLED THEM
![IMG_7629.JPG](/proxy/?url=https://content.instructables.com/FTW/C7QK/JJEK4OMB/FTWC7QKJJEK4OMB.jpg&filename=IMG_7629.JPG)
![IMG_7630.JPG](/proxy/?url=https://content.instructables.com/FOD/9GCQ/JJEK4OME/FOD9GCQJJEK4OME.jpg&filename=IMG_7630.JPG)
![IMG_7631.JPG](/proxy/?url=https://content.instructables.com/FLR/CHKM/JJEK4OMH/FLRCHKMJJEK4OMH.jpg&filename=IMG_7631.JPG)

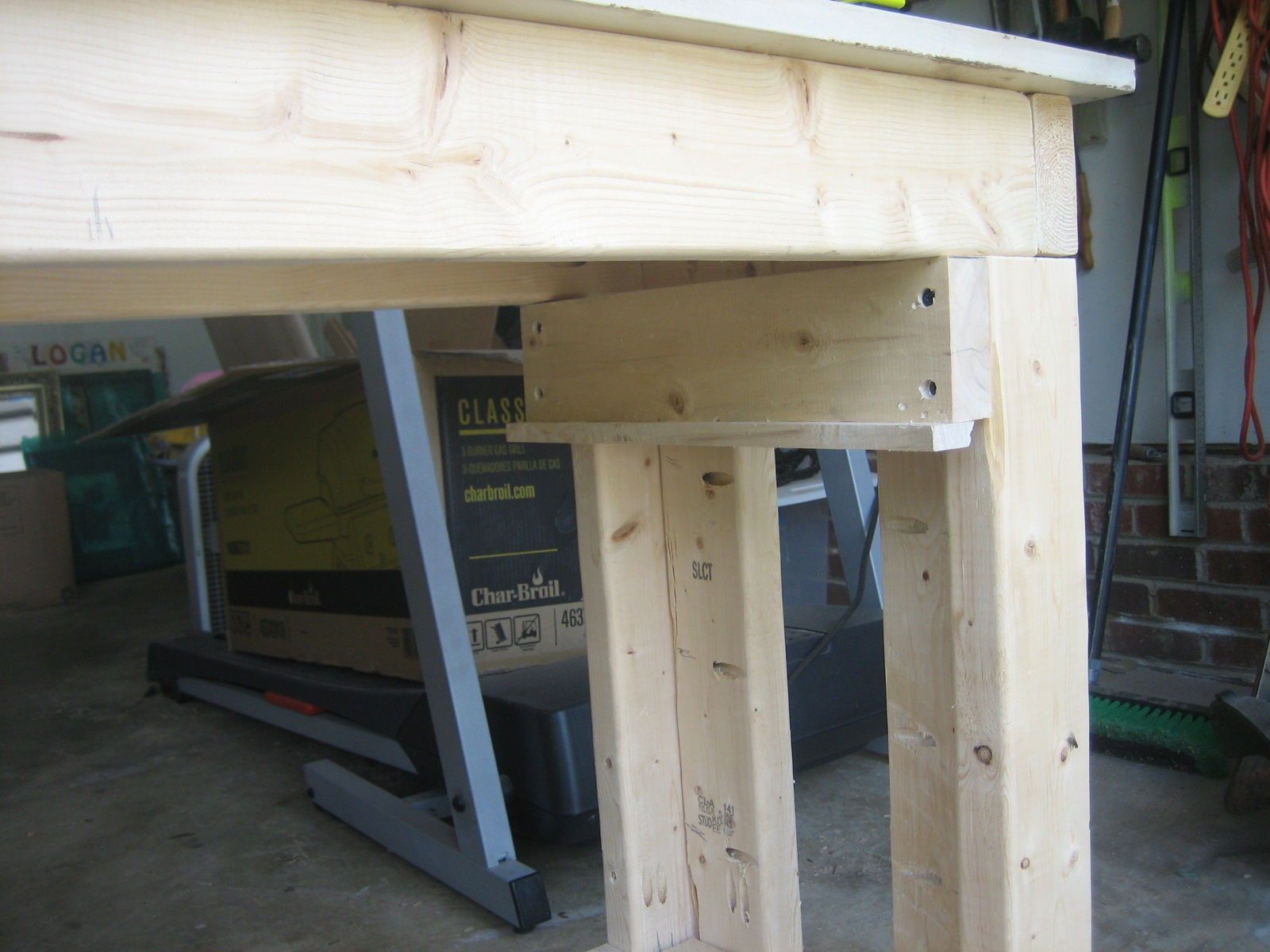

I installed them making sure they were square to the front of the work bench. One I screwed right to the side frame; the other I used pocket screws.
TILT STOPPER
![IMG_7632-1.JPG](/proxy/?url=https://content.instructables.com/FR4/6NLX/JJEK4OMI/FR46NLXJJEK4OMI.jpg&filename=IMG_7632-1.JPG)
![IMG_7632-2.JPG](/proxy/?url=https://content.instructables.com/FUW/CXA1/JJEK4OMK/FUWCXA1JJEK4OMK.jpg&filename=IMG_7632-2.JPG)
![IMG_7632-3.JPG](/proxy/?url=https://content.instructables.com/F50/YH47/JJEK4OML/F50YH47JJEK4OML.jpg&filename=IMG_7632-3.JPG)
Without attached tracks this drawer will tilt down when opened fully. I installed a tilt stopper. Once the drawer goes in I will add a spacer on the very top back of the drawer to close any tilt gap.
DRAWER PIECES
![IMG_7633.JPG](/proxy/?url=https://content.instructables.com/F7J/T24L/JJEK4OMT/F7JT24LJJEK4OMT.jpg&filename=IMG_7633.JPG)
![IMG_7634.JPG](/proxy/?url=https://content.instructables.com/FAT/WUJ3/JJEK4OMU/FATWUJ3JJEK4OMU.jpg&filename=IMG_7634.JPG)
![IMG_7635.JPG](/proxy/?url=https://content.instructables.com/FBZ/93RN/JJEK4OMV/FBZ93RNJJEK4OMV.jpg&filename=IMG_7635.JPG)
![IMG_7637.JPG](/proxy/?url=https://content.instructables.com/FE5/STOA/JJEK4ON0/FE5STOAJJEK4ON0.jpg&filename=IMG_7637.JPG)
![SENIOR CENTER SIGNS.jpg](/proxy/?url=https://content.instructables.com/FXS/8Y8G/JJJ8ANTB/FXS8Y8GJJJ8ANTB.jpg&filename=SENIOR CENTER SIGNS.jpg)
I cut fronts and sides for the drawer and tested their fit. I labeled them in chalk to keep track. Being an old-timer I don't trust things to memory.
THE DRAWER
![IMG_7638.JPG](/proxy/?url=https://content.instructables.com/FYL/7J3O/JJEK4ON1/FYL7J3OJJEK4ON1.jpg&filename=IMG_7638.JPG)
![IMG_7639.JPG](/proxy/?url=https://content.instructables.com/FFE/OG0Z/JJEK4ON4/FFEOG0ZJJEK4ON4.jpg&filename=IMG_7639.JPG)
![IMG_7641.JPG](/proxy/?url=https://content.instructables.com/FUI/YYEL/JJEK4ON5/FUIYYELJJEK4ON5.jpg&filename=IMG_7641.JPG)
![IMG_7642.JPG](/proxy/?url=https://content.instructables.com/F57/7TDU/JJEK4ON6/F577TDUJJEK4ON6.jpg&filename=IMG_7642.JPG)
![IMG_7643.JPG](/proxy/?url=https://content.instructables.com/F5G/705O/JJEK4ON7/F5G705OJJEK4ON7.jpg&filename=IMG_7643.JPG)

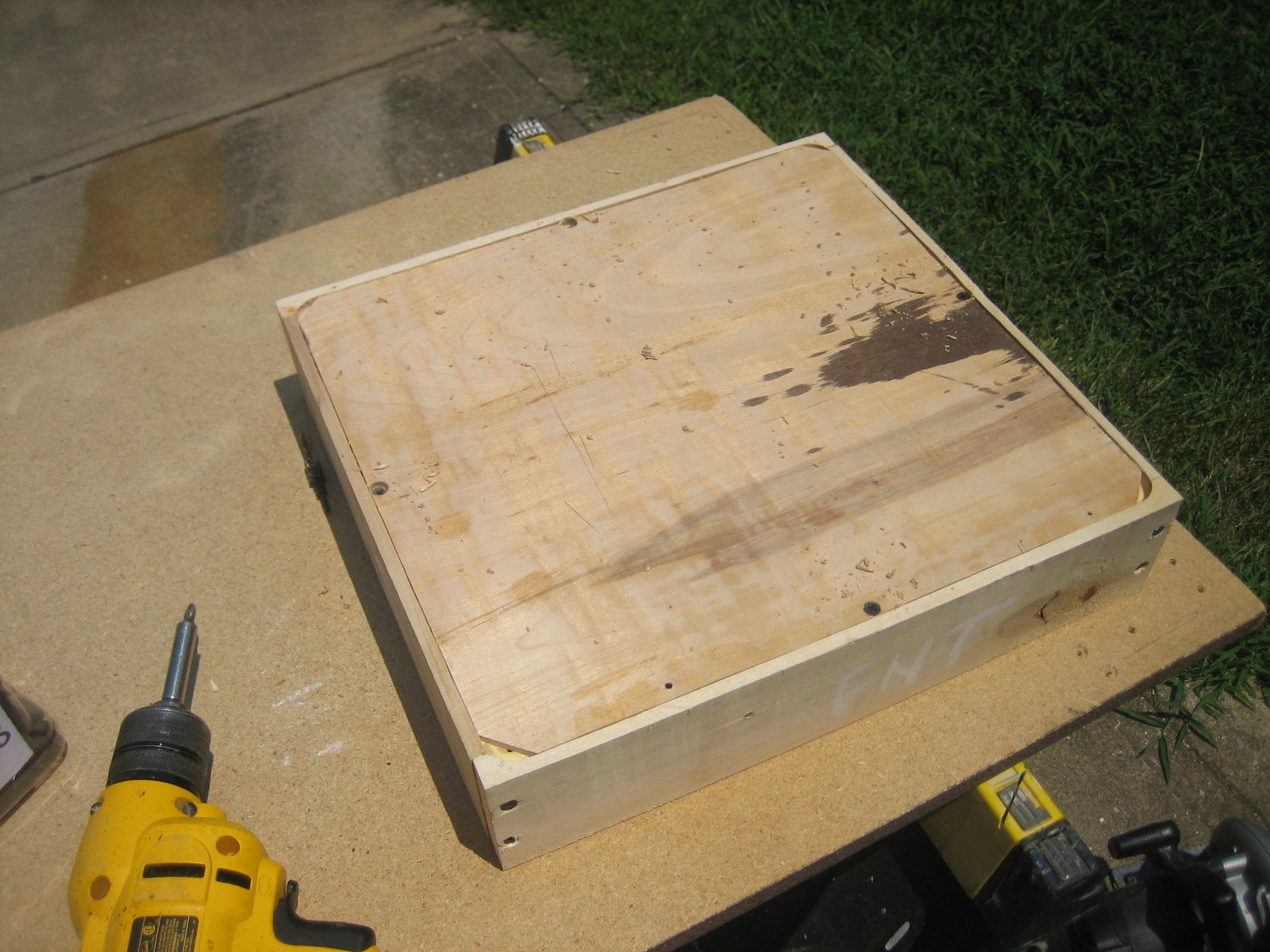

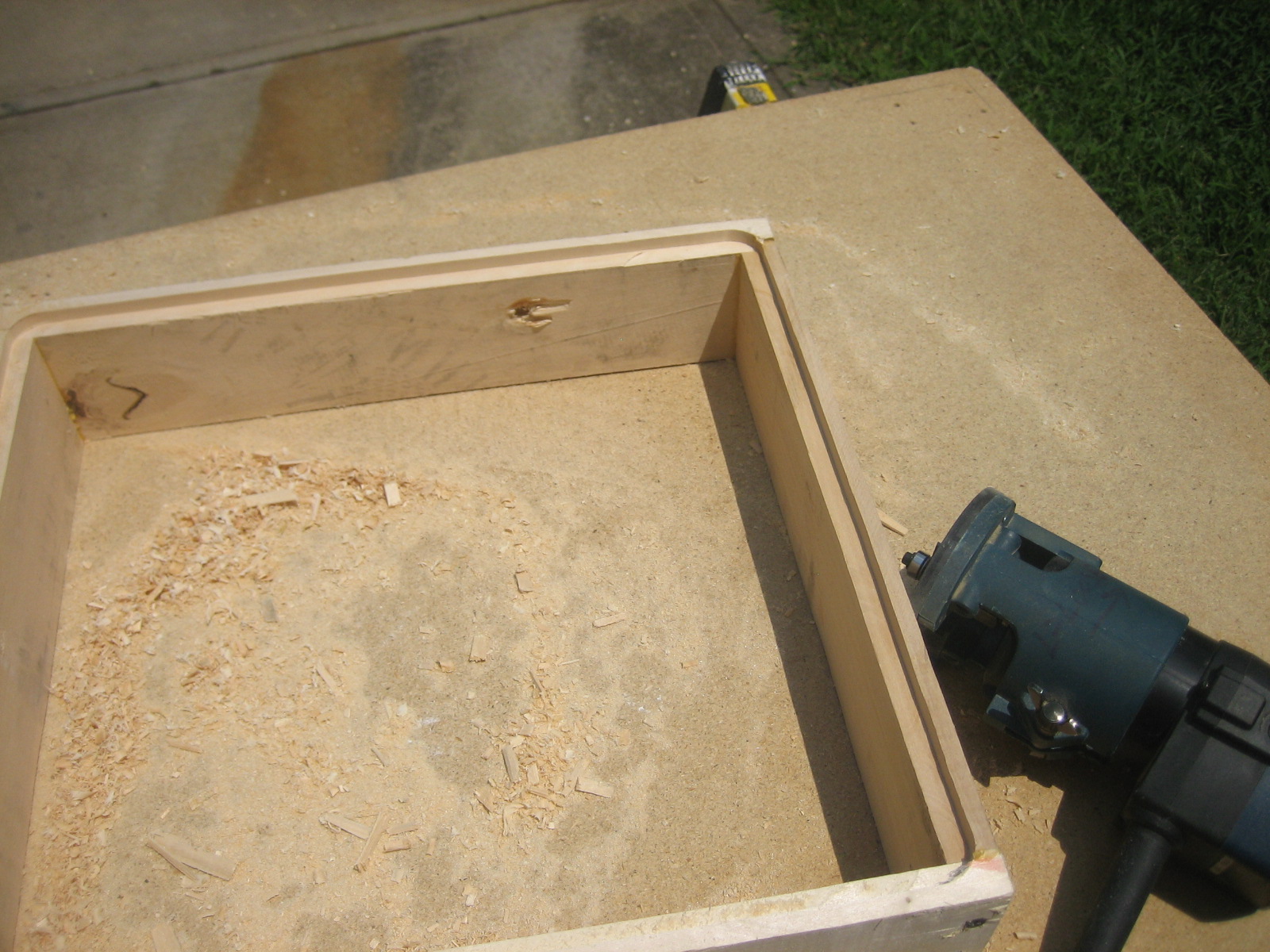

I assembled the drawer, found a piece of 1/4" in my lumber cart, routed a rabbet in the bottom of the drawer and installed the bottom with glue and screws. Notice, instead of squaring off the corners of the rabbet I simplified the fit by 45ing the corners of the bottom.
DRAWER FACE
![IMG_7644.JPG](/proxy/?url=https://content.instructables.com/FRA/SRFC/JJEK4ON8/FRASRFCJJEK4ON8.jpg&filename=IMG_7644.JPG)
![IMG_7646.JPG](/proxy/?url=https://content.instructables.com/FY6/LWM7/JJEK4ONA/FY6LWM7JJEK4ONA.jpg&filename=IMG_7646.JPG)
![IMG_7632-4.JPG](/proxy/?url=https://content.instructables.com/F4K/1Y94/JJEK4OMN/F4K1Y94JJEK4OMN.jpg&filename=IMG_7632-4.JPG)
![IMG_7632-5.JPG](/proxy/?url=https://content.instructables.com/FJI/V8Y6/JJEK4OMO/FJIV8Y6JJEK4OMO.jpg&filename=IMG_7632-5.JPG)
![IMG_7632-6.JPG](/proxy/?url=https://content.instructables.com/FWF/OIX7/JJEK4OMP/FWFOIX7JJEK4OMP.jpg&filename=IMG_7632-6.JPG)
![IMG_7645.JPG](/proxy/?url=https://content.instructables.com/FT0/NM35/JJEK4ON9/FT0NM35JJEK4ON9.jpg&filename=IMG_7645.JPG)

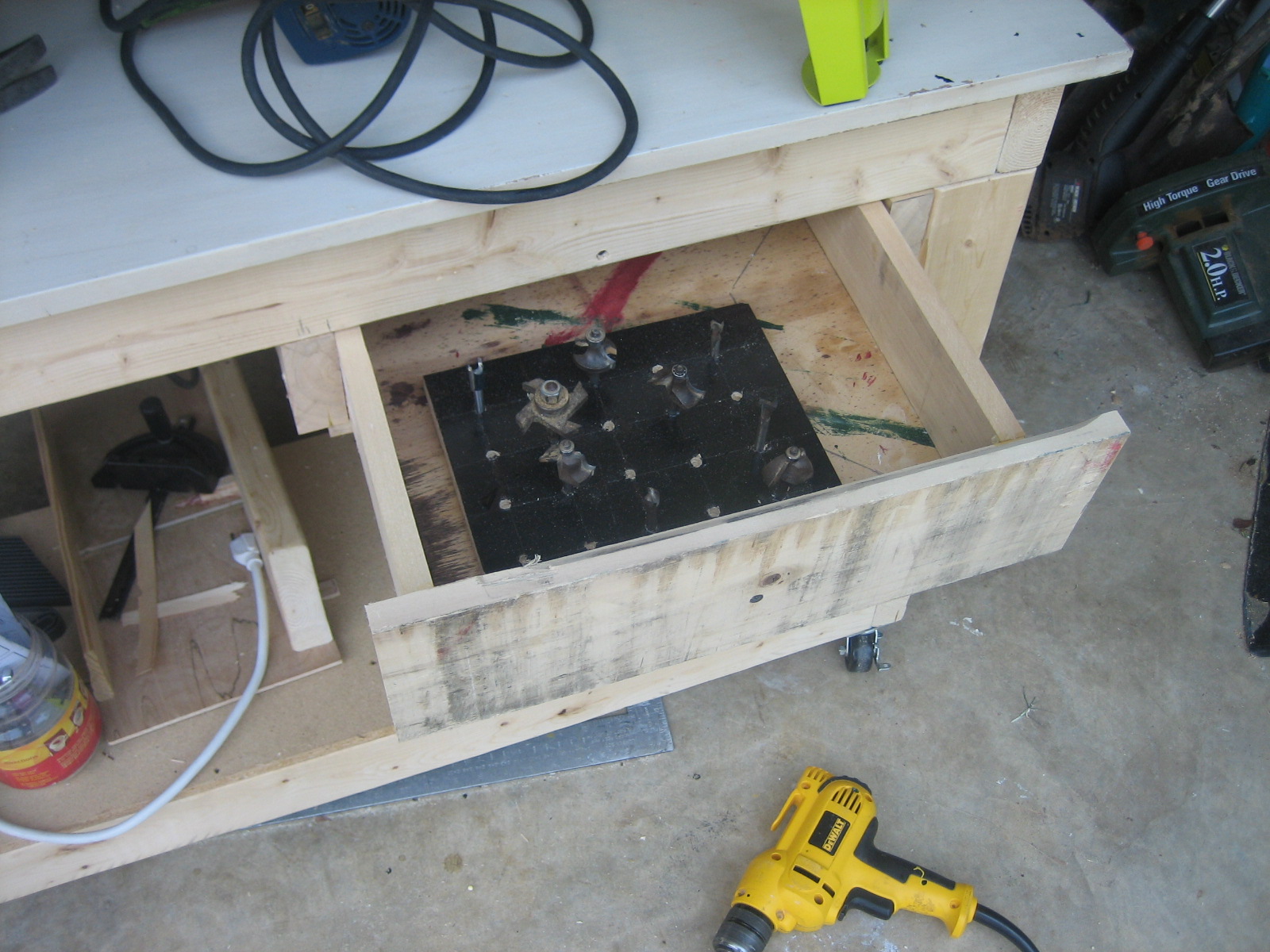

I selected a wider piece to act as the drawer face. Cut it to fit and glued and screwed it in place. Now I had a place for my router bits and small parts.
I MADE IT PRETTIER
![IMG_7647[1].JPG](/proxy/?url=https://content.instructables.com/FNP/U947/JJJ8AKL5/FNPU947JJJ8AKL5.jpg&filename=IMG_7647[1].JPG)
![LITTLE SHOP.png](/proxy/?url=https://content.instructables.com/FYU/L74M/JJ8U8ZVC/FYUL74MJJ8U8ZVC.png&filename=LITTLE SHOP.png)
OK, so I broke down and prettied it up a bit. I sanded the face and added a knob I had floating around the LITTLE SHOP OF JARFOLD.
Hope you enjoyed. Comments are always appreciated.
KJ
